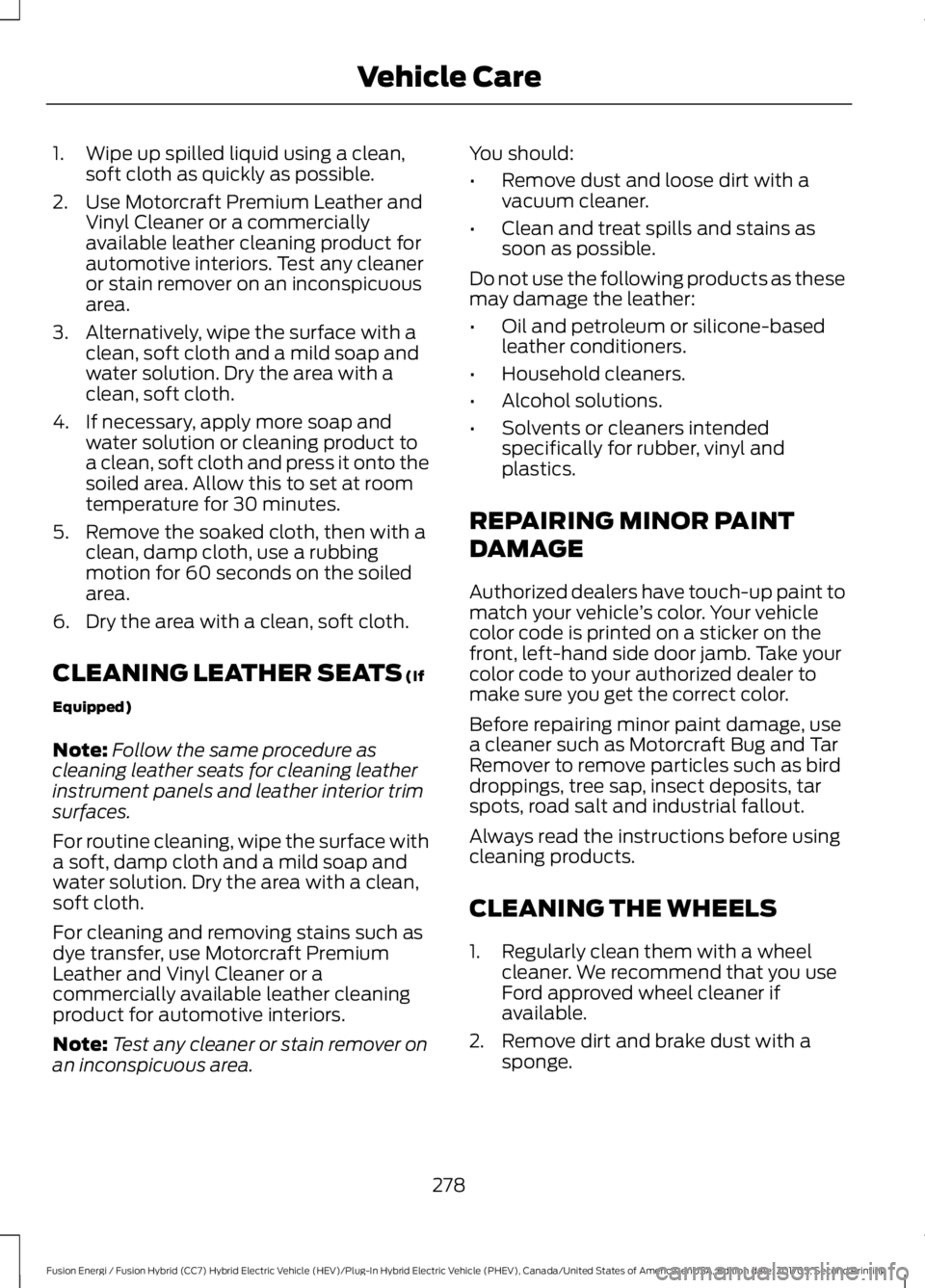

Page 281 of 538

FORD FUSION/HYBRID 2018  Owners Manual 1. Wipe up spilled liquid using a clean,
soft cloth as quickly as possible.
2. Use Motorcraft Premium Leather and Vinyl Cleaner or a commercially
available leather cleaning product for
automotive inte

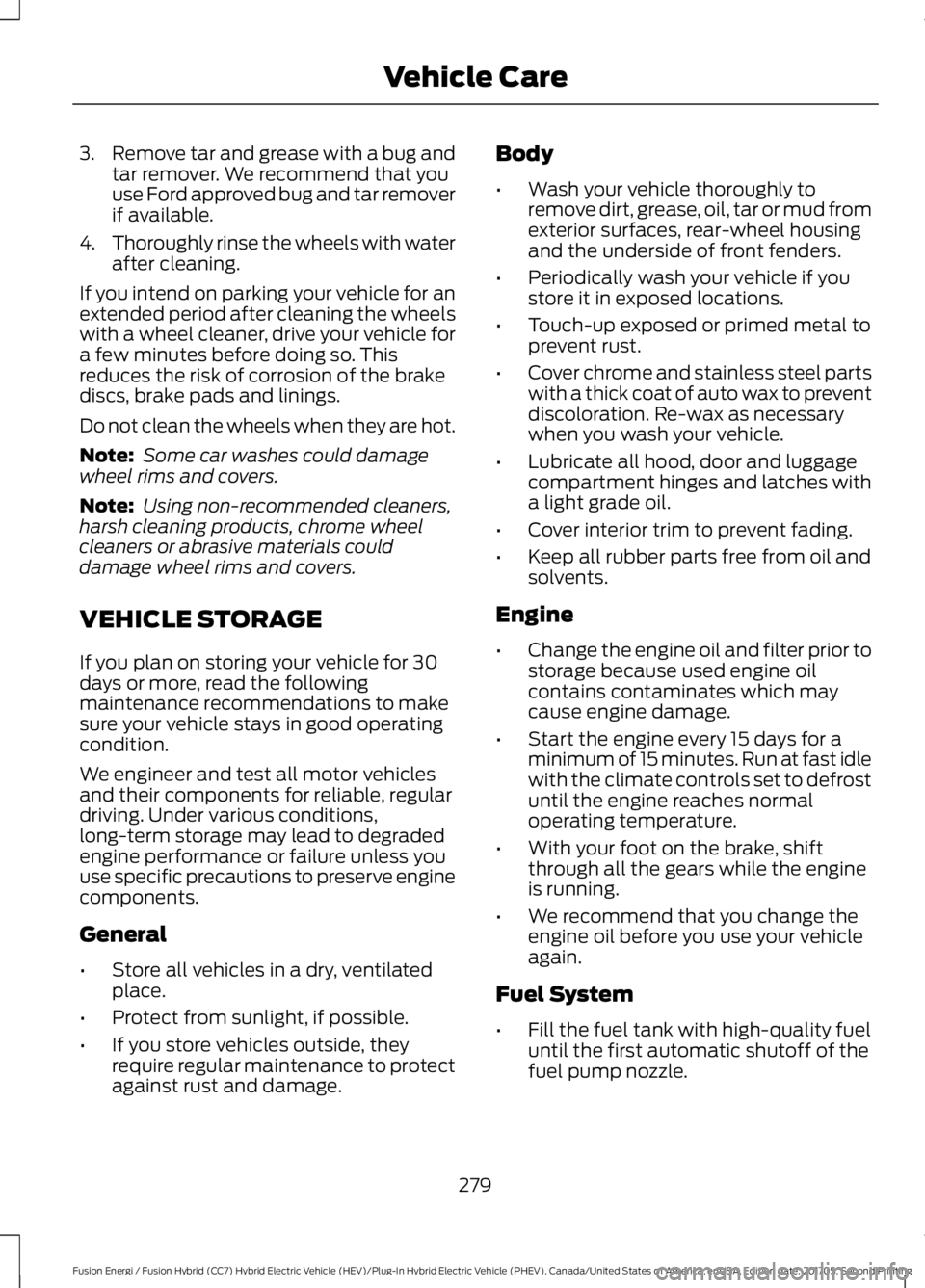

Page 282 of 538

FORD FUSION/HYBRID 2018  Owners Manual 3.
Remove tar and grease with a bug and
tar remover. We recommend that you
use Ford approved bug and tar remover
if available.
4. Thoroughly rinse the wheels with water
after cleaning.
If you intend o

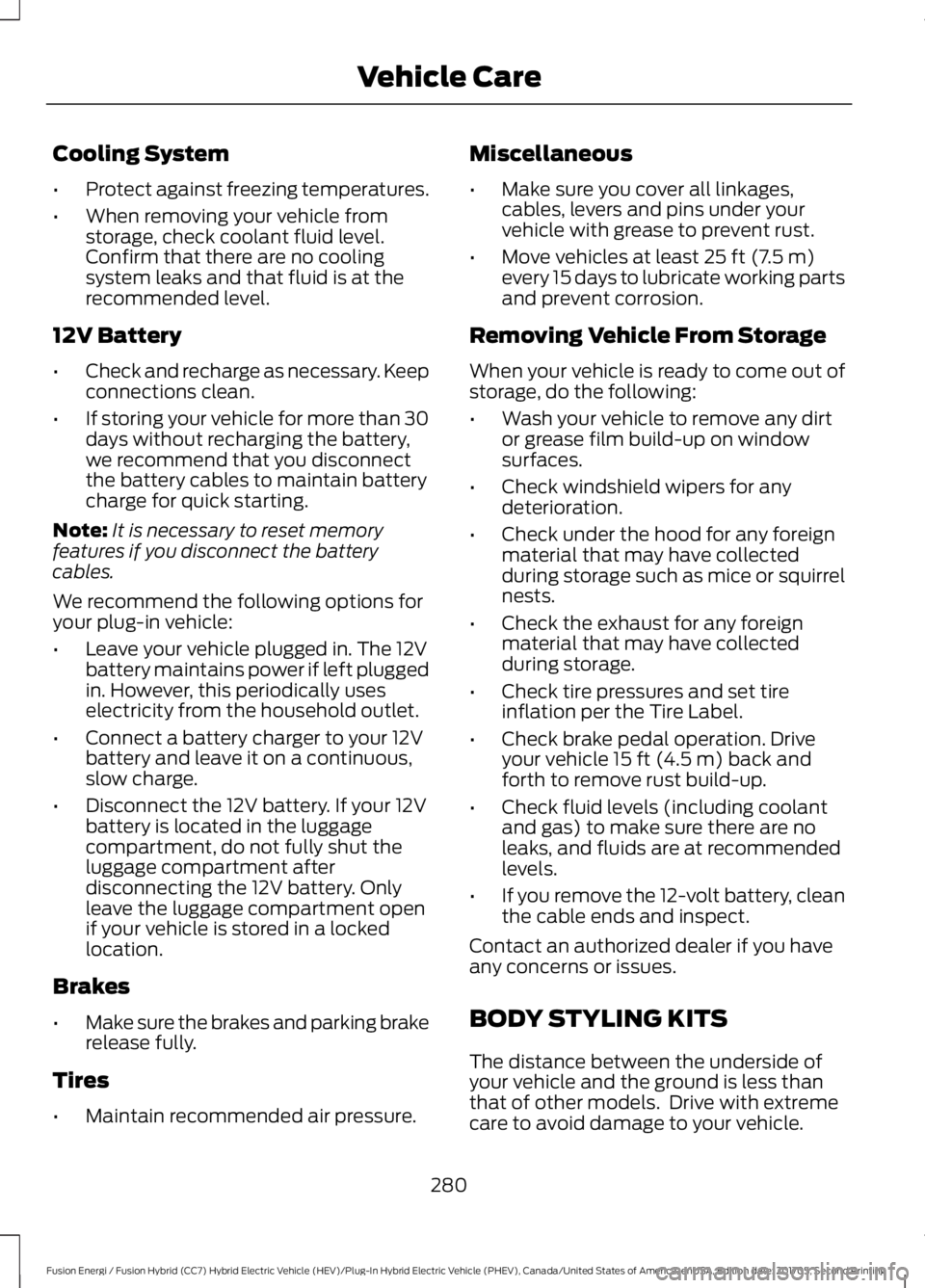

Page 283 of 538

FORD FUSION/HYBRID 2018  Owners Manual Cooling System
•
Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at th

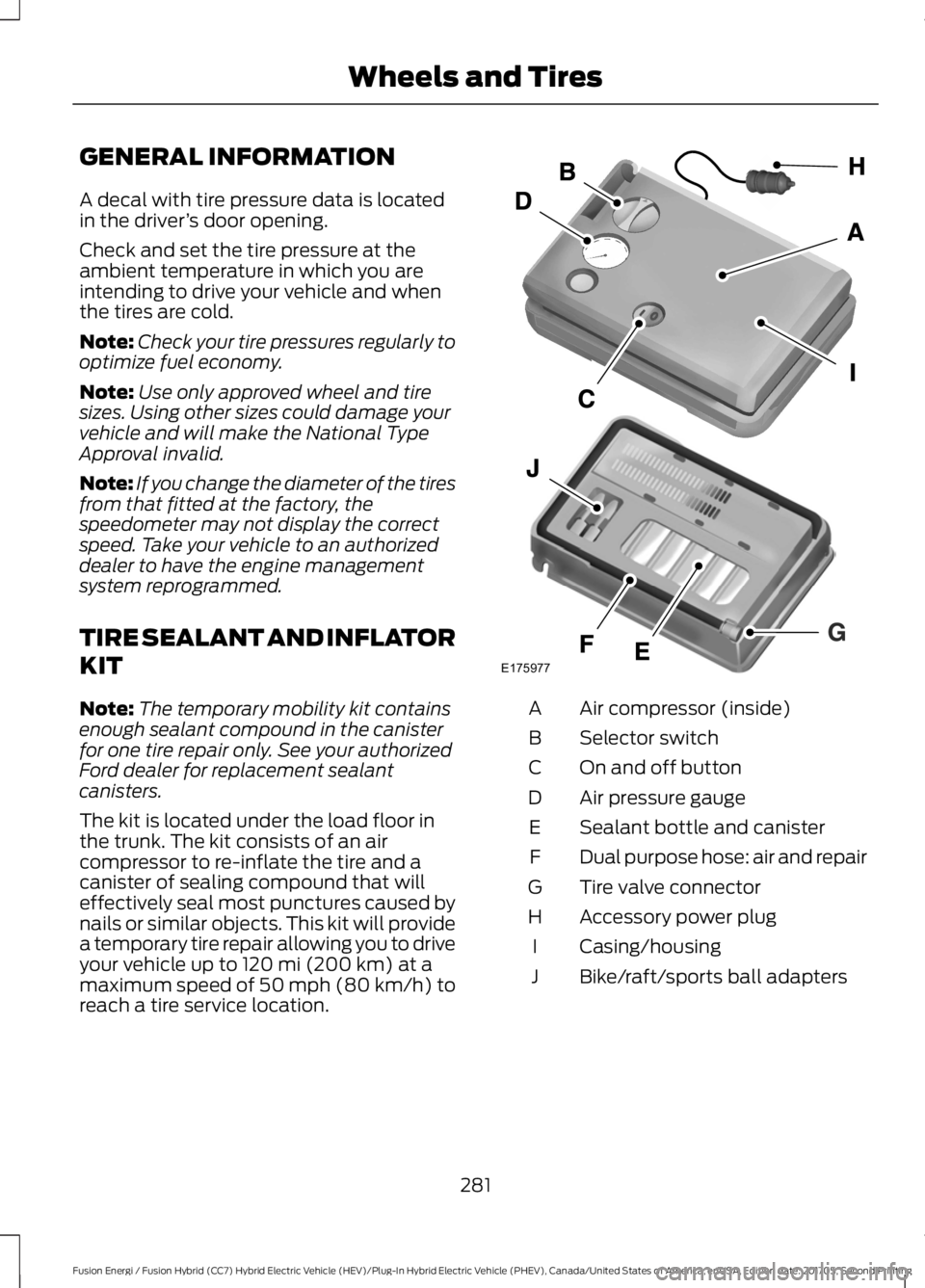

Page 284 of 538

FORD FUSION/HYBRID 2018  Owners Manual GENERAL INFORMATION
A decal with tire pressure data is located
in the driver
’s door opening.
Check and set the tire pressure at the
ambient temperature in which you are
intending to drive your vehi

Page 285 of 538

FORD FUSION/HYBRID 2018  Owners Manual General Information
WARNING
Failure to follow these guidelines
could result in an increased risk of
loss of vehicle control, injury or death.
Note:
Do not use the kit if a tire has become
severely dam

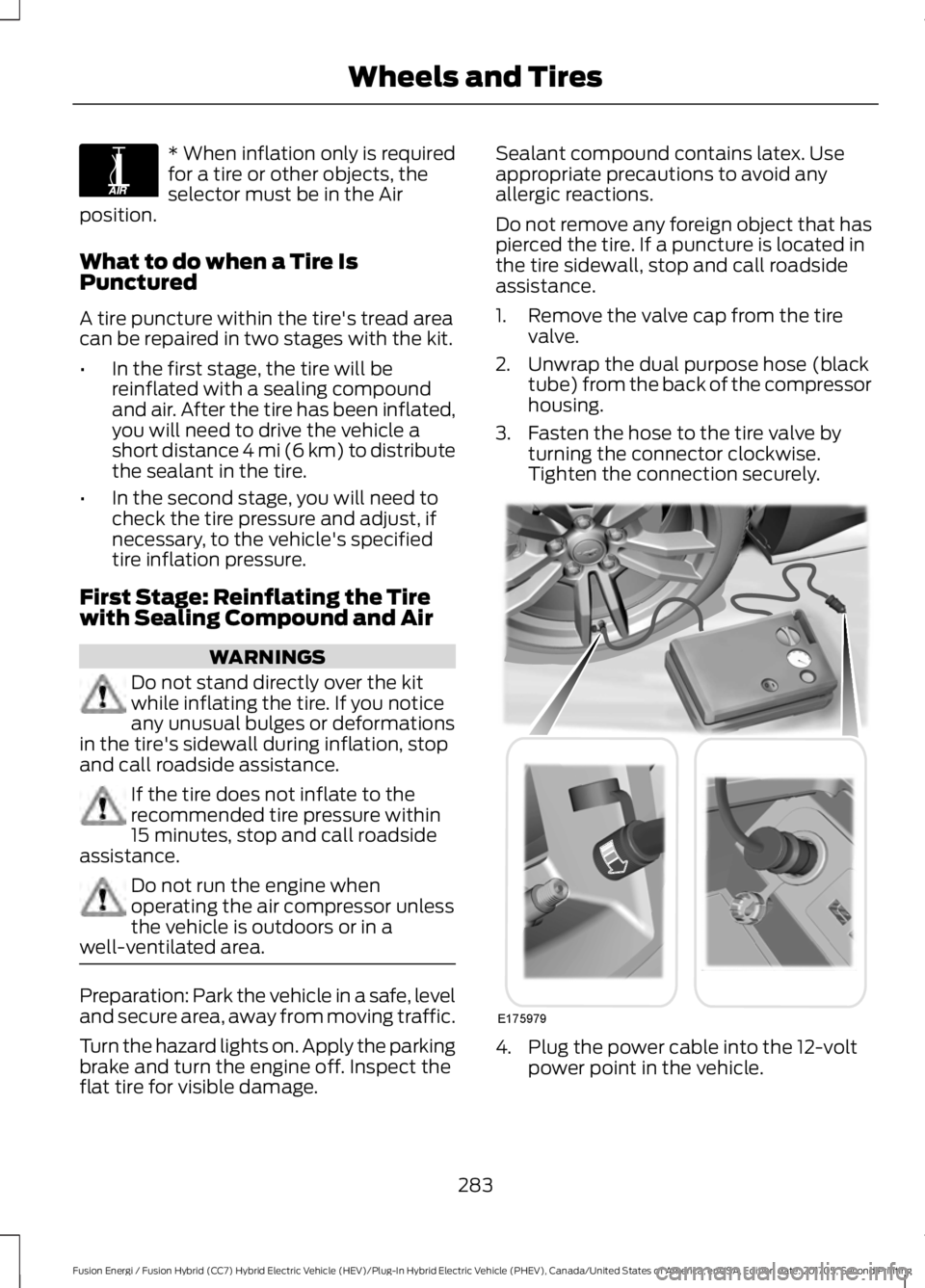

Page 286 of 538

FORD FUSION/HYBRID 2018  Owners Manual * When inflation only is required
for a tire or other objects, the
selector must be in the Air
position.
What to do when a Tire Is
Punctured
A tire puncture within the tire's tread area
can be rep

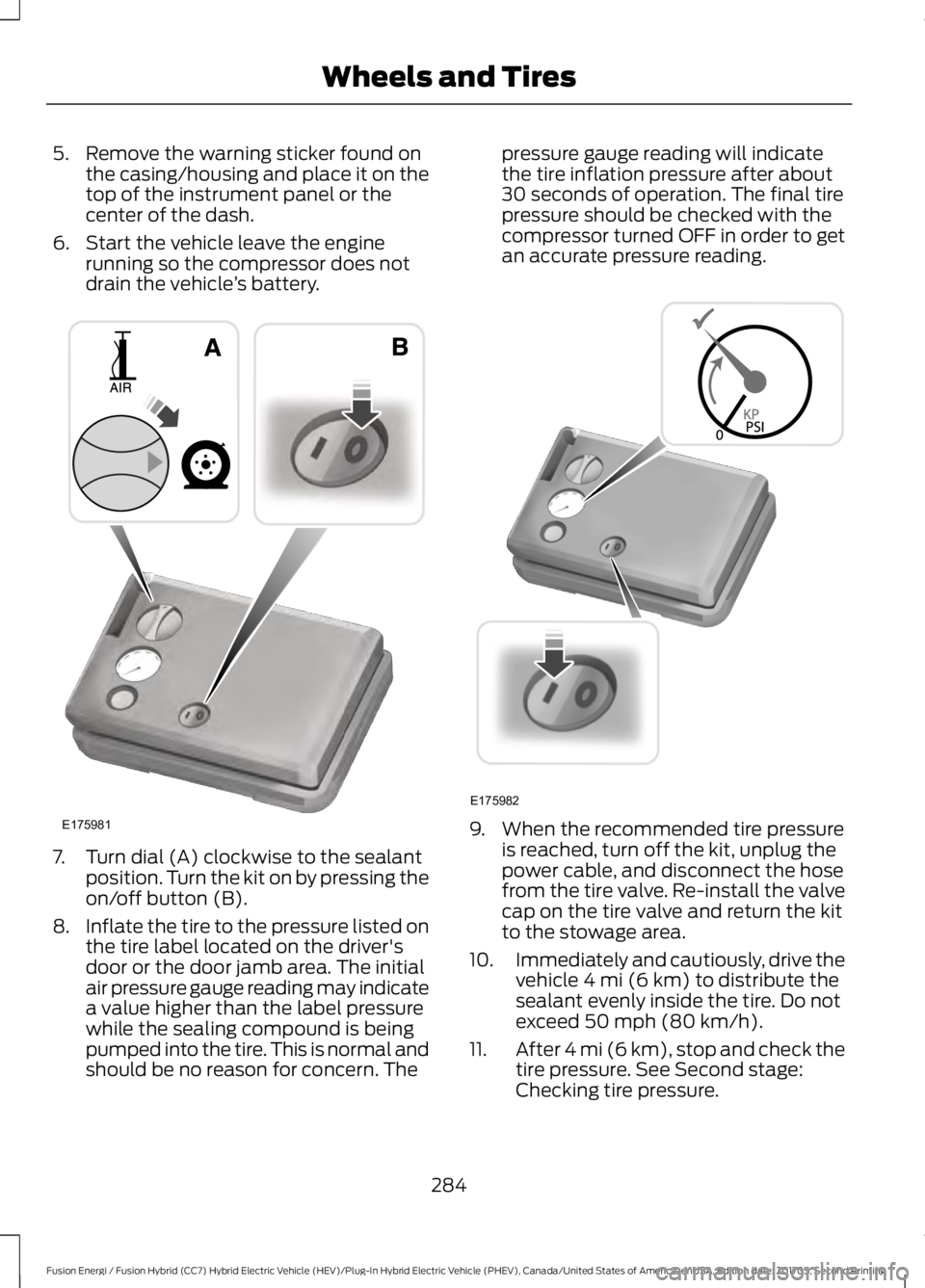

Page 287 of 538

FORD FUSION/HYBRID 2018  Owners Manual 5. Remove the warning sticker found on
the casing/housing and place it on the
top of the instrument panel or the
center of the dash.
6. Start the vehicle leave the engine running so the compressor doe

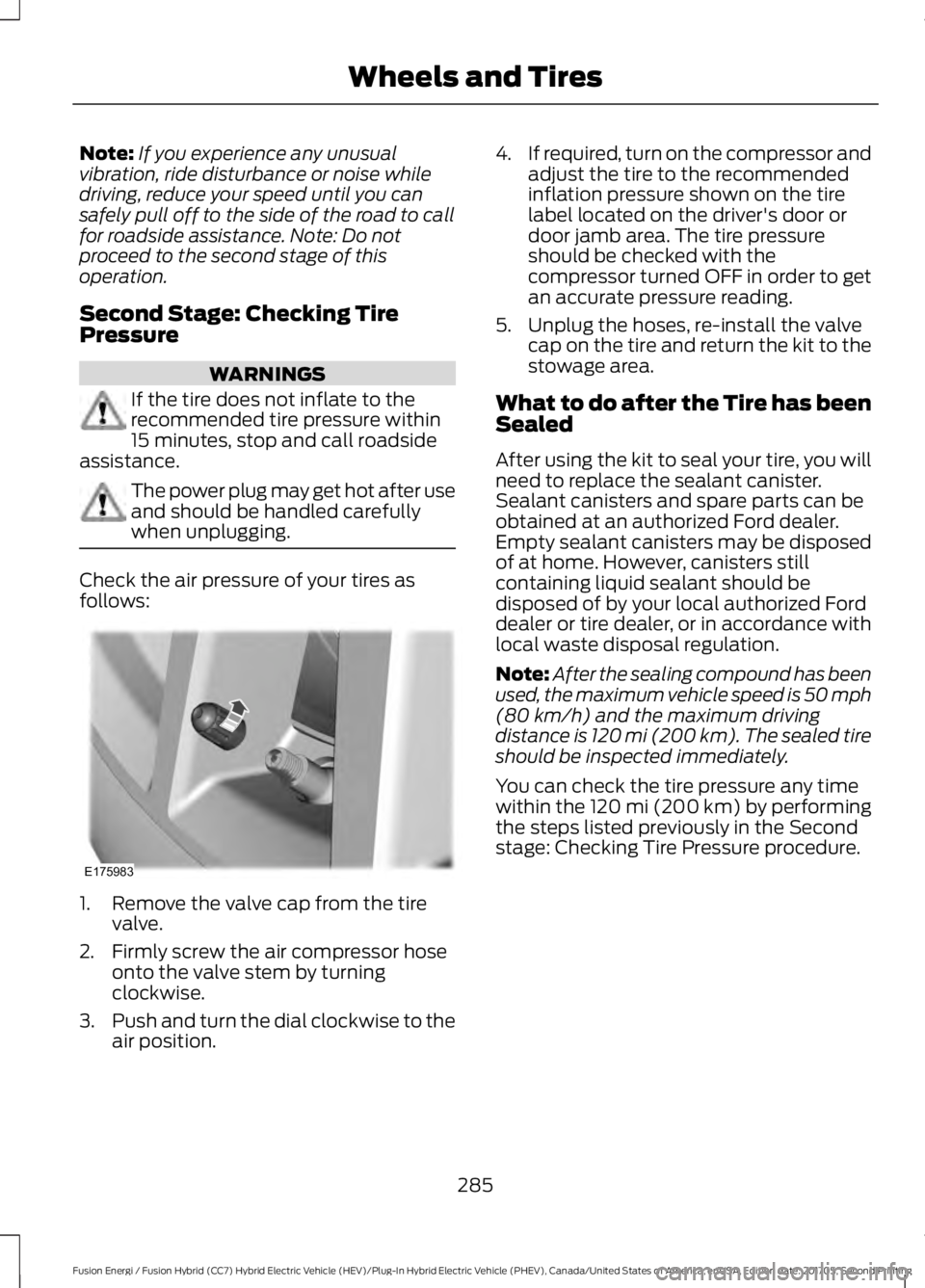

Page 288 of 538

FORD FUSION/HYBRID 2018  Owners Manual Note:
If you experience any unusual
vibration, ride disturbance or noise while
driving, reduce your speed until you can
safely pull off to the side of the road to call
for roadside assistance. Note: D

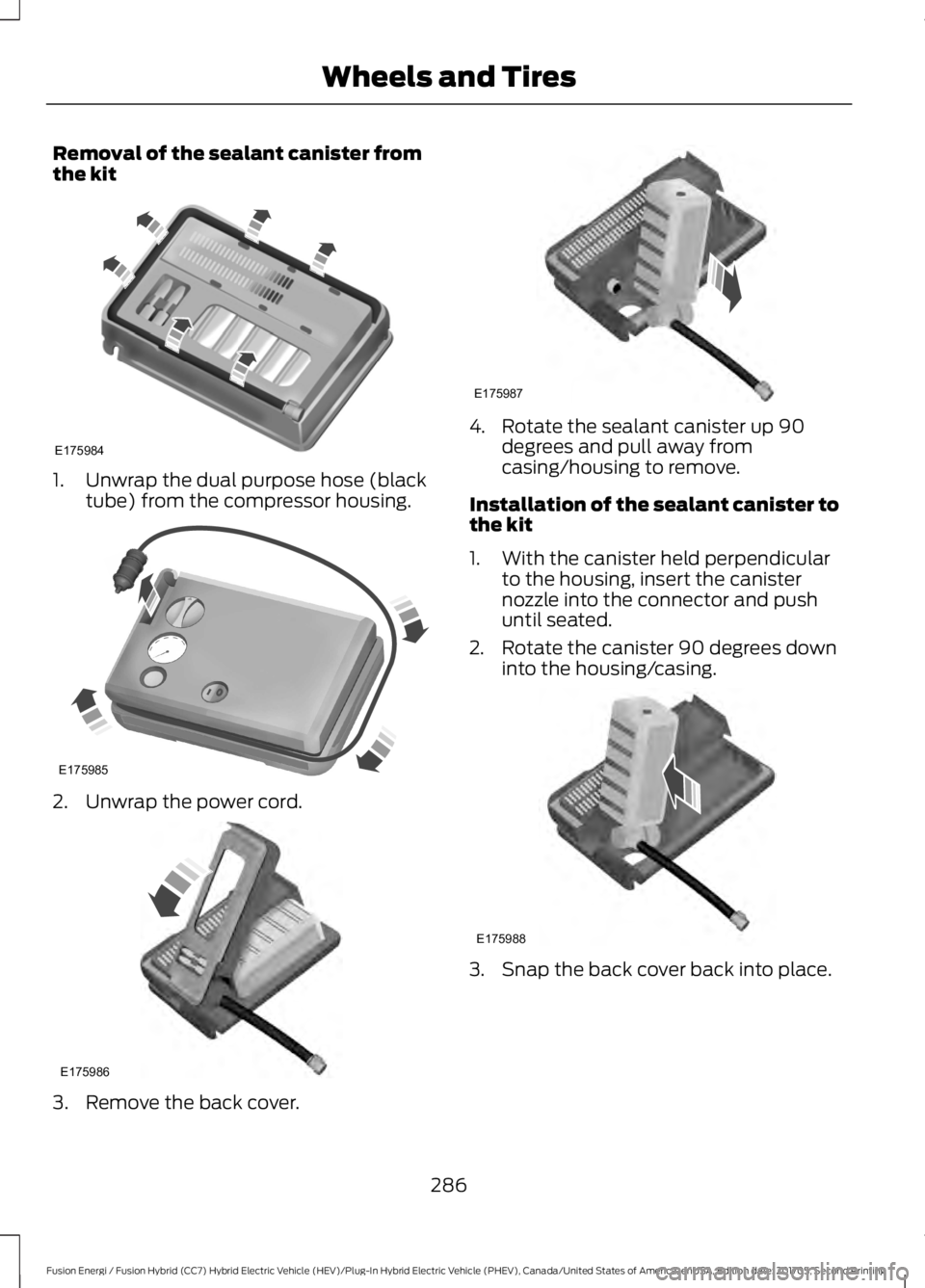

Page 289 of 538

FORD FUSION/HYBRID 2018  Owners Manual Removal of the sealant canister from
the kit
1. Unwrap the dual purpose hose (black
tube) from the compressor housing. 2. Unwrap the power cord.
3. Remove the back cover. 4. Rotate the sealant caniste

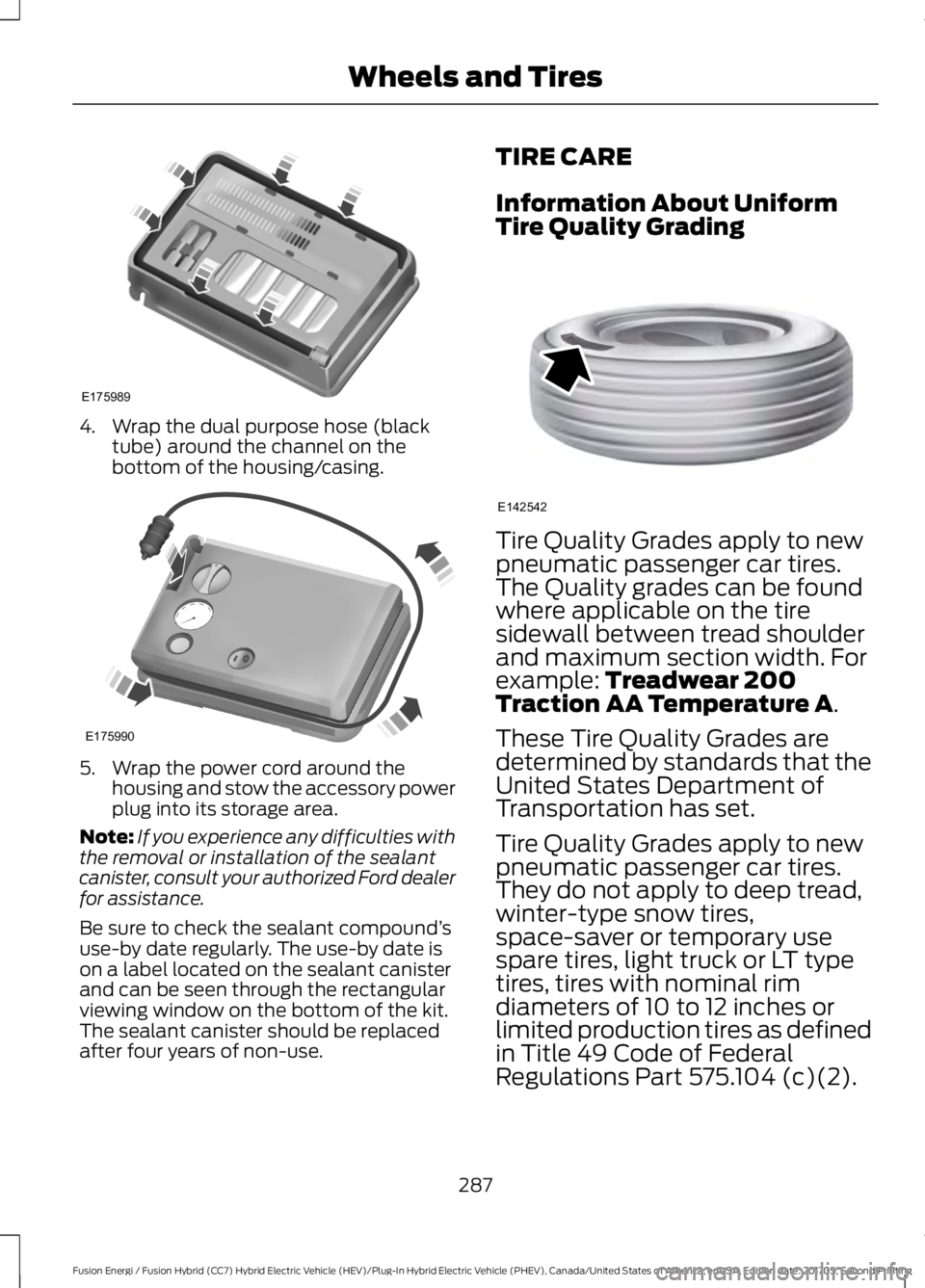

Page 290 of 538

FORD FUSION/HYBRID 2018  Owners Manual 4. Wrap the dual purpose hose (black
tube) around the channel on the
bottom of the housing/casing. 5. Wrap the power cord around the
housing and stow the accessory power
plug into its storage area.
No
