Cleaning the Exterior
..................................275
Waxing .............................................................
277
Cleaning the Engine ....................................
277
Cleaning the Windows and Wiper Blades ........................................................................\
.
277
Cleaning the Interior ..................................
278
Cleaning the Instrument Panel and Instrument Cluster Lens .......................
278
Cleaning Leather Seats .............................
279
Repairing Minor Paint Damage .............
280
Cleaning the Wheels .................................
280
Vehicle Storage ...........................................
280
Body Styling Kits .........................................
282
Wheels and Tires
General Information ..................................
283
Tire Sealant and Inflator Kit ...................
283
Tire Care .........................................................
289
Using Summer Tires ..................................
304
Using Snow Chains ...................................
304
Tire Pressure Monitoring System .........
305
Technical Specifications .........................
309
Capacities and Specifications
Engine Specifications ................................
310
Motorcraft Parts ............................................
311
Vehicle Identification Number .................
311
Vehicle Certification Label .......................
312
Transmission Code Designation ............
313
Capacities and Specifications ................
314
Bulb Specification Chart ..........................
319
Connected Vehicle
Connected Vehicle Requirements .........
321
Connected Vehicle Limitations ...............
321
Connecting the Vehicle to a Mobile Network .......................................................
321
Connecting the Vehicle to a Wi-Fi Network .......................................................
321Connected Vehicle – Troubleshooting
........................................................................\
322
Wi-Fi Hotspot
Creating a Wi-Fi Hotspot .........................
324
Changing the Wi-Fi Hotspot Name or Password ...................................................
324
Audio System
General Information ..................................
325
Audio Unit - Vehicles With: Touchscreen Display, Vehicles Without: Sony Audio
System ........................................................
325
Audio Unit - Vehicles With: SYNC ........
326
Audio Unit - Vehicles With: Sony Audio System/Touchscreen Display ............
329
Digital Radio .................................................
330
Satellite Radio ..............................................
332
USB Port .........................................................
335
SYNC™
General Information ..................................
336
Using Voice Recognition ...........................
337
Using SYNC™ With Your Phone ...........
339
SYNC™ Applications and Services ......
340
Using SYNC™ With Your Media Player ........................................................................\
343
SYNC™ Troubleshooting ........................
344
SYNC™ 3
General Information ..................................
353
Using Voice Recognition ..........................
355
Entertainment ..............................................
361
Climate .............................................................
371
Phone ..............................................................
373
Navigation ......................................................
375
Electric Vehicle Information ...................
380
Apps ................................................................
400
Settings ..........................................................
403
SYNC™ 3 Troubleshooting ....................
405
5
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Table of Contents

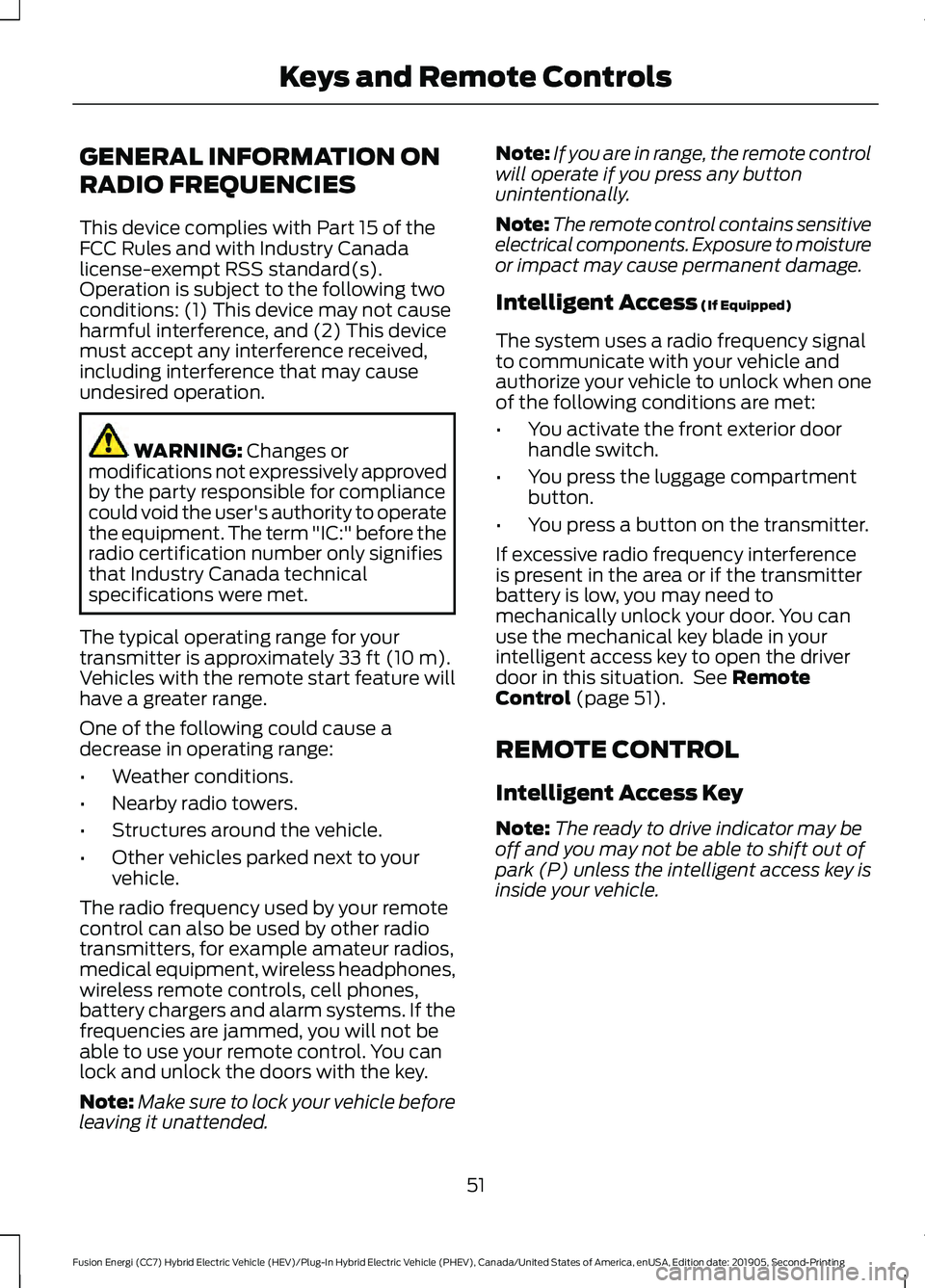

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.
One of the following could cause a
decrease in operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended. Note:
If you are in range, the remote control
will operate if you press any button
unintentionally.
Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 51).
REMOTE CONTROL
Intelligent Access Key
Note: The ready to drive indicator may be
off and you may not be able to shift out of
park (P) unless the intelligent access key is
inside your vehicle.
51
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Keys and Remote Controls

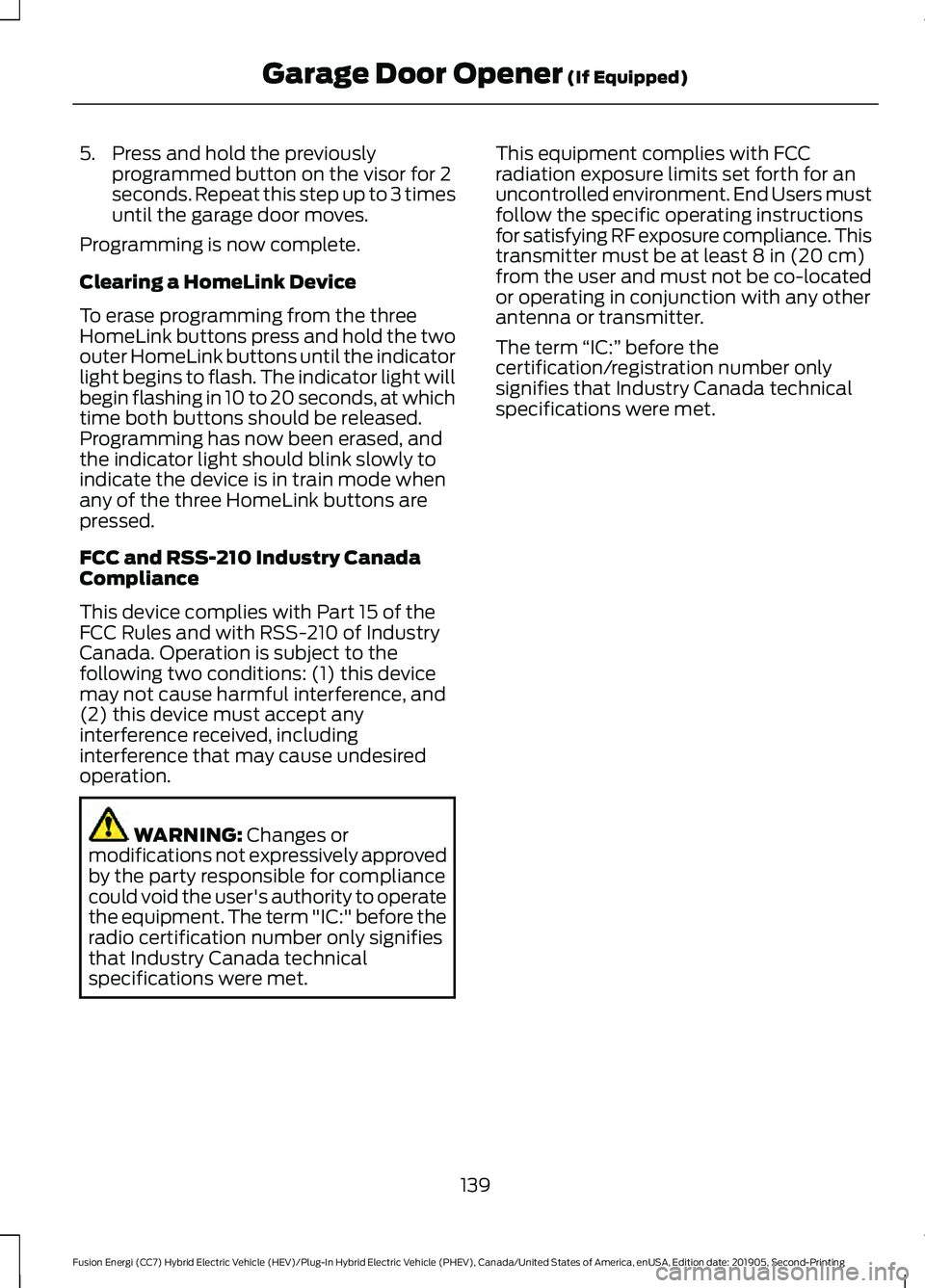

5. Press and hold the previously
programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.
Programming is now complete.
Clearing a HomeLink Device
To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and
the indicator light should blink slowly to
indicate the device is in train mode when
any of the three HomeLink buttons are
pressed.
FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met. This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least
8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.
The term “IC:” before the
certification/registration number only
signifies that Industry Canada technical
specifications were met.
139
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Garage Door Opener
(If Equipped)

This device complies with Part 15 of the
FCC Rules and with License exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
1. This device will not cause harmful
interference, and
2. This device must accept any interference received, including
interference that could cause
undesired operation.
Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
Changing Tires With a Tire
Pressure Monitoring System Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.
You should always have your tires serviced
by an authorized dealer. Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See When Inflating Your Tires in
this chapter.
Understanding Your Tire Pressure
Monitoring System The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to your
vehicle. You can view the tire pressure
readings through the information display.
See
General Information (page 96). The
low tire pressure warning light will turn on
if the tire pressure is significantly low. Once
the light is illuminated, your tires are
under-inflated and need to be inflated to
the manufacturer ’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.
When Your Temporary Spare Tire is
Installed
When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road wheel
and tire assembly needs to be repaired and
put back on your vehicle.
306
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and TiresE142549 E250820

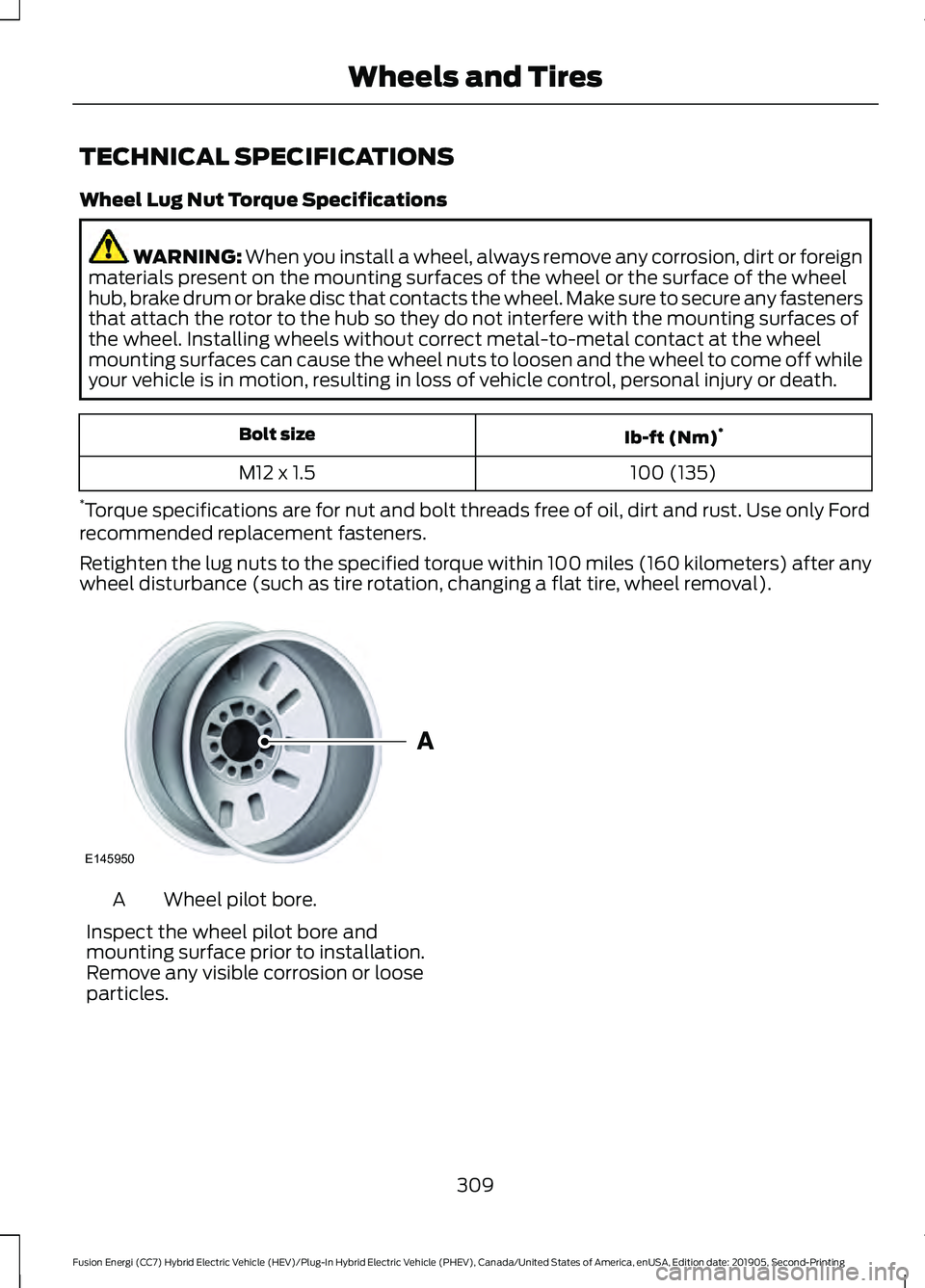

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of oil, dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore.
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
309
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Wheels and TiresE145950

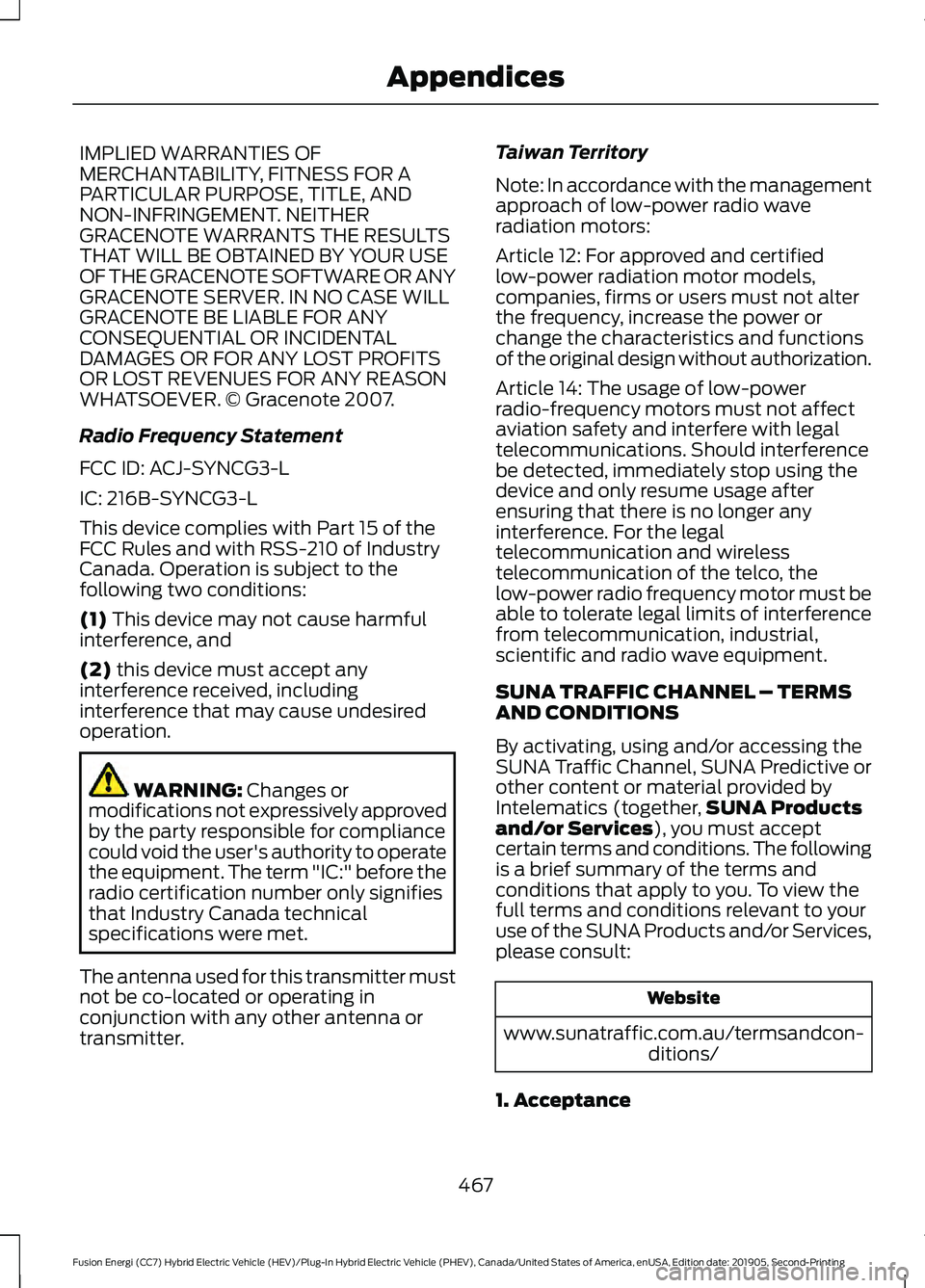

IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
Radio Frequency Statement
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. Taiwan Territory
Note: In accordance with the management
approach of low-power radio wave
radiation motors:
Article 12: For approved and certified
low-power radiation motor models,
companies, firms or users must not alter
the frequency, increase the power or
change the characteristics and functions
of the original design without authorization.
Article 14: The usage of low-power
radio-frequency motors must not affect
aviation safety and interfere with legal
telecommunications. Should interference
be detected, immediately stop using the
device and only resume usage after
ensuring that there is no longer any
interference. For the legal
telecommunication and wireless
telecommunication of the telco, the
low-power radio frequency motor must be
able to tolerate legal limits of interference
from telecommunication, industrial,
scientific and radio wave equipment.
SUNA TRAFFIC CHANNEL – TERMS
AND CONDITIONS
By activating, using and/or accessing the
SUNA Traffic Channel, SUNA Predictive or
other content or material provided by
Intelematics (together,
SUNA Products
and/or Services
), you must accept
certain terms and conditions. The following
is a brief summary of the terms and
conditions that apply to you. To view the
full terms and conditions relevant to your
use of the SUNA Products and/or Services,
please consult: Website
www.sunatraffic.com.au/termsandcon- ditions/
1. Acceptance
467
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Appendices

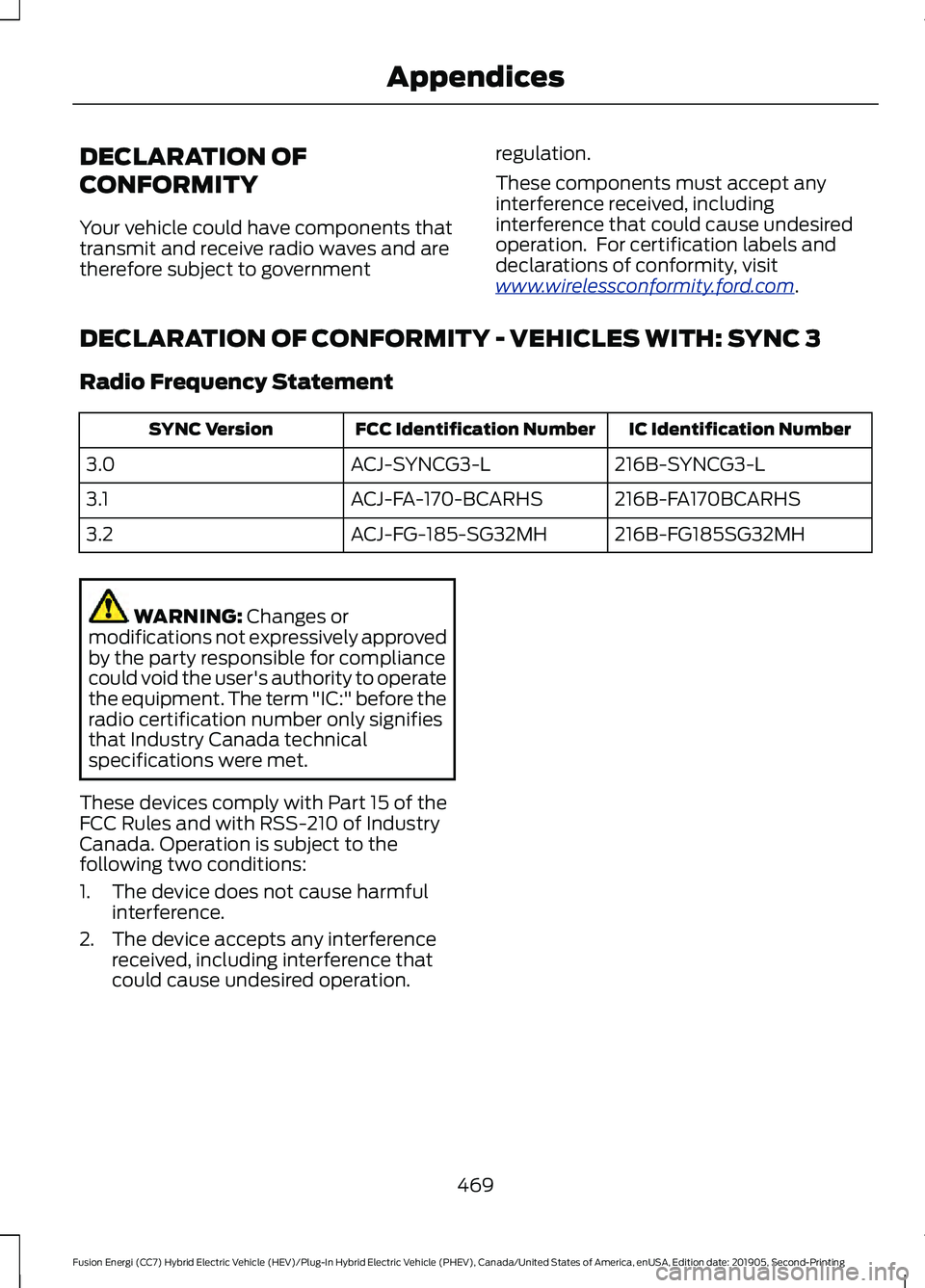

DECLARATION OF
CONFORMITY
Your vehicle could have components that
transmit and receive radio waves and are
therefore subject to government
regulation.
These components must accept any
interference received, including
interference that could cause undesired
operation. For certification labels and
declarations of conformity, visit
www . wir el e ss c onf ormit y .f or d . c om .
DECLARATION OF CONFORMITY - VEHICLES WITH: SYNC 3
Radio Frequency Statement IC Identification Number
FCC Identification Number
SYNC Version
216B-SYNCG3-L
ACJ-SYNCG3-L
3.0
216B-FA170BCARHS
ACJ-FA-170-BCARHS
3.1
216B-FG185SG32MH
ACJ-FG-185-SG32MH
3.2 WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
These devices comply with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
1. The device does not cause harmful interference.
2. The device accepts any interference received, including interference that
could cause undesired operation.
469
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Appendices

SYNC™ 3 Troubleshooting.....................405
Additional Information and
Assistance......................................................... 417
Apps........................................................................\
. 412
Navigation.............................................................. 411
Personal Profiles................................................. 415
Phone.................................................................... 409
Resetting the System........................................ 417
USB and Bluetooth Audio............................. 406
Voice Recognition............................................. 405
Wi-Fi Connectivity.............................................. 414
SYNC™ Applications and Services........................................................340
911 Assist.............................................................. 340
SYNC Mobile Apps............................................ 342
SYNC™...........................................................336 General Information......................................... 336
SYNC™ Troubleshooting.........................344
T
Technical Specifications See: Capacities and Specifications.............310
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................239
Tire Care
..........................................................289
Glossary of Tire Terminology.......................... 291
Information About Uniform Tire Quality Grading............................................................. 289
Information Contained on the Tire Sidewall............................................................ 292
Temperature A B C............................................ 290
Traction AA A B C.............................................. 290
Treadwear............................................................ 290
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................283
Tire Pressure Monitoring System..........305 Changing Tires With a Tire Pressure
Monitoring System...................................... 306
Understanding Your Tire Pressure Monitoring System ..................................... 306
Tire Repair Kit See: Tire Sealant and Inflator Kit.................283
Tire Sealant and Inflator Kit
....................283
First Stage: Reinflating the Tire with Sealing
Compound and Air....................................... 285
General Information......................................... 284Second Stage: Checking Tire
Pressure............................................................ 287
Tips for Use of the Kit...................................... 284
What to do after the Tire has been Sealed............................................................... 287
What to do when a Tire Is Punctured........285
Tires See: Wheels and Tires..................................... 283
Towing a Trailer
............................................226
Towing the Vehicle on Four Wheels..........................................................226
Emergency Towing............................................ 226
Recreational Towing......................................... 226
Towing..............................................................226
Traction Control
.............................................181
Principle of Operation........................................ 181
Transmission Code Designation.............313
Transmission...................................................173
Transporting the Vehicle...........................236
U
Under Hood Overview................................257
Unique Driving Characteristics................148
Universal Garage Door Opener...............135 HomeLink Wireless Control System............135
USB Port
.........................................................335
Using Adaptive Cruise Control...............200
Automatic Cancellation.................................. 203
Blocked Sensor.................................................. 205
Canceling the Set Speed................................ 203
Changing the Set Speed................................. 203
Detection Issues................................................ 204
Following a Vehicle............................................ 201
Following a Vehicle to a Complete Stop................................................................... 202
Hilly Condition Usage...................................... 204
Overriding the Set Speed............................... 203
Park Brake Application.................................... 204
Resuming the Set Speed................................ 203
Setting the Adaptive Cruise Speed.............201
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary........................... 201
Setting the Gap Distance............................... 202
Switching Adaptive Cruise Control Off...................................................................... 204
Switching Adaptive Cruise Control On........................................................................\
201
481
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Stability Control....................................................
95
Stability Control Off............................................ 95
Stop Safely............................................................. 95
Trunk Ajar................................................................ 95
Vehicle Plugged in................................................ 95
Washer Fluid Check....................................268
Washers See: Cleaning the Exterior............................... 275
See: Wipers and Washers.................................. 74
Waxing
..............................................................277
What Is Automatic High Beam Control.............................................................81
What Is Cruise Control...............................199
Wheels and Tires
.........................................283
General Information......................................... 283
Technical Specifications................................ 309
Wi-Fi Hotspot
................................................324
Windows and Mirrors....................................83
Windshield Washers......................................75 Front Camera Washer......................................... 75
Windshield Wipers.........................................74 Intermittent Wipe................................................. 74
Speed Dependent Wipers................................. 74
Wiper Blades See: Checking the Wiper Blades.................269
Wipers and Washers.....................................74
483
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
