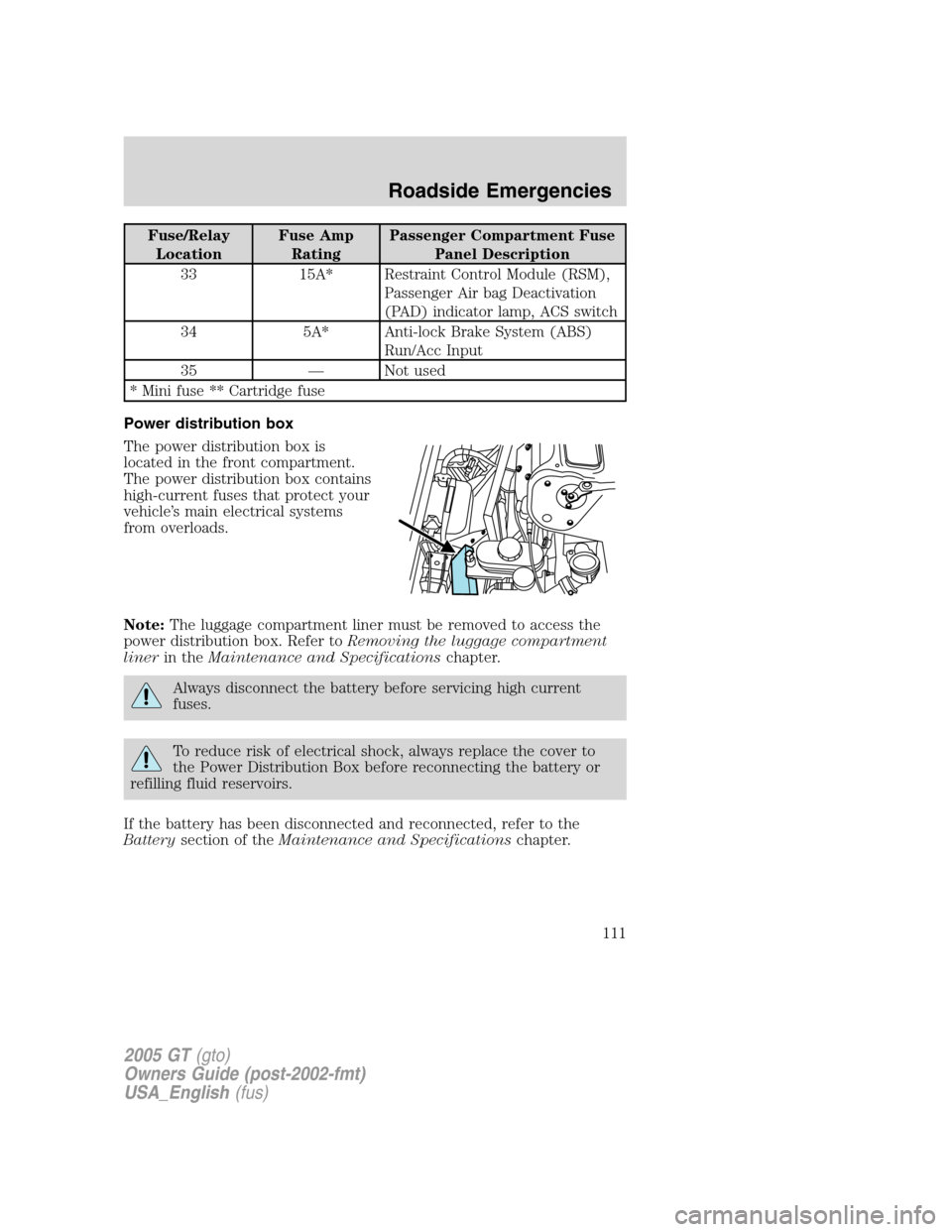

Page 111 of 200
Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse
Panel Description
33 15A* Restraint Control Module (RSM), Passenger Air bag Deactivation
(PAD) indicator lamp, ACS switch
34 5A* Anti-lock Brake System (ABS) Run/Acc Input
35 —Not used
* Mini fuse ** Cartridge fuse
Power distribution box
The power distribution box is
located in the front compartment.
The power distribution box contains
high-current fuses that protect your
vehicle ’s main electrical systems
from overloads.
Note: The luggage compartment liner must be removed to access the
power distribution box. Refer to Removing the luggage compartment
liner in the Maintenance and Specifications chapter.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Roadside Emergencies
111
Page 112 of 200
The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
1 40A** SJB (Instrument panel fuse panel)
2 40A** SJB (Instrument panel fuse panel)
3 30A** SJB (Instrument panel fuse panel)
4 40A** Anti-lock Brakes System (ABS) motor
5 30A** Blower motor
6 30A** Rear defroster, Park lamp fuse
7 40A** Powertrain Control Module (PCM) power fuse, Heated Exhaust Gas
Oxygen (HEGO) sensor fuse
8 40A** Cooling fan (High-speed fan #2)
9 40A** Cooling fan (High-speed fan #1)
10 40A** Cooling fan (Low-speed fan)
11 30A** Starter solenoid, Ignition switch, SJB (Instrument panel fuse panel)
Run/Start power
12 30A** Subwoofer (McIntosh audio only)
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
112
Page 113 of 200
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
13 30A** Primary Fuel Pump Delivery Module (FPDM), Secondary Fuel
Pump Delivery Module (FPDM)
14 30A** Intercooler pump
15 20A* Alternator field circuit
16 5A* EEC keep alive power
17 25A* Lighting (Left headlamp)
18 25A* Lighting (Right headlamp)
19 20A* Fog lamps
20 20A* Anti-lock Brake System (ABS) module
21 10A* A/C clutch coil
22 20A* Power point
23 Full ISO relay High-speed fan #2
24 Full ISO relay Low-speed fan
25 Full ISO relay PCM
26 Full ISO relay High-speed fan #1
27 20A* Injector
28 15A* HEGO sensors
29 15A* PCM power: PCM, Mass Air Flows (MAF) sensor/IAT sensor, BFIM,
VMV, CVS, SCBS, Exhaust Gas
Recirculation (EGR) valve, Idle
Air Control (IAC)
30
1⁄2ISO relay Supercharger intercooler
31
1⁄2ISO relay Right headlamp
32
1⁄2ISO relay Left headlamp
* Mini fuse **Cartridge fuse
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
113
Page 114 of 200
Auxiliary relay box
The relay box is located in the front of the vehicle under the hood.
Fuse/Relaylocation Fuse amp
rating Auxiliary Relay Box Description
1 Mini resistor Anti- lock Brakes System (ABS)
2 15A* Primary Fuel Pump Delivery Module (FPDM)
3 15A* Secondary Fuel Pump Delivery Module (FPDM)
4 Mini relay Starter
5 Micro relay Air conditioning
6 Micro relay Fog lamp
7 Micro relay Accessory cut-out
8 Micro relay Fuel pump #2
9 Micro relay Fuel pump #1
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
114

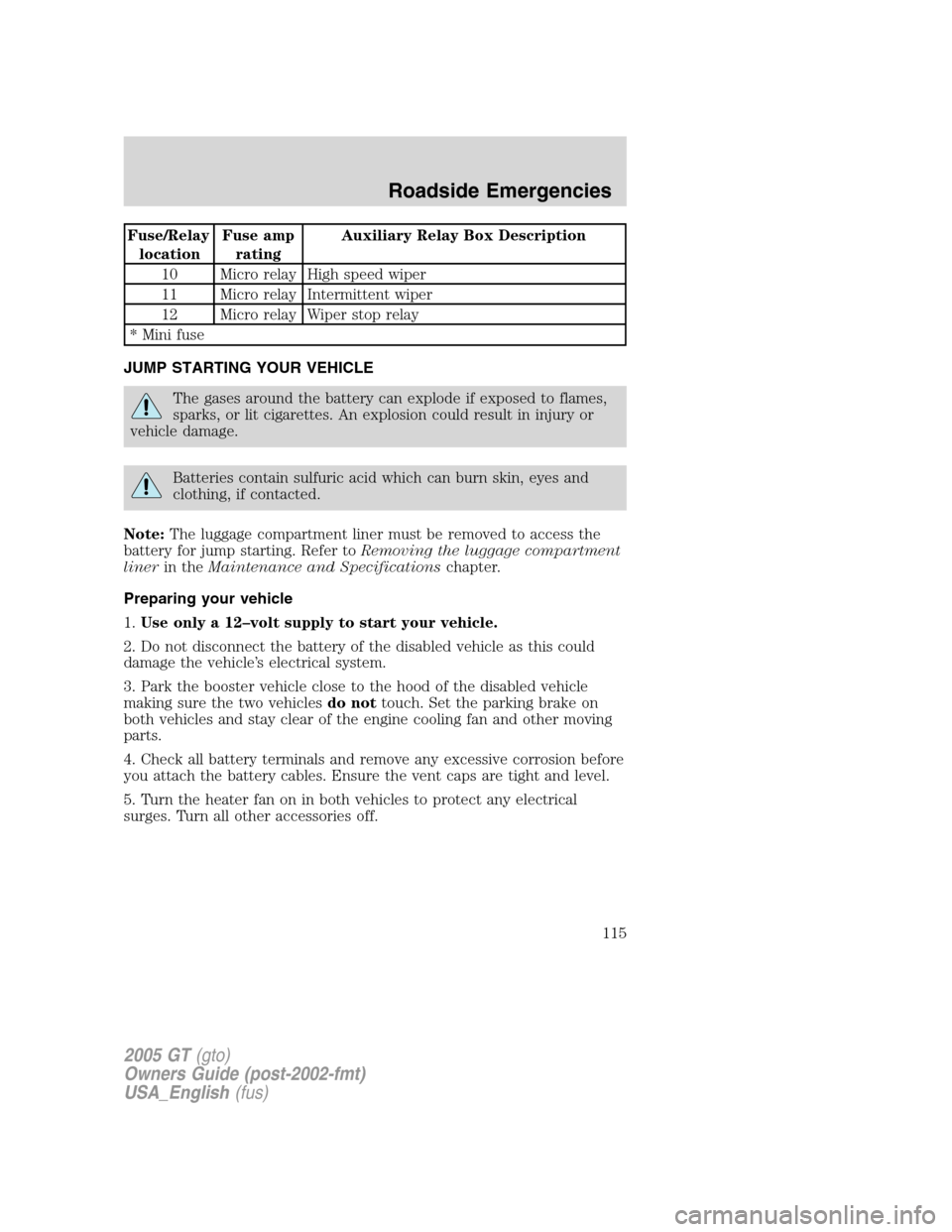

Page 115 of 200
Fuse/Relaylocation Fuse amp
rating Auxiliary Relay Box Description
10 Micro relay High speed wiper
11 Micro relay Intermittent wiper
12 Micro relay Wiper stop relay
* Mini fuse
JUMP STARTING YOUR VEHICLE
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Note: The luggage compartment liner must be removed to access the
battery for jump starting. Refer to Removing the luggage compartment
liner in the Maintenance and Specifications chapter.
Preparing your vehicle
1. Use only a 12 –volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle ’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehicles do nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure the vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect any electrical
surges. Turn all other accessories off.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
115
Page 195 of 200
O
Octane rating ............................159
Oil (see Engine oil) ..................147
P
Parking brake ............................100
Parts (see Motorcraft parts) ....168
Power distribution box
(see Fuses) ...............................111
Power mirrors .............................26
Power point .................................25
Power steering ..........................101fluid, checking and adding ....165
fluid, refill capacity ................169
fluid, specifications .........170 –171
Power Windows ...........................26
Preparing to drive your
vehicle ........................................101
R
Radio ............................................15
Relays ........................................107
Remote entry system .................29 locking/unlocking doors ...........28
opening the trunk .....................31
Roadside assistance ..................105
S
Safety Belt Maintenance ............47
Safety belts
(see Safety restraints) .........39 –42
Safety defects, reporting ..........131 Safety restraints ....................39
–43
extension assembly ..................47
for adults .............................40 –42
for children .........................55 –56
safety belt maintenance ...........47
warning light and chime ..........43
Safety seats for children ............58
Scheduled Maintenance
Guide .........................................177 Coolant Change Record .........190
General Maintenance
Information .............................177
Normal Scheduled
Maintenance and Log .....180 –181
What Maintenance Schedule
Should You Follow? ................179
Seat belts
(see Safety restraints) ...............39
Seats ............................................38 child safety seats ......................58
cleaning ...................................137
front seats .................................38
Servicing your vehicle ..............139
Setting the clock AM/FM/CD .................................16
Spark plugs, specifications ......168, 171
Special notice ............................104
Specification chart,
lubricants ...........................170 –171
Starting your vehicle ......95 –96, 98
jump starting ..........................115
Steering wheel tilting .........................................25
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
195
