key FORD GT 2005 1.G Owners Manual

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 12
Entertainment Systems 15
AM/FM stereo with CD 15
Climate Controls 19
Manual heating and air conditioning 19
Rear window defroster 20
Lights 21
Headlamps 21
Turn signal control 22
Bulb replacement 23
Driver Controls 24
Windshield wiper/washer control 24
Steering wheel adjustment 25
Power windows 26
Mirrors 26
Locks and Security 28
Keys 28
Locks 28
Anti-theft system 33
Seating and Safety Restraints 38
Seating 38
Safety restraints 39
Air bags 48
Child restraints 55
Table of Contents
1
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Table of Contents

Door ajar:Illuminates when the
ignition is in the ON position and
any door, trunk or the engine cover
is ajar.
Turn signal: Illuminates when the
left or right turn signal or the hazard
lights are turned on. If the indicators
stay on or flash faster, check the tail lamps for proper function.
High beams: Illuminates when the
high beam headlamps are turned on.
Defrost: Illuminates when the rear
window defroster is turned on.
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver ’s door
is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver ’s door is opened.
GAUGES
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be
outside the red section. If it enters
the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.
DOOR
AJAR
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
12

Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in-vehicle communications
systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle.
The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to
operate Mobile Communications Equipment.
ELECTRIC DOOR RELEASE
To open the door, unlock (with the
remote entry transmitter) and push
the release button on the door.
Note: The vehicle doors may be
unlocked by using the remote entry
transmitter, however, in the event of
a low battery charge, the driver ’s
door can be manually unlocked and
opened by inserting the key into the
door lock cylinder and turning
counterclockwise.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
27

KEYS
The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your dealer supplied
keys, replacement keys are available through your authorized dealer.
POWER DOOR LOCKS
The power door lock controls are located on the driver and front
passenger door panels.
•Pressing the
portion of the
control will unlock both doors.
• Pressing the
portion of the
control will lock both doors.
The power door lock controls are
disabled 20 seconds after the ignition is turned to the 1 (OFF/LOCK)
position. Note:The door chime will sound once when the doors are
locked and twice when the doors are unlocked.
Autolock
The autolock feature will lock the vehicle ’s doors when:
• both doors are closed,
• the ignition is in the 3 (ON) position,
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
Note: The door chime will sound once to indicate the doors are locked.
Relock
The autolock feature repeats when:
• either door is opened then closed while the ignition is in the 3 (ON)
position, and
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
Locks and Security
28

Your vehicle has an all-door remote entry system.
The all-door remote entry system
allows you to:
•lock or unlock both vehicle doors
without a key.
• arm and disarm the anti-theft
system. For more information on
the anti-theft system, refer to
SecuriLock
Passive Anti-theft
System in this chapter.
• open the luggage compartment
without a key.
• activate the panic alarm.
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitters with you to the dealership in order to
aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver ’s door. Note:The interior
lamps will illuminate, the door chime will sound twice and the park
lamps will flash twice.
2. Press
and release again within three seconds to unlock both doors.
The door chime will again sound twice and the park lamps will again
flash twice.
The remote entry system activates the illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the 3 (ON) position.
Note: The vehicle doors may be unlocked by using the remote entry
transmitter, however, in the event of a low battery charge, the door can
be manually unlocked and opened by inserting the key into the driver ’s
door lock cylinder and turning counter clockwise.
Locking the doors
• Pressand release to lock both doors. Note:The parking lamps will
flash once.
If either of the doors, the luggage compartment or the engine cover are
not properly closed, the horn will make two quick chirps if you press
a second time and release.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
30

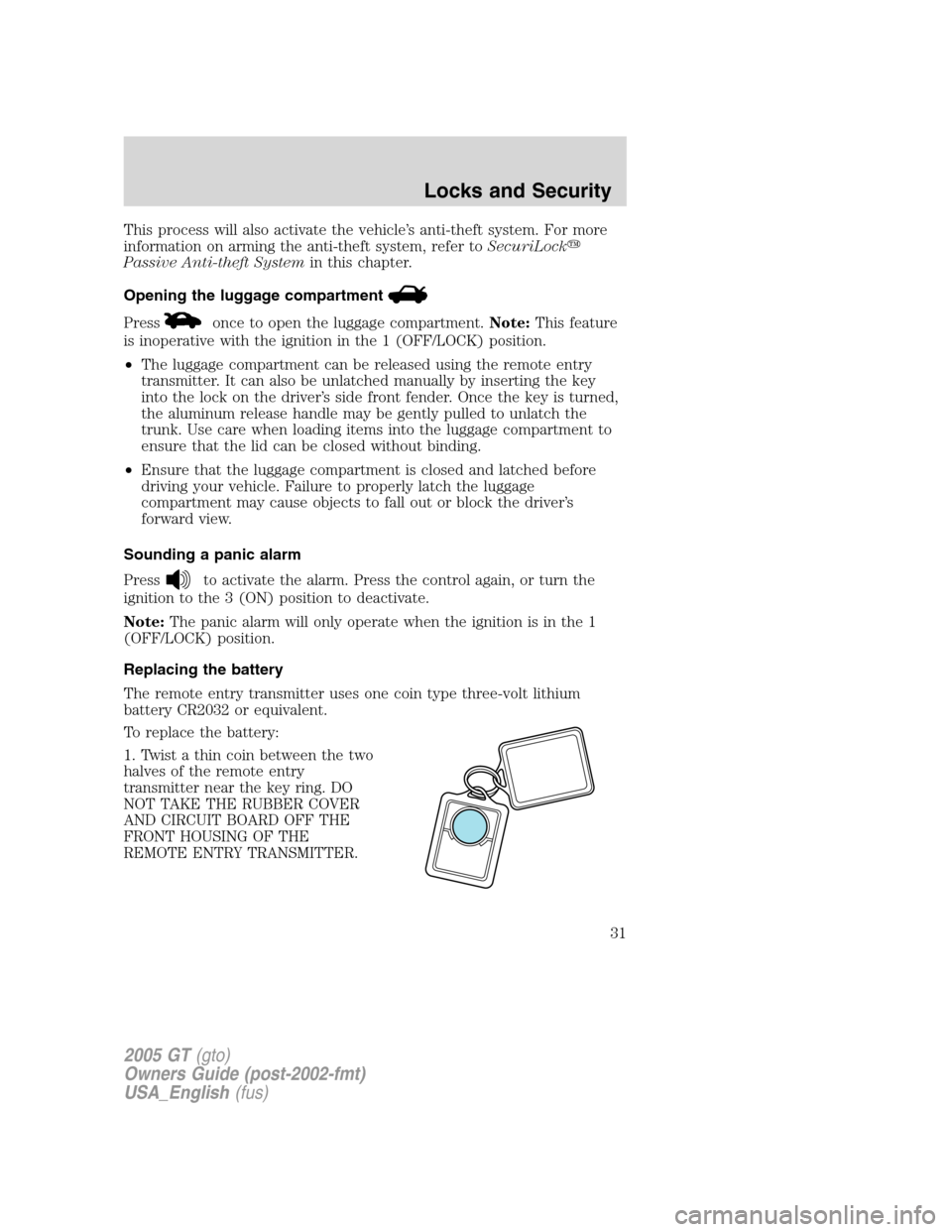

This process will also activate the vehicle’s anti-theft system. For more
information on arming the anti-theft system, refer to SecuriLock

Passive Anti-theft System in this chapter.
Opening the luggage compartment
Pressonce to open the luggage compartment. Note:This feature
is inoperative with the ignition in the 1 (OFF/LOCK) position.
• The luggage compartment can be released using the remote entry
transmitter. It can also be unlatched manually by inserting the key
into the lock on the driver ’s side front fender. Once the key is turned,
the aluminum release handle may be gently pulled to unlatch the
trunk. Use care when loading items into the luggage compartment to
ensure that the lid can be closed without binding.
• Ensure that the luggage compartment is closed and latched before
driving your vehicle. Failure to properly latch the luggage
compartment may cause objects to fall out or block the driver ’s
forward view.
Sounding a panic alarm
Press
to activate the alarm. Press the control again, or turn the
ignition to the 3 (ON) position to deactivate.
Note: The panic alarm will only operate when the ignition is in the 1
(OFF/LOCK) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
31

To reprogram the remote entry
transmitters:
1. Close both doors and fasten the driver’s seat belt to ensure conflicting
chimes do not sound during the procedure.
2. Put the key in the ignition.
3. Turn the key from the 1 (OFF/LOCK) position to the 3 (ON) position.
4. Cycle eight times rapidly (within 10 seconds) between the 1
(OFF/LOCK) and the 3 (ON) position. Note:The eighth turn must end
in the 3 (ON) position.
5. Within 20 seconds press any button on the remote entry transmitter.
Note: If more than 20 seconds have passed you will need to start the
procedure over again.
6. Repeat Step 5 to program each additional remote entry transmitter.
7. Turn the ignition to the 1 (OFF/LOCK) position after you have
finished programming all of the remote entry transmitters.
SECURILOCK PASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded key programmed to your vehicle is used. The
use of the wrong type of coded key may lead to a “no-start ”condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keys for instructions on how to program the coded
key.
Note: The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
33

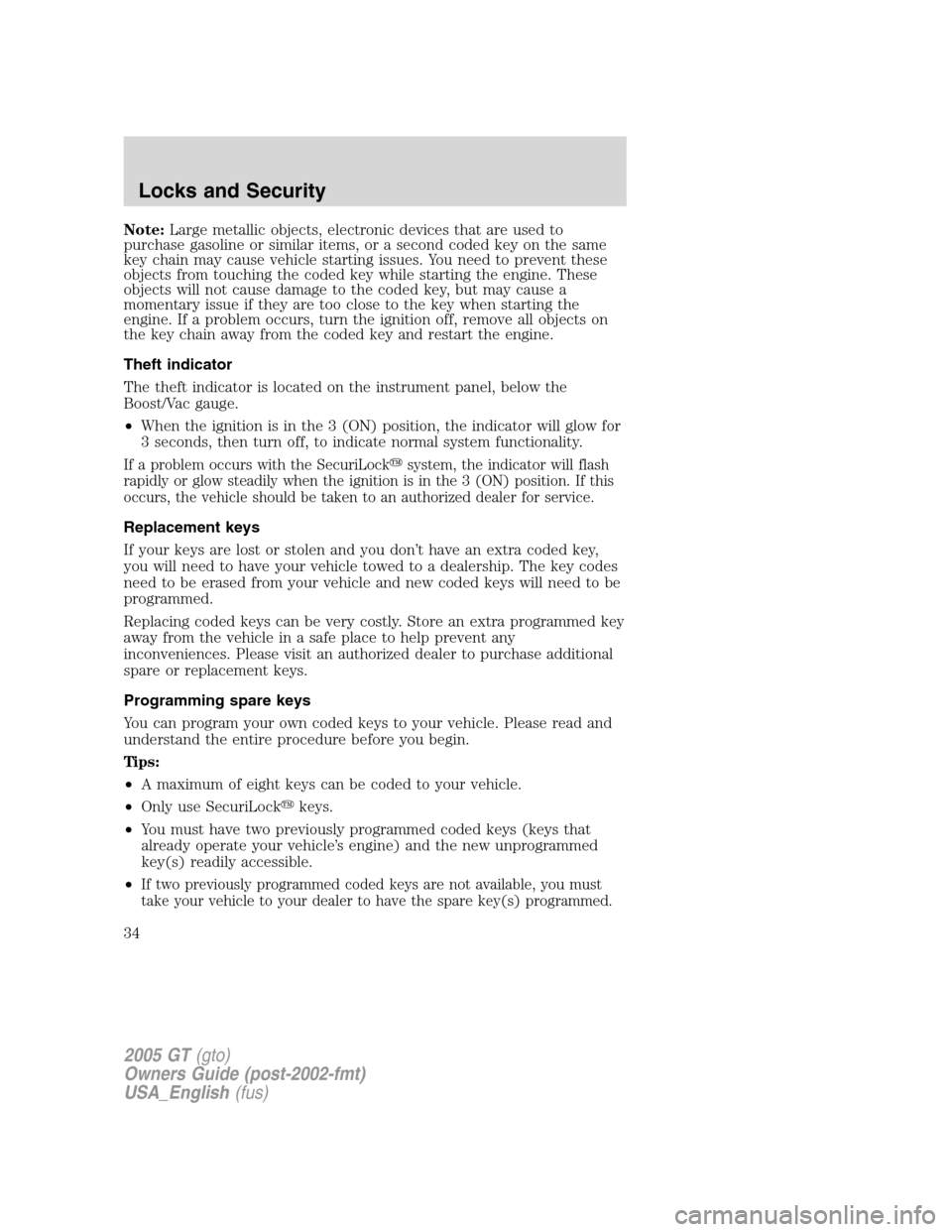

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Theft indicator
The theft indicator is located on the instrument panel, below the
Boost/Vac gauge.
• When the ignition is in the 3 (ON) position, the indicator will glow for
3 seconds, then turn off, to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 3 (ON) position. If this
occurs, the vehicle should be taken to an authorized dealer for service.
Replacement keys
If your keys are lost or stolen and you don ’t have an extra coded key,
you will need to have your vehicle towed to a dealership. The key codes
need to be erased from your vehicle and new coded keys will need to be
programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own coded keys to your vehicle. Please read and
understand the entire procedure before you begin.
Tips:
• A maximum of eight keys can be coded to your vehicle.
• Only use SecuriLock
keys.
• You must have two previously programmed coded keys (keys that
already operate your vehicle ’s engine) and the new unprogrammed
key(s) readily accessible.
•
If two previously programmed coded keys are not available, you must
take your vehicle to your dealer to have the spare key(s) programmed.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
34

1. Insert a previously programmed
coded key into the ignition.
2. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3 (ON) position for at least one second,
but no more than 10 seconds.
3. Turn the ignition to the 1 (OFF/LOCK) position.
4. Remove the previously programmed coded key from the ignition.
5. Within ten seconds of removing the previously programmed coded key,
insert the other previously programmed coded key into the ignition.
6. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3 (ON) position for at least one second
but not more than 10 seconds.
7. Turn the ignition to the 1 (OFF/LOCK) position.
8. Remove the previously programmed coded key from the ignition.
9. Within twenty seconds of removing the previously programmed coded
key, insert the unprogrammed key (new/valet key) into the ignition.
10. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3 (ON) position for at least one second,
but no more than 10 seconds.
11. Your new, unprogrammed key is now programmed.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle ’s engine and the theft indicator light will flash on and off, or stay
on for more than three seconds. If failure repeats, bring your vehicle to
your dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from Step 1 for each additional key.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
35

PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmitters are taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
• Press the
control on the remote entry transmitter.
• Lock the doors with the key in the key cylinder.
• Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the
control on your remote entry
transmitter.
• Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
Triggering the anti-theft system
The armed system will be triggered if either door, the luggage
compartment or the engine cover is opened without using the remote
entry transmitter.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
36
