mileage FORD GT 2006 1.G Owners Manual

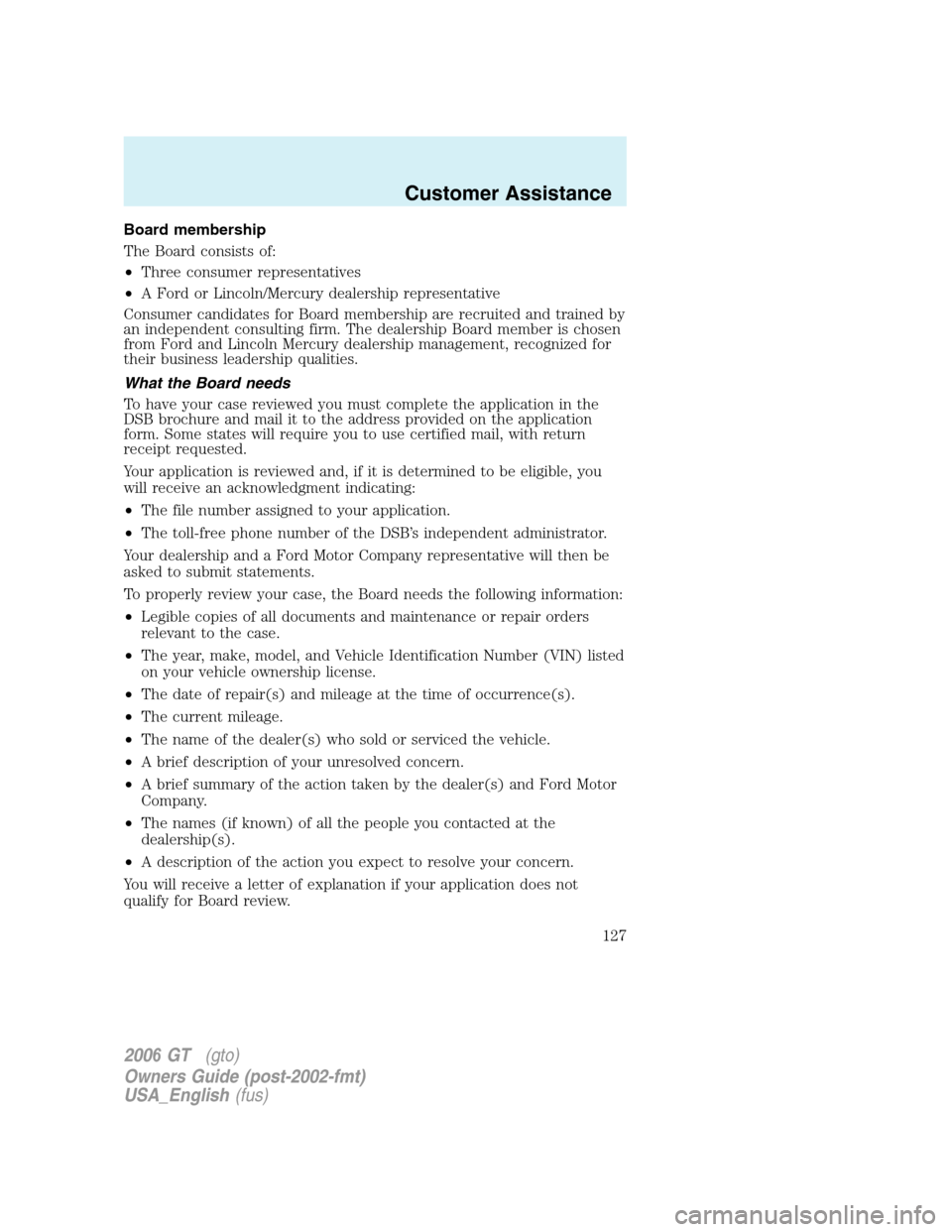

Board membership
The Board consists of:
•Three consumer representatives
• A Ford or Lincoln/Mercury dealership representative
Consumer candidates for Board membership are recruited and trained by
an independent consulting firm. The dealership Board member is chosen
from Ford and Lincoln Mercury dealership management, recognized for
their business leadership qualities.
What the Board needs
To have your case reviewed you must complete the application in the
DSB brochure and mail it to the address provided on the application
form. Some states will require you to use certified mail, with return
receipt requested.
Your application is reviewed and, if it is determined to be eligible, you
will receive an acknowledgment indicating:
• The file number assigned to your application.
• The toll-free phone number of the DSB’s independent administrator.
Your dealership and a Ford Motor Company representative will then be
asked to submit statements.
To properly review your case, the Board needs the following information:
• Legible copies of all documents and maintenance or repair orders
relevant to the case.
• The year, make, model, and Vehicle Identification Number (VIN) listed
on your vehicle ownership license.
• The date of repair(s) and mileage at the time of occurrence(s).
• The current mileage.
• The name of the dealer(s) who sold or serviced the vehicle.
• A brief description of your unresolved concern.
• A brief summary of the action taken by the dealer(s) and Ford Motor
Company.
• The names (if known) of all the people you contacted at the
dealership(s).
• A description of the action you expect to resolve your concern.
You will receive a letter of explanation if your application does not
qualify for Board review.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Customer Assistance
127

ENGINE COOLANT
Checking engine/intercooler coolant
The concentration and level of engine/intercooler coolant should be
checked at the mileage intervals listed in theScheduled Maintenance
Guide . The coolant concentration should be maintained at 50/50 coolant
and distilled water, which equates to a freeze point of -34°F (-36°C).
Coolant concentration testing is possible with a hydrometer or antifreeze
tester (such as the Rotunda Battery and Antifreeze Tester, 014–R1060).
The level of coolant should be maintained at the bottom of the lower
baffle in the coolant reservoir. If the level falls below, add coolant per the
instructions in the Adding engine coolant section.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly. A
50–50 mixture of coolant and water provides the following:
• Freeze protection down to -34°F (-36°C).
• Boiling protection up to 265°F (129°C).
• Protection against rust and other forms of corrosion.
• Enables calibrated gauges to work properly.
1. Engine coolant reservoir
2. Intercooler coolant reservoir
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Maintenance and Specifications
152

WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed by
the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this Owner’s Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval:
12 months or 5,000 miles (8,000 km), whichever occurs first.
Check every month:
•Check function of all interior and exterior lights
• Check tires for wear and correct air pressure
• Check engine oil sump tank fluid level
• Check windshield washer fluid level
Check every six months:
• Check lap/shoulder belts and seat latches for wear and function
• Check power steering fluid level
• Check safety warning lamps (brake, ABS, air bag, safety belt) for
operation
• Check cooling system fluid level and coolant strength
• Check intercooler system fluid level and correct strength
• Check battery connections and clean if necessary
• Check clutch fluid level
• Check washer spray, wiper operation and clean all wiper blades
(replace as necessary)
• Check and lubricate all hinges, latches and outside locks. Inspect for
correct operation
• Check and lubricate door rubber weatherstrips. Inspect for excessive
wear
• Check and clean body and door drain holes. Inspect for clogs and
obstructions
2006GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
179

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
Multi-point inspection - Recommended at every visit
•Check and top up fluid levels: brake, engine coolant recovery
reservoir, intercooler coolant, power steering and window washer.
• Inspect tires for wear and correct air pressure.
• Check exhaust system for leaks, damage, loose parts and foreign
materials.
• Check battery performance.
• Check operation of horn, exterior lamps, turn signals and hazard
warning lights.
• Check radiator, coolers and heater and air conditioning hoses.
• Inspect windshield washer spray and wiper operation.
• Check windshield for cracks, chips and pitting.
• Inspect for oil and fluid leaks.
• Inspect engine air cleaner filter and elements.
• Inspect half-shaft dust boots.
• Check shocks, struts and other suspension components for leaks and
damage.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following maintenance schedule applies only if the vehicle is
operated in a typical manner. If the vehicle is operated in a non-typical
manner, maintenance frequency will be increased. The following
maintenance schedules are listed in both time intervals and mileage
(kilometer) intervals.
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
180

Mileage (kilometer) intervalsMaintenance item Miles (x 1000)5 10 15 20 25 30 35 40 4550
Km (x 1000) 8 16 24 32 40 48 56 64 72 80
Change engine oil and replace oil filter ••••••••••
Inspect tires for wear, measure tread depth and rotate ••••••
Multi–point inspection ••••••••••
Inspect steering linkage, suspension and ball joints ••••
Inspect engine cooling system and hoses ••••••••••
Inspect brake pads, shoes, rotors, drums, brake lines
and hoses ••••••••••
Adjust parking brake ••••••••••
Inspect half-shaft boots ••••••••••
Inspect exhaust system and heat shields ••••••••••
Inspect drive belts ••••••••••
Replace fuel filter •
Replace sump drive belt •
Inspect engine air filter ••••• ••••
Replace engine air filter •
Change engine coolant (Three years/30,000 miles
maximum) •
2006
GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
182

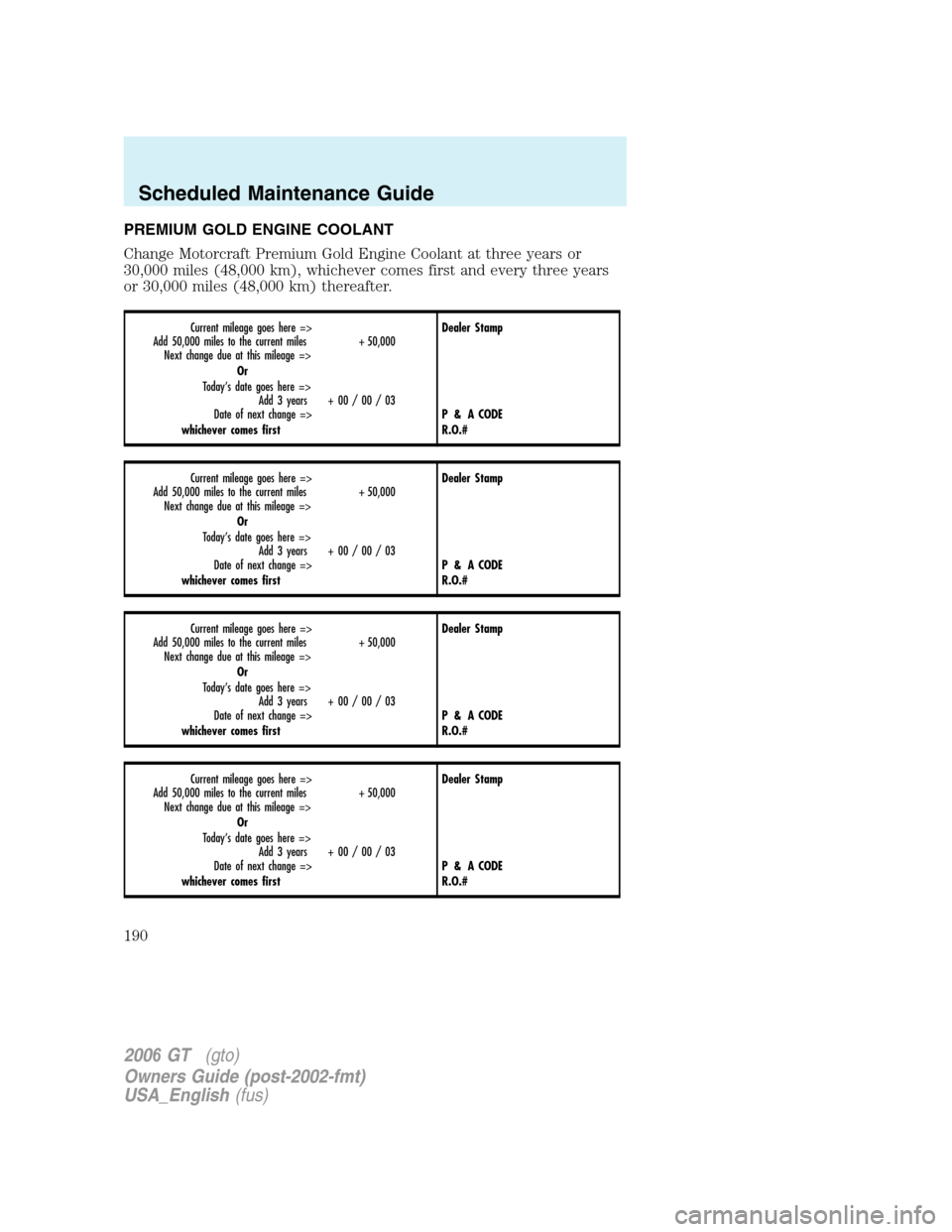

PREMIUM GOLD ENGINE COOLANT
Change Motorcraft Premium Gold Engine Coolant at three years or
30,000 miles (48,000 km), whichever comes first and every three years
or 30,000 miles (48,000 km) thereafter.
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000 Next change due at this mileage =>
Or
Today’s date goes here => Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes first Dealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000 Next change due at this mileage =>
Or
Today’s date goes here => Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes first Dealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000 Next change due at this mileage =>
Or
Today’s date goes here => Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes first Dealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000 Next change due at this mileage =>
Or
Today’s date goes here => Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes first Dealer Stamp
P & A CODE
R.O.#
2006
GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Scheduled Maintenance Guide
190

G
Gas cap (see Fuel cap) ............158
Gas mileage
(see Fuel economy) .................160
Gauges .........................................12
H
Hazard flashers .........................106
Headlamps ...................................21aiming ........................................22
bulb specifications ....................23
flash to pass ..............................21
high beam .................................21
replacing bulbs .........................23
turning on and off ....................21
I
Ignition .................................95, 171
Infant seats (see Safety seats) ..58
Inspection/maintenance (I/M)
testing ........................................165
Instrument panel cleaning ...................................136
cluster ........................................10
lighting up panel and
interior .......................................22
J
Jump-starting your vehicle ......115
K
Keyless entry system autolock .....................................28 Keys
positions of the ignition ...........95
L
Lamps bulb replacement
specifications chart ..................23
fog lamps ...................................21
headlamps ...........................21, 23
headlamps, flash to pass ..........21
instrument panel, dimming .....22
interior lamps .....................22–23
replacing bulbs .........................23
Lane change indicator
(see Turn signal) ........................22
Lights, warning and indicator ....10 anti-lock brakes (ABS) ............99
Limited-slip axle .......................101
Load limits ...................................89
Locks autolock .....................................28
Lubricant specifications ...170–171
Lug nuts ......................................79
Luggage compartment -
opening ......................................142
Luggage compartment liner -
remove/install ............................143
M
Manual transmission .................102 fluid capacities ........................169
lubricant specifications ..........171
reverse .....................................103
Mirrors side view mirrors (power) .......26
Motorcraft parts ................160, 168
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
194
