Page 141 of 313
FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The front power distribution box is under
the front hood. See Under Hood
Overview (page 150). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high current fuses next to the front
power distribution box. If replacement of
these high current fuses is required, see an
authorized dealer.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
158). Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle dynamics module relay.
—
1
Radiator fan 1 relay.
—
2
HVAC blower relay.
—
3
Wipers relay.
—
4
138
Ford GT (CGX) Canada/United States of America, enUSA, First Printing FusesE235532
Page 143 of 313
Protected Components
Fuse Rating
Fuse or Relay
Number
Electronic door system.
20A 2
24
Right headlamp.
20A 2
25
1 J-case low profile fuse.
2 Mini fuse.
Rear Power Distribution Box
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 150). It has high current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If replacement of
these high current fuses is required, see an
authorized dealer. If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
158).
140
Ford GT (CGX) Canada/United States of America, enUSA, First Printing FusesE235533
Page 148 of 313
Protected Components
Fuse Rating
Fuse or Relay
Number
Not used (spare).
30A 1
29
Not used (spare).
30A 1
30
Not used (spare).
15A 1
31
SYNC.
10A 1
32
Audio on/off switch.
Gear shift module (GSM).
HVAC ECU power.
Audio control module (ACM).
20A 1
33
Run-start relay (R12).
30A 1
34
Steering angle sensor (SSAM).
5A 1
35
Power point.
15A 1
36
Battery junction box (BJB) F60, F62, F64,
F66, F65.
20A 1
37
Not used.
—
38
1 Micro 2 fuse.
2 Micro 3 fuse.
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
145
Ford GT (CGX) Canada/United States of America, enUSA, First Printing FusesE217331
Page 153 of 313
UNDER HOOD OVERVIEW
Negative jump start post. See Jump Starting the Vehicle (page 129).
A.
Brake fluid reservoir. See
Brake Fluid Check (page 156).
B.
Cabin air filter access door. See
Cabin Air Filter (page 82).
C.
Washer fluid reservoir. See
Windshield Washers (page 56).
D.
Front hood sensor. See
Warning Lamps and Indicators (page 64).
E.
Hydraulic fluid reservoir for power steering, active aero and active suspension.
See
Power Steering Fluid Check (page 157).
F.
Positive jump start post. See
Jump Starting the Vehicle (page 129).
G.
Power distribution box. See
Fuse Specification Chart (page 138).
H.
Engine coolant reservoir. See
Engine Coolant Check (page 152).
I.
Power distribution box. See
Fuse Specification Chart (page 138).
J.
Oil cap, reservoir and dipstick. See
Engine Oil Dipstick (page 151).
K.
150
Ford GT (CGX) Canada/United States of America, enUSA, First Printing MaintenanceE229585

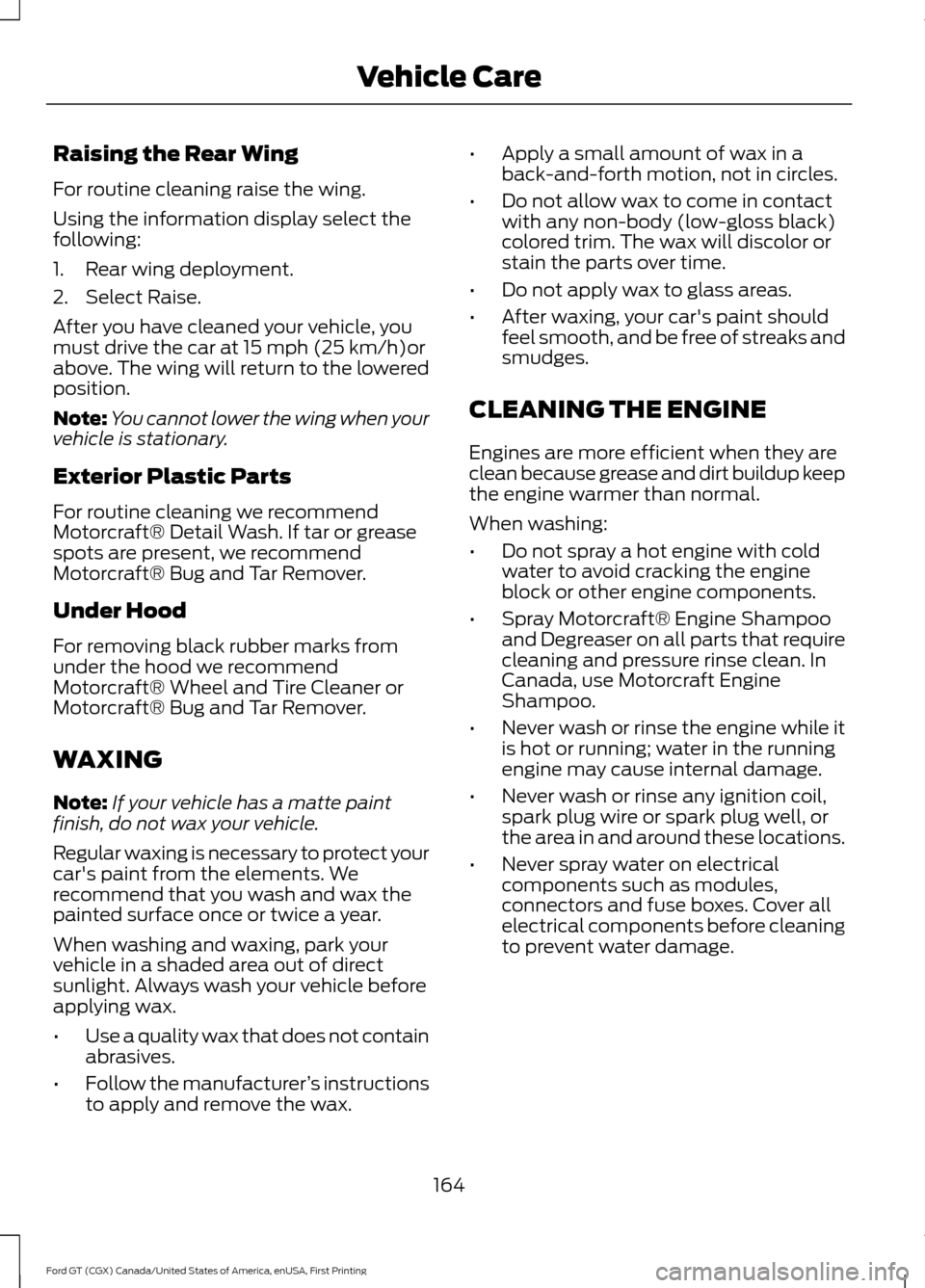

Page 167 of 313
Raising the Rear Wing
For routine cleaning raise the wing.
Using the information display select the
following:
1. Rear wing deployment.
2. Select Raise.
After you have cleaned your vehicle, you
must drive the car at 15 mph (25 km/h)or
above. The wing will return to the lowered
position.
Note: You cannot lower the wing when your
vehicle is stationary.
Exterior Plastic Parts
For routine cleaning we recommend
Motorcraft® Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft® Bug and Tar Remover.
Under Hood
For removing black rubber marks from
under the hood we recommend
Motorcraft® Wheel and Tire Cleaner or
Motorcraft® Bug and Tar Remover.
WAXING
Note: If your vehicle has a matte paint
finish, do not wax your vehicle.
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax.
• Use a quality wax that does not contain
abrasives.
• Follow the manufacturer ’s instructions
to apply and remove the wax. •
Apply a small amount of wax in a
back-and-forth motion, not in circles.
• Do not allow wax to come in contact
with any non-body (low-gloss black)
colored trim. The wax will discolor or
stain the parts over time.
• Do not apply wax to glass areas.
• After waxing, your car's paint should
feel smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.
When washing:
• Do not spray a hot engine with cold
water to avoid cracking the engine
block or other engine components.
• Spray Motorcraft® Engine Shampoo
and Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine
Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or
the area in and around these locations.
• Never spray water on electrical
components such as modules,
connectors and fuse boxes. Cover all
electrical components before cleaning
to prevent water damage.
164
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Vehicle Care
Page 308 of 313
Event Data Recording
See: Data Recording............................................... 7
Exterior Mirrors.................................................61 Fold-Away Exterior Mirrors................................ 61
Power Exterior Mirrors......................................... 61
F
Fastening the Seatbelts..............................26 Seatbelt Locking Modes.................................... 27
Using Seatbelts During Pregnancy................27
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................. 170
Floor Mats........................................................127
Foot Pedals See: Adjusting the Pedals................................. 55
Ford Performance...........................................12
Front Passenger Sensing System............35
Fuel and Refueling..........................................91
Fuel Consumption.........................................95 Calculating Fuel Economy................................ 95
Filling the Fuel Tank............................................ 95
Fuel Filler Funnel Location.........................92
Fuel Filter
..........................................................157
Fuel Quality......................................................92
Choosing the Right Fuel.................................... 92
Fuel Shutoff....................................................128
Fuses.................................................................138
Fuse Specification Chart...........................138 Front Power Distribution Box......................... 138
Passenger Compartment Fuse Panel.........142
Rear Power Distribution Box.......................... 140
G
Gauges...............................................................62 Engine Coolant Temperature Gauge............64
Engine Oil Pressure Gauge............................... 64
Engine Oil Temperature Gauge...................... 64
Fuel Gauge.............................................................. 63
Information Display............................................. 62
Gearbox See: Transmission............................................... 99
General Information on Radio Frequencies..................................................40
Intelligent Access................................................. 40
General Maintenance Information........263 Protecting Your Investment........................... 263Road Course Maintenance.............................
263
Why Maintain Your Vehicle?.......................... 263
Why Maintain Your Vehicle at Your Certified Ford GT Service Dealership?.................... 263
Getting Assistance Outside the U.S. and Canada..........................................................135
Getting the Services You Need................132 Away From Home............................................... 132
Global Opening..............................................60 Remote Control Front Windows..................... 61
H
Hazard Flashers............................................128
Headlamp Adjusting See: Adjusting the Headlamps..................... 160
Heating See: Climate Control............................................ 77
Hill Start Assist.............................................106 Using Hill Start Assist....................................... 106
Hints on Controlling the Interior Climate...........................................................80
Defogging the Side Windows in Cold Weather............................................................... 81
General Hints........................................................ 80
Quickly Heating the Interior............................. 80
Recommended Settings for Cooling.............81
Recommended Settings for Heating.............81
Hints on Driving With Anti-Lock Brakes............................................................103
Home Screen
..................................................213
Hood Lock See: Opening and Closing the Hood............147
I
In California (U.S. Only)
..............................133
Information Display Control.......................53
Information Displays
....................................68
General Information........................................... 68
Information Messages
..................................70
AdvanceTrac ™....................................................... 71
Alarm........................................................................\
.. 71
Battery and Charging System........................... 71
Doors and Locks.................................................... 72
Engine........................................................................\
72
Fuel........................................................................\
..... 72
Hill Start Assist ..................................................... 72
305
