Page 6 of 313
Cruise Control
Principle of Operation..................................113
Using Cruise Control.....................................113
Driving Aids
Steering.............................................................114
Drive Mode Control.......................................114
Load Carrying
Rear Under Hatch Storage
........................120
Load Limit.......................................................120
Towing
Towing a Trailer..............................................125
Towing the Vehicle on Four Wheels
......125
Driving Hints
Breaking-In......................................................126
Driving Through Water................................126
Floor Mats
........................................................127
Roadside Emergencies
Roadside Assistance...................................128
Hazard Flashers............................................128
Fuel Shutoff....................................................128
Jump Starting the Vehicle.........................129
Post-Crash Alert System
...........................130
Transporting the Vehicle
...........................130
Towing Points
..................................................131
Customer Assistance
Getting the Services You Need................132
In California (U.S. Only)
..............................133
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................133
Utilizing the Mediation/Arbitration Program (Canada Only)........................134
Getting Assistance Outside the U.S. and Canada
.........................................................135 Ordering Additional Owner's
Literature.....................................................136
Reporting Safety Defects (U.S. Only).............................................................136
Reporting Safety Defects (Canada Only)..............................................................137
Fuses
Fuse Specification Chart...........................138
Changing a Fuse...........................................145
Maintenance
General Information
....................................147
Opening and Closing the Hood...............147
Under Hood Overview................................150
Engine Oil Dipstick
........................................151
Engine Oil Check............................................151
Engine Coolant Check
.................................152
Automatic Transmission Fluid Check............................................................156
Brake Fluid Check.........................................156
Power Steering Fluid Check......................157
Washer Fluid Check.....................................157
Fuel Filter..........................................................157
Changing the 12V Battery..........................158
Checking the Wiper Blades......................159
Changing the Wiper Blades......................159
Adjusting the Headlamps.........................160
Changing a Bulb.............................................161
Changing the Engine Air Filter
..................161
Vehicle Care
General Information....................................162
Cleaning Products........................................162
Cleaning the Exterior...................................162
Waxing..............................................................164
Cleaning the Engine....................................164
Cleaning the Windows and Wiper Blades...........................................................165
Cleaning the Interior....................................165
3
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Table of Contents

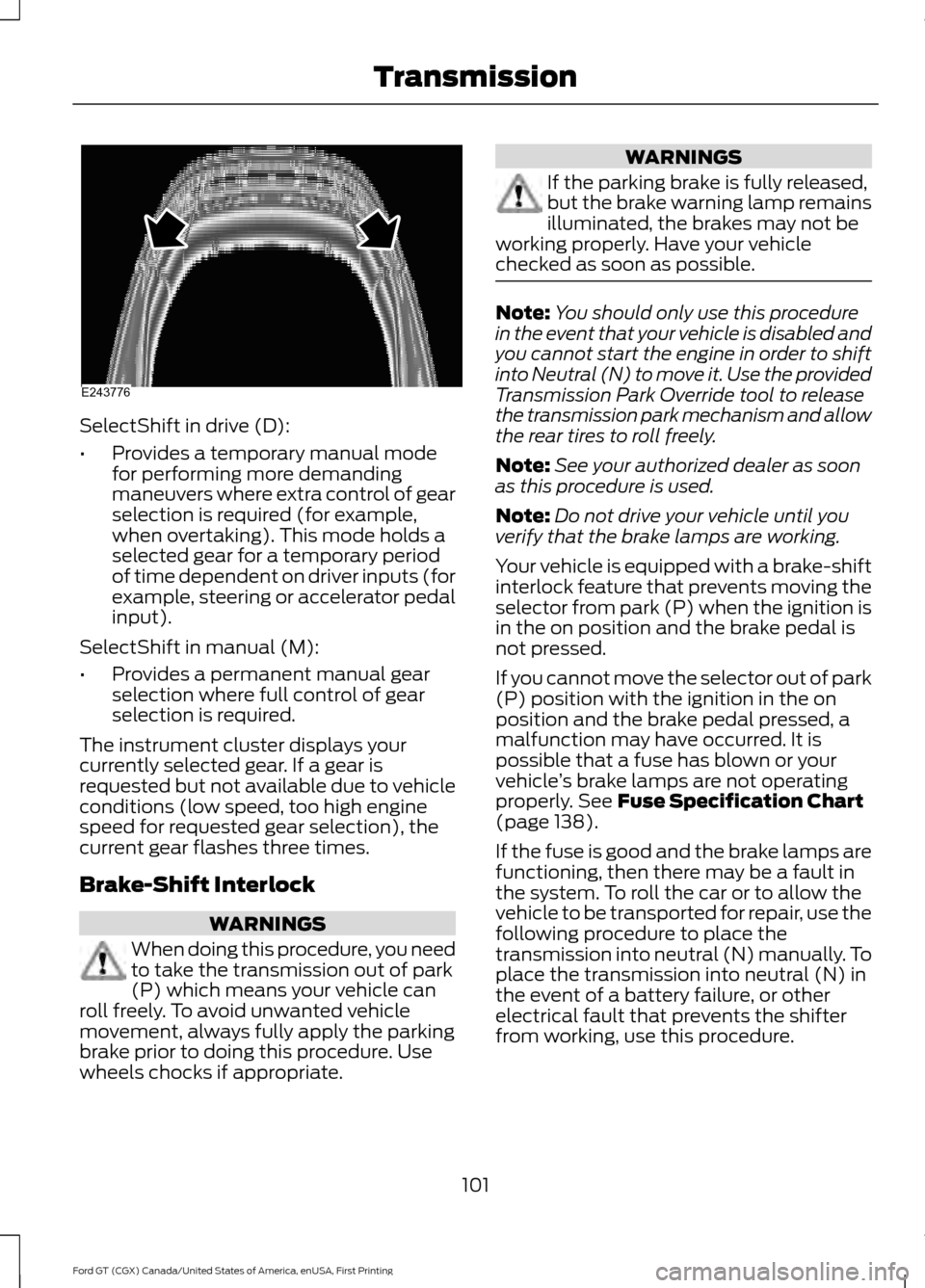

Page 104 of 313
SelectShift in drive (D):
•
Provides a temporary manual mode
for performing more demanding
maneuvers where extra control of gear
selection is required (for example,
when overtaking). This mode holds a
selected gear for a temporary period
of time dependent on driver inputs (for
example, steering or accelerator pedal
input).
SelectShift in manual (M):
• Provides a permanent manual gear
selection where full control of gear
selection is required.
The instrument cluster displays your
currently selected gear. If a gear is
requested but not available due to vehicle
conditions (low speed, too high engine
speed for requested gear selection), the
current gear flashes three times.
Brake-Shift Interlock WARNINGS
When doing this procedure, you need
to take the transmission out of park
(P) which means your vehicle can
roll freely. To avoid unwanted vehicle
movement, always fully apply the parking
brake prior to doing this procedure. Use
wheels chocks if appropriate. WARNINGS
If the parking brake is fully released,
but the brake warning lamp remains
illuminated, the brakes may not be
working properly. Have your vehicle
checked as soon as possible. Note:
You should only use this procedure
in the event that your vehicle is disabled and
you cannot start the engine in order to shift
into Neutral (N) to move it. Use the provided
Transmission Park Override tool to release
the transmission park mechanism and allow
the rear tires to roll freely.
Note: See your authorized dealer as soon
as this procedure is used.
Note: Do not drive your vehicle until you
verify that the brake lamps are working.
Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
selector from park (P) when the ignition is
in the on position and the brake pedal is
not pressed.
If you cannot move the selector out of park
(P) position with the ignition in the on
position and the brake pedal pressed, a
malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle ’s brake lamps are not operating
properly. See Fuse Specification Chart
(page 138).
If the fuse is good and the brake lamps are
functioning, then there may be a fault in
the system. To roll the car or to allow the
vehicle to be transported for repair, use the
following procedure to place the
transmission into neutral (N) manually. To
place the transmission into neutral (N) in
the event of a battery failure, or other
electrical fault that prevents the shifter
from working, use this procedure.
101
Ford GT (CGX) Canada/United States of America, enUSA, First Printing TransmissionE243776
Page 141 of 313
FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The front power distribution box is under
the front hood. See Under Hood
Overview (page 150). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high current fuses next to the front
power distribution box. If replacement of
these high current fuses is required, see an
authorized dealer.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
158). Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle dynamics module relay.
—
1
Radiator fan 1 relay.
—
2
HVAC blower relay.
—
3
Wipers relay.
—
4
138
Ford GT (CGX) Canada/United States of America, enUSA, First Printing FusesE235532
Page 153 of 313
UNDER HOOD OVERVIEW
Negative jump start post. See Jump Starting the Vehicle (page 129).
A.
Brake fluid reservoir. See
Brake Fluid Check (page 156).
B.
Cabin air filter access door. See
Cabin Air Filter (page 82).
C.
Washer fluid reservoir. See
Windshield Washers (page 56).
D.
Front hood sensor. See
Warning Lamps and Indicators (page 64).
E.
Hydraulic fluid reservoir for power steering, active aero and active suspension.
See
Power Steering Fluid Check (page 157).
F.
Positive jump start post. See
Jump Starting the Vehicle (page 129).
G.
Power distribution box. See
Fuse Specification Chart (page 138).
H.
Engine coolant reservoir. See
Engine Coolant Check (page 152).
I.
Power distribution box. See
Fuse Specification Chart (page 138).
J.
Oil cap, reservoir and dipstick. See
Engine Oil Dipstick (page 151).
K.
150
Ford GT (CGX) Canada/United States of America, enUSA, First Printing MaintenanceE229585
Page 308 of 313
Event Data Recording
See: Data Recording............................................... 7
Exterior Mirrors.................................................61 Fold-Away Exterior Mirrors................................ 61
Power Exterior Mirrors......................................... 61
F
Fastening the Seatbelts..............................26 Seatbelt Locking Modes.................................... 27
Using Seatbelts During Pregnancy................27
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................. 170
Floor Mats........................................................127
Foot Pedals See: Adjusting the Pedals................................. 55
Ford Performance...........................................12
Front Passenger Sensing System............35
Fuel and Refueling..........................................91
Fuel Consumption.........................................95 Calculating Fuel Economy................................ 95
Filling the Fuel Tank............................................ 95
Fuel Filler Funnel Location.........................92
Fuel Filter
..........................................................157
Fuel Quality......................................................92
Choosing the Right Fuel.................................... 92
Fuel Shutoff....................................................128
Fuses.................................................................138
Fuse Specification Chart...........................138 Front Power Distribution Box......................... 138
Passenger Compartment Fuse Panel.........142
Rear Power Distribution Box.......................... 140
G
Gauges...............................................................62 Engine Coolant Temperature Gauge............64
Engine Oil Pressure Gauge............................... 64
Engine Oil Temperature Gauge...................... 64
Fuel Gauge.............................................................. 63
Information Display............................................. 62
Gearbox See: Transmission............................................... 99
General Information on Radio Frequencies..................................................40
Intelligent Access................................................. 40
General Maintenance Information........263 Protecting Your Investment........................... 263Road Course Maintenance.............................
263
Why Maintain Your Vehicle?.......................... 263
Why Maintain Your Vehicle at Your Certified Ford GT Service Dealership?.................... 263
Getting Assistance Outside the U.S. and Canada..........................................................135
Getting the Services You Need................132 Away From Home............................................... 132
Global Opening..............................................60 Remote Control Front Windows..................... 61
H
Hazard Flashers............................................128
Headlamp Adjusting See: Adjusting the Headlamps..................... 160
Heating See: Climate Control............................................ 77
Hill Start Assist.............................................106 Using Hill Start Assist....................................... 106
Hints on Controlling the Interior Climate...........................................................80
Defogging the Side Windows in Cold Weather............................................................... 81
General Hints........................................................ 80
Quickly Heating the Interior............................. 80
Recommended Settings for Cooling.............81
Recommended Settings for Heating.............81
Hints on Driving With Anti-Lock Brakes............................................................103
Home Screen
..................................................213
Hood Lock See: Opening and Closing the Hood............147
I
In California (U.S. Only)
..............................133
Information Display Control.......................53
Information Displays
....................................68
General Information........................................... 68
Information Messages
..................................70
AdvanceTrac ™....................................................... 71
Alarm........................................................................\
.. 71
Battery and Charging System........................... 71
Doors and Locks.................................................... 72
Engine........................................................................\
72
Fuel........................................................................\
..... 72
Hill Start Assist ..................................................... 72
305
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Index
