Page 7 of 313
Cleaning the Instrument Panel and
Instrument Cluster Lens........................166
Cleaning Leather Seats..............................166
Repairing Minor Paint Damage................167
Cleaning the Wheels
...................................167
Vehicle Storage
.............................................168
Wheels and Tires
Tire Sealant and Inflator Kit.....................170
Tire Care
...........................................................176
Using Summer Tires....................................188
Using Snow Chains
.....................................188
Tire Pressure Monitoring System...........188
Changing a Road Wheel
............................192
Driving at High Speed.................................192
Technical Specifications............................193
Capacities and Specific- ations
Engine Specifications
.................................195
Motorcraft Parts
...........................................196
Vehicle Identification Number................196
Vehicle Certification Label........................197
Transmission Code Designation
.............198
Capacities and Specifications
................199
Audio System
Audio Unit
.......................................................202
USB Port
.........................................................202
SYNC™ 3
General Information...................................203
Home Screen
..................................................213
Using Voice Recognition............................214
Entertainment..............................................220
Phone...............................................................224
Navigation......................................................229
Apps..................................................................237
Settings...........................................................238
SYNC™ 3 Troubleshooting......................249 Accessories
Accessories....................................................262
Scheduled Maintenance
General Maintenance Information........263
Normal Scheduled Maintenance..........264
Special Operating Conditions Scheduled
Maintenance.............................................265
Scheduled Maintenance Record
...........266
Appendices
End User License Agreement...................277
4
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Table of Contents
Page 43 of 313
GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
One of the following could cause a
decrease in operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters,
such as amateur radios, medical
equipment, wireless headphones, remote
controls and alarm systems may operate
on the same frequency as your remote
control. If other transmitters are operating
on those frequencies, you may not be able
to use your remote control. Using your
remote control near some types of
electronic equipment, such as USB devices,
computers or cell phones can interfere with
remote operation. Operating your remote
control near metal or metallic-finished
purses, bags or clothing can interfere with
remote operation. Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You push the exterior door release
panel within
3 ft (1 m) proximity of an
intelligent access key.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the engine
cover to access a pull strap to manually
unlock the driver door in this situation. See
Remote Control
(page 41).
40
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Keys and Remote Controls
Page 192 of 313

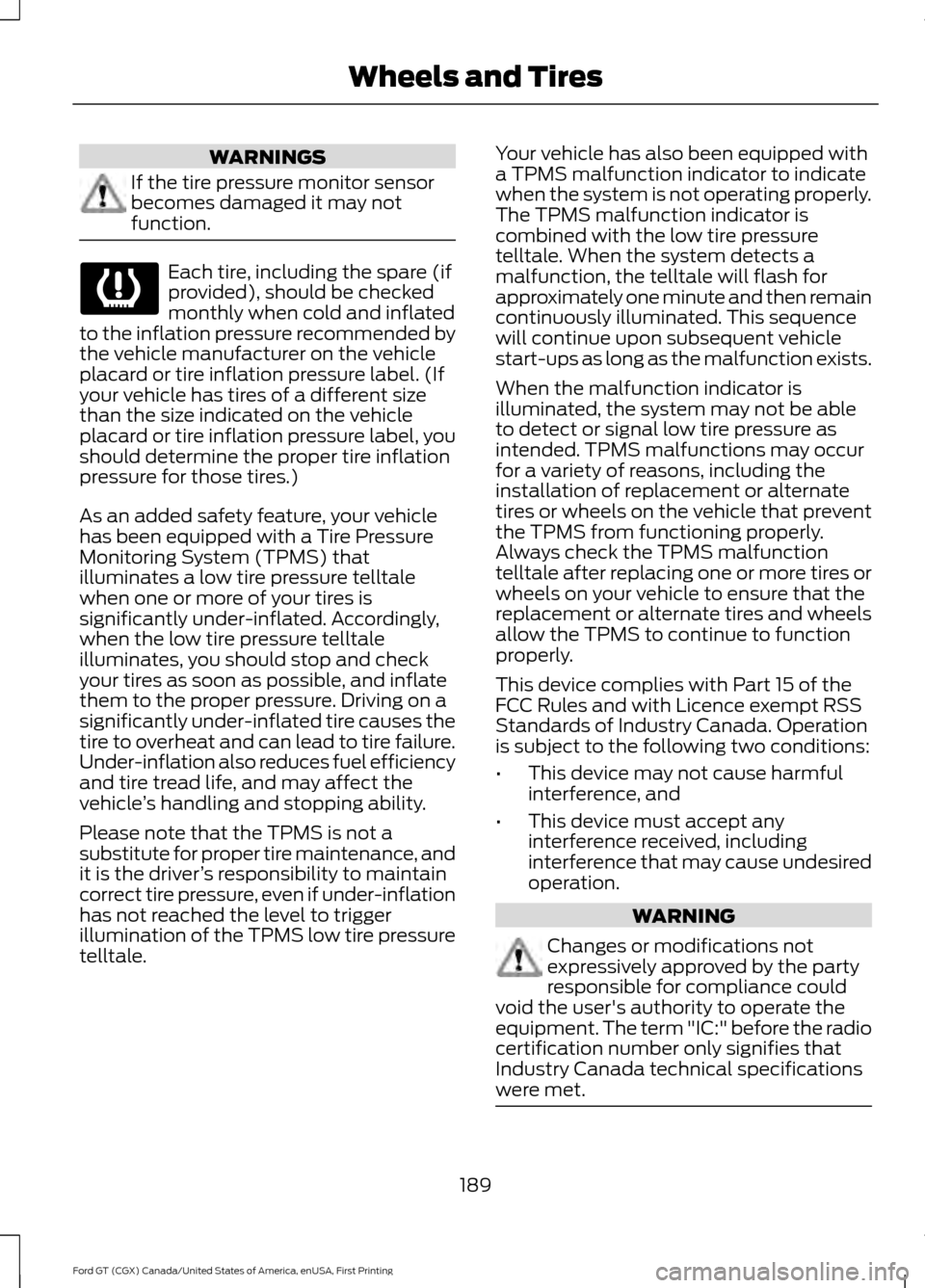

WARNINGS
If the tire pressure monitor sensor
becomes damaged it may not
function.
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle ’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale. Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
This device complies with Part 15 of the
FCC Rules and with Licence exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
•
This device may not cause harmful
interference, and
• This device must accept any
interference received, including
interference that may cause undesired
operation. WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC:" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. 189
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Wheels and Tires
Page 196 of 313

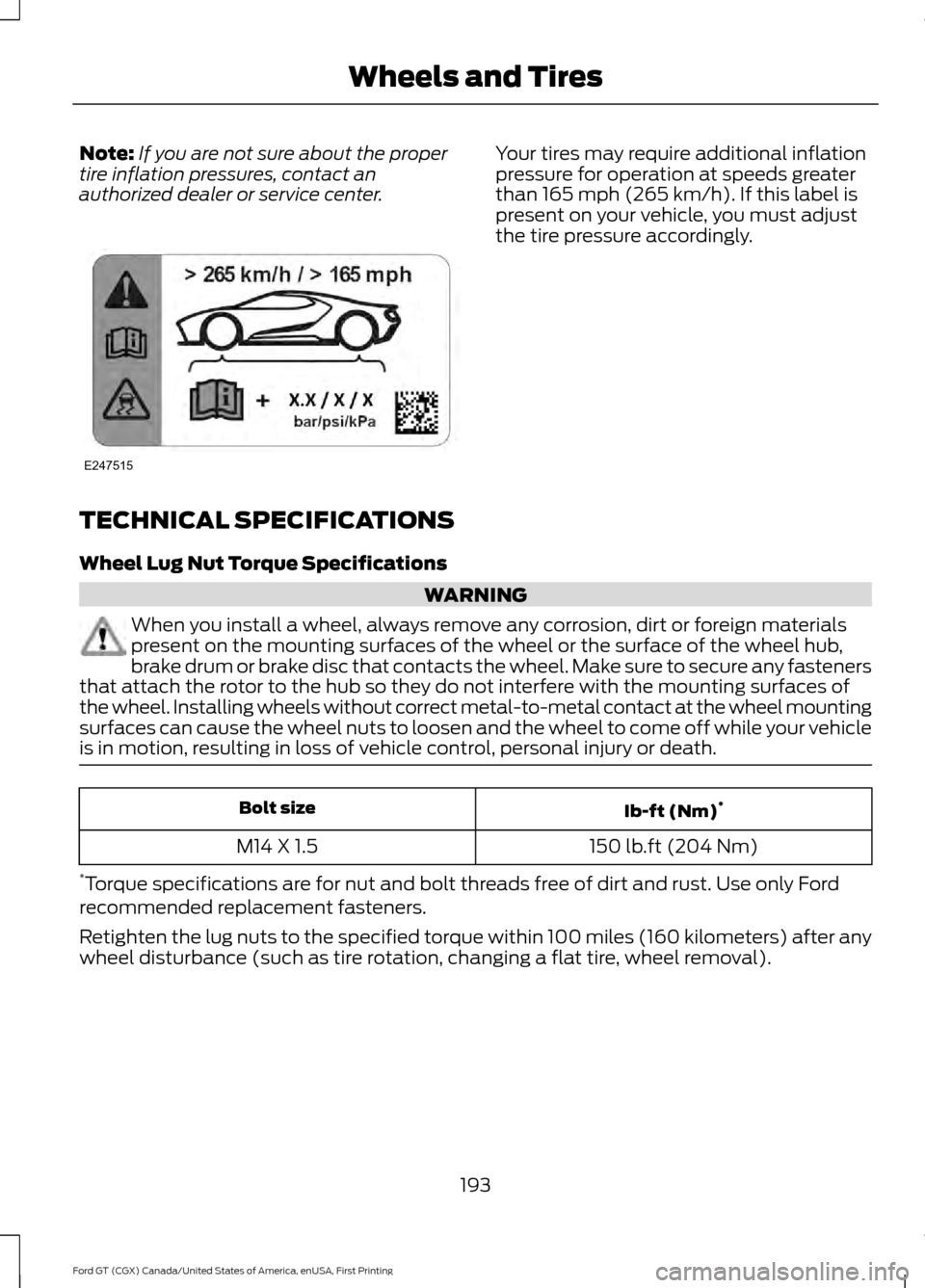

Note:
If you are not sure about the proper
tire inflation pressures, contact an
authorized dealer or service center. Your tires may require additional inflation
pressure for operation at speeds greater
than 165 mph (265 km/h). If this label is
present on your vehicle, you must adjust
the tire pressure accordingly.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications WARNING
When you install a wheel, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel mounting
surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle
is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)
*
Bolt size
150 lb.ft (204 Nm)
M14 X 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).
193
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Wheels and TiresE247515
Page 269 of 313

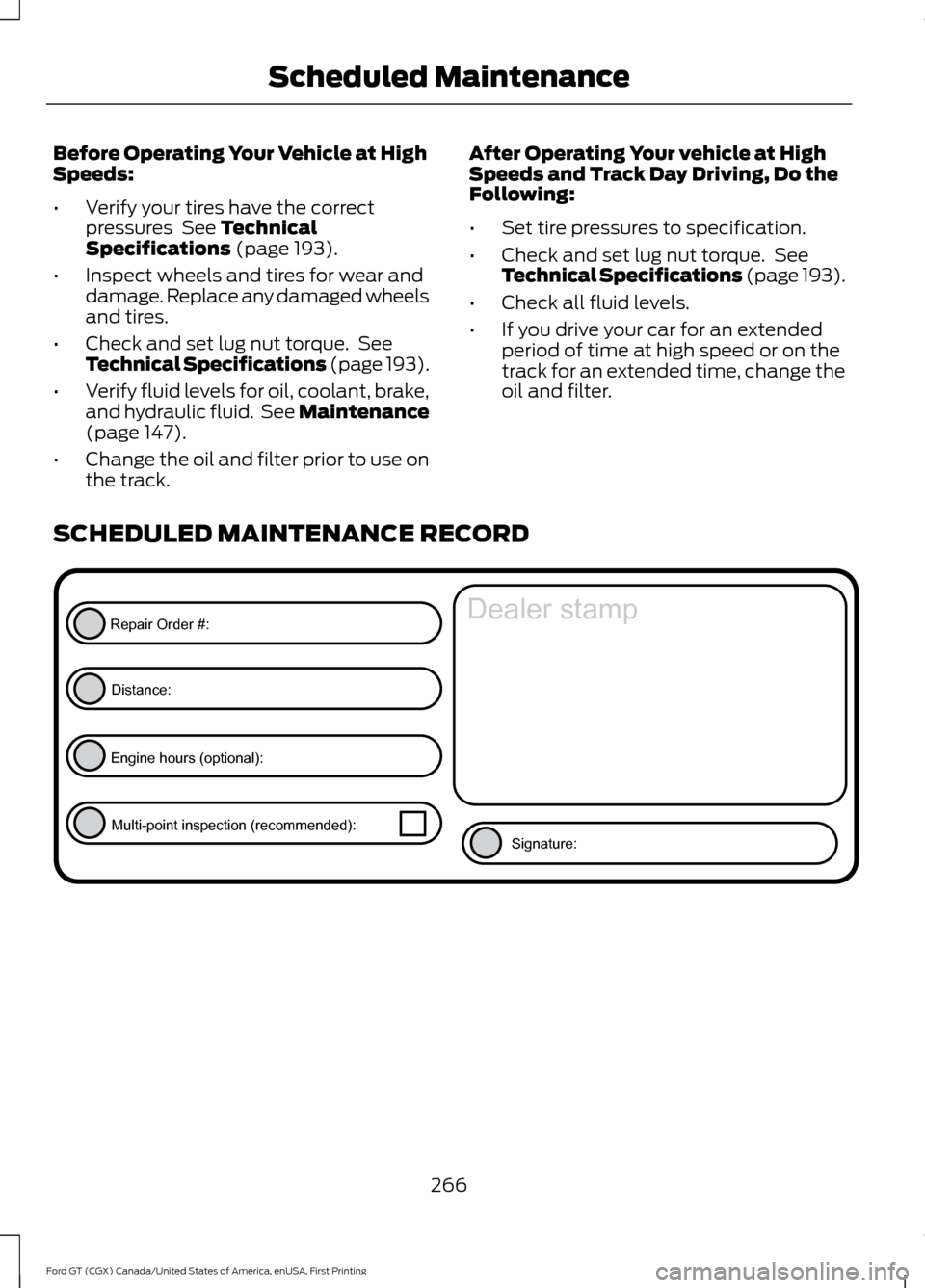

Before Operating Your Vehicle at High
Speeds:
•
Verify your tires have the correct
pressures See Technical
Specifications (page 193).
• Inspect wheels and tires for wear and
damage. Replace any damaged wheels
and tires.
• Check and set lug nut torque. See
Technical Specifications (page 193).
• Verify fluid levels for oil, coolant, brake,
and hydraulic fluid. See Maintenance
(page
147).
• Change the oil and filter prior to use on
the track. After Operating Your vehicle at High
Speeds and Track Day Driving, Do the
Following:
•
Set tire pressures to specification.
• Check and set lug nut torque. See
Technical Specifications (page 193).
• Check all fluid levels.
• If you drive your car for an extended
period of time at high speed or on the
track for an extended time, change the
oil and filter.
SCHEDULED MAINTENANCE RECORD 266
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp
Page 302 of 313
GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY
AND SEPARATELY RESERVE THE RIGHT
TO DELETE DATA AND/OR CONTENT
FROM THE COMPANIES' RESPECTIVE
SERVERS OR, IN THE CASE OF
GRACENOTE, CHANGE DATA
CATEGORIES FOR ANY CAUSE THAT
GRACENOTE DEEMS SUFFICIENT. NO
WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE
OR THAT THE FUNCTIONING OF THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES
AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
Radio Frequency Statement
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not
expressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment. The
term "IC" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
Taiwan Territory
Note: In accordance with the management
approach of low-power radio wave
radiation motors:
Article 12: For approved and certified
low-power radiation motor models,
companies, firms or users must not alter
the frequency, increase the power or
change the characteristics and functions
of the original design without authorization.
Article 14: The usage of low-power
radio-frequency motors must not affect
aviation safety and interfere with legal
telecommunications. Should interference
be detected, immediately stop using the
device and only resume usage after
ensuring that there is no longer any
interference. For the legal
telecommunication and wireless
telecommunication of the telco, the
low-power radio frequency motor must be
able to tolerate legal limits of interference
from telecommunication, industrial,
scientific and radio wave equipment.
299
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Appendices
Page 311 of 313
Display...................................................................
248
General................................................................... 247
Media Player........................................................ 239
Mobile Apps......................................................... 245
Navigation............................................................. 243
Phone..................................................................... 240
Radio ....................................................................... 243
Sound..................................................................... 238
Valet Mode........................................................... 249
Voice Control....................................................... 249
Wi-Fi........................................................................\
247
Side Airbags......................................................37
Sitting in the Correct Position...................83
Snow Chains See: Using Snow Chains.................................. 188
Special Notices................................................10
Additional Warranty Information.................... 10
Certified Ford GT Service Dealer...................... 11
New Vehicle Limited Warranty........................ 10
On Board Diagnostics Data Link Connector
............................................................. 11
Special Instructions............................................. 10
Special Operating Conditions Scheduled Maintenance..............................................265
Engine Air Filter and Cabin Air Filter Replacement.................................................. 265
Hot Climate Oil Change Intervals................265
Operating at High Speeds and Track Days................................................................... 265
Speed Control See: Cruise Control.............................................. 113
Stability Control
............................................107
Principle of Operation....................................... 107
Starting and Stopping the Engine...........87 General Information............................................ 87
Starting the Engine.......................................88 Failure to Start...................................................... 89
Fast Restart............................................................ 89
Guarding Against Exhaust Fumes.................90
Important Ventilating Information................90
Stopping the Engine When Your Vehicle is Moving................................................................. 89
Stopping the Engine When Your Vehicle is Stationary.......................................................... 89
Steering
.............................................................114
Steering Wheel Lock....................................88
Steering Wheel.................................................51
Storage Compartments..............................86 Supplementary Restraints System.........33
Principle of Operation......................................... 33
Symbols Glossary.............................................5
SYNC™ 3
........................................................203
General Information......................................... 203
SYNC™ 3 Troubleshooting
......................249
T
Technical Specifications See: Capacities and Specifications.............195
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................133
Tire Care...........................................................176 Glossary of Tire Terminology.......................... 178
Information About Uniform Tire Quality Grading............................................................... 176
Information Contained on the Tire Sidewall............................................................. 179
Temperature A B C.............................................. 177
Traction AA A B C................................................ 177
Treadwear.............................................................. 177
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................. 170
Tire Pressure Monitoring System...........188 Changing Tires With a Tire Pressure
Monitoring System....................................... 190
Understanding Your Tire Pressure Monitoring System ...................................... 190
Tire Repair Kit See: Tire Sealant and Inflator Kit.................. 170
Tire Sealant and Inflator Kit......................170 First Stage: Inflating the Tire with Sealing
Compound and Air......................................... 172
General Information............................................ 171
Second Stage: Checking Tire Pressure............................................................. 174
Tips for Use of the Kit......................................... 171
What to Do After the Tire has Been Sealed................................................................. 174
What to do When a Tire Is Punctured.........172
Tires See: Wheels and Tires...................................... 170
Towing a Trailer..............................................125
Towing Points
..................................................131
Installing the Tow Hook..................................... 131
Tow Hook Location............................................. 131
308
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Index
Page 313 of 313

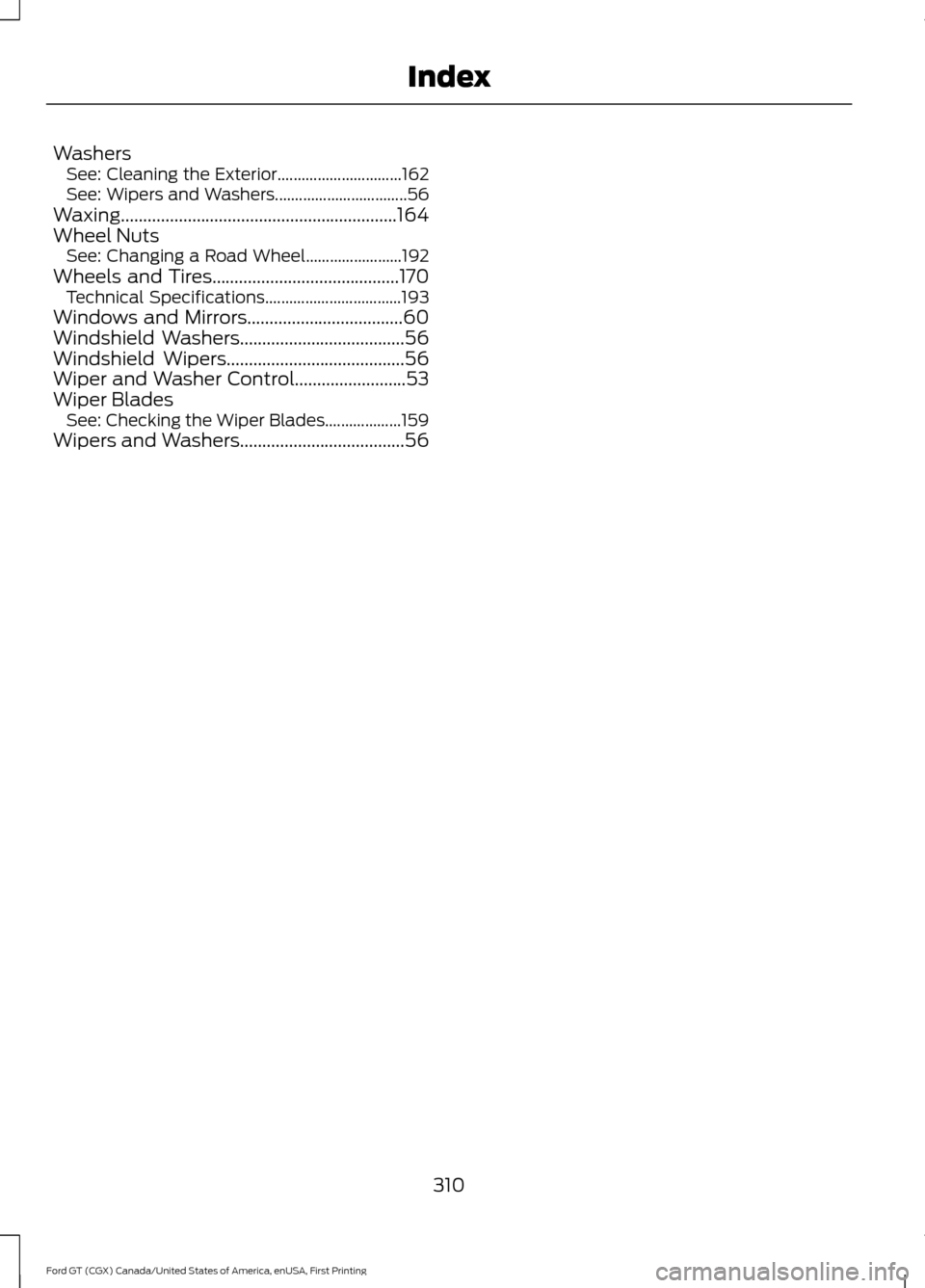

Washers
See: Cleaning the Exterior............................... 162
See: Wipers and Washers................................. 56
Waxing..............................................................164
Wheel Nuts See: Changing a Road Wheel........................ 192
Wheels and Tires..........................................170 Technical Specifications.................................. 193
Windows and Mirrors...................................60
Windshield Washers.....................................56
Windshield Wipers........................................56
Wiper and Washer Control.........................53
Wiper Blades See: Checking the Wiper Blades................... 159
Wipers and Washers
.....................................56
310
Ford GT (CGX) Canada/United States of America, enUSA, First Printing Index
