fuel consumption FORD GT 2018 Owners Manual

Wipers and Washers
Windshield Wipers.........................................57
Windshield Washers......................................57
Lighting
General Information
.....................................58
Lighting Control
..............................................58
Autolamps........................................................59
Instrument Lighting Dimmer.....................59
Daytime Running Lamps............................59
Direction Indicators
.......................................60
Interior Lamps
.................................................60
Windows and Mirrors
Power Windows...............................................61
Global Opening................................................61
Exterior Mirrors
................................................62
Interior Mirror
...................................................62
Instrument Cluster
Gauges...............................................................63
Warning Lamps and Indicators
................65
Audible Warnings and Indicators.............69
Information Displays
General Information......................................70
Information Messages
..................................73
Climate Control
Manual Climate Control
..............................80
Automatic Climate Control
.........................81
Hints on Controlling the Interior Climate..........................................................83
Cabin Air Filter.................................................85
Seats
Sitting in the Correct Position...................86
Manual Seats
..................................................86 Auxiliary Power Points
Auxiliary Power Points.................................88
Storage Compartments
Cup Holders.....................................................89
Map Pockets
....................................................89
Under Seat Storage......................................89
Starting and Stopping the Engine
General Information
.....................................90
Keyless Starting
.............................................90
Steering Wheel Lock......................................91
Starting the Engine.........................................91
Fuel and Refueling
Safety Precautions
........................................94
Fuel Quality
......................................................94
Fuel Filler Funnel Location.........................95
Running Out of Fuel......................................95
Refueling...........................................................96
Fuel Consumption.........................................98
Emission Control System...........................99
Engine Emission Control
Emission Law
.................................................102
Catalytic Converter
......................................103
Transmission
Automatic Transmission
...........................106
Brakes
General Information
......................................111
Hints on Driving With Anti-Lock Brakes.............................................................111
Electric Parking Brake
...................................112
Hill Start Assist...............................................114
2
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Table of Contents

5.
Slightly raise the fuel pump nozzle and
then slowly remove it.
6. Fully close the fuel tank filler door.
Note: Do not attempt to start the engine
if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use can cause damage
not covered by the vehicle Warranty. Have
your vehicle checked immediately.
System Warnings (If Equipped)
If the fuel filler inlet does not fully close a
warning message appears in the
information display.
1. Stop your vehicle as soon as it is safe to do so and switch the engine off.
2. Shift into park (P) or neutral (N). Apply
the parking brake.
3. Fully open the fuel filler door.
4. Check the fuel filler inlet and the area around it for any items or debris that
may be obstructing its movement.
5. Fully insert a fuel pump nozzle or the fuel filler funnel provided with your
vehicle into the fuel filler inlet. This
action should dislodge any debris that
may be preventing the fuel filler inlet
from fully closing.
6. Fully close the fuel filler door.
Note: If this action corrects the problem
the message may not immediately reset. If
the message remains and a warning lamp
illuminates, have your vehicle checked as
soon as possible. FUEL CONSUMPTION
The advertised capacity is the indicated
capacity and the empty reserve combined.
Indicated capacity is the difference in the
amount of fuel in the fuel tank and when
the fuel gauge indicates empty.
See
Capacities and Specifications
(page 204).
Note: The amount of fuel in the empty
reserve varies and should not be relied upon
to increase driving range.
Note: When refueling your vehicle after the
fuel gauge indicates empty, you might not
be able to refuel the full amount of the
advertised capacity due to the empty
reserve still present in the fuel tank.
Filling the Fuel Tank
For consistent results when refueling:
• Always switch the ignition off before
refueling. If you leave the engine
running, you will get an inaccurate
reading.
• Use the same fill rate each time you fill
the tank.
Results are most accurate when the filling
method is consistent.
Calculating Fuel Economy
Do not measure fuel economy during the
first
1,000 mi (1,600 km) of driving (this is
your engine ’s break-in period). A more
accurate measurement is obtained after
2,000 mi (3,200 km)
to 3,000 mi
(4,800 km). Also, fuel expense, frequency
of fill ups or fuel gauge readings are not
accurate ways to measure fuel economy.
1. Fill the fuel tank completely and record
the initial odometer reading.
2. Each time you fill the fuel tank, record the amount of fuel added.
98
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Fuel and RefuelingE119081

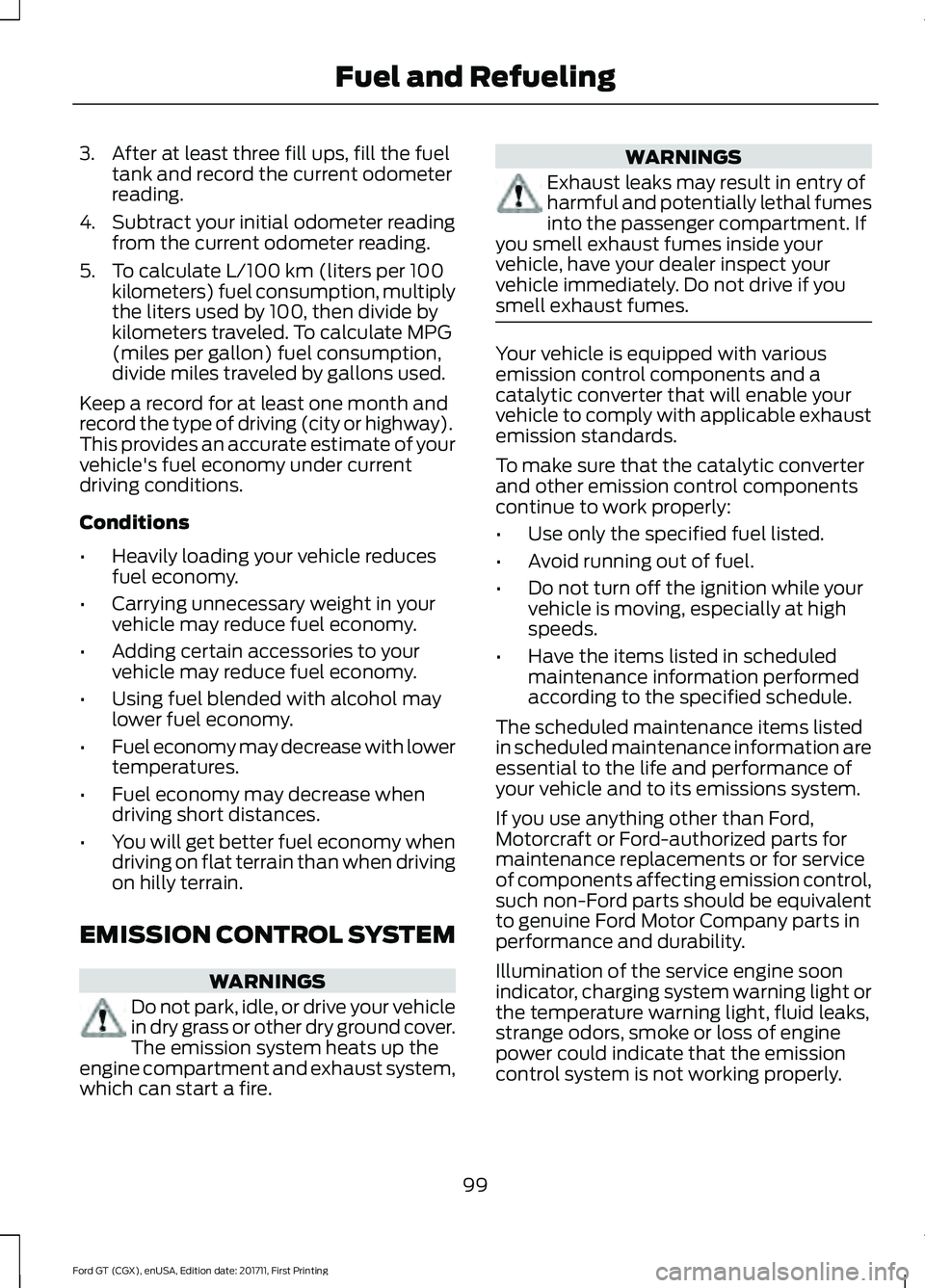

3. After at least three fill ups, fill the fuel
tank and record the current odometer
reading.
4. Subtract your initial odometer reading from the current odometer reading.
5. To calculate L/100 km (liters per 100 kilometers) fuel consumption, multiply
the liters used by 100, then divide by
kilometers traveled. To calculate MPG
(miles per gallon) fuel consumption,
divide miles traveled by gallons used.
Keep a record for at least one month and
record the type of driving (city or highway).
This provides an accurate estimate of your
vehicle's fuel economy under current
driving conditions.
Conditions
• Heavily loading your vehicle reduces
fuel economy.
• Carrying unnecessary weight in your
vehicle may reduce fuel economy.
• Adding certain accessories to your
vehicle may reduce fuel economy.
• Using fuel blended with alcohol may
lower fuel economy.
• Fuel economy may decrease with lower
temperatures.
• Fuel economy may decrease when
driving short distances.
• You will get better fuel economy when
driving on flat terrain than when driving
on hilly terrain.
EMISSION CONTROL SYSTEM WARNINGS
Do not park, idle, or drive your vehicle
in dry grass or other dry ground cover.
The emission system heats up the
engine compartment and exhaust system,
which can start a fire. WARNINGS
Exhaust leaks may result in entry of
harmful and potentially lethal fumes
into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes. Your vehicle is equipped with various
emission control components and a
catalytic converter that will enable your
vehicle to comply with applicable exhaust
emission standards.
To make sure that the catalytic converter
and other emission control components
continue to work properly:
•
Use only the specified fuel listed.
• Avoid running out of fuel.
• Do not turn off the ignition while your
vehicle is moving, especially at high
speeds.
• Have the items listed in scheduled
maintenance information performed
according to the specified schedule.
The scheduled maintenance items listed
in scheduled maintenance information are
essential to the life and performance of
your vehicle and to its emissions system.
If you use anything other than Ford,
Motorcraft or Ford-authorized parts for
maintenance replacements or for service
of components affecting emission control,
such non-Ford parts should be equivalent
to genuine Ford Motor Company parts in
performance and durability.
Illumination of the service engine soon
indicator, charging system warning light or
the temperature warning light, fluid leaks,
strange odors, smoke or loss of engine
power could indicate that the emission
control system is not working properly.
99
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Fuel and Refueling

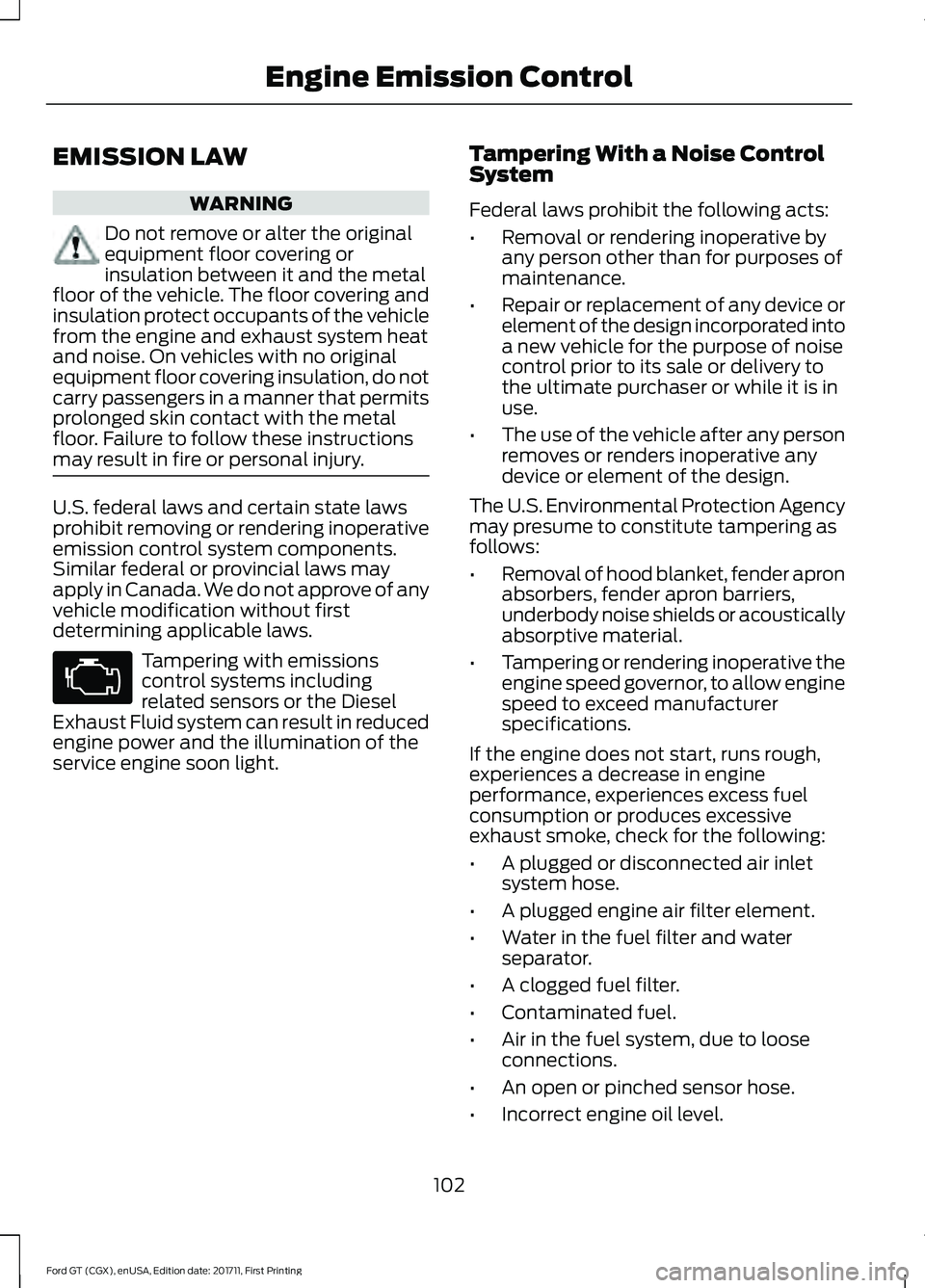

EMISSION LAW
WARNING
Do not remove or alter the original
equipment floor covering or
insulation between it and the metal
floor of the vehicle. The floor covering and
insulation protect occupants of the vehicle
from the engine and exhaust system heat
and noise. On vehicles with no original
equipment floor covering insulation, do not
carry passengers in a manner that permits
prolonged skin contact with the metal
floor. Failure to follow these instructions
may result in fire or personal injury. U.S. federal laws and certain state laws
prohibit removing or rendering inoperative
emission control system components.
Similar federal or provincial laws may
apply in Canada. We do not approve of any
vehicle modification without first
determining applicable laws.
Tampering with emissions
control systems including
related sensors or the Diesel
Exhaust Fluid system can result in reduced
engine power and the illumination of the
service engine soon light. Tampering With a Noise Control
System
Federal laws prohibit the following acts:
•
Removal or rendering inoperative by
any person other than for purposes of
maintenance.
• Repair or replacement of any device or
element of the design incorporated into
a new vehicle for the purpose of noise
control prior to its sale or delivery to
the ultimate purchaser or while it is in
use.
• The use of the vehicle after any person
removes or renders inoperative any
device or element of the design.
The U.S. Environmental Protection Agency
may presume to constitute tampering as
follows:
• Removal of hood blanket, fender apron
absorbers, fender apron barriers,
underbody noise shields or acoustically
absorptive material.
• Tampering or rendering inoperative the
engine speed governor, to allow engine
speed to exceed manufacturer
specifications.
If the engine does not start, runs rough,
experiences a decrease in engine
performance, experiences excess fuel
consumption or produces excessive
exhaust smoke, check for the following:
• A plugged or disconnected air inlet
system hose.
• A plugged engine air filter element.
• Water in the fuel filter and water
separator.
• A clogged fuel filter.
• Contaminated fuel.
• Air in the fuel system, due to loose
connections.
• An open or pinched sensor hose.
• Incorrect engine oil level.
102
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Engine Emission Control

Apps........................................................................\
233
Bluetooth Stereo or USB.................................. 231
Sources.................................................................. 230
Supported Media Players, Formats and Metadata Information................................. 233
USB Ports.............................................................. 233
Environment......................................................13
EPB See: Electric Parking Brake............................... 112
Event Data Recording See: Data Recording............................................... 7
Exterior Mirrors................................................62
Fold-Away Exterior Mirrors............................... 62
Power Exterior Mirrors........................................ 62
F
Fastening the Seatbelts..............................26 Seatbelt Locking Modes.................................... 27
Using Seatbelts During Pregnancy................27
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................180
Floor Mats
........................................................135
Foot Pedals See: Adjusting the Pedals................................. 56
Ford Performance...........................................12
Front Passenger Sensing System............35
Fuel and Refueling
........................................94
Fuel Consumption.........................................98 Calculating Fuel Economy............................... 98
Filling the Fuel Tank............................................ 98
Fuel Filler Funnel Location.........................95
Fuel Filter.........................................................167
Fuel Quality
......................................................94
Choosing the Right Fuel.................................... 94
Fuel Shutoff
....................................................136
Fuses.................................................................146
Fuse Specification Chart...........................146 Front Power Distribution Box......................... 146
Passenger Compartment Fuse Panel..........151
Rear Power Distribution Box 1........................ 148
Rear Power Distribution Box 2....................... 150
G
Gauges...............................................................63 Engine Coolant Temperature Gauge............65
Engine Oil Pressure Gauge............................... 65Engine Oil Temperature Gauge.......................
65
Fuel Gauge............................................................. 64
Gauge Mode........................................................... 65
Information Display............................................. 63
Trip Computer....................................................... 64
Gearbox See: Transmission.............................................. 106
General Information on Radio Frequencies..................................................40
Intelligent Access................................................. 40
General Maintenance Information........274 Protecting Your Investment........................... 274
Road Course Maintenance............................. 274
Why Maintain Your Vehicle?.......................... 274
Why Maintain Your Vehicle at Your Certified Ford GT Service Dealership?..................... 274
Getting Assistance Outside the U.S. and Canada..........................................................143
Getting the Services You Need...............140 Away From Home.............................................. 140
Global Opening................................................61 Remote Control Front Windows.................... 62
H
Hazard Flashers
............................................136
Headlamp Adjusting See: Adjusting the Headlamps...................... 170
Heating See: Climate Control.......................................... 80
Hill Start Assist...............................................114 Using Hill Start Assist......................................... 114
Hints on Controlling the Interior Climate............................................................83
Defogging the Side Windows in Cold Weather.............................................................. 84
General Hints......................................................... 83
Quickly Heating the Interior.............................. 83
Recommended Settings for Cooling............84
Recommended Settings for Heating...........84
Hints on Driving With Anti-Lock Brakes...............................................................111
Home Screen.................................................223
Hood Lock See: Opening and Closing the Hood............157
317
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Index
