sensor FORD GT 2018 Warranty Guide

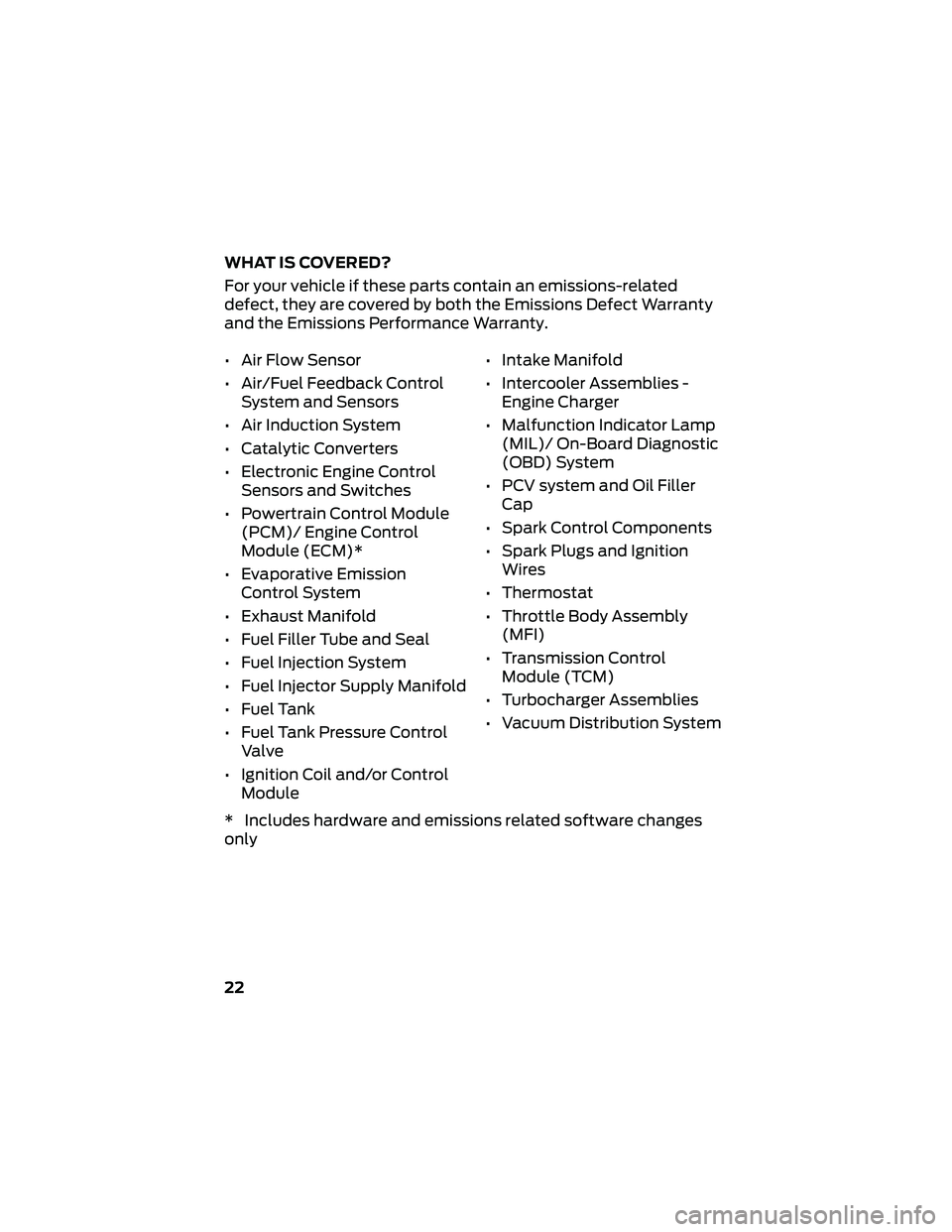

WHAT IS COVERED?
For your vehicle if these parts contain an emissions-related
defect, they are covered by both the Emissions Defect Warranty
and the Emissions Performance Warranty.
• Air Flow Sensor
• Air/Fuel Feedback ControlSystem and Sensors
• Air Induction System
• Catalytic Converters
• Electronic Engine Control Sensors and Switches
• Powertrain Control Module (PCM)/ Engine Control
Module (ECM)*
• Evaporative Emission Control System
• Exhaust Manifold
• Fuel Filler Tube and Seal
• Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank
• Fuel Tank Pressure Control Valve
• Ignition Coil and/or Control Module • Intake Manifold
• Intercooler Assemblies -
Engine Charger
• Malfunction Indicator Lamp (MIL)/ On-Board Diagnostic
(OBD) System
• PCV system and Oil Filler Cap
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module (TCM)
• Turbocharger Assemblies
• Vacuum Distribution System
* Includes hardware and emissions related software changes
only
22

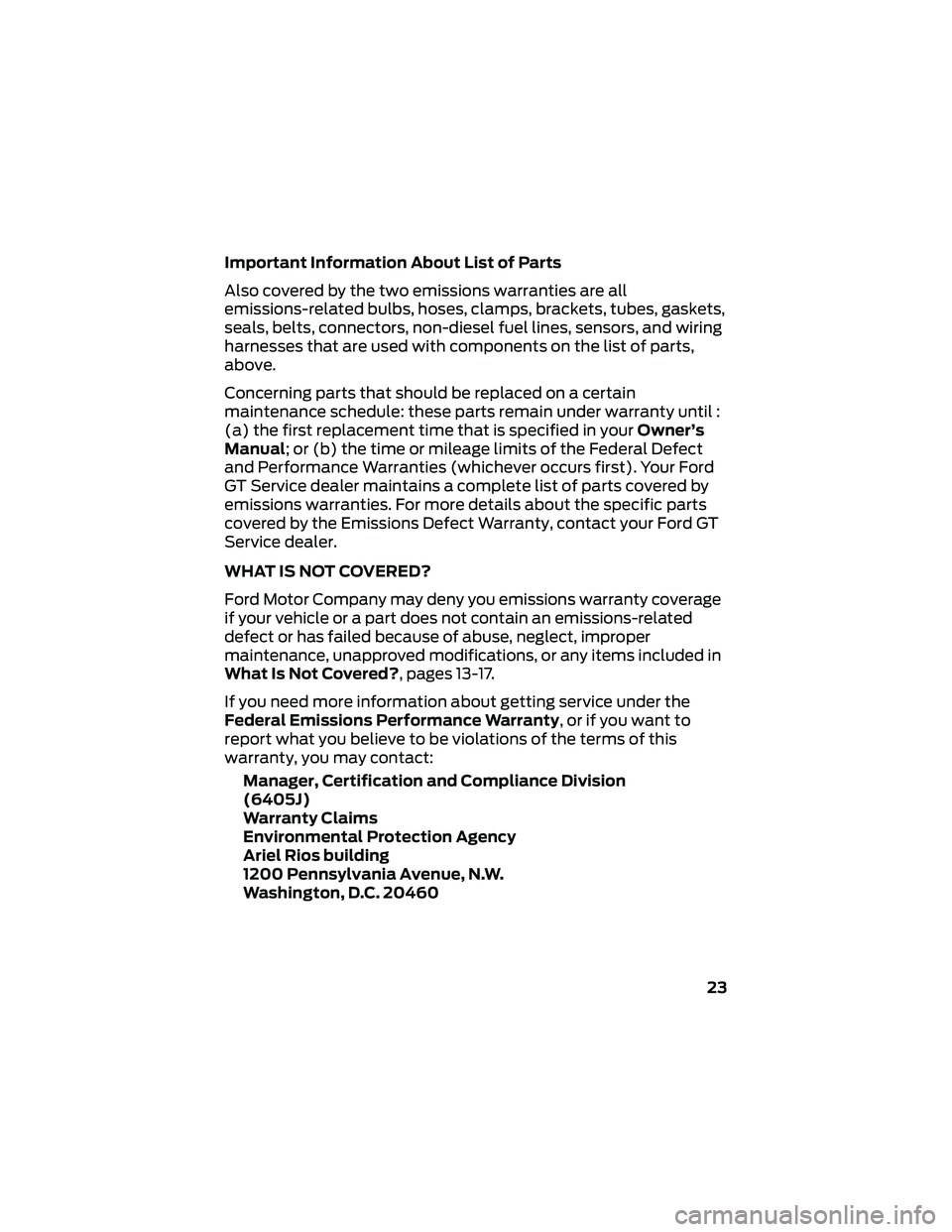

Important Information About List of Parts
Also covered by the two emissions warranties are all
emissions-related bulbs, hoses, clamps, brackets, tubes, gaskets,
seals, belts, connectors, non-diesel fuel lines, sensors, and wiring
harnesses that are used with components on the list of parts,
above.
Concerning parts that should be replaced on a certain
maintenance schedule: these parts remain under warranty until :
(a) the first replacement time that is specified in yourOwner’s
Manual; or (b) the time or mileage limits of the Federal Defect
and Performance Warranties (whichever occurs first). Your Ford
GT Service dealer maintains a complete list of parts covered by
emissions warranties. For more details about the specific parts
covered by the Emissions Defect Warranty, contact your Ford GT
Service dealer.
WHAT IS NOT COVERED?
Ford Motor Company may deny you emissions warranty coverage
if your vehicle or a part does not contain an emissions-related
defect or has failed because of abuse, neglect, improper
maintenance, unapproved modifications, or any items included in
What Is Not Covered?, pages 13-17.
If you need more information about getting service under the
Federal Emissions Performance Warranty, or if you want to
report what you believe to be violations of the terms of this
warranty, you may contact:
Manager, Certification and Compliance Division
(6405J)
Warranty Claims
Environmental Protection Agency
Ariel Rios building
1200 Pennsylvania Avenue, N.W.
Washington, D.C. 20460
23

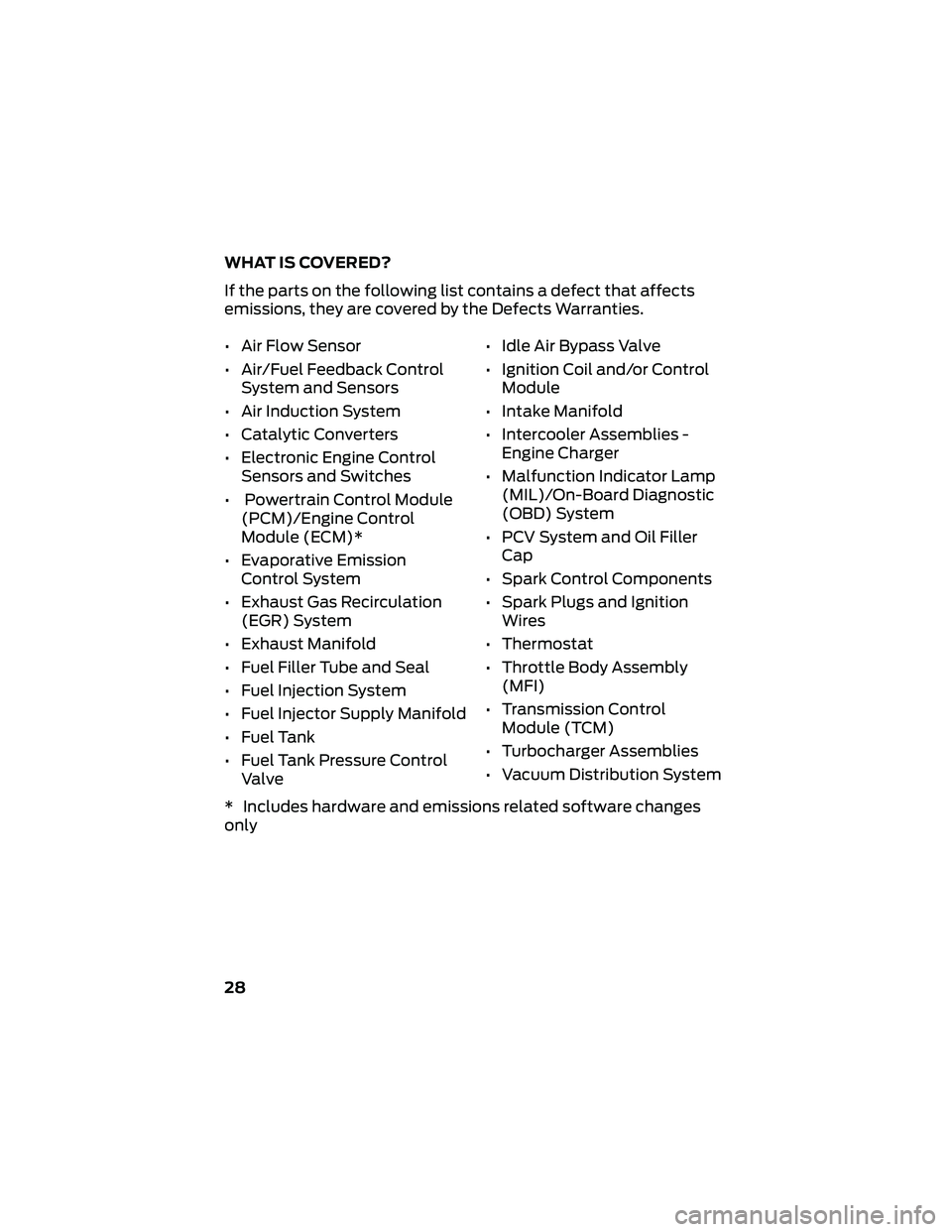

WHAT IS COVERED?
If the parts on the following list contains a defect that affects
emissions, they are covered by the Defects Warranties.
• Air Flow Sensor
• Air/Fuel Feedback ControlSystem and Sensors
• Air Induction System
• Catalytic Converters
• Electronic Engine Control Sensors and Switches
• Powertrain Control Module (PCM)/Engine Control
Module (ECM)*
• Evaporative Emission Control System
• Exhaust Gas Recirculation (EGR) System
• Exhaust Manifold
• Fuel Filler Tube and Seal
• Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank
• Fuel Tank Pressure Control Valve • Idle Air Bypass Valve
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assemblies - Engine Charger
• Malfunction Indicator Lamp (MIL)/On-Board Diagnostic
(OBD) System
• PCV System and Oil Filler Cap
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module (TCM)
• Turbocharger Assemblies
• Vacuum Distribution System
* Includes hardware and emissions related software changes
only
28

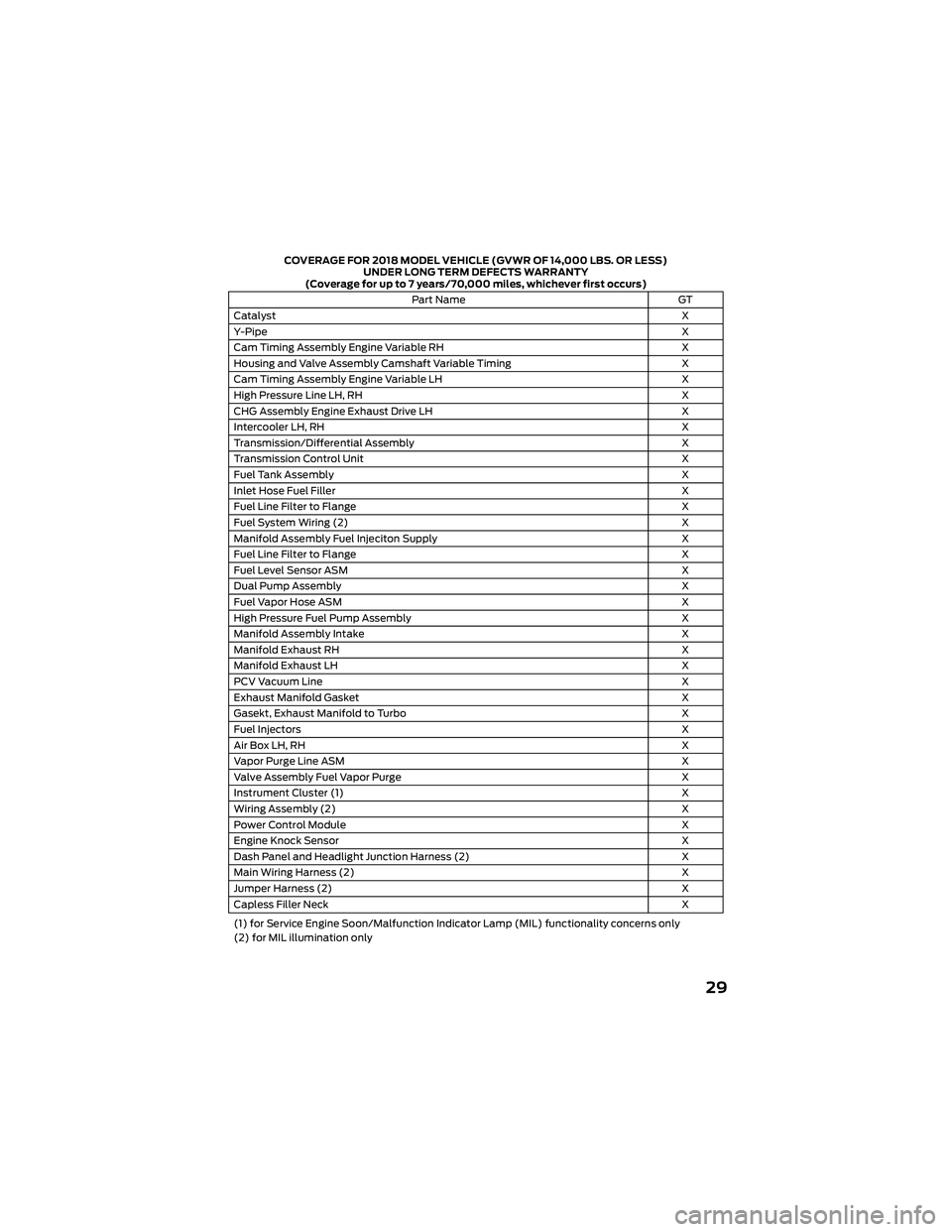

COVERAGE FOR 2018 MODEL VEHICLE (GVWR OF 14,000 LBS. OR LESS)UNDER LONG TERM DEFECTS WARRANTY
(Coverage for up to 7 years/70,000 miles, whichever first occurs)
Part Name GT
Catalyst X
Y-Pipe X
Cam Timing Assembly Engine Variable RH X
Housing and Valve Assembly Camshaft Variable Timing X
Cam Timing Assembly Engine Variable LH X
High Pressure Line LH, RH X
CHG Assembly Engine Exhaust Drive LH X
Intercooler LH, RH X
Transmission/Differential Assembly X
Transmission Control Unit X
Fuel Tank Assembly X
Inlet Hose Fuel Filler X
Fuel Line Filter to Flange X
Fuel System Wiring (2) X
Manifold Assembly Fuel Injeciton Supply X
Fuel Line Filter to Flange X
Fuel Level Sensor ASM X
Dual Pump Assembly X
Fuel Vapor Hose ASM X
High Pressure Fuel Pump Assembly X
Manifold Assembly Intake X
Manifold Exhaust RH X
Manifold Exhaust LH X
PCV Vacuum Line X
Exhaust Manifold Gasket X
Gasekt, Exhaust Manifold to Turbo X
Fuel Injectors X
Air Box LH, RH X
Vapor Purge Line ASM X
Valve Assembly Fuel Vapor Purge X
Instrument Cluster (1) X
Wiring Assembly (2) X
Power Control Module X
Engine Knock Sensor X
Dash Panel and Headlight Junction Harness (2) X
Main Wiring Harness (2) X
Jumper Harness (2) X
Capless Filler Neck X
(1) for Service Engine Soon/Malfunction Indicator Lamp (MIL) functionality concerns only
(2) for MIL illumination only
29
