Page 173 of 321
Raising the Rear Wing
For routine cleaning, raise the wing.
Using the information display select the
following:
1. Rear wing deployment.
2. Select Raised.
After you have cleaned your vehicle, to
return the wing to the lowered position you
must drive the car at 15 mph (25 km/h) or
above. The wing will return to the lowered
position.
Note:
You cannot lower the wing when your
vehicle is stationary.
Exterior Plastic Parts
For routine cleaning we recommend
Motorcraft® Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft® Bug and Tar Remover.
Under Hood
For removing black rubber marks from
under the hood we recommend
Motorcraft® Wheel and Tire Cleaner or
Motorcraft® Bug and Tar Remover.
WAXING
Note: If your vehicle has a matte paint
finish, do not wax your vehicle.
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax.
• Use a quality wax that does not contain
abrasives.
• Follow the manufacturer ’s instructions
to apply and remove the wax. •
Apply a small amount of wax in a
back-and-forth motion, not in circles.
• Do not allow wax to come in contact
with any non-body (low-gloss black)
colored trim. The wax will discolor or
stain the parts over time.
• Do not apply wax to glass areas.
• After waxing, your car's paint should
feel smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.
When washing:
• Do not spray a hot engine with cold
water to avoid cracking the engine
block or other engine components.
• Spray Motorcraft® Engine Shampoo
and Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine
Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or
the area in and around these locations.
• Never spray water on electrical
components such as modules,
connectors and fuse boxes. Cover all
electrical components before cleaning
to prevent water damage.
170
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Vehicle Care

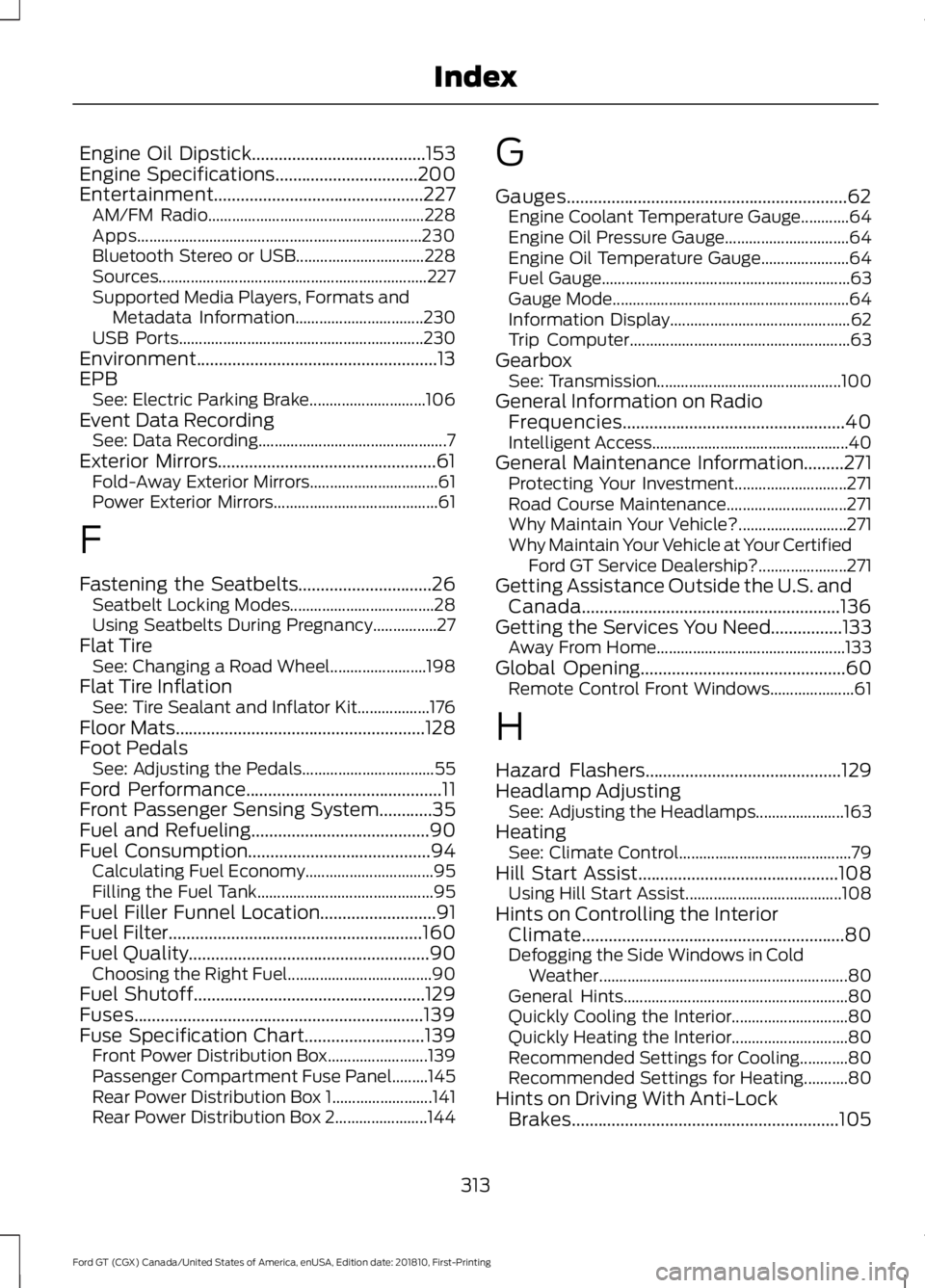

Page 316 of 321
Engine Oil Dipstick.......................................153
Engine Specifications................................200
Entertainment...............................................227 AM/FM Radio...................................................... 228
Apps....................................................................... 230
Bluetooth Stereo or USB................................ 228
Sources................................................................... 227
Supported Media Players, Formats and Metadata Information................................ 230
USB Ports............................................................. 230
Environment......................................................13
EPB See: Electric Parking Brake............................. 106
Event Data Recording See: Data Recording............................................... 7
Exterior Mirrors.................................................61 Fold-Away Exterior Mirrors................................ 61
Power Exterior Mirrors......................................... 61
F
Fastening the Seatbelts..............................26 Seatbelt Locking Modes.................................... 28
Using Seatbelts During Pregnancy................27
Flat Tire See: Changing a Road Wheel........................ 198
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................. 176
Floor Mats........................................................128
Foot Pedals See: Adjusting the Pedals................................. 55
Ford Performance
............................................11
Front Passenger Sensing System............35
Fuel and Refueling
........................................90
Fuel Consumption.........................................94 Calculating Fuel Economy................................ 95
Filling the Fuel Tank............................................ 95
Fuel Filler Funnel Location
..........................91
Fuel Filter.........................................................160
Fuel Quality
......................................................90
Choosing the Right Fuel.................................... 90
Fuel Shutoff
....................................................129
Fuses.................................................................139
Fuse Specification Chart...........................139 Front Power Distribution Box......................... 139
Passenger Compartment Fuse Panel.........145
Rear Power Distribution Box 1......................... 141
Rear Power Distribution Box 2....................... 144G
Gauges...............................................................62
Engine Coolant Temperature Gauge............64
Engine Oil Pressure Gauge............................... 64
Engine Oil Temperature Gauge...................... 64
Fuel Gauge.............................................................. 63
Gauge Mode........................................................... 64
Information Display............................................. 62
Trip Computer....................................................... 63
Gearbox See: Transmission.............................................. 100
General Information on Radio Frequencies..................................................40
Intelligent Access................................................. 40
General Maintenance Information.........271 Protecting Your Investment............................ 271
Road Course Maintenance.............................. 271
Why Maintain Your Vehicle?........................... 271
Why Maintain Your Vehicle at Your Certified Ford GT Service Dealership?...................... 271
Getting Assistance Outside the U.S. and Canada..........................................................136
Getting the Services You Need................133 Away From Home............................................... 133
Global Opening..............................................60 Remote Control Front Windows..................... 61
H
Hazard Flashers
............................................129
Headlamp Adjusting See: Adjusting the Headlamps...................... 163
Heating See: Climate Control........................................... 79
Hill Start Assist.............................................108 Using Hill Start Assist....................................... 108
Hints on Controlling the Interior Climate...........................................................80
Defogging the Side Windows in Cold Weather.............................................................. 80
General Hints........................................................ 80
Quickly Cooling the Interior............................. 80
Quickly Heating the Interior............................. 80
Recommended Settings for Cooling............80
Recommended Settings for Heating...........80
Hints on Driving With Anti-Lock Brakes
............................................................105
313
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Index
