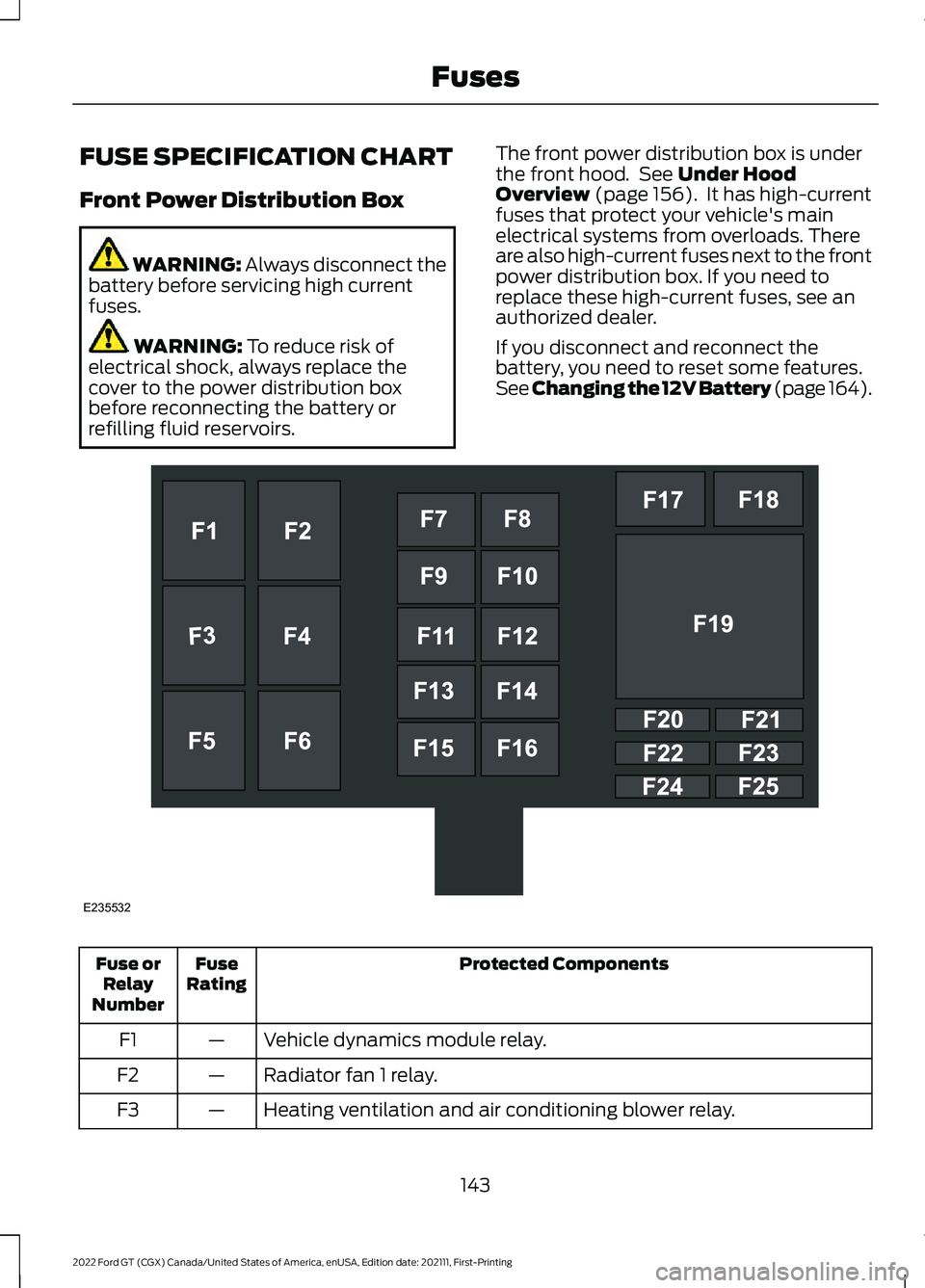

FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The front power distribution box is under
the front hood. See
Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high-current fuses next to the front
power distribution box. If you need to
replace these high-current fuses, see an
authorized dealer.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
). Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle dynamics module relay.
—
F1
Radiator fan 1 relay.
—
F2
Heating ventilation and air conditioning blower relay.
—
F3
143
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE235532

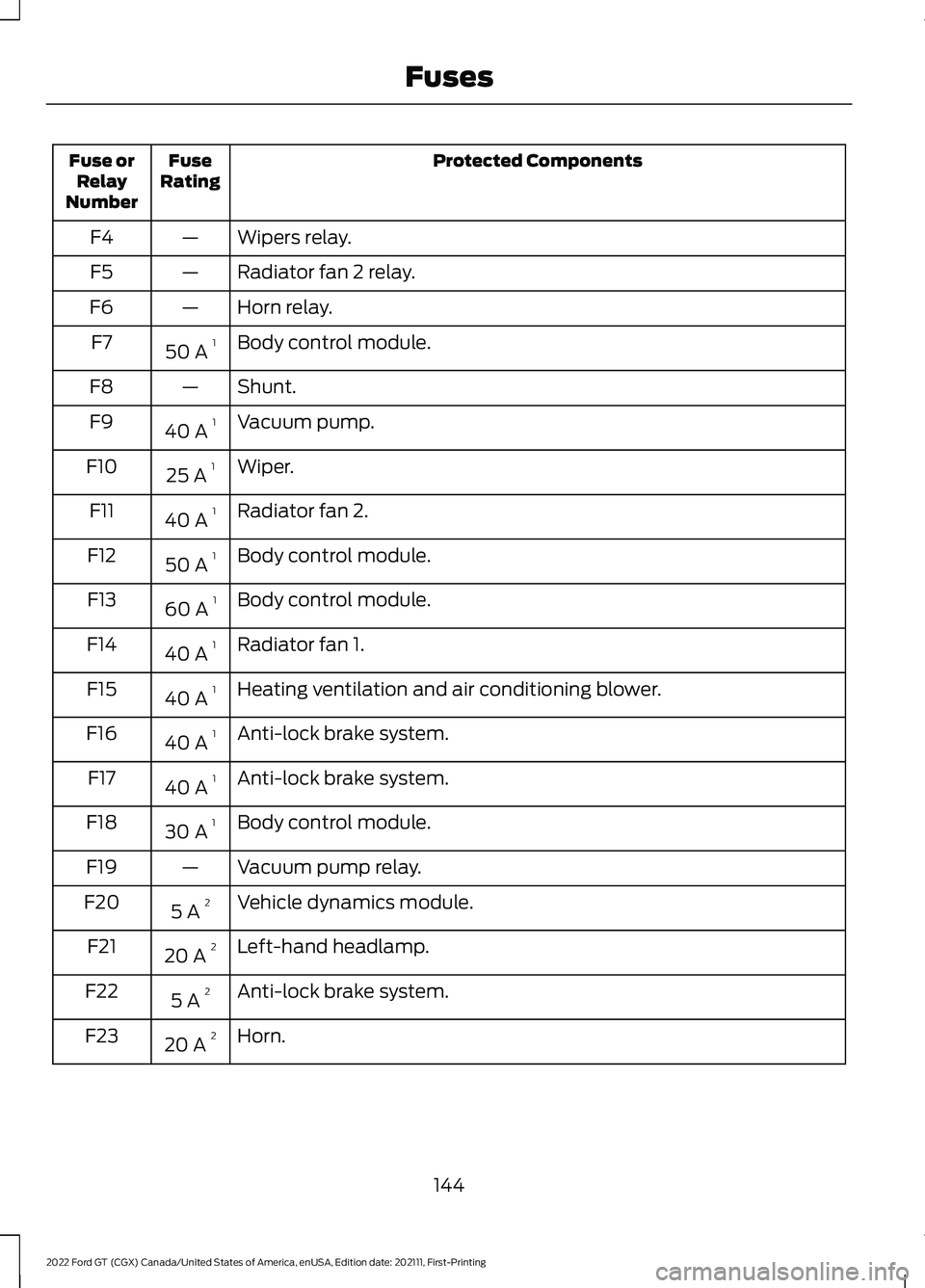

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Wipers relay.
—
F4
Radiator fan 2 relay.
—
F5
Horn relay.
—
F6
Body control module.
50 A 1
F7
Shunt.
—
F8
Vacuum pump.
40 A 1
F9
Wiper.
25 A 1
F10
Radiator fan 2.
40 A 1
F11
Body control module.
50 A 1
F12
Body control module.
60 A 1
F13
Radiator fan 1.
40 A 1
F14
Heating ventilation and air conditioning blower.
40 A 1
F15
Anti-lock brake system.
40 A 1
F16
Anti-lock brake system.
40 A 1
F17
Body control module.
30 A 1
F18
Vacuum pump relay.
—
F19
Vehicle dynamics module.
5 A 2
F20
Left-hand headlamp.
20 A 2
F21
Anti-lock brake system.
5 A 2
F22
Horn.
20 A 2
F23
144
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Electronic door system.
20 A 2
F24
Right-hand headlamp.
20 A 2
F25
1 J-case fuse.
2 Mini fuse.

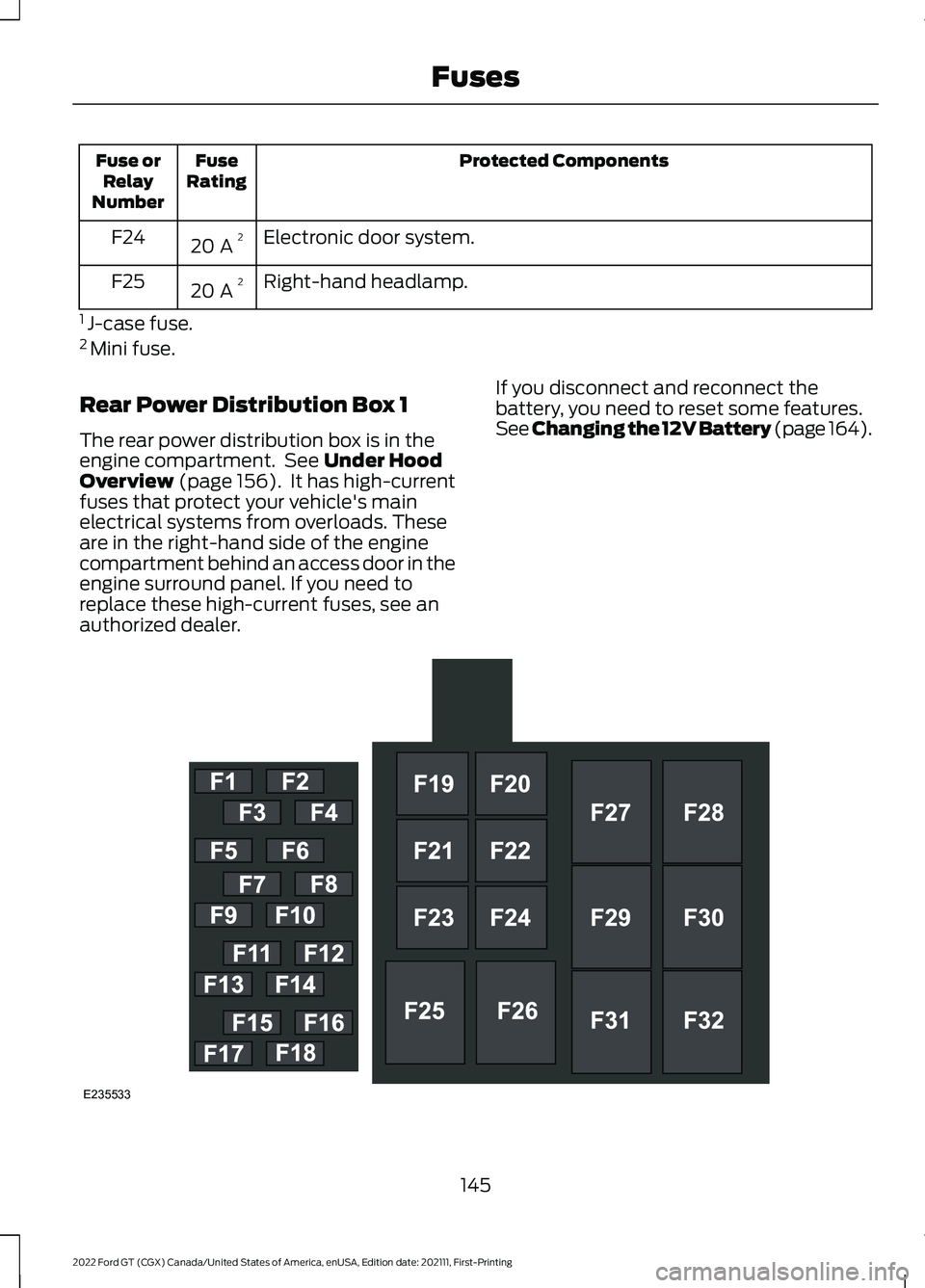

Rear Power Distribution Box 1
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right-hand side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
).
145
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE235533

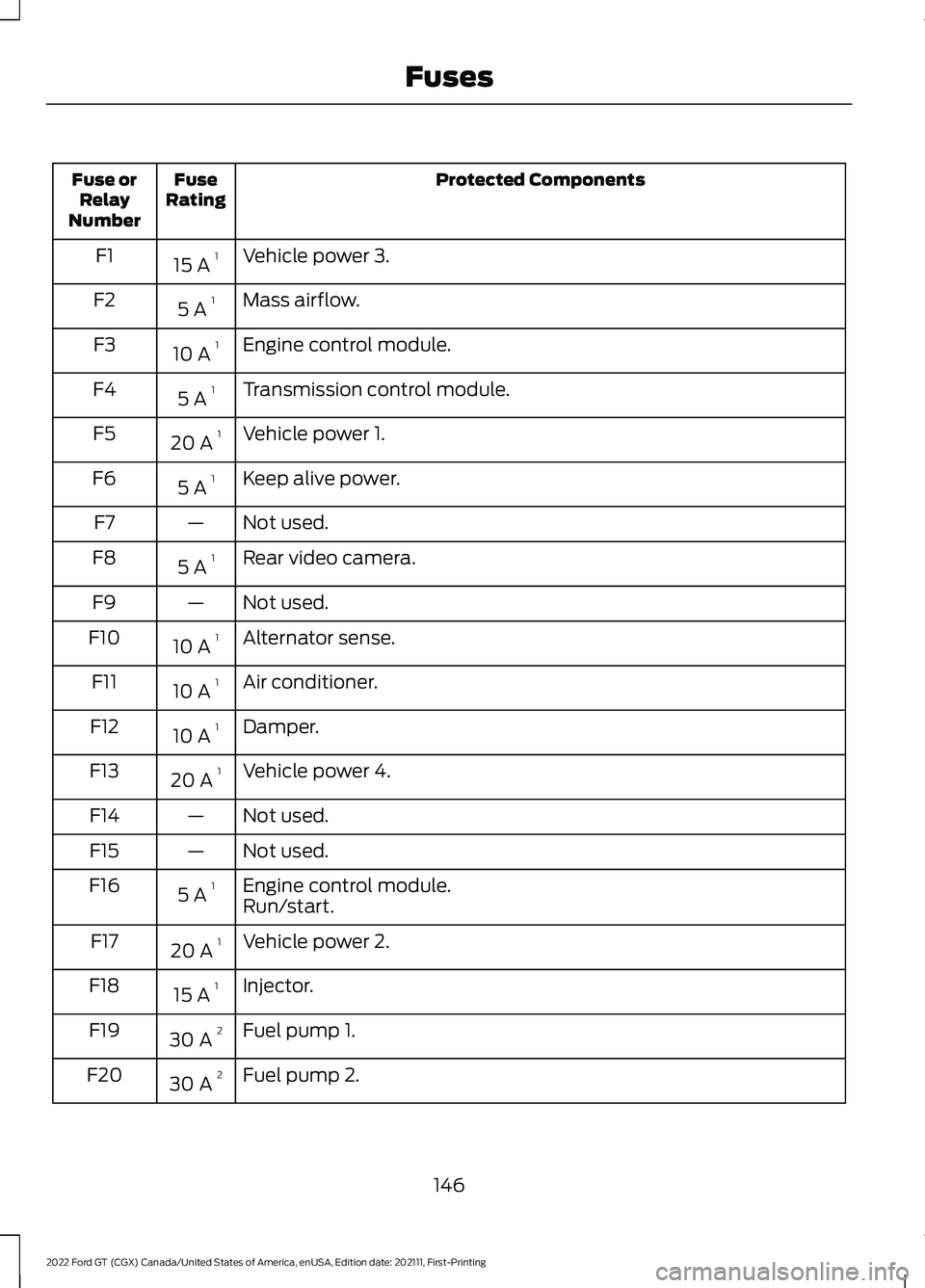

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle power 3.
15 A 1
F1
Mass airflow.
5 A 1
F2
Engine control module.
10 A 1
F3
Transmission control module.
5 A 1
F4
Vehicle power 1.
20 A 1
F5
Keep alive power.
5 A 1
F6
Not used.
—
F7
Rear video camera.
5 A 1
F8
Not used.
—
F9
Alternator sense.
10 A 1
F10
Air conditioner.
10 A 1
F11
Damper.
10 A 1
F12
Vehicle power 4.
20 A 1
F13
Not used.
—
F14
Not used.
—
F15
Engine control module.
5 A 1
F16
Run/start.
Vehicle power 2.
20 A 1
F17
Injector.
15 A 1
F18
Fuel pump 1.
30 A 2
F19
Fuel pump 2.
30 A 2
F20
146

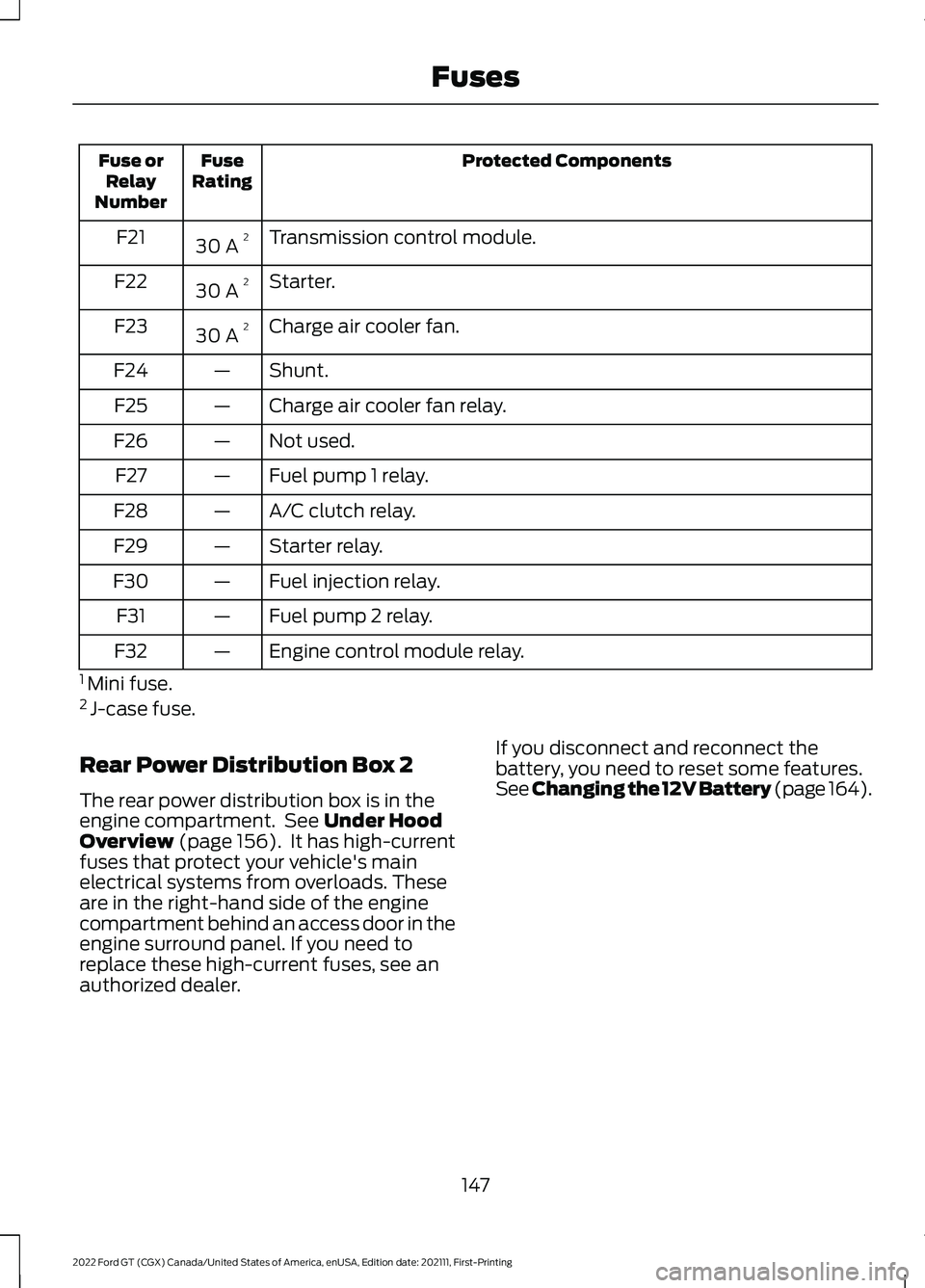

2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Transmission control module.
30 A 2
F21
Starter.
30 A 2
F22
Charge air cooler fan.
30 A 2
F23
Shunt.
—
F24
Charge air cooler fan relay.
—
F25
Not used.
—
F26
Fuel pump 1 relay.
—
F27
A/C clutch relay.
—
F28
Starter relay.
—
F29
Fuel injection relay.
—
F30
Fuel pump 2 relay.
—
F31
Engine control module relay.
—
F32
1 Mini fuse.
2 J-case fuse.
Rear Power Distribution Box 2
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right-hand side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
).
147
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Transmission gear fluid cooler fan relay.
—
1
Engine oil cooler fan relay.
—
2
Transmission clutch fluid cooler fan relay.
—
3
Not used.
—
4
Not used.
—
5
Not used.
—
6
Engine oil cooler fan.
20 A 1
7
Transmission clutch fluid cooler fan.
25 A 1
8
Transmission gear fluid cooler fan.
20 A 1
9
Trunk power point.
20 A 1
10
1 J-case fuse.
Passenger Compartment Fuse
Panel

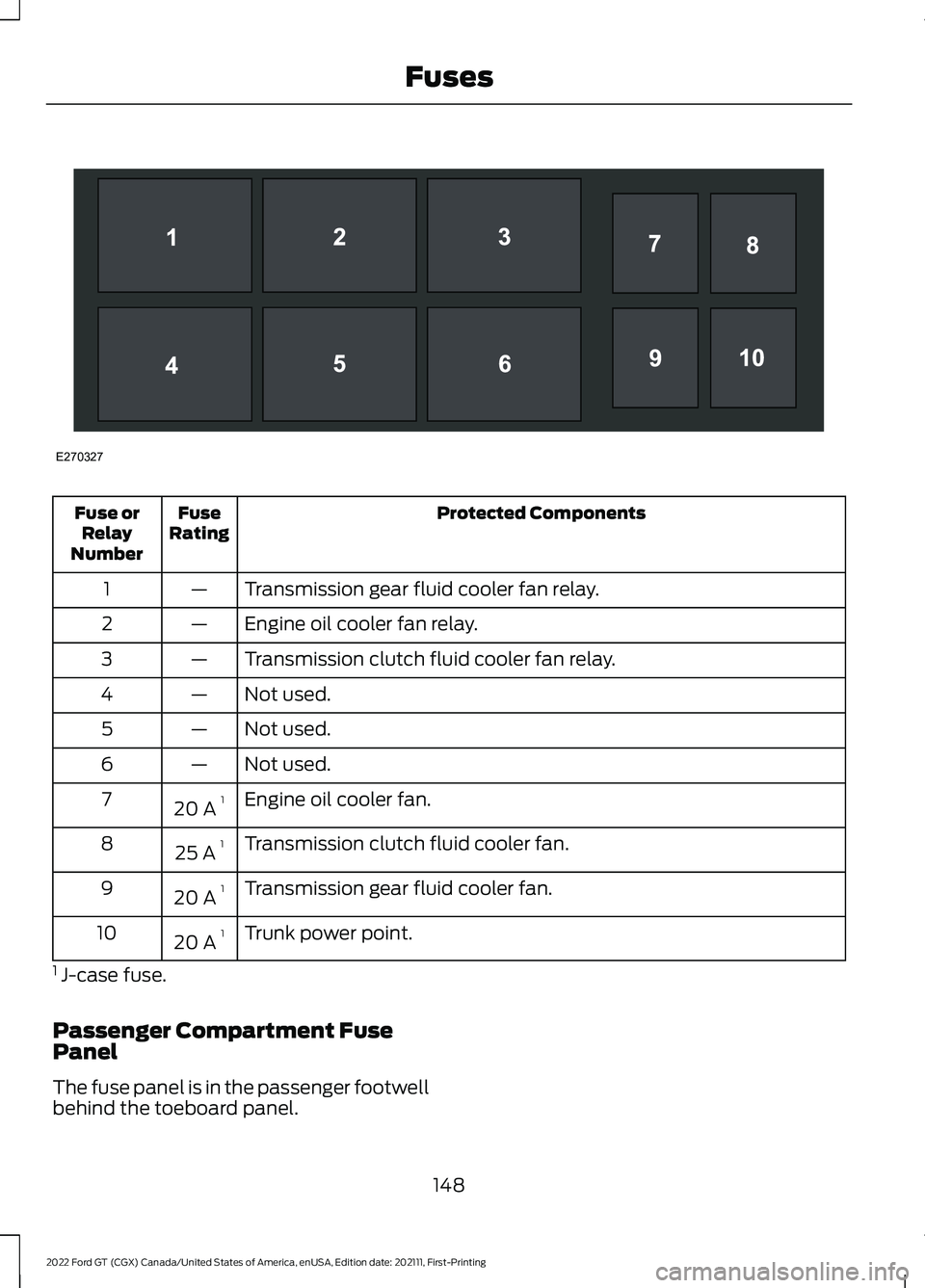

The fuse panel is in the passenger footwell
behind the toeboard panel.
148
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE270327

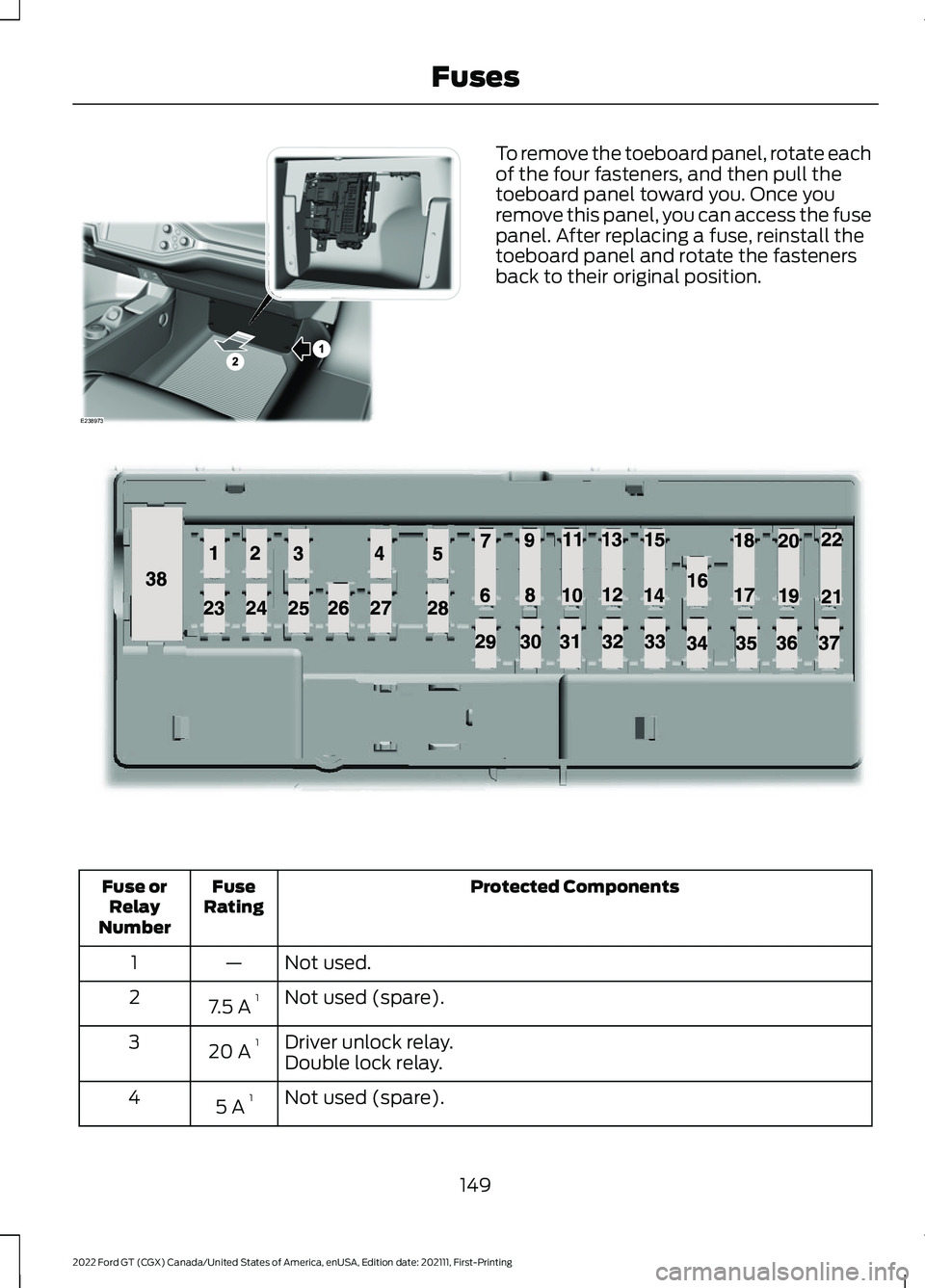

To remove the toeboard panel, rotate each
of the four fasteners, and then pull the
toeboard panel toward you. Once you
remove this panel, you can access the fuse
panel. After replacing a fuse, reinstall the
toeboard panel and rotate the fasteners
back to their original position.
Protected Components
Fuse
Rating
Fuse or
Relay
Number
Not used.
—
1
Not used (spare).
7.5 A 1
2
Driver unlock relay.
20 A 1
3
Double lock relay.
Not used (spare).
5 A 1
4
149
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE238973 E145984

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Not used (spare).
20 A 1
5
Not used (spare).
10 A 2
6
Not used (spare).
10 A 2
7
Not used (spare).
10 A 2
8
Brake on-off switch.
10 A 2
9
Push button start switch.
5 A 2
10
Right-hand and left-hand exterior door locks and handles.
5 A 2
11
RF transceiver module.
7.5 A 2
12
Steering column control module logic.
7.5 A 2
13
Smart datalink connector logic.
Instrument cluster.
Extended power mode module.
10 A 2
14
Smart datalink connector power.
10 A 2
15
Decklid release relay.
15 A 1
16
Combined sensor module.
5 A 2
17
Telematics control unit - modem.
5 A 2
18
Not used (spare).
7.5 A 2
19
Front damper controllers.
7.5 A 2
20
Shift indicator module head up display.
5 A 2
21
Interior temperature sensor.
Extended power mode module.
5 A 2
22
Right-hand window switch illumination.
10 A 1
23
Right-hand door lock switch illumination.
150
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Left-hand door lock switch illumination.
Power mirror/window switch (motor).
Right-hand smart window motor (logic).
Left-hand smart window motor (logic).
Central lock relay.
20 A 1
24
Central unlock relay.
Left-hand smart window motor.
30 A 1
25
Right-hand smart window motor.
30 A 1
26
Not used (spare).
30 A 1
27
Electronic steering column lock (relay supply).
20 A 1
28
Not used (spare).
30 A 1
29
Not used (spare).
30 A 1
30
Not used (spare).
15 A 1
31
SYNC.
10 A 1
32
Audio on/off switch.
Gear shift module.
Heating ventilation and air conditioning electronic control unit
power.
Audio control module.
20 A 1
33
Run-start relay (R12).
30 A 1
34
Steering angle sensor module.
5 A 1
35
Auxiliary power point.
15 A 1
36
Heating ventilation and air conditioning electronic control unit
ignition.
20 A 1
37
Front power distribution box ignition (F1, F3, F20, F22).
151
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Rear power distribution box 1 ignition (F4, F8, F12, F16).
Not used.
—
38
1 Micro 2 fuse.
2 Micro 3 fuse.
Note: Spare fuses can vary per amperage
depending on the trim level of the vehicle.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
152
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE217331
