headlamp FORD KUGA 2010 1.G Owners Manual

Introduction
About this handbook................................5
Symbols glossary......................................5
Parts and accessories..............................5
Quick start
Quick start..................................................8
Child safety
Child seats................................................16
Child seat positioning..............................17
Booster cushions.....................................19
ISOFIX anchor points..............................20
Child safety locks.....................................21
Occupant protection
Principle of operation..............................22
Fastening the seat belts........................24
Seat belt height adjustment..................24
Seat belt reminder..................................24
Using seat belts during pregnancy......25
Disabling the passenger airbag............25
Keys and remote controls
General information on radio
frequencies...........................................27
Programming the remote control........27
Changing the remote control battery...................................................27
Locks
Locking and unlocking...........................29
Keyless entry............................................31
Global opening and closing...................34
Engine immobiliser
Principle of operation..............................36
Coded keys.............................................36
Arming the engine immobiliser.............36
Disarming the engine immobiliser........36 Alarm
Arming the alarm.....................................37
Disarming the alarm................................37
Steering wheel
Adjusting the steering wheel.................39
Audio control...........................................39
Voice control............................................40
Wipers and washers
Windscreen wipers..................................41
Autowipers................................................41
Windscreen washers.............................42
Rear window wiper and washers.........42
Adjusting the windscreen washer
jets.........................................................43
Headlamp washers................................43
Checking the wiper blades...................43
Changing the wiper blades...................44
Lighting
Lighting control........................................46
Autolamps................................................47
Front fog lamps.......................................47
Rear fog lamps........................................47
Headlamp levelling..................................47
Hazard warning flashers........................48
Adaptive front lighting system (AFS)......................................................49
Direction indicators.................................50
Interior lamps...........................................50
Removing a headlamp............................51
Changing a bulb......................................52
Bulb specification chart..........................58
Windows and mirrors
Electric windows.....................................60
Exterior mirrors.........................................61
Electric exterior mirrors..........................62
1
Table of contents

Exterior mirror
Glass
•
Rear window
• Side glass
• Windscreen Lighting
•
Rear lamps
• Rear fog lamp
• Headlamp 7
IntroductionE98917 E98918 E89939 E98920

Right-hand drive
Lighting control. See
Lighting control(page 46). Front fog lamps. See
Front fog lamps (page 47). Rear fog lamp. See Rear fog lamps(page
47).
A
Headlamp levelling control. See Headlamp levelling(page 47).
B
Multi-function lever: Information display controls. Direction indicators. See
Direction indicators (page 50). Main beam. See Lighting control(page
46).
C
Instrument cluster. See Gauges(page 63). See Warning lamps and
indicators (page 64).
D
9 Quick startE78210IHGJKCEDFBAONMLSQRPT

Automatic climate control
Windscreen
defrosting/demisting
A
Toggle mono mode on and off
B
Air conditioning OFF
C
Recirculated air
D
Air conditioning ON
E See
Automatic climate control
(page 83).
Autolamps The headlamps will come on and go off
automatically depending on the ambient
light. See
Lighting control (page 46).
Direction indicators If the lever is tapped up or down, the
direction indicators will flash three times.
See
Direction indicators (page 50).
Autowipers Move the lever up one position.
The rain sensor will continuously measure
the amount of water on the windscreen
and adjust the speed of the front wipers
automatically.
Adjust the sensitivity of the rain sensor
using the rotary control.
See
Windscreen wipers (page 41).
14 Quick startE78730EDCBA E73840 E71098 E71014B

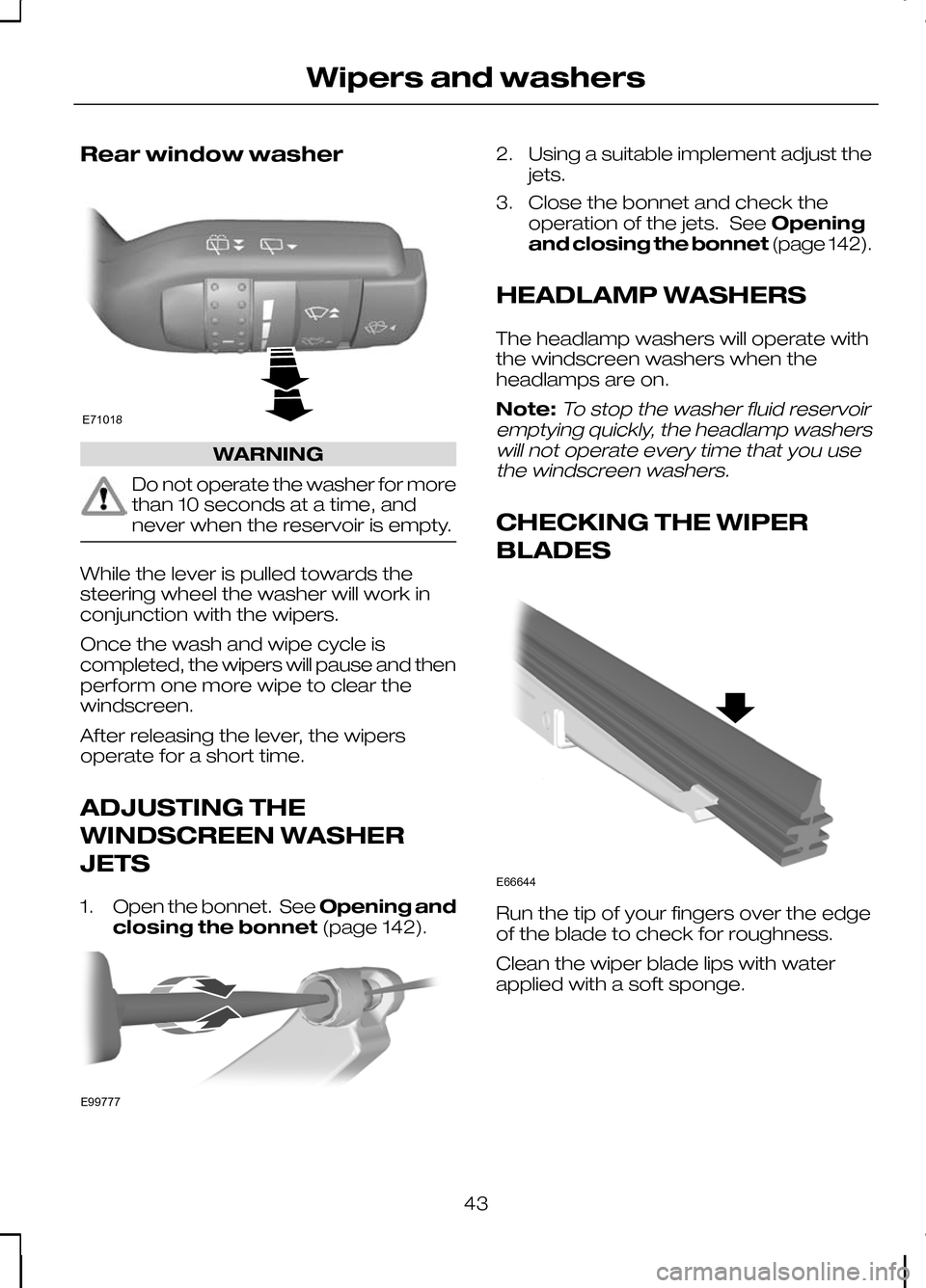

Rear window washer
WARNING
Do not operate the washer for more
than 10 seconds at a time, and
never when the reservoir is empty.
While the lever is pulled towards the
steering wheel the washer will work in
conjunction with the wipers.
Once the wash and wipe cycle is
completed, the wipers will pause and then
perform one more wipe to clear the
windscreen.
After releasing the lever, the wipers
operate for a short time.
ADJUSTING THE
WINDSCREEN WASHER
JETS
1.
Open the bonnet. See Opening and
closing the bonnet (page 142). 2. Using a suitable implement adjust the
jets.
3. Close the bonnet and check the operation of the jets. See Opening
and closing the bonnet (page 142).
HEADLAMP WASHERS
The headlamp washers will operate with
the windscreen washers when the
headlamps are on.
Note:To stop the washer fluid reservoir
emptying quickly, the headlamp washers will not operate every time that you usethe windscreen washers.
CHECKING THE WIPER
BLADES Run the tip of your fingers over the edge
of the blade to check for roughness.
Clean the wiper blade lips with water
applied with a soft sponge.
43
Wipers and washersE71018 E99777 E66644

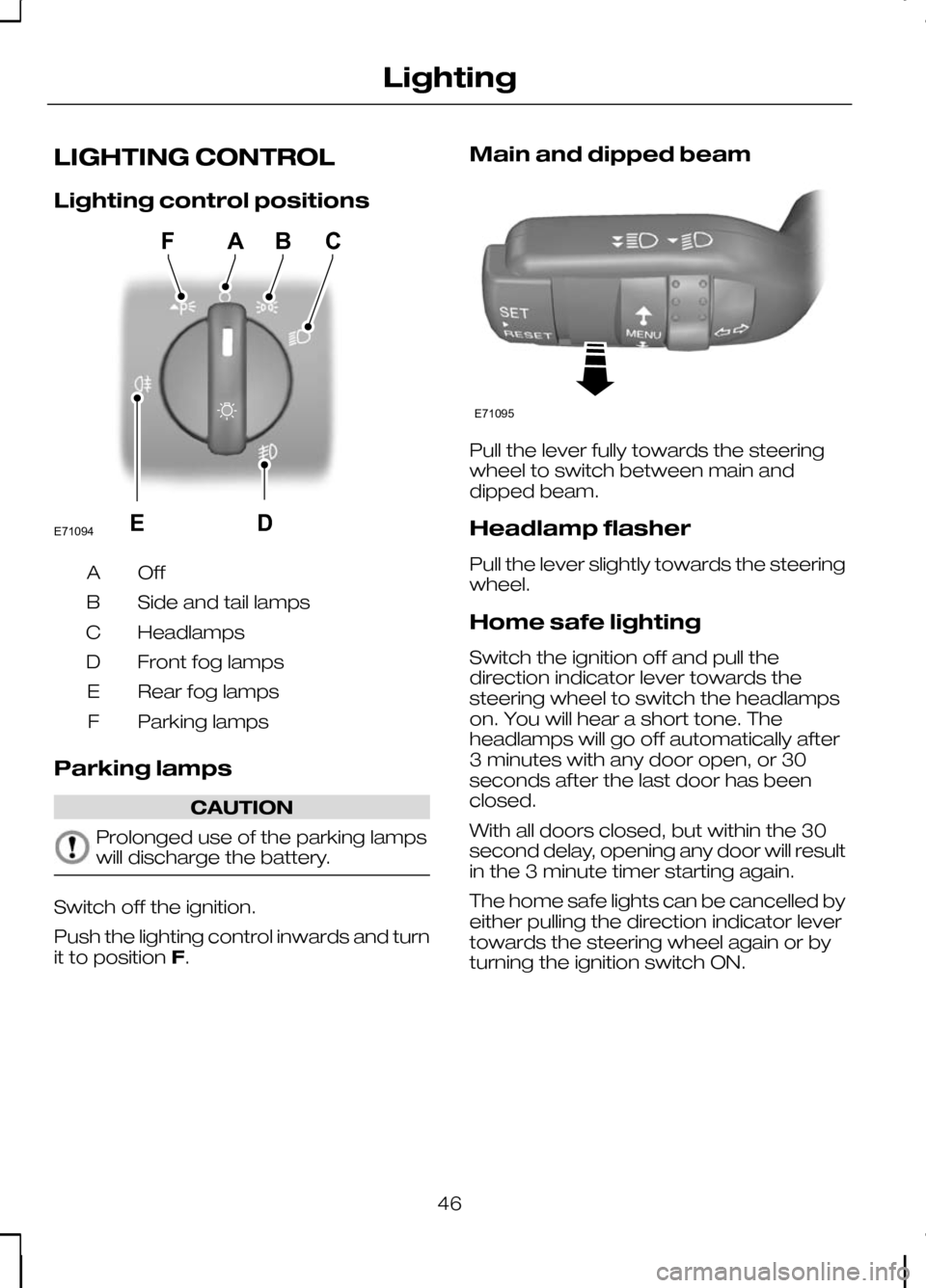

LIGHTING CONTROL
Lighting control positions
OffA
Side and tail lamps
B
Headlamps
C
Front fog lamps
D
Rear fog lamps
E
Parking lamps
F
Parking lamps CAUTION
Prolonged use of the parking lamps
will discharge the battery.
Switch off the ignition.
Push the lighting control inwards and turn
it to position
F. Main and dipped beam
Pull the lever fully towards the steering
wheel to switch between main and
dipped beam.
Headlamp flasher
Pull the lever slightly towards the steering
wheel.
Home safe lighting
Switch the ignition off and pull the
direction indicator lever towards the
steering wheel to switch the headlamps
on. You will hear a short tone. The
headlamps will go off automatically after
3 minutes with any door open, or 30
seconds after the last door has been
closed.
With all doors closed, but within the 30
second delay, opening any door will result
in the 3 minute timer starting again.
The home safe lights can be cancelled by
either pulling the direction indicator lever
towards the steering wheel again or by
turning the ignition switch ON.
46
LightingE71094DBCAFE E71095

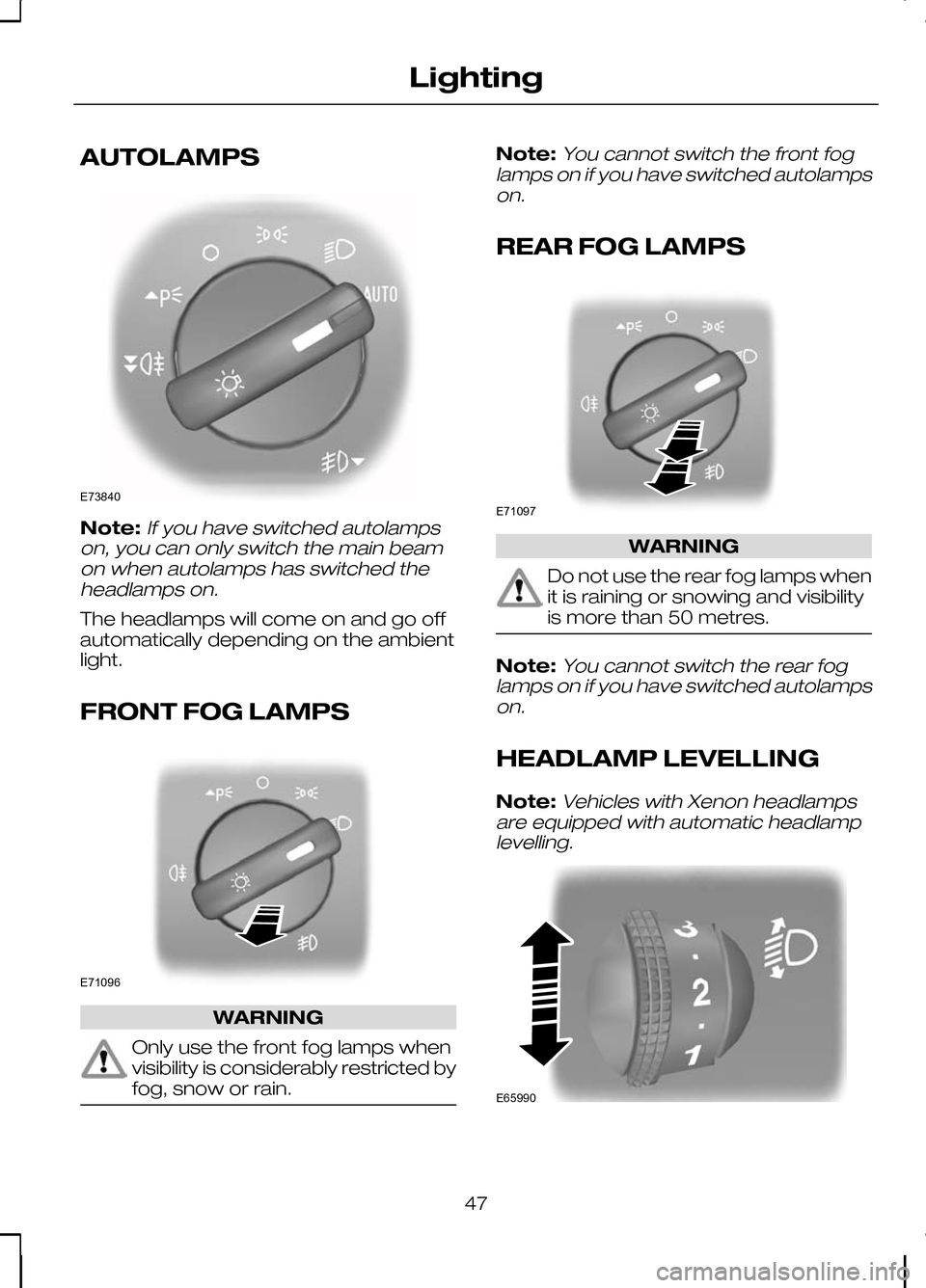

AUTOLAMPS
Note:If you have switched autolamps
on, you can only switch the main beam on when autolamps has switched theheadlamps on.
The headlamps will come on and go off
automatically depending on the ambient
light.
FRONT FOG LAMPS WARNING
Only use the front fog lamps when
visibility is considerably restricted by
fog, snow or rain. Note:
You cannot switch the front fog
lamps on if you have switched autolamps on.
REAR FOG LAMPS WARNING
Do not use the rear fog lamps when
it is raining or snowing and visibility
is more than 50 metres.
Note:
You cannot switch the rear fog
lamps on if you have switched autolamps on.
HEADLAMP LEVELLING
Note:
Vehicles with Xenon headlamps
are equipped with automatic headlamp levelling. 47
LightingE73840 E71096 E71097 E65990

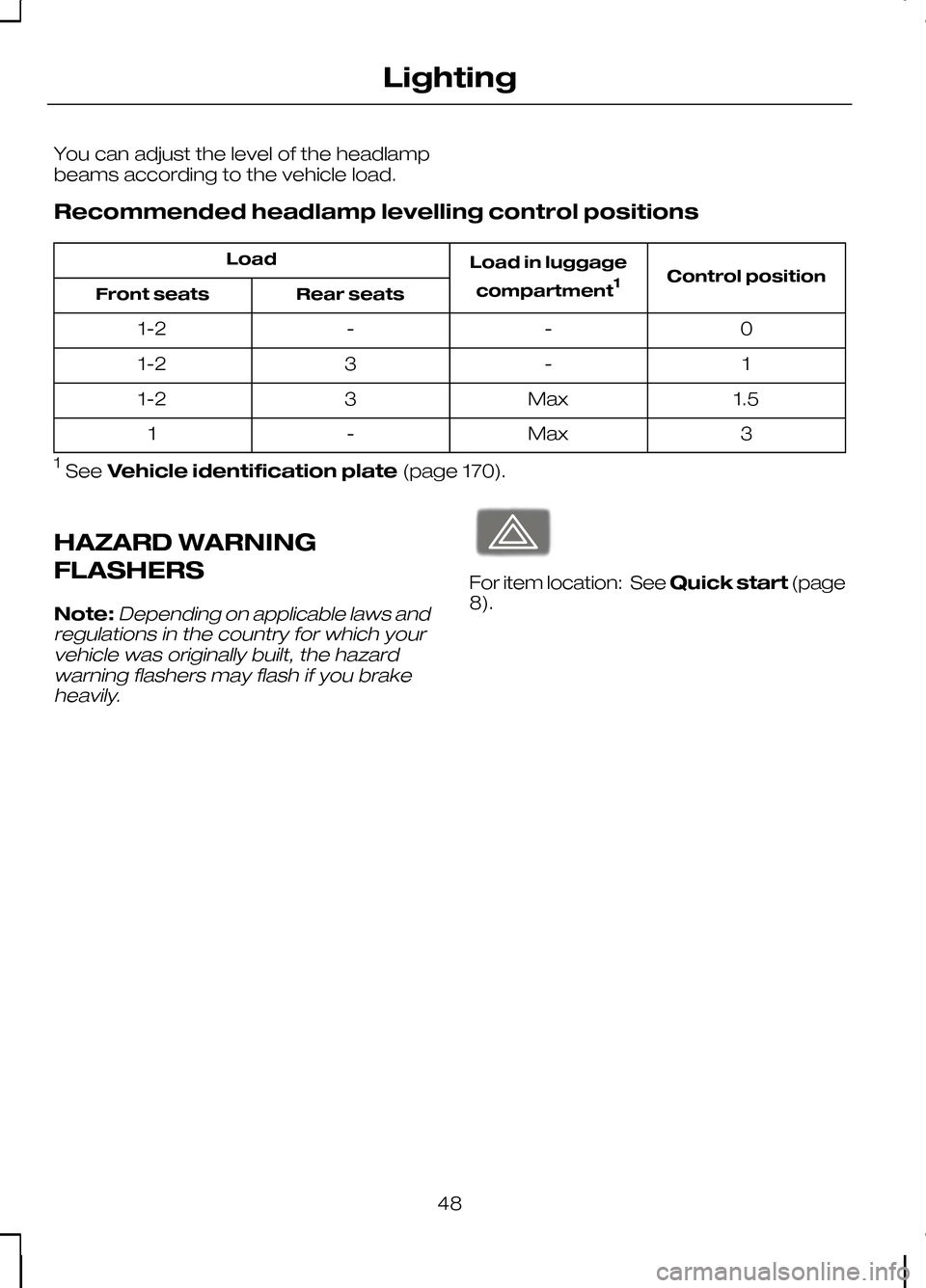

You can adjust the level of the headlamp
beams according to the vehicle load.
Recommended headlamp levelling control positions
Control position
Load in luggage
compartment 1
Load
Rear seats
Front seats
0
-
-
1-2
1
-
3
1-2
1.5
Max
3
1-2
3
Max
-
1
1 See Vehicle identification plate (page 170).
HAZARD WARNING
FLASHERS
Note:Depending on applicable laws and
regulations in the country for which your vehicle was originally built, the hazardwarning flashers may flash if you brakeheavily. For item location: See
Quick start(page
8).
48
LightingE71943

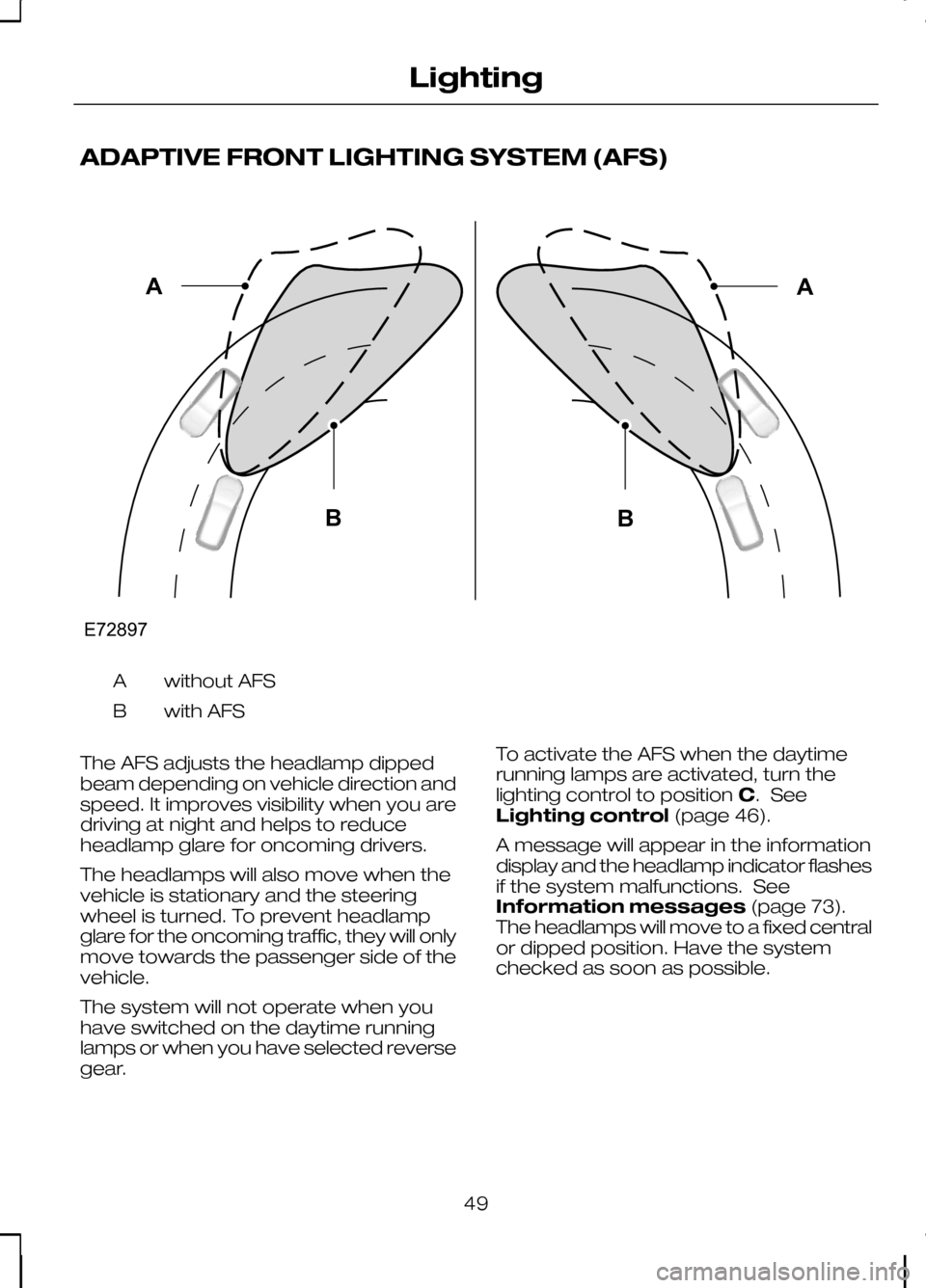

ADAPTIVE FRONT LIGHTING SYSTEM (AFS)
without AFS
A
with AFS
B
The AFS adjusts the headlamp dipped
beam depending on vehicle direction and
speed. It improves visibility when you are
driving at night and helps to reduce
headlamp glare for oncoming drivers.
The headlamps will also move when the
vehicle is stationary and the steering
wheel is turned. To prevent headlamp
glare for the oncoming traffic, they will only
move towards the passenger side of the
vehicle.
The system will not operate when you
have switched on the daytime running
lamps or when you have selected reverse
gear. To activate the AFS when the daytime
running lamps are activated, turn the
lighting control to position
C. See
Lighting control (page 46).
A message will appear in the information
display and the headlamp indicator flashes
if the system malfunctions. See
Information messages (page 73).
The headlamps will move to a fixed central
or dipped position. Have the system
checked as soon as possible.
49
LightingE72897ABAB

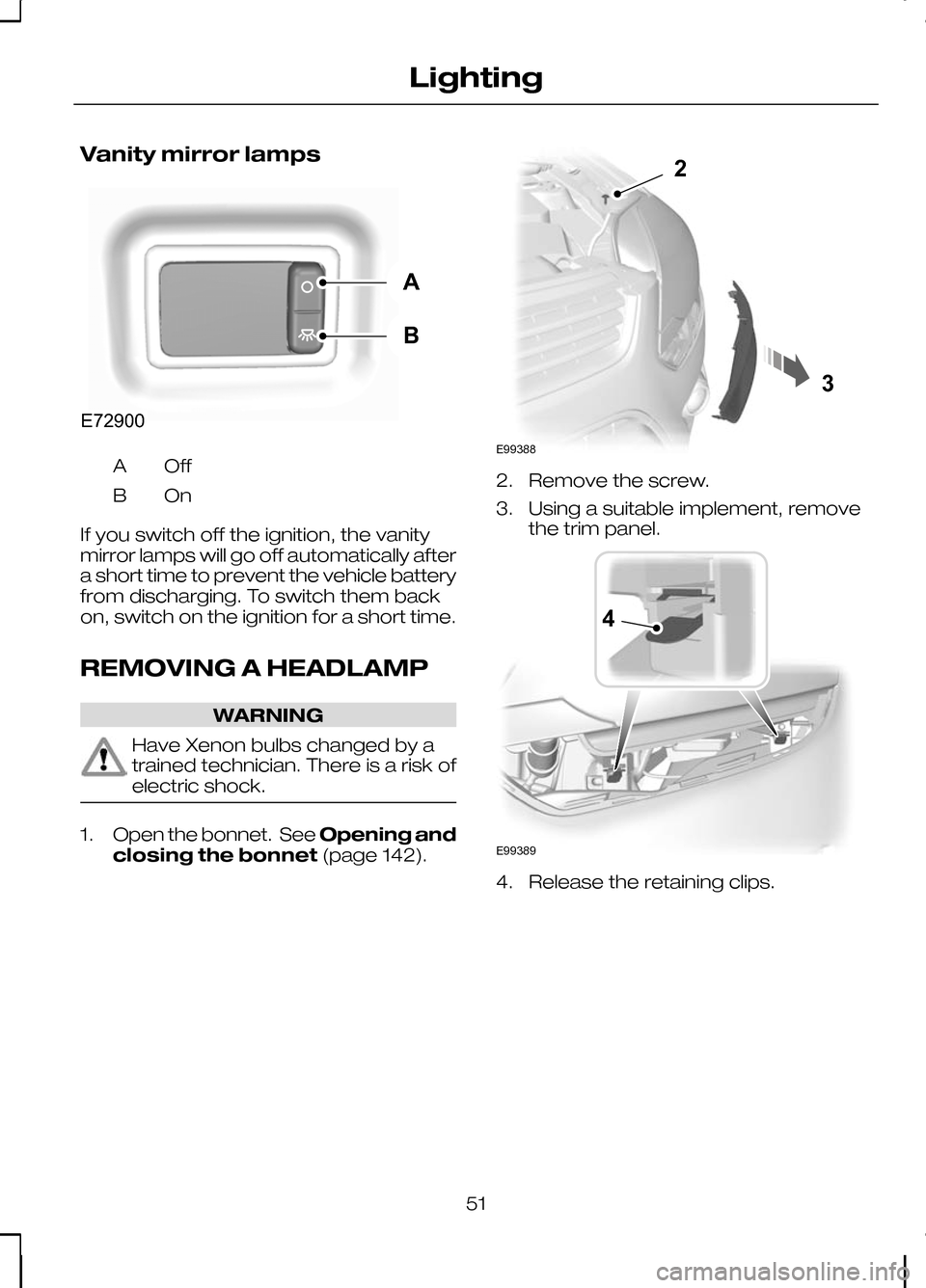

Vanity mirror lamps
OffA
OnB
If you switch off the ignition, the vanity
mirror lamps will go off automatically after
a short time to prevent the vehicle battery
from discharging. To switch them back
on, switch on the ignition for a short time.
REMOVING A HEADLAMP WARNING
Have Xenon bulbs changed by a
trained technician. There is a risk of
electric shock.
1.
Open the bonnet. See Opening and
closing the bonnet (page 142). 2. Remove the screw.
3. Using a suitable implement, remove
the trim panel. 4. Release the retaining clips.
51
LightingABE72900 23E99388 4E99389
