FORD KUGA 2011 1.G Owner's Guide

E88974
1
34
2
5
7
6
Description
Item
Combination pliers
1
Side cutter pliers
2Description
Item
Securing ring pliers - inner
3
Securing ring pliers - outer
4
G955392en2008.50 Kuga8/2011
100-00- 26
General Information
100-00- 26
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

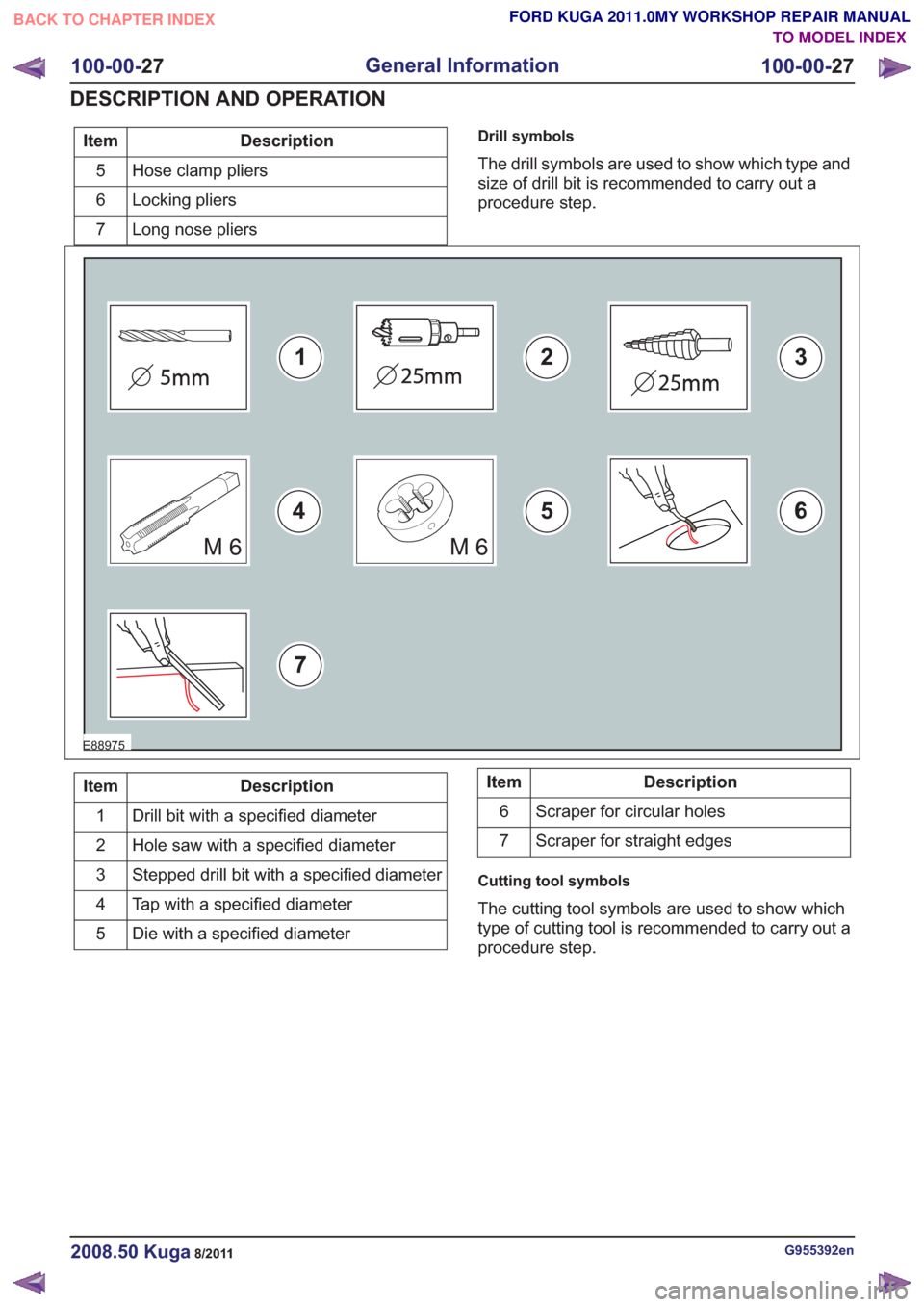

Description
Item
Hose clamp pliers
5
Locking pliers
6
Long nose pliers
7Drill symbols
The drill symbols are used to show which type and
size of drill bit is recommended to carry out a
procedure step.
123
45
E88975
M6M6
Description
Item
Drill bit with a specified diameter
1
Hole saw with a specified diameter
2
Stepped drill bit with a specified diameter
3
Tap with a specified diameter
4
Die with a specified diameter
5Description
Item
Scraper for circular holes
6
Scraper for straight edges
7
Cutting tool symbols
The cutting tool symbols are used to show which
type of cutting tool is recommended to carry out a
procedure step.
G955392en2008.50 Kuga8/2011
100-00- 27
General Information
100-00- 27
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

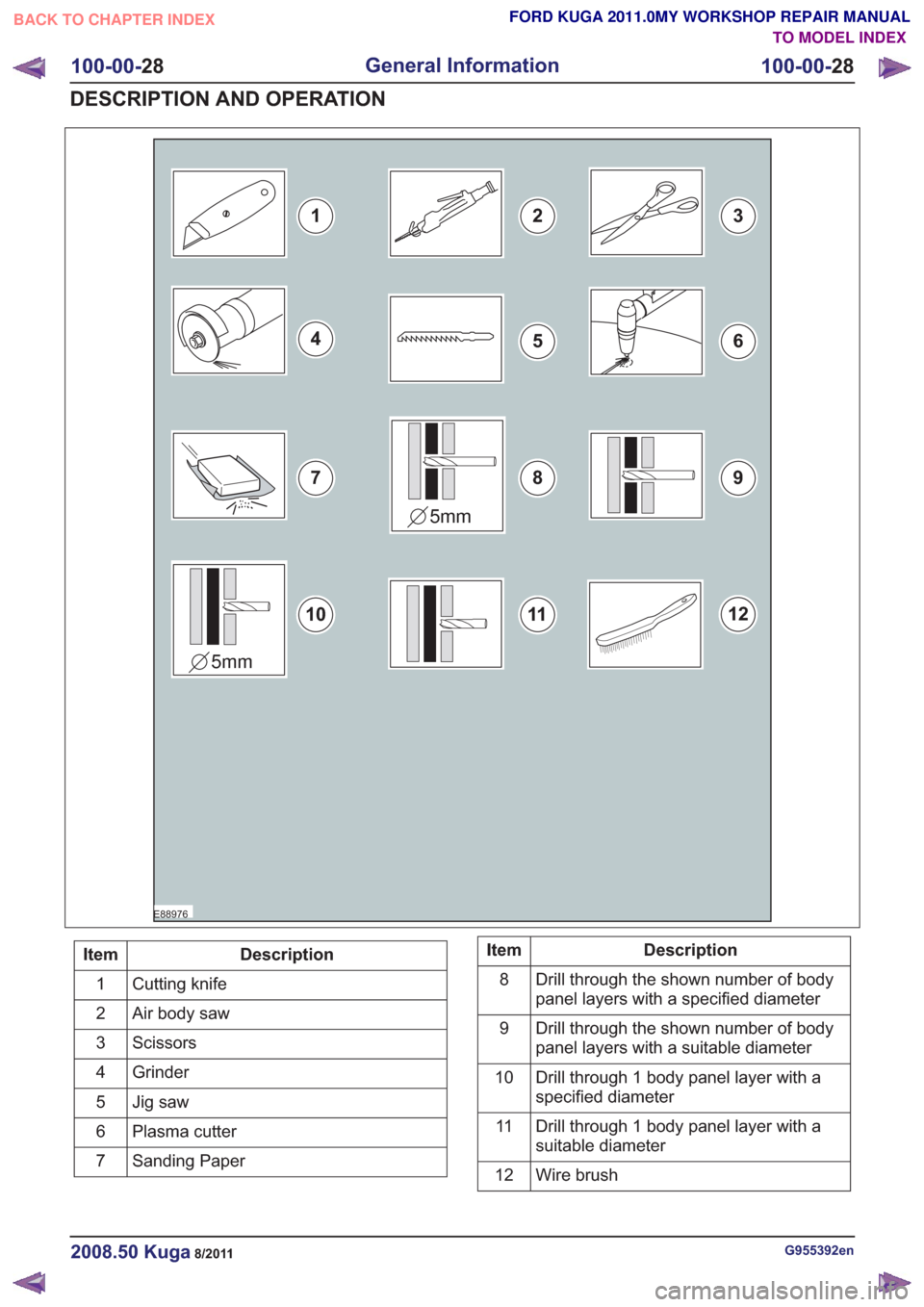

E88976
123
456
7
5mm
5mm
1110
98
12
Description
Item
Cutting knife
1
Air body saw
2
Scissors
3
Grinder
4
Jig saw
5
Plasma cutter
6
Sanding Paper
7Description
Item
Drill through the shown number of body
panel layers with a specified diameter
8
Drill through the shown number of body
panel layers with a suitable diameter
9
Drill through 1 body panel layer with a
specified diameter
10
Drill through 1 body panel layer with a
suitable diameter
11
Wire brush
12
G955392en2008.50 Kuga8/2011
100-00- 28
General Information
100-00- 28
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

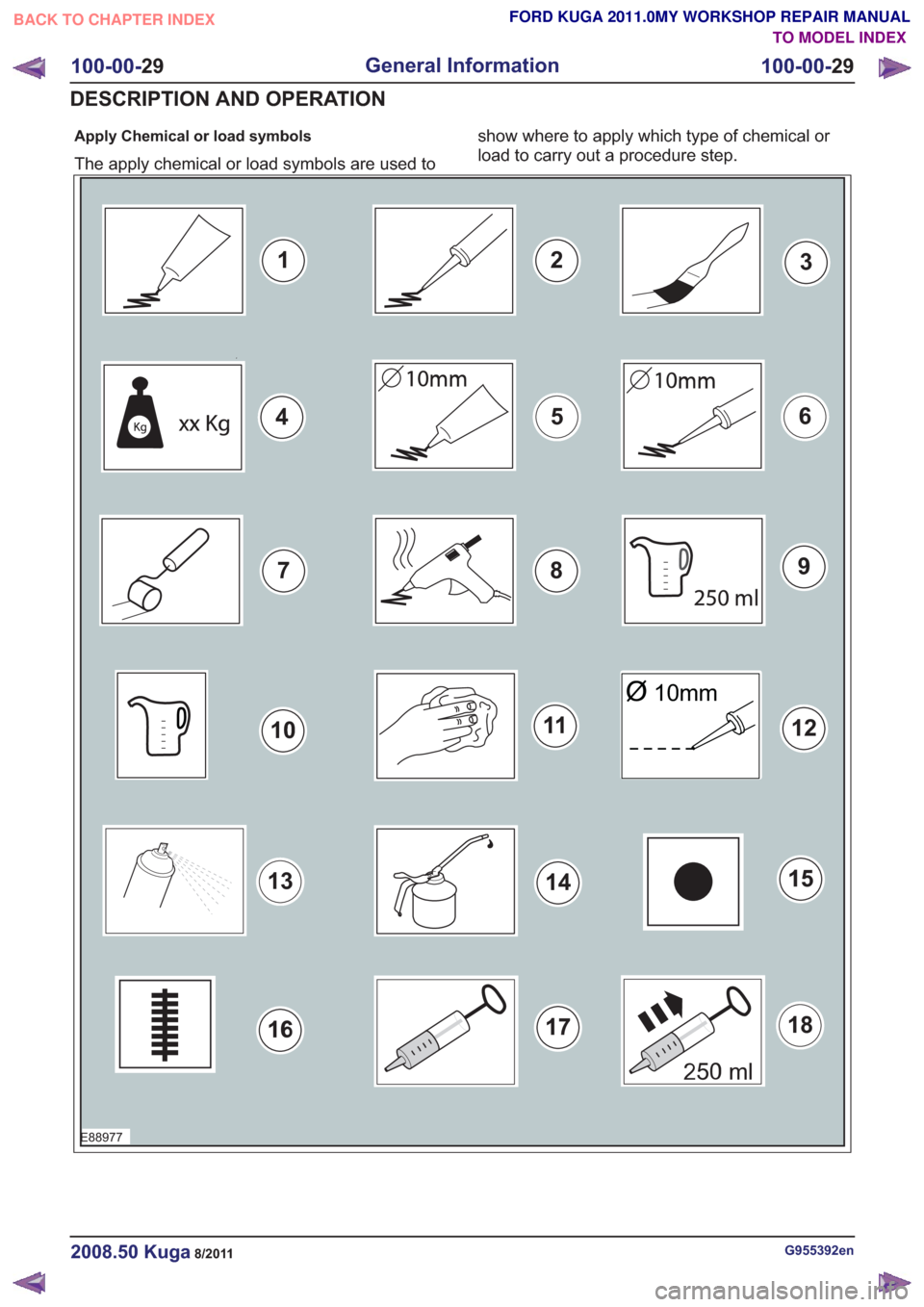

Apply Chemical or load symbols
The apply chemical or load symbols are used toshow where to apply which type of chemical or
load to carry out a procedure step.
E88977
2
4
8
13
79
56
10mm
12
1314
10
18
G955392en2008.50 Kuga8/2011
100-00-
29
General Information
100-00- 29
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

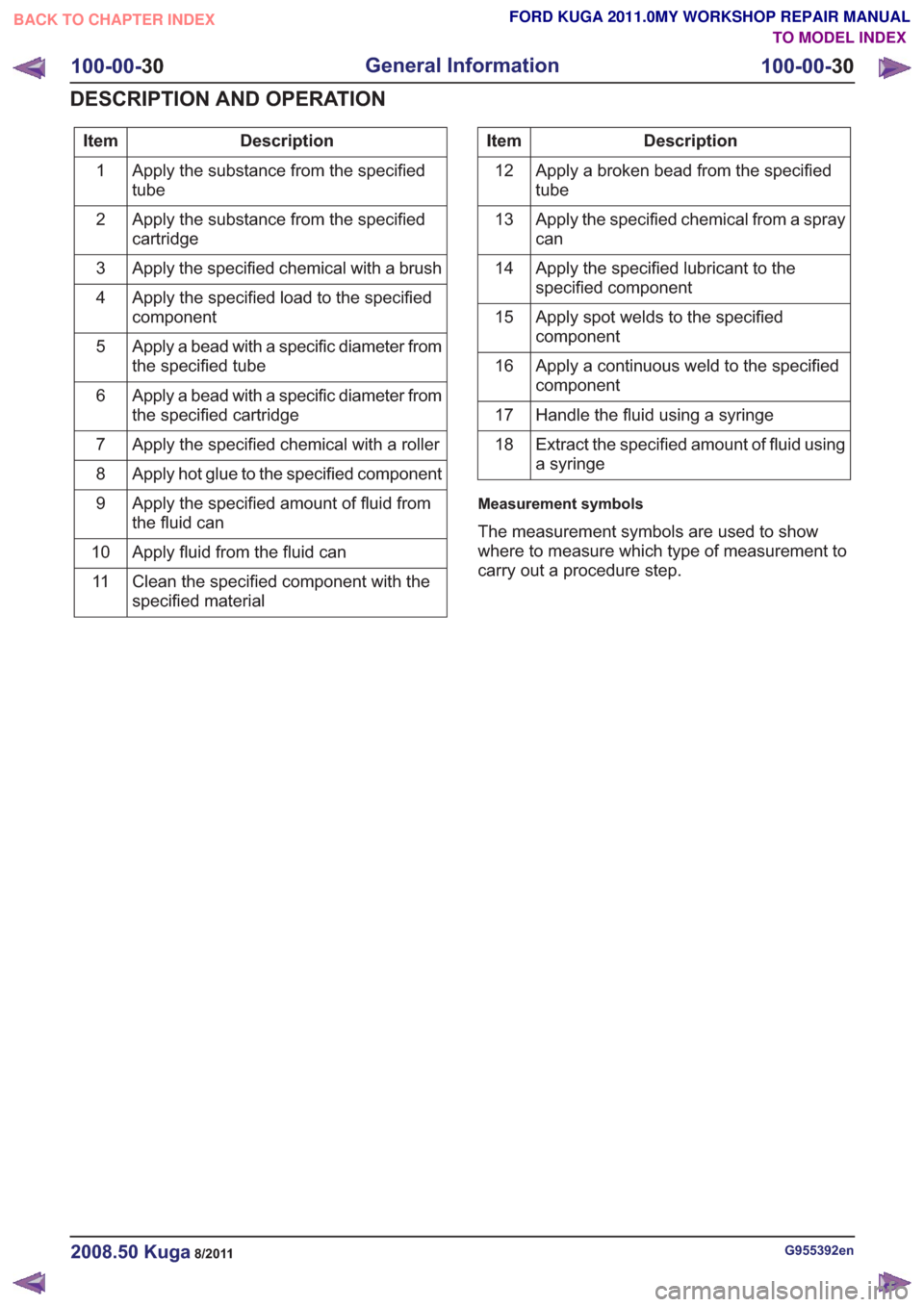

Description
Item
Apply the substance from the specified
tube
1
Apply the substance from the specified
cartridge
2
Apply the specified chemical with a brush
3
Apply the specified load to the specified
component
4
Apply a bead with a specific diameter from
the specified tube
5
Apply a bead with a specific diameter from
the specified cartridge
6
Apply the specified chemical with a roller
7
Apply hot glue to the specified component
8
Apply the specified amount of fluid from
the fluid can
9
Apply fluid from the fluid can
10
Clean the specified component with the
specified material
11Description
Item
Apply a broken bead from the specified
tube
12
Apply the specified chemical from a spray
can
13
Apply the specified lubricant to the
specified component
14
Apply spot welds to the specified
component
15
Apply a continuous weld to the specified
component
16
Handle the fluid using a syringe
17
Extract the specified amount of fluid using
a syringe
18
Measurement symbols
The measurement symbols are used to show
where to measure which type of measurement to
carry out a procedure step.
G955392en2008.50 Kuga8/2011
100-00-
30
General Information
100-00- 30
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

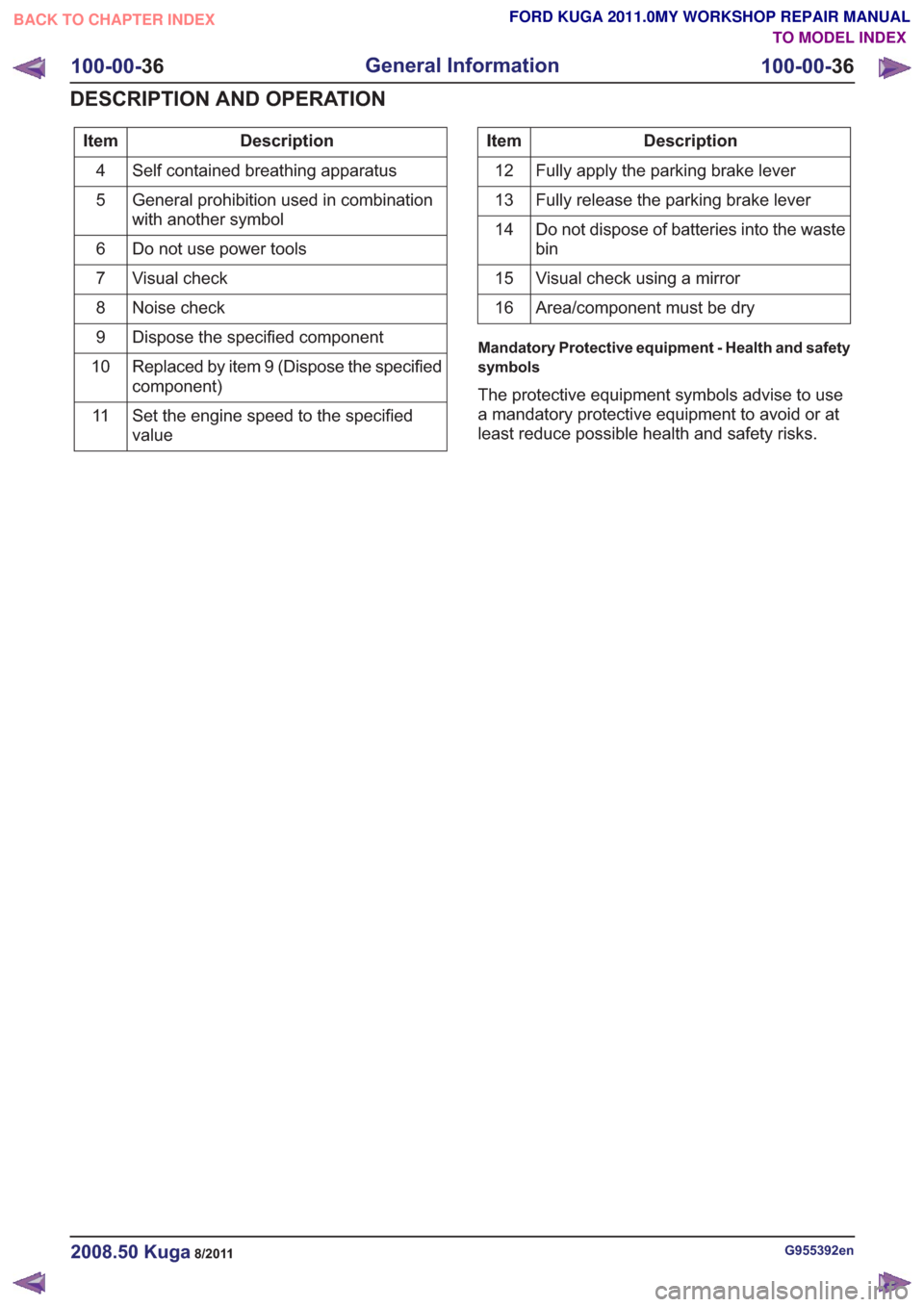

Description
Item
Self contained breathing apparatus
4
General prohibition used in combination
with another symbol
5
Do not use power tools
6
Visual check
7
Noise check
8
Dispose the specified component
9
Replaced by item 9 (Dispose the specified
component)
10
Set the engine speed to the specified
value
11Description
Item
Fully apply the parking brake lever
12
Fully release the parking brake lever
13
Do not dispose of batteries into the waste
bin
14
Visual check using a mirror
15
Area/component must be dry
16
Mandatory Protective equipment - Health and safety
symbols
The protective equipment symbols advise to use
a mandatory protective equipment to avoid or at
least reduce possible health and safety risks.
G955392en2008.50 Kuga8/2011
100-00- 36
General Information
100-00- 36
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

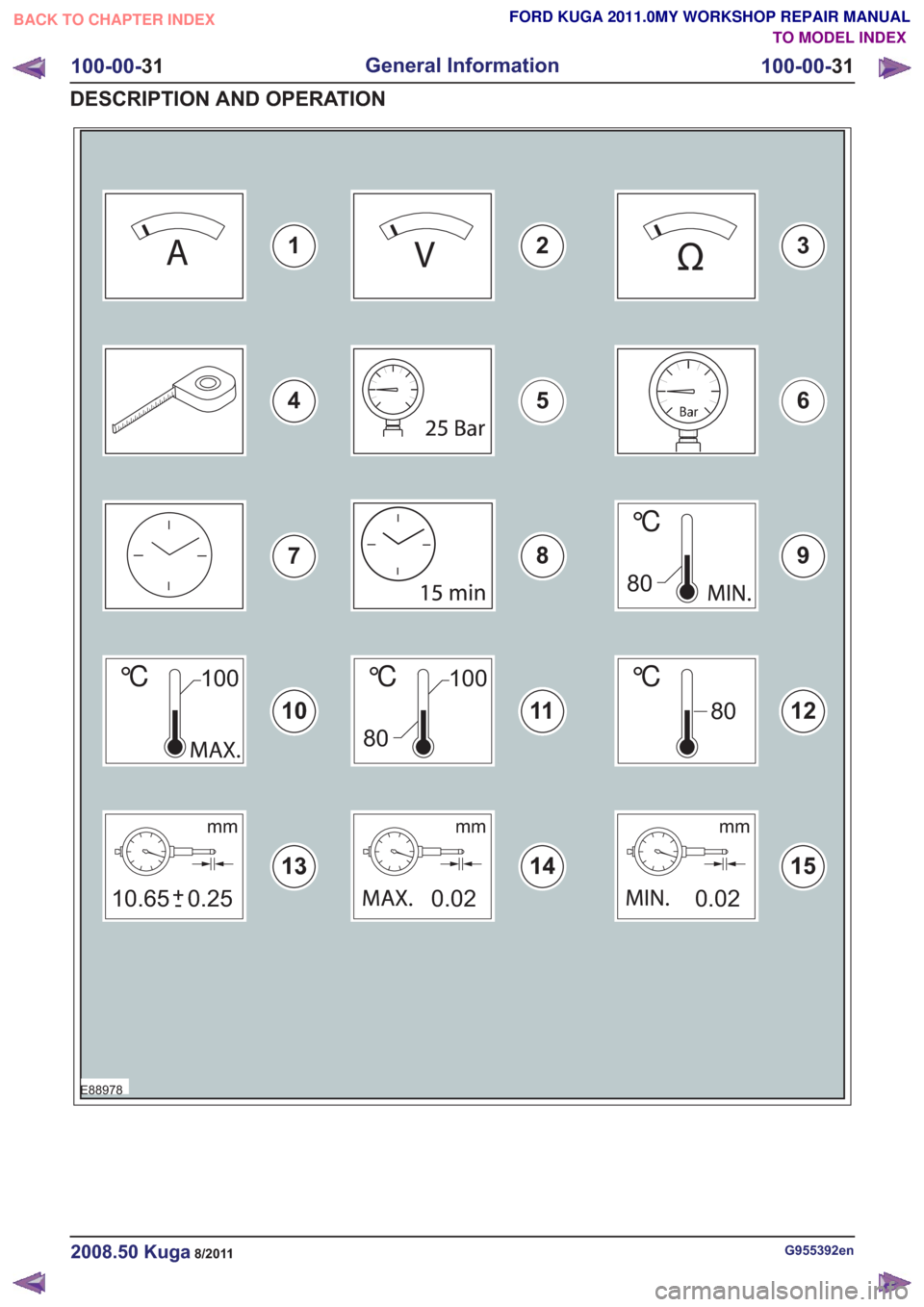

E88978
3
46
7
12
5
8
100
80°C100°C
80
°C
80
°C
121110
9
10.65 0.25+
-
mm
0.02
mm
0.02
mm
G955392en2008.50 Kuga8/2011
100-00- 31
General Information
100-00- 31
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

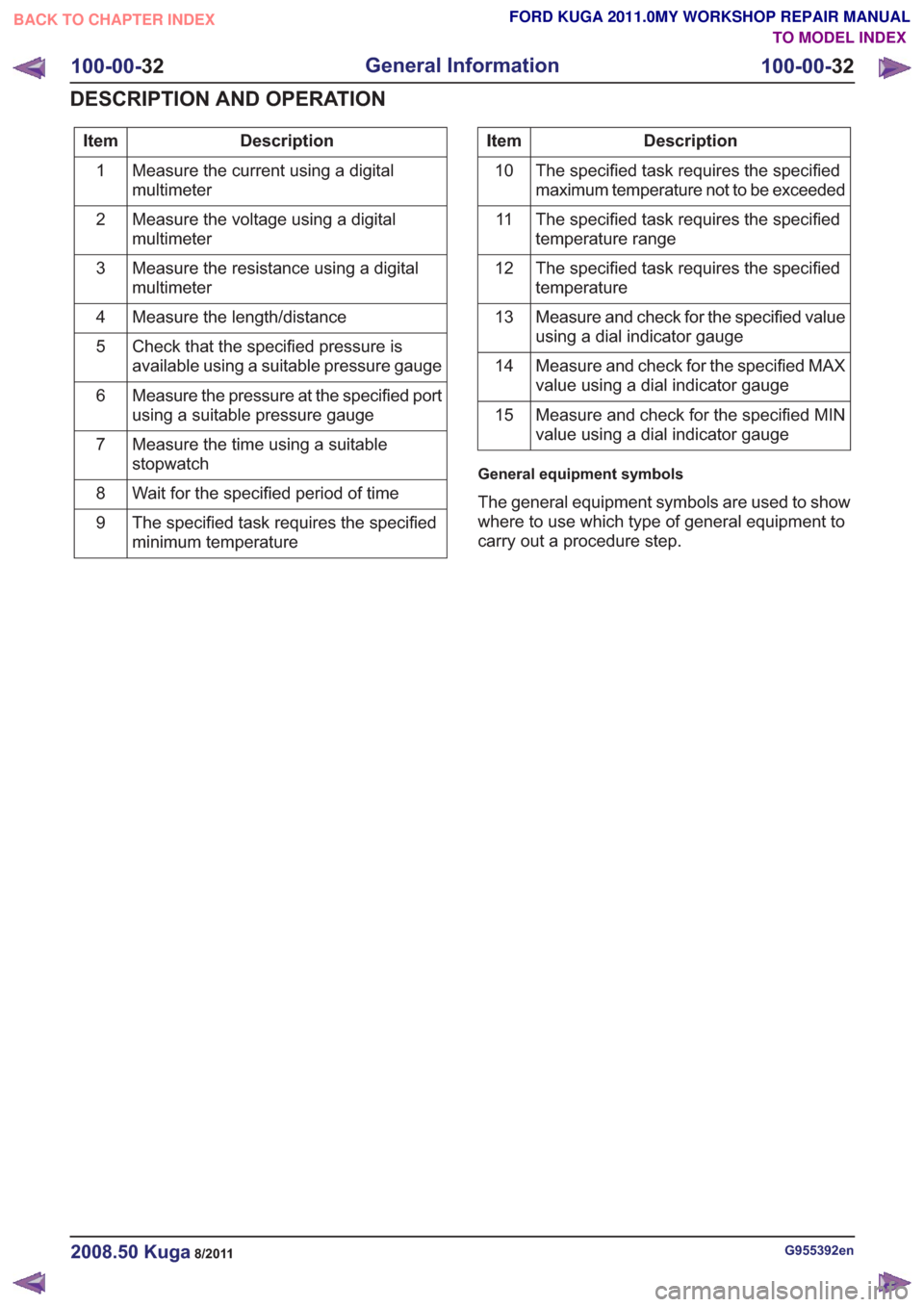

Description
Item
Measure the current using a digital
multimeter
1
Measure the voltage using a digital
multimeter
2
Measure the resistance using a digital
multimeter
3
Measure the length/distance
4
Check that the specified pressure is
available using a suitable pressure gauge
5
Measure the pressure at the specified port
using a suitable pressure gauge
6
Measure the time using a suitable
stopwatch
7
Wait for the specified period of time
8
The specified task requires the specified
minimum temperature
9Description
Item
The specified task requires the specified
maximum temperature not to be exceeded
10
The specified task requires the specified
temperature range
11
The specified task requires the specified
temperature
12
Measure and check for the specified value
using a dial indicator gauge
13
Measure and check for the specified MAX
value using a dial indicator gauge
14
Measure and check for the specified MIN
value using a dial indicator gauge
15
General equipment symbols
The general equipment symbols are used to show
where to use which type of general equipment to
carry out a procedure step.
G955392en2008.50 Kuga8/2011
100-00-
32
General Information
100-00- 32
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

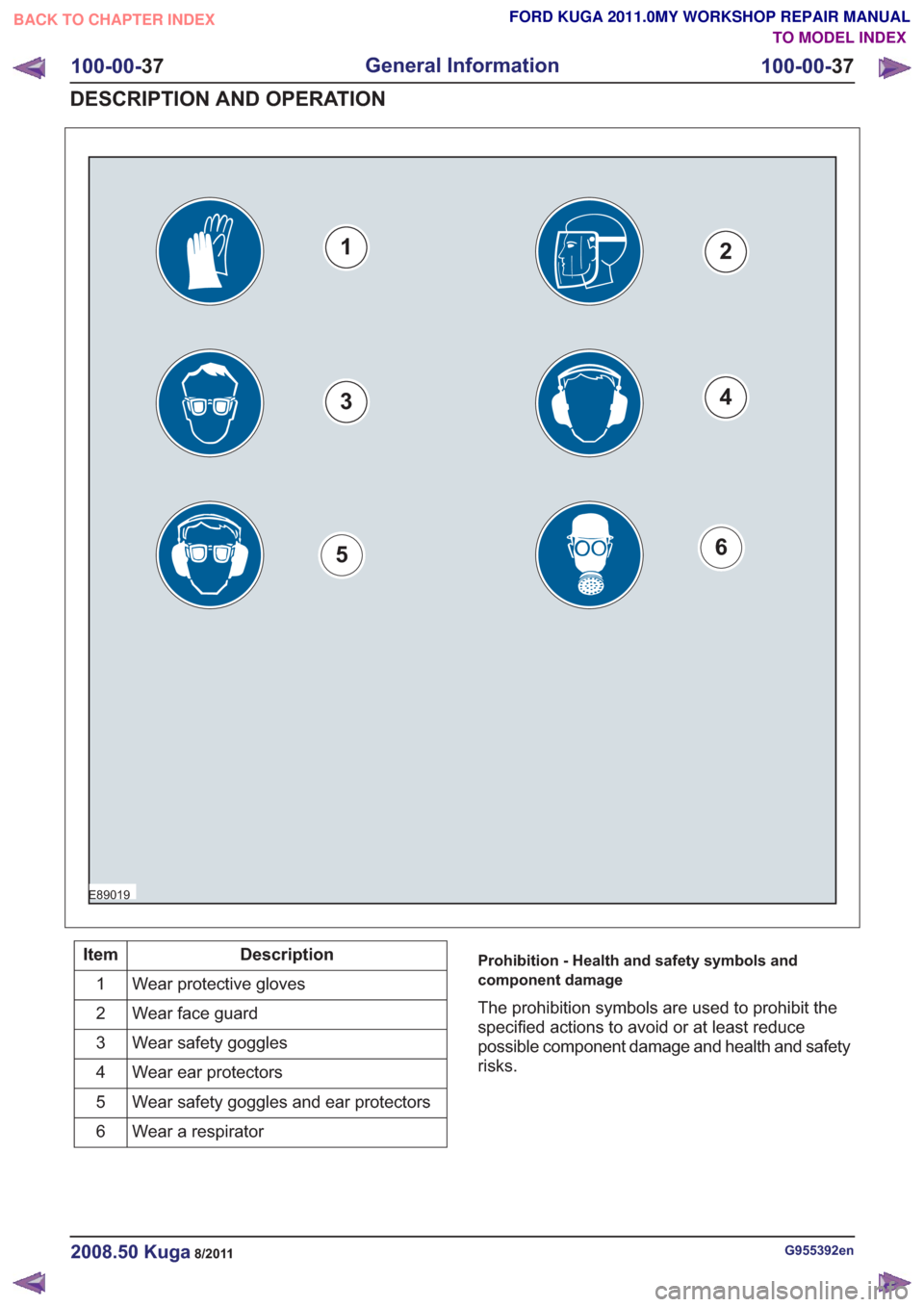

E89019
12
34
56
Description
Item
Wear protective gloves
1
Wear face guard
2
Wear safety goggles
3
Wear ear protectors
4
Wear safety goggles and ear protectors
5
Wear a respirator
6Prohibition - Health and safety symbols and
component damage
The prohibition symbols are used to prohibit the
specified actions to avoid or at least reduce
possible component damage and health and safety
risks.
G955392en2008.50 Kuga8/2011
100-00- 37
General Information
100-00- 37
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

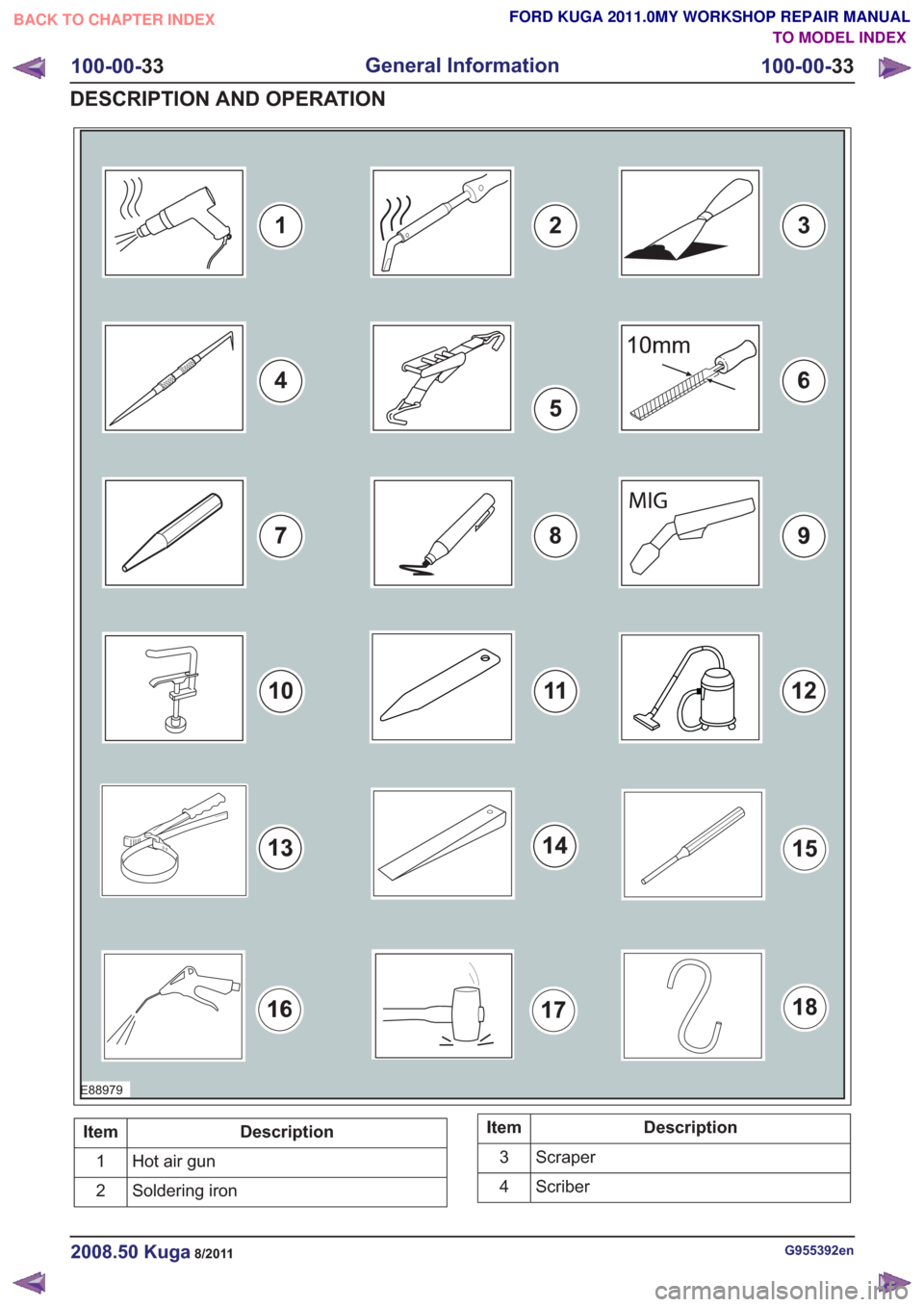

E88979
123
4
Description
Item
Hot air gun
1
Soldering iron
2Description
Item
Scraper
3
Scriber
4
G955392en2008.50 Kuga8/2011
100-00- 33
General Information
100-00- 33
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
