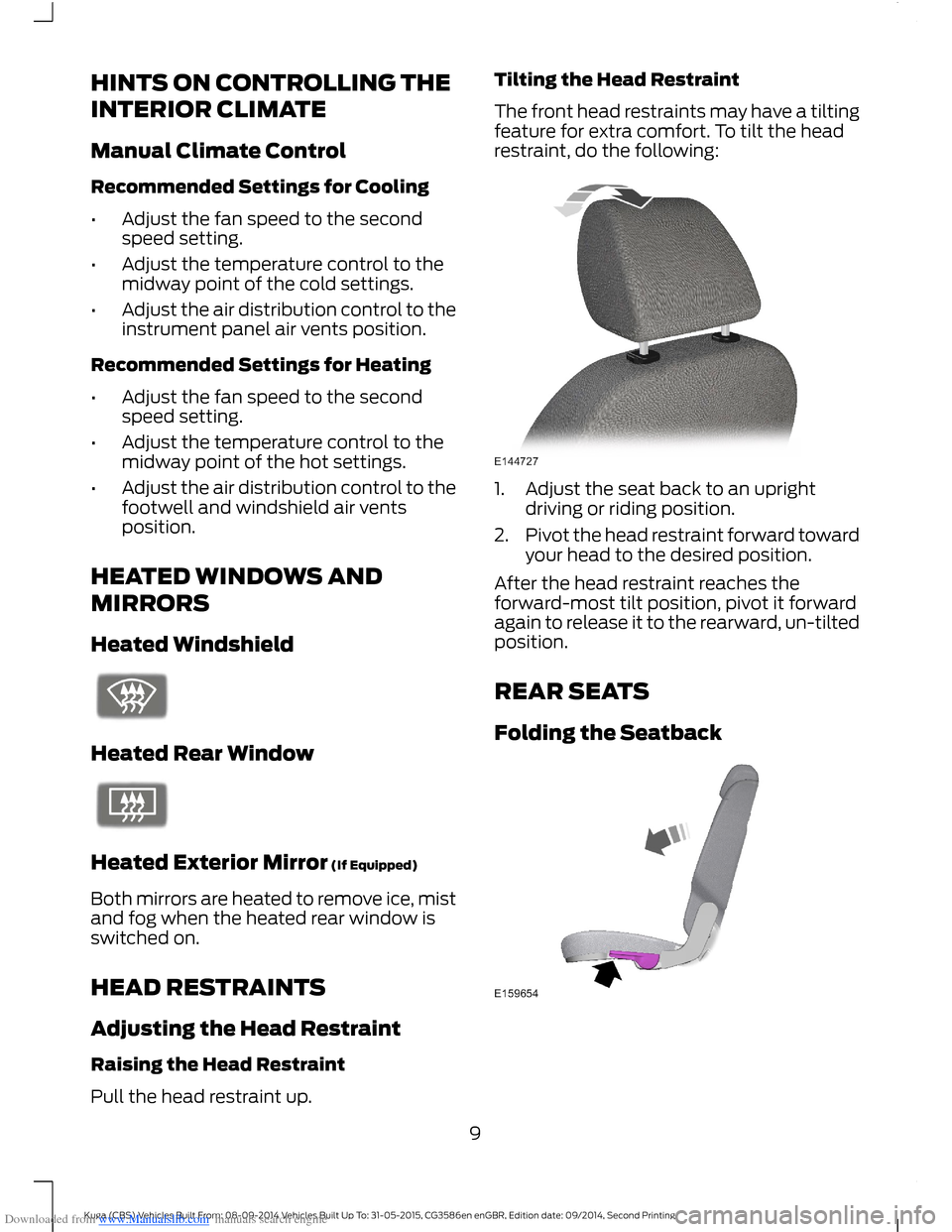

Downloaded from www.Manualslib.com manuals search engine HINTS ON CONTROLLING THE
INTERIOR CLIMATE
Manual Climate Control
Recommended Settings for Cooling
•Adjust the fan speed to the secondspeed setting.
•Adjust the temperature control to themidway point of the cold settings.
•Adjust the air distribution control to theinstrument panel air vents position.
Recommended Settings for Heating
•Adjust the fan speed to the secondspeed setting.
•Adjust the temperature control to themidway point of the hot settings.
•Adjust the air distribution control to thefootwell and windshield air ventsposition.
HEATED WINDOWS AND
MIRRORS
Heated Windshield
Heated Rear Window
Heated Exterior Mirror (If Equipped)
Both mirrors are heated to remove ice, mistand fog when the heated rear window isswitched on.
HEAD RESTRAINTS
Adjusting the Head Restraint
Raising the Head Restraint
Pull the head restraint up.
Tilting the Head Restraint
The front head restraints may have a tiltingfeature for extra comfort. To tilt the headrestraint, do the following:
1.Adjust the seat back to an uprightdriving or riding position.
2.Pivot the head restraint forward towardyour head to the desired position.
After the head restraint reaches theforward-most tilt position, pivot it forwardagain to release it to the rearward, un-tiltedposition.
REAR SEATS
Folding the Seatback
9Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
Page 12 of 17

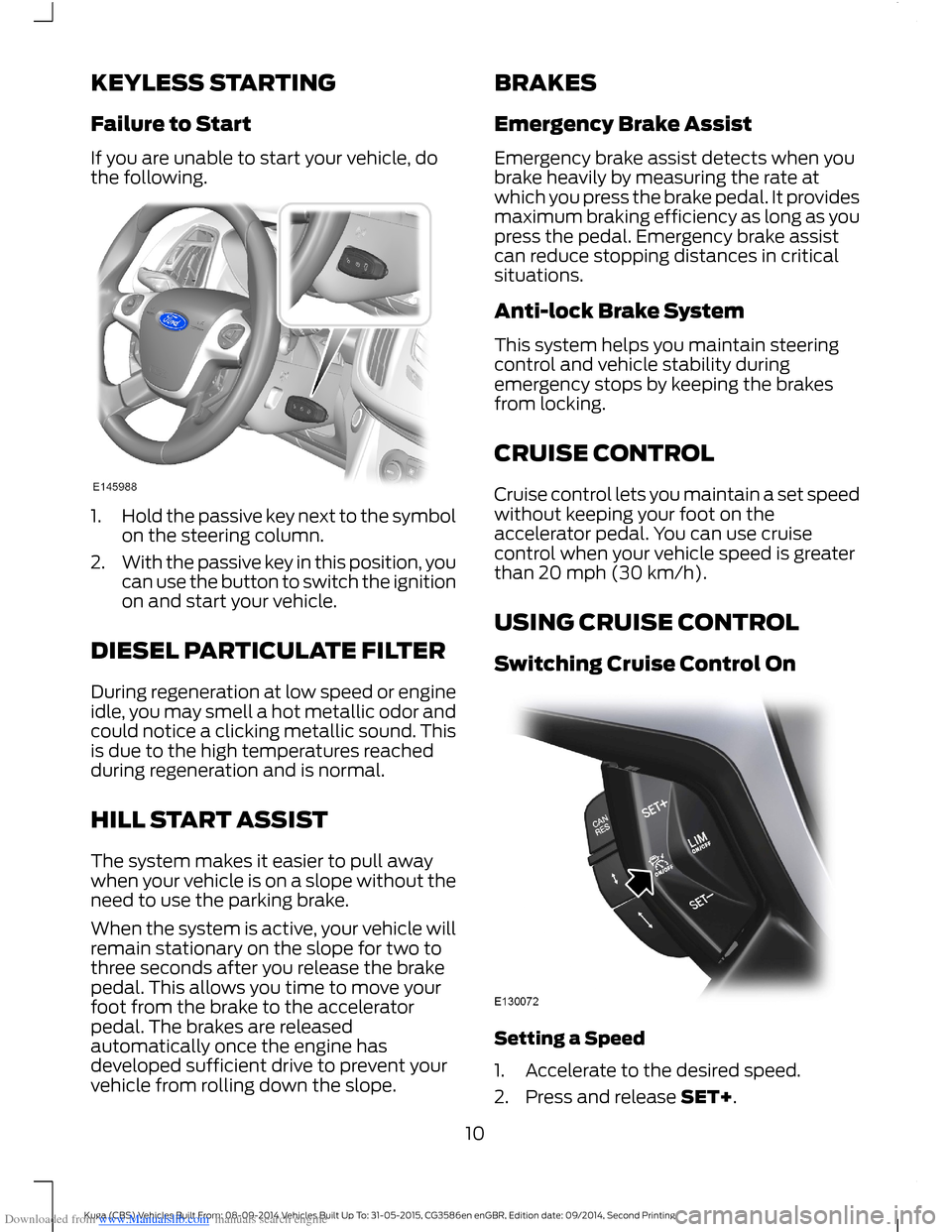

Downloaded from www.Manualslib.com manuals search engine KEYLESS STARTING
Failure to Start
If you are unable to start your vehicle, dothe following.
1.Hold the passive key next to the symbolon the steering column.
2.With the passive key in this position, youcan use the button to switch the ignitionon and start your vehicle.
DIESEL PARTICULATE FILTER
During regeneration at low speed or engineidle, you may smell a hot metallic odor andcould notice a clicking metallic sound. Thisis due to the high temperatures reachedduring regeneration and is normal.
HILL START ASSIST
The system makes it easier to pull awaywhen your vehicle is on a slope without theneed to use the parking brake.
When the system is active, your vehicle willremain stationary on the slope for two tothree seconds after you release the brakepedal. This allows you time to move yourfoot from the brake to the acceleratorpedal. The brakes are releasedautomatically once the engine hasdeveloped sufficient drive to prevent yourvehicle from rolling down the slope.
BRAKES
Emergency Brake Assist
Emergency brake assist detects when youbrake heavily by measuring the rate atwhich you press the brake pedal. It providesmaximum braking efficiency as long as youpress the pedal. Emergency brake assistcan reduce stopping distances in criticalsituations.
Anti-lock Brake System
This system helps you maintain steeringcontrol and vehicle stability duringemergency stops by keeping the brakesfrom locking.
CRUISE CONTROL
Cruise control lets you maintain a set speedwithout keeping your foot on theaccelerator pedal. You can use cruisecontrol when your vehicle speed is greaterthan 20 mph (30 km/h).
USING CRUISE CONTROL
Switching Cruise Control On
Setting a Speed
1.Accelerate to the desired speed.
2.Press and release SET+.
10Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
Page 13 of 17

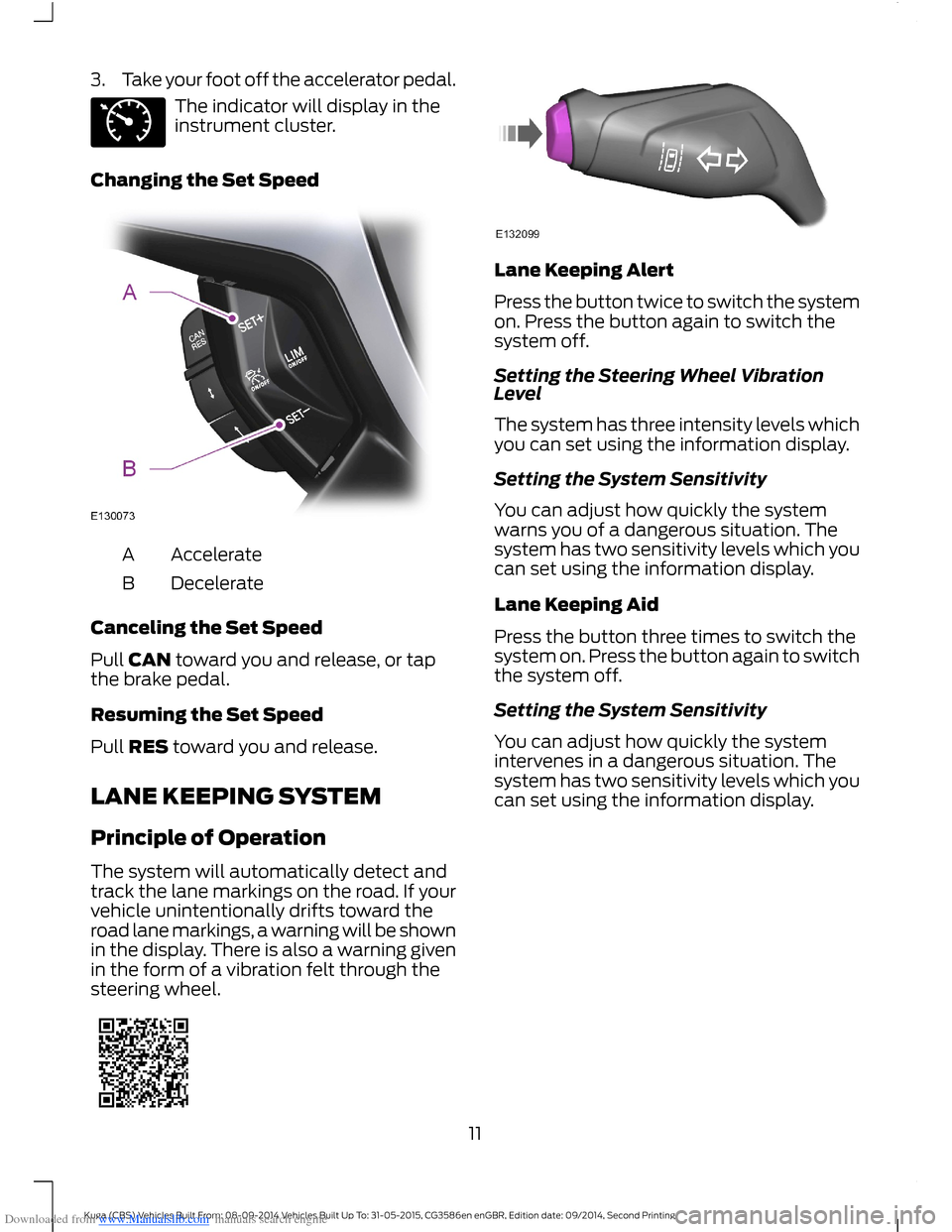

Downloaded from www.Manualslib.com manuals search engine 3.Take your foot off the accelerator pedal.
The indicator will display in theinstrument cluster.
Changing the Set Speed
AccelerateA
DecelerateB
Canceling the Set Speed
Pull CAN toward you and release, or tapthe brake pedal.
Resuming the Set Speed
Pull RES toward you and release.
LANE KEEPING SYSTEM
Principle of Operation
The system will automatically detect andtrack the lane markings on the road. If yourvehicle unintentionally drifts toward theroad lane markings, a warning will be shownin the display. There is also a warning givenin the form of a vibration felt through thesteering wheel.
Lane Keeping Alert
Press the button twice to switch the systemon. Press the button again to switch thesystem off.
Setting the Steering Wheel VibrationLevel
The system has three intensity levels whichyou can set using the information display.
Setting the System Sensitivity
You can adjust how quickly the systemwarns you of a dangerous situation. Thesystem has two sensitivity levels which youcan set using the information display.
Lane Keeping Aid
Press the button three times to switch thesystem on. Press the button again to switchthe system off.
Setting the System Sensitivity
You can adjust how quickly the systemintervenes in a dangerous situation. Thesystem has two sensitivity levels which youcan set using the information display.
11Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
Page 14 of 17
Downloaded from www.Manualslib.com manuals search engine REAR UNDER FLOOR STORAGE
Adjustable Load Floor
The front of the load floor can be placedeither on (for high position) or below (forlow position) the ledges behind the rearseats.
LUGGAGE COVERS
Insert the ends of the cargo shade into themounting features located behind the rearseat on the rear trim panels to install theshade. Pull the rear edge of the cargo shaderearward until it clicks into place.
TOWING POINTS
Locate the towing eye inside the foam boxin the spare wheel well.
Remove the cover and install the towingeye.
BREAKING-IN
During the first 2000 miles (3000kilometers), you may notice a ticking soundwhen your vehicle slows down. This is dueto adjustments of your new diesel engineand is normal.
ECONOMICAL DRIVING
The following will help to improve fuelconsumption.
Check your tire pressures regularly tooptimize fuel economy.
Gear Shifting
Use the highest drivable gear appropriatefor the road conditions.
Anticipation
Adjust your vehicle speed and the distanceto other vehicles without the need for heavybraking or acceleration.
Efficient Speed
Higher speeds use more fuel. Reduce yourcruising speed on open roads.
MAINTENANCE
WARNING
Keep your hands and clothing clearof the engine cooling fan.
Note:Under certain conditions, the fan maycontinue to run for several minutes after youhave switched the engine off.
TEMPORARY MOBILITY KIT
Your vehicle may not have a spare tire.Therefore you will have a temporarymobility kit which will only repair onedamaged tire.
12Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
Page 15 of 17

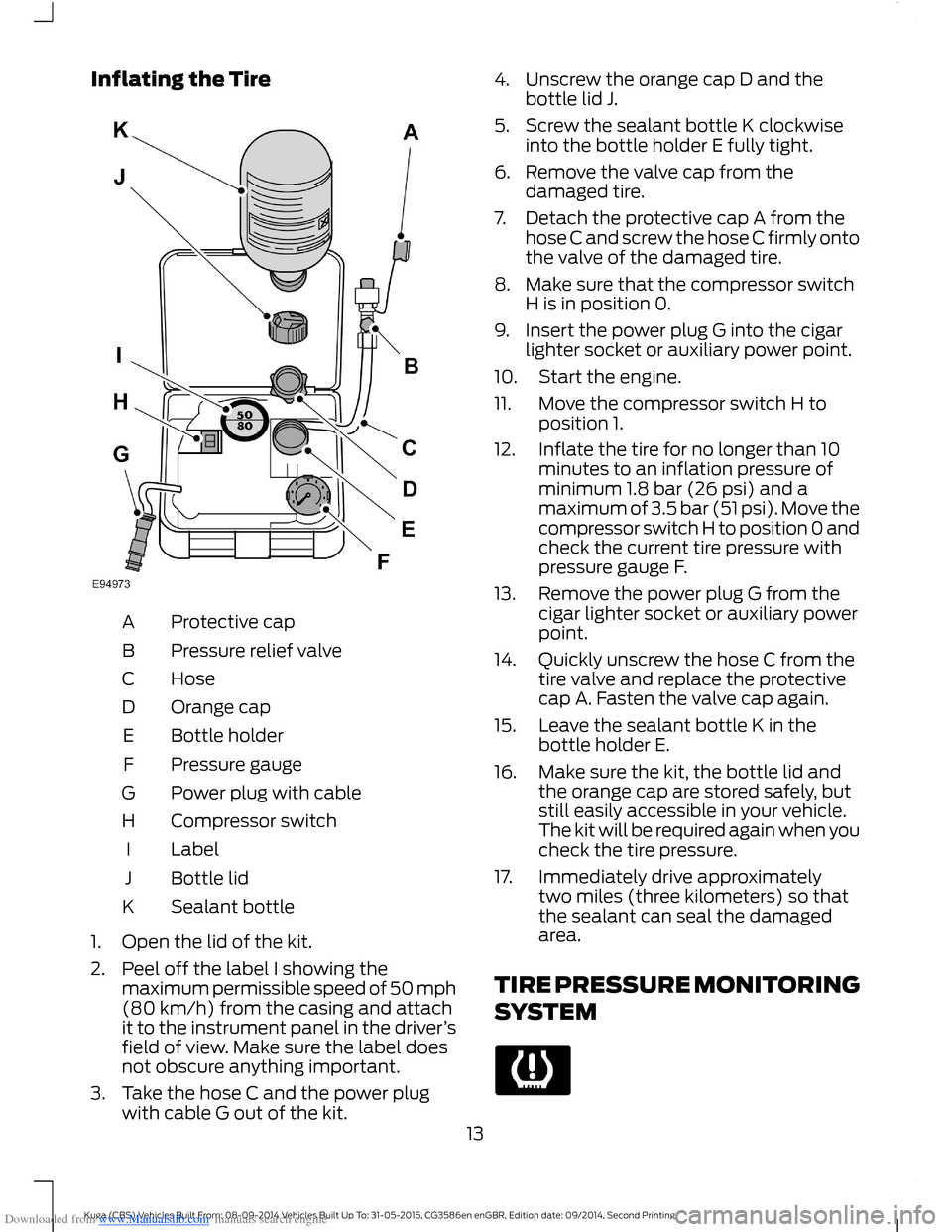

Downloaded from www.Manualslib.com manuals search engine Inflating the Tire
Protective capA
Pressure relief valveB
HoseC
Orange capD
Bottle holderE
Pressure gaugeF
Power plug with cableG
Compressor switchH
LabelI
Bottle lidJ
Sealant bottleK
1.Open the lid of the kit.
2.Peel off the label I showing themaximum permissible speed of 50 mph(80 km/h) from the casing and attachit to the instrument panel in the driver’sfield of view. Make sure the label doesnot obscure anything important.
3.Take the hose C and the power plugwith cable G out of the kit.
4.Unscrew the orange cap D and thebottle lid J.
5.Screw the sealant bottle K clockwiseinto the bottle holder E fully tight.
6.Remove the valve cap from thedamaged tire.
7.Detach the protective cap A from thehose C and screw the hose C firmly ontothe valve of the damaged tire.
8.Make sure that the compressor switchH is in position 0.
9.Insert the power plug G into the cigarlighter socket or auxiliary power point.
10.Start the engine.
11.Move the compressor switch H toposition 1.
12.Inflate the tire for no longer than 10minutes to an inflation pressure ofminimum 1.8 bar (26 psi) and amaximum of 3.5 bar (51 psi). Move thecompressor switch H to position 0 andcheck the current tire pressure withpressure gauge F.
13.Remove the power plug G from thecigar lighter socket or auxiliary powerpoint.
14.Quickly unscrew the hose C from thetire valve and replace the protectivecap A. Fasten the valve cap again.
15.Leave the sealant bottle K in thebottle holder E.
16.Make sure the kit, the bottle lid andthe orange cap are stored safely, butstill easily accessible in your vehicle.The kit will be required again when youcheck the tire pressure.
17.Immediately drive approximatelytwo miles (three kilometers) so thatthe sealant can seal the damagedarea.
TIRE PRESSURE MONITORING
SYSTEM
13Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
Page 16 of 17

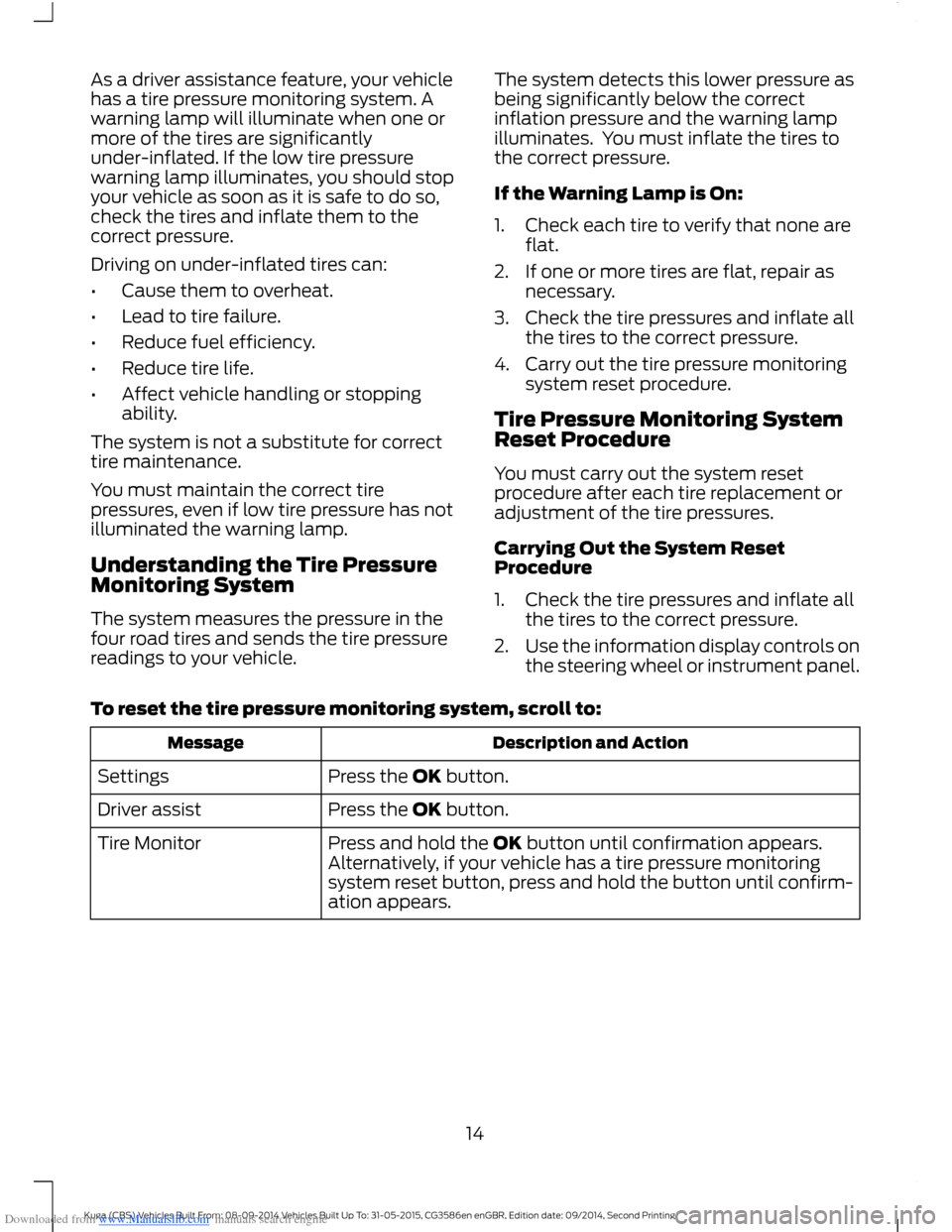

Downloaded from www.Manualslib.com manuals search engine As a driver assistance feature, your vehiclehas a tire pressure monitoring system. Awarning lamp will illuminate when one ormore of the tires are significantlyunder-inflated. If the low tire pressurewarning lamp illuminates, you should stopyour vehicle as soon as it is safe to do so,check the tires and inflate them to thecorrect pressure.
Driving on under-inflated tires can:
•Cause them to overheat.
•Lead to tire failure.
•Reduce fuel efficiency.
•Reduce tire life.
•Affect vehicle handling or stoppingability.
The system is not a substitute for correcttire maintenance.
You must maintain the correct tirepressures, even if low tire pressure has notilluminated the warning lamp.
Understanding the Tire PressureMonitoring System
The system measures the pressure in thefour road tires and sends the tire pressurereadings to your vehicle.
The system detects this lower pressure asbeing significantly below the correctinflation pressure and the warning lampilluminates. You must inflate the tires tothe correct pressure.
If the Warning Lamp is On:
1.Check each tire to verify that none areflat.
2.If one or more tires are flat, repair asnecessary.
3.Check the tire pressures and inflate allthe tires to the correct pressure.
4.Carry out the tire pressure monitoringsystem reset procedure.
Tire Pressure Monitoring SystemReset Procedure
You must carry out the system resetprocedure after each tire replacement oradjustment of the tire pressures.
Carrying Out the System ResetProcedure
1.Check the tire pressures and inflate allthe tires to the correct pressure.
2.Use the information display controls onthe steering wheel or instrument panel.
To reset the tire pressure monitoring system, scroll to:
Description and ActionMessage
Press the OK button.Settings
Press the OK button.Driver assist
Press and hold the OK button until confirmation appears.Alternatively, if your vehicle has a tire pressure monitoringsystem reset button, press and hold the button until confirm-ation appears.
Tire Monitor
14Kuga (CBS) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 31-05-2015, CG3586en enGBR, Edition date: 09/2014, Second Printing
