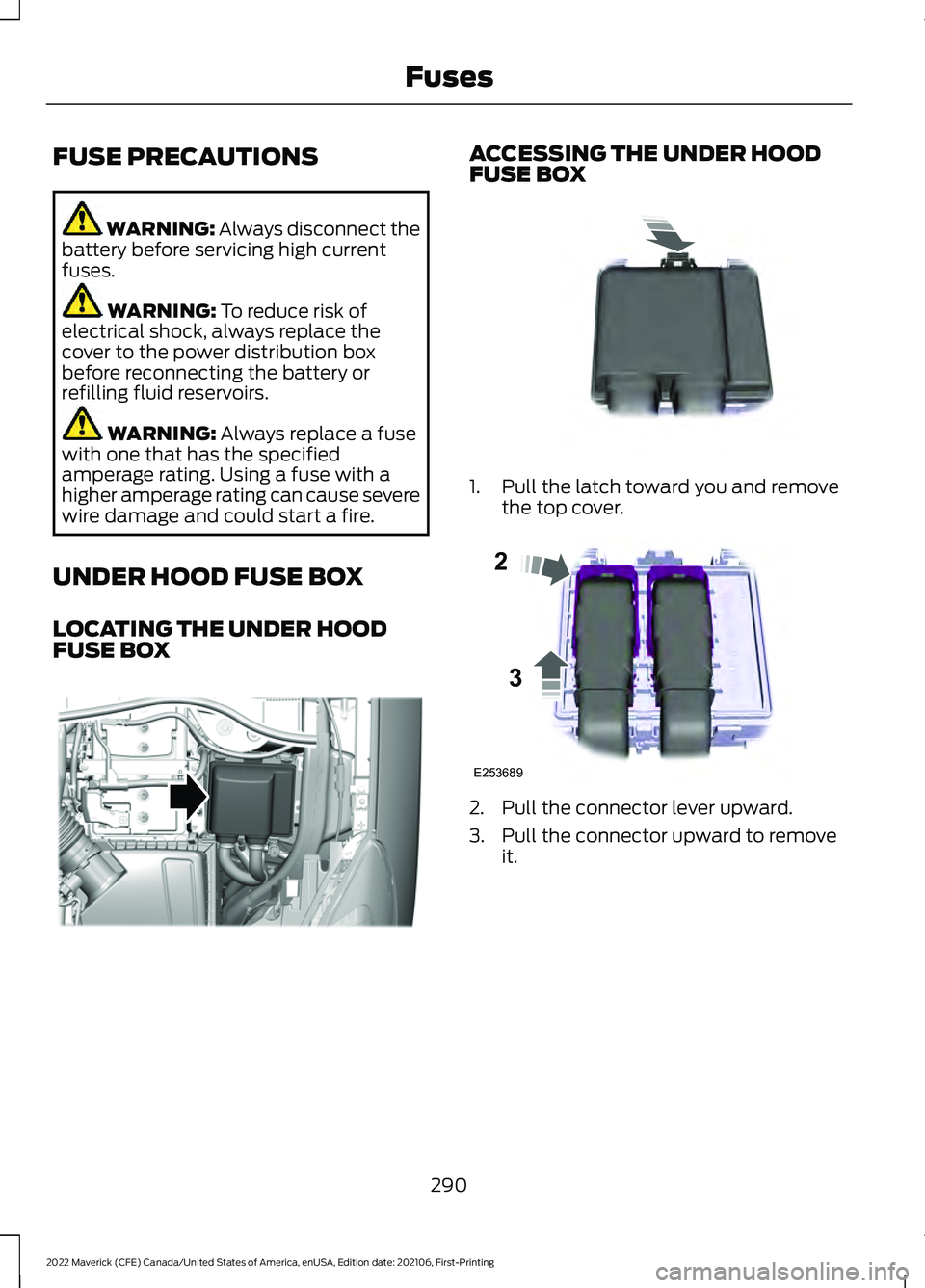

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
1. Pull the latch toward you and remove
the top cover. 2. Pull the connector lever upward.
3. Pull the connector upward to remove
it.
290
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE334436 E253688 E253689
2
3

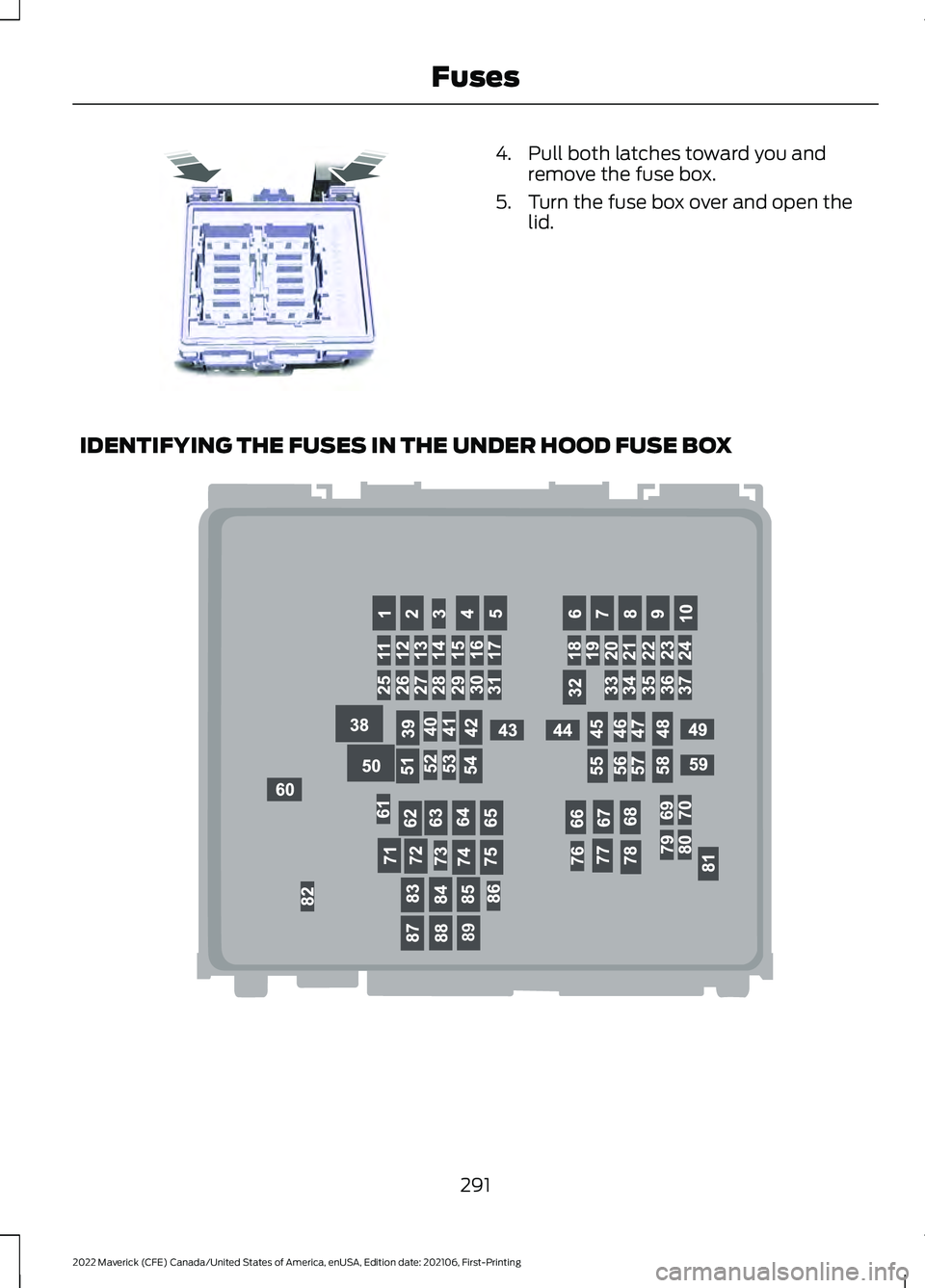

4. Pull both latches toward you and
remove the fuse box.
5. Turn the fuse box over and open the lid.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX 291
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE253693 89 E351223

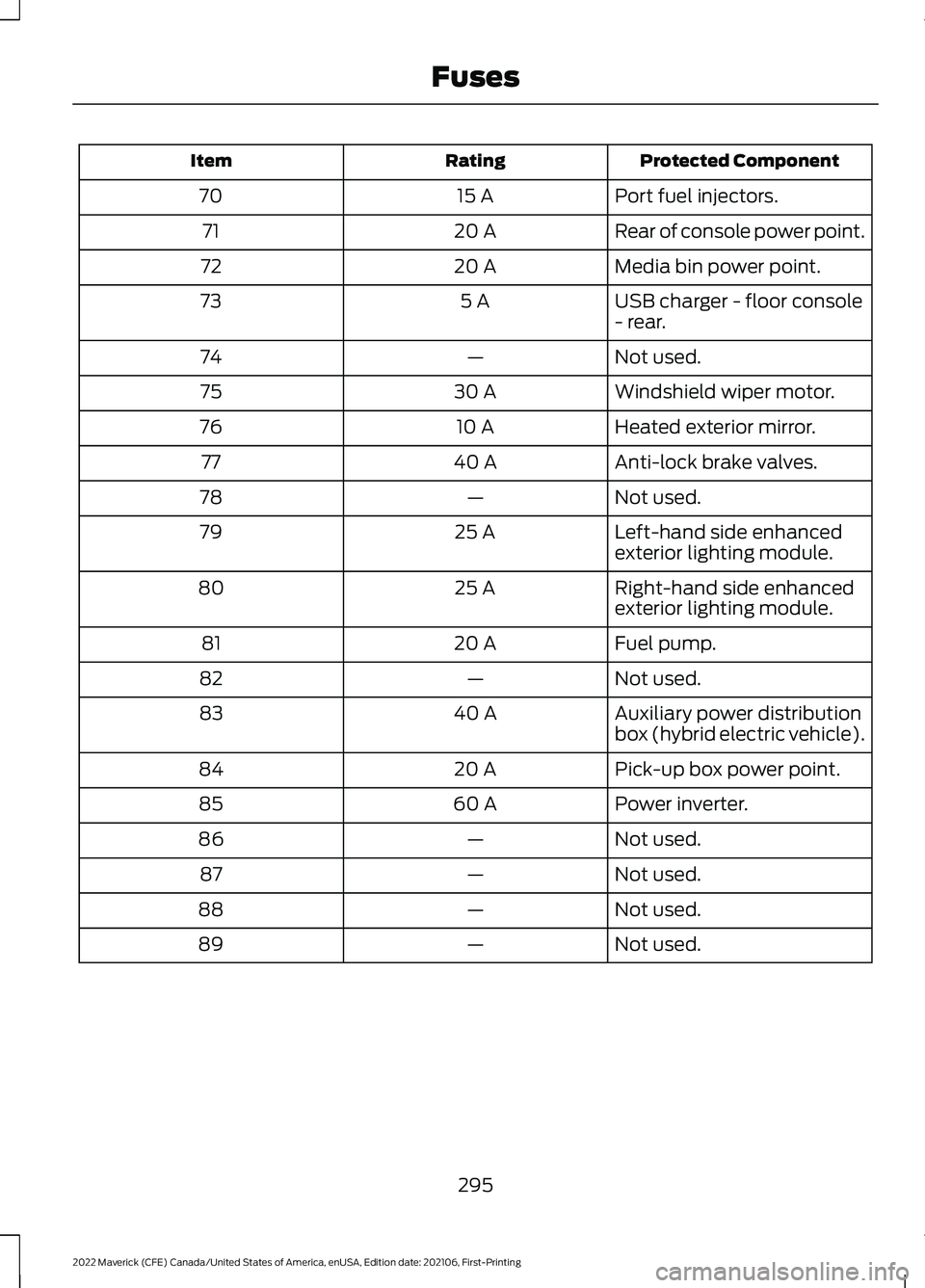

Protected Component
Rating
Item
Port fuel injectors.
15 A
70
Rear of console power point.
20 A
71
Media bin power point.
20 A
72
USB charger - floor console
- rear.
5 A
73
Not used.
—
74
Windshield wiper motor.
30 A
75
Heated exterior mirror.
10 A
76
Anti-lock brake valves.
40 A
77
Not used.
—
78
Left-hand side enhanced
exterior lighting module.
25 A
79
Right-hand side enhanced
exterior lighting module.
25 A
80
Fuel pump.
20 A
81
Not used.
—
82
Auxiliary power distribution
box (hybrid electric vehicle).
40 A
83
Pick-up box power point.
20 A
84
Power inverter.
60 A
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Not used.
—
89
295
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Fuses

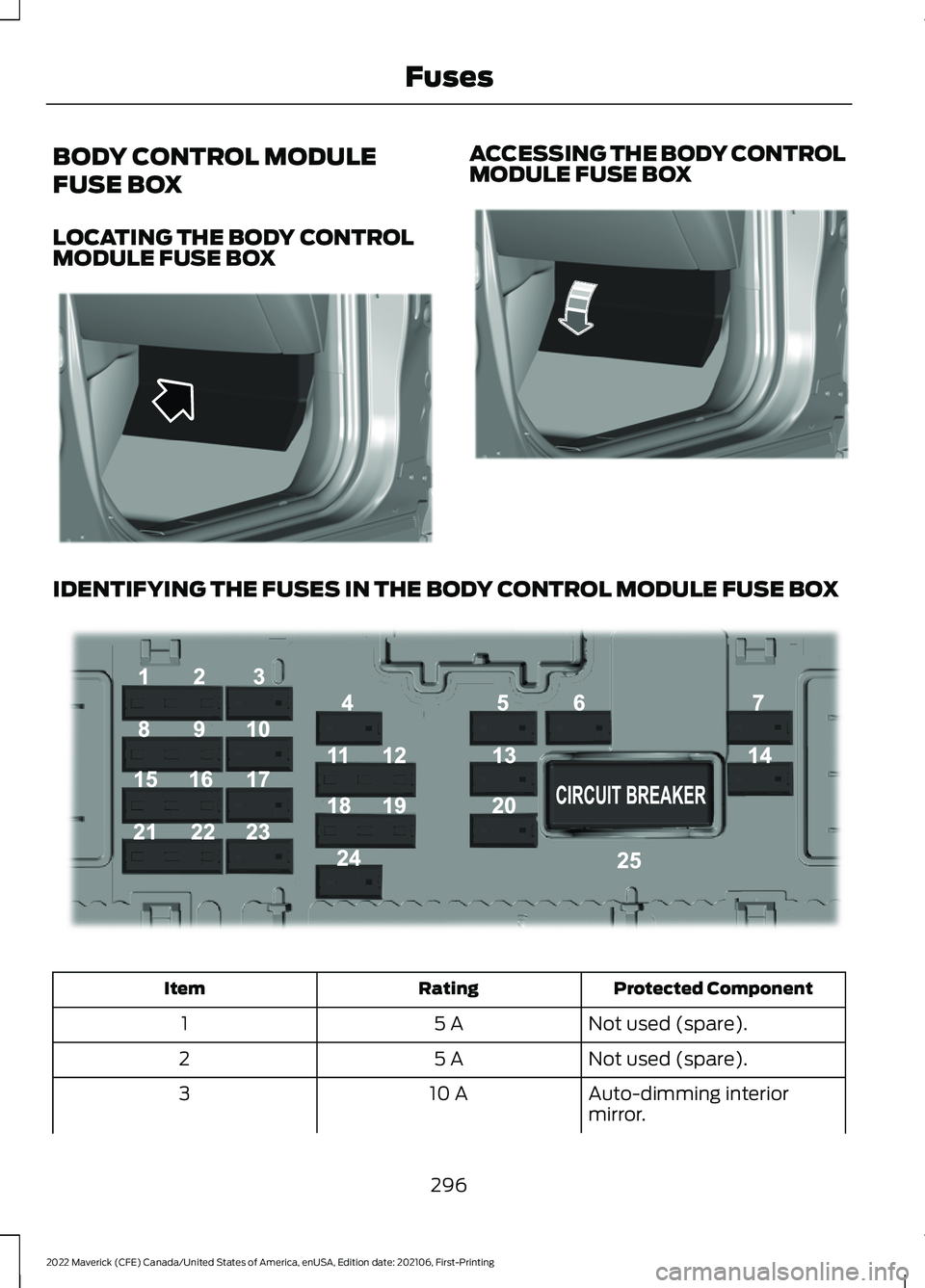

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected Component
Rating
Item
Not used (spare).
5 A
1
Not used (spare).
5 A
2
Auto-dimming interior
mirror.
10 A
3
296
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing FusesE329070 E329071 E293328

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Windshield washer fluid reservoir. See Adding Washer Fluid (page 92).
A
Engine coolant reservoir.
See Checking the Coolant (page 304).
B
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 303).
C
Engine oil filler cap.
See Adding Engine Oil (page 303).
D
Brake fluid reservoir.
See Locating the Brake Fluid Reservoir (page 192).
E
Battery.
See Changing the 12V Battery (page 310).
F
Engine compartment fuse box.
See Fuses (page 290).
G
Air filter assembly. See
Changing the Engine Air Filter (page 308).
H
301
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE354447

UNDER HOOD OVERVIEW - 2.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Windshield washer fluid reservoir: See Adding Washer Fluid (page 92).
A
Low temp coolant cap:
See Checking the Coolant (page 304).
B
High temp coolant cap:
See Checking the Coolant (page 304).
C
Engine oil filler cap:
See Checking the Engine Oil Level (page 303).
D
Engine oil dipstick:
See Engine Oil Dipstick Overview (page 303).
E
Brake fluid reservoir:
See Checking the Brake Fluid (page 192).
F
Power distribution box: See Accessing the Under Hood Fuse Box (page 290).
G
Air filter assembly:
See Changing the Engine Air Filter (page 309).
H
302
