Page 9 of 533
Engine Block Heater
...................................159
Stopping the Engine ..................................
160
Automatic Engine Stop ..............................
161
Starting and Stopping the Engine – Troubleshooting .......................................
162
Hybrid Electric Vehicle Information - Hybrid Electric
Vehicle (HEV)
What is a Hybrid Electric Vehicle ..........
166
How Does a Hybrid Electric Vehicle Work ........................................................................\
166
Hybrid Electric Vehicle Driving Characteristics .........................................
166
Hybrid Electric Vehicle Indicators .........
166
Hybrid Electric Vehicle Information – Troubleshooting .......................................
167
Auto-Start-Stop - Gasoline
What Is Auto-Start-Stop .........................
168
Auto-Start-Stop Precautions .................
168
Switching Auto-Start-Stop On and Off ........................................................................\
168
Stopping the Engine ..................................
168
Restarting the Engine ................................
168
Auto-Start-Stop Indicators .....................
168
Auto-Start-Stop – Troubleshooting ........................................................................\
169
Fuel and Refueling
Fuel and Refueling Precautions ..............
171
Fuel Quality ....................................................
172
Locating the Fuel Filler Funnel ................
172
Running Out of Fuel ....................................
173
Refueling .........................................................
174
Fuel Tank Capacity ......................................
178
Fuel and Refueling – Troubleshooting ........................................................................\
.
179
Catalytic Converter
What Is the Catalytic Converter ..............
181Catalytic Converter Precautions
.............
181
Catalytic Converter – Troubleshooting ........................................................................\
..
181
High Voltage Battery
What Is the High Voltage Battery ..........
182
High Voltage Battery Precautions .........
182
Automatic Transmission
Automatic Transmission Precautions ........................................................................\
.
183
Automatic Transmission Positions .......
183
Shifting Your Vehicle Into Gear ..............
184
Automatic Transmission Position Indicators ....................................................
184
Temporary Neutral Mode .........................
185
Automatic Return to Park (P) ................
185
Grade Assist - Hybrid Electric Vehicle (HEV) ...........................................................
186
Manual Park Release - Gasoline ...........
186
Automatic Transmission Audible Warnings ....................................................
188
Automatic Transmission – Troubleshooting ......................................
188
All-Wheel Drive
How Does All-Wheel Drive Work - Excluding: FX4 Off Road ......................
189
How Does All-Wheel Drive Work - FX4 Off Road .....................................................
189
All-Wheel Drive Precautions ..................
189
All-Wheel Drive Limitations ....................
189
All-Wheel Drive – Troubleshooting ......
190
Brakes
Brake Precautions ........................................
191
Anti-Lock Braking System .........................
191
Brake Over Accelerator ...............................
191
Locating the Brake Fluid Reservoir ........
192
Checking the Brake Fluid ..........................
192
Brake Fluid Specification ..........................
192
6
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Table of Contents
Page 162 of 533
When the engine starts for the first time
on your drive, the idle speed increases, this
helps to warm up the engine. If the engine
idle speed does not slow down, have your
vehicle checked by an authorized dealer.
The system does not function if:
•
The passive key frequencies are
jammed.
• The key battery has no charge.
RESTARTING THE ENGINE AFTER
STOPPING IT
The system allows you to start the engine
within 10 seconds of switching it off, even
if it does not detect a valid passive key.
Within 10 seconds of switching the engine
off, fully press the brake pedal and press
the push button ignition switch. After 10
seconds, you can no longer start the engine
if the system does not detect a valid
passive key.
When you start the engine, it remains
running until you press the push button
ignition switch, even if your vehicle does
not detect a valid passive key. If you open
and close a door when the engine is
running, the system searches for a valid
passive key.
ENGINE BLOCK HEATER (IF
EQUIPPED)
ENGINE BLOCK HEATER
PRECAUTIONS WARNING:
Failure to follow engine
block heater instructions could result in
property damage or serious personal
injury. WARNING: Do not use your heater
with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock. WARNING:
Do not fully close the
hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.
We recommend that you do the following
for a safe and correct operation:
• Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter ’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.
• Use as short an extension cord as
possible.
• Do not use multiple extension cords.
• Make sure that when in operation, the
extension cord plug and engine block
heater cord plug connections are free
and clear of water. This could cause an
electric shock or fire.
• If the engine block heater cord is under
the hood, do not remove the wiring
from its original location. Do not close
the hood on the extension wiring.
• Park your vehicle in a clean area, clear
of combustible materials.
• Firmly connect the engine block heater
cord and the extension cord.
159
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Starting and Stopping the Engine
Page 163 of 533
•

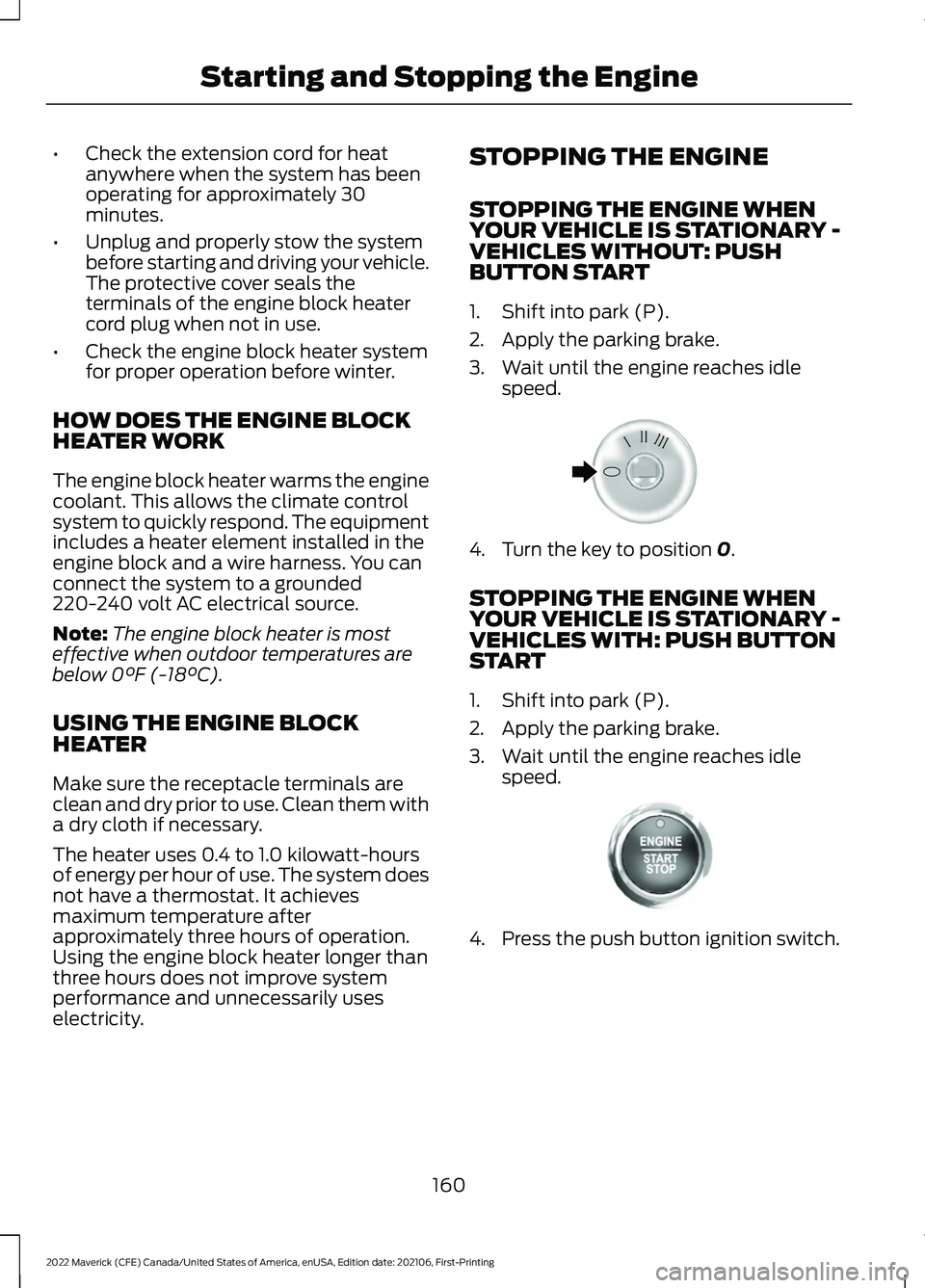

Check the extension cord for heat
anywhere when the system has been
operating for approximately 30
minutes.
• Unplug and properly stow the system
before starting and driving your vehicle.
The protective cover seals the
terminals of the engine block heater
cord plug when not in use.
• Check the engine block heater system
for proper operation before winter.
HOW DOES THE ENGINE BLOCK
HEATER WORK
The engine block heater warms the engine
coolant. This allows the climate control
system to quickly respond. The equipment
includes a heater element installed in the
engine block and a wire harness. You can
connect the system to a grounded
220-240 volt AC electrical source.
Note: The engine block heater is most
effective when outdoor temperatures are
below 0°F (-18°C).
USING THE ENGINE BLOCK
HEATER
Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.
The heater uses 0.4 to 1.0 kilowatt-hours
of energy per hour of use. The system does
not have a thermostat. It achieves
maximum temperature after
approximately three hours of operation.
Using the engine block heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity. STOPPING THE ENGINE
STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITHOUT: PUSH
BUTTON START
1. Shift into park (P).
2. Apply the parking brake.
3. Wait until the engine reaches idle
speed. 4. Turn the key to position
0.
STOPPING THE ENGINE WHEN
YOUR VEHICLE IS STATIONARY -
VEHICLES WITH: PUSH BUTTON
START
1. Shift into park (P).
2. Apply the parking brake.
3. Wait until the engine reaches idle speed. 4. Press the push button ignition switch.
160
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Starting and Stopping the EngineE322405 E321258
Page 295 of 533

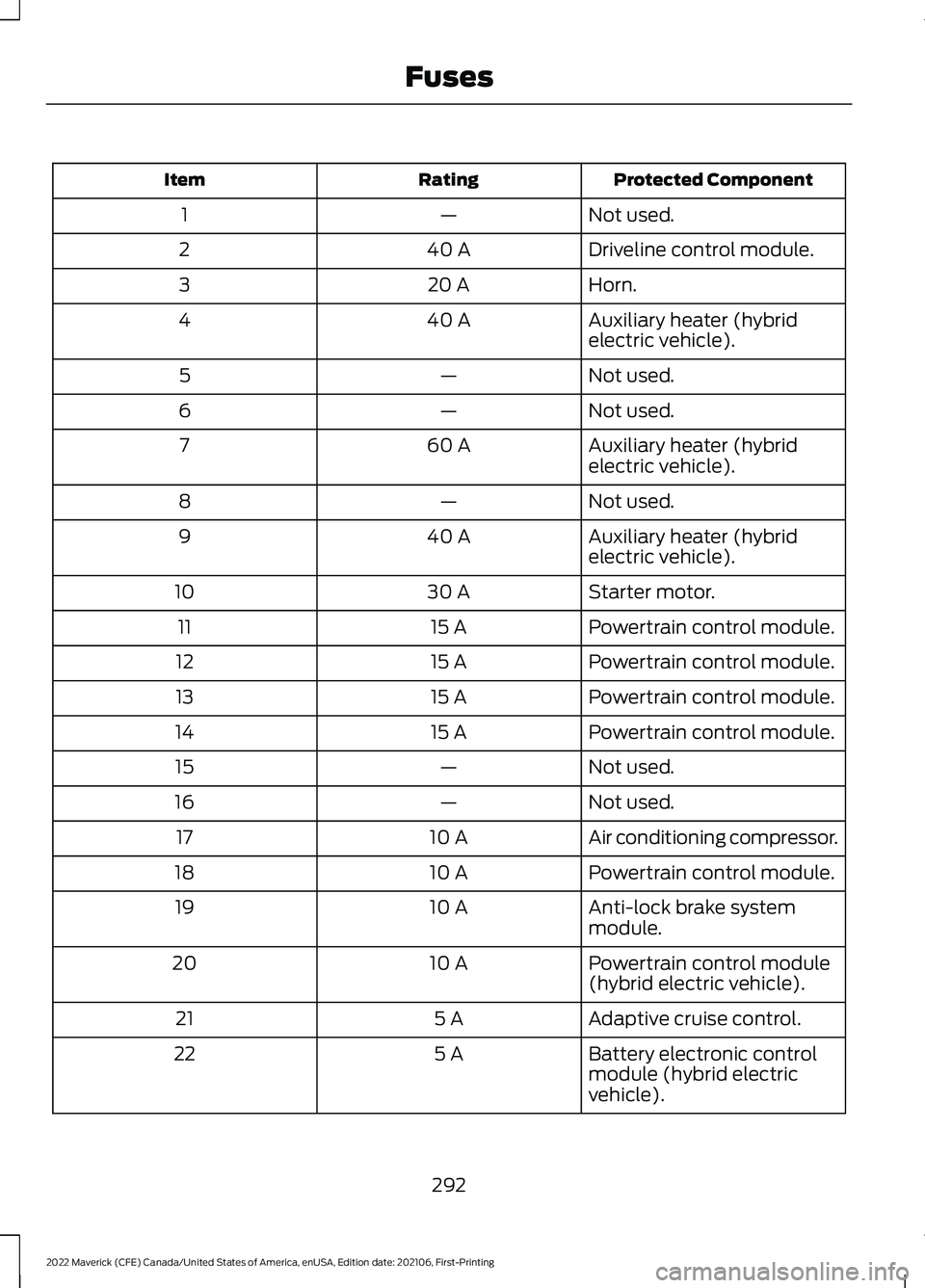

Protected Component
Rating
Item
Not used.
—
1
Driveline control module.
40 A
2
Horn.
20 A
3
Auxiliary heater (hybrid
electric vehicle).
40 A
4
Not used.
—
5
Not used.
—
6
Auxiliary heater (hybrid
electric vehicle).
60 A
7
Not used.
—
8
Auxiliary heater (hybrid
electric vehicle).
40 A
9
Starter motor.
30 A
10
Powertrain control module.
15 A
11
Powertrain control module.
15 A
12
Powertrain control module.
15 A
13
Powertrain control module.
15 A
14
Not used.
—
15
Not used.
—
16
Air conditioning compressor.
10 A
17
Powertrain control module.
10 A
18
Anti-lock brake system
module.
10 A
19
Powertrain control module
(hybrid electric vehicle).
10 A
20
Adaptive cruise control.
5 A
21
Battery electronic control
module (hybrid electric
vehicle).
5 A
22
292
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Fuses
Page 419 of 533
•

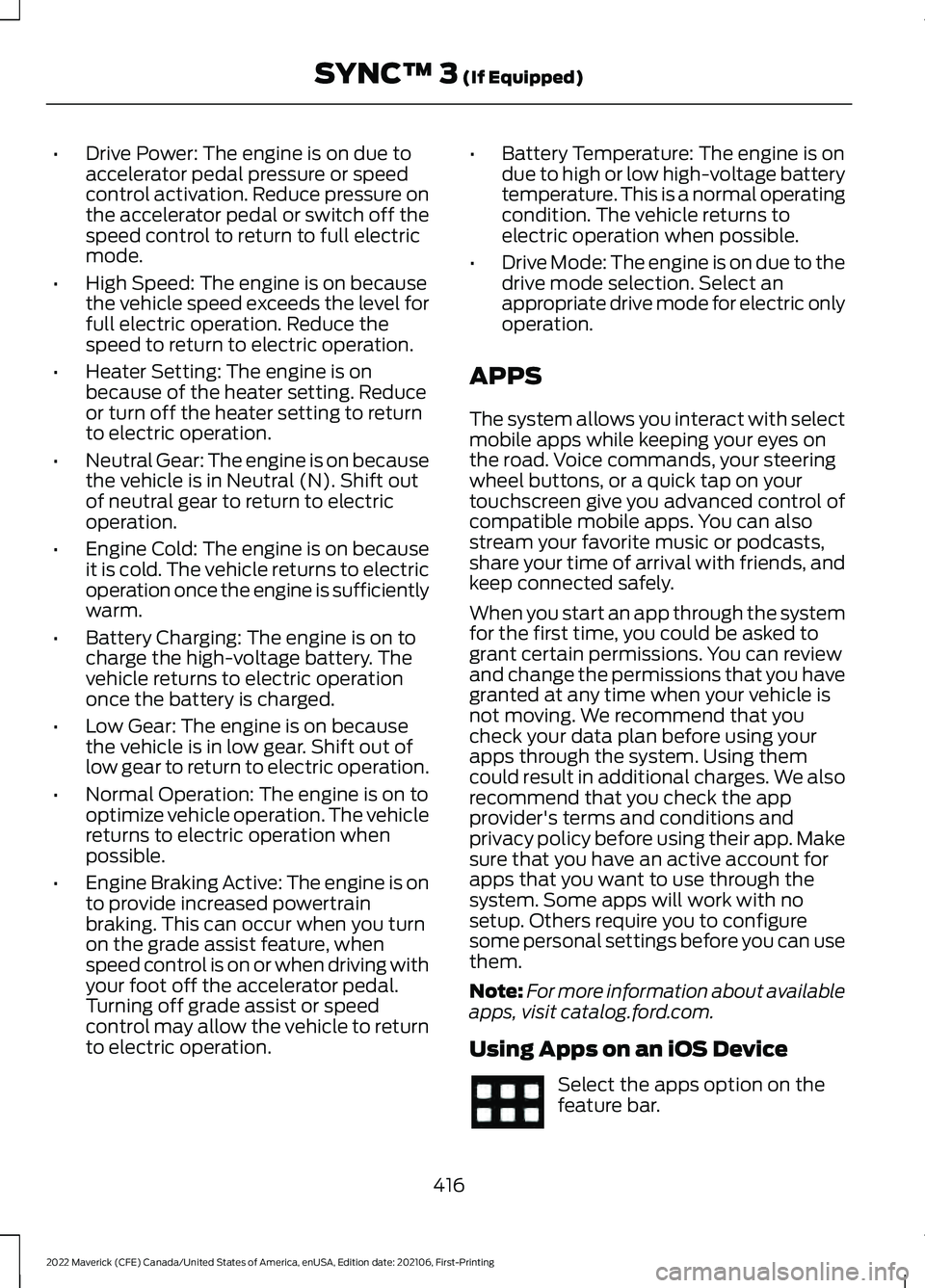

Drive Power: The engine is on due to
accelerator pedal pressure or speed
control activation. Reduce pressure on
the accelerator pedal or switch off the
speed control to return to full electric
mode.
• High Speed: The engine is on because
the vehicle speed exceeds the level for
full electric operation. Reduce the
speed to return to electric operation.
• Heater Setting: The engine is on
because of the heater setting. Reduce
or turn off the heater setting to return
to electric operation.
• Neutral Gear: The engine is on because
the vehicle is in Neutral (N). Shift out
of neutral gear to return to electric
operation.
• Engine Cold: The engine is on because
it is cold. The vehicle returns to electric
operation once the engine is sufficiently
warm.
• Battery Charging: The engine is on to
charge the high-voltage battery. The
vehicle returns to electric operation
once the battery is charged.
• Low Gear: The engine is on because
the vehicle is in low gear. Shift out of
low gear to return to electric operation.
• Normal Operation: The engine is on to
optimize vehicle operation. The vehicle
returns to electric operation when
possible.
• Engine Braking Active: The engine is on
to provide increased powertrain
braking. This can occur when you turn
on the grade assist feature, when
speed control is on or when driving with
your foot off the accelerator pedal.
Turning off grade assist or speed
control may allow the vehicle to return
to electric operation. •
Battery Temperature: The engine is on
due to high or low high-voltage battery
temperature. This is a normal operating
condition. The vehicle returns to
electric operation when possible.
• Drive Mode: The engine is on due to the
drive mode selection. Select an
appropriate drive mode for electric only
operation.
APPS
The system allows you interact with select
mobile apps while keeping your eyes on
the road. Voice commands, your steering
wheel buttons, or a quick tap on your
touchscreen give you advanced control of
compatible mobile apps. You can also
stream your favorite music or podcasts,
share your time of arrival with friends, and
keep connected safely.
When you start an app through the system
for the first time, you could be asked to
grant certain permissions. You can review
and change the permissions that you have
granted at any time when your vehicle is
not moving. We recommend that you
check your data plan before using your
apps through the system. Using them
could result in additional charges. We also
recommend that you check the app
provider's terms and conditions and
privacy policy before using their app. Make
sure that you have an active account for
apps that you want to use through the
system. Some apps will work with no
setup. Others require you to configure
some personal settings before you can use
them.
Note: For more information about available
apps, visit catalog.ford.com.
Using Apps on an iOS Device Select the apps option on the
feature bar.
416
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing SYNC™ 3 (If Equipped)
Page 421 of 533

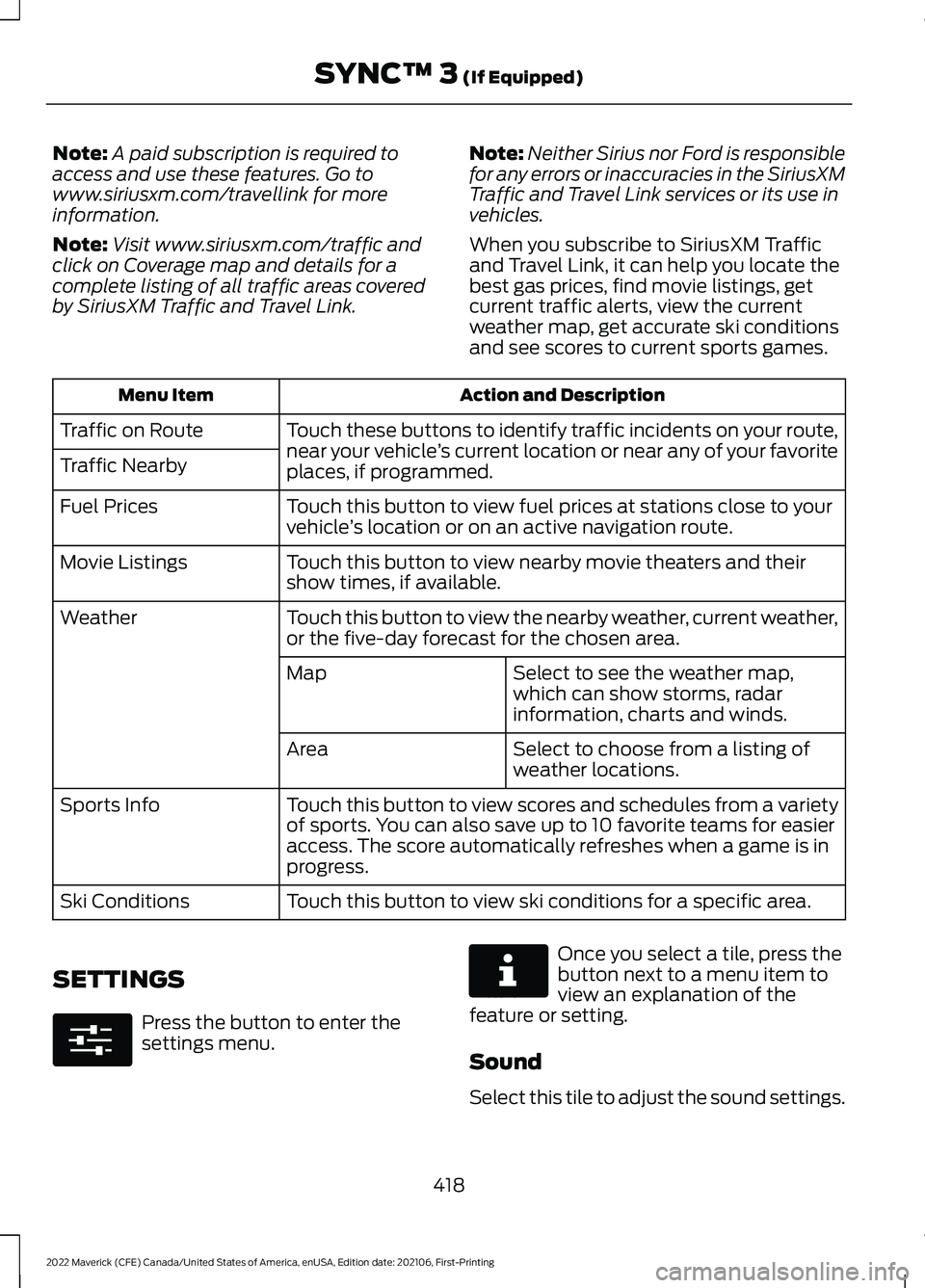

Note:
A paid subscription is required to
access and use these features. Go to
www.siriusxm.com/travellink for more
information.
Note: Visit www.siriusxm.com/traffic and
click on Coverage map and details for a
complete listing of all traffic areas covered
by SiriusXM Traffic and Travel Link. Note:
Neither Sirius nor Ford is responsible
for any errors or inaccuracies in the SiriusXM
Traffic and Travel Link services or its use in
vehicles.
When you subscribe to SiriusXM Traffic
and Travel Link, it can help you locate the
best gas prices, find movie listings, get
current traffic alerts, view the current
weather map, get accurate ski conditions
and see scores to current sports games. Action and Description
Menu Item
Touch these buttons to identify traffic incidents on your route,
near your vehicle’s current location or near any of your favorite
places, if programmed.
Traffic on Route
Traffic Nearby
Touch this button to view fuel prices at stations close to your
vehicle’s location or on an active navigation route.
Fuel Prices
Touch this button to view nearby movie theaters and their
show times, if available.
Movie Listings
Touch this button to view the nearby weather, current weather,
or the five-day forecast for the chosen area.
Weather
Select to see the weather map,
which can show storms, radar
information, charts and winds.
Map
Select to choose from a listing of
weather locations.
Area
Touch this button to view scores and schedules from a variety
of sports. You can also save up to 10 favorite teams for easier
access. The score automatically refreshes when a game is in
progress.
Sports Info
Touch this button to view ski conditions for a specific area.
Ski Conditions
SETTINGS Press the button to enter the
settings menu. Once you select a tile, press the
button next to a menu item to
view an explanation of the
feature or setting.
Sound
Select this tile to adjust the sound settings.
418
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing SYNC™ 3 (If Equipped)E280315 E268570
Page 441 of 533

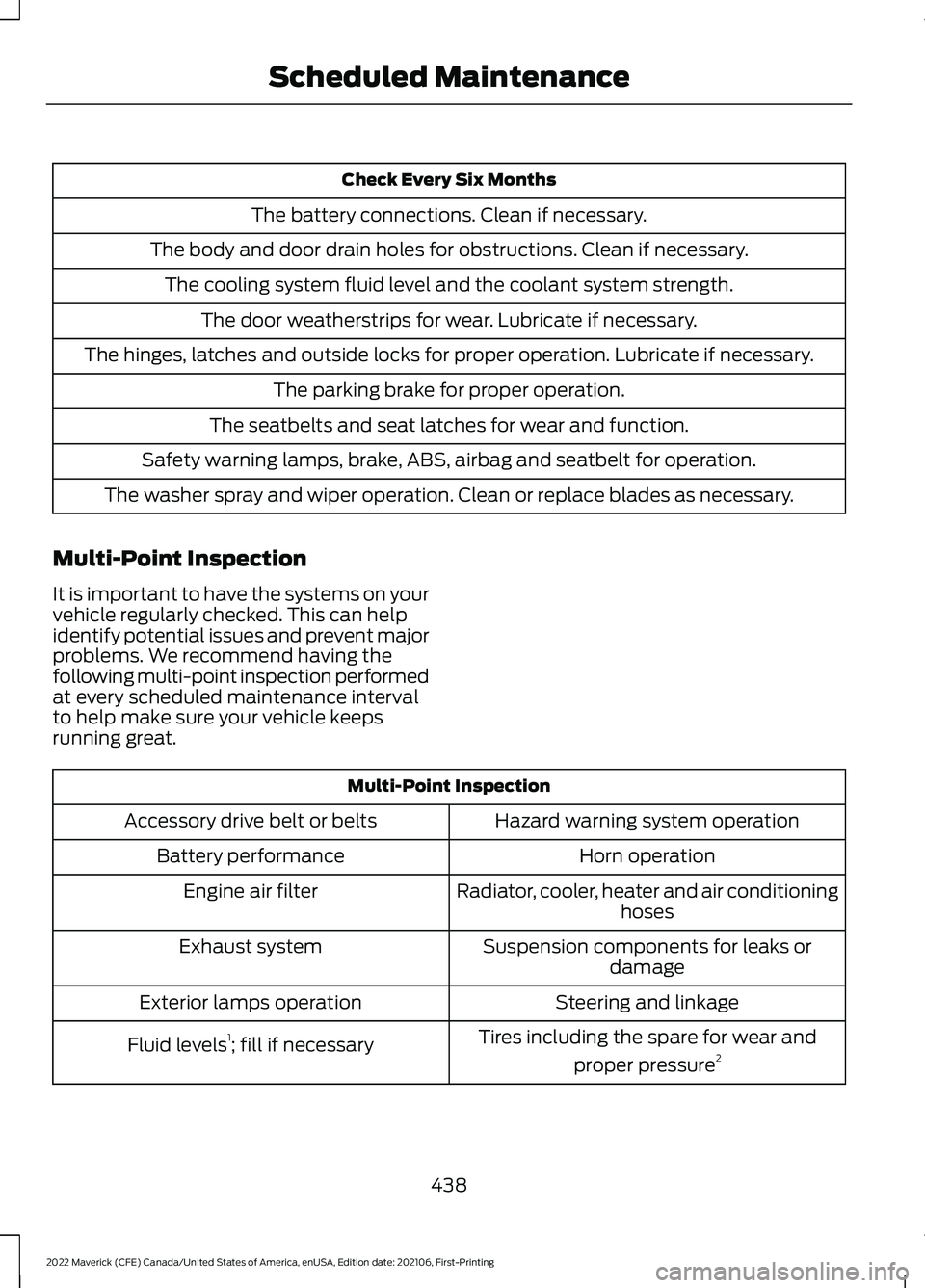

Check Every Six Months
The battery connections. Clean if necessary.
The body and door drain holes for obstructions. Clean if necessary. The cooling system fluid level and the coolant system strength. The door weatherstrips for wear. Lubricate if necessary.
The hinges, latches and outside locks for proper operation. Lubricate if necessary. The parking brake for proper operation.
The seatbelts and seat latches for wear and function.
Safety warning lamps, brake, ABS, airbag and seatbelt for operation.
The washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
It is important to have the systems on your
vehicle regularly checked. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-Point Inspection
Hazard warning system operation
Accessory drive belt or belts
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires including the spare for wear andproper pressure 2
Fluid levels 1
; fill if necessary
438
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Scheduled Maintenance
Page 521 of 533
Drive Mode Control –
Troubleshooting.........................................227
Drive Mode Control – Frequently Asked Questions......................................................... 229
Drive Mode Control – Information Messages......................................................... 228
Drive Mode Control – Warning Lamps................................................................ 227
Drive Modes...................................................226 Eco........................................................................\
... 226
Mud/Ruts.............................................................. 226
Normal.................................................................... 227
Sand........................................................................\
227
Slippery.................................................................. 227
Sport........................................................................\
227
Tow/Haul............................................................... 227
Driver Alert.....................................................250 Driver Alert – Troubleshooting....................... 251
Driver Alert Indicators..................................251
Driver Alert Limitations.............................250
Driver Alert Precautions............................250
Driver Alert – Troubleshooting
.................251
Driver Alert – Information Messages...........251
Driving Economically
..................................273
Driving Hints...................................................273
Driving in Special Conditions......................... 274
Driving in Special Conditions...................274 Driving In Sand.................................................... 275
Driving on Hilly or Sloping Terrain................274
Driving Through Mud and Water..................274
Emergency Maneuvers..................................... 274
Driving on Snow and Ice............................273
Driving Through Shallow Water..............275
E
Electric Parking Brake Audible Warning.........................................................195
Electric Parking Brake.................................194 Electric Parking Brake –
Troubleshooting............................................. 195
Electric Parking Brake – Troubleshooting.........................................195
Electric Parking Brake – Information Messages.......................................................... 196
Electric Parking Brake – Warning Lamps................................................................ 195Electric Power Steering
.............................205
Electric Power Steering Precautions..........205
How Does Electric Power Steering
Work.................................................................. 205
Electric Vehicle Information
.....................415
Electromagnetic Compatibility.............509
Emergency Call Limitations.......................59
Emergency Call Requirements.................59
Emergency Call System Data....................25
Emergency Towing - Gasoline................288
Emergency Towing - Hybrid Electric Vehicle (HEV)
............................................288
Emission Law................................................507
Enabling Remote Start...............................123
End User License Agreement
.................482
Engine Block Heater....................................159
Engine Block Heater Precautions.................159
How Does the Engine Block Heater
Work................................................................... 160
Using the Engine Block Heater..................... 160
Engine Oil Capacity and Specification - 2.0L EcoBoost™.......................................359
Engine Oil Capacity and Specification - 2.5L, Hybrid Electric Vehicle
(HEV)............................................................360
Engine Oil
.......................................................303
Adding Engine Oil.............................................. 303
Checking the Engine Oil Level...................... 303
Engine Oil Capacity and Specification.................................................. 304
Engine Oil Dipstick Overview........................ 303
Resetting the Engine Oil Change Reminder......................................................... 303
Engine Specifications - 2.0L EcoBoost™.................................................355
Engine Specifications - 2.5L, Hybrid Electric Vehicle (HEV)............................356
Entertainment..............................................398
Evasive Steering Assist
..............................247
Evasive Steering Assist Limitations............248
Switching Evasive Steering Assist On and
Off...................................................................... 248
What Is Evasive Steering Assist.................... 247
EV Coach - Hybrid Electric Vehicle (HEV)..............................................................119
Event Data
.........................................................23
Extending the Remote Start Duration.........................................................123
518
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Index
Page 529 of 533

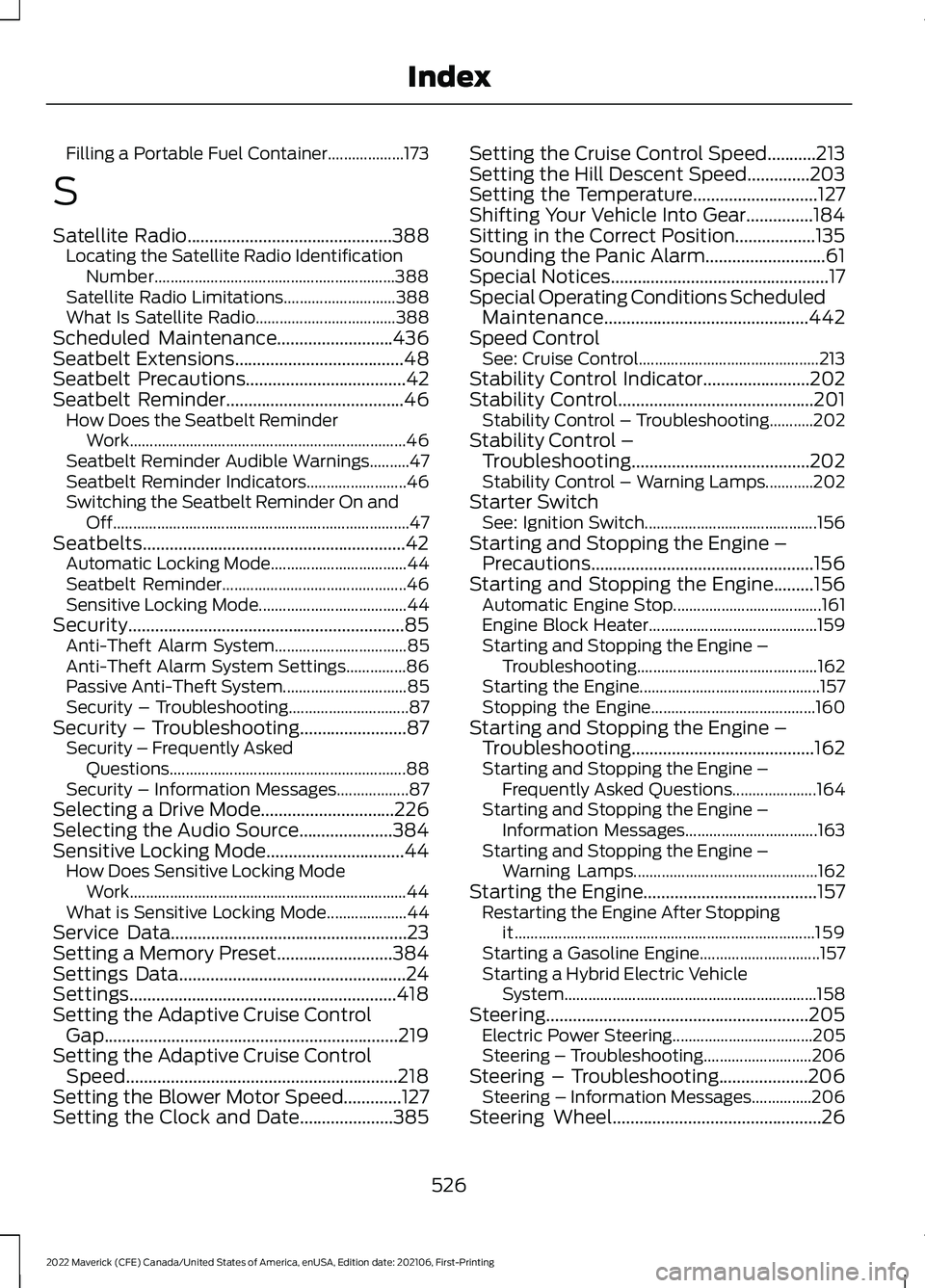

Filling a Portable Fuel Container...................
173
S
Satellite Radio..............................................388
Locating the Satellite Radio Identification
Number............................................................ 388
Satellite Radio Limitations............................ 388
What Is Satellite Radio................................... 388
Scheduled Maintenance
..........................436
Seatbelt Extensions......................................48
Seatbelt Precautions....................................42
Seatbelt Reminder........................................46 How Does the Seatbelt Reminder
Work..................................................................... 46
Seatbelt Reminder Audible Warnings..........47
Seatbelt Reminder Indicators......................... 46
Switching the Seatbelt Reminder On and Off........................................................................\
.. 47
Seatbelts...........................................................42 Automatic Locking Mode.................................. 44
Seatbelt Reminder.............................................. 46
Sensitive Locking Mode..................................... 44
Security..............................................................85 Anti-Theft Alarm System................................. 85
Anti-Theft Alarm System Settings...............86
Passive Anti-Theft System............................... 85
Security – Troubleshooting.............................. 87
Security – Troubleshooting........................87 Security – Frequently Asked
Questions........................................................... 88
Security – Information Messages..................87
Selecting a Drive Mode..............................226
Selecting the Audio Source.....................384
Sensitive Locking Mode...............................44 How Does Sensitive Locking Mode
Work..................................................................... 44
What is Sensitive Locking Mode.................... 44
Service Data
.....................................................23
Setting a Memory Preset..........................384
Settings Data...................................................24
Settings............................................................418
Setting the Adaptive Cruise Control Gap..................................................................219
Setting the Adaptive Cruise Control Speed.............................................................218
Setting the Blower Motor Speed.............127
Setting the Clock and Date.....................385 Setting the Cruise Control Speed...........213
Setting the Hill Descent Speed
..............203
Setting the Temperature............................127
Shifting Your Vehicle Into Gear...............184
Sitting in the Correct Position..................135
Sounding the Panic Alarm...........................61
Special Notices.................................................17
Special Operating Conditions Scheduled Maintenance..............................................442
Speed Control See: Cruise Control............................................. 213
Stability Control Indicator........................202
Stability Control
............................................201
Stability Control – Troubleshooting...........202
Stability Control – Troubleshooting........................................202
Stability Control – Warning Lamps............202
Starter Switch See: Ignition Switch........................................... 156
Starting and Stopping the Engine – Precautions..................................................156
Starting and Stopping the Engine
.........156
Automatic Engine Stop..................................... 161
Engine Block Heater.......................................... 159
Starting and Stopping the Engine – Troubleshooting............................................. 162
Starting the Engine............................................. 157
Stopping the Engine......................................... 160
Starting and Stopping the Engine – Troubleshooting.........................................162
Starting and Stopping the Engine – Frequently Asked Questions.....................164
Starting and Stopping the Engine – Information Messages................................. 163
Starting and Stopping the Engine – Warning Lamps.............................................. 162
Starting the Engine
.......................................157
Restarting the Engine After Stopping
it........................................................................\
... 159
Starting a Gasoline Engine.............................. 157
Starting a Hybrid Electric Vehicle System............................................................... 158
Steering...........................................................205 Electric Power Steering................................... 205
Steering – Troubleshooting........................... 206
Steering – Troubleshooting....................206 Steering – Information Messages...............206
Steering Wheel
...............................................26
526
2022 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Index
