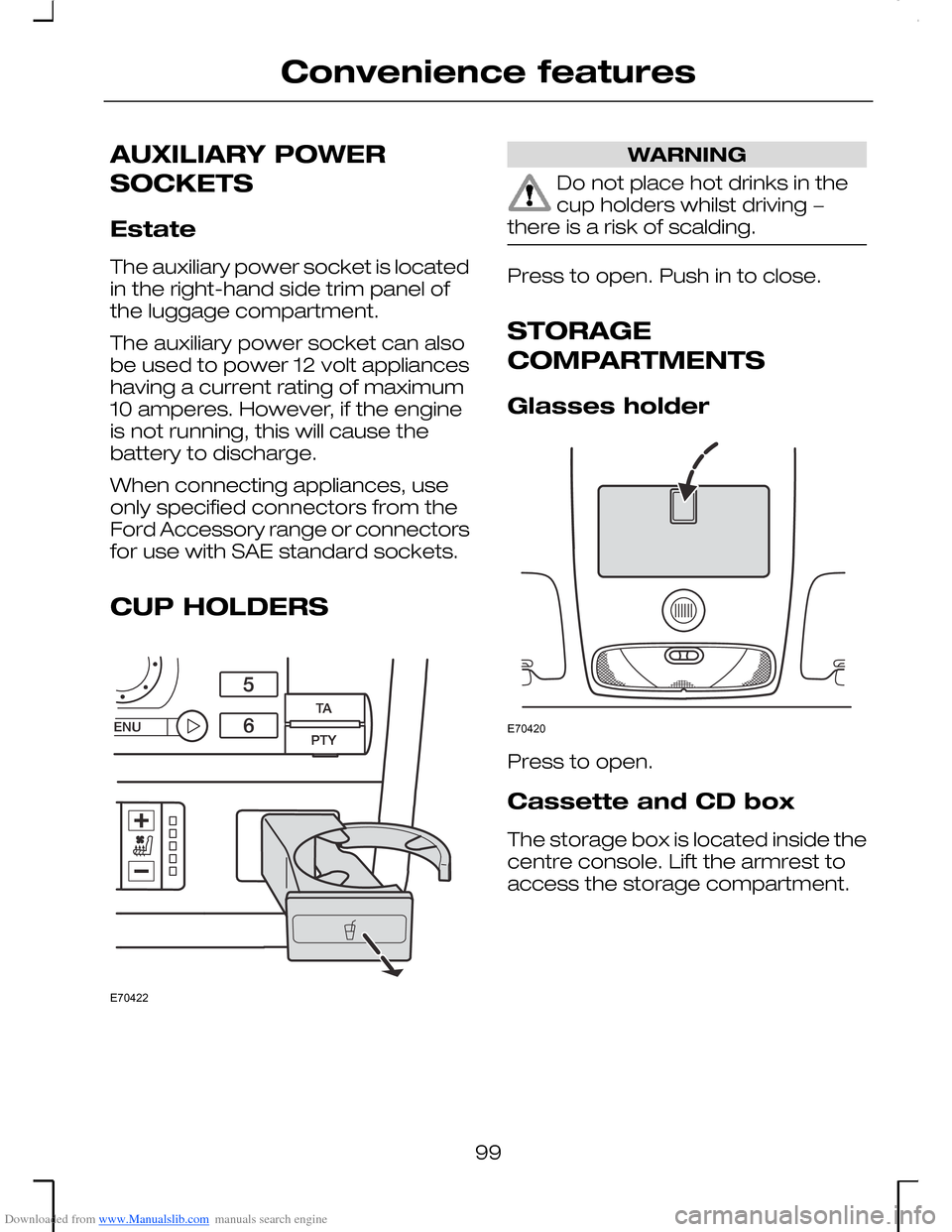

Downloaded from www.Manualslib.com manuals search engine AUXILIARY POWER
SOCKETS
Estate
The auxiliary power socket is locatedin the right-hand side trim panel ofthe luggage compartment.
The auxiliary power socket can alsobe used to power 12 volt applianceshaving a current rating of maximum10 amperes. However, if the engineis not running, this will cause thebattery to discharge.
When connecting appliances, useonly specified connectors from theFord Accessory range or connectorsfor use with SAE standard sockets.
CUP HOLDERS
WARNING
Do not place hot drinks in thecup holders whilst driving −there is a risk of scalding.
Press to open. Push in to close.
STORAGE
COMPARTMENTS
Glasses holder
Press to open.
Cassette and CD box
The storage box is located inside thecentre console. Lift the armrest toaccess the storage compartment.
99
Convenience featuresE70422 E70420

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
WARNING
Any improper alterations to theelectrical or fuel system canendanger the safety of the vehicle asthey could constitute a fire hazard orcause engine damage. Have anywork involving these systems or thereplacement of relays or high currentcarrying fuses carried out by anexpert.
Auxiliary fuse boxA
Central fuse boxB
Auxiliary fuse box
To check or replace a fuse, first pulloff the battery cover 1. Then removethe cover of the fuse box 2 byreleasing the catch and lifting up.
You will find the fuse chart inside thefuse box cover.
Central fuse box
Left-hand drive
136
FusesE72532 E72534 E72535

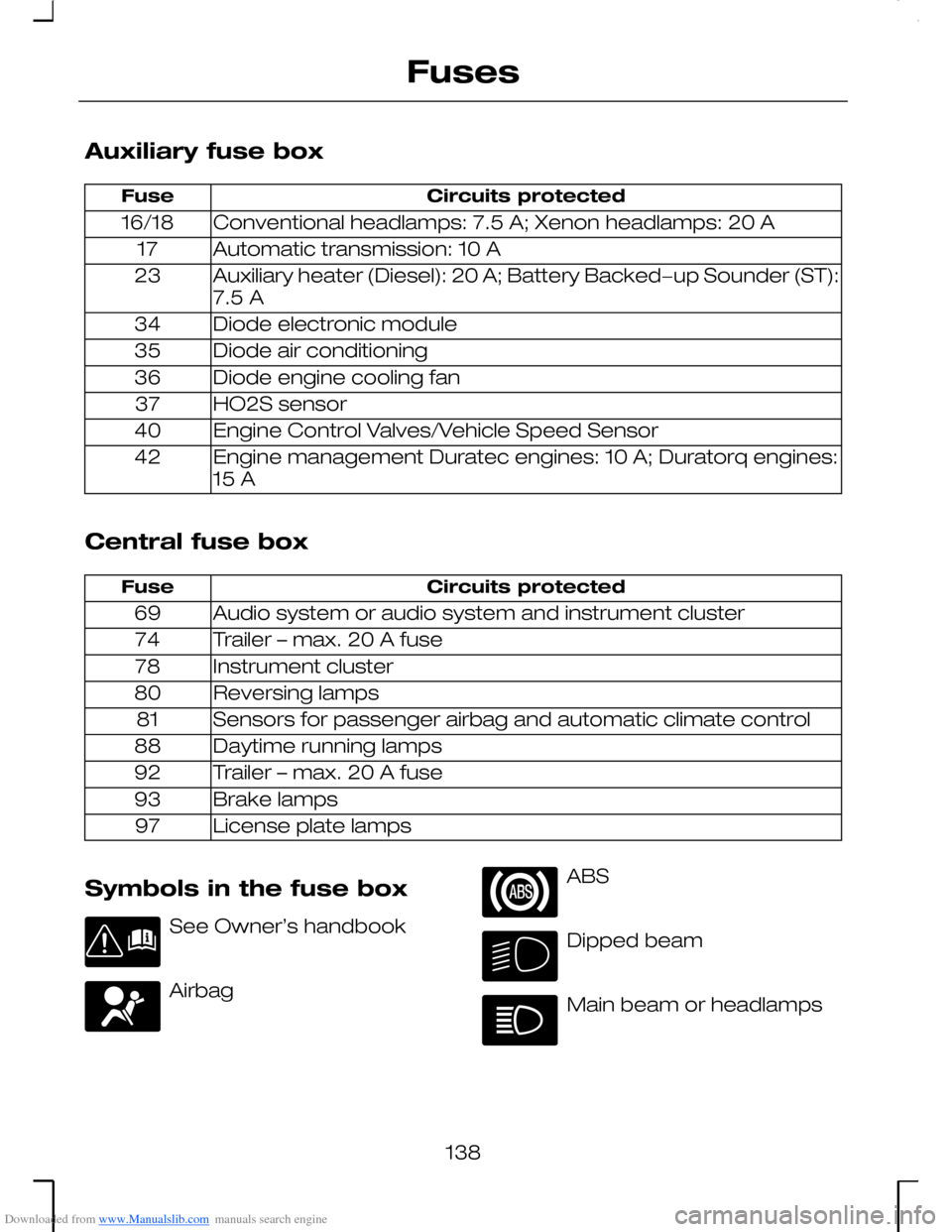

Downloaded from www.Manualslib.com manuals search engine Auxiliary fuse box
Circuits protectedFuse
Conventional headlamps: 7.5 A; Xenon headlamps: 20 A16/18
Automatic transmission: 10 A17
Auxiliary heater (Diesel): 20 A; Battery Backed−up Sounder (ST):7.5 A23
Diode electronic module34
Diode air conditioning35
Diode engine cooling fan36
HO2S sensor37
Engine Control Valves/Vehicle Speed Sensor40
Engine management Duratec engines: 10 A; Duratorq engines:15 A42
Central fuse box
Circuits protectedFuse
Audio system or audio system and instrument cluster69
Trailer – max. 20 A fuse74
Instrument cluster78
Reversing lamps80
Sensors for passenger airbag and automatic climate control81
Daytime running lamps88
Trailer – max. 20 A fuse92
Brake lamps93
License plate lamps97
Symbols in the fuse box
See Owner’s handbook
Airbag
ABS
Dipped beam
Main beam or headlamps
138
Fuses

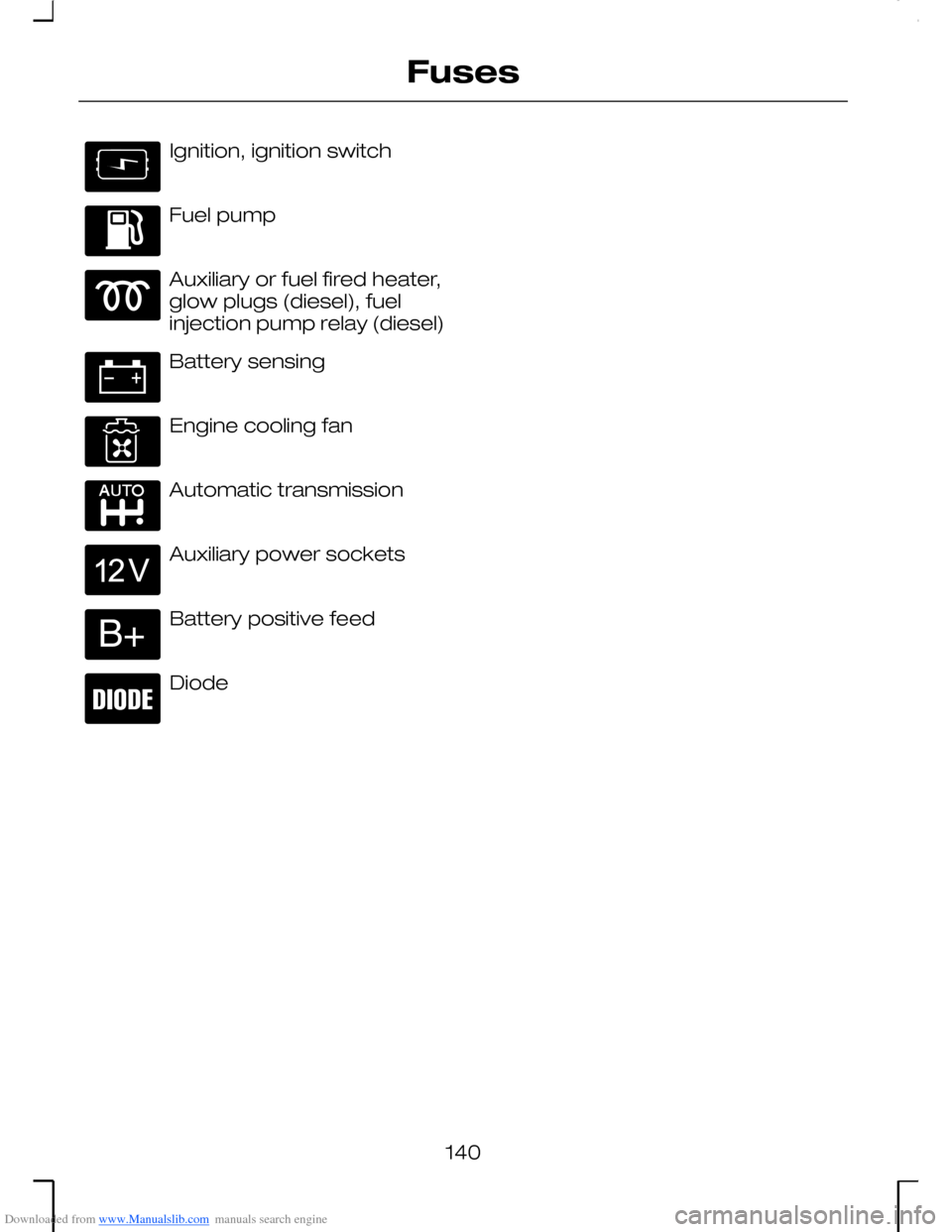

Downloaded from www.Manualslib.com manuals search engine Ignition, ignition switch
Fuel pump
Auxiliary or fuel fired heater,glow plugs (diesel), fuelinjection pump relay (diesel)
Battery sensing
Engine cooling fan
Automatic transmission
Auxiliary power sockets
Battery positive feed
Diode
140
Fuses

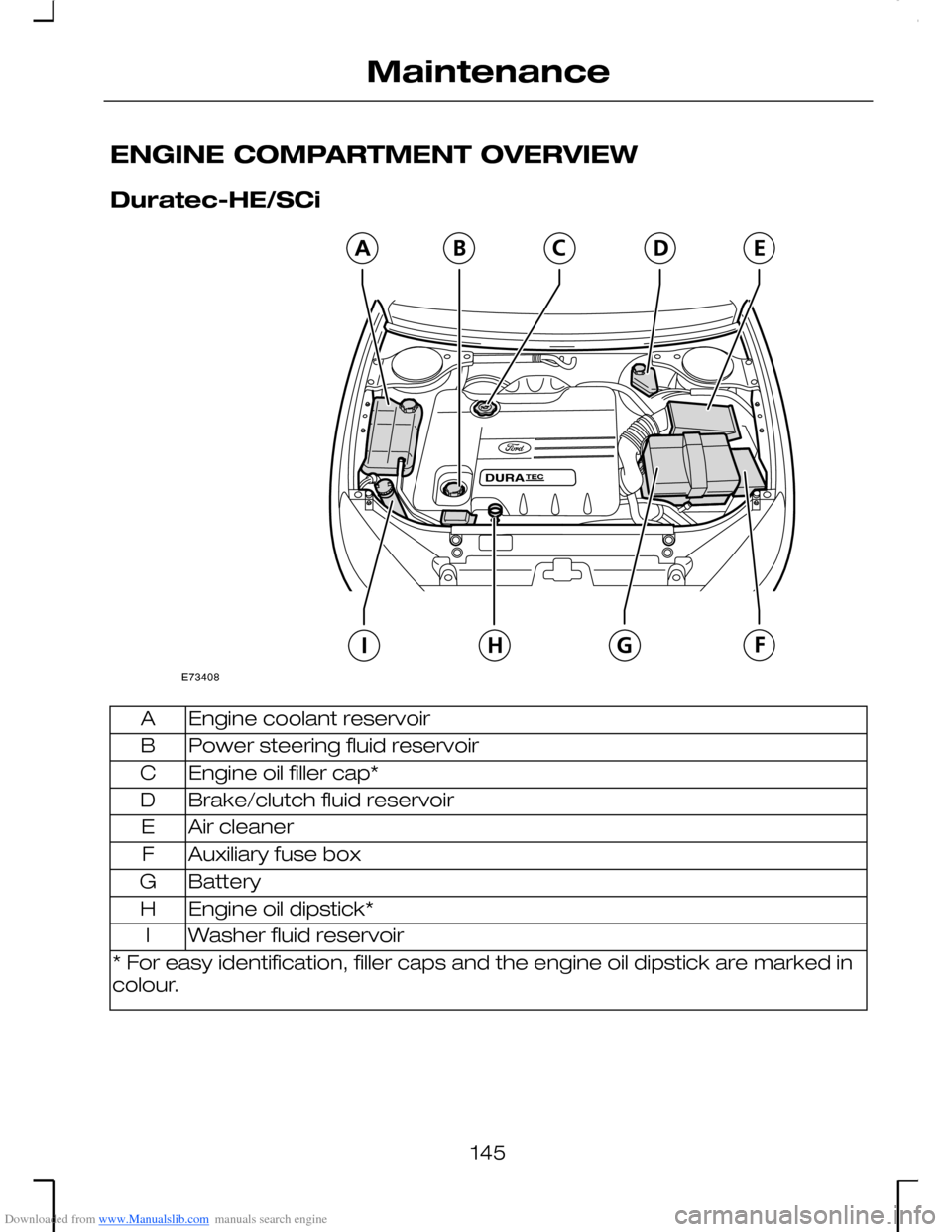

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW
Duratec-HE/SCi
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
145
MaintenanceE73408

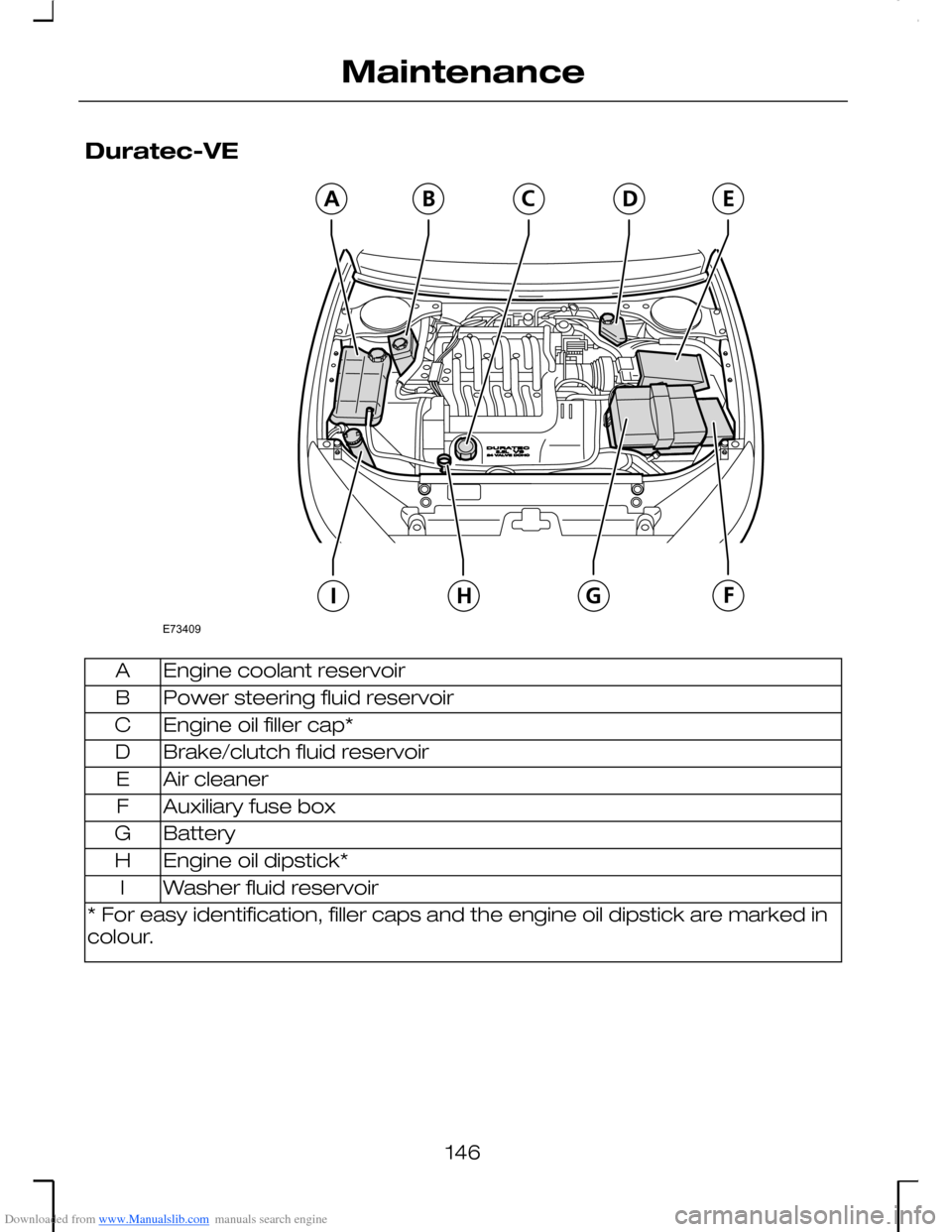

Downloaded from www.Manualslib.com manuals search engine Duratec-VE
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
146
MaintenanceE73409

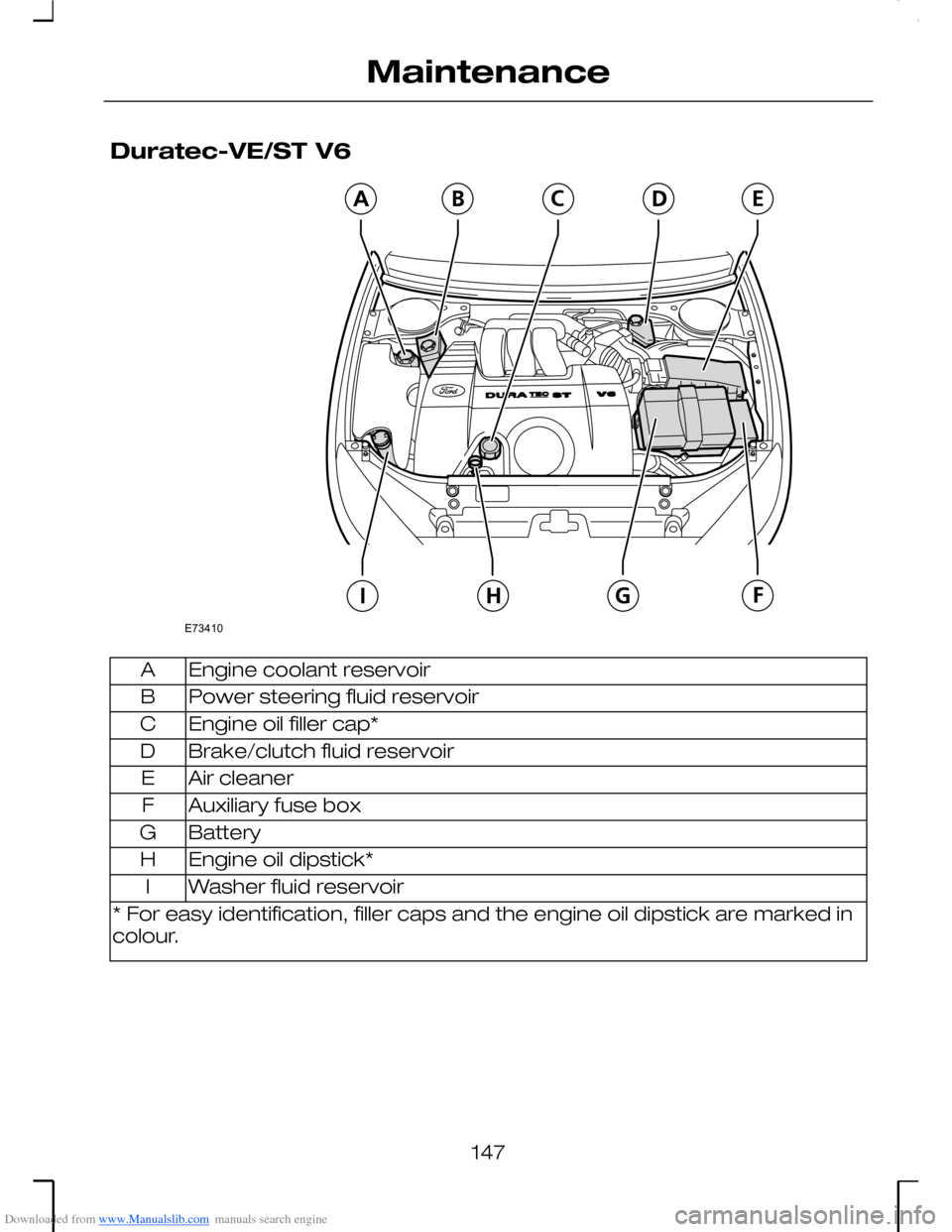

Downloaded from www.Manualslib.com manuals search engine Duratec-VE/ST V6
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
147
MaintenanceE73410

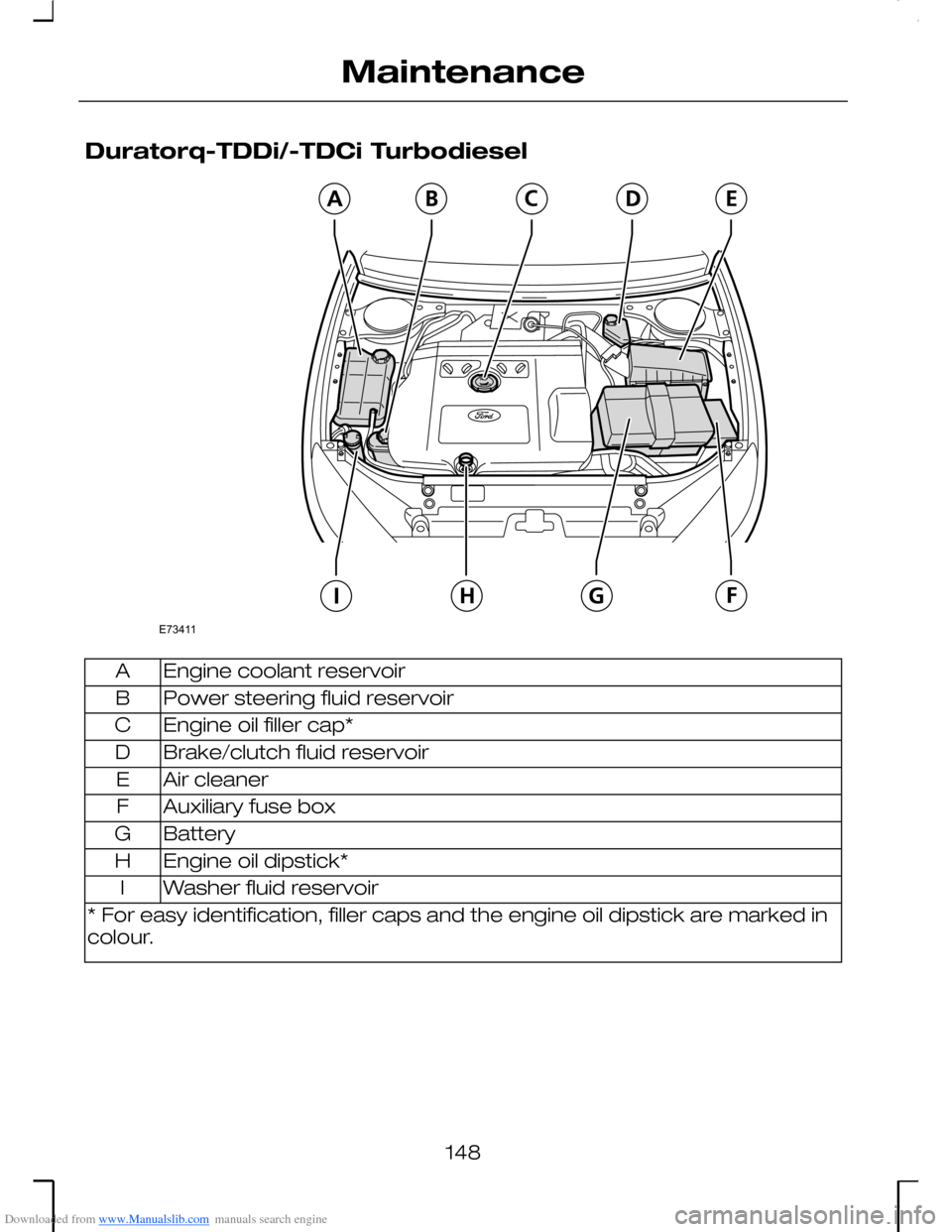

Downloaded from www.Manualslib.com manuals search engine Duratorq-TDDi/-TDCi Turbodiesel
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
148
MaintenanceE73411

Downloaded from www.Manualslib.com manuals search engine A
About this handbook........................5Adjusting the headlamps...............55Vehicles with Xenon headlamps.......55
Adjusting the steering wheel.........46Adjusting the windscreen washerjets....................................................51Air vents.............................................81Airbag warning lamp.......................31Alarm.................................................44Approach lamps..............................66Arming the alarm.............................44Alarm......................................................44Automatic arming delay.....................44Interior sensors....................................44
Arming the engine immobiliser.....43Ashtray..............................................98Front ashtray........................................98Rear ashtray.........................................98
Audible warnings andindicators........................................76Frost.......................................................76Lights on................................................76Overspeed............................................77Parking aid............................................76Seat belt reminder...............................77
Audio control...................................46Mode......................................................47Seek.......................................................47Volume..................................................46
Automatic climate control.............84Blower and air distribution..................85Setting the temperature.....................84Switching the air conditioning on andoff.......................................................85Switching the automatic climatecontrol on and off............................85
Automatic transmission fluidcheck............................................152
Automatic transmission................110Drive modes (5-speedtransmission)...................................116Driving with an automatictransmission.....................................114Emergency park position releaselever...................................................116Gear selection.....................................110
Auxiliary heater................................87Auxiliary power sockets.................99Estate....................................................99
B
Battery care....................................158Booster cushions.............................21Integrated booster cushion................21Vario child safety seat.........................23
Brake and clutch fluid check.......152Brakes..............................................118Principle of operation.........................118
C
Cargo nets......................................126Catalytic converter........................103Driving with a catalytic converter.....103Parking.................................................103
