headlamp FORD MONDEO 2006 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Introduction..................5
About this handbook........................5
Symbols glossary..............................5
Parts and accessories......................5
Quick start....................7
Child safety.................18
Child seats........................................18
Child seat positioning......................19
Booster cushions.............................21
Child safety locks............................24
Occupant
protection................25
Principle of operation.....................25
Seat belt reminder..........................29
Fastening the seat belts................29
Seat belt height adjustment..........30
Using seat belts duringpregnancy.....................................31
Airbag warning lamp.......................31
Keys and remote
controls...................32
General information on radiofrequencies..................................32
Programming the remotecontrol...........................................32
Changing the remote controlbattery...........................................33
Locks..........................35
Locking and unlocking...................35
Global opening and closing...........40
Engine immobiliser.....41
Principle of operation......................41
Coded keys......................................41
Arming the engine immobiliser.....43
Disarming the engineimmobiliser...................................43
Alarm..........................44
Arming the alarm.............................44
Disarming the alarm........................44
Steering wheel...........46
Adjusting the steering wheel.........46
Horn..................................................46
Audio control...................................46
Voice control....................................47
Wipers and
washers...................48
Windscreen wipers.........................48
Windscreen washers.....................49
Rear window wiper andwashers........................................50
Adjusting the windscreen washerjets..................................................51
Headlamp washers.........................51
Checking the wiper blades............51
Changing the wiper blades...........52
Lighting.......................53
Lighting control................................53
Front fog lamps...............................54
Rear fog lamps................................54
Adjusting the headlamps...............55
Headlamp levelling..........................55
1
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Instrument panel overview
Left-hand drive
Headlamp levelling control. See Headlamp levelling (page 55).A
Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).B
Horn. See Horn (page 46).C
Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).D
Wiper lever. See Windscreen wipers (page 48).E
7
Quick startE70431

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).H
Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).I
Horn. See Horn (page 46).J
Wiper lever. See Windscreen wipers (page 48).K
Headlamp levelling control. See Headlamp levelling (page 55).L
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).M
Instrument lighting dimmer. See Instrument lighting dimmer (page97).N
Ignition switch. See Ignition switch (page 100).O
Steering wheel adjustment. See Adjusting the steering wheel (page46).P
Cruise control. See Using cruise control (page 124).Q
Audio control. See Audio control (page 46).R
Stability control (ESP) switch. See Using stability control (page 120).S
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).T
Cup holder. See Cup holders (page 99).U
Audio/navigation equipment. See the separate handbooks.V
Warning lamps andindicators
See Warning lamps and indicators(page 73).
Glow plug indicator lamp
Frost warning lamp
Low washer fluid warninglamp
Ignition warning lamp
Oil pressure warning lamp
Oil change indicator lamp
Doors open warning lamp
Brake system warning lamp
Seat belt reminder
10
Quick start

Downloaded from www.Manualslib.com manuals search engine Engine warning lamp
Low fuel level warning lamp
Direction indicator lamp
Airbag warning lamp
Stability control (ESP)indicator lamp
ABS warning lamp
Headlamp indicator lamp
Main beam indicator lamp
Adjusting the steeringwheel
See Adjusting the steering wheel(page 46).
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Manual climate control
See Manual climate control (page81).
Rapid windowdefrosting/demisting
11
Quick start E70358 E70446

Downloaded from www.Manualslib.com manuals search engine Note: It is not possible to switch onthe fog lamps when the lightingswitch is set to AUTO. To switch onthe fog lamps, switch off theautolamps feature.
When the switch is set to AUTO, thedipped beam headlamps will switchon and off automatically dependingon the ambient light.
Direction indicators
See Direction indicators (page 56).
Briefly tap the lever up or down andthe direction indicators will flash threetimes.
Windscreen wipers
See Windscreen wipers (page 48).
Single wipeA
Intermittent wiping orautowipersB
Normal wipingC
High speed wipingD
Autowipers
When autowipers is selected, thewipers will cycle once regardless ofwhether the windscreen is wet or dry.Thereafter, or when the ignition isswitched on with autowipersselected, the wipers will not cycleuntil water is detected on thewindscreen. Alternatively, move thelever to another position and thenselect autowipers, or operate thewasher.
The rain sensor will continuouslymeasure the amount of water on thewindscreen and adjust the speed ofthe front wipers automatically (singlewipe, intermittent, normal or highspeed wiping).
13
Quick startE72167 ABCDE72172

Downloaded from www.Manualslib.com manuals search engine Washer fluid reservoir
See Maintenance (page 144).
Front and rear washer systems aresupplied from the same reservoir.The reservoir is located behind theright−hand headlamp.
17
Quick startE73422

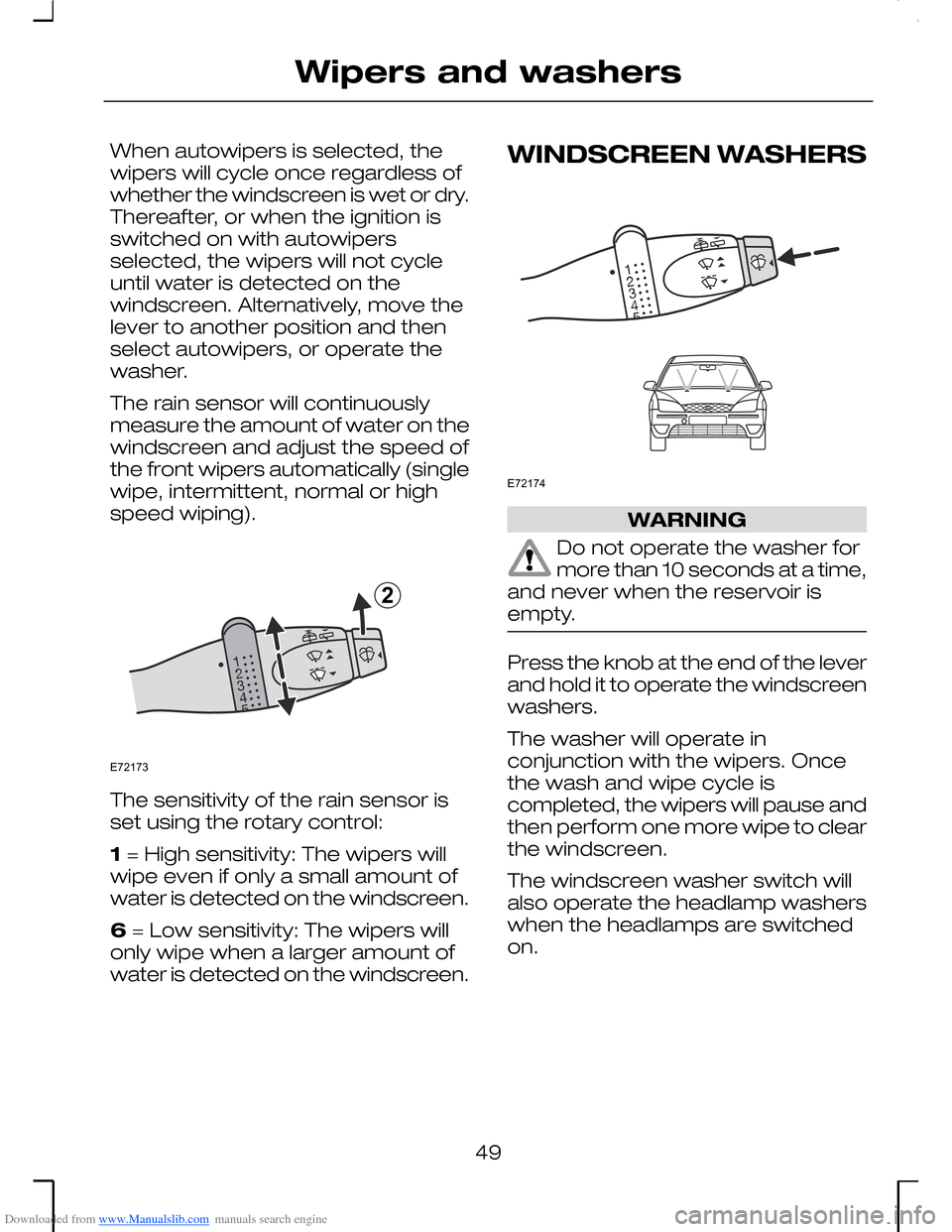

Downloaded from www.Manualslib.com manuals search engine When autowipers is selected, thewipers will cycle once regardless ofwhether the windscreen is wet or dry.Thereafter, or when the ignition isswitched on with autowipersselected, the wipers will not cycleuntil water is detected on thewindscreen. Alternatively, move thelever to another position and thenselect autowipers, or operate thewasher.
The rain sensor will continuouslymeasure the amount of water on thewindscreen and adjust the speed ofthe front wipers automatically (singlewipe, intermittent, normal or highspeed wiping).
The sensitivity of the rain sensor isset using the rotary control:
1 = High sensitivity: The wipers willwipe even if only a small amount ofwater is detected on the windscreen.
6 = Low sensitivity: The wipers willonly wipe when a larger amount ofwater is detected on the windscreen.
WINDSCREEN WASHERS
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
Press the knob at the end of the leverand hold it to operate the windscreenwashers.
The washer will operate inconjunction with the wipers. Oncethe wash and wipe cycle iscompleted, the wipers will pause andthen perform one more wipe to clearthe windscreen.
The windscreen washer switch willalso operate the headlamp washerswhen the headlamps are switchedon.
49
Wipers and washersE721732 E72174

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE
WINDSCREEN WASHER
JETS
The eye ball jets can be adjustedprecisely using a pin.
HEADLAMP WASHERS
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
The headlamp washers operatewhen the exterior lights are switchedon and the windscreen washer isused. The system is supplied fromthe washer fluid reservoir.
CHECKING THE WIPER
BLADES
Check the wiper blades on yourvehicle for roughness by running thetip of your fingers over the edge ofthe blade. Clean the wiper blade lipswith water applied with a softsponge.
51
Wipers and washersE73425 E73427 E66644

Downloaded from www.Manualslib.com manuals search engine LIGHTING CONTROL
Lighting control positions
OffA
Side and tail lampsB
HeadlampsC
Parking lampsD
Parking lamps
Push in and turn anticlockwise.
Autolamps
WARNING
The autolamps feature is anauxiliary system which is notintended to relieve the driver of hisresponsibility for the vehicle’s exteriorlighting.
When the switch is set to AUTO, thedipped beam headlamps will switchon and off automatically dependingon the ambient light.
Note: Main beam can be activatedonly when the autolamps feature hasturned on the headlamps.
If the headlamps switch offautomatically with main beamactivated, the next time theautolamps feature switches on theheadlamps, main beam will still be on.Dipped beam may be selected bypulling the multi-function levertowards the steering wheel.
Main/dipped beam
To switch over pull the lever towardsthe steering wheel.
53
LightingABCE72161 E72162 E72168

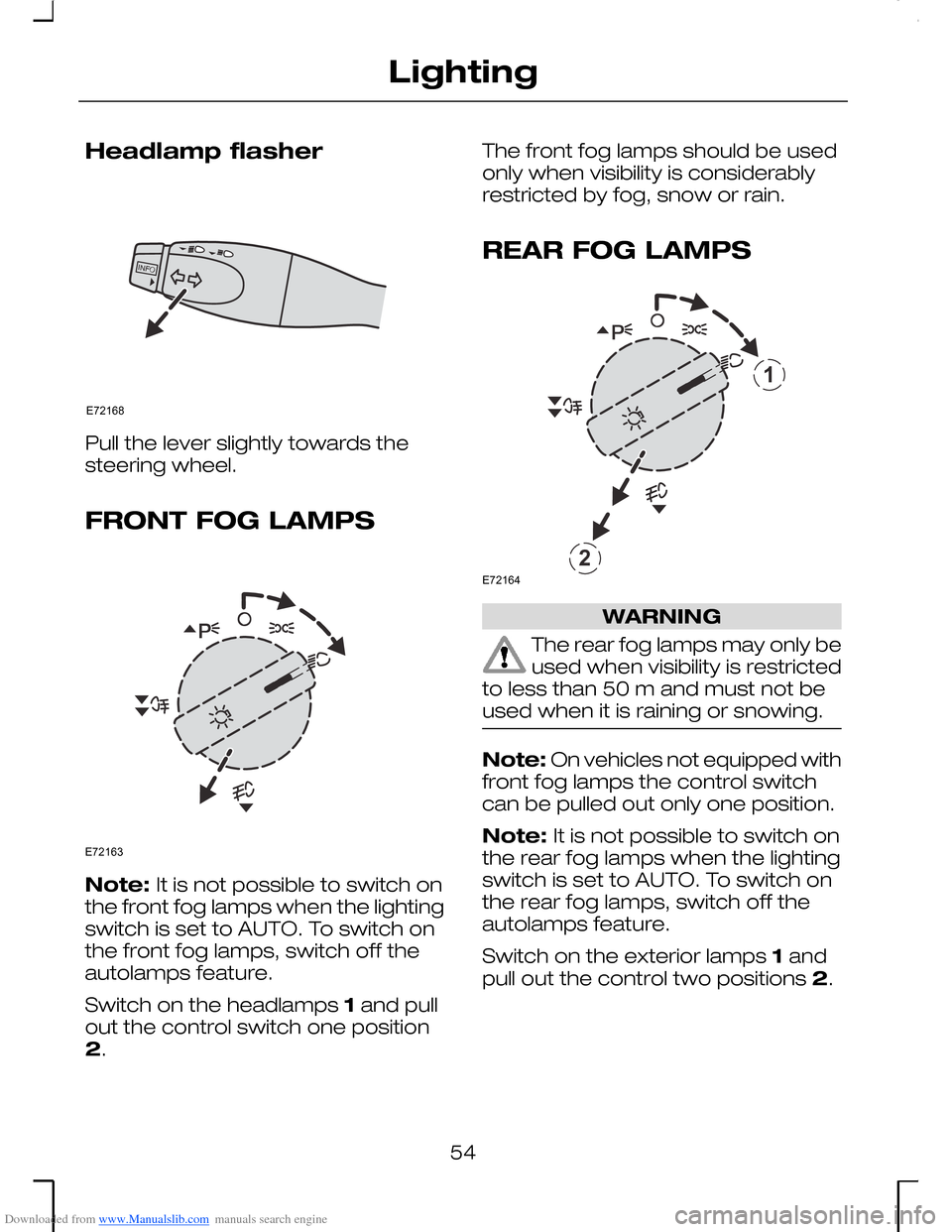

Downloaded from www.Manualslib.com manuals search engine Headlamp flasher
Pull the lever slightly towards thesteering wheel.
FRONT FOG LAMPS
Note: It is not possible to switch onthe front fog lamps when the lightingswitch is set to AUTO. To switch onthe front fog lamps, switch off theautolamps feature.
Switch on the headlamps 1 and pullout the control switch one position2.
The front fog lamps should be usedonly when visibility is considerablyrestricted by fog, snow or rain.
REAR FOG LAMPS
WARNING
The rear fog lamps may only beused when visibility is restrictedto less than 50 m and must not beused when it is raining or snowing.
Note: On vehicles not equipped withfront fog lamps the control switchcan be pulled out only one position.
Note: It is not possible to switch onthe rear fog lamps when the lightingswitch is set to AUTO. To switch onthe rear fog lamps, switch off theautolamps feature.
Switch on the exterior lamps 1 andpull out the control two positions 2.
54
LightingE72168 E72163 12E72164
