steering FORD MONDEO 2006 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Introduction..................5
About this handbook........................5
Symbols glossary..............................5
Parts and accessories......................5
Quick start....................7
Child safety.................18
Child seats........................................18
Child seat positioning......................19
Booster cushions.............................21
Child safety locks............................24
Occupant
protection................25
Principle of operation.....................25
Seat belt reminder..........................29
Fastening the seat belts................29
Seat belt height adjustment..........30
Using seat belts duringpregnancy.....................................31
Airbag warning lamp.......................31
Keys and remote
controls...................32
General information on radiofrequencies..................................32
Programming the remotecontrol...........................................32
Changing the remote controlbattery...........................................33
Locks..........................35
Locking and unlocking...................35
Global opening and closing...........40
Engine immobiliser.....41
Principle of operation......................41
Coded keys......................................41
Arming the engine immobiliser.....43
Disarming the engineimmobiliser...................................43
Alarm..........................44
Arming the alarm.............................44
Disarming the alarm........................44
Steering wheel...........46
Adjusting the steering wheel.........46
Horn..................................................46
Audio control...................................46
Voice control....................................47
Wipers and
washers...................48
Windscreen wipers.........................48
Windscreen washers.....................49
Rear window wiper andwashers........................................50
Adjusting the windscreen washerjets..................................................51
Headlamp washers.........................51
Checking the wiper blades............51
Changing the wiper blades...........52
Lighting.......................53
Lighting control................................53
Front fog lamps...............................54
Rear fog lamps................................54
Adjusting the headlamps...............55
Headlamp levelling..........................55
1
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Power steering fluid check..........153
Washer fluid check........................153
Technical specifications................154
Vehicle care..............156
Cleaning the exterior....................156
Cleaning the interior......................156
Repairing minor paint damage.....157
Vehicle battery..........158
Battery care....................................158
Using booster cables....................158
Wheels and tyres......160
Changing a road wheel................160
Tyre care.........................................166
Using winter tyres..........................166
Using snow chains........................166
Technical specifications................167
Vehicle
identification..........172
Vehicle identification plate............172
Vehicle identification number(VIN)..............................................172
Engine number..............................172
Technical
specifications.........173
Technical specifications................173
Type approvals.........183
4
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Gear selector buttons. See Automatic transmission (page 110).F
Hazard warning flasher switch. See Hazard warning flashers (page56).G
Air vents. See Air vents (page 81).H
Analogue clock. See Clock (page 97).I
Heated windscreen switch. See Heated windows and mirrors (page86).J
Heated rear window switch. See Heated windows and mirrors (page86).K
Climate controls. See Climate control (page 80).L
Audio/navigation equipment. See the separate handbooks.M
Cup holder. See Cup holders (page 99).N
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).O
Stability control (ESP) switch. See Using stability control (page 120).P
Ignition switch. See Ignition switch (page 100).Q
Cruise control. See Using cruise control (page 124).R
Steering wheel adjustment. See Adjusting the steering wheel (page46).S
Audio control. See Audio control (page 46).T
Fuses. See Fuses (page 136).U
Instrument lighting dimmer. See Instrument lighting dimmer (page97).V
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).W
8
Quick start

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).H
Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).I
Horn. See Horn (page 46).J
Wiper lever. See Windscreen wipers (page 48).K
Headlamp levelling control. See Headlamp levelling (page 55).L
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).M
Instrument lighting dimmer. See Instrument lighting dimmer (page97).N
Ignition switch. See Ignition switch (page 100).O
Steering wheel adjustment. See Adjusting the steering wheel (page46).P
Cruise control. See Using cruise control (page 124).Q
Audio control. See Audio control (page 46).R
Stability control (ESP) switch. See Using stability control (page 120).S
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).T
Cup holder. See Cup holders (page 99).U
Audio/navigation equipment. See the separate handbooks.V
Warning lamps andindicators
See Warning lamps and indicators(page 73).
Glow plug indicator lamp
Frost warning lamp
Low washer fluid warninglamp
Ignition warning lamp
Oil pressure warning lamp
Oil change indicator lamp
Doors open warning lamp
Brake system warning lamp
Seat belt reminder
10
Quick start

Downloaded from www.Manualslib.com manuals search engine Engine warning lamp
Low fuel level warning lamp
Direction indicator lamp
Airbag warning lamp
Stability control (ESP)indicator lamp
ABS warning lamp
Headlamp indicator lamp
Main beam indicator lamp
Adjusting the steeringwheel
See Adjusting the steering wheel(page 46).
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Manual climate control
See Manual climate control (page81).
Rapid windowdefrosting/demisting
11
Quick start E70358 E70446

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Repairs to either of the frontseat covers, the sensorsattached to the seats as well as tothe roof lining should only be carriedout by properly trained technicians.Injuries may result if the side airbagsare triggered inadvertently.
Do not block, obstruct or coverthe airbag because it mayprevent proper deployment. Do notpoke any sharp objects into the areaswhere airbags are fitted. This coulddamage the airbags.
Do not use any accessory seatcovers that are not specificallydesigned for seats with side airbags.These seat covers must be fitted byproperly trained technicians.
WARNING
Always wear the seat belt andkeep sufficient distancebetween the driver and the steeringwheel. Only when the seat belt isused properly, can it hold the bodyin a position which allows the airbagto achieve its optimum effect. Thereis a risk of injury when the airbagdeploys.
The seat and back must be setcorrectly for the airbags to beoptimally effective. See Sitting in thecorrect position (page 90).
This is the ideal seating position forthe driver and front passenger andhelps reduce the risk of injury fromsitting too close to an inflating airbag.
The front airbags activate duringsignificant collisions which areeither frontal or up to 30degrees from the left or the right.The airbags inflate within a fewthousandths of a second. They willdeflate on contact with the frontoccupants thus cushioning forwardbody movement.
26
Occupant protectionE66553 E72325

Downloaded from www.Manualslib.com manuals search engine During minor collisions as well asoverturns and rear or side collisions,the front airbag system will not beactivated.
WARNINGS
Repairs to the steering wheel,steering column and airbagsystem should be carried out byproperly trained technicians.
Always keep the areas in frontof the airbags free. Never affixanything to or over these areas.
These areas should only be wipedwith a damp cloth, never with a wetcloth.
Dual-stage strategy
A system of sensors in the vehiclemonitors vehicle speed, the status ofthe seat belt and the position of thedriver’s seat. In case of an accident,the system is able to analyze differentcrash and occupant conditions andactivate the appropriate safetydevices.
In most airbag deployments, the firststage is deployed to provideoccupant restraint. The second stageis deployed afterwards. In the mostsevere crash events both stages aredeployed to provide occupantrestraint.
The system increases the safetypotential particularly for drivers whoare not of a standard height or not ina standard seating position.
Side air bags
27
Occupant protectionE72326 E72327 E72328

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE
STEERING WHEEL
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Release the locking lever to adjustthe height of the steering wheel andits distance from the driver.
Return the lever to its original positionto secure the wheel.
See Sitting in the correct position(page 90).
HORN
The horn can also be operated whenthe ignition is off.
AUDIO CONTROL
Select radio, CD or cassette modeon the audio unit.
The following functions can beoperated with the remote control:
Volume
Volume up: Pull the VOL+ switchtowards the steering wheel.
46
Steering wheelE70358 E70360 E70361

Downloaded from www.Manualslib.com manuals search engine Volume down: Pull the VOL− switchtowards the steering wheel.
Seek
Move the SEEK switch towards thesteering wheel or the instrumentpanel:
•In radio mode, this will locatethe next radio station up or downthe frequency band.
•In CD mode, it will select thenext or previous track.
Mode
Note: If the voice control systemand/or a mobile phone kit isequipped, the MODE function doesnot control the audio system.
Briefly press the button on the side:
•In radio mode, this will locatethe next pre-set radio station.
•In CD mode, this will select thenext CD if a CD changer is fitted.
•In all modes to abort a trafficmessage during broadcasting.
Press and hold the button on theside:
•To change the mode (radio, CDor cassette, etc.).
VOICE CONTROL
Note: If a mobile phone kit is alsoequipped, this function is not availableduring an incoming or active phonecall.
Briefly press the button to turn thevoice control on or off.
For further information see theseparate handbook.
47
Steering wheelE70362 E70363 E70363

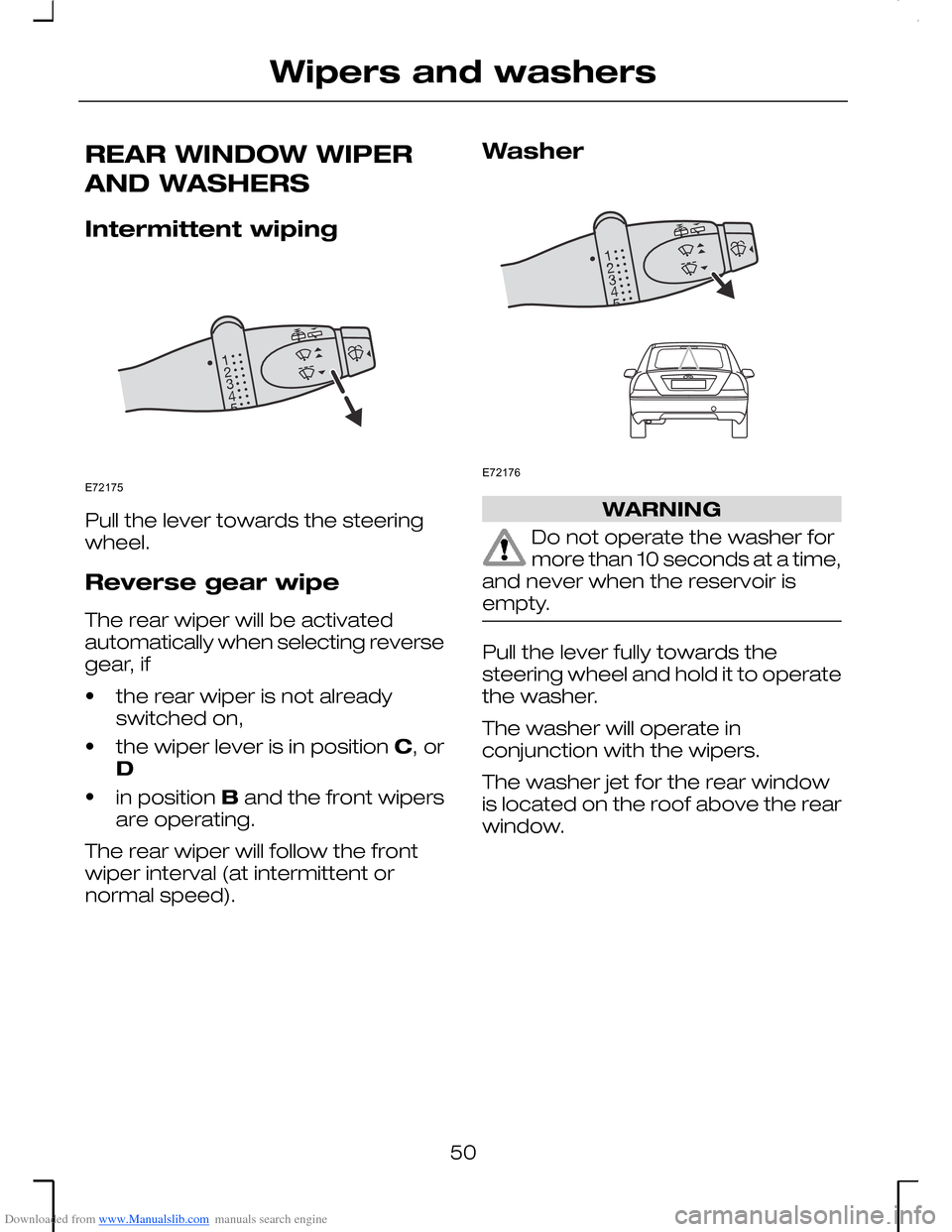

Downloaded from www.Manualslib.com manuals search engine REAR WINDOW WIPER
AND WASHERS
Intermittent wiping
Pull the lever towards the steeringwheel.
Reverse gear wipe
The rear wiper will be activatedautomatically when selecting reversegear, if
•the rear wiper is not alreadyswitched on,
•the wiper lever is in position C, orD
•in position B and the front wipersare operating.
The rear wiper will follow the frontwiper interval (at intermittent ornormal speed).
Washer
WARNING
Do not operate the washer formore than 10 seconds at a time,and never when the reservoir isempty.
Pull the lever fully towards thesteering wheel and hold it to operatethe washer.
The washer will operate inconjunction with the wipers.
The washer jet for the rear windowis located on the roof above the rearwindow.
50
Wipers and washersE72175 E72176
