FORD MONDEO 2014 4.G User Guide

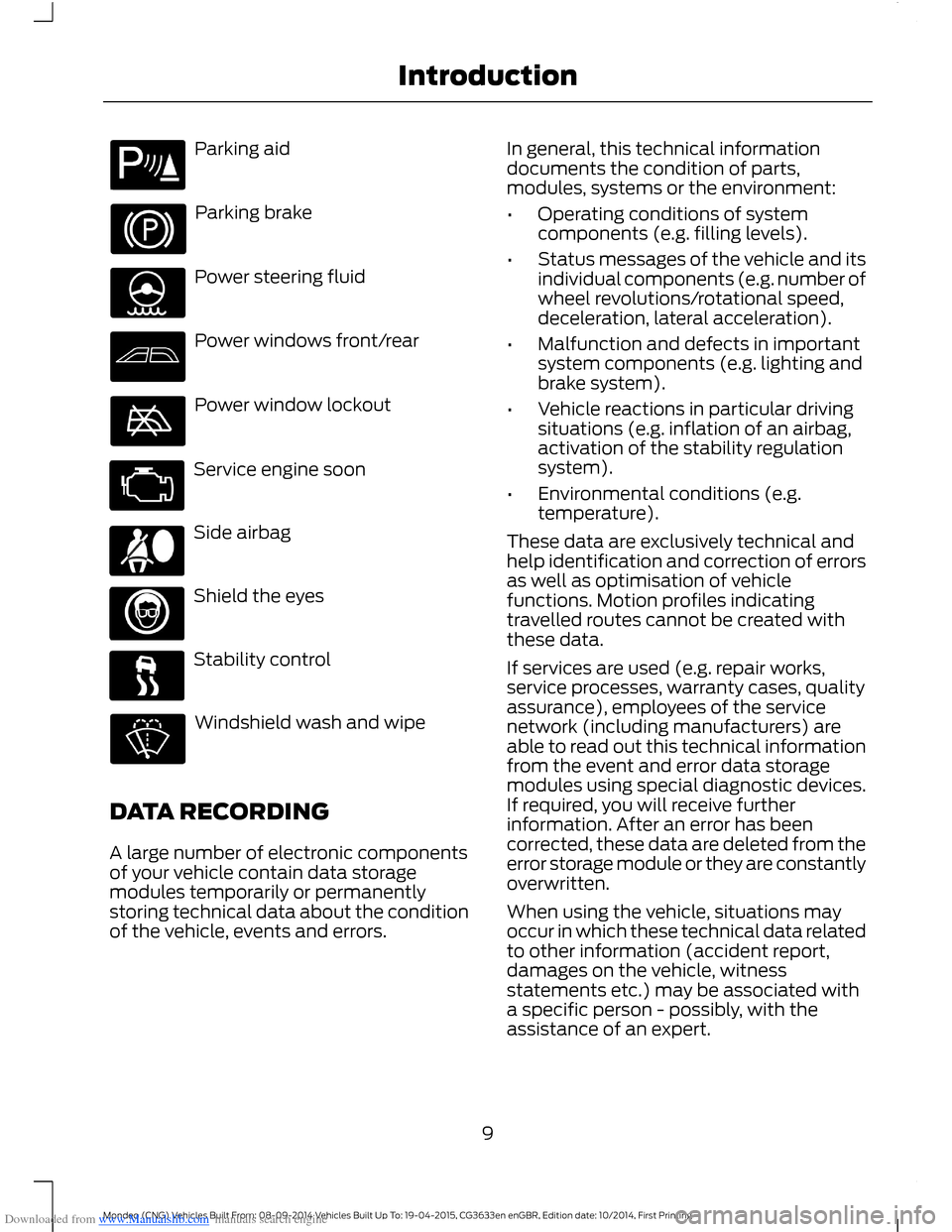

Downloaded from www.Manualslib.com manuals search engine Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Shield the eyes
Stability control
Windshield wash and wipe
DATA RECORDING
A large number of electronic componentsof your vehicle contain data storagemodules temporarily or permanentlystoring technical data about the conditionof the vehicle, events and errors.
In general, this technical informationdocuments the condition of parts,modules, systems or the environment:
•Operating conditions of systemcomponents (e.g. filling levels).
•Status messages of the vehicle and itsindividual components (e.g. number ofwheel revolutions/rotational speed,deceleration, lateral acceleration).
•Malfunction and defects in importantsystem components (e.g. lighting andbrake system).
•Vehicle reactions in particular drivingsituations (e.g. inflation of an airbag,activation of the stability regulationsystem).
•Environmental conditions (e.g.temperature).
These data are exclusively technical andhelp identification and correction of errorsas well as optimisation of vehiclefunctions. Motion profiles indicatingtravelled routes cannot be created withthese data.
If services are used (e.g. repair works,service processes, warranty cases, qualityassurance), employees of the servicenetwork (including manufacturers) areable to read out this technical informationfrom the event and error data storagemodules using special diagnostic devices.If required, you will receive furtherinformation. After an error has beencorrected, these data are deleted from theerror storage module or they are constantlyoverwritten.
When using the vehicle, situations mayoccur in which these technical data relatedto other information (accident report,damages on the vehicle, witnessstatements etc.) may be associated witha specific person - possibly, with theassistance of an expert.
9Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingIntroduction

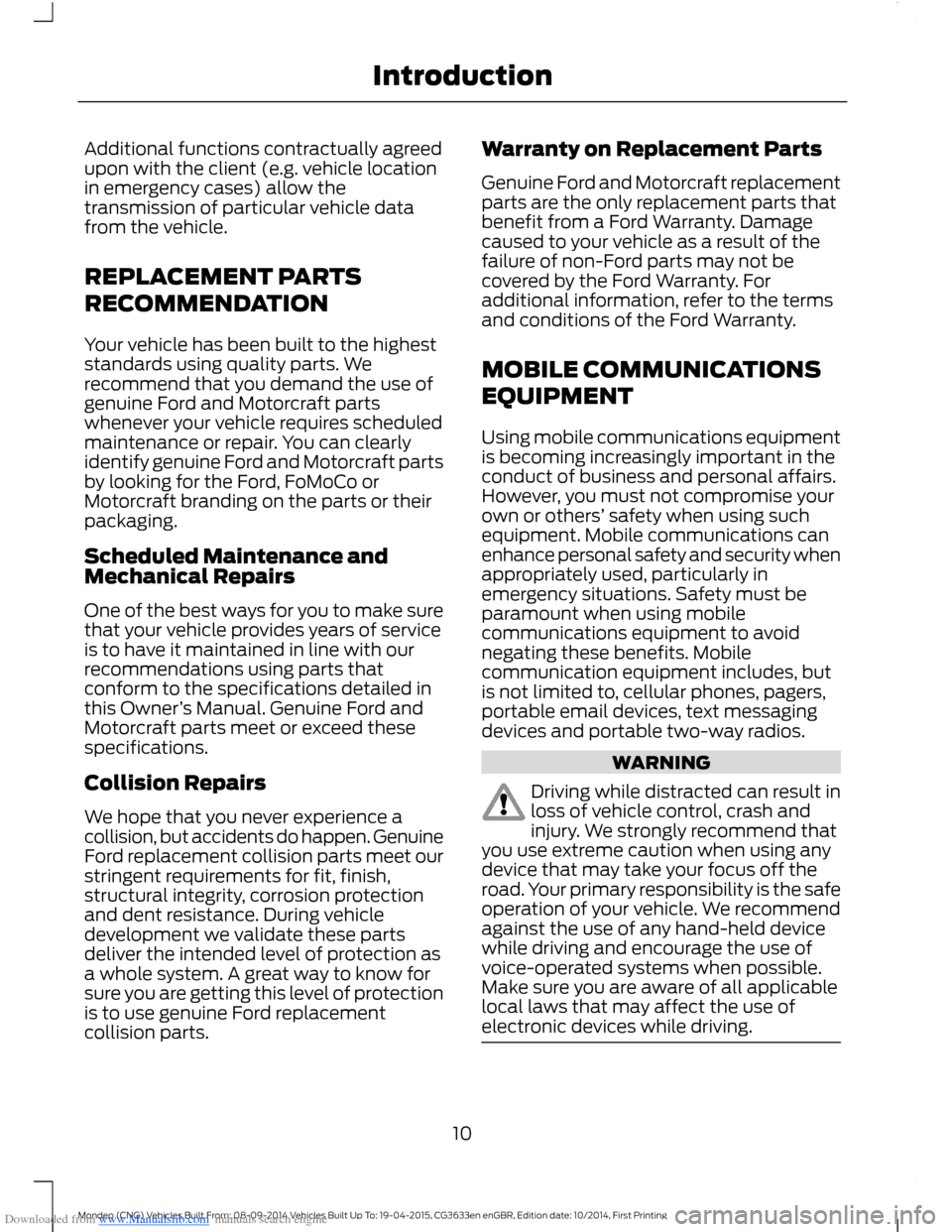

Downloaded from www.Manualslib.com manuals search engine Additional functions contractually agreedupon with the client (e.g. vehicle locationin emergency cases) allow thetransmission of particular vehicle datafrom the vehicle.
REPLACEMENT PARTS
RECOMMENDATION
Your vehicle has been built to the higheststandards using quality parts. Werecommend that you demand the use ofgenuine Ford and Motorcraft partswhenever your vehicle requires scheduledmaintenance or repair. You can clearlyidentify genuine Ford and Motorcraft partsby looking for the Ford, FoMoCo orMotorcraft branding on the parts or theirpackaging.
Scheduled Maintenance andMechanical Repairs
One of the best ways for you to make surethat your vehicle provides years of serviceis to have it maintained in line with ourrecommendations using parts thatconform to the specifications detailed inthis Owner’s Manual. Genuine Ford andMotorcraft parts meet or exceed thesespecifications.
Collision Repairs
We hope that you never experience acollision, but accidents do happen. GenuineFord replacement collision parts meet ourstringent requirements for fit, finish,structural integrity, corrosion protectionand dent resistance. During vehicledevelopment we validate these partsdeliver the intended level of protection asa whole system. A great way to know forsure you are getting this level of protectionis to use genuine Ford replacementcollision parts.
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacementparts are the only replacement parts thatbenefit from a Ford Warranty. Damagecaused to your vehicle as a result of thefailure of non-Ford parts may not becovered by the Ford Warranty. Foradditional information, refer to the termsand conditions of the Ford Warranty.
MOBILE COMMUNICATIONS
EQUIPMENT
Using mobile communications equipmentis becoming increasingly important in theconduct of business and personal affairs.However, you must not compromise yourown or others’ safety when using suchequipment. Mobile communications canenhance personal safety and security whenappropriately used, particularly inemergency situations. Safety must beparamount when using mobilecommunications equipment to avoidnegating these benefits. Mobilecommunication equipment includes, butis not limited to, cellular phones, pagers,portable email devices, text messagingdevices and portable two-way radios.
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any hand-held devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
10Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingIntroduction

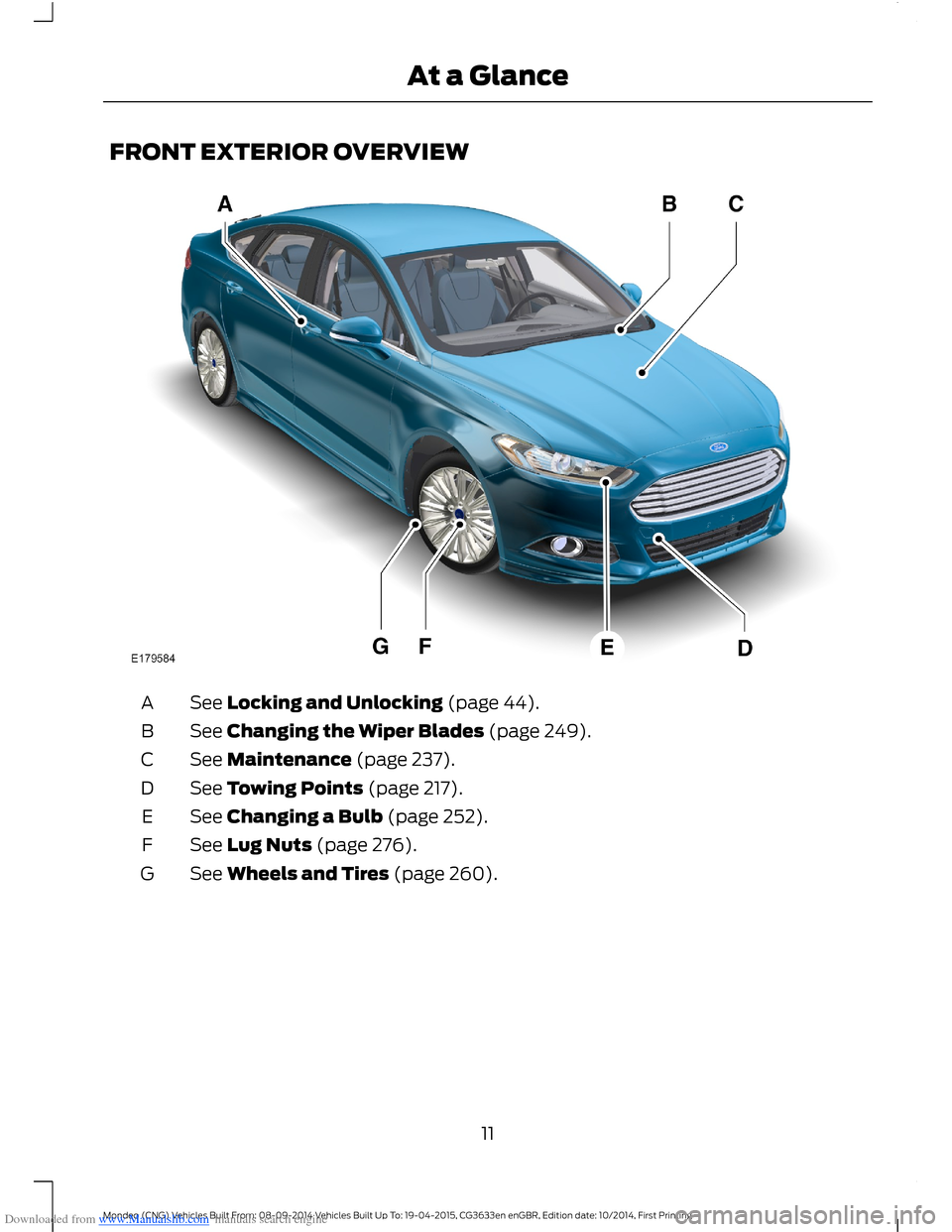

Downloaded from www.Manualslib.com manuals search engine FRONT EXTERIOR OVERVIEW
See Locking and Unlocking (page 44).A
See Changing the Wiper Blades (page 249).B
See Maintenance (page 237).C
See Towing Points (page 217).D
See Changing a Bulb (page 252).E
See Lug Nuts (page 276).F
See Wheels and Tires (page 260).G
11Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

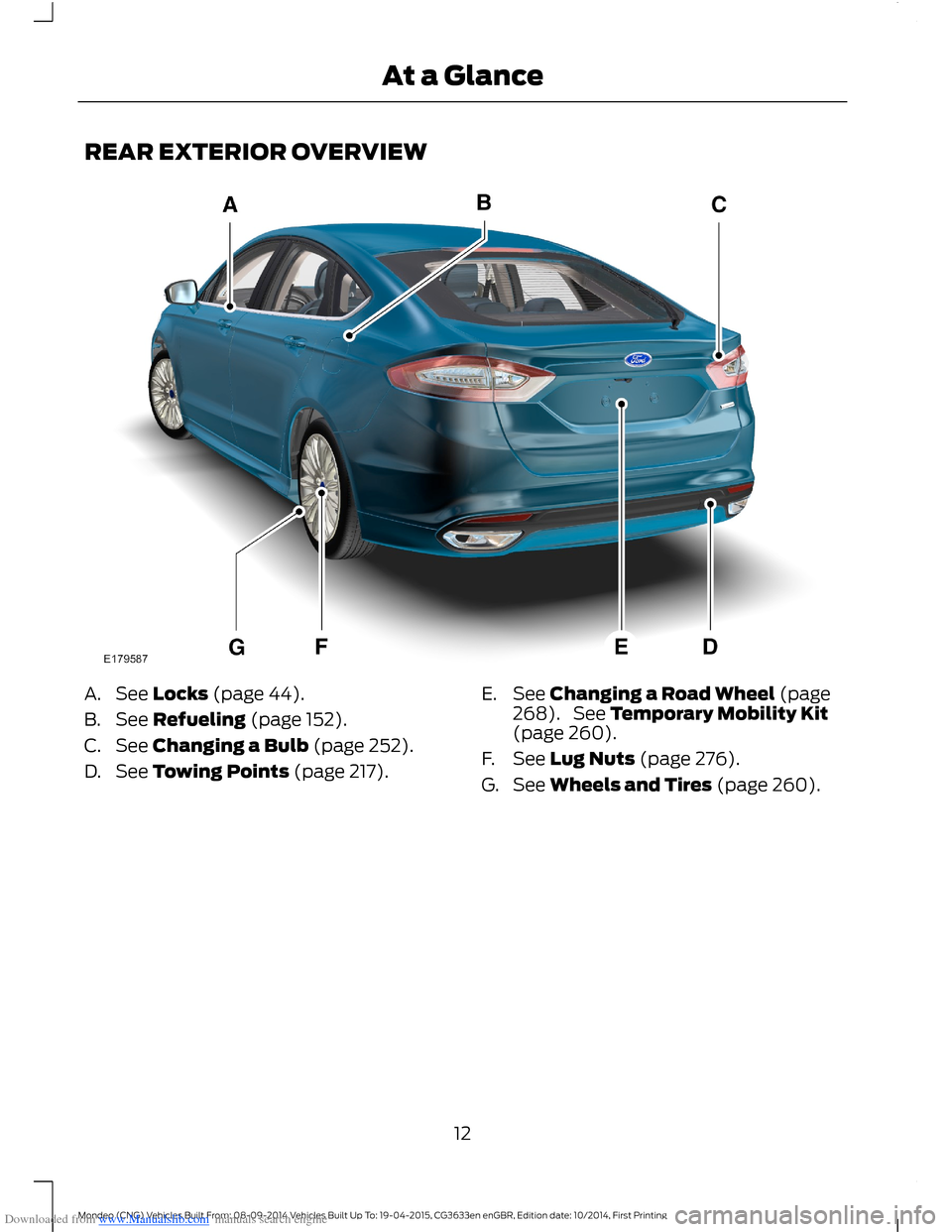

Downloaded from www.Manualslib.com manuals search engine REAR EXTERIOR OVERVIEW
A.See Locks (page 44).
B.See Refueling (page 152).
C.See Changing a Bulb (page 252).
D.See Towing Points (page 217).
E.See Changing a Road Wheel (page268). See Temporary Mobility Kit(page 260).
F.See Lug Nuts (page 276).
G.See Wheels and Tires (page 260).
12Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

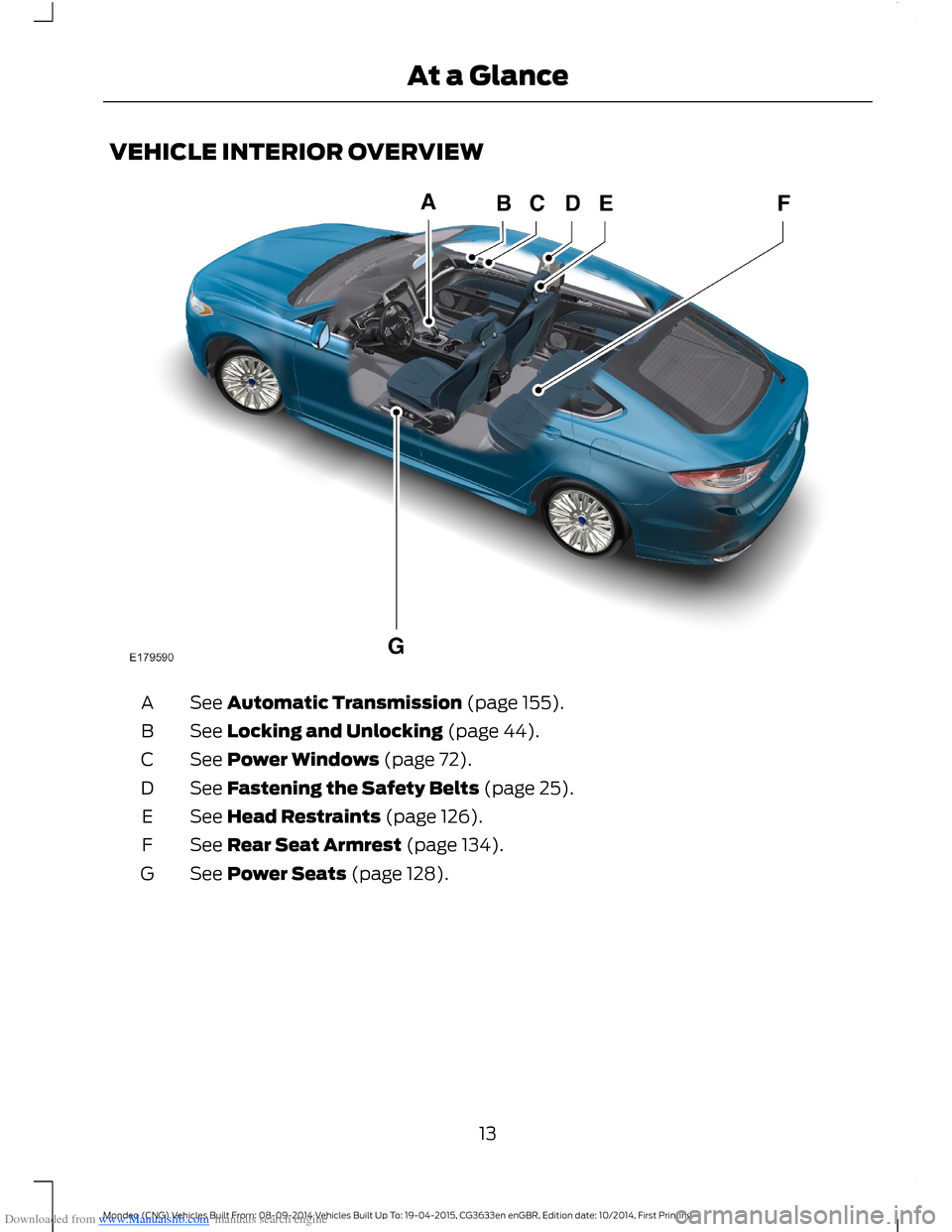

Downloaded from www.Manualslib.com manuals search engine VEHICLE INTERIOR OVERVIEW
See Automatic Transmission (page 155).A
See Locking and Unlocking (page 44).B
See Power Windows (page 72).C
See Fastening the Safety Belts (page 25).D
See Head Restraints (page 126).E
See Rear Seat Armrest (page 134).F
See Power Seats (page 128).G
13Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

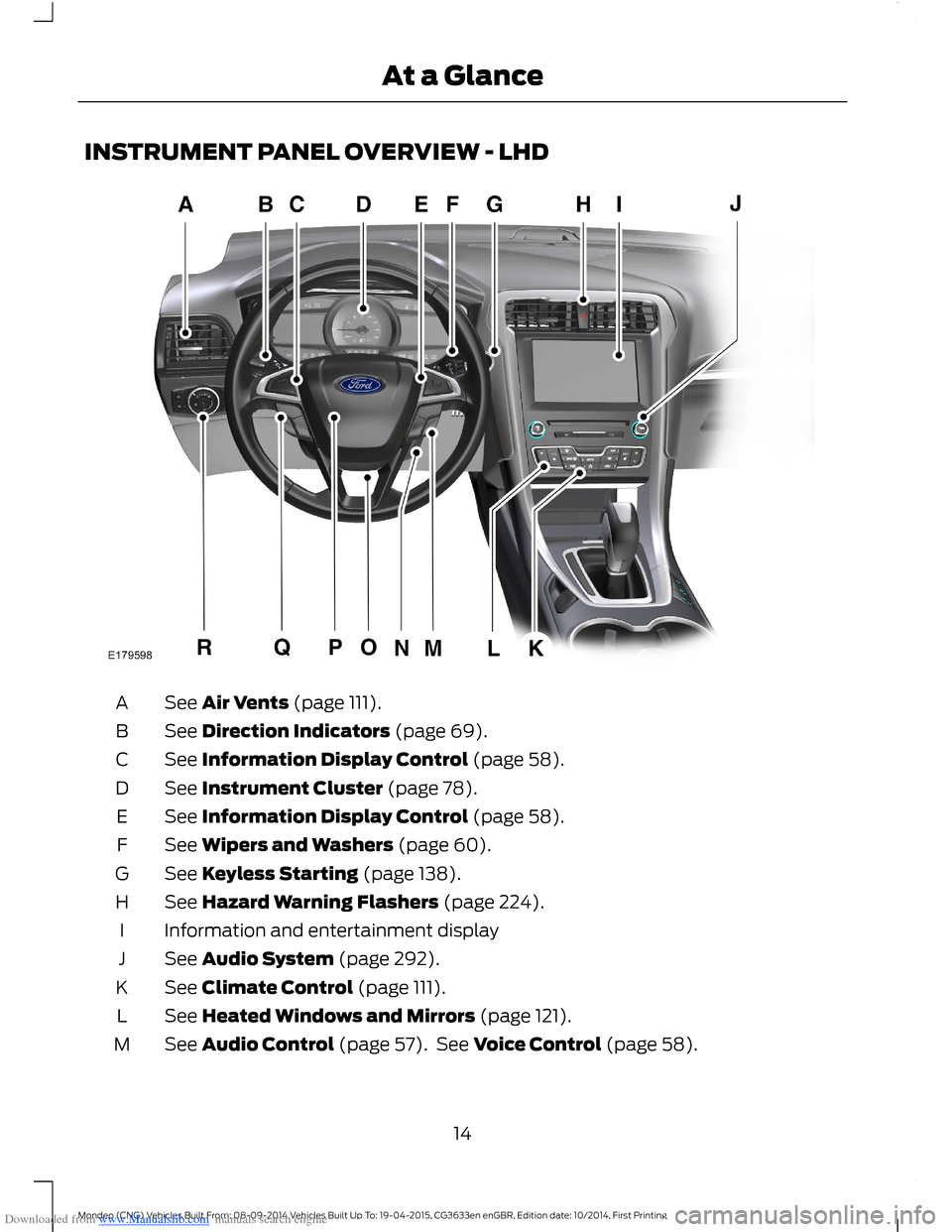

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT PANEL OVERVIEW - LHD
See Air Vents (page 111).A
See Direction Indicators (page 69).B
See Information Display Control (page 58).C
See Instrument Cluster (page 78).D
See Information Display Control (page 58).E
See Wipers and Washers (page 60).F
See Keyless Starting (page 138).G
See Hazard Warning Flashers (page 224).H
Information and entertainment displayI
See Audio System (page 292).J
See Climate Control (page 111).K
See Heated Windows and Mirrors (page 121).L
See Audio Control (page 57). See Voice Control (page 58).M
14Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

Downloaded from www.Manualslib.com manuals search engine See Ignition Switch (page 138).N
See Adjusting the Steering Wheel (page 56).O
HornP
See Cruise Control (page 181).Q
See Lighting (page 63).R

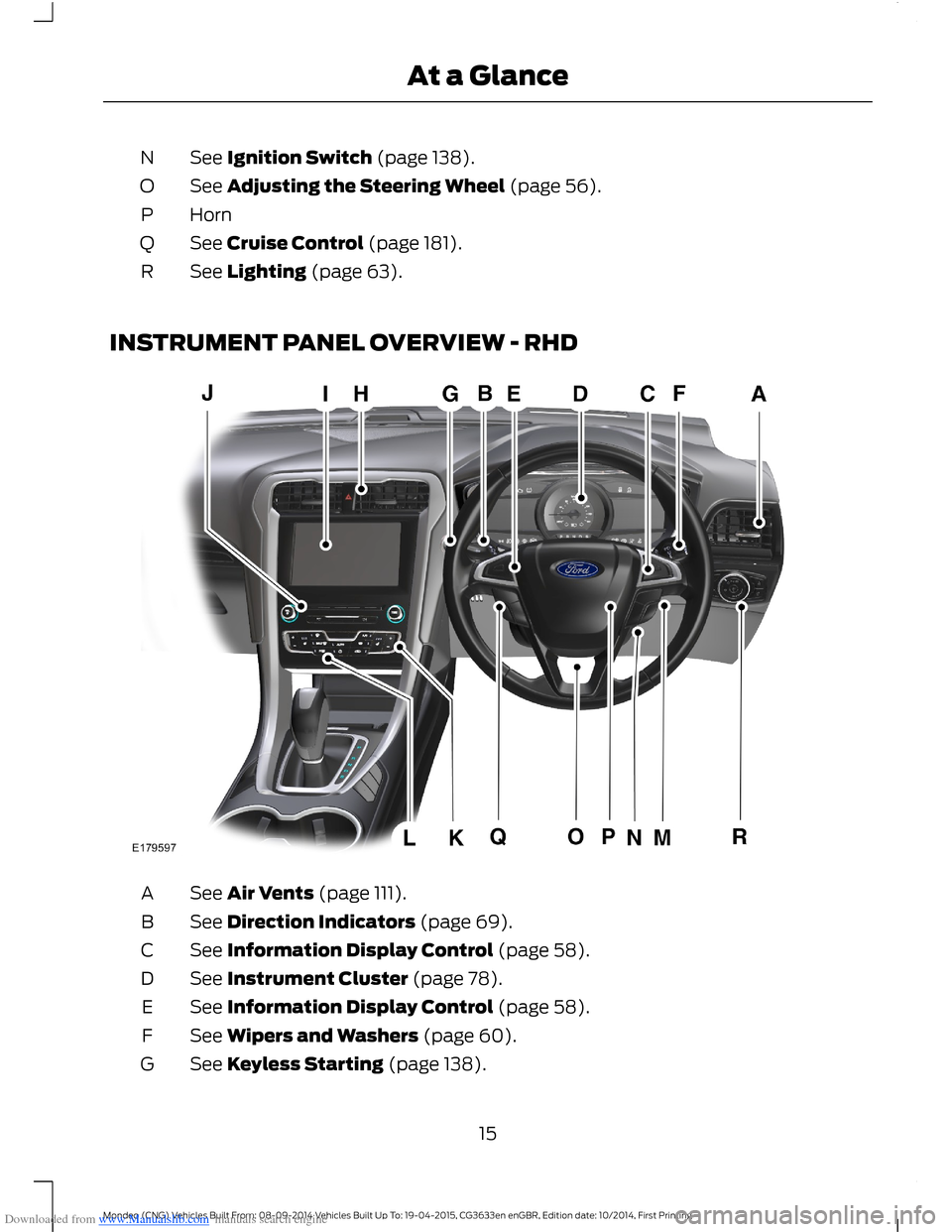

INSTRUMENT PANEL OVERVIEW - RHD
See Air Vents (page 111).A
See Direction Indicators (page 69).B
See Information Display Control (page 58).C
See Instrument Cluster (page 78).D
See Information Display Control (page 58).E
See Wipers and Washers (page 60).F
See Keyless Starting (page 138).G
15Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

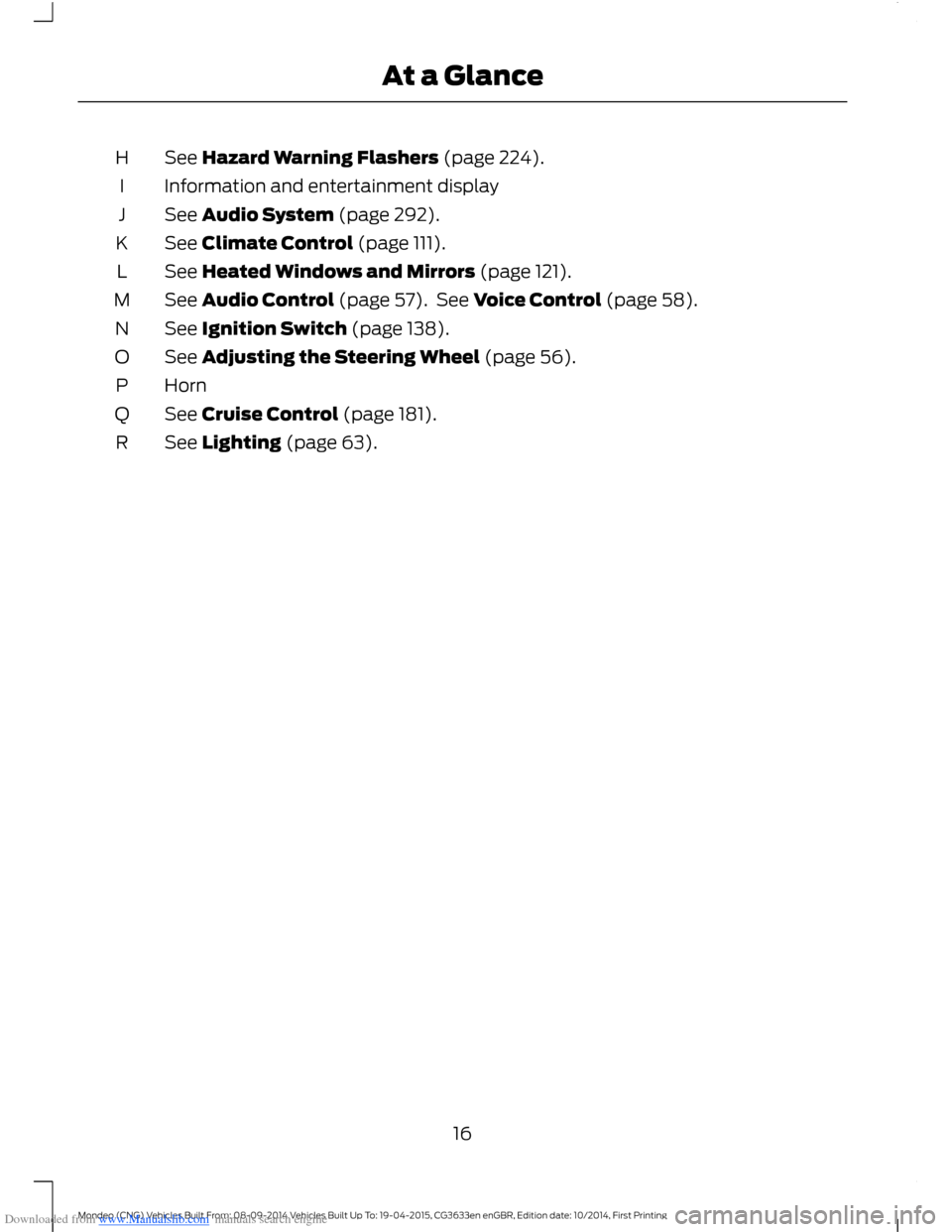

Downloaded from www.Manualslib.com manuals search engine See Hazard Warning Flashers (page 224).H
Information and entertainment displayI
See Audio System (page 292).J
See Climate Control (page 111).K
See Heated Windows and Mirrors (page 121).L
See Audio Control (page 57). See Voice Control (page 58).M
See Ignition Switch (page 138).N
See Adjusting the Steering Wheel (page 56).O
HornP
See Cruise Control (page 181).Q
See Lighting (page 63).R
16Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAt a Glance

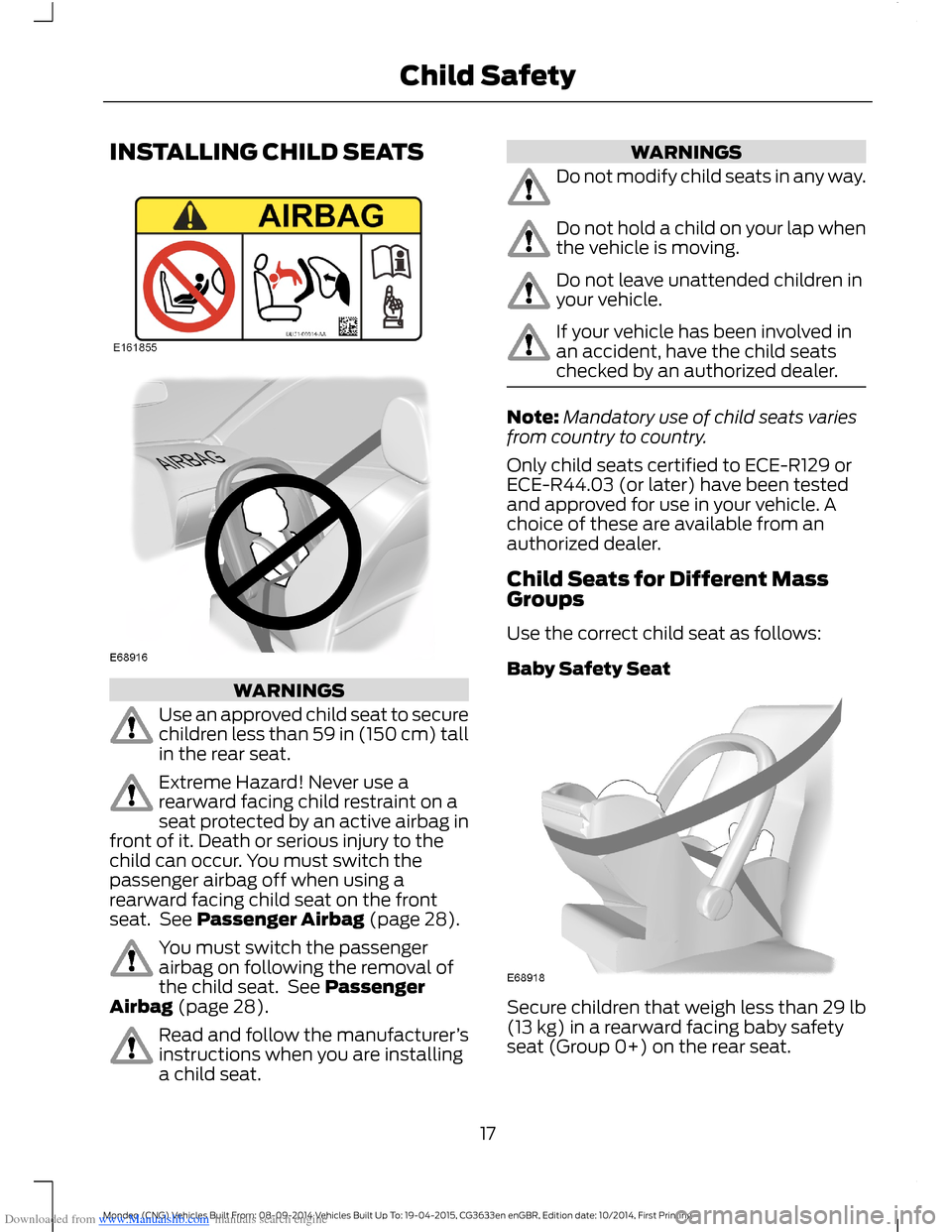

Downloaded from www.Manualslib.com manuals search engine INSTALLING CHILD SEATS
WARNINGS
Use an approved child seat to securechildren less than 59 in (150 cm) tallin the rear seat.
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur. You must switch thepassenger airbag off when using arearward facing child seat on the frontseat. See Passenger Airbag (page 28).
You must switch the passengerairbag on following the removal ofthe child seat. See PassengerAirbag (page 28).
Read and follow the manufacturer’sinstructions when you are installinga child seat.
WARNINGS
Do not modify child seats in any way.
Do not hold a child on your lap whenthe vehicle is moving.
Do not leave unattended children inyour vehicle.
If your vehicle has been involved inan accident, have the child seatschecked by an authorized dealer.
Note:Mandatory use of child seats variesfrom country to country.
Only child seats certified to ECE-R129 orECE-R44.03 (or later) have been testedand approved for use in your vehicle. Achoice of these are available from anauthorized dealer.
Child Seats for Different MassGroups
Use the correct child seat as follows:
Baby Safety Seat
Secure children that weigh less than 29 lb(13 kg) in a rearward facing baby safetyseat (Group 0+) on the rear seat.
17Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety

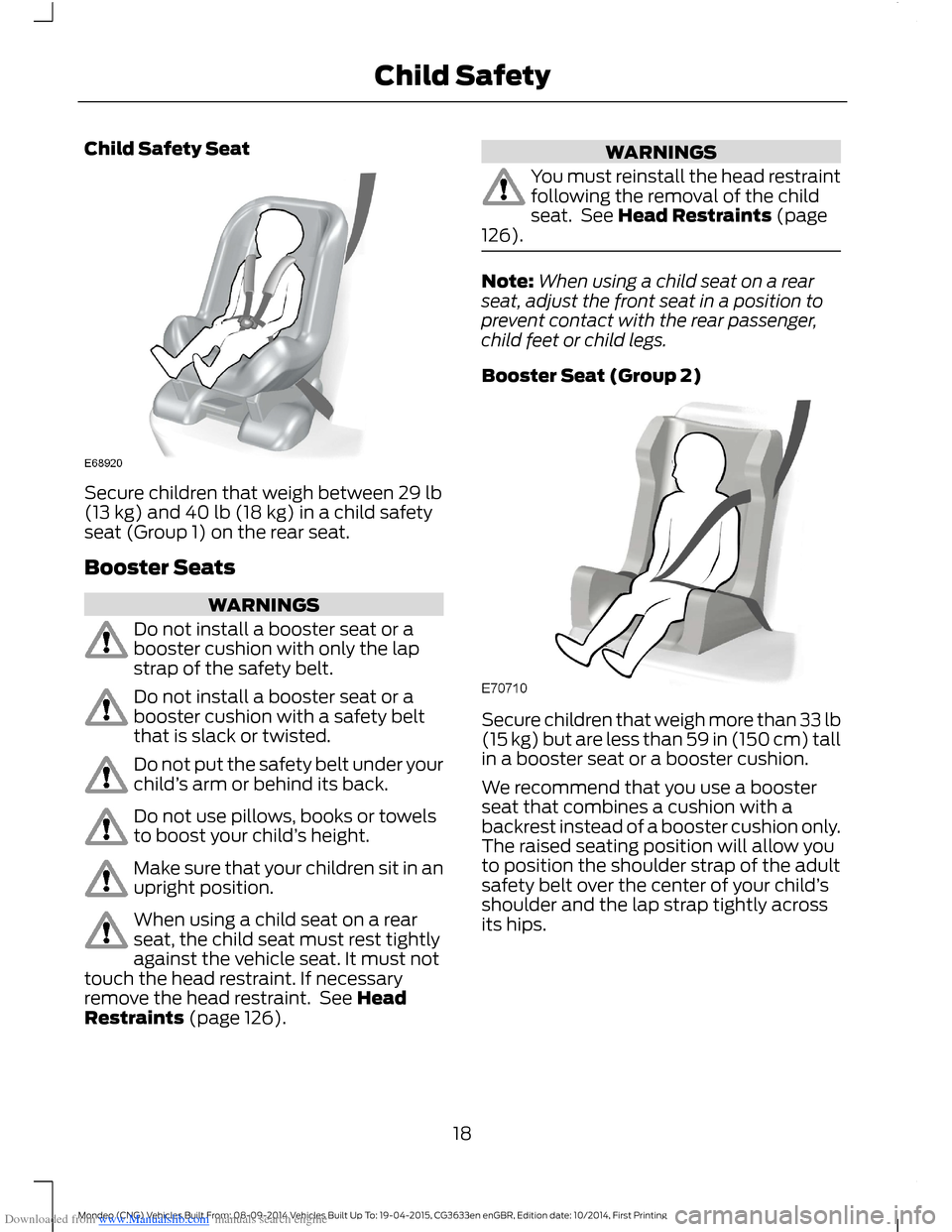

Downloaded from www.Manualslib.com manuals search engine Child Safety Seat
Secure children that weigh between 29 lb(13 kg) and 40 lb (18 kg) in a child safetyseat (Group 1) on the rear seat.
Booster Seats
WARNINGS
Do not install a booster seat or abooster cushion with only the lapstrap of the safety belt.
Do not install a booster seat or abooster cushion with a safety beltthat is slack or twisted.
Do not put the safety belt under yourchild’s arm or behind its back.
Do not use pillows, books or towelsto boost your child’s height.
Make sure that your children sit in anupright position.
When using a child seat on a rearseat, the child seat must rest tightlyagainst the vehicle seat. It must nottouch the head restraint. If necessaryremove the head restraint. See HeadRestraints (page 126).
WARNINGS
You must reinstall the head restraintfollowing the removal of the childseat. See Head Restraints (page126).
Note:When using a child seat on a rearseat, adjust the front seat in a position toprevent contact with the rear passenger,child feet or child legs.
Booster Seat (Group 2)
Secure children that weigh more than 33 lb(15 kg) but are less than 59 in (150 cm) tallin a booster seat or a booster cushion.
We recommend that you use a boosterseat that combines a cushion with abackrest instead of a booster cushion only.The raised seating position will allow youto position the shoulder strap of the adultsafety belt over the center of your child’sshoulder and the lap strap tightly acrossits hips.
18Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
