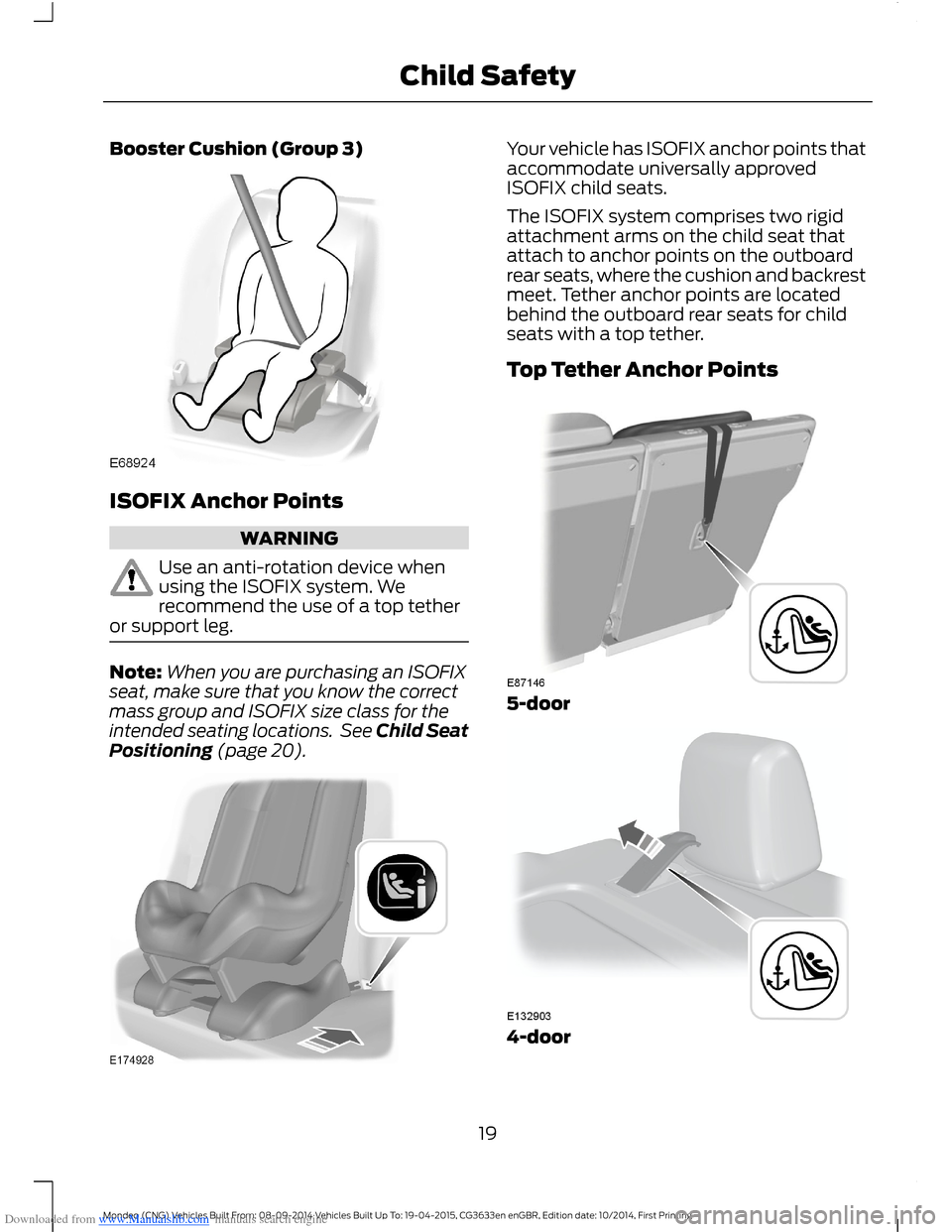

Downloaded from www.Manualslib.com manuals search engine Booster Cushion (Group 3)
ISOFIX Anchor Points
WARNING
Use an anti-rotation device whenusing the ISOFIX system. Werecommend the use of a top tetheror support leg.
Note:When you are purchasing an ISOFIXseat, make sure that you know the correctmass group and ISOFIX size class for theintended seating locations. See Child SeatPositioning (page 20).
Your vehicle has ISOFIX anchor points thataccommodate universally approvedISOFIX child seats.
The ISOFIX system comprises two rigidattachment arms on the child seat thatattach to anchor points on the outboardrear seats, where the cushion and backrestmeet. Tether anchor points are locatedbehind the outboard rear seats for childseats with a top tether.
Top Tether Anchor Points
5-door
4-door
19Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 22 of 446

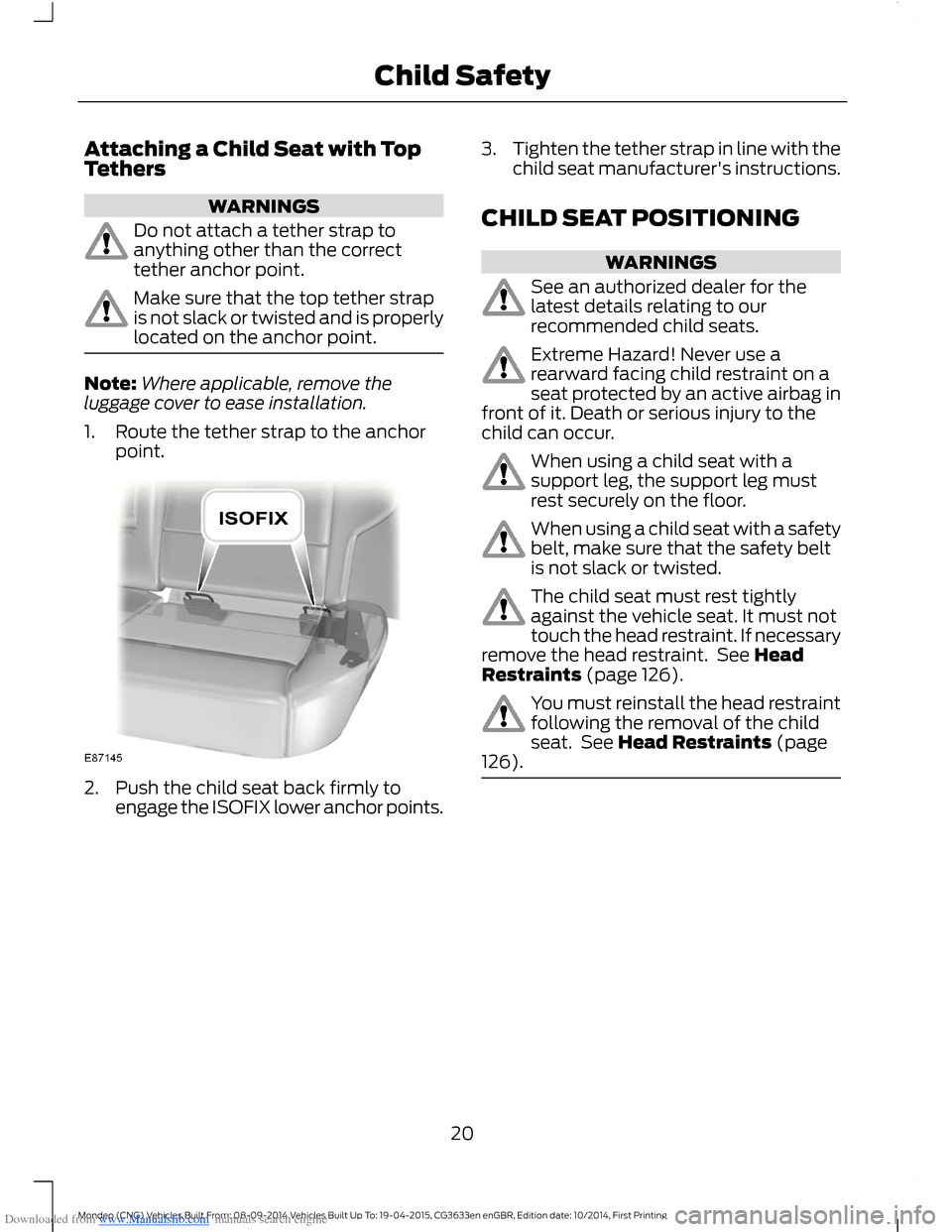

Downloaded from www.Manualslib.com manuals search engine Attaching a Child Seat with TopTethers
WARNINGS
Do not attach a tether strap toanything other than the correcttether anchor point.
Make sure that the top tether strapis not slack or twisted and is properlylocated on the anchor point.
Note:Where applicable, remove theluggage cover to ease installation.
1.Route the tether strap to the anchorpoint.
2.Push the child seat back firmly toengage the ISOFIX lower anchor points.
3.Tighten the tether strap in line with thechild seat manufacturer's instructions.
CHILD SEAT POSITIONING
WARNINGS
See an authorized dealer for thelatest details relating to ourrecommended child seats.
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur.
When using a child seat with asupport leg, the support leg mustrest securely on the floor.
When using a child seat with a safetybelt, make sure that the safety beltis not slack or twisted.
The child seat must rest tightlyagainst the vehicle seat. It must nottouch the head restraint. If necessaryremove the head restraint. See HeadRestraints (page 126).
You must reinstall the head restraintfollowing the removal of the childseat. See Head Restraints (page126).
20Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 23 of 446

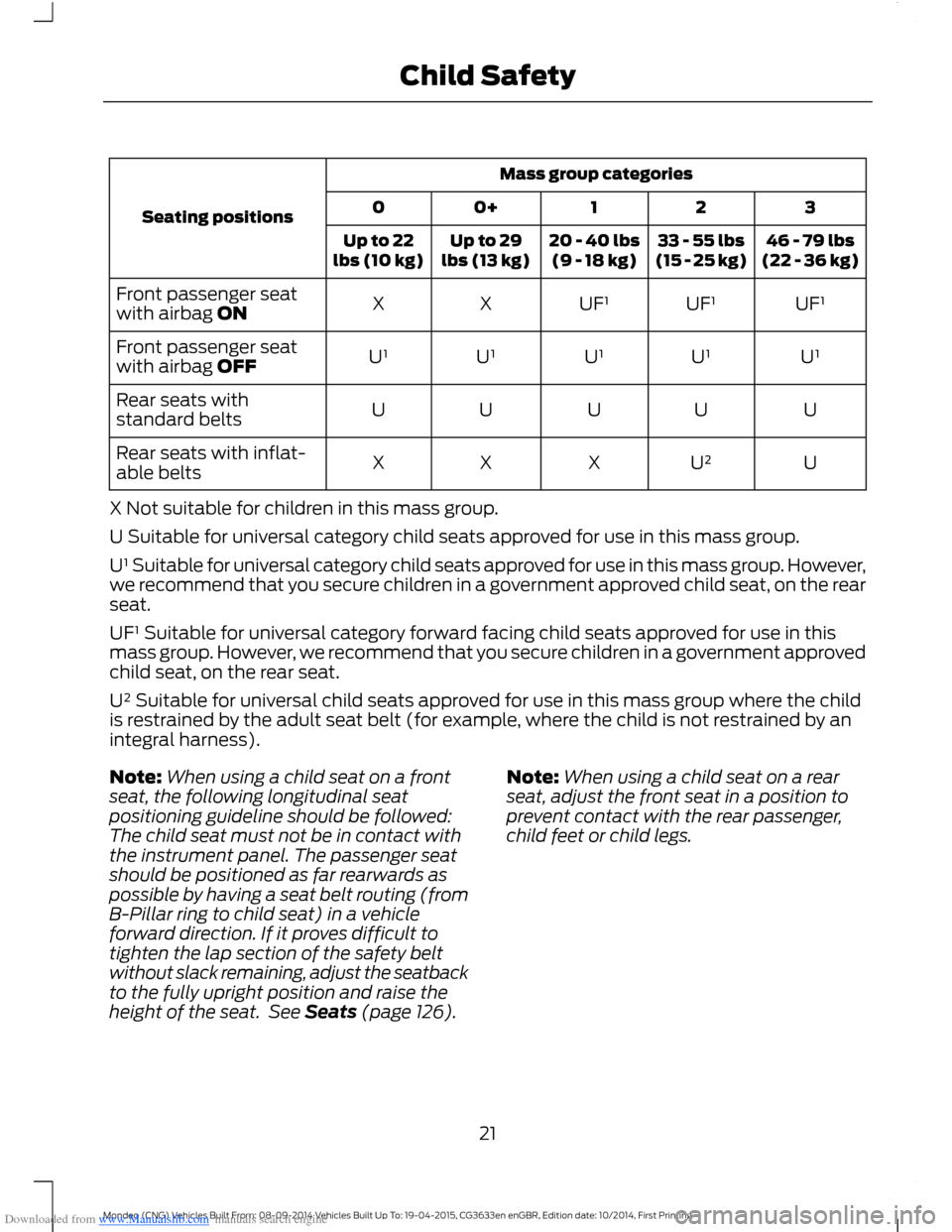

Downloaded from www.Manualslib.com manuals search engine Mass group categories
Seating positions3210+0
46 - 79 lbs(22 - 36 kg)33 - 55 lbs(15 - 25 kg)20 - 40 lbs(9 - 18 kg)Up to 29lbs (13 kg)Up to 22lbs (10 kg)
UF¹UF¹UF¹XXFront passenger seatwith airbag ON
U¹U¹U¹U¹U¹Front passenger seatwith airbag OFF
UUUUURear seats withstandard belts
UU²XXXRear seats with inflat-able belts
X Not suitable for children in this mass group.
U Suitable for universal category child seats approved for use in this mass group.
U¹ Suitable for universal category child seats approved for use in this mass group. However,we recommend that you secure children in a government approved child seat, on the rearseat.
UF¹ Suitable for universal category forward facing child seats approved for use in thismass group. However, we recommend that you secure children in a government approvedchild seat, on the rear seat.
U² Suitable for universal child seats approved for use in this mass group where the childis restrained by the adult seat belt (for example, where the child is not restrained by anintegral harness).
Note:When using a child seat on a frontseat, the following longitudinal seatpositioning guideline should be followed:The child seat must not be in contact withthe instrument panel. The passenger seatshould be positioned as far rearwards aspossible by having a seat belt routing (fromB-Pillar ring to child seat) in a vehicleforward direction. If it proves difficult totighten the lap section of the safety beltwithout slack remaining, adjust the seatbackto the fully upright position and raise theheight of the seat. See Seats (page 126).
Note:When using a child seat on a rearseat, adjust the front seat in a position toprevent contact with the rear passenger,child feet or child legs.
21Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 24 of 446

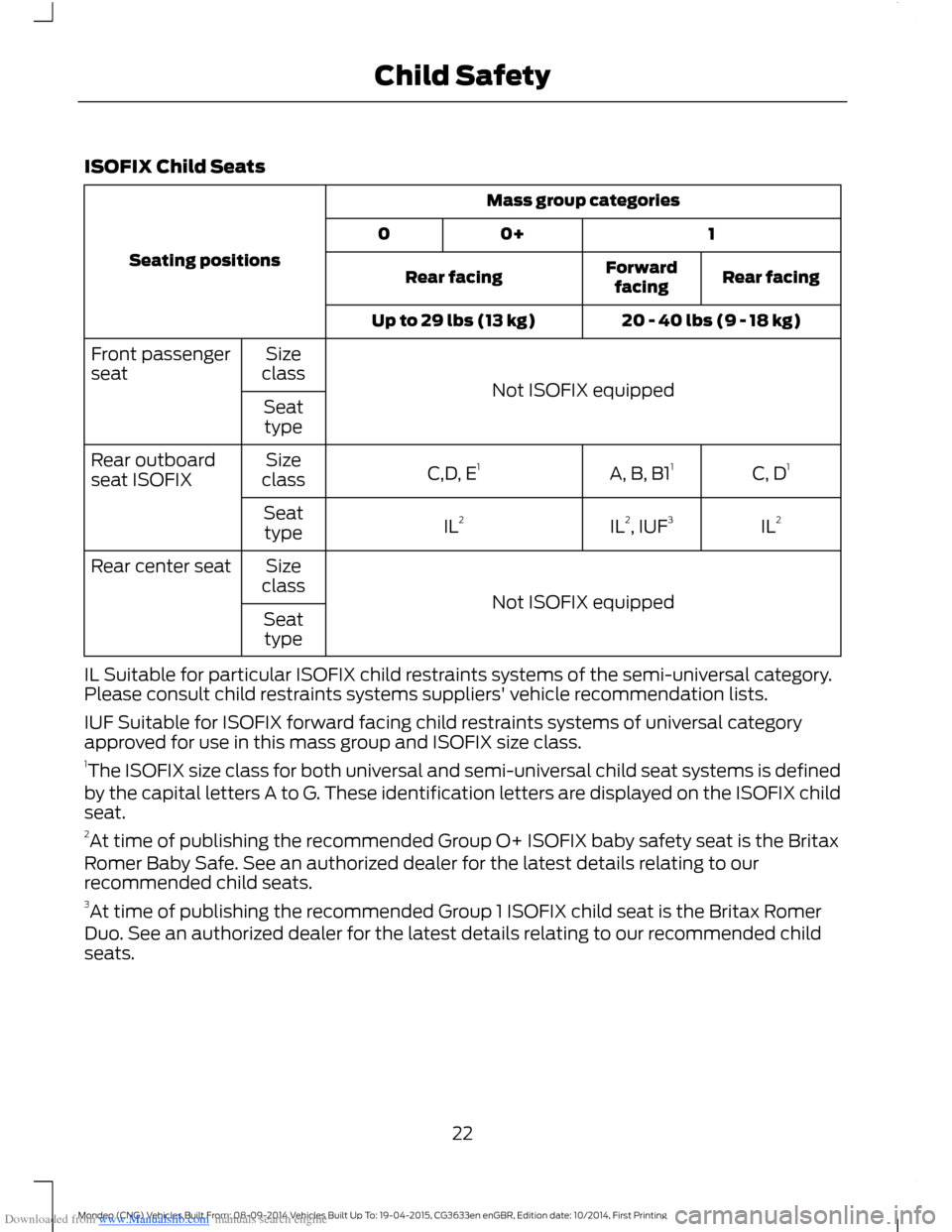

Downloaded from www.Manualslib.com manuals search engine ISOFIX Child Seats
Mass group categories
Seating positions
10+0
Rear facingForwardfacingRear facing
20 - 40 lbs (9 - 18 kg)Up to 29 lbs (13 kg)
Not ISOFIX equipped
SizeclassFront passengerseat
Seattype
C, D1A, B, B11C,D, E1SizeclassRear outboardseat ISOFIX
IL2IL2, IUF3IL2Seattype
Not ISOFIX equipped
SizeclassRear center seat
Seattype
IL Suitable for particular ISOFIX child restraints systems of the semi-universal category.Please consult child restraints systems suppliers' vehicle recommendation lists.
IUF Suitable for ISOFIX forward facing child restraints systems of universal categoryapproved for use in this mass group and ISOFIX size class.1The ISOFIX size class for both universal and semi-universal child seat systems is definedby the capital letters A to G. These identification letters are displayed on the ISOFIX childseat.2At time of publishing the recommended Group O+ ISOFIX baby safety seat is the BritaxRomer Baby Safe. See an authorized dealer for the latest details relating to ourrecommended child seats.3At time of publishing the recommended Group 1 ISOFIX child seat is the Britax RomerDuo. See an authorized dealer for the latest details relating to our recommended childseats.
22Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 25 of 446

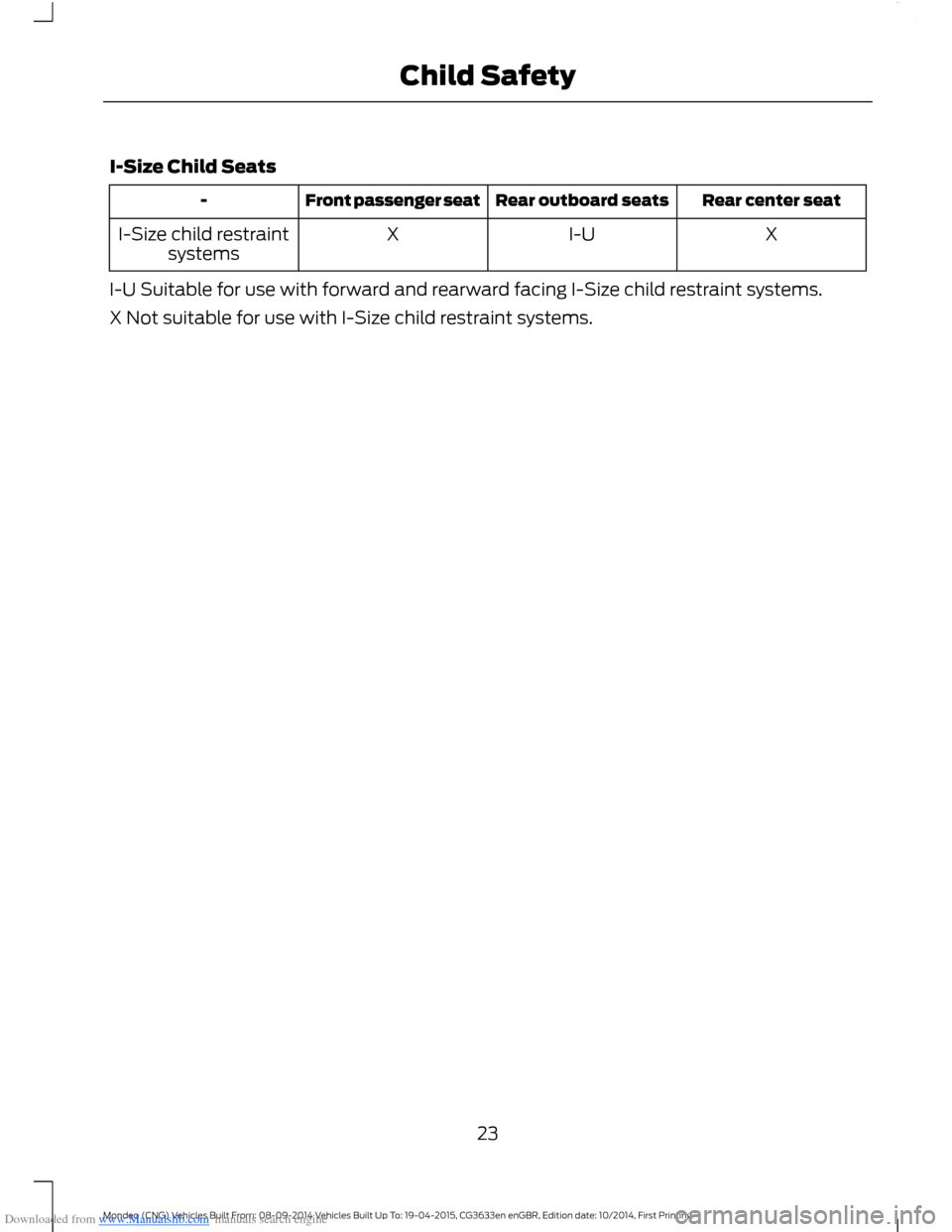

Downloaded from www.Manualslib.com manuals search engine I-Size Child Seats
Rear center seatRear outboard seatsFront passenger seat-
XI-UXI-Size child restraintsystems
I-U Suitable for use with forward and rearward facing I-Size child restraint systems.
X Not suitable for use with I-Size child restraint systems.
23Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 26 of 446

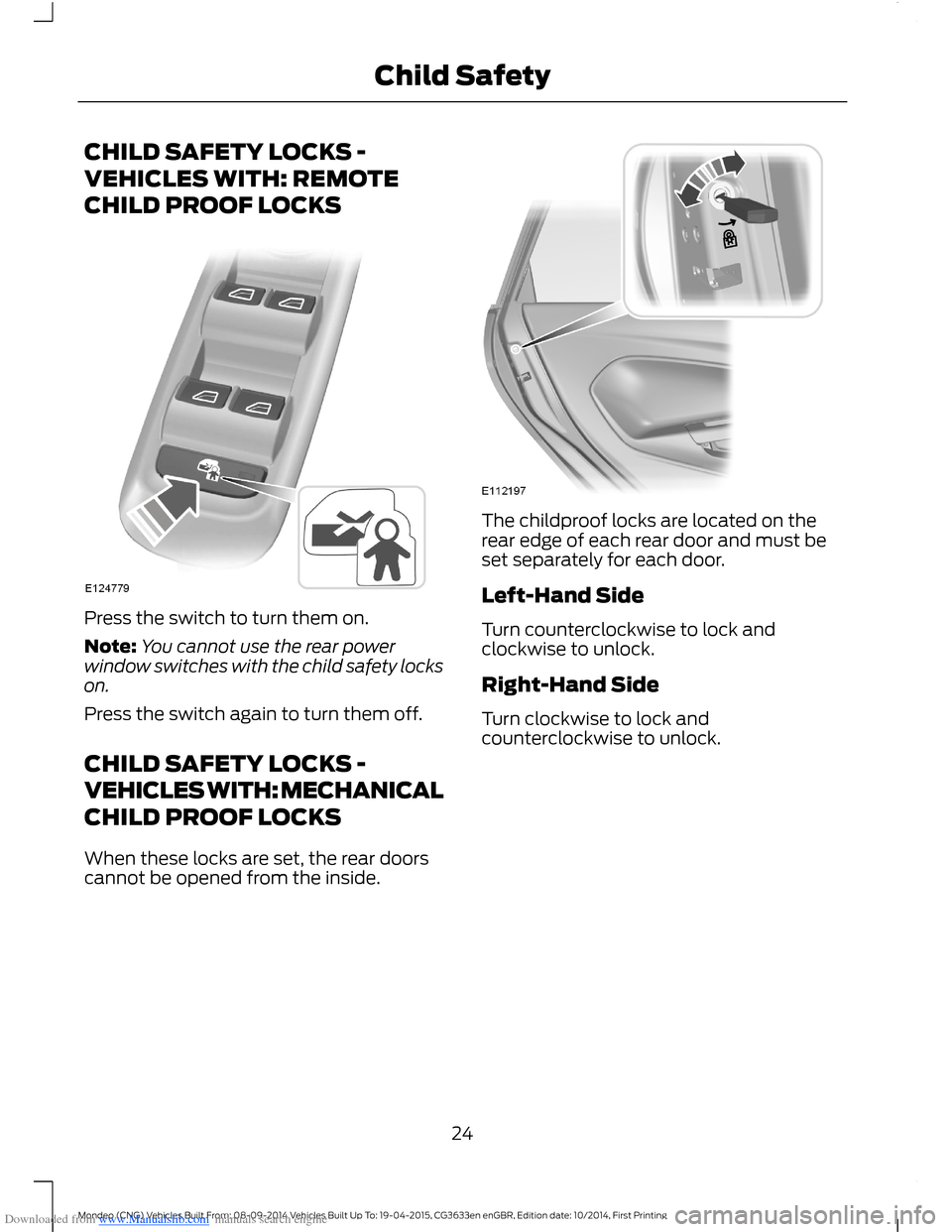

Downloaded from www.Manualslib.com manuals search engine CHILD SAFETY LOCKS -
VEHICLES WITH: REMOTE
CHILD PROOF LOCKS
Press the switch to turn them on.
Note:You cannot use the rear powerwindow switches with the child safety lockson.
Press the switch again to turn them off.
CHILD SAFETY LOCKS -
VEHICLES WITH: MECHANICAL
CHILD PROOF LOCKS
When these locks are set, the rear doorscannot be opened from the inside.
The childproof locks are located on therear edge of each rear door and must beset separately for each door.
Left-Hand Side
Turn counterclockwise to lock andclockwise to unlock.
Right-Hand Side
Turn clockwise to lock andcounterclockwise to unlock.
24Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingChild Safety
Page 27 of 446

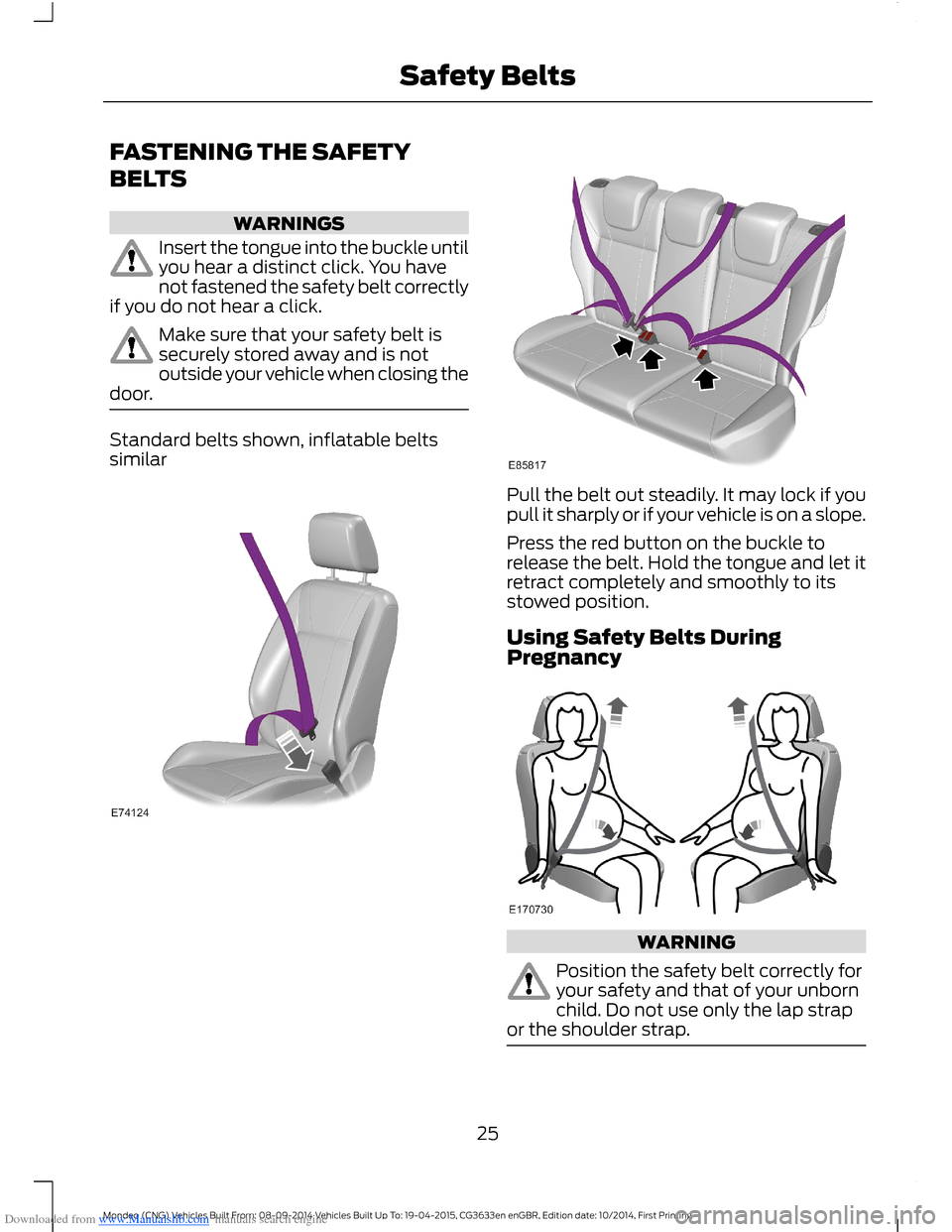

Downloaded from www.Manualslib.com manuals search engine FASTENING THE SAFETY
BELTS
WARNINGS
Insert the tongue into the buckle untilyou hear a distinct click. You havenot fastened the safety belt correctlyif you do not hear a click.
Make sure that your safety belt issecurely stored away and is notoutside your vehicle when closing thedoor.
Standard belts shown, inflatable beltssimilar
Pull the belt out steadily. It may lock if youpull it sharply or if your vehicle is on a slope.
Press the red button on the buckle torelease the belt. Hold the tongue and let itretract completely and smoothly to itsstowed position.
Using Safety Belts DuringPregnancy
WARNING
Position the safety belt correctly foryour safety and that of your unbornchild. Do not use only the lap strapor the shoulder strap.
25Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSafety Belts
Page 28 of 446

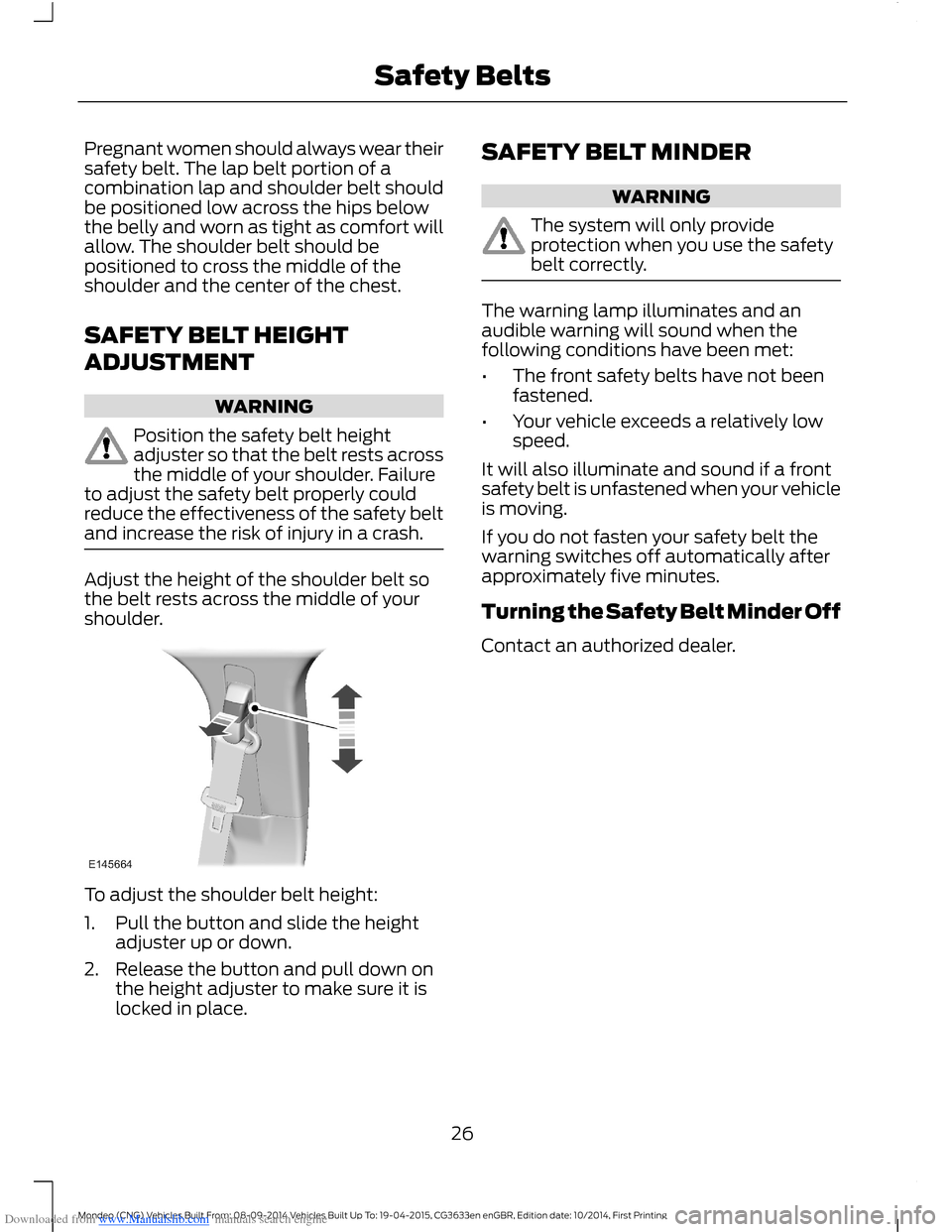

Downloaded from www.Manualslib.com manuals search engine Pregnant women should always wear theirsafety belt. The lap belt portion of acombination lap and shoulder belt shouldbe positioned low across the hips belowthe belly and worn as tight as comfort willallow. The shoulder belt should bepositioned to cross the middle of theshoulder and the center of the chest.
SAFETY BELT HEIGHT
ADJUSTMENT
WARNING
Position the safety belt heightadjuster so that the belt rests acrossthe middle of your shoulder. Failureto adjust the safety belt properly couldreduce the effectiveness of the safety beltand increase the risk of injury in a crash.
Adjust the height of the shoulder belt sothe belt rests across the middle of yourshoulder.
To adjust the shoulder belt height:
1.Pull the button and slide the heightadjuster up or down.
2.Release the button and pull down onthe height adjuster to make sure it islocked in place.
SAFETY BELT MINDER
WARNING
The system will only provideprotection when you use the safetybelt correctly.
The warning lamp illuminates and anaudible warning will sound when thefollowing conditions have been met:
•The front safety belts have not beenfastened.
•Your vehicle exceeds a relatively lowspeed.
It will also illuminate and sound if a frontsafety belt is unfastened when your vehicleis moving.
If you do not fasten your safety belt thewarning switches off automatically afterapproximately five minutes.
Turning the Safety Belt Minder Off
Contact an authorized dealer.
26Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSafety Belts
Page 29 of 446

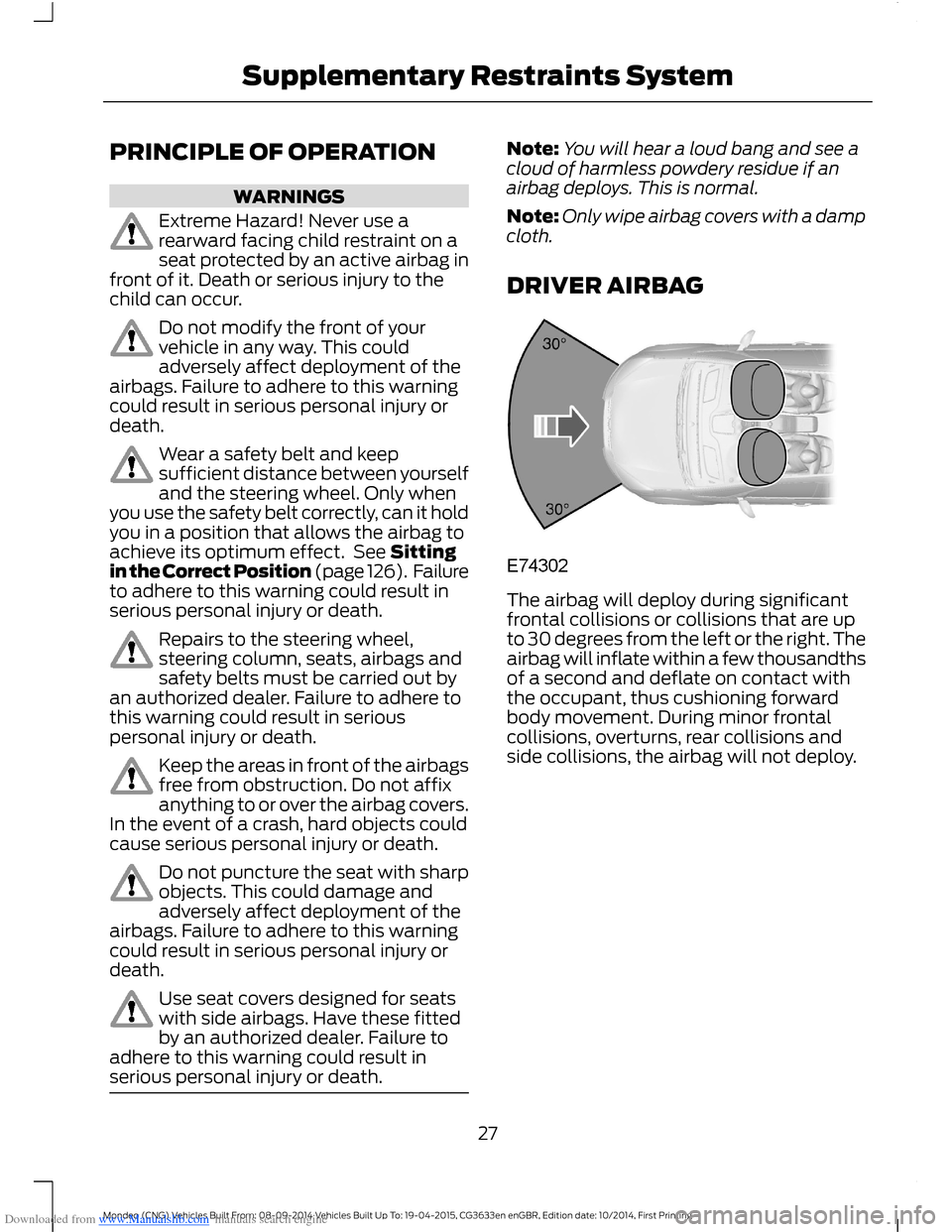

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
WARNINGS
Extreme Hazard! Never use arearward facing child restraint on aseat protected by an active airbag infront of it. Death or serious injury to thechild can occur.
Do not modify the front of yourvehicle in any way. This couldadversely affect deployment of theairbags. Failure to adhere to this warningcould result in serious personal injury ordeath.
Wear a safety belt and keepsufficient distance between yourselfand the steering wheel. Only whenyou use the safety belt correctly, can it holdyou in a position that allows the airbag toachieve its optimum effect. See Sittingin the Correct Position (page 126). Failureto adhere to this warning could result inserious personal injury or death.
Repairs to the steering wheel,steering column, seats, airbags andsafety belts must be carried out byan authorized dealer. Failure to adhere tothis warning could result in seriouspersonal injury or death.
Keep the areas in front of the airbagsfree from obstruction. Do not affixanything to or over the airbag covers.In the event of a crash, hard objects couldcause serious personal injury or death.
Do not puncture the seat with sharpobjects. This could damage andadversely affect deployment of theairbags. Failure to adhere to this warningcould result in serious personal injury ordeath.
Use seat covers designed for seatswith side airbags. Have these fittedby an authorized dealer. Failure toadhere to this warning could result inserious personal injury or death.
Note:You will hear a loud bang and see acloud of harmless powdery residue if anairbag deploys. This is normal.
Note:Only wipe airbag covers with a dampcloth.
DRIVER AIRBAG
The airbag will deploy during significantfrontal collisions or collisions that are upto 30 degrees from the left or the right. Theairbag will inflate within a few thousandthsof a second and deflate on contact withthe occupant, thus cushioning forwardbody movement. During minor frontalcollisions, overturns, rear collisions andside collisions, the airbag will not deploy.
27Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSupplementary Restraints System
Page 30 of 446

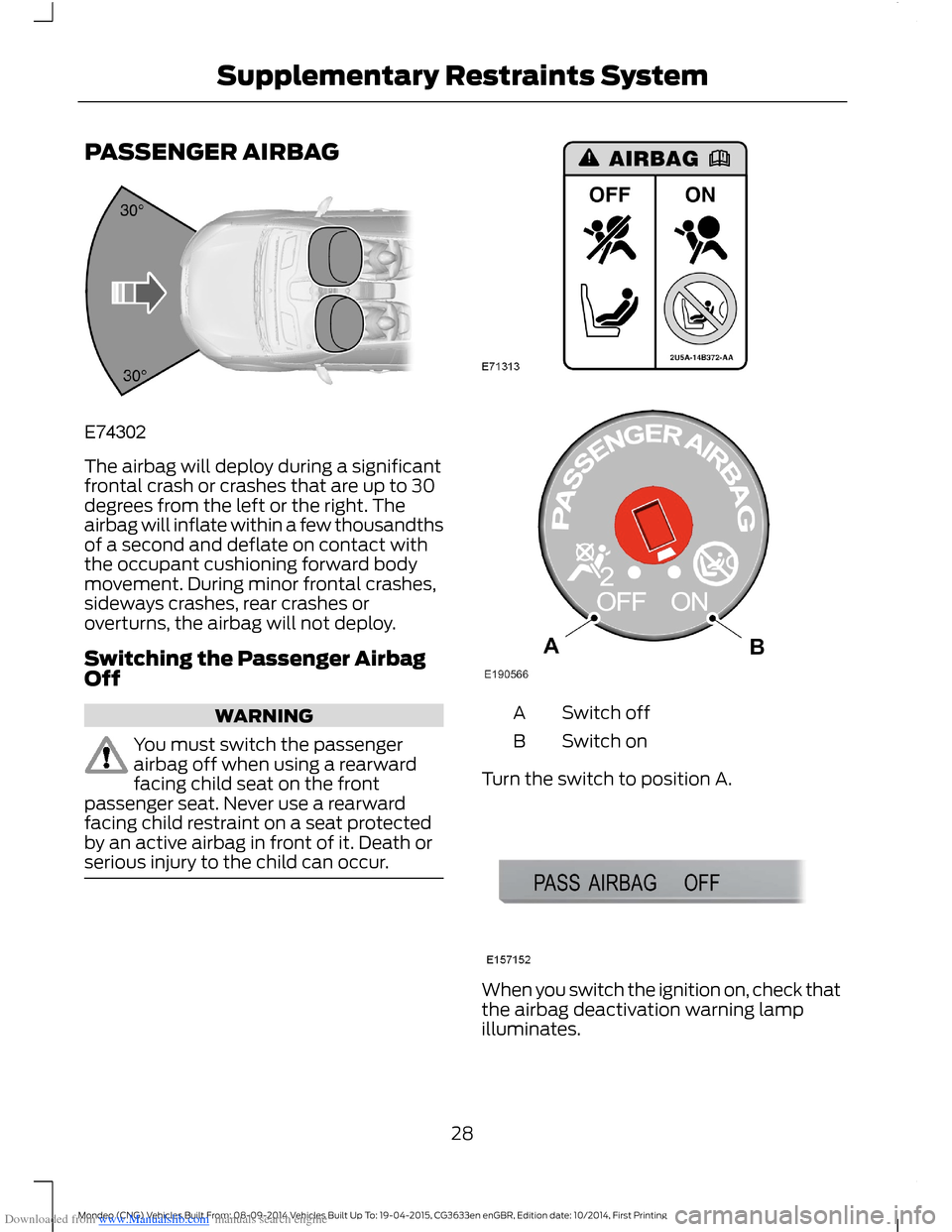

Downloaded from www.Manualslib.com manuals search engine PASSENGER AIRBAG
The airbag will deploy during a significantfrontal crash or crashes that are up to 30degrees from the left or the right. Theairbag will inflate within a few thousandthsof a second and deflate on contact withthe occupant cushioning forward bodymovement. During minor frontal crashes,sideways crashes, rear crashes oroverturns, the airbag will not deploy.
Switching the Passenger AirbagOff
WARNING
You must switch the passengerairbag off when using a rearwardfacing child seat on the frontpassenger seat. Never use a rearwardfacing child restraint on a seat protectedby an active airbag in front of it. Death orserious injury to the child can occur.
Switch offA
Switch onB
Turn the switch to position A.
When you switch the ignition on, check thatthe airbag deactivation warning lampilluminates.
