Page 59 of 332
58 [ST17500(M )09/93]

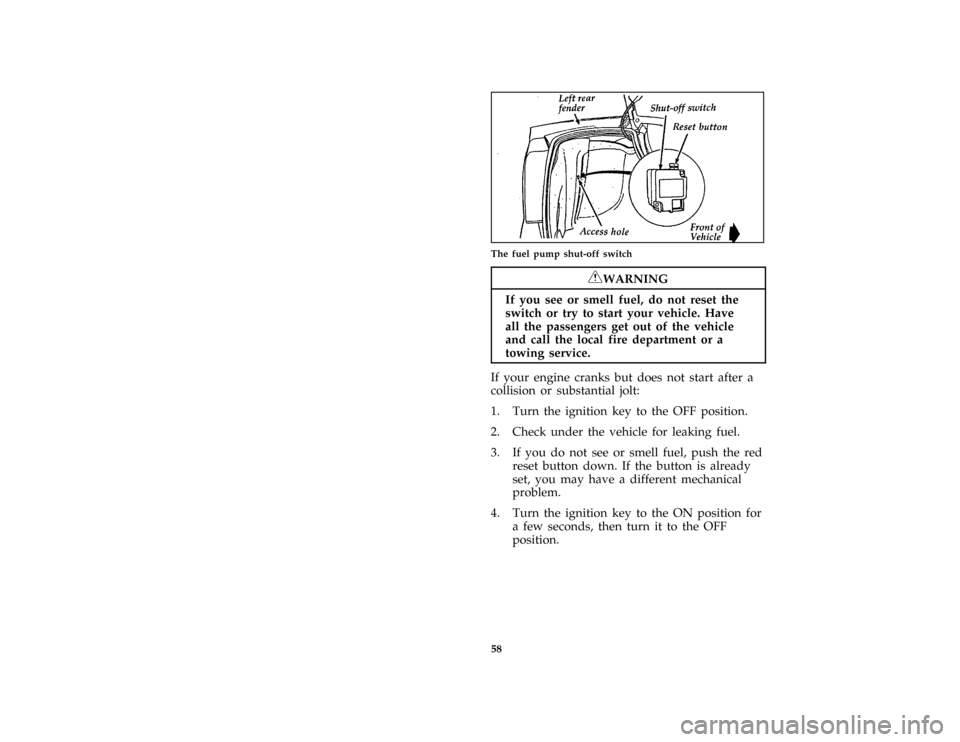

one third page art:0010012-DThe fuel pump shut-off switch
*
[ST18700( ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ST18800( ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST18900( ALL)04/95]
1. Turn the ignition key to the OFF position.
*
[ST19000( ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST19100( ALL)03/95]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
*
[ST19200( ALL)03/95]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996
Page 190 of 332
194
%*
[DR17550(MBC )04/95]
Trailer Towing
*
[DR17650( ALL)01/95]
Your vehicle does not come from the factory
fully equipped to tow. No towing packages are
available through Ford or Lincoln/Mercury
dealers.
*
[DR17700( ALL)01/95]
Because towing a trailer puts extra strain on
your vehicle, you must follow certain
precautions for your safety and the good of your
vehicle:
*
[DR17800( ALL)01/95]
q
Stay within the load limits for towing your
vehicle. (SeeTrailer towing specificationsin this
chapter.)
*
[DR17900( ALL)01/95]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[DR18000( ALL)01/95]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[DR18100( ALL)01/95]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
*
[DR18175( ALL)01/95]
Ten to 15% of the loaded trailer's weight should
be on the tongue. However, the tongue load
should never exceed 10% of the maximum
weight that your vehicle can safely tow.
*
[DR18250( ALL)05/95]
RWARNING
Do not tow a trailer when the temporary
spare tire is being used.
[DR18300( ALL)12/94]
Your vehicle is classified as a light duty towing
vehicle. The amount of weight that you can
safely tow depends on the optional equipment
on your vehicle. See the following chart.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996
Page 191 of 332
195 % [DR18400( ALL)03/90]

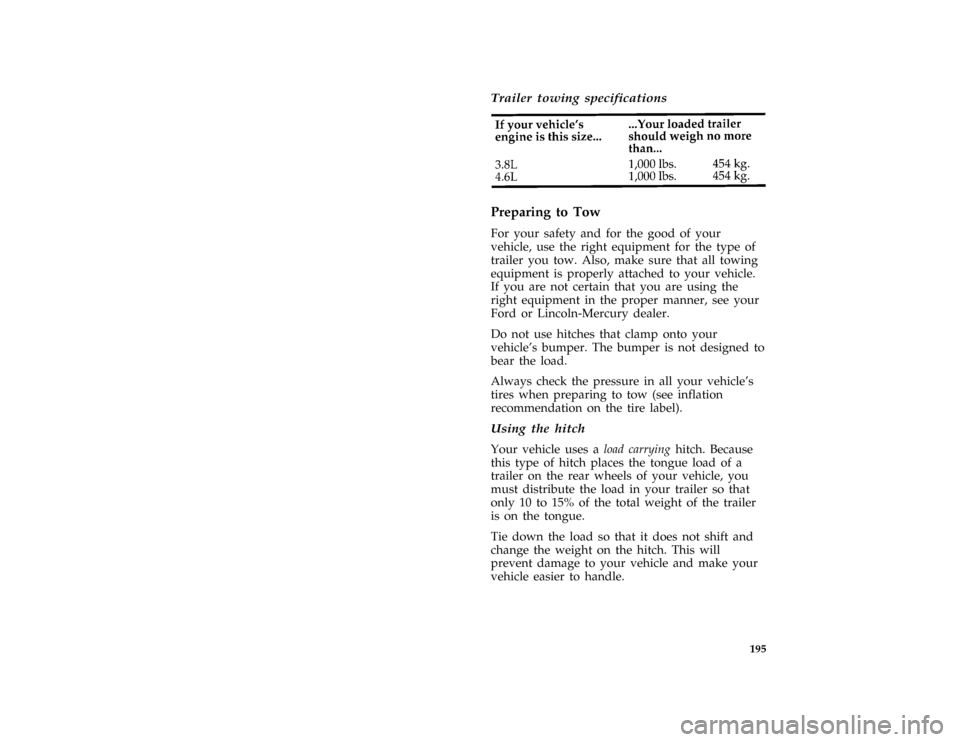

Trailer towing specifications
[DR18450(M )03/95]
six pica chart:0010320-C*
[DR20900( ALL)01/95]
Preparing to Tow
*
[DR21000( ALL)01/95]
For your safety and for the good of your
vehicle, use the right equipment for the type of
trailer you tow. Also, make sure that all towing
equipment is properly attached to your vehicle.
If you are not certain that you are using the
right equipment in the proper manner, see your
Ford or Lincoln-Mercury dealer.
*
[DR21100( ALL)01/95]
Do not use hitches that clamp onto your
vehicle's bumper. The bumper is not designed to
bear the load.
*
[DR21125( ALL)01/95]
Always check the pressure in all your vehicle's
tires when preparing to tow (see inflation
recommendation on the tire label).
%*
[DR21150( ALL)01/95]
Using the hitch
*
[DR21200(MBC )01/95]
Your vehicle uses aload carryinghitch. Because
this type of hitch places the tongue load of a
trailer on the rear wheels of your vehicle, you
must distribute the load in your trailer so that
only 10 to 15% of the total weight of the trailer
is on the tongue.
*
[DR21600( ALL)01/95]
Tie down the load so that it does not shift and
change the weight on the hitch. This will
prevent damage to your vehicle and make your
vehicle easier to handle.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996
Page 194 of 332
198 [DR22955(M )05/95]If your vehicle has a manual transmission and
you are towing a trailer, you should select gear
positions which will avoid jerking or excessive
engine speed. If you need to drive excessively in
1 (First) or 2 (Second), it may indicate that the
trailer is too big or heavily loaded for your
vehicle's drivetrain. Continuous driving in these
two gears while towing a trailer is not
recommended.
[DR22960(M )08/93]
When you tow up or down steep hills, move the
manual transmission gearshift to a lower gear.
This will increase engine power on upgrades
and engine braking on downgrades.
%*
[DR23000( ALL)01/95]
If you use the speed control while you are
towing on very long, steep grades, the speed
control may shut off.
*
[DR23100( ALL)08/95]
Servicing Your Vehicle If You Tow
*
[DR23200( ALL)08/93]
If you tow a trailer for a long distance, your
vehicle will need to be serviced more frequently
than usual. Refer to theMaintenance Schedule and
Recordbooklet for additional information.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996
Page 209 of 332
213
*
[RE13500(MBC )09/95]
Reinstalling the anti-theft lug nut
*
[RE13600(MBC )03/95]
Insert the key over the locking lug nut. Place the
lug nut wrench over the lug nut key and, while
applying pressure on the key, install the lug nut.
*
[RE13800( ALL)03/95]
If the Engine Cranks But Does
Not Start or Does Not Start After
a Collision
[RE13810( ALL)07/95]
The Fuel System Shut-off Switch
[RE13900( ALL)07/95]
If the engine cranks but does not start or if you
have had a collision, the fuel system shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel system
when your vehicle has been involved in a
substantial jolt.
[RE14000( ALL)07/95]
For information on how to check and reset the
fuel system shut-off switch, seeFuel system
shut-off switchin the Index.
%
*
[RE14100( ALL)05/95]
Towing Your Vehicle
[RE14225(M )10/95]
Mustang/Mustang GT
[RE14250(M )10/95]

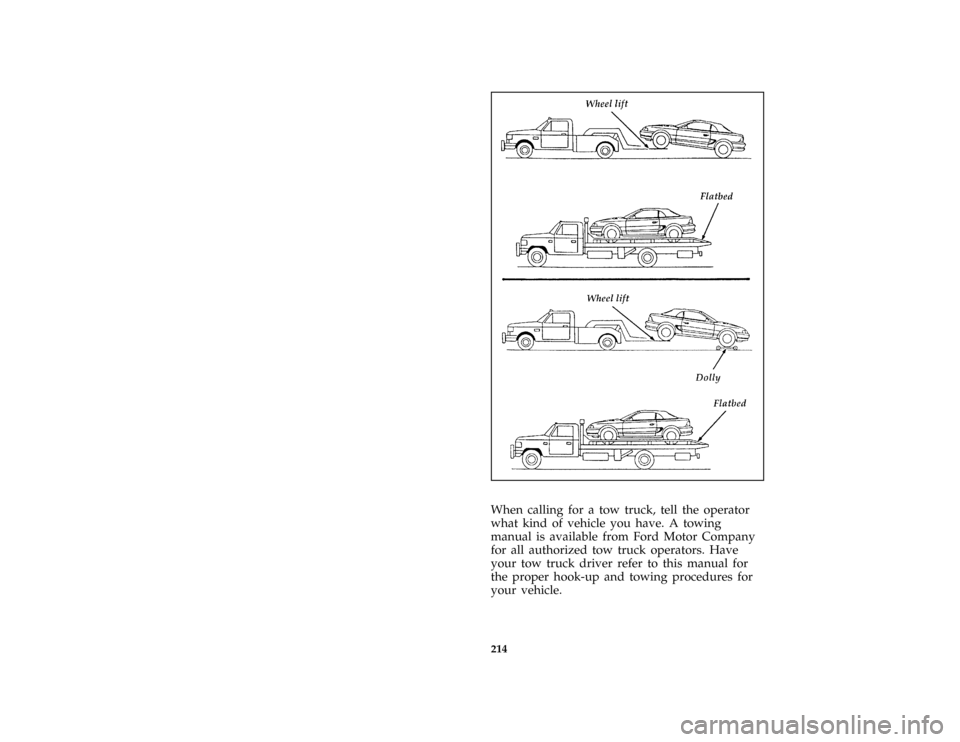

It is recommended that your vehicle be towed
with wheel lift or flatbed equipment. If slingbelt
equipment must be used, the towbar will deform
the soft fascia (bumper). However, it will return
to an acceptable shape.
[RE14255(M )10/95]
Mustang Cobra/Convertible
[RE14260(M )10/95]
DO NOT TOW WITH SLINGBELT
EQUIPMENT. Ford Motor Company has not
developed or approved a T-hook sling-type
procedure. Use wheel lift or flatbed equipment.
If your vehicle is to be towed from the rear
using wheel lift equipment, the front wheels
must be placed on a dolly to prevent damage to
the front fascia (bumper).
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996
Page 210 of 332
214 [RE14350(M )10/95]
three fourths page art:0011387-A
*
[RE14400( ALL)03/95]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996
Page 211 of 332
215
Customer Assistance
%*
[HS00205( ALL)06/94]
Roadside Assistance
*
[HS00210( ALL)08/95]
Ford Motor Company has set up a 24-hour,
seven-day-a-week hotline with trained operators
who put you in touch with the help you need if
you experience a problem with your vehicle.
This complimentary service is provided to you
throughout your warranty period of 3 years or
36,000 miles (60,000 km), whichever comes first.
To purchase Roadside Assistance coverages
beyond this period (available through Ford Auto
Club in the United States or Ford and
Lincoln-Mercury dealers in Canada), contact
your Ford or Lincoln-Mercury dealer.
*
[HS00215( ALL)06/94]
Roadside Assistance will cover the following:
*
[HS00220( ALL)06/94]
q
Mount your spare if you have a flat tire.
*
[HS00225( ALL)06/94]
q
Jump-start your battery if it is dead.
*
[HS00230( ALL)06/94]
q
Unlock your vehicle if you are locked out.
*
[HS00235( ALL)06/94]
q
Bring you fuel if you run out.
*
[HS00240( ALL)06/94]
q
Tow your vehicle if you are stranded. Even
non-warranty related tows, like accidents or
getting stuck in mud or snow, are covered
(some exclusions apply, such as impound
towing and repossession).
*
[HS00245( ALL)06/94]
How to use Roadside Assistance
*
[HS00250( ALL)06/94]
Your Roadside Assistance identification card can
be found in the Owner Guide portfolio in your
glove compartment. Complete the card and place
it in your wallet for quick reference.
File:13rchsm.ex
Update:Wed Mar 27 09:35:14 1996
Page 315 of 332
322 Index
Controls
instrument panel............ 79
mirrors................ 125
steering column............. 91
Convertible
cleaning............... 138
installation of the boot......... 134
lowering the convertible top...... 132
raising the convertible top....... 137
Coolant (see Engine coolant)
checking and adding......... 252
drain and flush............ 257
preparing for storage......... 303
proper solution............ 255
refill capacities............ 298
specifications............. 300
temperature gauge........... 73
warnings............... 252
Cooling fan............... 236
Crankcase emission filter......... 299
Cruise control (see Speed control)...... 97
Customer Assistance Center, Ford (U.S.) . . 217
Customer Assistance Centre,
Ford of Canada..........217, 223
D
Dashboard (see Instrument panel)...... 79
Daytime running light system....... 84
Defects, reporting............ 222
Defrost
rear window.............. 83
windshield............... 82
Dipstick
automatic transmission fluid....269, 271
engine oil.............. 249
power steering fluid.......... 274
Disabled vehicle (see Towing)...... 213
Dispute Settlement Board........ 218
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996
Page 316 of 332
Index 323
Doors................. 103
lubricant specifications........ 300
Driving under special conditions
bad weather............. 190
heavy load.............. 192
high water.............. 191
slippery roads............ 190
tips for safe driving.......... 190
towing a trailer............ 194
E
Electrical system
circuit breakers............ 287
fuses..............278, 286
operating when the engine is off..... 49
power point outlet.......... 130
Electronic sound system
radio reception............ 173
tuning the radio.........142, 163
warranty and service information . . . 175
Electronic stereo cassette radio
(see Electronic sound system)..... 142
Emergencies, roadside
assistance.............. 215
battery acid spills........... 199
fuel................. 245
jump-starting............. 199
towing................ 213
Emergency brake (parking brake) . . . 187±188
Emission control system
catalytic converter.......... 293
emissions warranty......... 4,293
Engine
check engine warning light....... 70
does not start........... 54,57
fuel injected engine, starting..... 51,53
fuel pump shut-off switch........ 57
preparing to start..........51±52
refill capacities............ 298
service points............ 239
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996
Page 323 of 332
330 Index
Lights, warning and indicator (continued)
safety belt............... 66
service engine soon........... 70
theft system.............. 72
turn signal indicator......... 72,91
Load limits
GAWR................ 192
GVWR................ 192
trailer towing............. 194
Lubricant specifications......... 300
Luggage compartment.......... 131
Lug nuts
anti-theft............... 212
standard............... 209
tightening sequence.......... 211
M
Maintenance schedule and record
(see separate Maintenance
Schedule and Record booklet)...... 3
Maintenance (see Servicing)....... 235
Manual transmission
backing up (reverse).......... 183
clutch..............182, 272
driving................ 182
fluid, checking and adding....... 272
fluid capacities............ 298
lubricant specifications......... 300
shifting gears............. 183
shift speeds.............. 184
Map pockets.............. 131
Master cylinder, brakes......... 272
Methanol in fuel............. 244
File:rcixm.ex
Update:Wed Mar 27 09:41:15 1996
