engine FORD MUSTANG 2004 4.G User Guide

Tachometer:Indicates the engine speed in
revolutions per minute. Driving with your
tachometer pointer continuously at the top of the
scale may damage the engine.
•Base instrument
cluster
•Optional instrument
cluster
•Mach 1 instrument
cluster
Battery voltage
gauge:Indicates the
battery voltage when
the ignition is in the
ON position. If the pointer moves and stays outside
the normal operating range, have the vehicle’s
electrical system checked as soon as possible.
Engine oil pressure
gauge:Indicates
engine oil pressure.
The needle should stay
in the normal operating range (between“L”and
“H”). If the needle falls below the normal range, stop
the vehicle, turn off the engine and check the engine
oil level. Add oil if needed. If the oil level is correct,
have your vehicle checked at your dealership or by a
qualified technician.
LH
LH
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
16

Illuminated entry
The interior lamps illuminate when the remote entry
system is used to unlock the door(s) or sound the
personal alarm.
The illuminated entry system will turn off the
interior lights if:
•the ignition switch is turned to the ON position,
or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe
set to the OFF position for the illuminated entry
system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer
control, or
•any door is open.
The battery saver will shut off the interior lamps 30
minutes after the ignition has been turned to the
OFF position, 10 minutes after if the last door is left
open, and 30 minutes after if the trunk is left open
or the dome lamp switch is left on.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine
immobilization system. This system is designed to
prevent the engine from being started unless a
coded key programmed to your vehicleis used.
The use of the wrong type of coded key may lead to
a“no-start”condition.
Your vehicle comes with two coded keys; additional
coded keys may be purchased from your dealer. The
dealer can program your spare keys to your vehicle
or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how
to program the coded key.
Note:The SecuriLock
passive anti-theft system is
not compatible with non-Ford aftermarket remote
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
60

start systems. Use of these systems may result in
vehicle starting problems and a loss of security
protection.
Note:Large metallic objects, electronic devices that
are used to purchase gasoline or similar items, or a
second coded key on the same key chain may cause
vehicle starting issues. You need to prevent these
objects from touching the coded key while starting
the engine. These objects will not cause damage to
the coded key, but may cause a momentary issue if
they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off,
remove all objects on the key chain away from the
coded key and restart the engine.
Theft indicator
The theft indicator is located in the instrument
cluster.
•When the ignition is in the OFF position, the
indicator will flash once every 2 seconds to
indicate the SecuriLock
system is functioning as
a theft deterrent.
•When the ignition is in the ON position, the
indicator will glow for 3 seconds, then turn off to
indicate normal system functionality.
If a problem occurs with the SecuriLock
system,
the indicator will flash rapidly or glow steadily when
the ignition is in the ON position. If this occurs, the
vehicle should be taken to an authorized dealer for
service.
Automatic arming
The vehicle is armed
immediately after
switching the ignition
to the 3 (OFF)
position.
The
THEFTindicator
will flash every two
seconds when the
vehicle is armed.
3
2
1
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
61

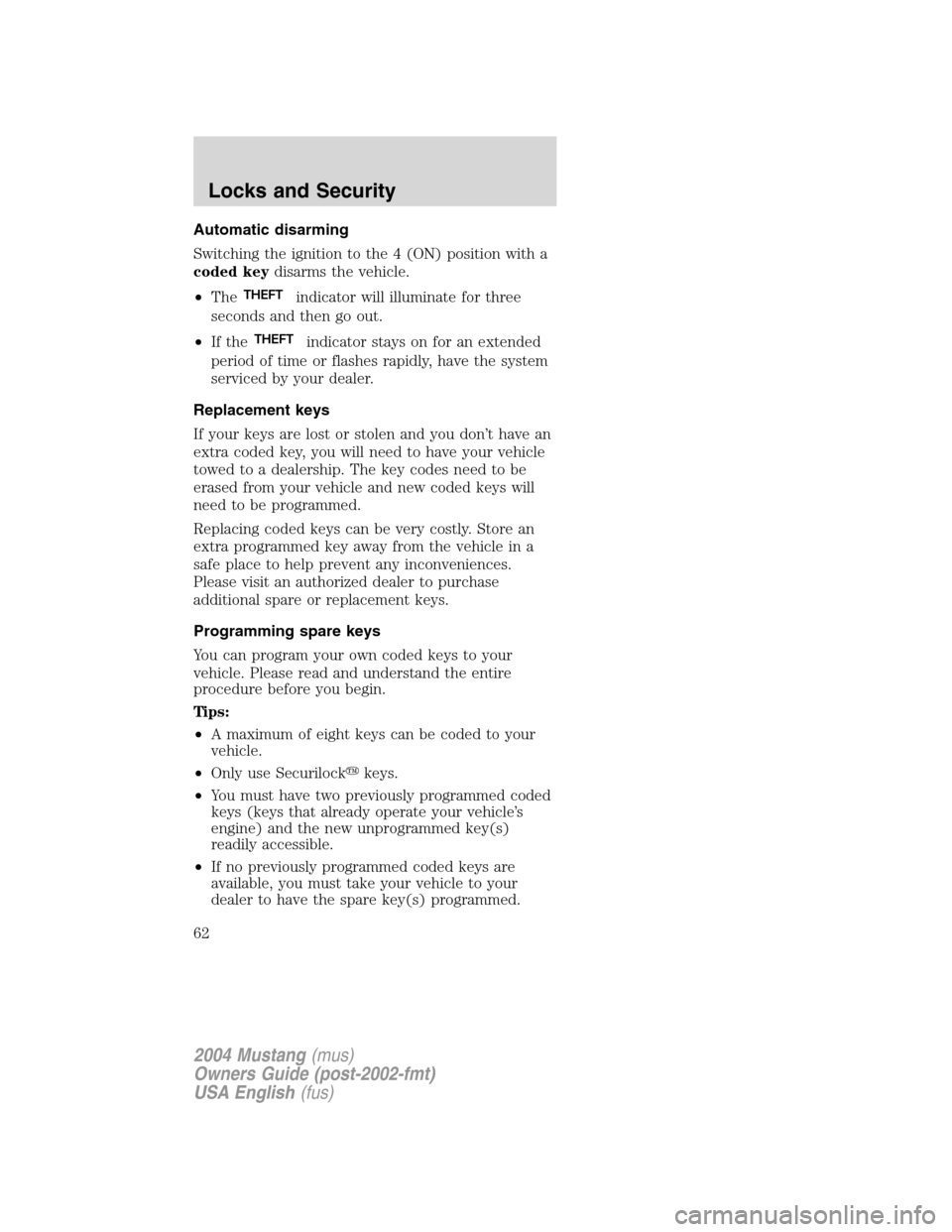

Automatic disarming
Switching the ignition to the 4 (ON) position with a
coded keydisarms the vehicle.
•The
THEFTindicator will illuminate for three
seconds and then go out.
•If the
THEFTindicator stays on for an extended
period of time or flashes rapidly, have the system
serviced by your dealer.
Replacement keys
If your keys are lost or stolen and you don’t have an
extra coded key, you will need to have your vehicle
towed to a dealership. The key codes need to be
erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an
extra programmed key away from the vehicle in a
safe place to help prevent any inconveniences.
Please visit an authorized dealer to purchase
additional spare or replacement keys.
Programming spare keys
You can program your own coded keys to your
vehicle. Please read and understand the entire
procedure before you begin.
Tips:
•A maximum of eight keys can be coded to your
vehicle.
•Only use Securilock
keys.
•You must have two previously programmed coded
keys (keys that already operate your vehicle’s
engine) and the new unprogrammed key(s)
readily accessible.
•If no previously programmed coded keys are
available, you must take your vehicle to your
dealer to have the spare key(s) programmed.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
62

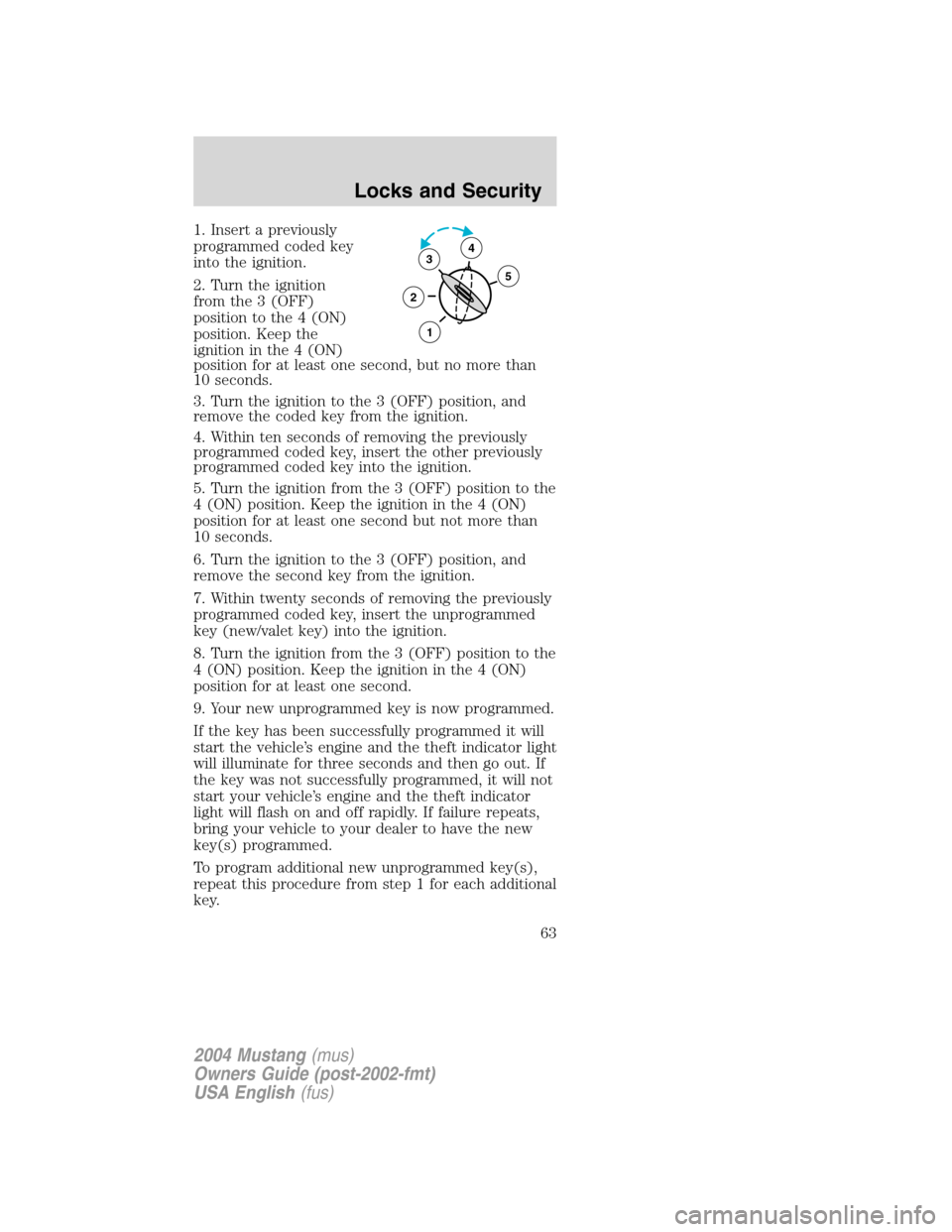

1. Insert a previously
programmed coded key
into the ignition.
2. Turn the ignition
from the 3 (OFF)
position to the 4 (ON)
position. Keep the
ignition in the 4 (ON)
position for at least one second, but no more than
10 seconds.
3. Turn the ignition to the 3 (OFF) position, and
remove the coded key from the ignition.
4. Within ten seconds of removing the previously
programmed coded key, insert the other previously
programmed coded key into the ignition.
5. Turn the ignition from the 3 (OFF) position to the
4 (ON) position. Keep the ignition in the 4 (ON)
position for at least one second but not more than
10 seconds.
6. Turn the ignition to the 3 (OFF) position, and
remove the second key from the ignition.
7. Within twenty seconds of removing the previously
programmed coded key, insert the unprogrammed
key (new/valet key) into the ignition.
8. Turn the ignition from the 3 (OFF) position to the
4 (ON) position. Keep the ignition in the 4 (ON)
position for at least one second.
9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will
start the vehicle’s engine and the theft indicator light
will illuminate for three seconds and then go out. If
the key was not successfully programmed, it will not
start your vehicle’s engine and the theft indicator
light will flash on and off rapidly. If failure repeats,
bring your vehicle to your dealer to have the new
key(s) programmed.
To program additional new unprogrammed key(s),
repeat this procedure from step 1 for each additional
key.
3
2
1
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
63

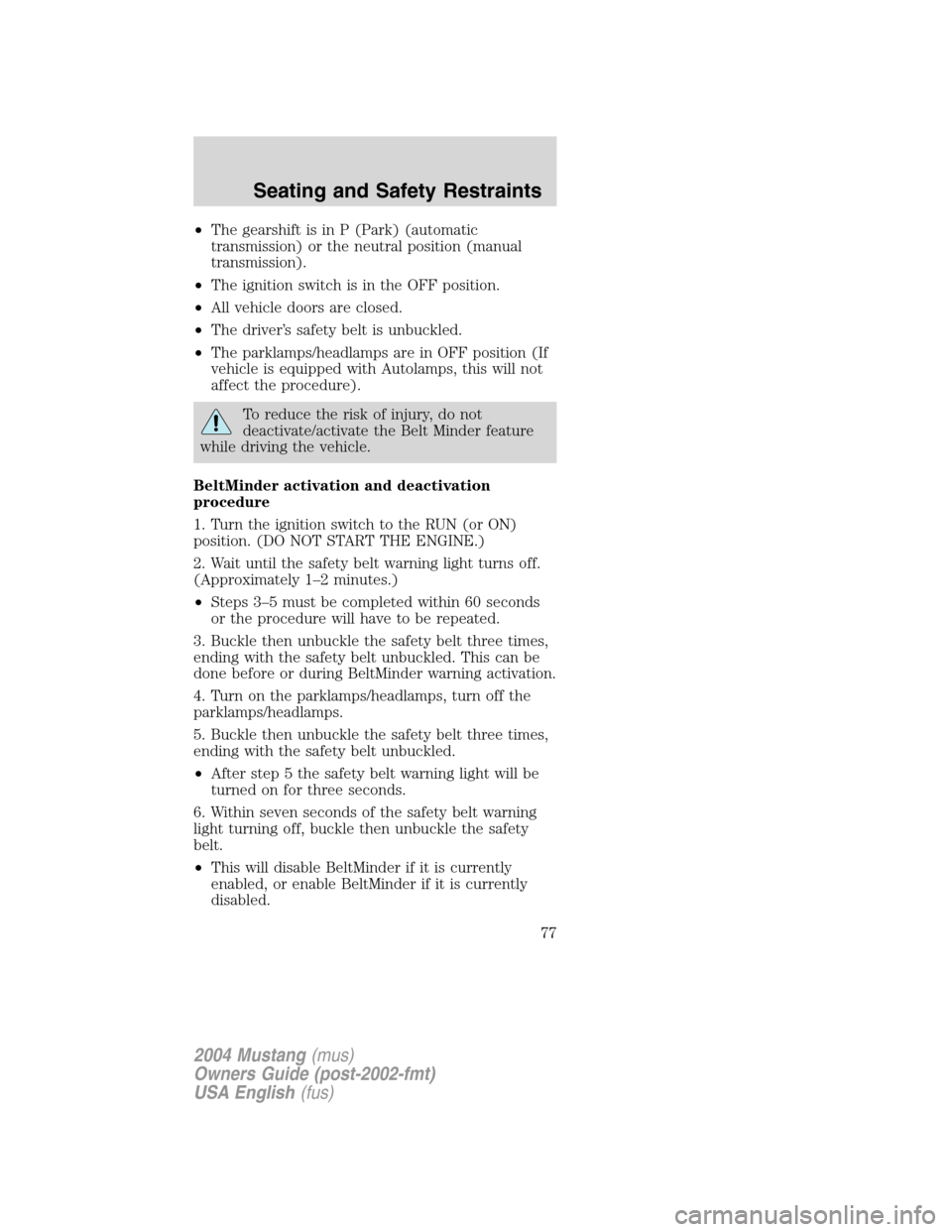

•The gearshift is in P (Park) (automatic
transmission) or the neutral position (manual
transmission).
•The ignition switch is in the OFF position.
•All vehicle doors are closed.
•The driver’s safety belt is unbuckled.
•The parklamps/headlamps are in OFF position (If
vehicle is equipped with Autolamps, this will not
affect the procedure).
To reduce the risk of injury, do not
deactivate/activate the Belt Minder feature
while driving the vehicle.
BeltMinder activation and deactivation
procedure
1. Turn the ignition switch to the RUN (or ON)
position. (DO NOT START THE ENGINE.)
2. Wait until the safety belt warning light turns off.
(Approximately 1–2 minutes.)
•Steps 3–5 must be completed within 60 seconds
or the procedure will have to be repeated.
3. Buckle then unbuckle the safety belt three times,
ending with the safety belt unbuckled. This can be
done before or during BeltMinder warning activation.
4. Turn on the parklamps/headlamps, turn off the
parklamps/headlamps.
5. Buckle then unbuckle the safety belt three times,
ending with the safety belt unbuckled.
•After step 5 the safety belt warning light will be
turned on for three seconds.
6. Within seven seconds of the safety belt warning
light turning off, buckle then unbuckle the safety
belt.
•This will disable BeltMinder if it is currently
enabled, or enable BeltMinder if it is currently
disabled.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Seating and Safety Restraints
77

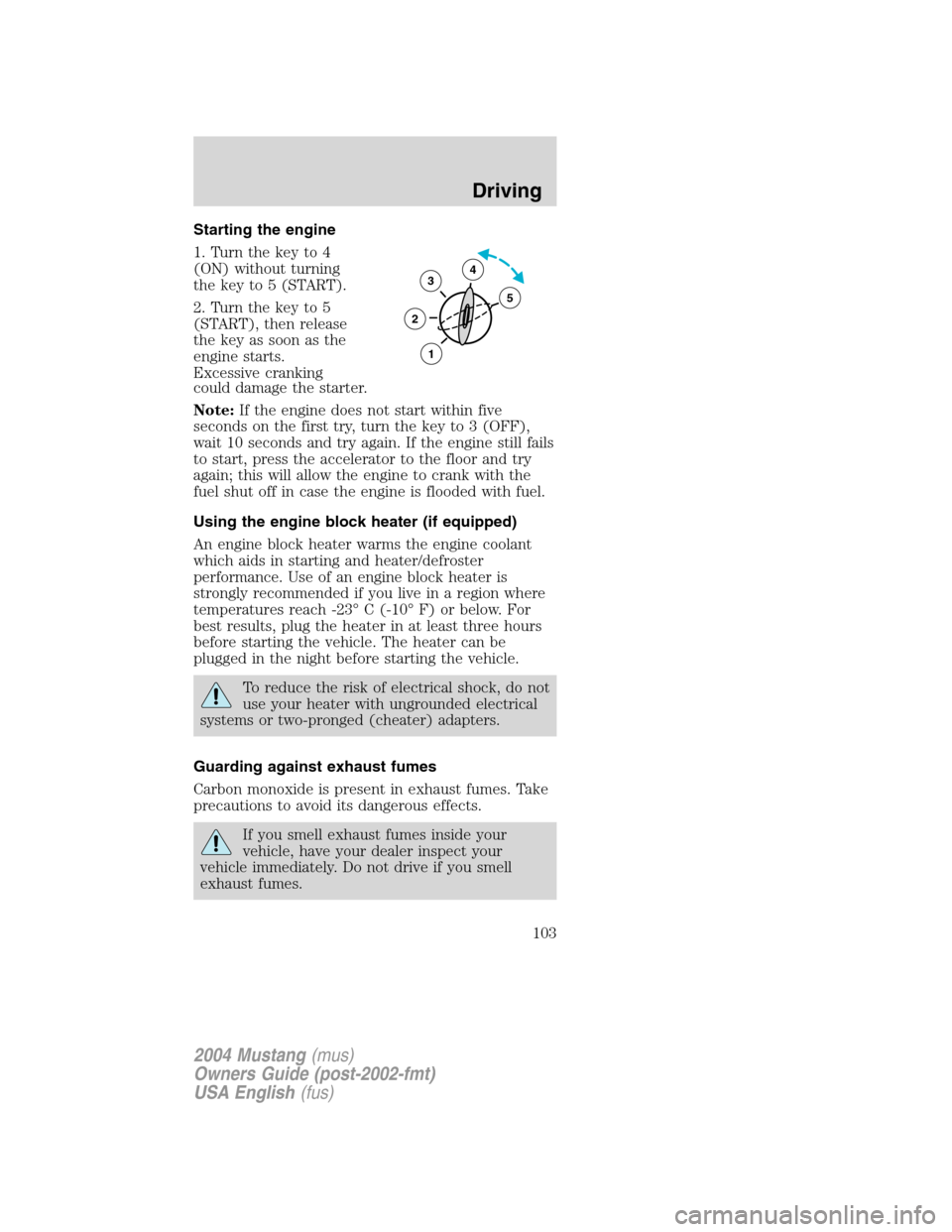

STARTING
Positions of the ignition
1. ACCESSORY, allows
the electrical
accessories such as the
radio to operate while
the engine is not
running.
2. LOCK, locks the
steering wheel, automatic transmission gearshift
lever and allows key removal. For vehicles equipped
with a manual transmission, you must depress the
ignition release lever to release the key.
3. OFF, shuts off the engine and all accessories
without locking the steering wheel. This position
also allows the automatic transmission shift lever to
be moved from the P (Park) position without the
brake pedal being depressed.
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
4. ON, all electrical circuits operational. Warning
lights illuminated. Key position when driving.
5. START, cranks the engine. Release the key as
soon as the engine starts.
Preparing to start your vehicle
Engine starting is controlled by the powertrain
control system. This system meets all Canadian
Interference-Causing Equipment standard
requirements regulating the impulse electrical field
strength of radio noise.
When starting a fuel-injected engine, don’t press the
accelerator before or during starting. Only use the
3
1
2
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
99

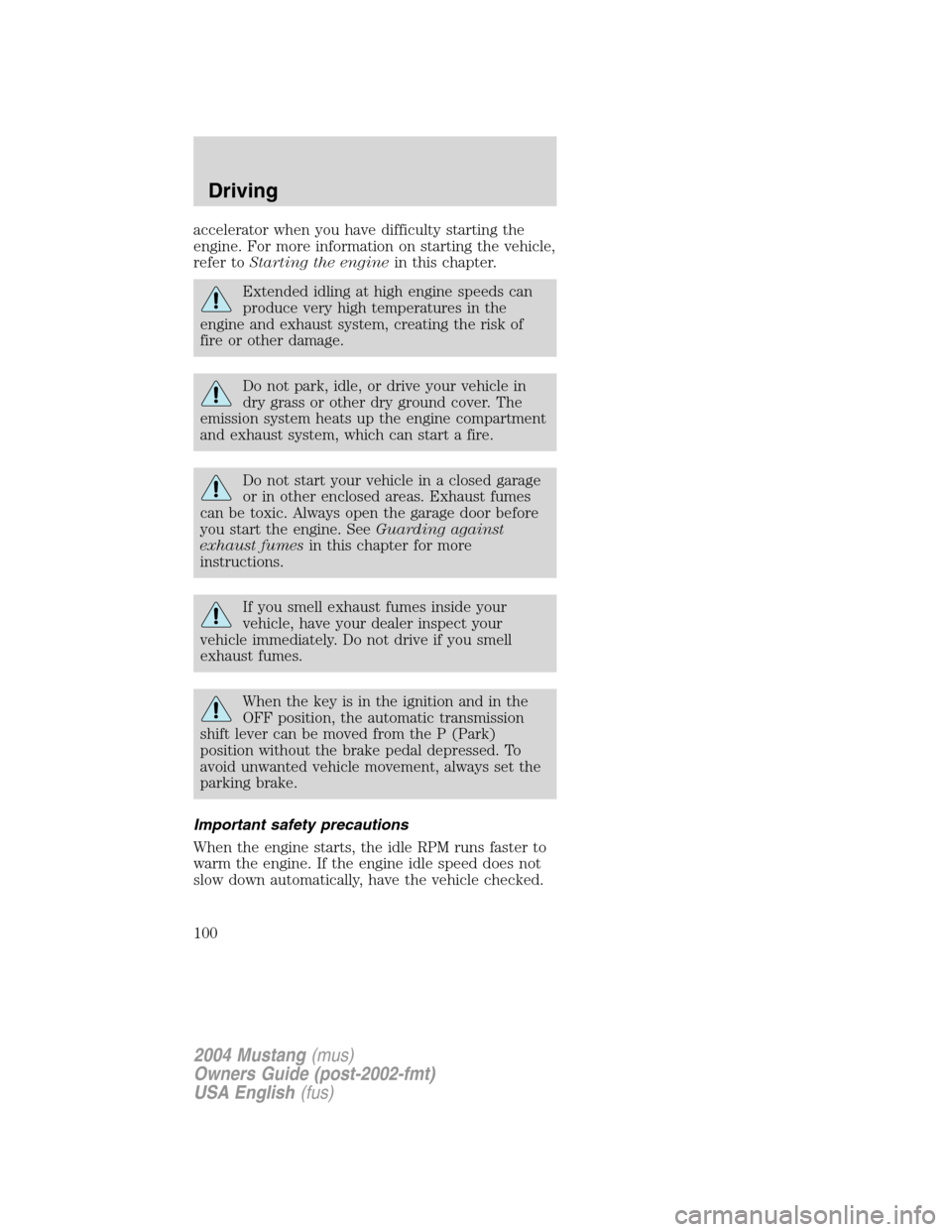

accelerator when you have difficulty starting the
engine. For more information on starting the vehicle,
refer toStarting the enginein this chapter.
Extended idling at high engine speeds can
produce very high temperatures in the
engine and exhaust system, creating the risk of
fire or other damage.
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine compartment
and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage
or in other enclosed areas. Exhaust fumes
can be toxic. Always open the garage door before
you start the engine. SeeGuarding against
exhaust fumesin this chapter for more
instructions.
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you smell
exhaust fumes.
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
Important safety precautions
When the engine starts, the idle RPM runs faster to
warm the engine. If the engine idle speed does not
slow down automatically, have the vehicle checked.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
100

•Turn the key to 4
(ON) without
turning the key to 5
(START).
Make sure the corresponding lights illuminate or
illuminate briefly. If a light fails to illuminate, have
the vehicle serviced.
•If the driver’s safety belt is fastened, the
light
may not illuminate.
1
2
34
5
P! BRAKE
L
0
00000 00
C
E
FH
LH
10 203020 406080100
120
140
160
180
405060 70
80
90
100
11 0
1204
5
6
7 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOON
MPH km/h
ABS
.
CHECK
FUEL
CAP
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
102

Starting the engine
1. Turn the key to 4
(ON) without turning
the key to 5 (START).
2. Turn the key to 5
(START), then release
the key as soon as the
engine starts.
Excessive cranking
could damage the starter.
Note:If the engine does not start within five
seconds on the first try, turn the key to 3 (OFF),
wait 10 seconds and try again. If the engine still fails
to start, press the accelerator to the floor and try
again; this will allow the engine to crank with the
fuel shut off in case the engine is flooded with fuel.
Using the engine block heater (if equipped)
An engine block heater warms the engine coolant
which aids in starting and heater/defroster
performance. Use of an engine block heater is
strongly recommended if you live in a region where
temperatures reach -23°C (-10°F) or below. For
best results, plug the heater in at least three hours
before starting the vehicle. The heater can be
plugged in the night before starting the vehicle.
To reduce the risk of electrical shock, do not
use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you smell
exhaust fumes.
3
2
1
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
103
