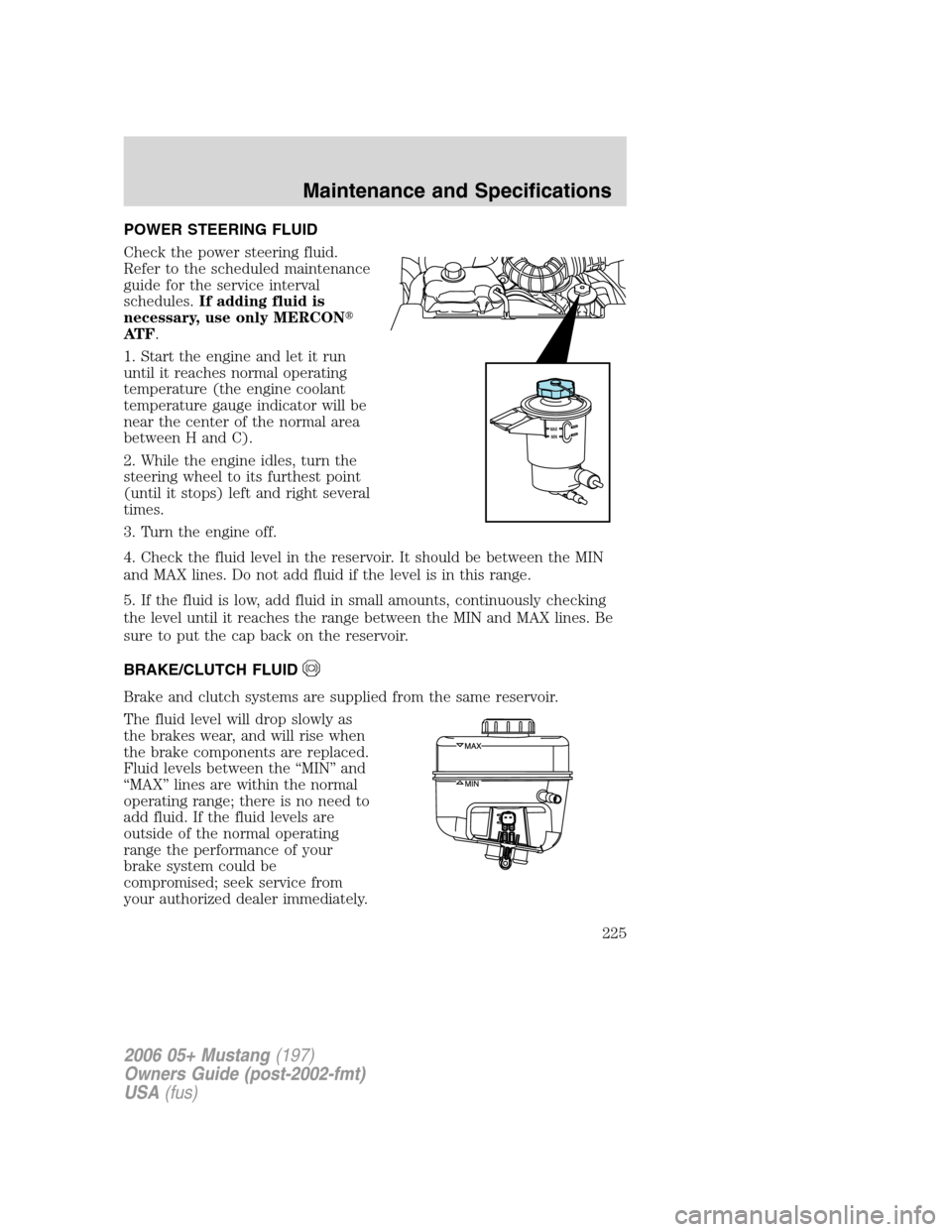

POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.If adding fluid is
necessary, use only MERCON
AT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel to its furthest point
(until it stops) left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from
your authorized dealer immediately.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
225

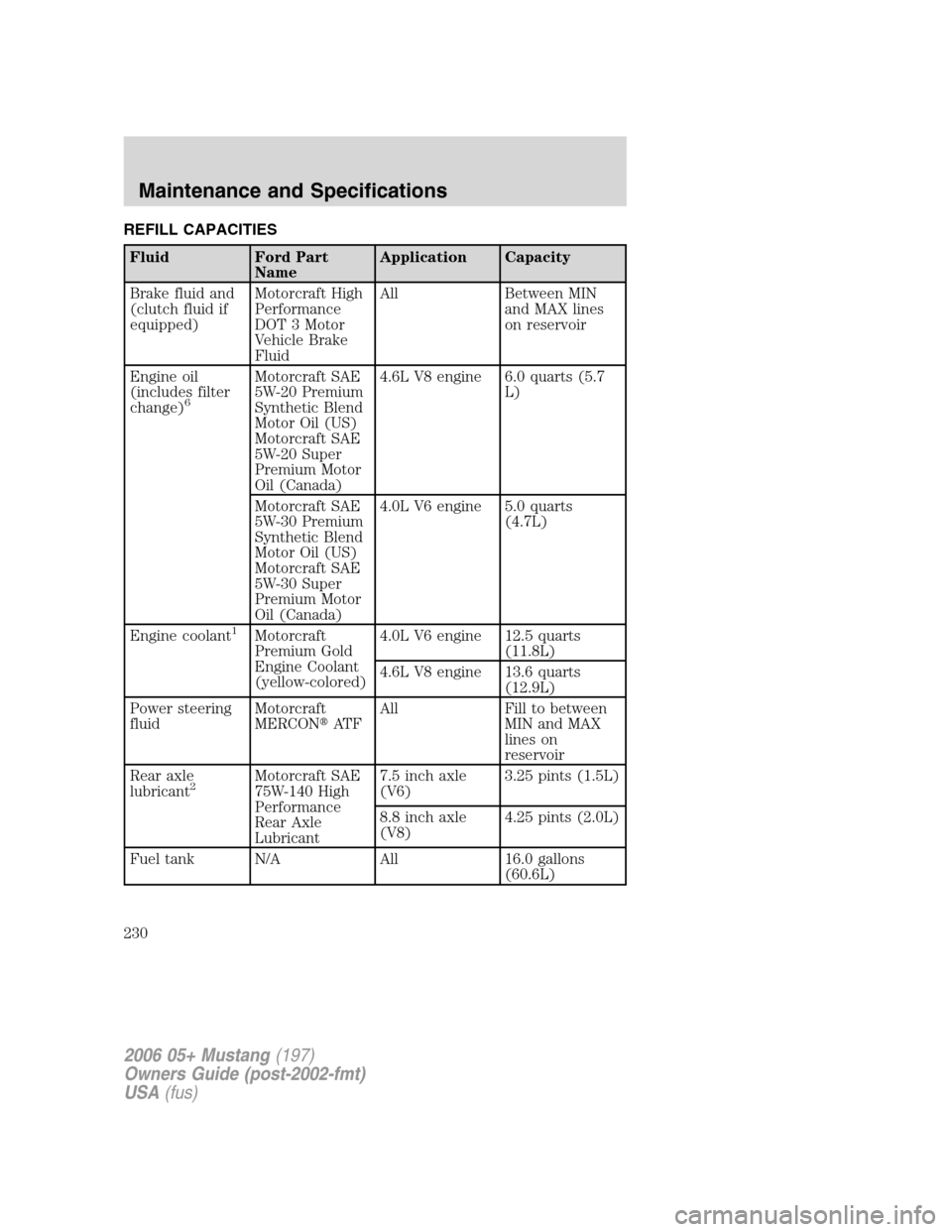

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MIN
and MAX lines
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)4.6L V8 engine 6.0 quarts (5.7
L)
Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)4.0L V6 engine 5.0 quarts
(4.7L)
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L V6 engine 12.5 quarts
(11.8L)
4.6L V8 engine 13.6 quarts
(12.9L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on
reservoir
Rear axle
lubricant
2Motorcraft SAE
75W-140 High
Performance
Rear Axle
Lubricant7.5 inch axle
(V6)3.25 pints (1.5L)
8.8 inch axle
(V8)4.25 pints (2.0L)
Fuel tank N/A All 16.0 gallons
(60.6L)
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

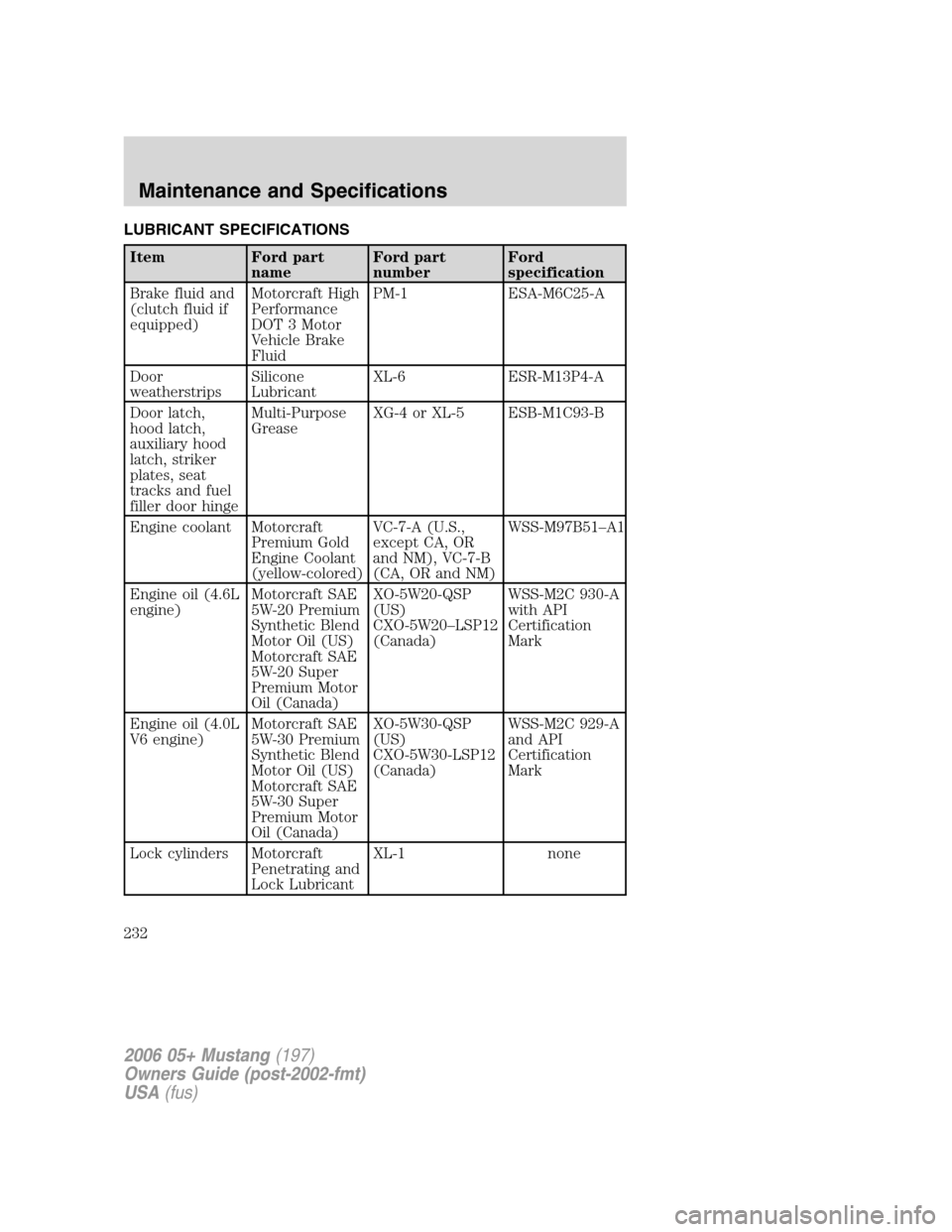

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Door latch,
hood latch,
auxiliary hood
latch, striker
plates, seat
tracks and fuel
filler door hingeMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM), VC-7-B
(CA, OR and NM)WSS-M97B51–A1
Engine oil (4.6L
engine)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C 930-A
with API
Certification
Mark
Engine oil (4.0L
V6 engine)Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)XO-5W30-QSP
(US)
CXO-5W30-LSP12
(Canada)WSS-M2C 929-A
and API
Certification
Mark
Lock cylinders Motorcraft
Penetrating and
Lock LubricantXL-1 none
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
232

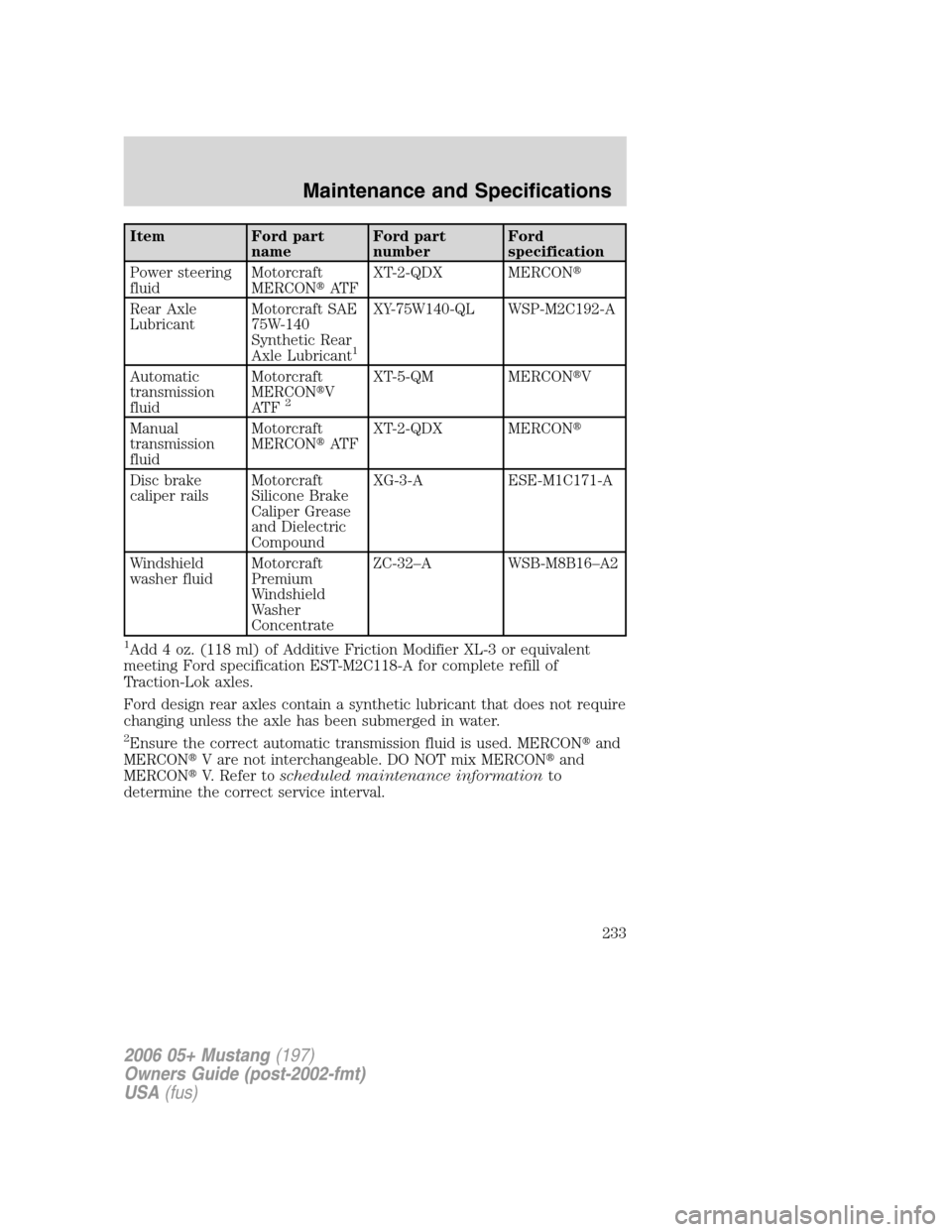

Item Ford part
nameFord part
numberFord
specification
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Rear Axle
LubricantMotorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant
1
XY-75W140-QL WSP-M2C192-A
Automatic
transmission
fluidMotorcraft
MERCONV
AT F
2
XT-5-QM MERCONV
Manual
transmission
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Disc brake
caliper railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-3-A ESE-M1C171-A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok axles.
Ford design rear axles contain a synthetic lubricant that does not require
changing unless the axle has been submerged in water.
2Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
233

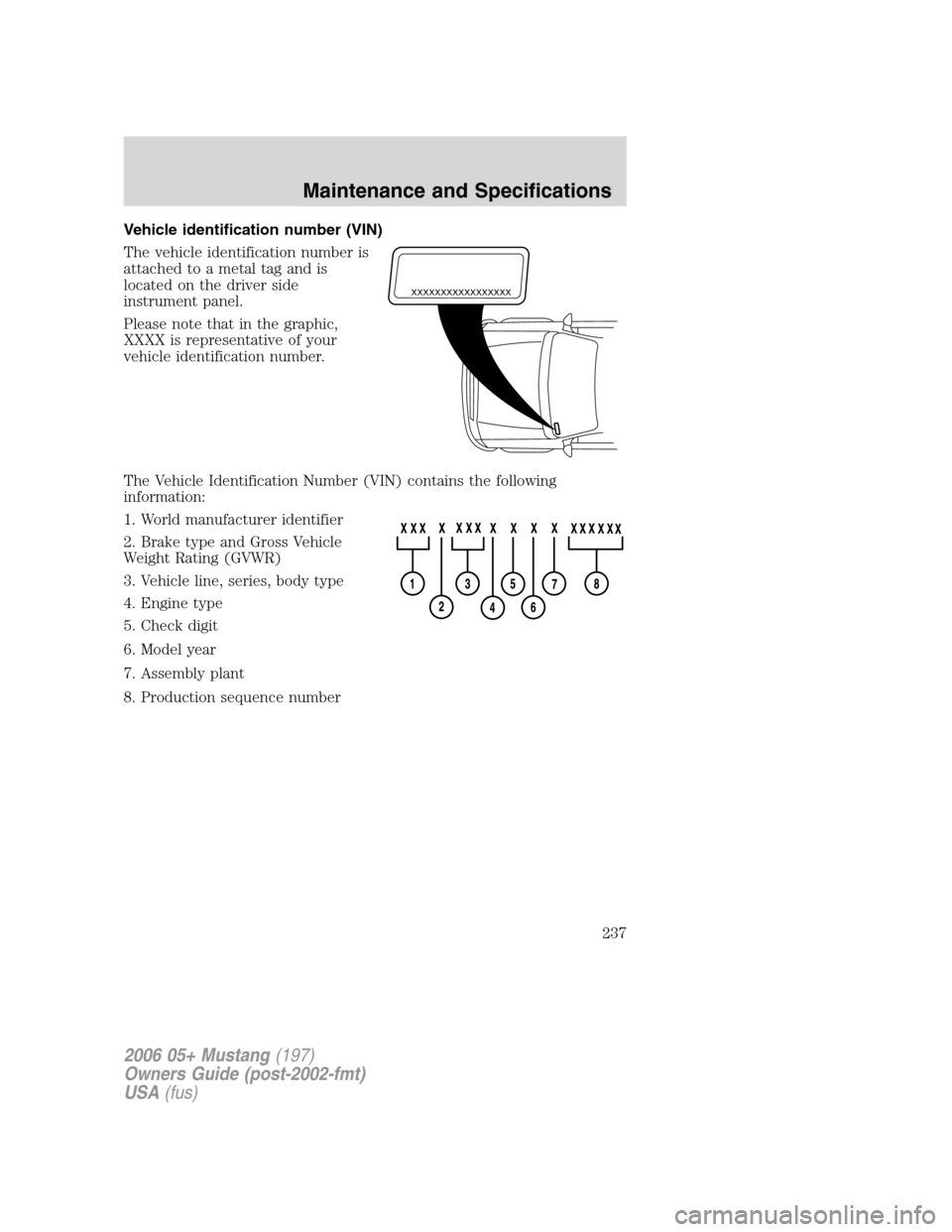

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
237

A
Accessory delay ..........................45
Air cleaner filter .......................228
Airbag supplemental restraint
system ..................................97, 105
and child safety seats ..............99
description ........................97, 105
disposal ....................................107
driver airbag ......................99, 106
indicator light .........................107
operation ...........................99, 106
passenger airbag ...............99, 106
side airbag ...............................105
Antifreeze (see Engine
coolant) .....................................208
Anti-lock brake system
(see Brakes) ......................150–151
Anti-theft system ........................74
Audio system (see Radio) ...19, 22
Automatic transmission ............154
driving an automatic
overdrive .................................156
fluid, adding ............................226
fluid, checking ........................226
fluid, refill capacities ..............230
fluid, specification ..................234
Auxiliary power point .................43
Axle
lubricant specifications ..232, 234
refill capacities ........................230
traction lok ..............................154
B
Battery .......................................206
acid, treating emergencies .....206
jumping a disabled battery ....176
maintenance-free ....................206replacement, specifications ...228
servicing ..................................206
BeltMinder ...................................92
Brakes ........................................150
anti-lock ...........................150–151
anti-lock brake system (ABS)
warning light ...........................151
fluid, checking and adding ....225
fluid, refill capacities ..............230
fluid, specifications .........232, 234
lubricant specifications ..232, 234
parking ....................................151
shift interlock ..........................154
Break-in period .............................5
Bulbs ............................................36
C
Capacities for refilling fluids ....230
Cell phone use ..............................7
Changing a tire .........................171
Child safety restraints ..............108
child safety belts ....................108
Child safety seats ......................112
attaching with tether straps ..116
in front seat ............................113
in rear seat ..............................113
Cleaning your vehicle
engine compartment ..............190
instrument panel ....................193
interior .....................................193
plastic parts ............................192
washing ....................................189
waxing .....................................189
wheels ......................................190
wiper blades ............................192
Clock adjust
6-CD in dash .............................24
AM/FM/CD .................................20
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Index
241

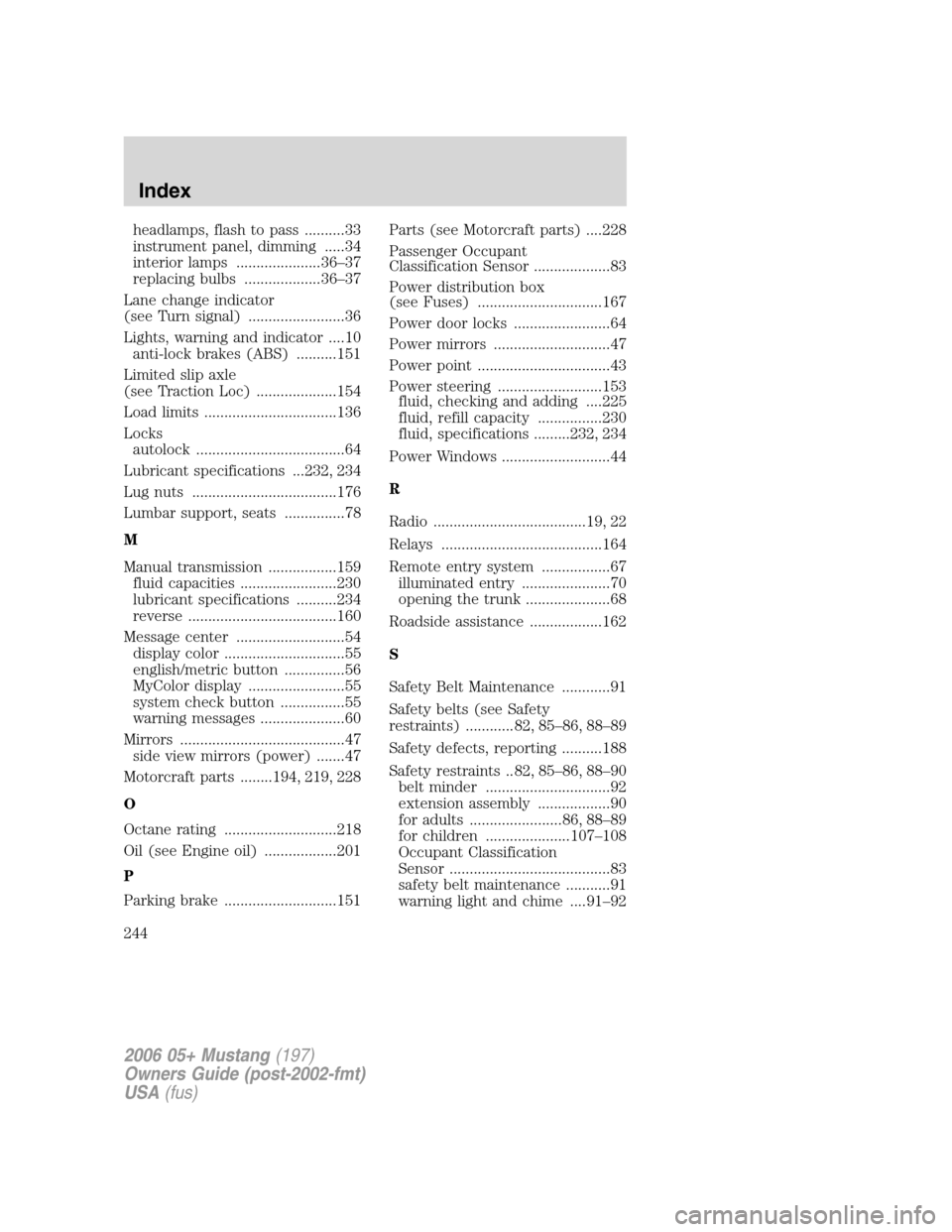

headlamps, flash to pass ..........33
instrument panel, dimming .....34
interior lamps .....................36–37
replacing bulbs ...................36–37
Lane change indicator
(see Turn signal) ........................36
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........151
Limited slip axle
(see Traction Loc) ....................154
Load limits .................................136
Locks
autolock .....................................64
Lubricant specifications ...232, 234
Lug nuts ....................................176
Lumbar support, seats ...............78
M
Manual transmission .................159
fluid capacities ........................230
lubricant specifications ..........234
reverse .....................................160
Message center ...........................54
display color ..............................55
english/metric button ...............56
MyColor display ........................55
system check button ................55
warning messages .....................60
Mirrors .........................................47
side view mirrors (power) .......47
Motorcraft parts ........194, 219, 228
O
Octane rating ............................218
Oil (see Engine oil) ..................201
P
Parking brake ............................151Parts (see Motorcraft parts) ....228
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................167
Power door locks ........................64
Power mirrors .............................47
Power point .................................43
Power steering ..........................153
fluid, checking and adding ....225
fluid, refill capacity ................230
fluid, specifications .........232, 234
Power Windows ...........................44
R
Radio ......................................19, 22
Relays ........................................164
Remote entry system .................67
illuminated entry ......................70
opening the trunk .....................68
Roadside assistance ..................162
S
Safety Belt Maintenance ............91
Safety belts (see Safety
restraints) ............ 82, 85–86, 88–89
Safety defects, reporting ..........188
Safety restraints .. 82, 85–86, 88–90
belt minder ...............................92
extension assembly ..................90
for adults .......................86, 88–89
for children .....................107–108
Occupant Classification
Sensor ........................................83
safety belt maintenance ...........91
warning light and chime ....91–92
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Index
244

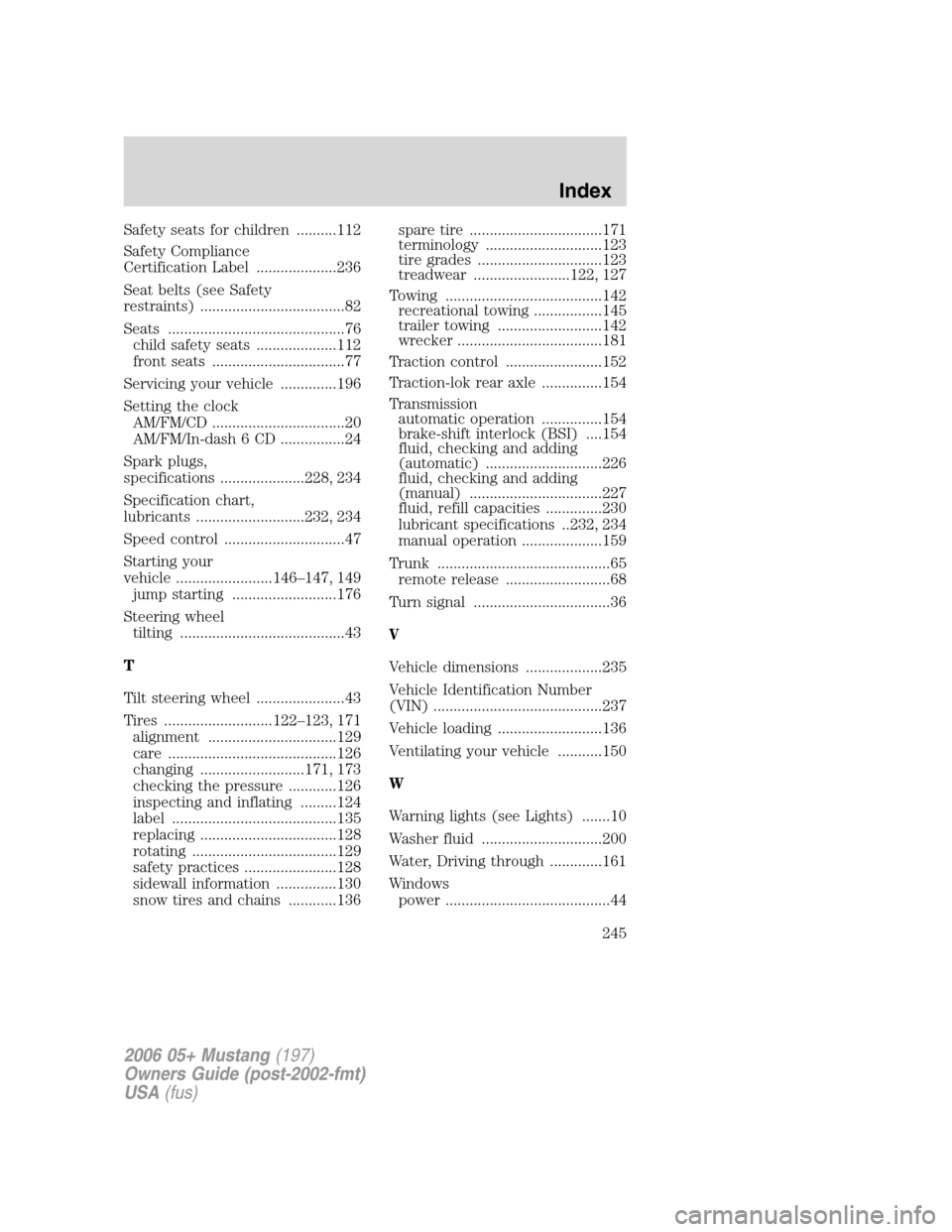

Safety seats for children ..........112
Safety Compliance
Certification Label ....................236
Seat belts (see Safety
restraints) ....................................82
Seats ............................................76
child safety seats ....................112
front seats .................................77
Servicing your vehicle ..............196
Setting the clock
AM/FM/CD .................................20
AM/FM/In-dash 6 CD ................24
Spark plugs,
specifications .....................228, 234
Specification chart,
lubricants ...........................232, 234
Speed control ..............................47
Starting your
vehicle ........................146–147, 149
jump starting ..........................176
Steering wheel
tilting .........................................43
T
Tilt steering wheel ......................43
Tires ...........................122–123, 171
alignment ................................129
care ..........................................126
changing ..........................171, 173
checking the pressure ............126
inspecting and inflating .........124
label .........................................135
replacing ..................................128
rotating ....................................129
safety practices .......................128
sidewall information ...............130
snow tires and chains ............136spare tire .................................171
terminology .............................123
tire grades ...............................123
treadwear ........................122, 127
Towing .......................................142
recreational towing .................145
trailer towing ..........................142
wrecker ....................................181
Traction control ........................152
Traction-lok rear axle ...............154
Transmission
automatic operation ...............154
brake-shift interlock (BSI) ....154
fluid, checking and adding
(automatic) .............................226
fluid, checking and adding
(manual) .................................227
fluid, refill capacities ..............230
lubricant specifications ..232, 234
manual operation ....................159
Trunk ...........................................65
remote release ..........................68
Turn signal ..................................36
V
Vehicle dimensions ...................235
Vehicle Identification Number
(VIN) ..........................................237
Vehicle loading ..........................136
Ventilating your vehicle ...........150
W
Warning lights (see Lights) .......10
Washer fluid ..............................200
Water, Driving through .............161
Windows
power .........................................44
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Index
245
