open, and in 30 minutes if the dome lamp control is left on and the
ignition has been turned to the 1 (OFF/LOCK) position. The battery
saver will also shut off the trunk lamps in 30 minutes if the trunk is left
open.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the keys
yourself. Refer toProgramming spare keysfor instructions on how to
program the coded key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Anti-theft indicator
The anti-theft indicator is located in
the instrument cluster.
•When the ignition is in the 1 (OFF/LOCK) position, the indicator will
flash once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•When the ignition is in the 3 (ON) position, the indicator will glow for
3 seconds, then turn off to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 3 (ON) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
71

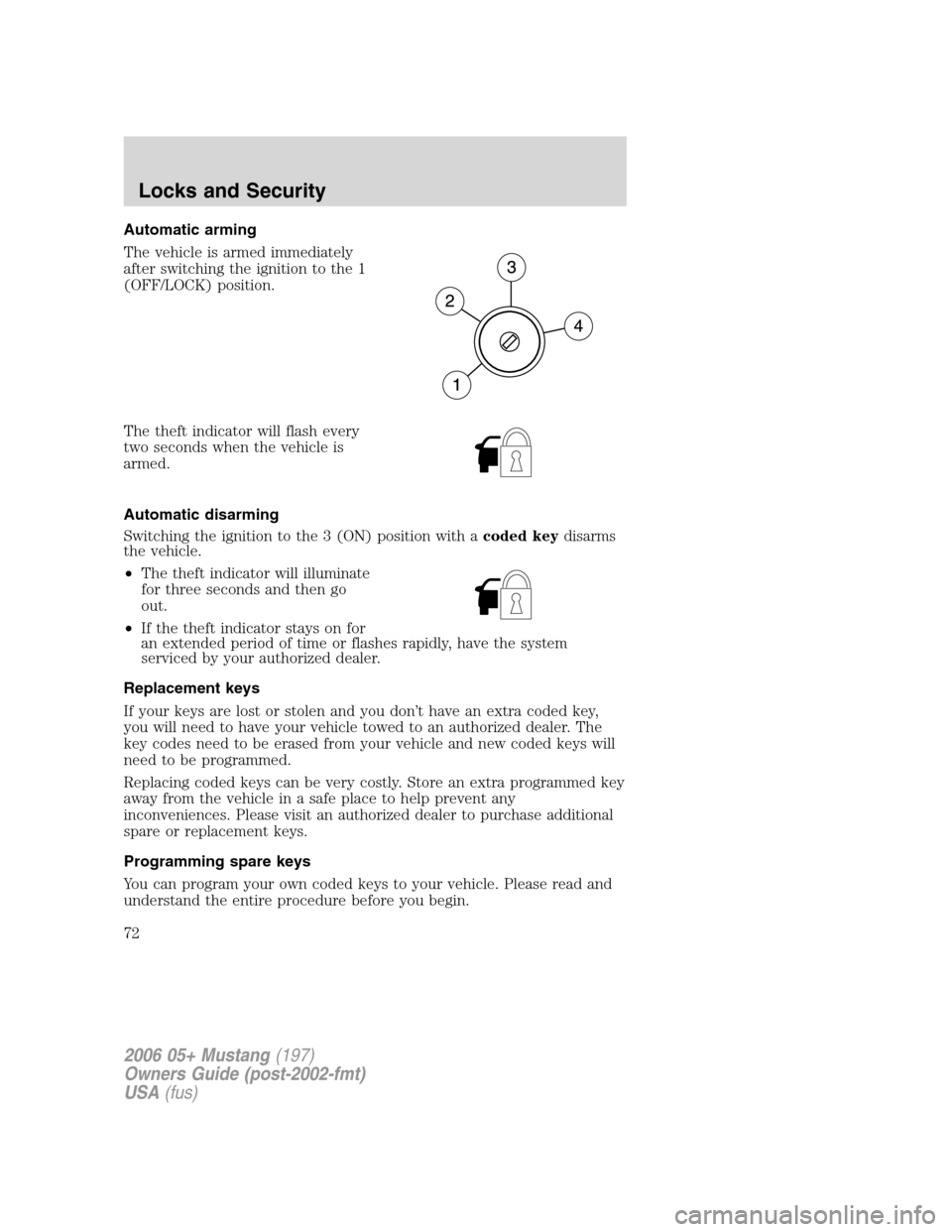

Automatic arming
The vehicle is armed immediately
after switching the ignition to the 1
(OFF/LOCK) position.
The theft indicator will flash every
two seconds when the vehicle is
armed.
Automatic disarming
Switching the ignition to the 3 (ON) position with acoded keydisarms
the vehicle.
•The theft indicator will illuminate
for three seconds and then go
out.
•If the theft indicator stays on for
an extended period of time or flashes rapidly, have the system
serviced by your authorized dealer.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own coded keys to your vehicle. Please read and
understand the entire procedure before you begin.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
72

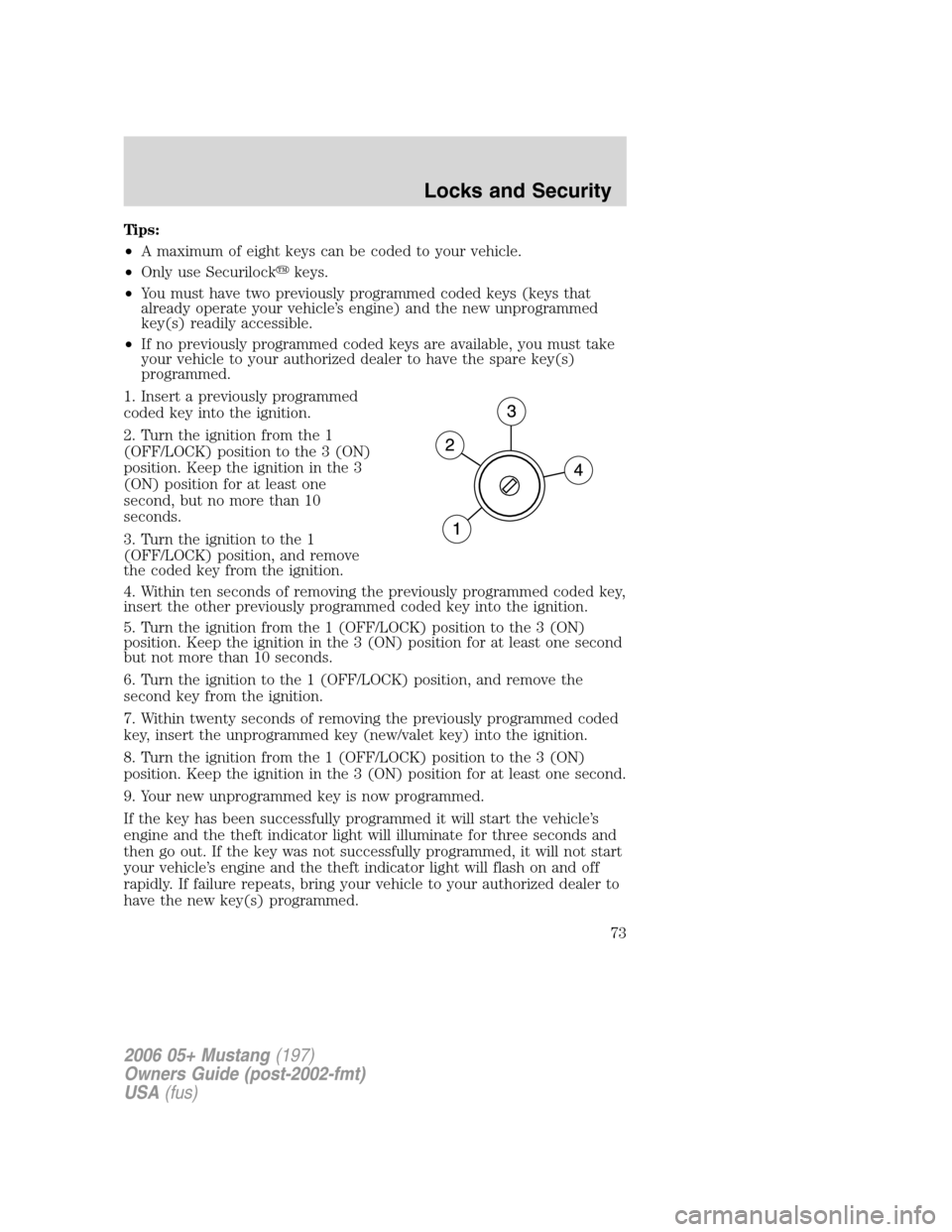

Tips:
•A maximum of eight keys can be coded to your vehicle.
•Only use Securilock
keys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If no previously programmed coded keys are available, you must take
your vehicle to your authorized dealer to have the spare key(s)
programmed.
1. Insert a previously programmed
coded key into the ignition.
2. Turn the ignition from the 1
(OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3
(ON) position for at least one
second, but no more than 10
seconds.
3. Turn the ignition to the 1
(OFF/LOCK) position, and remove
the coded key from the ignition.
4. Within ten seconds of removing the previously programmed coded key,
insert the other previously programmed coded key into the ignition.
5. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3 (ON) position for at least one second
but not more than 10 seconds.
6. Turn the ignition to the 1 (OFF/LOCK) position, and remove the
second key from the ignition.
7. Within twenty seconds of removing the previously programmed coded
key, insert the unprogrammed key (new/valet key) into the ignition.
8. Turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON)
position. Keep the ignition in the 3 (ON) position for at least one second.
9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out. If the key was not successfully programmed, it will not start
your vehicle’s engine and the theft indicator light will flash on and off
rapidly. If failure repeats, bring your vehicle to your authorized dealer to
have the new key(s) programmed.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
73

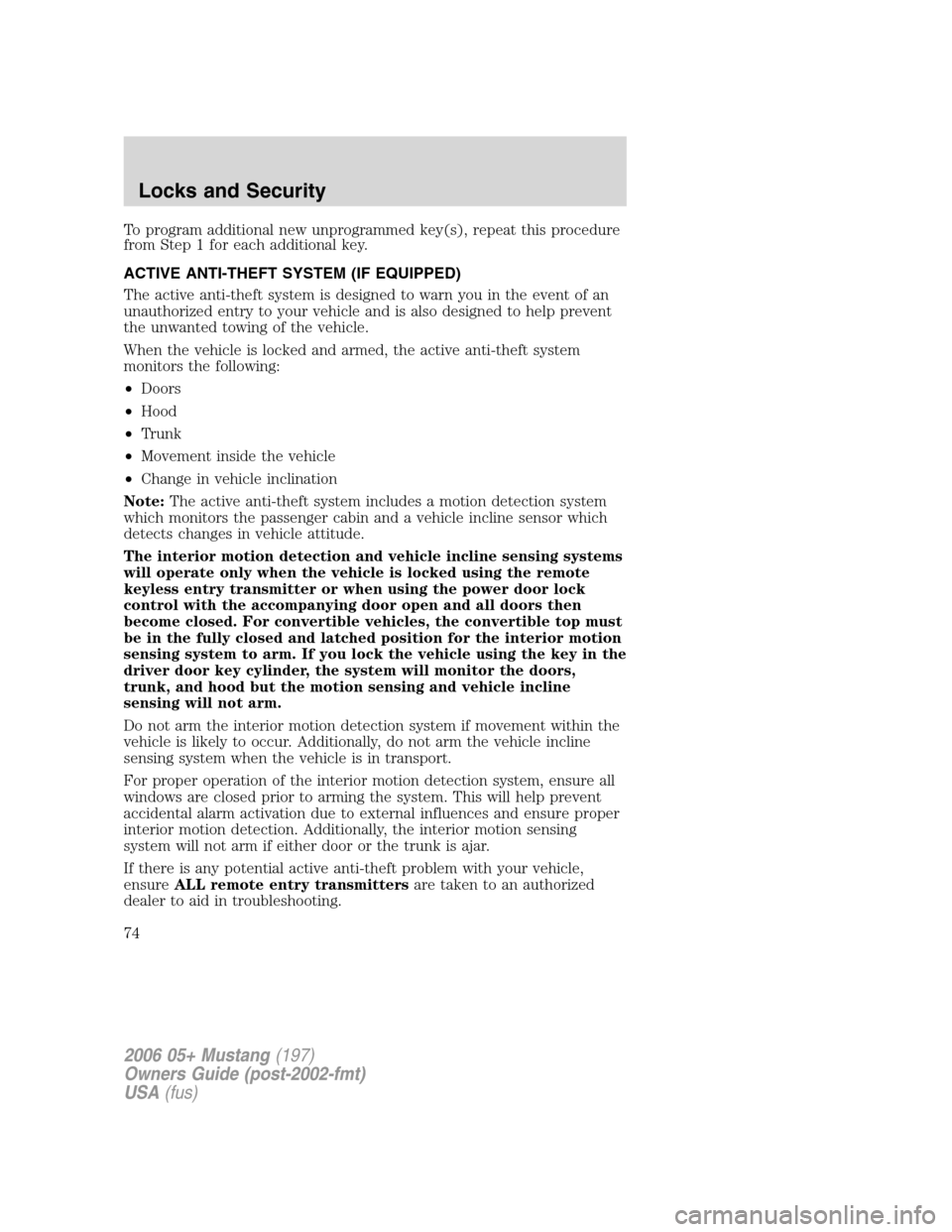

To program additional new unprogrammed key(s), repeat this procedure
from Step 1 for each additional key.
ACTIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
The active anti-theft system is designed to warn you in the event of an
unauthorized entry to your vehicle and is also designed to help prevent
the unwanted towing of the vehicle.
When the vehicle is locked and armed, the active anti-theft system
monitors the following:
•Doors
•Hood
•Trunk
•Movement inside the vehicle
•Change in vehicle inclination
Note:The active anti-theft system includes a motion detection system
which monitors the passenger cabin and a vehicle incline sensor which
detects changes in vehicle attitude.
The interior motion detection and vehicle incline sensing systems
will operate only when the vehicle is locked using the remote
keyless entry transmitter or when using the power door lock
control with the accompanying door open and all doors then
become closed. For convertible vehicles, the convertible top must
be in the fully closed and latched position for the interior motion
sensing system to arm. If you lock the vehicle using the key in the
driver door key cylinder, the system will monitor the doors,
trunk, and hood but the motion sensing and vehicle incline
sensing will not arm.
Do not arm the interior motion detection system if movement within the
vehicle is likely to occur. Additionally, do not arm the vehicle incline
sensing system when the vehicle is in transport.
For proper operation of the interior motion detection system, ensure all
windows are closed prior to arming the system. This will help prevent
accidental alarm activation due to external influences and ensure proper
interior motion detection. Additionally, the interior motion sensing
system will not arm if either door or the trunk is ajar.
If there is any potential active anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to an authorized
dealer to aid in troubleshooting.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
74

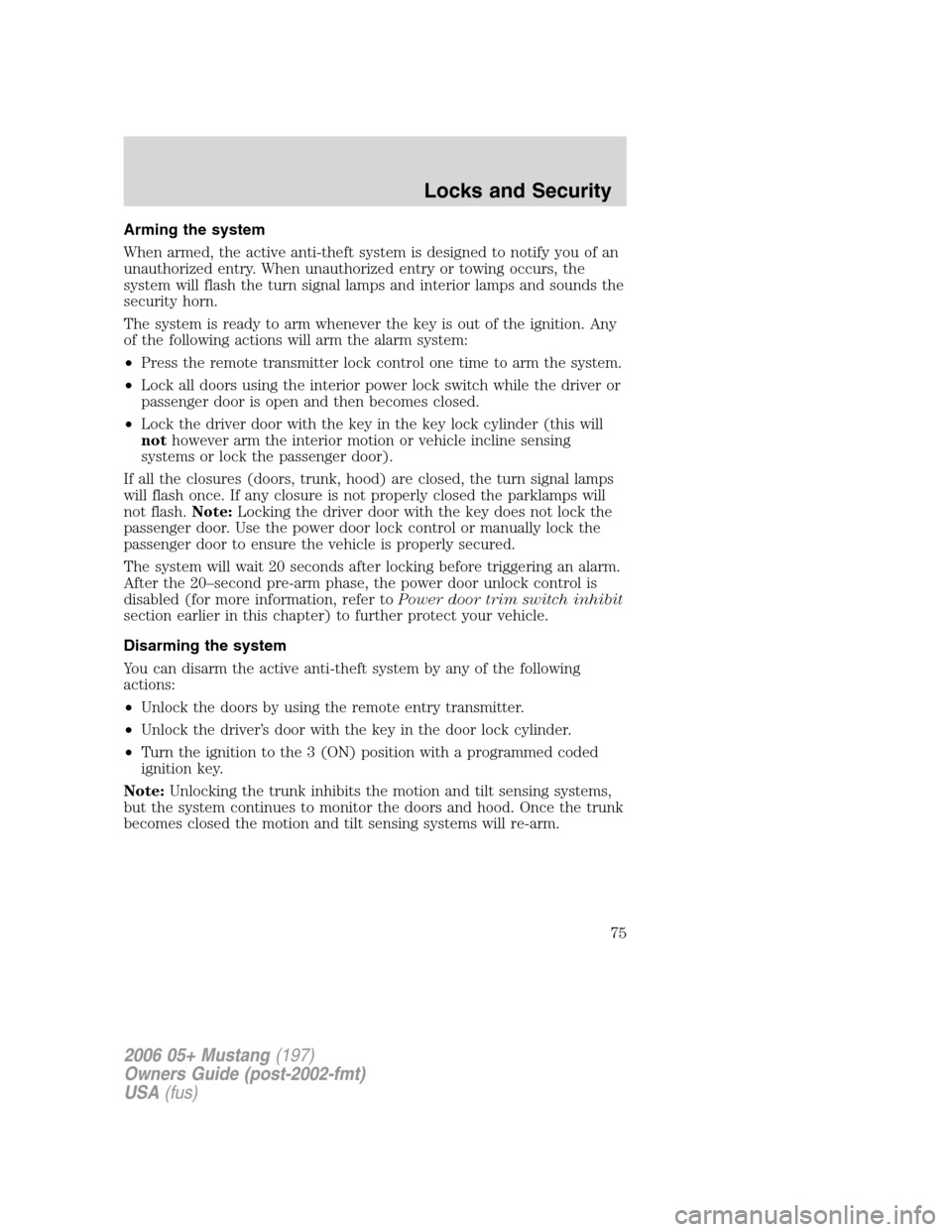

Arming the system
When armed, the active anti-theft system is designed to notify you of an
unauthorized entry. When unauthorized entry or towing occurs, the
system will flash the turn signal lamps and interior lamps and sounds the
security horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the remote transmitter lock control one time to arm the system.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then becomes closed.
•Lock the driver door with the key in the key lock cylinder (this will
nothowever arm the interior motion or vehicle incline sensing
systems or lock the passenger door).
If all the closures (doors, trunk, hood) are closed, the turn signal lamps
will flash once. If any closure is not properly closed the parklamps will
not flash.Note:Locking the driver door with the key does not lock the
passenger door. Use the power door lock control or manually lock the
passenger door to ensure the vehicle is properly secured.
The system will wait 20 seconds after locking before triggering an alarm.
After the 20–second pre-arm phase, the power door unlock control is
disabled (for more information, refer toPower door trim switch inhibit
section earlier in this chapter) to further protect your vehicle.
Disarming the system
You can disarm the active anti-theft system by any of the following
actions:
•Unlock the doors by using the remote entry transmitter.
•Unlock the driver’s door with the key in the door lock cylinder.
•Turn the ignition to the 3 (ON) position with a programmed coded
ignition key.
Note:Unlocking the trunk inhibits the motion and tilt sensing systems,
but the system continues to monitor the doors and hood. Once the trunk
becomes closed the motion and tilt sensing systems will re-arm.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
75

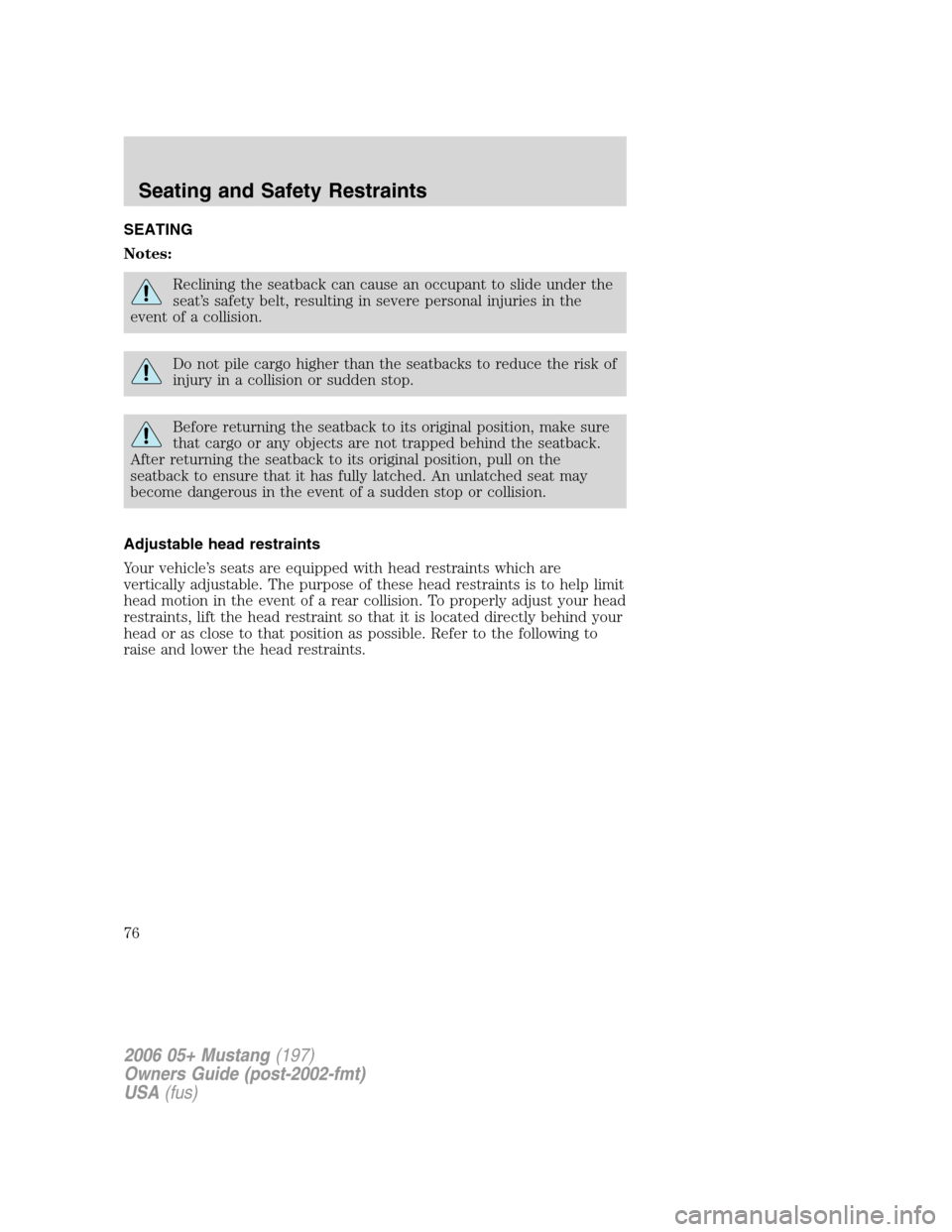

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Adjustable head restraints
Your vehicle’s seats are equipped with head restraints which are
vertically adjustable. The purpose of these head restraints is to help limit
head motion in the event of a rear collision. To properly adjust your head
restraints, lift the head restraint so that it is located directly behind your
head or as close to that position as possible. Refer to the following to
raise and lower the head restraints.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
76

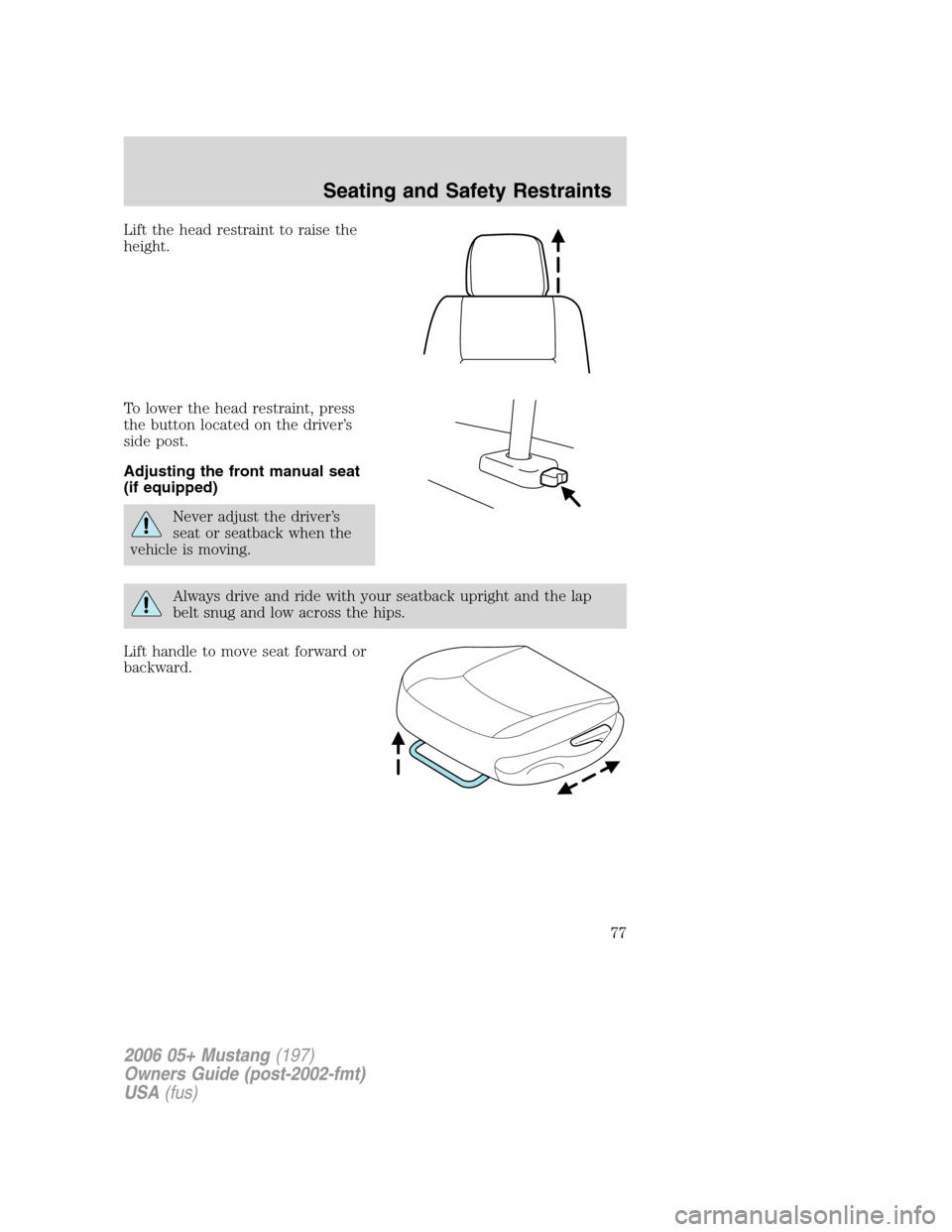

Lift the head restraint to raise the
height.
To lower the head restraint, press
the button located on the driver’s
side post.
Adjusting the front manual seat
(if equipped)
Never adjust the driver’s
seat or seatback when the
vehicle is moving.
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
Lift handle to move seat forward or
backward.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
77

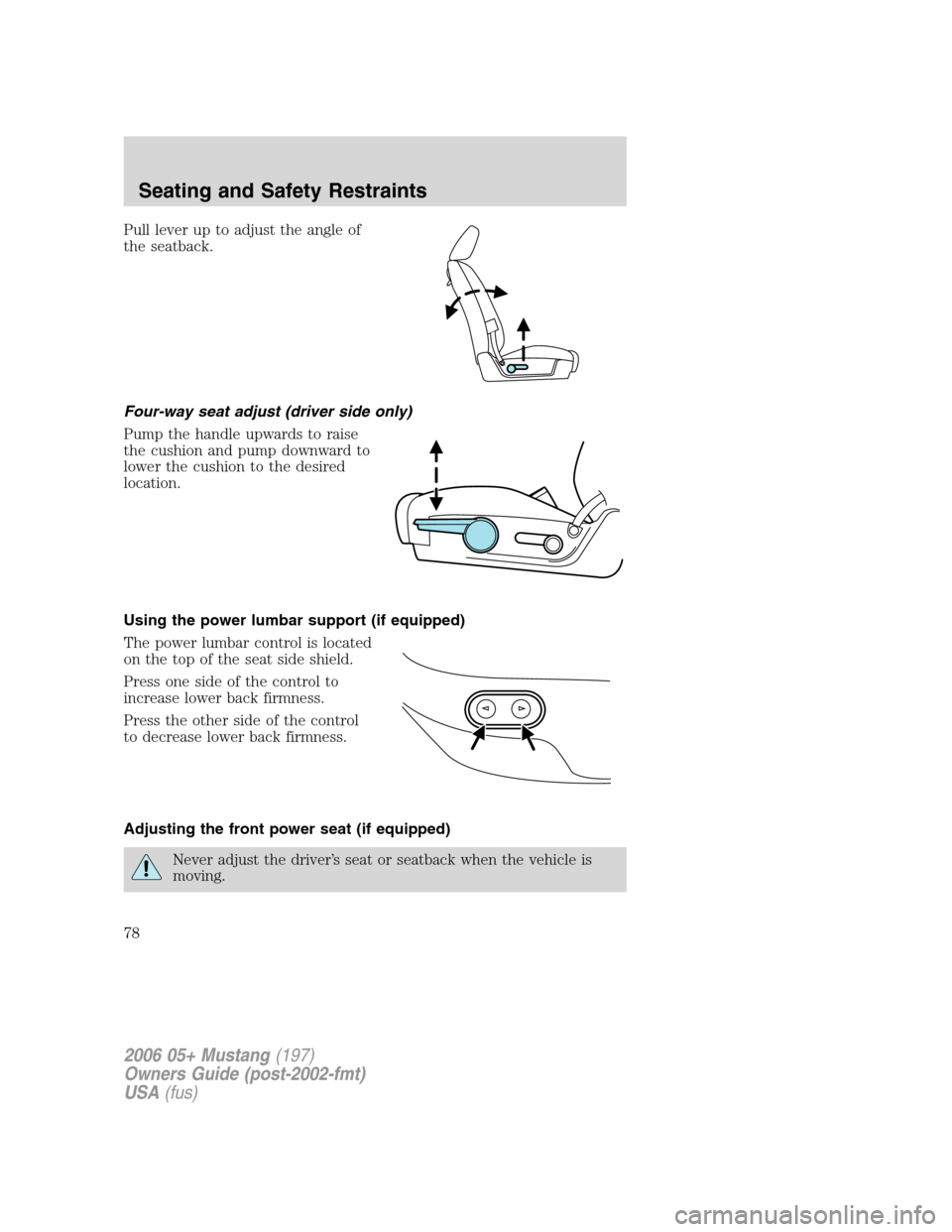

Pull lever up to adjust the angle of
the seatback.
Four-way seat adjust (driver side only)
Pump the handle upwards to raise
the cushion and pump downward to
lower the cushion to the desired
location.
Using the power lumbar support (if equipped)
The power lumbar control is located
on the top of the seat side shield.
Press one side of the control to
increase lower back firmness.
Press the other side of the control
to decrease lower back firmness.
Adjusting the front power seat (if equipped)
Never adjust the driver’s seat or seatback when the vehicle is
moving.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
78

Do not pile cargo higher than the seatbacks to avoid injuring
people in a collision or sudden stop.
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Sitting improperly out of position or with the seat back reclined
too far can take off weight from the seat cushion and affect the
decision of the passenger sensing system, resulting in serious injury or
death in a crash. Always sit upright against your seatback, with your
feet on the floor.
To reduce the risk of possible serious injury: Do not hang objects
off seat back or stow objects in the seatback map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check the “passenger airbag off” or
“pass airbag off” indicator lamp for proper airbag status. Refer toFront
passenger sensing systemsection for additional details. Failure to
follow these instructions may interfere with the front passenger seat
sensing system.
The control is located on the
outboard side of the driver’s seat.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
79

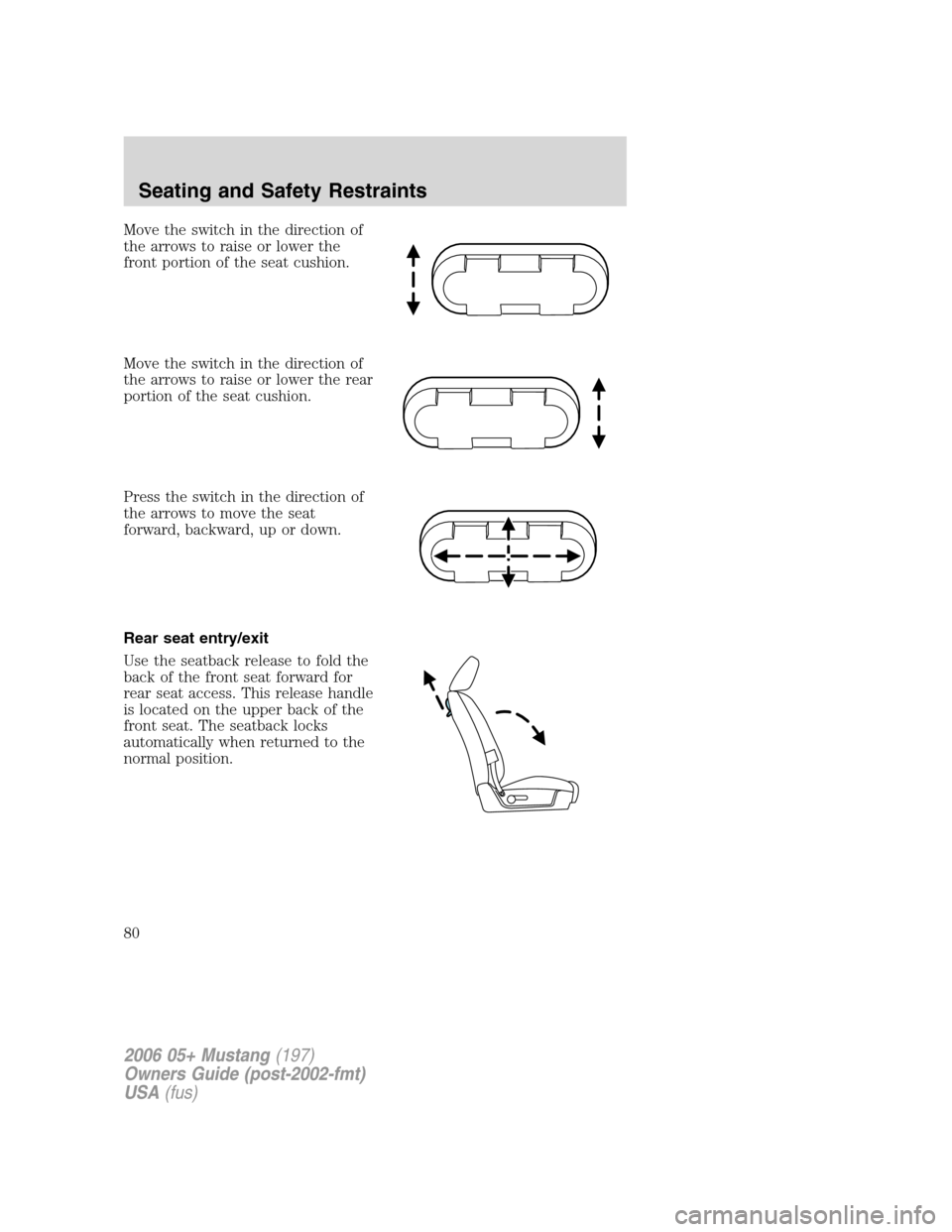

Move the switch in the direction of
the arrows to raise or lower the
front portion of the seat cushion.
Move the switch in the direction of
the arrows to raise or lower the rear
portion of the seat cushion.
Press the switch in the direction of
the arrows to move the seat
forward, backward, up or down.
Rear seat entry/exit
Use the seatback release to fold the
back of the front seat forward for
rear seat access. This release handle
is located on the upper back of the
front seat. The seatback locks
automatically when returned to the
normal position.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
80
