FORD MUSTANG 2007 5.G Shelby GT500 Supplement Manual

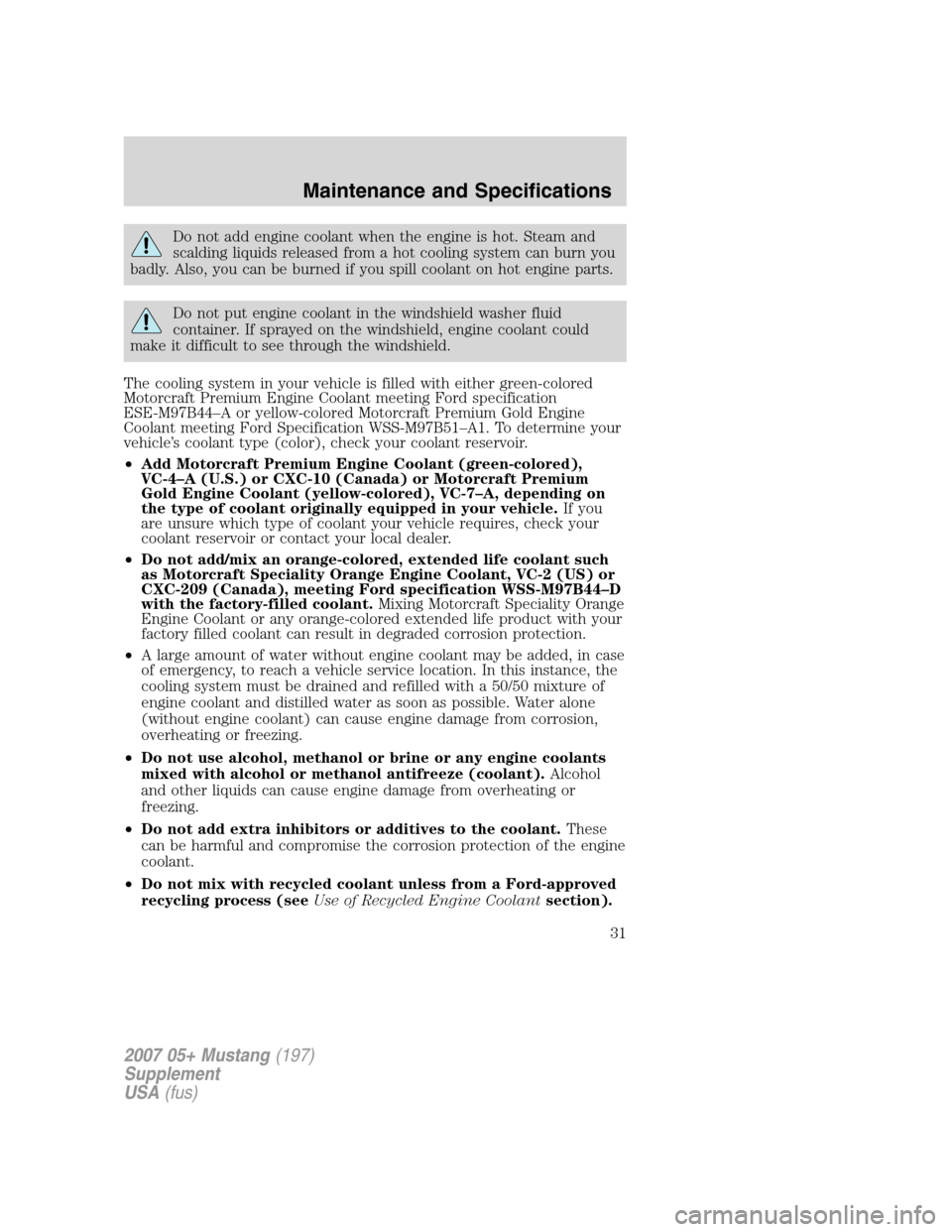

Do not add engine coolant when the engine is hot. Steam and
scalding liquids released from a hot cooling system can burn you
badly. Also, you can be burned if you spill coolant on hot engine parts.
Do not put engine coolant in the windshield washer fluid
container. If sprayed on the windshield, engine coolant could
make it difficult to see through the windshield.
The cooling system in your vehicle is filled with either green-colored
Motorcraft Premium Engine Coolant meeting Ford specification
ESE-M97B44–A or yellow-colored Motorcraft Premium Gold Engine
Coolant meeting Ford Specification WSS-M97B51–A1. To determine your
vehicle’s coolant type (color), check your coolant reservoir.
•Add Motorcraft Premium Engine Coolant (green-colored),
VC-4–A (U.S.) or CXC-10 (Canada) or Motorcraft Premium
Gold Engine Coolant (yellow-colored), VC-7–A, depending on
the type of coolant originally equipped in your vehicle.If you
are unsure which type of coolant your vehicle requires, check your
coolant reservoir or contact your local dealer.
•Do not add/mix an orange-colored, extended life coolant such
as Motorcraft Speciality Orange Engine Coolant, VC-2 (US) or
CXC-209 (Canada), meeting Ford specification WSS-M97B44–D
with the factory-filled coolant.Mixing Motorcraft Speciality Orange
Engine Coolant or any orange-colored extended life product with your
factory filled coolant can result in degraded corrosion protection.
•A large amount of water without engine coolant may be added, in case
of emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
engine coolant and distilled water as soon as possible. Water alone
(without engine coolant) can cause engine damage from corrosion,
overheating or freezing.
•Do not use alcohol, methanol or brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
•Do not mix with recycled coolant unless from a Ford-approved
recycling process (seeUse of Recycled Engine Coolantsection).
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
31

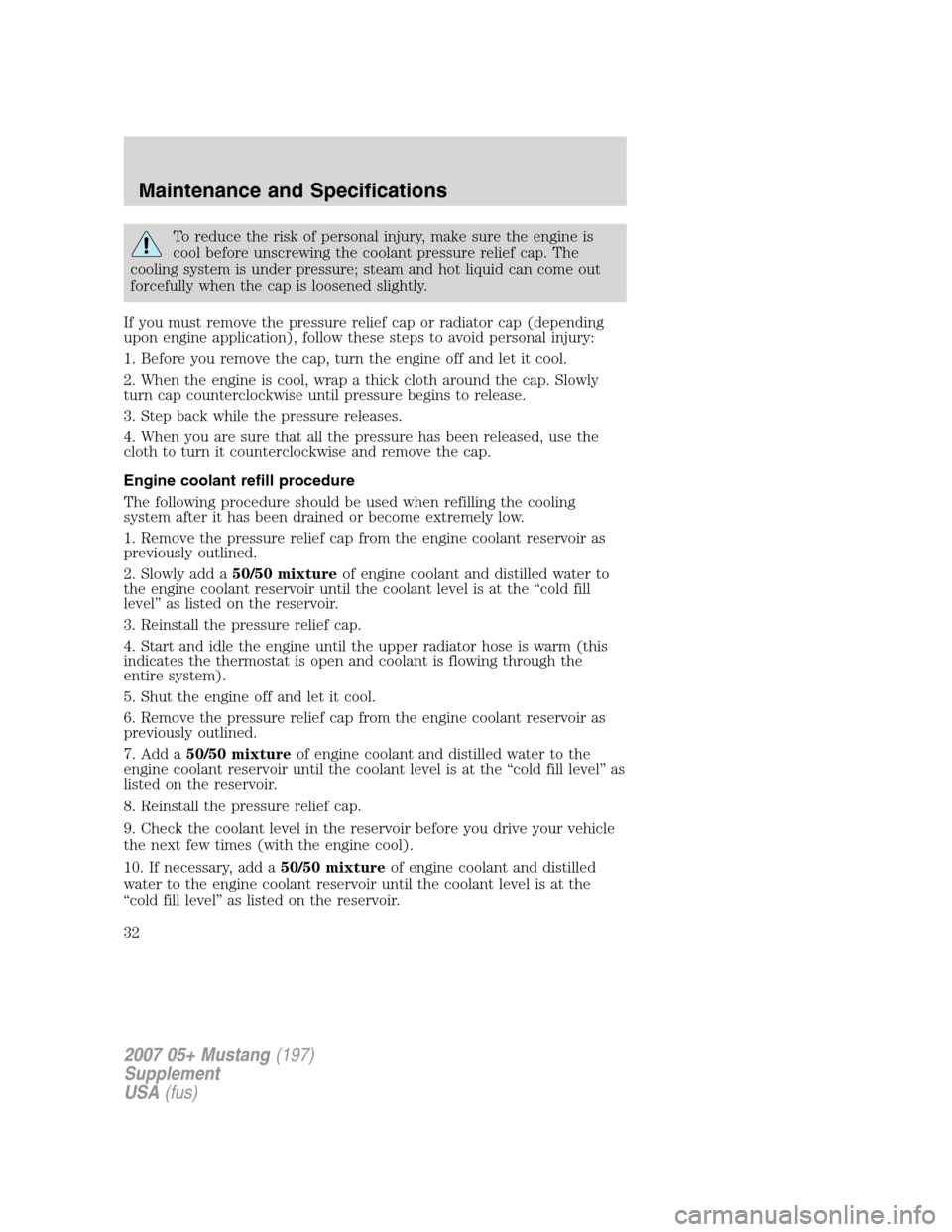

To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or radiator cap (depending
upon engine application), follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the cap. Slowly
turn cap counterclockwise until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Engine coolant refill procedure
The following procedure should be used when refilling the cooling
system after it has been drained or become extremely low.
1. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
2. Slowly add a50/50 mixtureof engine coolant and distilled water to
the engine coolant reservoir until the coolant level is at the “cold fill
level” as listed on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator hose is warm (this
indicates the thermostat is open and coolant is flowing through the
entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
7. Add a50/50 mixtureof engine coolant and distilled water to the
engine coolant reservoir until the coolant level is at the “cold fill level” as
listed on the reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before you drive your vehicle
the next few times (with the engine cool).
10. If necessary, add a50/50 mixtureof engine coolant and distilled
water to the engine coolant reservoir until the coolant level is at the
“cold fill level” as listed on the reservoir.
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
32

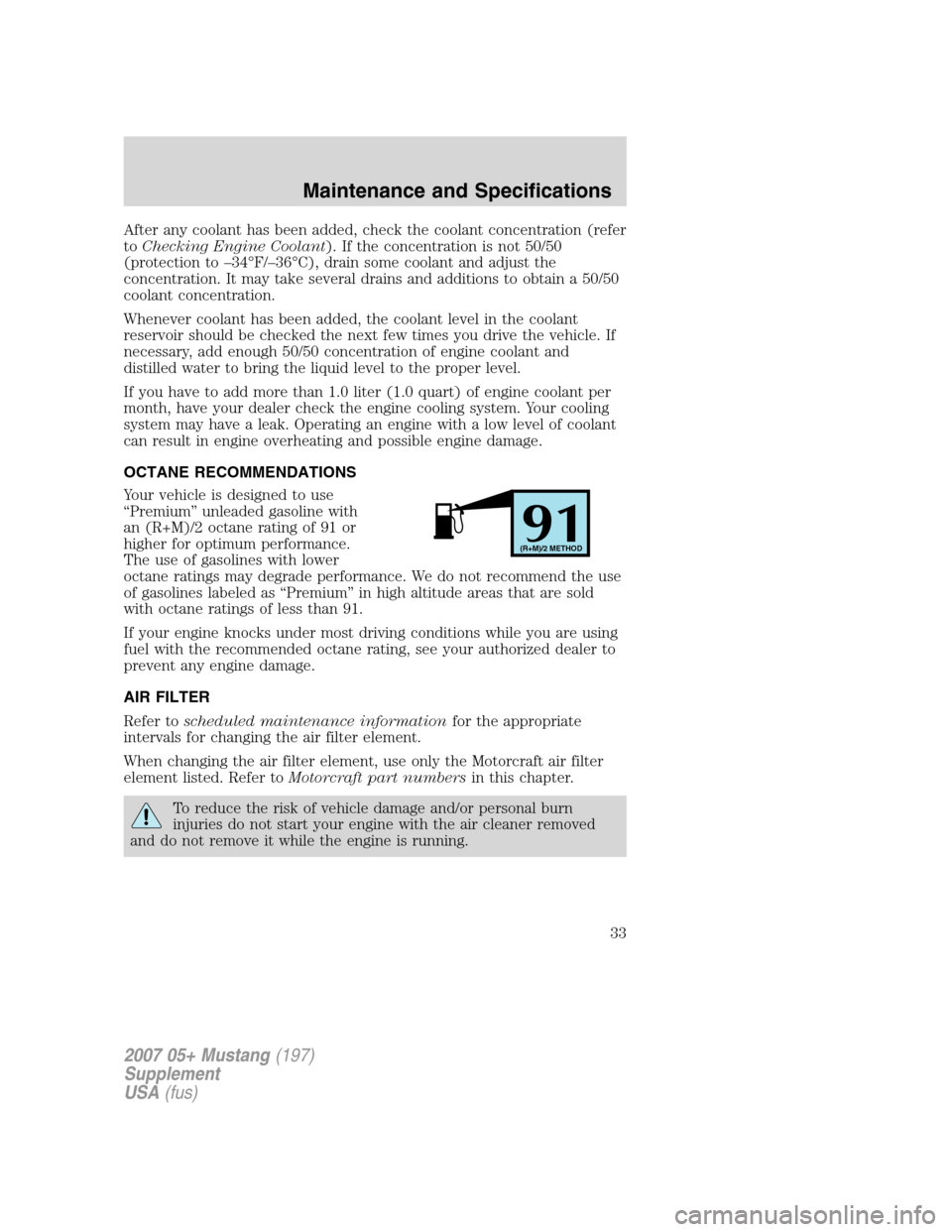

After any coolant has been added, check the coolant concentration (refer
toChecking Engine Coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 liter (1.0 quart) of engine coolant per
month, have your dealer check the engine cooling system. Your cooling
system may have a leak. Operating an engine with a low level of coolant
can result in engine overheating and possible engine damage.
OCTANE RECOMMENDATIONS
Your vehicle is designed to use
“Premium” unleaded gasoline with
an (R+M)/2 octane rating of 91 or
higher for optimum performance.
The use of gasolines with lower
octane ratings may degrade performance. We do not recommend the use
of gasolines labeled as “Premium” in high altitude areas that are sold
with octane ratings of less than 91.
If your engine knocks under most driving conditions while you are using
fuel with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
91(R+M)/2 METHOD
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
33

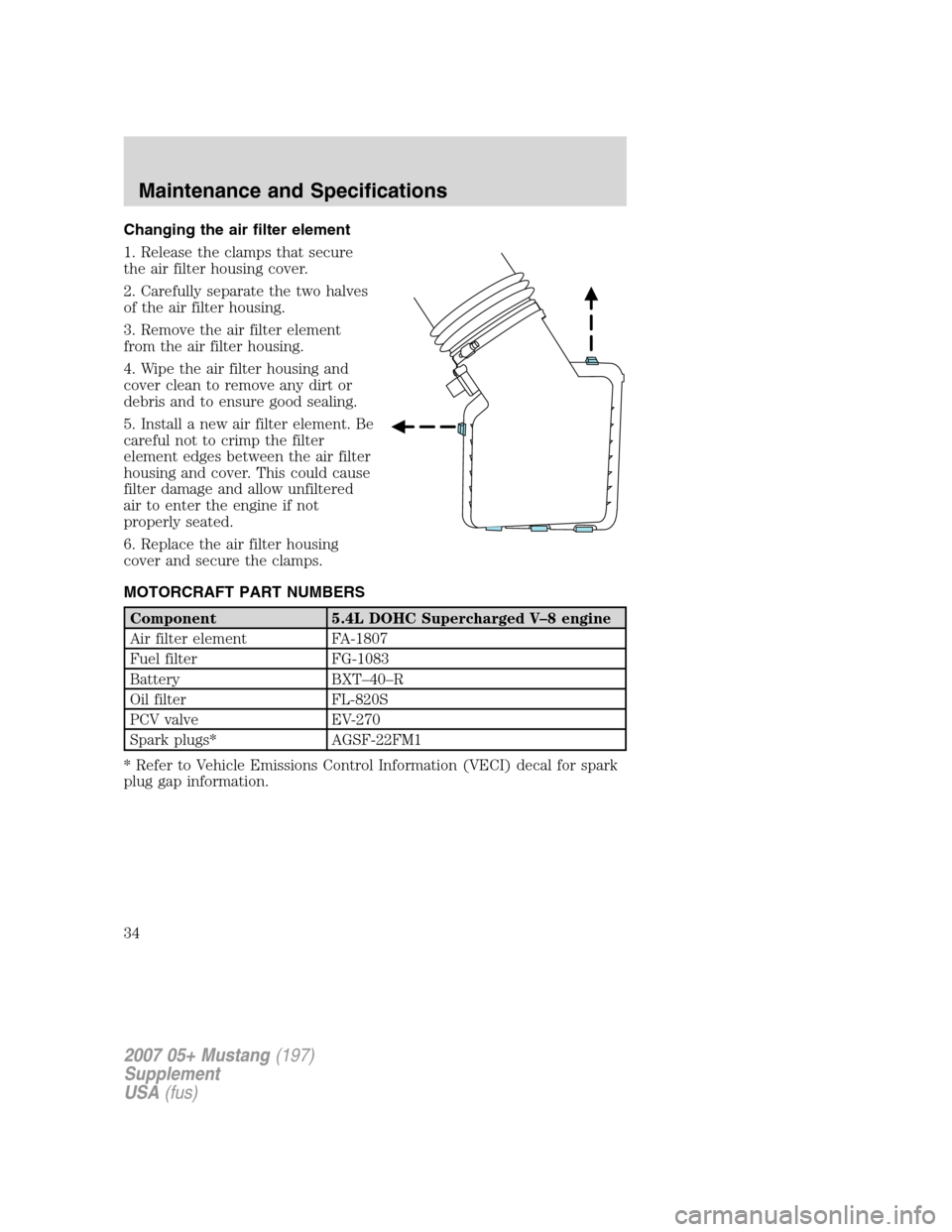

Changing the air filter element
1. Release the clamps that secure
the air filter housing cover.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the air filter housing.
4. Wipe the air filter housing and
cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
6. Replace the air filter housing
cover and secure the clamps.
MOTORCRAFT PART NUMBERS
Component 5.4L DOHC Supercharged V–8 engine
Air filter element FA-1807
Fuel filter FG-1083
Battery BXT–40–R
Oil filter FL-820S
PCV valve EV-270
Spark plugs* AGSF-22FM1
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
34

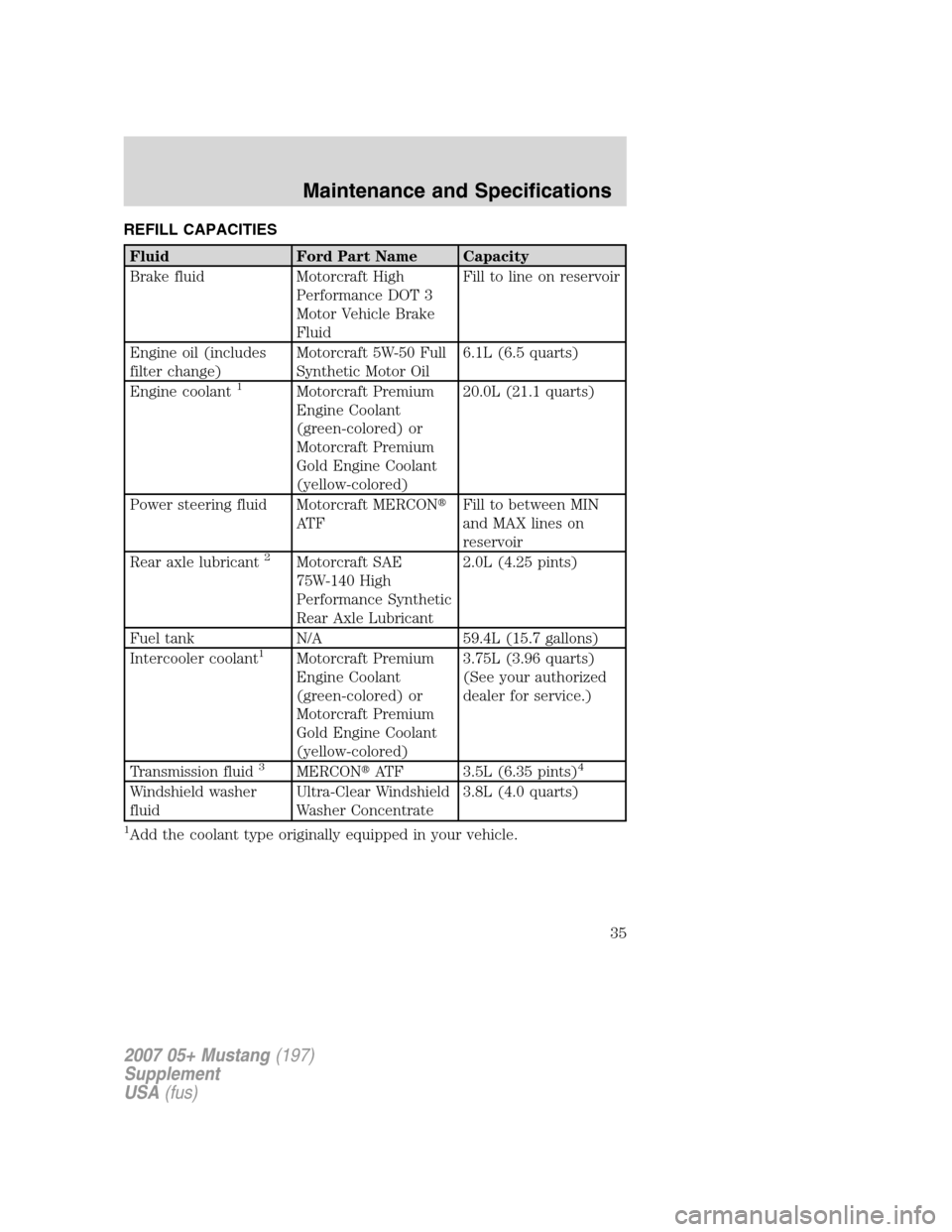

REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine oil (includes
filter change)Motorcraft 5W-50 Full
Synthetic Motor Oil6.1L (6.5 quarts)
Engine coolant
1Motorcraft Premium
Engine Coolant
(green-colored) or
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)20.0L (21.1 quarts)
Power steering fluid Motorcraft MERCON
AT FFill to between MIN
and MAX lines on
reservoir
Rear axle lubricant
2Motorcraft SAE
75W-140 High
Performance Synthetic
Rear Axle Lubricant2.0L (4.25 pints)
Fuel tank N/A 59.4L (15.7 gallons)
Intercooler coolant
1Motorcraft Premium
Engine Coolant
(green-colored) or
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)3.75L (3.96 quarts)
(See your authorized
dealer for service.)
Transmission fluid
3MERCONATF 3.5L (6.35 pints)4
Windshield washer
fluidUltra-Clear Windshield
Washer Concentrate3.8L (4.0 quarts)
1Add the coolant type originally equipped in your vehicle.
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
35

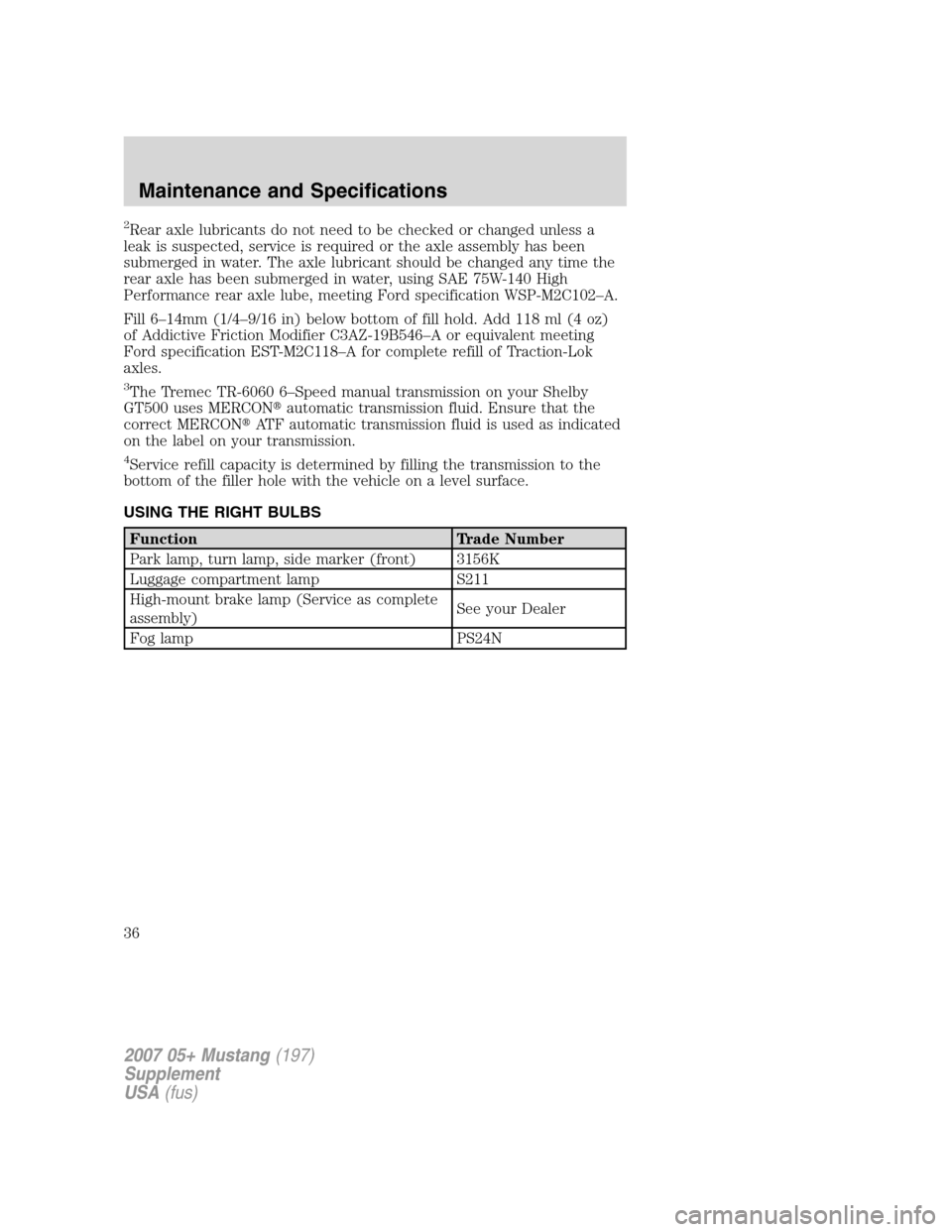

2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water, using SAE 75W-140 High
Performance rear axle lube, meeting Ford specification WSP-M2C102–A.
Fill 6–14mm (1/4–9/16 in) below bottom of fill hold. Add 118 ml (4 oz)
of Addictive Friction Modifier C3AZ-19B546–A or equivalent meeting
Ford specification EST-M2C118–A for complete refill of Traction-Lok
axles.
3The Tremec TR-6060 6–Speed manual transmission on your Shelby
GT500 uses MERCONautomatic transmission fluid. Ensure that the
correct MERCONATF automatic transmission fluid is used as indicated
on the label on your transmission.
4Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
USING THE RIGHT BULBS
Function Trade Number
Park lamp, turn lamp, side marker (front) 3156K
Luggage compartment lamp S211
High-mount brake lamp (Service as complete
assembly)See your Dealer
Fog lamp PS24N
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
36

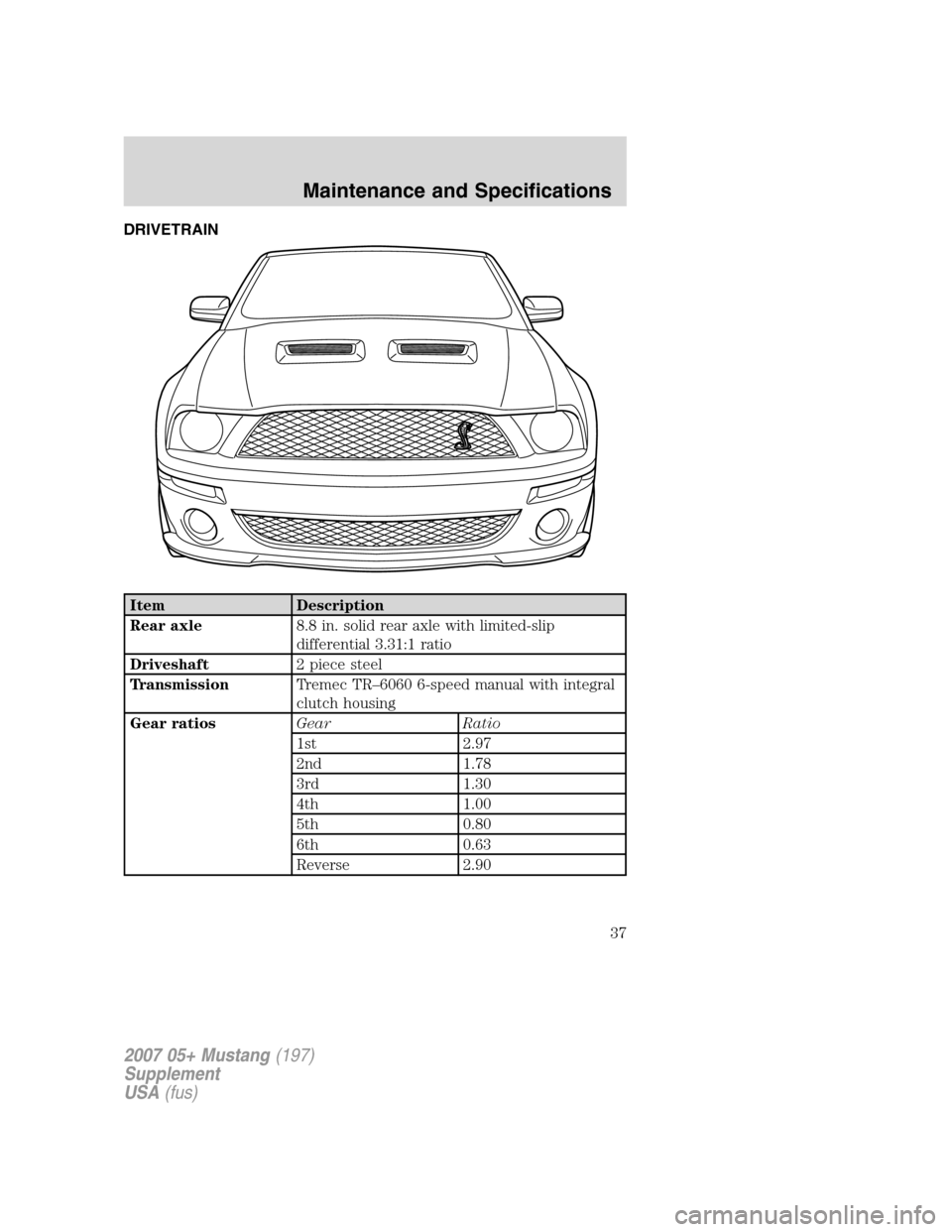

DRIVETRAIN
Item Description
Rear axle8.8 in. solid rear axle with limited-slip
differential 3.31:1 ratio
Driveshaft2 piece steel
TransmissionTremec TR–6060 6-speed manual with integral
clutch housing
Gear ratiosGear Ratio
1st 2.97
2nd 1.78
3rd 1.30
4th 1.00
5th 0.80
6th 0.63
Reverse 2.90
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
37

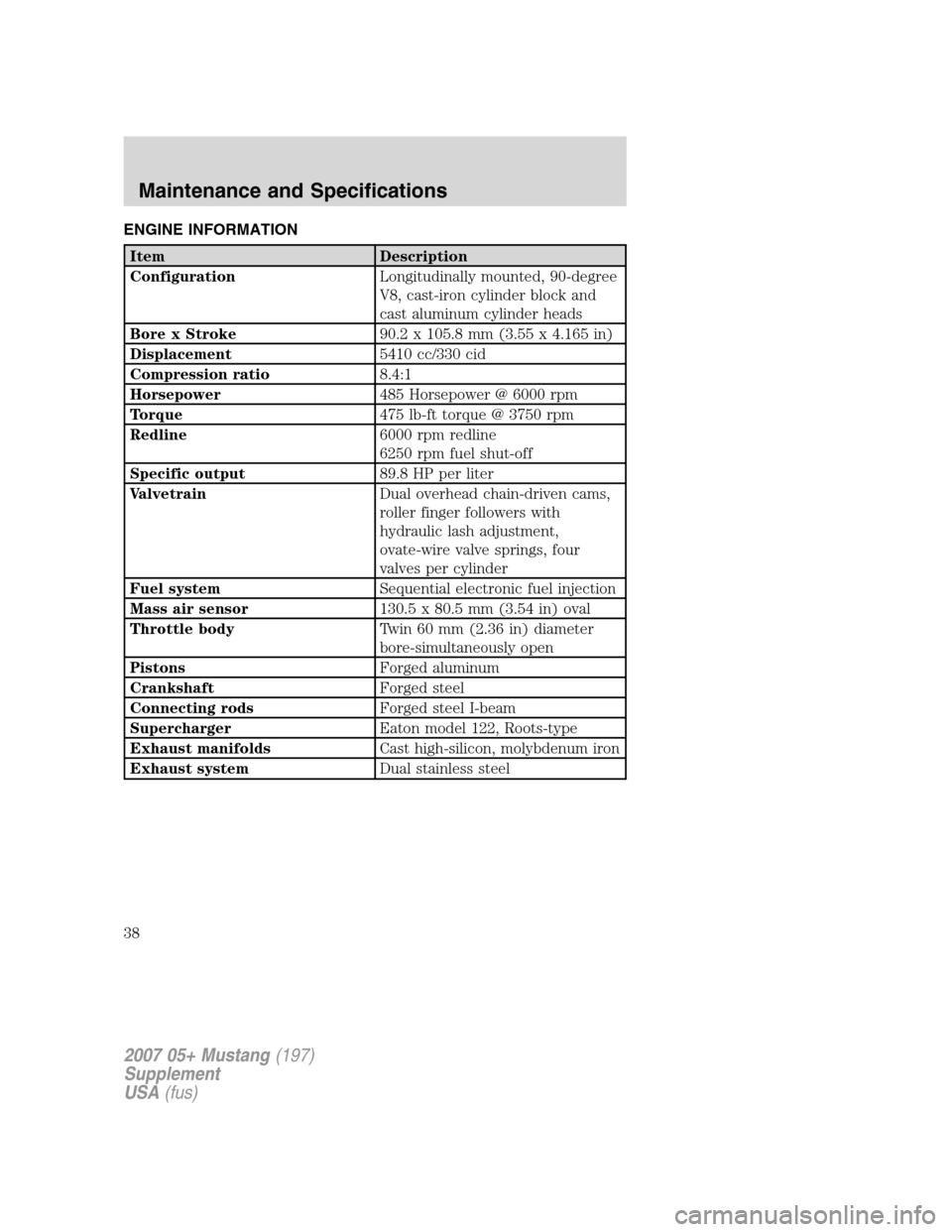

ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast-iron cylinder block and
cast aluminum cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in)
Displacement5410 cc/330 cid
Compression ratio8.4:1
Horsepower485 Horsepower @ 6000 rpm
Torque475 lb-ft torque @ 3750 rpm
Redline6000 rpm redline
6250 rpm fuel shut-off
Specific output89.8 HP per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
Fuel systemSequential electronic fuel injection
Mass air sensor130.5 x 80.5 mm (3.54 in) oval
Throttle bodyTwin 60 mm (2.36 in) diameter
bore-simultaneously open
PistonsForged aluminum
CrankshaftForged steel
Connecting rodsForged steel I-beam
SuperchargerEaton model 122, Roots-type
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
38

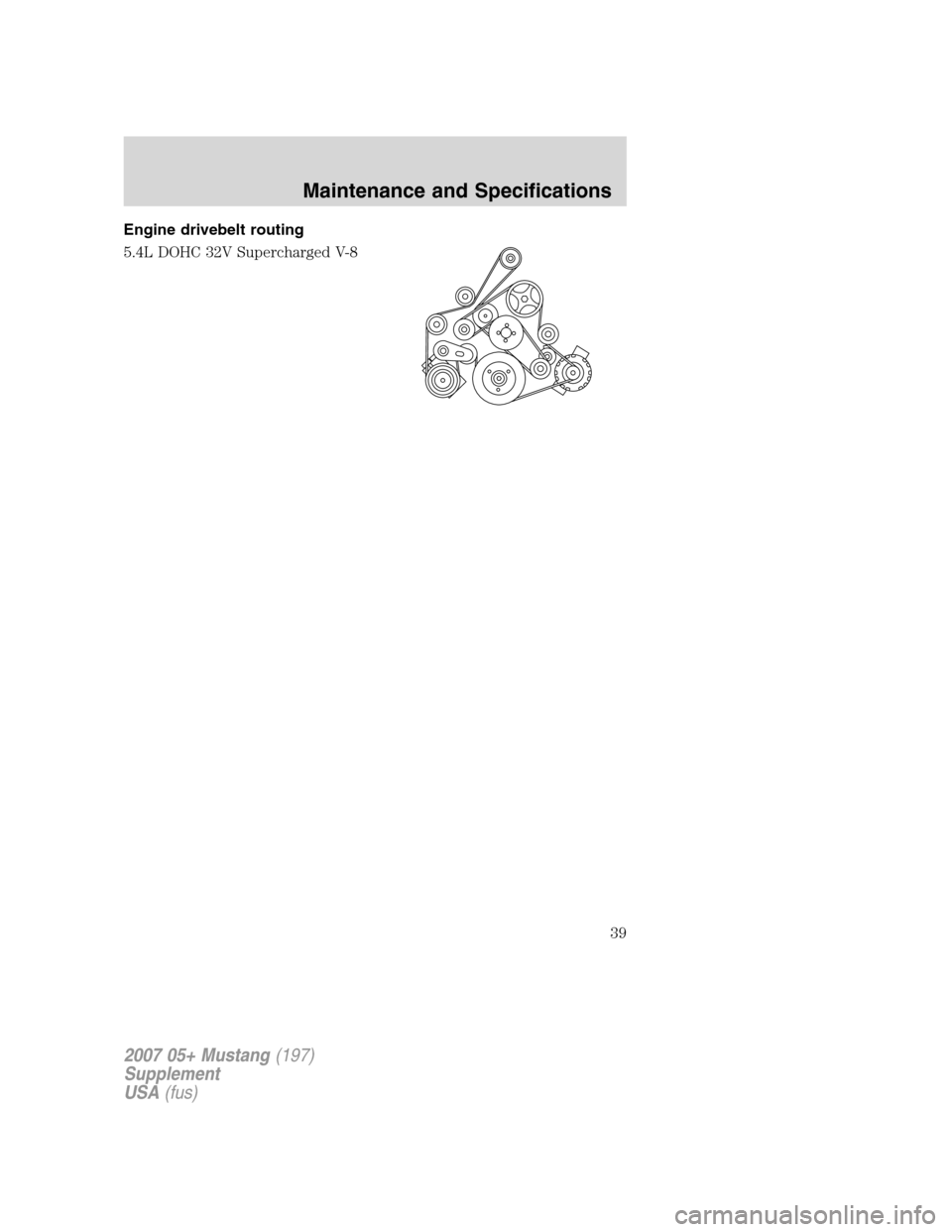

Engine drivebelt routing
5.4L DOHC 32V Supercharged V-8
2007 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
39

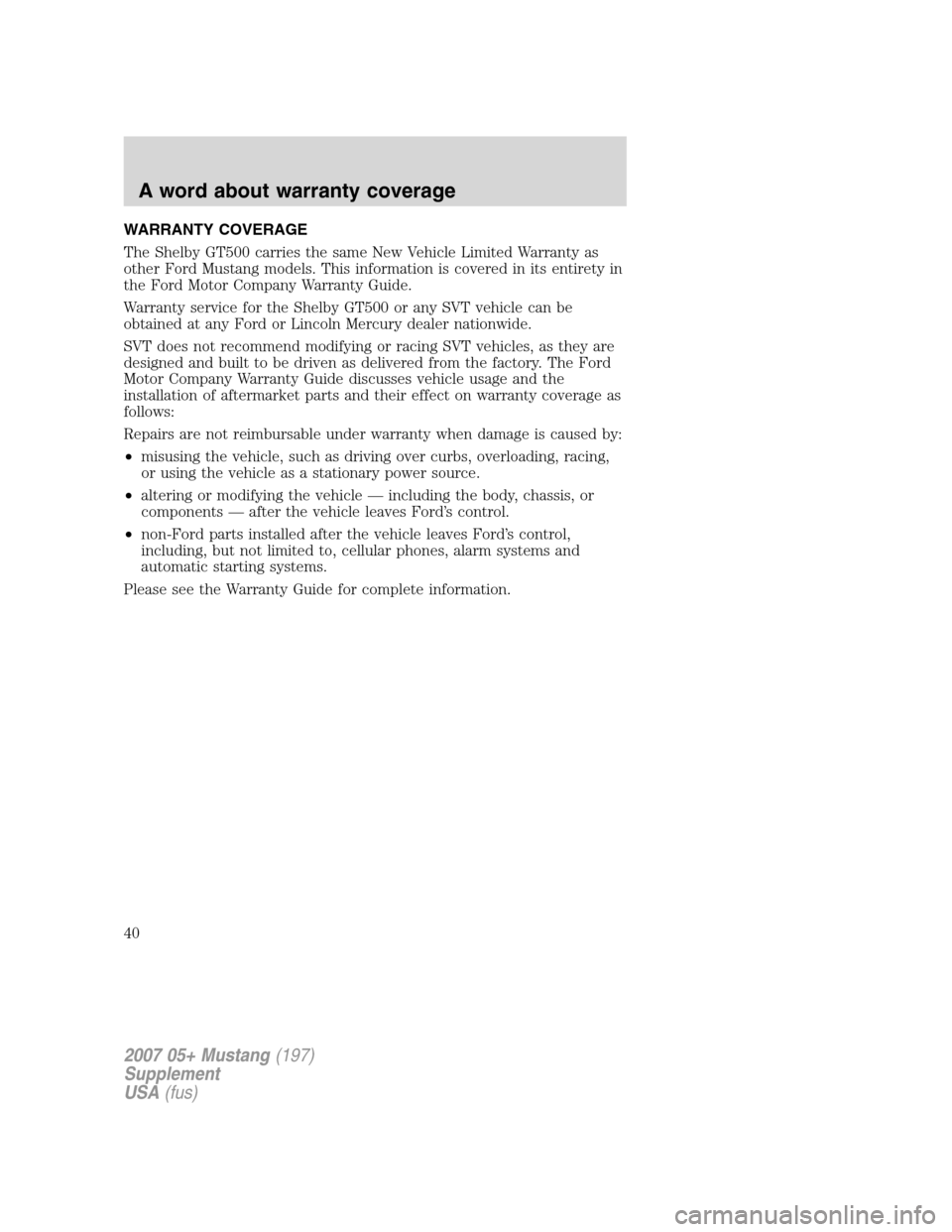

WARRANTY COVERAGE
The Shelby GT500 carries the same New Vehicle Limited Warranty as
other Ford Mustang models. This information is covered in its entirety in
the Ford Motor Company Warranty Guide.
Warranty service for the Shelby GT500 or any SVT vehicle can be
obtained at any Ford or Lincoln Mercury dealer nationwide.
SVT does not recommend modifying or racing SVT vehicles, as they are
designed and built to be driven as delivered from the factory. The Ford
Motor Company Warranty Guide discusses vehicle usage and the
installation of aftermarket parts and their effect on warranty coverage as
follows:
Repairs are not reimbursable under warranty when damage is caused by:
•misusing the vehicle, such as driving over curbs, overloading, racing,
or using the vehicle as a stationary power source.
•altering or modifying the vehicle — including the body, chassis, or
components — after the vehicle leaves Ford’s control.
•non-Ford parts installed after the vehicle leaves Ford’s control,
including, but not limited to, cellular phones, alarm systems and
automatic starting systems.
Please see the Warranty Guide for complete information.
2007 05+ Mustang(197)
Supplement
USA(fus)
A word about warranty coverage
40
