Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Windshield washer fluid 4.0 quarts (3.8L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank16.0 gallons
(60.6L)——
1Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok axles.
Ford design rear axles contain a synthetic lubricant that does not require changing unless the axle
has been submerged in water.2Automatic transmissions that require MERCONV should only use MERCONV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Approximate dry capacity, including cooler and tubes. Fluid level should be checked by an
authorized dealer.5Service refill capacity is covered underchecking and adding manual transmission fluidin this
chapter.6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L) and the API
Certification mark.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Maintenance and Specifications
281

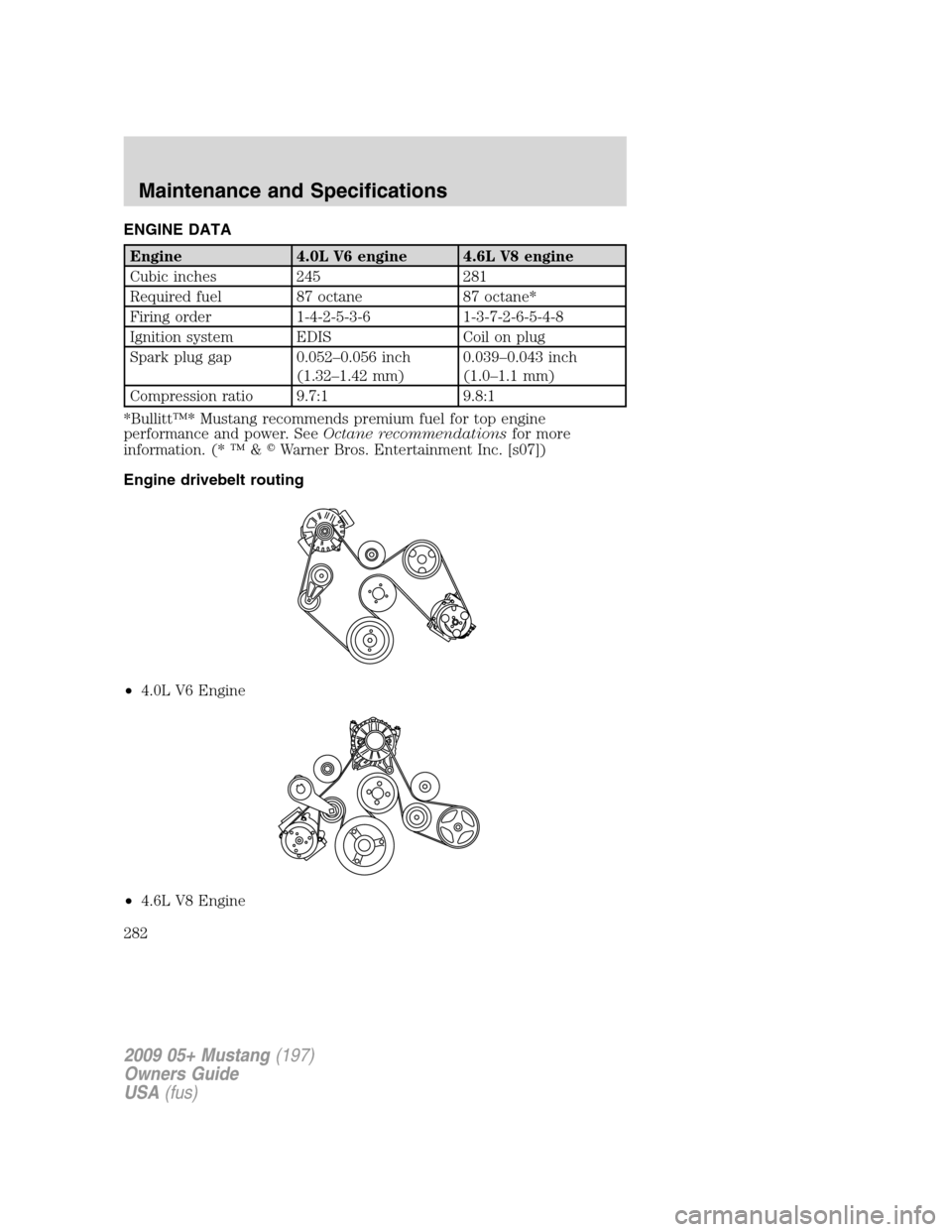

ENGINE DATA
Engine 4.0L V6 engine 4.6L V8 engine
Cubic inches 245 281
Required fuel 87 octane 87 octane*
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.039–0.043 inch
(1.0–1.1 mm)
Compression ratio 9.7:1 9.8:1
*Bullitt™* Mustang recommends premium fuel for top engine
performance and power. SeeOctane recommendationsfor more
information. (* ™ &Warner Bros. Entertainment Inc. [s07])
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Maintenance and Specifications
282

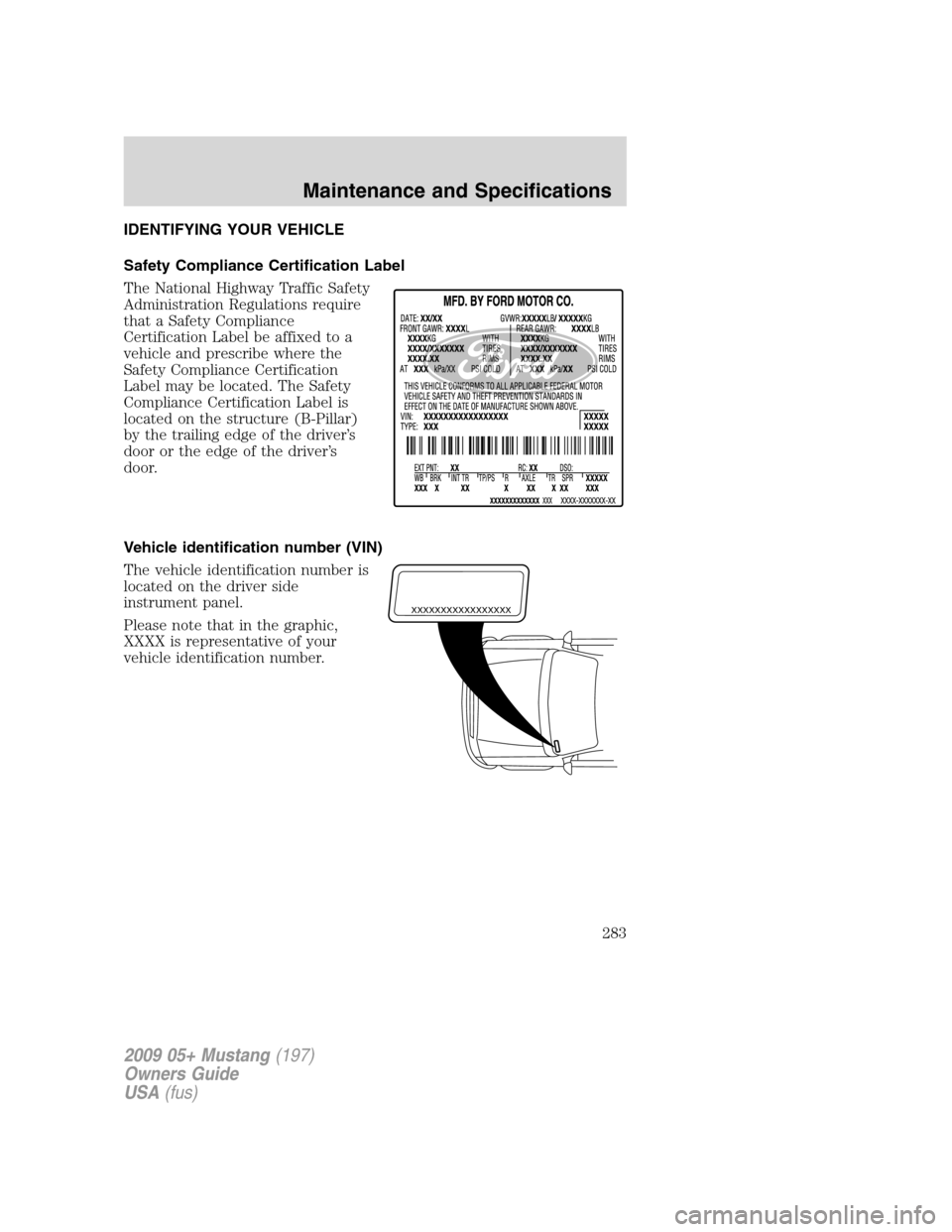

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Maintenance and Specifications
283

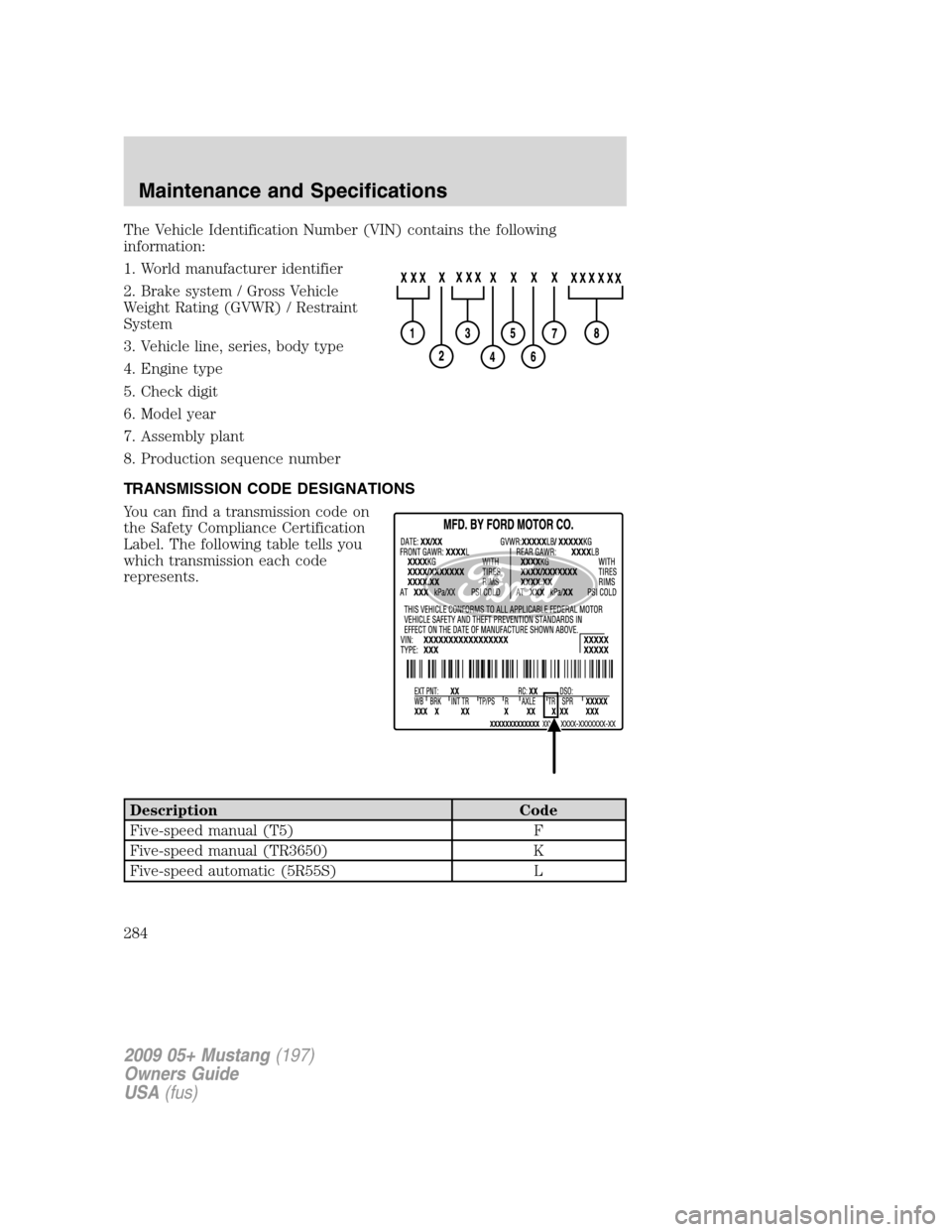

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed manual (T5) F
Five-speed manual (TR3650) K
Five-speed automatic (5R55S) L
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Maintenance and Specifications
284

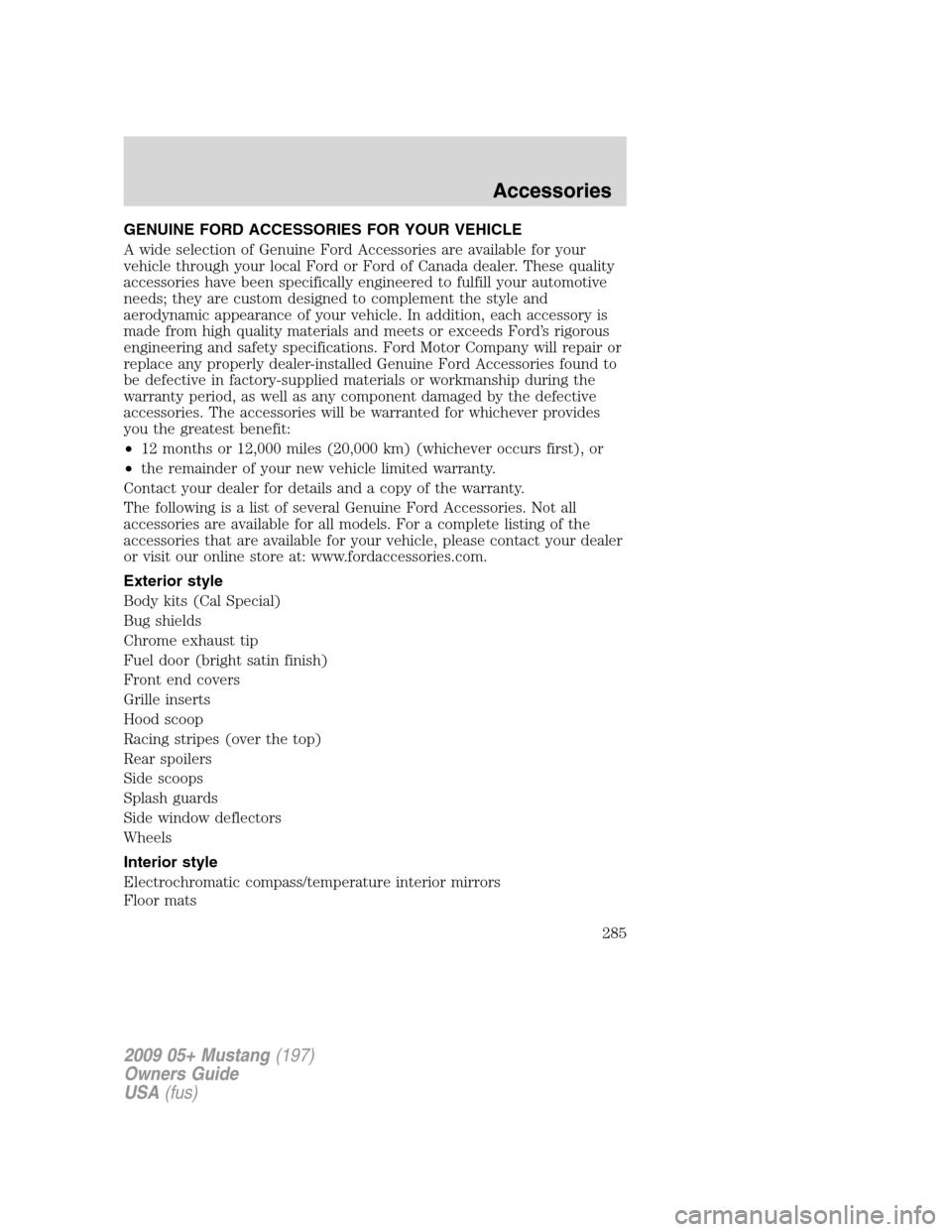

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Body kits (Cal Special)
Bug shields
Chrome exhaust tip
Fuel door (bright satin finish)
Front end covers
Grille inserts
Hood scoop
Racing stripes (over the top)
Rear spoilers
Side scoops
Splash guards
Side window deflectors
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Accessories
285

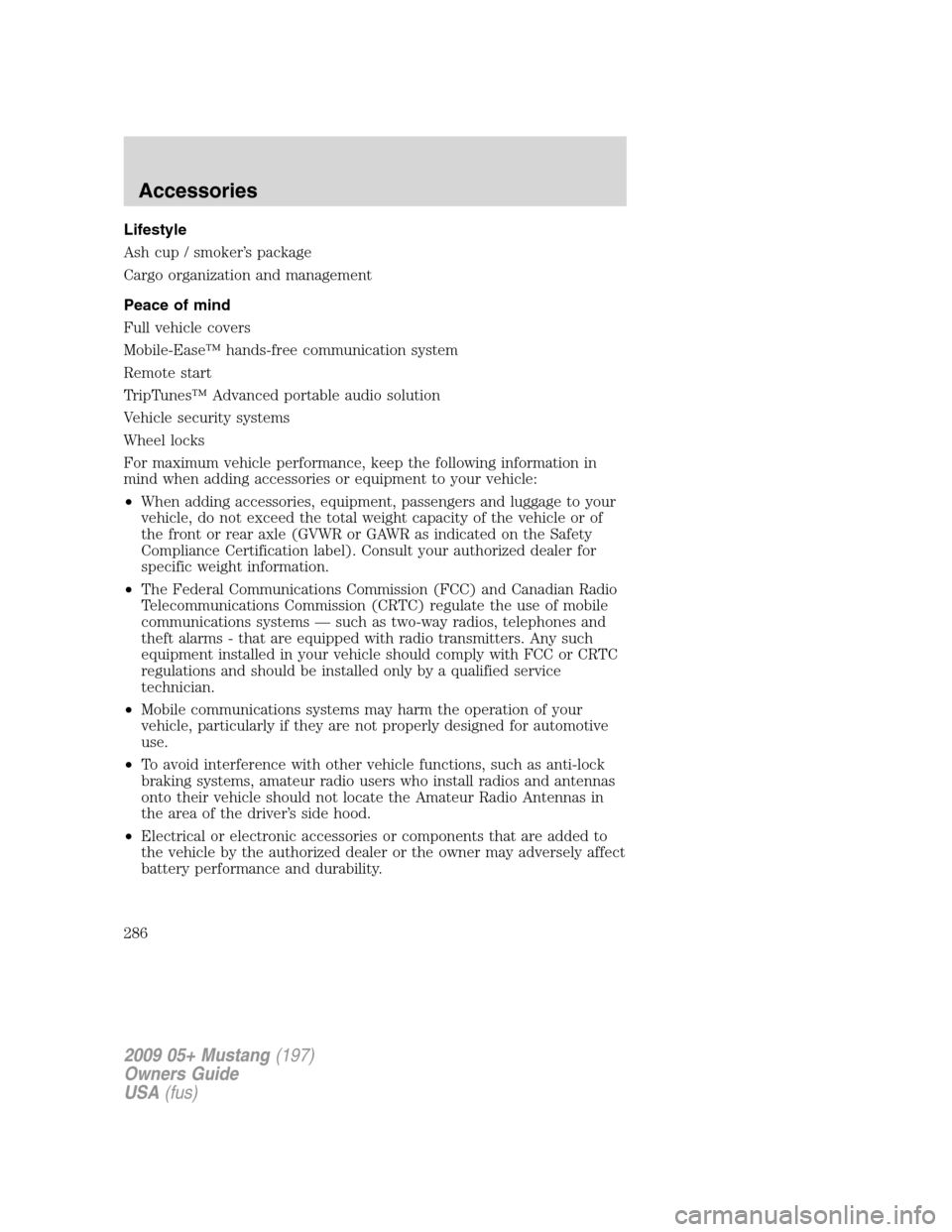

Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Peace of mind
Full vehicle covers
Mobile-Ease™ hands-free communication system
Remote start
TripTunes™ Advanced portable audio solution
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Accessories
286

A
