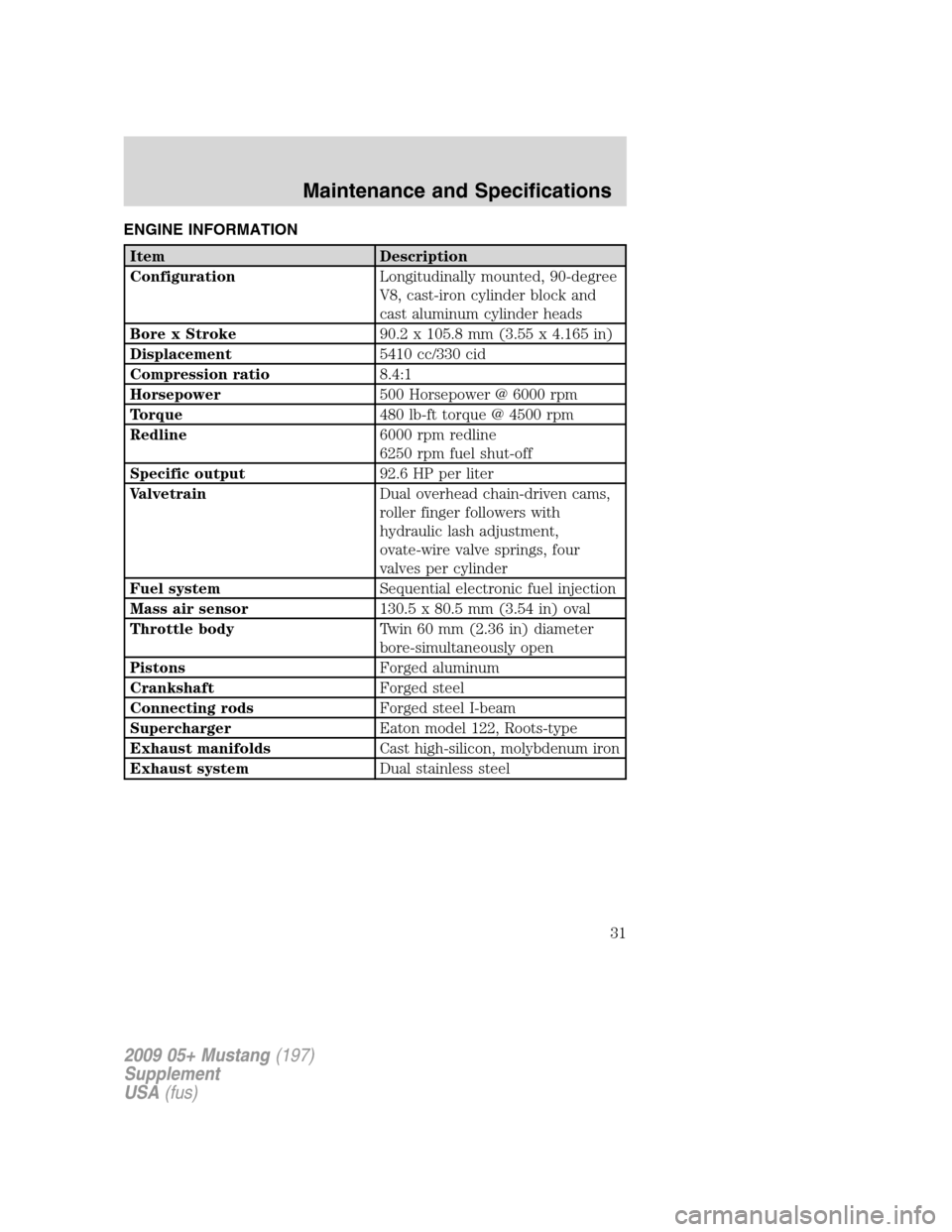

ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast-iron cylinder block and
cast aluminum cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in)
Displacement5410 cc/330 cid
Compression ratio8.4:1
Horsepower500 Horsepower @ 6000 rpm
Torque480 lb-ft torque @ 4500 rpm
Redline6000 rpm redline
6250 rpm fuel shut-off
Specific output92.6 HP per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
Fuel systemSequential electronic fuel injection
Mass air sensor130.5 x 80.5 mm (3.54 in) oval
Throttle bodyTwin 60 mm (2.36 in) diameter
bore-simultaneously open
PistonsForged aluminum
CrankshaftForged steel
Connecting rodsForged steel I-beam
SuperchargerEaton model 122, Roots-type
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
31

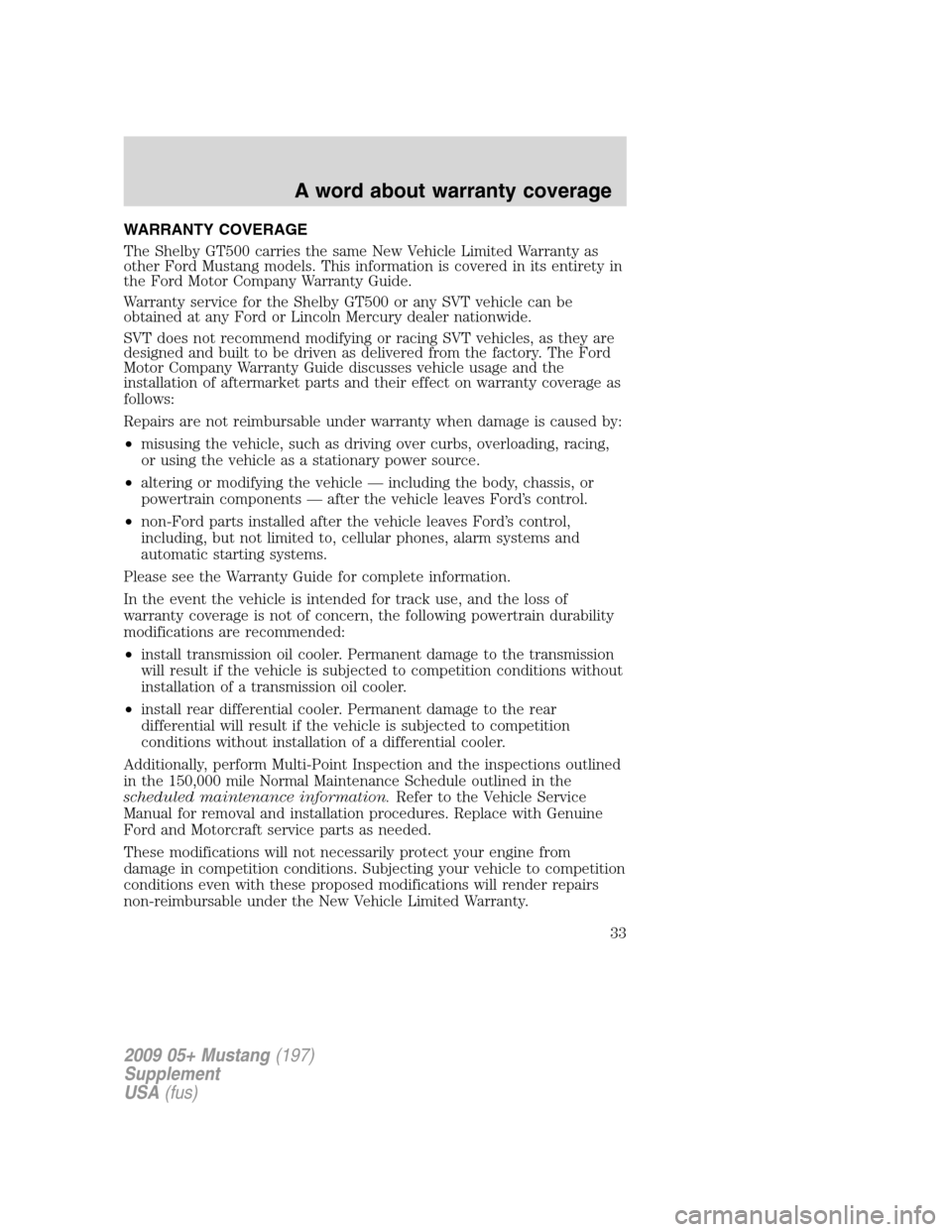

WARRANTY COVERAGE
The Shelby GT500 carries the same New Vehicle Limited Warranty as
other Ford Mustang models. This information is covered in its entirety in
the Ford Motor Company Warranty Guide.
Warranty service for the Shelby GT500 or any SVT vehicle can be
obtained at any Ford or Lincoln Mercury dealer nationwide.
SVT does not recommend modifying or racing SVT vehicles, as they are
designed and built to be driven as delivered from the factory. The Ford
Motor Company Warranty Guide discusses vehicle usage and the
installation of aftermarket parts and their effect on warranty coverage as
follows:
Repairs are not reimbursable under warranty when damage is caused by:
•misusing the vehicle, such as driving over curbs, overloading, racing,
or using the vehicle as a stationary power source.
•altering or modifying the vehicle — including the body, chassis, or
powertrain components — after the vehicle leaves Ford’s control.
•non-Ford parts installed after the vehicle leaves Ford’s control,
including, but not limited to, cellular phones, alarm systems and
automatic starting systems.
Please see the Warranty Guide for complete information.
In the event the vehicle is intended for track use, and the loss of
warranty coverage is not of concern, the following powertrain durability
modifications are recommended:
•install transmission oil cooler. Permanent damage to the transmission
will result if the vehicle is subjected to competition conditions without
installation of a transmission oil cooler.
•install rear differential cooler. Permanent damage to the rear
differential will result if the vehicle is subjected to competition
conditions without installation of a differential cooler.
Additionally, perform Multi-Point Inspection and the inspections outlined
in the 150,000 mile Normal Maintenance Schedule outlined in the
scheduled maintenance information.Refer to the Vehicle Service
Manual for removal and installation procedures. Replace with Genuine
Ford and Motorcraft service parts as needed.
These modifications will not necessarily protect your engine from
damage in competition conditions. Subjecting your vehicle to competition
conditions even with these proposed modifications will render repairs
non-reimbursable under the New Vehicle Limited Warranty.
2009 05+ Mustang(197)
Supplement
USA(fus)
A word about warranty coverage
33
