engine FORD MUSTANG 2018 Warranty Guide

2. Important information you should know
IF YOU NEED CUSTOMER ASSISTANCE
Your Ford Motor Company dealer is available to assist you with all your
automotive needs. Please follow the procedures outlined on the front
page of this booklet.
In addition, if you are an eligible U.S. owner, you may use - at no cost -
the services of the BBB AUTO LINE program. For details, see Better
Business Bureau (BBB) AUTO LINE program,
page 34 or call
1-800-955-5100.
KNOW WHEN YOUR WARRANTY BEGINS
Your Warranty Start Date is the day you take delivery of your new
vehicle or the day it is first put into service (for example, as a dealer
demonstrator), whichever occurs first.
CHECK YOUR VEHICLE
We try to check vehicles carefully at the assembly plant and the
dealership, and we usually correct any damage to paint, sheet metal,
upholstery, or other appearance items. But occasionally something may
slip past us, and a customer may find that a vehicle was damaged before
he or she took delivery. If you see any damage when you receive your
vehicle, notify your dealership within one week.
MAINTAIN YOUR VEHICLE PROPERLY
Your glove compartment contains an Owner’s Manualwhich indicates
the scheduled maintenance required for your vehicle. Proper
maintenance guards against major repair expenses resulting from neglect
or inadequate maintenance, may help increase the value you receive
when you sell or trade your vehicle, and is important in allowing your
vehicle to comply with applicable emissions standards.
It is your responsibility to make sure that all of the scheduled
maintenance is performed and that the materials used meet Ford
engineering specifications. Failure to perform scheduled maintenance as
specified in the Owner’s Manual will invalidate warranty coverage on
2

For vehicles within the New Vehicle Limited Warranty time in service
and mileage coverage period, defective tires will be replaced on a pro
rata adjustment basis according to the following mileage-based
Reimbursement Schedule:
MILES DRIVENPERCENT OF PARTS COVERED BY FORD
1-12,000 100%
12,001-24,000 60%
24,001-36,000 30%
The tire manufacturer also provides you with a separate tire warranty that
may extend beyond the New Vehicle Limited Warranty coverage. You will
find the manufacturer’s tire warranty with the owner literature supplied
with your vehicle. You have the option of having a tire warranty repair
performed by the tire manufacturer’s authorized service center. If you go
to a tire service center for a repair covered by the New Vehicle Limited
Warranty, you may be charged a prorated amount for wear or other
charges. If so, you should present your paid invoice detailing the nature of
the charges to any Ford Motor Company dealership for refund
consideration. When making warranty repairs on your vehicle, the dealer
will use Ford or Motorcraft parts or remanufactured or other parts that
are authorized by Ford. In certain instances, Ford may authorize repairs at
other than Ford dealer facilities. Tire replacements under warranty will be
made with the same brand and model as originally equipped with the
vehicle unless the same brand and model is no longer available, in which
case a tire of the same brand, size, load, speed and tread type will be
used. In some circumstances, Ford may authorize another brand and/or
model to substitute for the original brand and model, even if still available.
Normal tire wear or damage is not reimbursable. See page 15 for details
of what is not covered.
Extended warranty coverage periods are available for certain
vehicle parts and conditions. Specifically,
(1) Your vehicle’s Powertrain components are covered for five years or
60,000 miles, whichever occurs first. The extended coverage applies to
theEngine: all internal lubricated parts, cylinder block, cylinder heads,
electrical fuel pump, powertrain control module, engine mounts,
flywheel, injection pump, manifold (exhaust and intake), manifold bolts,
oil pan, oil pump, seals and gaskets, engine thermostat, engine
thermostat housing, timing chain cover, timing chain (gears or belt),
turbocharger/supercharger unit, valve covers, water pump;
10

Transmission:all internal parts, clutch cover, seals and gaskets, torque
converter, transfer case (including all internal parts), transmission case,
transmission mounts; Front-Wheel Drive: axle shafts, front bearings,
seals and gaskets, universal and constant velocity joints; Rear-Wheel
Drive:axle shafts, rear bearings, center support bearing, drive axle
housing (including all internal parts), drive shaft, retainers, supports,
seals and gaskets, universal and constant velocity joints.
Four-Wheel/All-Wheel Drive: axle shafts, bearings (front and rear),
center support bearing, drive shafts, final drive housing (including all
internal parts), hubs-automatic front locking (four-wheel drive), locking
rings (four-wheel drive), seals and gaskets, universal and constant
velocity joints.
(2) Your vehicle’s safety belts and air bag Supplemental Restraint System
(SRS) are covered for an extended Safety Restraint Coverage Period,
which lasts for five years or 60,000 miles, whichever occurs first.
(3) Your vehicle’s body sheet metal panels are covered for an extended
Corrosion Coverage Period, which lasts for five years, regardless of miles
driven. The extended warranty coverage only applies if a body sheet
metal panel becomes perforated due to corrosion during normal use due
to a manufacturing defect in factory-supplied materials or factory
workmanship. If aluminum body panels have corrosion or rust damage,
and the damage is not the result of abnormal usage, vehicle accident,
customer actions and/or extreme environmental conditions, the corrosion
or rust damage repairs are covered for 5 years, unlimited miles. For
damage caused by airborne material (environmental fallout) where there
is no factory-related defect involved and therefore no warranty our
policy is to provide free repair of paint damage due to the airborne
material for 12 months or 12,000 miles, whichever occurs first.
(4) Your vehicle’s direct injection diesel engine and certain engine
components are covered during the PowerStroke Diesel Engine Coverage
Period, which lasts for five years or 100,000 miles, whichever occurs
first. The following parts are covered during this extended coverage
period: the engine, cylinder block, heads and all internal parts, intake
and exhaust manifolds, timing gear, harmonic balancer, valve covers, oil
pan and pump, water pump, fuel system (excluding fuel lines, fuel tank
and frame mounted fuel conditioning module sometimes referred to as
the frame mounted pump/filter/water separator or frame mounted fuel
filter/water separator), high pressure lines, gaskets and seals, glow plugs,
turbocharger, two-stage turbocharger assembly, turbocharger actuator,
11

powertrain control module, high pressure fuel injection pump assembly,
injectors, injection pressure sensor, fuel rail pressure sensor, exhaust
back pressure regulator and sensor, exhaust pressure sensor, manifold
pressure sensor, intake air temperature sensor, crankshaft position
sensor, camshaft position sensor, accelerator switch.
NOTE:Some components may also be covered by the Emissions
Warranties. For more information, see pages 17-31.
If you own or lease a 2018-model Next Generation Police Interceptor
Vehicle (NGPI), refer to the Warranty Addendum Card that was given to
you when you took delivery of your vehicle for further explanation of
Amendments to the New Vehicle Limited Warranty. The Warranty
Addendum applies only the NGPI vehicles delivered in the State of Florida
and New York.
WHAT IS NOT COVERED UNDER THE NEW VEHICLE LIMITED
WARRANTY?
Damage Caused By:
• accidents, collision or objects striking the vehicle (including driving
through a car wash)
• theft, vandalism, or riot
• fire or explosion
• using contaminated or improper fuel/fluids
• customer-applied chemicals or accidental spills
• driving through water deep enough to cause water to be ingested into
the engine
• misuse of the vehicle, such a driving over curbs, overloading, racing or
using the vehicle as a permanent stationary power source
Damage Caused by Alteration or Modification
The New Vehicle Limited Warranty does not cover any damage caused by:
•alterations or modifications of the vehicle, including the body, chassis,
electronics or their components, after the vehicle leaves the control of
Ford Motor Company
• tampering with the vehicle, tampering with the emissions systems or
with the other parts that affect these systems (for example, but not
limited to exhaust and intake systems)
12

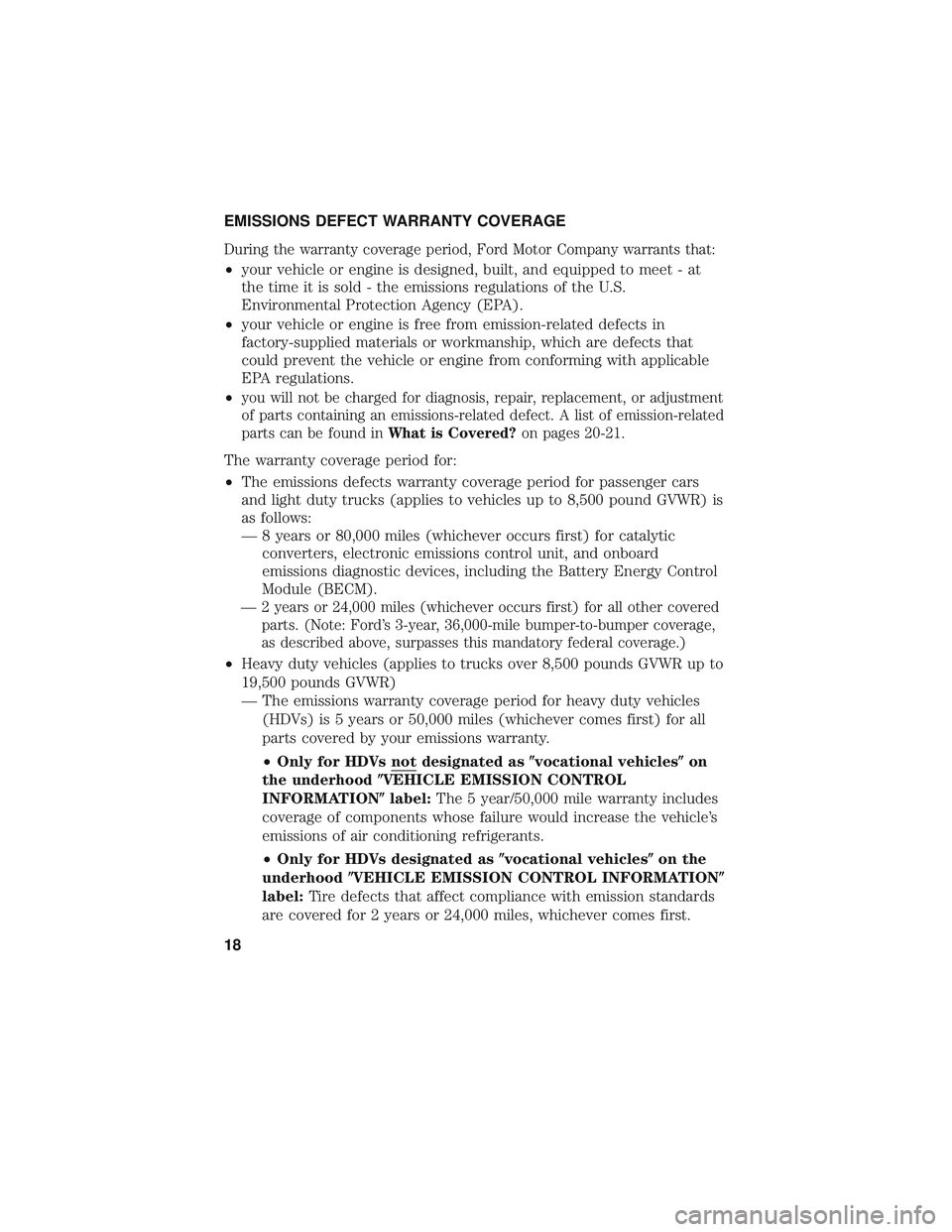

EMISSIONS DEFECT WARRANTY COVERAGE
During the warranty coverage period, Ford Motor Company warrants that:
•your vehicle or engine is designed, built, and equipped to meet - at
the time it is sold - the emissions regulations of the U.S.
Environmental Protection Agency (EPA).
• your vehicle or engine is free from emission-related defects in
factory-supplied materials or workmanship, which are defects that
could prevent the vehicle or engine from conforming with applicable
EPA regulations.
•
you will not be charged for diagnosis, repair, replacement, or adjustment
of parts containing an emissions-related defect. A list of emission-related
parts can be found in What is Covered?on pages 20-21.
The warranty coverage period for:
•The emissions defects warranty coverage period for passenger cars
and light duty trucks (applies to vehicles up to 8,500 pound GVWR) is
as follows:
— 8 years or 80,000 miles (whichever occurs first) for catalytic
converters, electronic emissions control unit, and onboard
emissions diagnostic devices, including the Battery Energy Control
Module (BECM).
—
2 years or 24,000 miles (whichever occurs first) for all other covered parts. (Note: Ford’s 3-year, 36,000-mile bumper-to-bumper coverage,
as described above, surpasses this mandatory federal coverage.)
• Heavy duty vehicles (applies to trucks over 8,500 pounds GVWR up to
19,500 pounds GVWR)
— The emissions warranty coverage period for heavy duty vehicles
(HDVs) is 5 years or 50,000 miles (whichever comes first) for all
parts covered by your emissions warranty.
•Only for HDVs not designated as vocational vehicleson
the underhoodVEHICLE EMISSION CONTROL
INFORMATION label:The 5 year/50,000 mile warranty includes
coverage of components whose failure would increase the vehicle’s
emissions of air conditioning refrigerants.
• Only for HDVs designated as vocational vehicleson the
underhood VEHICLE EMISSION CONTROL INFORMATION
label: Tire defects that affect compliance with emission standards
are covered for 2 years or 24,000 miles, whichever comes first.
18

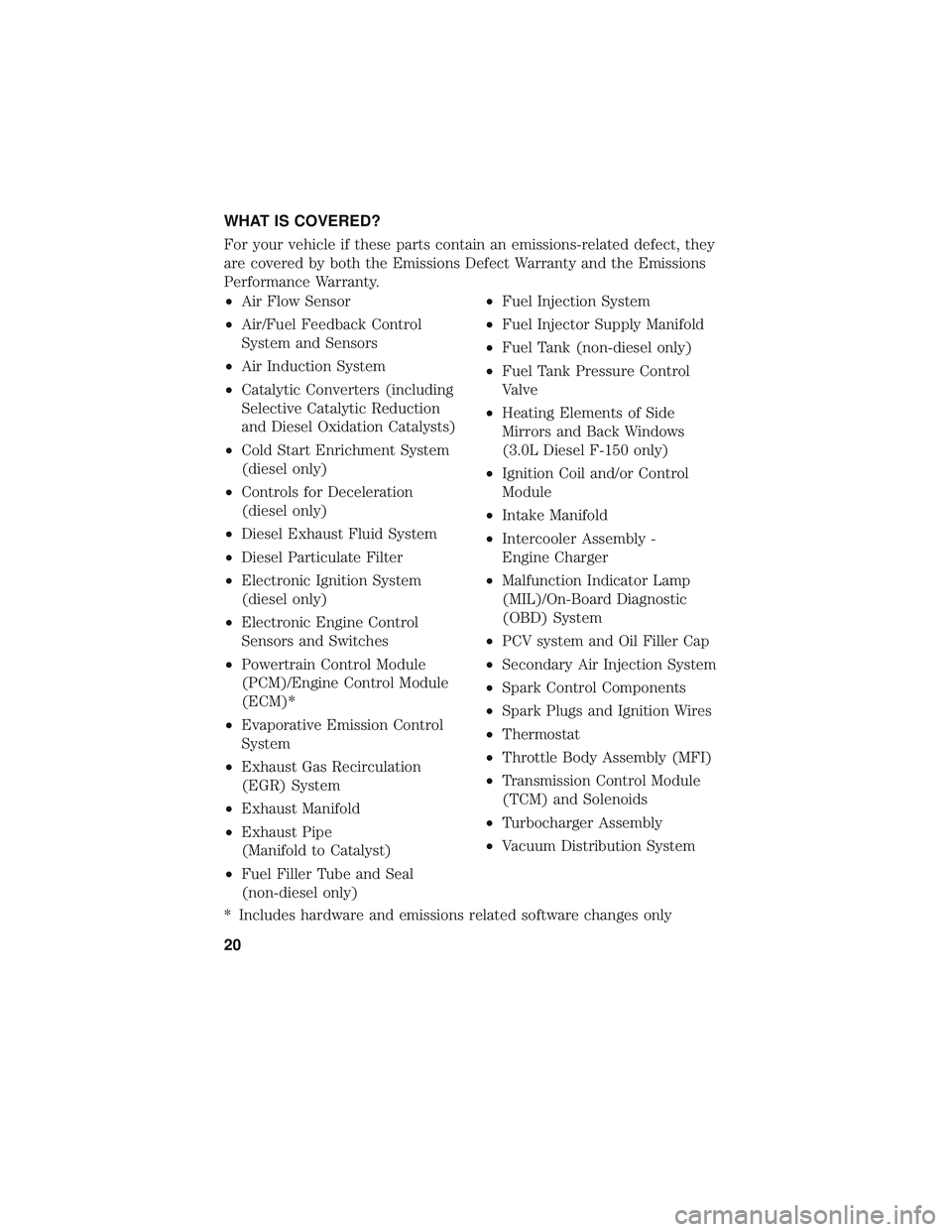

WHAT IS COVERED?
For your vehicle if these parts contain an emissions-related defect, they
are covered by both the Emissions Defect Warranty and the Emissions
Performance Warranty.
•Air Flow Sensor
• Air/Fuel Feedback Control
System and Sensors
• Air Induction System
• Catalytic Converters (including
Selective Catalytic Reduction
and Diesel Oxidation Catalysts)
• Cold Start Enrichment System
(diesel only)
• Controls for Deceleration
(diesel only)
• Diesel Exhaust Fluid System
• Diesel Particulate Filter
• Electronic Ignition System
(diesel only)
• Electronic Engine Control
Sensors and Switches
• Powertrain Control Module
(PCM)/Engine Control Module
(ECM)*
• Evaporative Emission Control
System
• Exhaust Gas Recirculation
(EGR) System
• Exhaust Manifold
• Exhaust Pipe
(Manifold to Catalyst)
• Fuel Filler Tube and Seal
(non-diesel only) •
Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank (non-diesel only)
• Fuel Tank Pressure Control
Valve
• Heating Elements of Side
Mirrors and Back Windows
(3.0L Diesel F-150 only)
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assembly -
Engine Charger
• Malfunction Indicator Lamp
(MIL)/On-Board Diagnostic
(OBD) System
• PCV system and Oil Filler Cap
• Secondary Air Injection System
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module
(TCM) and Solenoids
• Turbocharger Assembly
• Vacuum Distribution System
* Includes hardware and emissions related software changes only
20

Vehicles Eligible for California Emission Warranty Coverage
California emission warranty coverage applies if your vehicle meets the
following two requirements:
•Your vehicle is registered in a state
1that has adopted and is enforcing
California emission warranty regulations applicable for your vehicle at
the time of repair, and
• Your vehicle is certified for sale in California as indicated on the
vehicle emission control information label.
1Subject to change, the following states have adopted and are enforcing
California emission warranty regulations: -
Passenger Car & Light-duty Trucks (up to 8,500 pounds GVWR) -
California, Connecticut, Delaware, Maine, Maryland, Massachusetts,
New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont
and Washington
- Medium-Duty Passenger Vehicles (up to 10,000 pounds GVWR
designed primarily for the transportation of persons. Excludes
incomplete trucks, trucks with a seating capacity either over twelve
persons total or over nine persons rearward of the driver’s seat, or
trucks with an open cargo area of at least six feet of interior length):
California, Connecticut, Delaware, Maine, Maryland, Massachusetts,
New York, Oregon, Rhode Island, Vermont and Washington
- Medium-Duty Vehicles (over 8,500 pounds GVWR up to 14,000
pounds GVWR) - California, Connecticut, Delaware, Maine, Maryland,
Massachusetts, New York, Oregon, Rhode Island, and Vermont.
- Light Heavy-Duty Diesel Engine Vehicles (over 14,000 pounds
GVWR up to 19,500 pounds GVWR) - California, Maine and
Pennsylvania.
For full details about coverage under California requirements for
emissions control, see:
➡ Defects Warranties (pages 24-30)
➡ Performance Warranty (pages 24-25)
➡ What Is Covered? (pages 26-29)
➡ What Is Not Covered? (page 29)
23

EXPLANATION OF CALIFORNIA EMISSIONS WARRANTIES
Your Warranty Rights and Obligations
The California Air Resources Board and Ford Motor Company are
pleased to explain the emission control system warranty on your
2018-model vehicle. In California, new motor vehicles must be designed,
built, and equipped to meet the State’s stringent anti-smog standards.
Ford must warrant the emission control system on your vehicle for the
periods of time listed on pages 24-25, provided there has been no abuse,
neglect, or improper maintenance of your vehicle.
Your emission control system may include parts such as the fuel injection
system, the ignition system, catalytic converter, and the engine
computer. Also included may be hoses, belts, connectors, and other
emissions-related assemblies.
Where a warrantable condition exists, Ford Motor Company will repair
your vehicle at no cost to you including diagnosis, parts, and labor.
Manufacturer’s Warranty Coverage
For Vehicles Eligible for California Emission Warranty Coverage
If Gross Vehicle Weight Rating is 14,000 lbs. or less:
For 3 years or 50,000 miles (whichever first occurs):
1. If your vehicle fails a Smog Check inspection, all necessary repairs and
adjustments will be made by Ford to ensure that your vehicle passes the
inspection. This is your emission control system PERFORMANCE WARRANTY.
2. If any emissions-related part on your vehicle is defective, the part will
be repaired or replaced by Ford. This is your short-term emission control
system DEFECTS WARRANTY.
For 7 years or 70,000 miles (whichever first occurs):
If an emissions-related part listed on pages 27 and 29 with coverage for 7
years or 70,000 miles is defective or if its failure causes your vehicle to fail
a Smog Check inspection, the part will be repaired or replaced by Ford.
This is your long-term emission control system DEFECTS WARRANTY.
If Gross Vehicle Weight rating is over 14,000 lbs.:
For 5 years or 50,000 miles (gasoline powered engines and vehicles) or
5 years or 100,000 miles (diesel powered engines and vehicles)
(whichever first occurs):
If an emissions-related part on your vehicle is defective, the part will be
repaired or replaced by Ford. This is your emission control system
DEFECTS WARRANTY.
24

WHAT IS COVERED?
If the parts on the following list contains a defect that affects emissions,
they are covered by the Defects Warranties.
•Air Flow Sensor
• Air/Fuel Feedback Control
System and Sensors
• Air Induction System
• Catalytic Converters (including
Selective Catalytic Reduction
and Diesel Oxidation Catalysts)
• Cold Start Enrichment System
(diesel only)
• Controls for Deceleration
(diesel only)
• Diesel Exhaust Fluid System
• Diesel Particulate Filter
• Electronic Ignition System
(diesel only)
• Electronic Engine Control
Sensors and Switches
• Powertrain Control Module
(PCM)/Engine Control Module
(ECM)*
• Evaporative Emission Control
System
• Exhaust Gas Recirculation
(EGR) System
• Exhaust Manifold
• Exhaust Pipe (Manifold to
Catalyst)
• Fuel Filler Tube and Seal
(non-diesel only) •
Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank (non-diesel only)
• Fuel Tank Pressure Control
Valve
• Heating Elements of Side
Mirrors and Back Windows
(3.0L Diesel F-150 only)
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assembly - Engine
Charger
• Malfunction Indicator Lamp
(MIL)/On-Board Diagnostic
(OBD) System
• PCV System and Oil Filler Cap
• Secondary Air Injection System
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module
(TCM) and Solenoids
• Turbocharger Assembly
• Vacuum Distribution System
* Includes hardware and emissions related software changes only
26

COVERAGE FOR 2018 MODEL VEHICLES (GVWR OF 14,000 LBS. OR LESS) UNDER LONG TERM DEFECTS WARRANTY(Coverage for up to 7 years/70,000 miles, whichever first occurs)
Part Name
1.0L Fiesta
1.0L Focus
1.0L Ecosport
1.5 Fusion
1.5L Escape
1.6L Fiesta
2.0L Fusion
2.0L Focus
2.0L Ecosport
2.0L Taurus
2.0L Escape
2.0L Edge
2.3L Focus
2.3L Mustang
2.3L Explorer
2.5L Fusion
2.5L Escape
2.5L Transit Connect
2.7L Fusion
2.7L Edge
2.7L F-150
3.0L F-150 Diesel
3.2L Transit Diesel
3.3L F-150
3.5L Taurus
3.5L Edge
3.5L Flex
3.5L Explorer
3.5L Expedition
3.5L F-150
3.5L Transit
3.7L Taurus
3.7L Explorer
3.7L Transit
5.0L Mustang
5.0L F-150
5.2L Mustang
6.2L Econoline
6.2L F-Superduty
6.7L F-Superduty Diesel
6.8L Econoline
6.8L F-Superduty
6.8L Strip Chassis
Catalytic Converter X X X X X X X X XXXXXXXXXXXXXXXX XXX XXXXXXXXXXXXXXX
DEF Tank XX
Reductant Pump Assembly XXX
Catalyst and Particulate Filter Assembly XXX
Cylinder Head Temperature Sensor XX
Tube Air Cooler Inlet/Outlet XXTurbocharger Control Valve (Supercharger Bypass Actuator)
X
Cam Timing Assembly XXXXXXXX XXXXXXX XXXX XX XXX XXXXXXXXXXX XXX
Engine Variable Timing Assembly XXX
Engine Variable Camshaft Timing Solenoid XXXX
Crankshaft Position Sensor (CKP) XX X
Variable Camshaft Timing Assembly X X X X X X X X XXXXXXXXXX XX XXX XX XXXXXX
PCV Valve (Part of Rocker Cover Assembly) XXX X X X
Turbo to Manifold Gasket X
Charge Air Cooler Duct XX
Turbocharger XXXXXXXX(3) X XXXXXX XXXXX X(3) X X(3) X X X X
Charge Air Cooler X X(3) X X(3)
Valve Body XXX
Transmission Control Module Assembly X
Transmission Solenoid Assembly XXX X X
Fuel Tank XXXXXXXX XXXXXXXXXXXXX XX XXX XXXXXXXXXX XXX
Fuel Tank Filler Kit XX
EVAP Fuel Vapor Return Tube XX
Fuel Tube Supply X(3) X(3)
Fuel Supply Manifold Assembly XX X X XXXXXX XX XX X
Sensor to Rail Fuel Line X
Fuel Delivery Module XXX XX X X
Fuel Pump to Fuel Rail Tube X(3) X X(3)
Fuel Tube XX
Fuel Pump Assembly XX X X X
Turbocharger Control Solenoid X XX X(3) X X(3) X X
Intake Manifold XXXX X XX XXXXX XX
Exhaust Manifold XX XXX X X X X X X X XXXX X XX
Exhaust Manifold Outlet Pipe X
Resonator Assembly X
Intake Manifold Gasket X
Exhaust Manifold Gasket X XXXXXXXX XX XX XXX X
EGR out pipe gasket XX
27
