technical specifications FORD MUSTANG 2019 Owners Manual

Technical Specifications
..........................293
Capacities and Specifications
Engine Specifications - 2.3L EcoBoost™ ........................................................................\
294
Engine Specifications - 5.0L ..................
294
Motorcraft Parts - 2.3L EcoBoost™ .....
295
Motorcraft Parts - 5.0L ............................
296
Motorcraft Parts - 5.0L, Bullitt ...............
297
Vehicle Identification Number ..............
298
Vehicle Certification Label ......................
299
Transmission Code Designation ...........
299
Capacities and Specifications - 2.3L EcoBoost™ ..............................................
300
Capacities and Specifications - 5.0L ........................................................................\
305
Bulb Specification Chart ..........................
310
Vehicle Performance Specifications ........................................................................\
.
312
Audio System
General Information ...................................
313
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Touchscreen Display ................
314
Audio Unit - Vehicles With: SYNC .........
315
Digital Radio ...................................................
317
Satellite Radio .............................................
320
USB Port .........................................................
323
Media Hub .....................................................
323
SYNC™
General Information ..................................
324
Using Voice Recognition ..........................
325
Using SYNC™ With Your Phone ............
327
SYNC™ Applications and Services ......
328
Using SYNC™ With Your Media Player ........................................................................\
332
SYNC™ Troubleshooting .........................
333SYNC™ 3
General Information
...................................
341
Home Screen ................................................
353
Using Voice Recognition ..........................
354
Entertainment ..............................................
361
Climate .............................................................
371
Phone ..............................................................
373
Navigation .....................................................
379
Apps .................................................................
387
Settings ..........................................................
390
SYNC™ 3 Troubleshooting ....................
404
Accessories
Accessories ....................................................
418
Ford Protect
Ford Protect .................................................
420
Scheduled Maintenance
General Maintenance Information .......
422
Normal Scheduled Maintenance .........
425
Special Operating Conditions Scheduled Maintenance ............................................
428
Scheduled Maintenance Record ..........
430
Appendices
Electromagnetic Compatibility ............
440
End User License Agreement ................
442
Type Approvals ...........................................
468
5
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Licence exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
•
This device may not cause harmful
interference, and
• This device must accept any
interference received, including
interference that may cause undesired
operation. WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range. One of the following
could cause a decrease in operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters,
such as amateur radios, medical
equipment, wireless headphones, remote
controls and alarm systems may operate
on the same frequency as your remote
control. If other transmitters are operating
on those frequencies, you may not be able
to use your remote control. Using your
remote control near some types of
electronic equipment, such as USB devices, computers or cell phones can interfere with
remote operation. Operating your remote
control near metal or metallic-finished
purses, bags or clothing can interfere with
remote operation. You can lock and unlock
the doors with the key.
Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You touch the inside of any exterior
door handle within
3 ft (1 m) proximity
of an intelligent access key.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 52).
REMOTE CONTROL
Intelligent Access Key
Note: You may not be able to shift out of
park (P) unless the intelligent access key is
inside your vehicle.
52
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Keys and Remote Controls

FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications to your
device not expressly approved by the party
responsible for compliance can void the
user ’s authority to operate the equipment.
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least 8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.
The term “IC:” before the
certification/registration number only
signifies that Industry Canada technical
specifications were met.
127
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Garage Door Opener
(If Equipped)

USING SUMMER TIRES
Summer tires provide superior
performance on wet and dry roads.
Summer tires do not have the Mud and
Snow (M+S or M/S) tire traction rating on
the tire side wall. Since summer tires do
not have the same traction performance
as All-season or Snow tires, we do not
recommend using summer tires when
temperatures drop to about 45°F (7°C) or
below (depending on tire wear and
environmental conditions) or in snow and
ice conditions. Like any tire, summer tire
performance is affected by tire wear and
environmental conditions. If you must drive
in those conditions, we recommend using
Mud and Snow (M+S, M/S), All-season or
Snow tires.
Always store your summer tires indoors at
temperatures above 19°F (-7°C). The
rubber compounds used in these tires lose
flexibility and may develop surface cracks
in the tread area at temperatures below
19°F (-7°C)
. If the tires have been
subjected to 19°F (-7°C) or less, warm
them in a heated space to at least 41°F
(5°C) for at least 24 hours before installing
them on a vehicle, or moving the vehicle
with the tires installed, or checking tire
inflation. Do not place tires near heaters
or heating devices used to warm the room
where the tires are stored. Do not apply
heat or blow heated air directly on the tires.
Always inspect the tires after storage
periods and before use. USING WINTER TIRES We recommend that you use winter or
all-season tires carrying this symbol when
the temperature is
45°F (7°C) or lower, or
in snow and ice conditions.
Inflate the winter tires to the same tire
pressures as those listed in the tire
pressures table. See
Technical
Specifications (page 293).
USING SNOW CHAINS WARNING:
Aggressive driving in
any road conditions can cause you to
lose control of your vehicle increasing
the risk of severe personal injury or
property damage. The traction control
activating is an indication that at least
some of the tires have exceeded their
ability to grip the road; this may lead to
an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death. If you experience a severe
road event, slow down
.
282
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Wheels and TiresE278852

2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

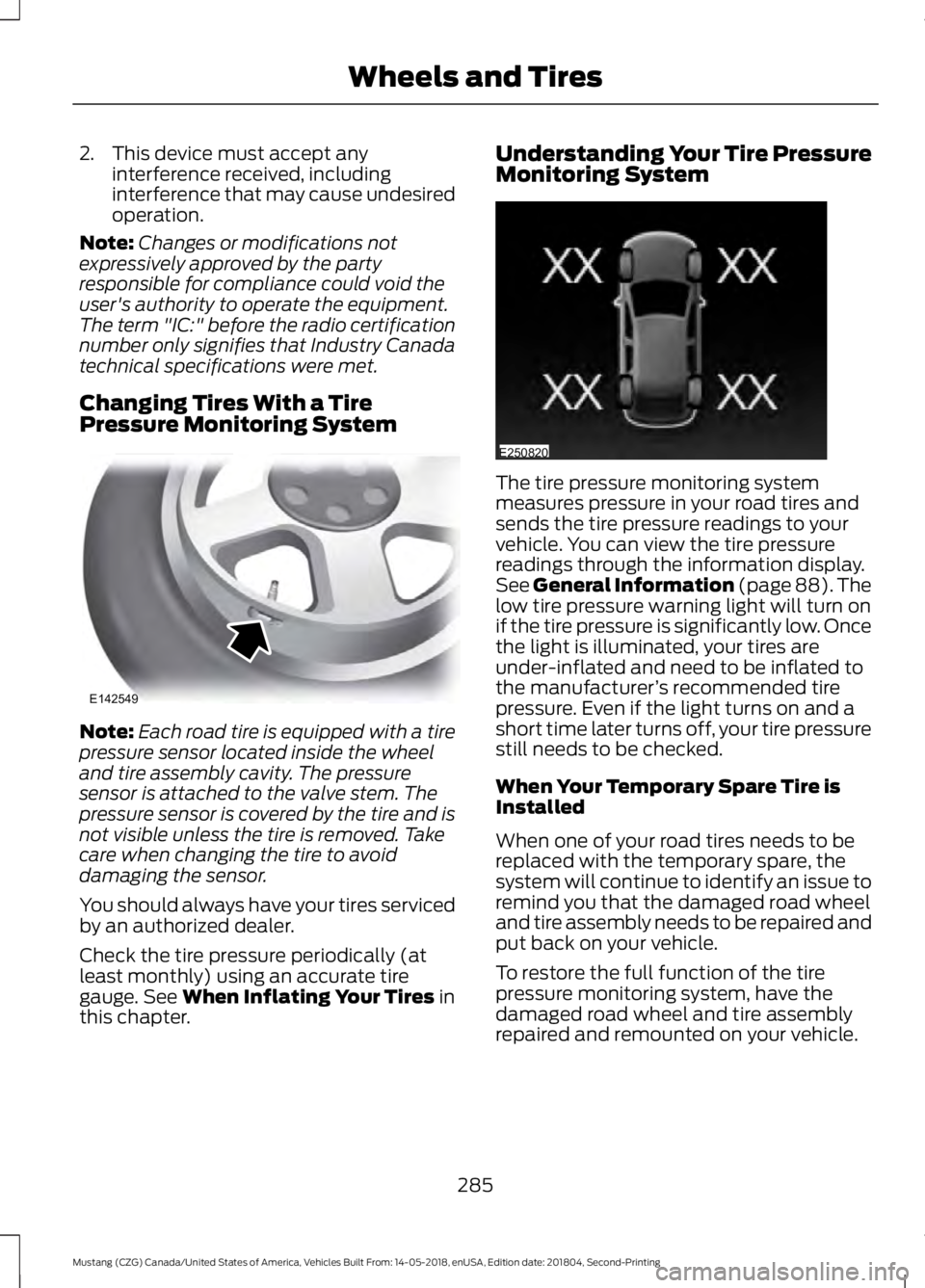

Changing Tires With a Tire
Pressure Monitoring System Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.
You should always have your tires serviced
by an authorized dealer.
Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See When Inflating Your Tires in
this chapter. Understanding Your Tire Pressure
Monitoring System
The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to your
vehicle. You can view the tire pressure
readings through the information display.
See
General Information (page 88). The
low tire pressure warning light will turn on
if the tire pressure is significantly low. Once
the light is illuminated, your tires are
under-inflated and need to be inflated to
the manufacturer ’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.
When Your Temporary Spare Tire is
Installed
When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road wheel
and tire assembly needs to be repaired and
put back on your vehicle.
To restore the full function of the tire
pressure monitoring system, have the
damaged road wheel and tire assembly
repaired and remounted on your vehicle.
285
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Wheels and TiresE142549 E250820

Note:
Jack at the specified locations to
avoid damage to the vehicle.
8. The vehicle jacking points are shown here, and can be identified by the
triangle markings on the vehicle. Details
are depicted on the warning label on
the jack. 9.
Place the jack at the jacking point next
to the tire you are changing. Turn the
jack handle clockwise until the wheel
is completely off the ground.
10. Remove the lug nuts with the lug wrench. 11. Replace the flat tire with the spare
tire, making sure the valve stem is
facing outward. Reinstall lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered. If
you are using the temporary tire, the
lug nut washers do not appear to be
flush with the rim. This is normal only
when using the temporary spare tire.
12. Lower the wheel by turning the jack handle counterclockwise. 13.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
293).
14. To store the folded wrench on the jack, engage the bracket of the jack
base on the wrench feature as shown.
Swing the wrench upwards and
adjust the height of the jack until the
pin engages the hole. Tighten the hex
nut clockwise by hand until secure.
291
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Wheels and TiresE176084 E174939 12
3
4
5
E75442

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)
1
Bolt size
150 (204)
M14 X 1.5
1 Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
293
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Wheels and TiresE145950

IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
Radio Frequency Statement
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. Taiwan Territory
Note: In accordance with the management
approach of low-power radio wave
radiation motors:
Article 12: For approved and certified
low-power radiation motor models,
companies, firms or users must not alter
the frequency, increase the power or
change the characteristics and functions
of the original design without authorization.
Article 14: The usage of low-power
radio-frequency motors must not affect
aviation safety and interfere with legal
telecommunications. Should interference
be detected, immediately stop using the
device and only resume usage after
ensuring that there is no longer any
interference. For the legal
telecommunication and wireless
telecommunication of the telco, the
low-power radio frequency motor must be
able to tolerate legal limits of interference
from telecommunication, industrial,
scientific and radio wave equipment.
SUNA TRAFFIC CHANNEL – TERMS
AND CONDITIONS
By activating, using and/or accessing the
SUNA Traffic Channel, SUNA Predictive or
other content or material provided by
Intelematics (together,
SUNA Products
and/or Services
), you must accept
certain terms and conditions. The following
is a brief summary of the terms and
conditions that apply to you. To view the
full terms and conditions relevant to your
use of the SUNA Products and/or Services,
please consult: Website
www.sunatraffic.com.au/termsandcon- ditions/
1. Acceptance
466
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Appendices

SYNC Mobile Apps............................................
330
SYNC™............................................................324 General Information......................................... 324
SYNC™ Troubleshooting..........................333
T
Technical Specifications See: Capacities and Specifications............294
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................215
Tire Care
..........................................................267
Glossary of Tire Terminology........................ 269
Information About Uniform Tire Quality Grading.............................................................. 267
Information Contained on the Tire Sidewall............................................................ 270
Temperature A B C............................................ 268
Traction AA A B C.............................................. 268
Treadwear............................................................ 268
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................. 261
Tire Pressure Monitoring System..........284 Changing Tires With a Tire Pressure
Monitoring System....................................... 285
Understanding Your Tire Pressure Monitoring System ...................................... 285
Tire Repair Kit See: Tire Sealant and Inflator Kit.................. 261
Tire Sealant and Inflator Kit.....................261 First Stage: Inflating the Tire with Sealing
Compound and Air....................................... 263
General Information......................................... 262
Second Stage: Checking Tire Pressure ............................................................ 265
Tips for Use of the Kit.......................................262
What to Do After the Tire Has Been Sealed............................................................... 265
What to do When a Tire Is Punctured........................................................ 263
Tires See: Wheels and Tires...................................... 261
Towing a Trailer.............................................196 Load Placement................................................. 196
Towing the Vehicle on Four Wheels..........................................................199
Emergency Towing............................................ 199
Recreational Towing........................................ 200Towing..............................................................196
Track Use
........................................................250
........................................................................\
.......... 250
Traction Control.............................................157 Principle of Operation....................................... 157
Transmission Code Designation............299
Transmission ...................................................
147
Transporting the Vehicle............................212
Type Approvals
............................................468
China...................................................................... 478
Radio Frequency Certification for Keys and Remote Controls........................................... 478
Radio Frequency Certifications for Blind Spot Information System.......................... 476
Radio Frequency Certifications for Body Control Module.............................................. 478
Radio Frequency Certifications for Cruise Control Module.............................................. 478
Radio Frequency Certifications for Mid Range Radar................................................... 470
Radio Frequency Certifications for Passive Anti-Theft System......................................... 471
Radio Frequency Certifications for Radio Transceiver Module...................................... 474
Radio Frequency Certifications for SYNC 3........................................................................\
... 478
Radio Frequency Certifications for Tire Pressure Monitoring Sensor(s)...............468
Radio Frequency Certifications for Wireless Charging............................................................ 477
Radio Frequency Statement for Audio Unit..................................................................... 479
U
Under Hood Overview - 2.3L EcoBoost™.................................................232
Under Hood Overview - 5.0L, Bullitt.............................................................234
Under Hood Overview - 5.0L...................233
Universal Garage Door Opener................124 HomeLink Wireless Control System............124
USB Port..........................................................323
Using Adaptive Cruise Control.................167 Automatic Cancellation................................... 170
Blocked Sensor..................................................... 171
Canceling the Set Speed................................. 170
Changing the Set Speed.................................. 170
490
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Index

Headlamp High Beam Indicator.....................
85
Heads Up Display................................................. 85
Hood Ajar................................................................ 85
Lane Keeping System Lamp............................ 85
Launch Control..................................................... 85
Low Beam Malfunction..................................... 86
Low Fuel Level Warning Lamp....................... 86
Low Tire Pressure Warning Lamp.................. 86
Low Washer Fluid Level Warning Lamp................................................................... 86
Oil Pressure Warning Lamp............................. 86
Parking Lamps...................................................... 86
Service Engine Soon........................................... 86
Stability Control and Traction Control Indicator.............................................................. 87
Stability Control and Traction Control Off Warning Lamp.................................................. 87
Trunk Ajar................................................................ 87
Washer Fluid Check....................................242
Washers See: Cleaning the Exterior.............................. 253
Waxing.............................................................255
Welcome Lighting..........................................75
Wheel Nuts See: Changing a Road Wheel........................ 287
Wheels and Tires..........................................261 General Information.......................................... 261
Technical Specifications................................. 293
Windows and Mirrors.....................................77
Windshield Washers.....................................70
Windshield Wipers........................................69 Intermittent Wipe................................................ 69
Speed Dependent Wipers................................ 69
Winter Tires See: Using Winter Tires................................... 282
Wiper Blades See: Checking the Wiper Blades.................. 245
Wipers and Washers.....................................69
492
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-05-2018, enUSA, Edition date: 201804, Second-Printing Index
