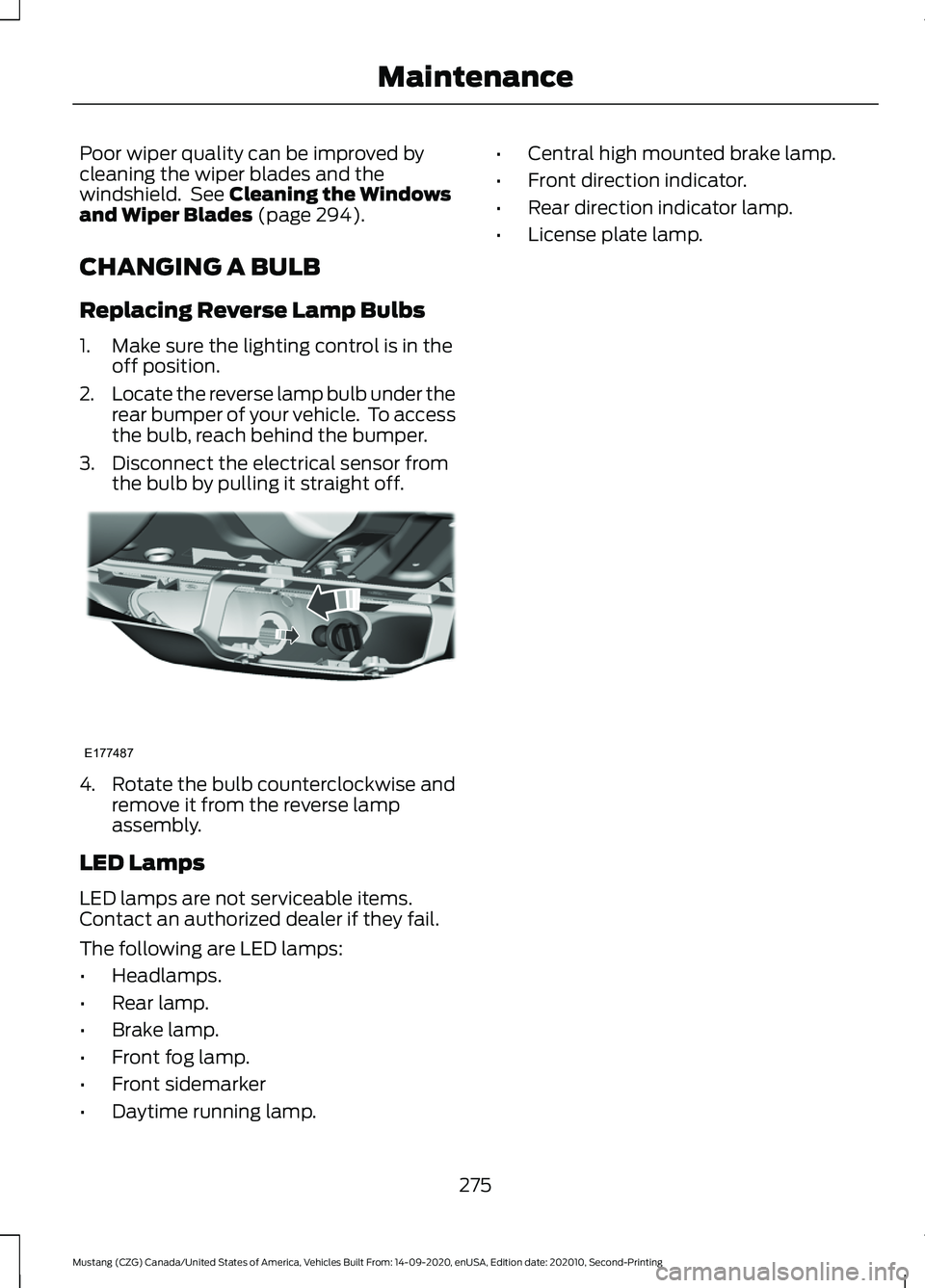

Poor wiper quality can be improved by
cleaning the wiper blades and the
windshield. See Cleaning the Windows
and Wiper Blades (page 294).
CHANGING A BULB
Replacing Reverse Lamp Bulbs
1. Make sure the lighting control is in the off position.
2. Locate the reverse lamp bulb under the
rear bumper of your vehicle. To access
the bulb, reach behind the bumper.
3. Disconnect the electrical sensor from the bulb by pulling it straight off. 4. Rotate the bulb counterclockwise and
remove it from the reverse lamp
assembly.
LED Lamps
LED lamps are not serviceable items.
Contact an authorized dealer if they fail.
The following are LED lamps:
• Headlamps.
• Rear lamp.
• Brake lamp.
• Front fog lamp.
• Front sidemarker
• Daytime running lamp. •
Central high mounted brake lamp.
• Front direction indicator.
• Rear direction indicator lamp.
• License plate lamp.
275
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing MaintenanceE177487
Page 289 of 530

Start Option
Allows you to select the type of countdown
the information display shows before
starting an event.
Status Screen
Provides the status of your chosen
performance-related settings.
View/Clear Results
Allows you to view and clear the last and
saved results of the Acceleration Timer,
Brake Performance, and All Time Best
results.
Track Use Maintenance Intervals
Follow these maintenance intervals for
when you use your vehicle on a track or in
a high speed event. Vehicle Use and Example
Interval
Change the engine oil and filter
One track weekend or approximately 4
hours of track use
Change the rear axle fluid
Every 500 mi (800 km) 1
1 Change the fluid every 500 mi (800 km) or when a message appears in the information
display stating that the axle fluid is over temperature.
Timing Chain
If you use your vehicle extensively at a race
track or at high rpm, it is possible to exceed
the service life of the engine timing chain.
A wrench indicator light illuminates when
it is time for you to replace your chain.
Have your vehicle checked as soon as
possible.
Adjustable Camber Front Strut
Top Mounts
(If Equipped)
Your vehicle has adjustable strut mounts
which you can use to adjust the camber of
your vehicle before and after a track event
to the specifications listed in the Road
Course Alignment Recommendations table
previously shown.
Note: After your track day is complete,
return your car to the street alignment and
tire pressures. Aerodynamics
(If Equipped)
Adjustable Rear Wing
The rear wing generates aerodynamic
down-force at speeds greater than 50 mph
(80 km/h)
.
Regularly inspect the rear wing panel and
attachment points for damage or
looseness.
You can adjust the wing using the hole
pattern at the top of the stanchion.
Moving the wing up increases rear down
force and overall understeer. Moving the
wing down decreases the rear down force
and overall understeer.
286
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Track Use
Page 328 of 530

When the malfunction indicator is
illuminated, the system will not be able to
detect or signal low tire pressure as
intended. TPMS malfunctions could occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
This device complies with Part 15 of the
FCC Rules and with License exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
1. This device will not cause harmful
interference, and
2. This device must accept any interference received, including
interference that could cause
undesired operation. WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met. Changing Tires With a Tire
Pressure Monitoring System Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and is
not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.
You should always have your tires serviced
by an authorized dealer.
Check the tire pressure periodically (at
least monthly) using an accurate tire
gauge. See
When Inflating Your Tires in
this chapter.
Understanding Your Tire Pressure
Monitoring System 325
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Wheels and TiresE142549 E250820
Page 331 of 530

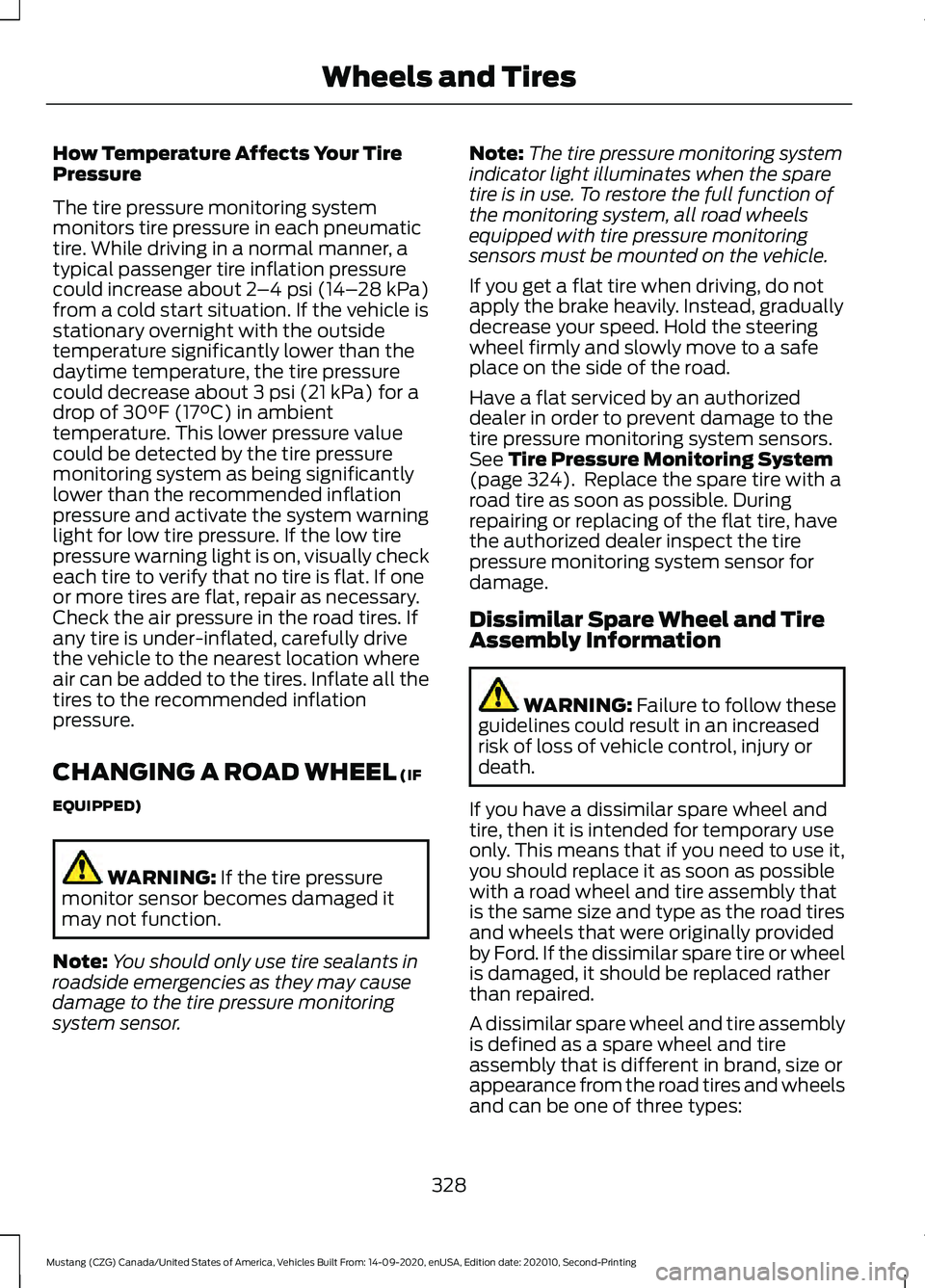

How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation pressure
could increase about 2
–4 psi (14– 28 kPa)
from a cold start situation. If the vehicle is
stationary overnight with the outside
temperature significantly lower than the
daytime temperature, the tire pressure
could decrease about
3 psi (21 kPa) for a
drop of 30°F (17°C) in ambient
temperature. This lower pressure value
could be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation
pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one
or more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive
the vehicle to the nearest location where
air can be added to the tires. Inflate all the
tires to the recommended inflation
pressure.
CHANGING A ROAD WHEEL
(IF
EQUIPPED) WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor. Note:
The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
Have a flat serviced by an authorized
dealer in order to prevent damage to the
tire pressure monitoring system sensors.
See
Tire Pressure Monitoring System
(page 324). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the tire
pressure monitoring system sensor for
damage.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
328
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Wheels and Tires
Page 452 of 530

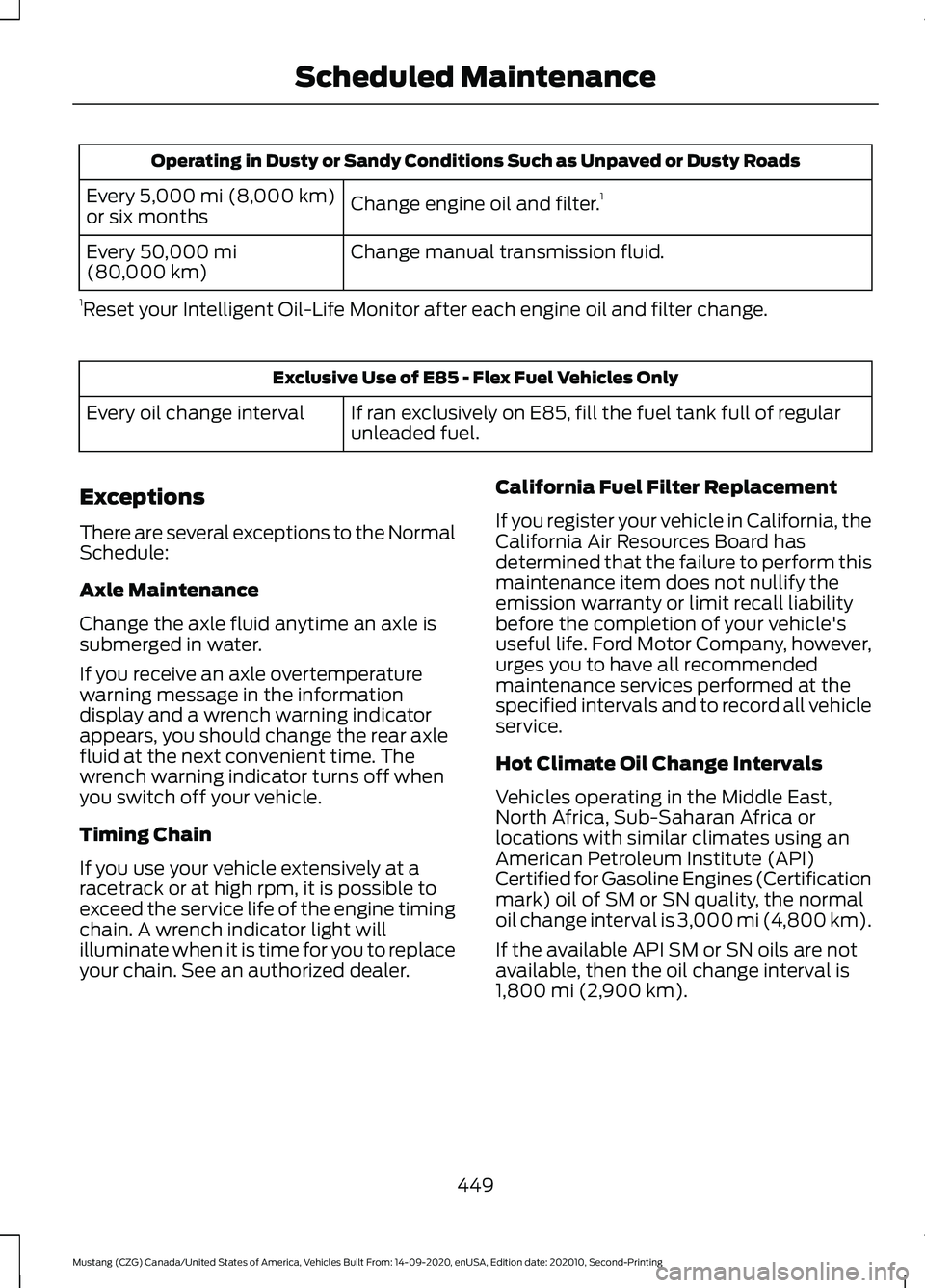

Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Change engine oil and filter. 1
Every 5,000 mi (8,000 km)
or six months
Change manual transmission fluid.
Every
50,000 mi
(80,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter change. Exclusive Use of E85 - Flex Fuel Vehicles Only
If ran exclusively on E85, fill the fuel tank full of regular
unleaded fuel.
Every oil change interval
Exceptions
There are several exceptions to the Normal
Schedule:
Axle Maintenance
Change the axle fluid anytime an axle is
submerged in water.
If you receive an axle overtemperature
warning message in the information
display and a wrench warning indicator
appears, you should change the rear axle
fluid at the next convenient time. The
wrench warning indicator turns off when
you switch off your vehicle.
Timing Chain
If you use your vehicle extensively at a
racetrack or at high rpm, it is possible to
exceed the service life of the engine timing
chain. A wrench indicator light will
illuminate when it is time for you to replace
your chain. See an authorized dealer. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 3,000 mi (4,800 km).
If the available API SM or SN oils are not
available, then the oil change interval is
1,800 mi (2,900 km)
.
449
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance
Page 517 of 530

Switching Maximum Air Conditioning On
and Off............................................................... 129
Switching Maximum Defrost On and Off........................................................................\
129
Switching Recirculated Air On and Off....................................................................... 130
Switching the Air Conditioning On and Off........................................................................\
129
Switching the Climate Control On and Off........................................................................\
129
Automatic High Beam Control.................84
Automatic High Beam Control Indicators.......................................................84
Automatic Transmission...........................165
Automatic Transmission Adaptive
Learning............................................................ 168
Brake-Shift Interlock.......................................... 167
If Your Vehicle Gets Stuck in Mud or Snow.................................................................. 168
SelectShift Automatic ™
Transmission................................................... 166
Understanding the Positions of Your Automatic Transmission............................ 166
Automatic Transmission Fluid Check............................................................269
Autowipers........................................................78
Auxiliary Power Points................................145 12 Volt DC Power Point..................................... 145
Locations............................................................... 145
B
Battery See: Changing the 12V Battery..................... 270
Blind Spot Information System..............196 ........................................................................\
........... 197
Switching the System On and Off...............198
System Errors....................................................... 198
Using the Blind Spot Information System............................................................... 197
BLIS See: Blind Spot Information System..........196
Body Styling Kits.........................................298
Bonnet Lock See: Opening and Closing the Hood..........256
Booster Seats
..................................................35
Types of Booster Seats...................................... 36Brake Fluid Check........................................269
Brake Fluid Service Interval............................ 270
Brakes.................................................................171 General Information............................................ 171
Brake System Specifications - Mach 1........................................................................\
337
Breaking-In.....................................................230 Ground Clearance............................................. 230
Bulb Specification Chart..........................359
C
Canceling the Set Speed...........................185
Capacities and Specifications - 2.3L EcoBoost™.................................................343
Air Conditioning System................................. 344
Alternative Engine Oil for Extremely Cold Climates............................................................ 347
Automatic Transmission................................ 344
Engine Coolant................................................... 345
Engine Oil 2.3L EcoBoost Base.................... 346
Engine Oil 2.3L EcoBoost High Output.............................................................. 348
Fuel Tank.............................................................. 349
Grease.................................................................... 349
Hydraulic Brake System.................................. 350
Locks...................................................................... 350
Manual Transmission....................................... 345
Rear Axle............................................................... 350
Washer Reservoir................................................ 351
Capacities and Specifications - 5.0L.................................................................351
Air Conditioning System.................................. 352
Alternative Engine Oil for Extremely Cold Climates........................................................... 355
Automatic Transmission................................. 352
Engine Coolant................................................... 354
Engine Oil.............................................................. 355
Fuel Tank.............................................................. 356
Grease.................................................................... 356
Hydraulic Brake System................................... 357
Locks....................................................................... 357
Manual Transmission - 3160......................... 354
Manual Transmission - MT82....................... 353
Rear Axle............................................................... 357
Washer Reservoir............................................... 358
Capacities and Specifications................335
514
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
Page 519 of 530

Switching the Rear Heated Seats On and
Off........................................................................\
413
Switching the Rear Ventilated Seats On and Off............................................................... 413
Switching the Ventilated Seats On and Off........................................................................\
413
Climate Control..............................................127
Climate Controlled Seats..........................139 Cooled Seats........................................................ 140
Heated Seats........................................................ 139
Closing the Convertible Top.....................227
Clutch Fluid Check - Manual Transmission..............................................270
Cold Weather Precautions.......................230
Connected Vehicle.....................................360
Connecting the Vehicle to a Mobile
Network........................................................... 360
Connected Vehicle Limitations..............360
Connected Vehicle Requirements........360
Connected Vehicle – Troubleshooting - Vehicles With: Modem.............................361
Connected Vehicle – Troubleshooting - Vehicles With: SYNC 3............................362
Connecting the Vehicle to a Mobile Network.......................................................360
Connecting FordPass to the Modem.........360
Enabling and Disabling the Modem..........360
What Is the Modem.......................................... 360
Connecting the Vehicle to a Wi-Fi Network.......................................................360
Convertible Top............................................226
Coolant Check See: Engine Coolant Check........................... 264
Crash Sensors and Airbag Indicator
.......56
Creating a MyKey...........................................64
Creating a Vehicle Wi-Fi Hotspot..........364 Connecting a Device to the Wi-Fi
Hotspot............................................................ 364
Finding the Wi-Fi Hotspot Name and Password......................................................... 364
Cross Traffic Alert.........................................198 Cross Traffic Alert Behavior When Trailer
is Attached...................................................... 200
Cross Traffic Alert Indicator............................ 201
Cross Traffic Alert Information Messages.......................................................... 201
Cross Traffic Alert System Limitations...................................................... 200Cross Traffic Alert System Sensors............200
Switching the System On and Off..............200
Using Cross Traffic Alert..................................
198
Cruise Control
................................................184
Cruise Control Indicators...........................185
Cruise Control - Vehicles With: Adaptive Cruise Control...............................................76
Cruise Control - Vehicles With: Cruise Control.............................................................76
Customer Assistance
.................................238
Customer Information................................451
Radio Frequency Certification Labels.........451
D
Data Recording
................................................15
Comfort, Convenience and Entertainment
Data........................................................................\
17
Event Data............................................................... 16
Service Data............................................................ 16
Services That Third Parties Provide................17
Services That We Provide................................... 17
Vehicles With a Modem...................................... 17
Vehicles With an Emergency Call System................................................................. 18
Vehicles With SYNC............................................. 18
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................82
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)
............82
Declaration of Conformity - Vehicles With: SYNC 3
................................................511
Radio Frequency Statement........................... 511
Digital Radio
..................................................369
HD Radio Reception and Station
Troubleshooting............................................ 370
Direction Indicators.......................................83
Doors and Locks.............................................67
Drive Control
.................................................209
Active Exhaust...................................................... 211
Adaptive Dampers............................................... 211
Rev Match.............................................................. 212
Selectable Drive Modes.................................. 209
Selectable Steering............................................. 211
Drive Control - Mach 1...............................206 Active Exhaust.................................................... 208
No Lift Shift......................................................... 209
516
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
Page 521 of 530

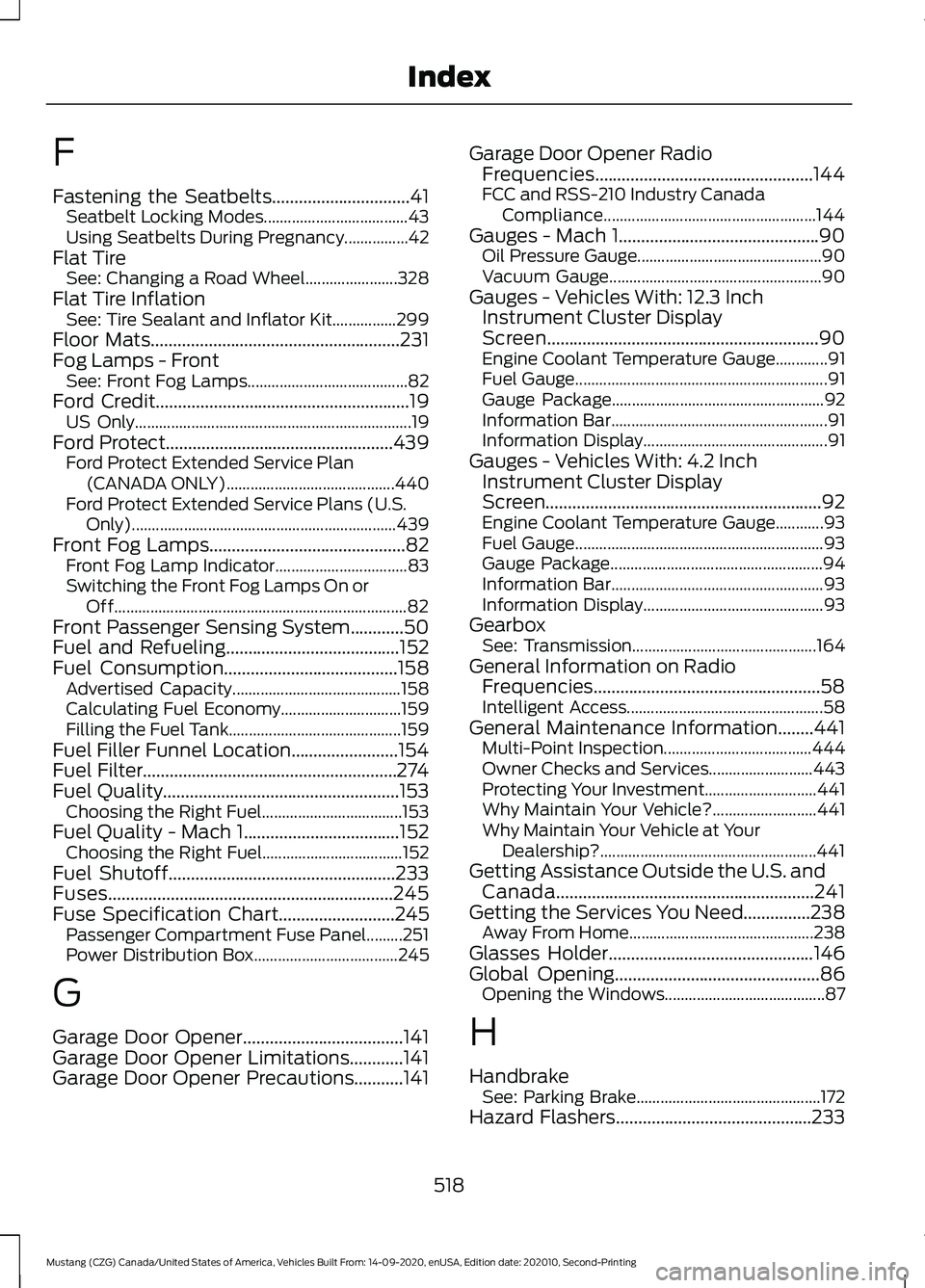

F
Fastening the Seatbelts...............................41
Seatbelt Locking Modes.................................... 43
Using Seatbelts During Pregnancy................42
Flat Tire See: Changing a Road Wheel....................... 328
Flat Tire Inflation See: Tire Sealant and Inflator Kit................299
Floor Mats........................................................231
Fog Lamps - Front See: Front Fog Lamps........................................ 82
Ford Credit.........................................................19 US Only..................................................................... 19
Ford Protect
...................................................439
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 440
Ford Protect Extended Service Plans (U.S. Only).................................................................. 439
Front Fog Lamps
............................................82
Front Fog Lamp Indicator................................. 83
Switching the Front Fog Lamps On or Off........................................................................\
. 82
Front Passenger Sensing System............50
Fuel and Refueling.......................................152
Fuel Consumption
.......................................158
Advertised Capacity.......................................... 158
Calculating Fuel Economy.............................. 159
Filling the Fuel Tank........................................... 159
Fuel Filler Funnel Location........................154
Fuel Filter.........................................................274
Fuel Quality
.....................................................153
Choosing the Right Fuel................................... 153
Fuel Quality - Mach 1...................................152 Choosing the Right Fuel................................... 152
Fuel Shutoff
...................................................233
Fuses................................................................245
Fuse Specification Chart..........................245
Passenger Compartment Fuse Panel.........251
Power Distribution Box.................................... 245
G
Garage Door Opener....................................141
Garage Door Opener Limitations
............141
Garage Door Opener Precautions...........141 Garage Door Opener Radio
Frequencies.................................................144
FCC and RSS-210 Industry Canada Compliance..................................................... 144
Gauges - Mach 1.............................................90 Oil Pressure Gauge.............................................. 90
Vacuum Gauge..................................................... 90
Gauges - Vehicles With: 12.3 Inch Instrument Cluster Display
Screen.............................................................90
Engine Coolant Temperature Gauge.............91
Fuel Gauge............................................................... 91
Gauge Package..................................................... 92
Information Bar...................................................... 91
Information Display.............................................. 91
Gauges - Vehicles With: 4.2 Inch Instrument Cluster Display
Screen..............................................................92
Engine Coolant Temperature Gauge............93
Fuel Gauge.............................................................. 93
Gauge Package..................................................... 94
Information Bar..................................................... 93
Information Display............................................. 93
Gearbox See: Transmission.............................................. 164
General Information on Radio Frequencies...................................................58
Intelligent Access................................................. 58
General Maintenance Information
........441
Multi-Point Inspection..................................... 444
Owner Checks and Services.......................... 443
Protecting Your Investment............................ 441
Why Maintain Your Vehicle?.......................... 441
Why Maintain Your Vehicle at Your Dealership?...................................................... 441
Getting Assistance Outside the U.S. and Canada..........................................................241
Getting the Services You Need...............238 Away From Home.............................................. 238
Glasses Holder
..............................................146
Global Opening..............................................86 Opening the Windows........................................ 87
H
Handbrake See: Parking Brake.............................................. 172
Hazard Flashers
............................................233
518
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
Page 526 of 530

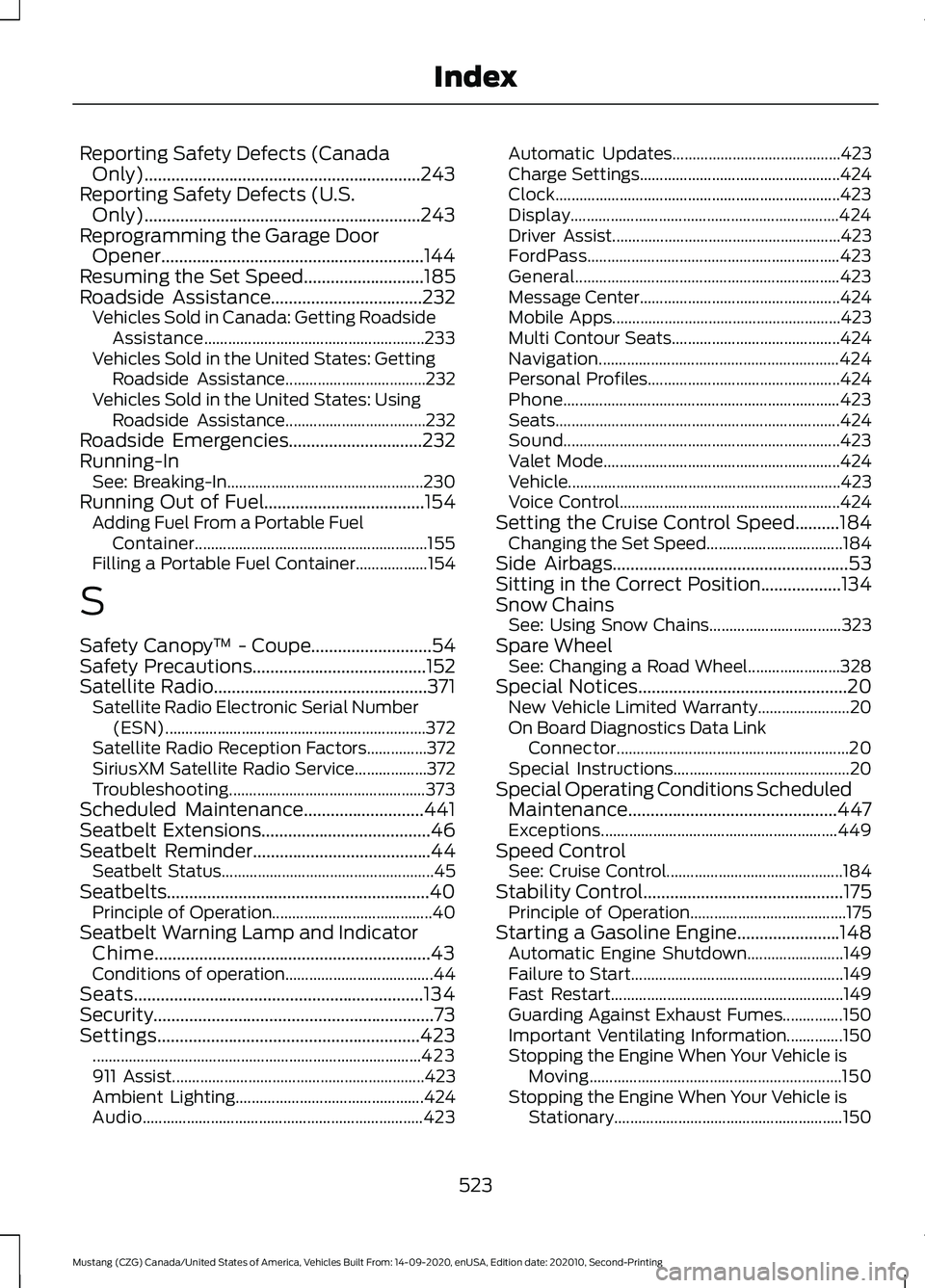

Reporting Safety Defects (Canada
Only)..............................................................243
Reporting Safety Defects (U.S. Only)..............................................................243
Reprogramming the Garage Door Opener...........................................................144
Resuming the Set Speed...........................185
Roadside Assistance..................................232 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 233
Vehicles Sold in the United States: Getting Roadside Assistance................................... 232
Vehicles Sold in the United States: Using Roadside Assistance................................... 232
Roadside Emergencies
..............................232
Running-In See: Breaking-In................................................. 230
Running Out of Fuel....................................154 Adding Fuel From a Portable Fuel
Container.......................................................... 155
Filling a Portable Fuel Container.................. 154
S
Safety Canopy ™ - Coupe
...........................54
Safety Precautions.......................................152
Satellite Radio................................................371 Satellite Radio Electronic Serial Number
(ESN)................................................................. 372
Satellite Radio Reception Factors...............372
SiriusXM Satellite Radio Service.................. 372
Troubleshooting................................................. 373
Scheduled Maintenance...........................441
Seatbelt Extensions......................................46
Seatbelt Reminder
........................................44
Seatbelt Status..................................................... 45
Seatbelts...........................................................40 Principle of Operation........................................ 40
Seatbelt Warning Lamp and Indicator Chime..............................................................43
Conditions of operation..................................... 44
Seats.................................................................134
Security...............................................................73
Settings...........................................................423 ........................................................................\
.......... 423
911 Assist............................................................... 423
Ambient Lighting............................................... 424
Audio...................................................................... 423Automatic Updates..........................................
423
Charge Settings.................................................. 424
Clock....................................................................... 423
Display................................................................... 424
Driver Assist......................................................... 423
FordPass............................................................... 423
General.................................................................. 423
Message Center.................................................. 424
Mobile Apps......................................................... 423
Multi Contour Seats.......................................... 424
Navigation............................................................ 424
Personal Profiles................................................ 424
Phone..................................................................... 423
Seats....................................................................... 424
Sound..................................................................... 423
Valet Mode........................................................... 424
Vehicle.................................................................... 423
Voice Control....................................................... 424
Setting the Cruise Control Speed
..........184
Changing the Set Speed.................................. 184
Side Airbags
.....................................................53
Sitting in the Correct Position..................134
Snow Chains See: Using Snow Chains................................. 323
Spare Wheel See: Changing a Road Wheel....................... 328
Special Notices
...............................................20
New Vehicle Limited Warranty....................... 20
On Board Diagnostics Data Link Connector.......................................................... 20
Special Instructions............................................ 20
Special Operating Conditions Scheduled Maintenance...............................................447
Exceptions........................................................... 449
Speed Control See: Cruise Control............................................ 184
Stability Control
.............................................175
Principle of Operation....................................... 175
Starting a Gasoline Engine.......................148 Automatic Engine Shutdown........................ 149
Failure to Start..................................................... 149
Fast Restart.......................................................... 149
Guarding Against Exhaust Fumes...............150
Important Ventilating Information..............150
Stopping the Engine When Your Vehicle is Moving............................................................... 150
Stopping the Engine When Your Vehicle is Stationary......................................................... 150
523
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
Page 529 of 530

Phone Controls...................................................
379
Phone Voice Commands................................ 378
Using Traction Control................................174 Switching the System Off ............................... 174
System Indicator Lights and Messages........................................................... 174
Using Voice Recognition............................376
Audio Voice Commands................................. 395
Climate Voice Commands............................. 396
Initiating a Voice Session................................ 376
Mobile App Voice Commands...................... 399
Navigation Voice Commands.......................398
Phone Voice Commands............................... 396
SiriusXM Traffic and Travel Link Voice Commands.................................................... 400
System Interaction and Feedback...............377
Voice Settings Commands........................... 400
Using Winter Tires.......................................323
Utilizing the Mediation/Arbitration Program (Canada Only)
.........................241
V
Vehicle Care
...................................................289
General Information......................................... 289
General Information - GT500/Mach 1........................................................................\
... 289
Vehicle Identification Number
................343
Vehicle Storage............................................296
Body........................................................................\
297
Brakes..................................................................... 297
Cooling system................................................... 297
Disconnecting Your 12 Volt Battery.............297
Engine..................................................................... 297
Fuel system.......................................................... 297
General.................................................................. 296
Miscellaneous..................................................... 297
Removing Vehicle From Storage.................298
Tires........................................................................\
. 297
Vehicle Wi-Fi Hotspot
...............................364
Ventilation See: Climate Control.......................................... 127
VIN See: Vehicle Identification Number............343
Voice Control....................................................75 W
Warning Lamps and Indicators................94
Adaptive Cruise Control Indicator.................94
Airbag Warning Lamp........................................ 94
Anti-Lock Brake System Warning Lamp.................................................................... 94
Automatic Headlamp High Beam Indicator .............................................................. 94
Battery ...................................................................... 94
Blind Spot Information System Indicator.............................................................. 95
Brake System Warning Lamp.......................... 95
Cruise Control Indicator..................................... 95
Direction Indicator............................................... 95
Door Ajar Warning Lamp................................... 95
Engine Coolant Temperature Warning Lamp
.................................................................... 95
Fasten Seatbelt Warning Lamp.....................95
Front Fog Lamp Indicator................................. 95
Headlamp High Beam Indicator....................96
Heads Up Display................................................. 95
Hood Ajar................................................................ 96
Lane Keeping System Lamp............................ 96
Launch Control..................................................... 96
Low Beam Malfunction..................................... 96
Low Fuel Level Warning Lamp....................... 96
Low Tire Pressure Warning Lamp.................. 96
Low Washer Fluid Level Warning Lamp.................................................................... 96
Oil Pressure Warning Lamp............................. 96
Parking Lamps...................................................... 96
Powertrain Fault................................................... 96
Service Engine Soon........................................... 96
Shift Indicator........................................................ 97
Stability Control and Traction Control Indicator.............................................................. 97
Stability Control and Traction Control Off Warning Lamp.................................................. 97
Trunk Ajar................................................................. 97
Washer Fluid Check.....................................274
Washers See: Cleaning the Exterior............................... 291
See: Cleaning the Exterior - Mach 1.............291
See: Wipers and Washers................................. 78
Waxing.............................................................293
Welcome Lighting..........................................83
What Is a Connected Vehicle.................360
526
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
