power steering fluid FORD MUSTANG 2021 Owners Manual

Customer Assistance
Getting the Services You Need
..............238
In California (U.S. Only) ...........................
239
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) ....................
240
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
241
Getting Assistance Outside the U.S. and Canada ........................................................
241
Ordering Additional Owner's Literature ........................................................................\
243
Reporting Safety Defects (U.S. Only) ........................................................................\
243
Reporting Safety Defects (Canada Only) ........................................................................\
243
Fuses
Fuse Specification Chart .........................
245
Changing a Fuse .........................................
254
Maintenance
General Information ..................................
256
Opening and Closing the Hood .............
256
Under Hood Overview - 2.3L EcoBoost™ ........................................................................\
258
Under Hood Overview - 5.0L .................
259
Under Hood Overview - 5.0L, Mach 1 .......................................................................
260
Engine Oil Dipstick ......................................
261
Engine Oil Check ..........................................
261
Oil Change Indicator Reset ......................
261
Changing the Engine Air Filter - 5.0L, Mach 1 .........................................................
262
Changing the Engine Air Filter - 2.3L EcoBoost™/5.0L ....................................
263
Engine Coolant Check ..............................
264
Manual Transmission Fluid Check - 6-Speed Manual Transmission – 3160
........................................................................\
268
Manual Transmission Fluid Check - 6-Speed Manual Transmission – MT82
........................................................................\
268 Automatic Transmission Fluid Check
........................................................................\
269
Brake Fluid Check .......................................
269
Clutch Fluid Check - Manual Transmission ............................................
270
Power Steering Fluid Check ....................
270
Changing the 12V Battery ........................
270
Adjusting the Headlamps ........................
272
Washer Fluid Check ...................................
274
Fuel Filter ........................................................
274
Checking the Wiper Blades .....................
274
Changing the Wiper Blades ....................
274
Changing a Bulb ..........................................
275
Track Use
Track Use - Mach 1 ......................................
276
Track Use .......................................................
283
Vehicle Care
General Information ..................................
289
General Information - GT500/Mach 1 ........................................................................\
289
Cleaning Products .....................................
290
Cleaning the Exterior - Mach 1 ................
291
Cleaning the Exterior ..................................
291
Waxing ............................................................
293
Cleaning the Engine - Mach 1 .................
293
Cleaning the Engine ...................................
293
Cleaning the Windows and Wiper Blades ........................................................................\
294
Cleaning the Interior ..................................
294
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
295
Cleaning Leather Seats ............................
295
Repairing Minor Paint Damage .............
296
Cleaning the Wheels .................................
296
Vehicle Storage ...........................................
296
Cleaning the Convertible Top ................
298
Body Styling Kits ........................................
298
5
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Table of Contents

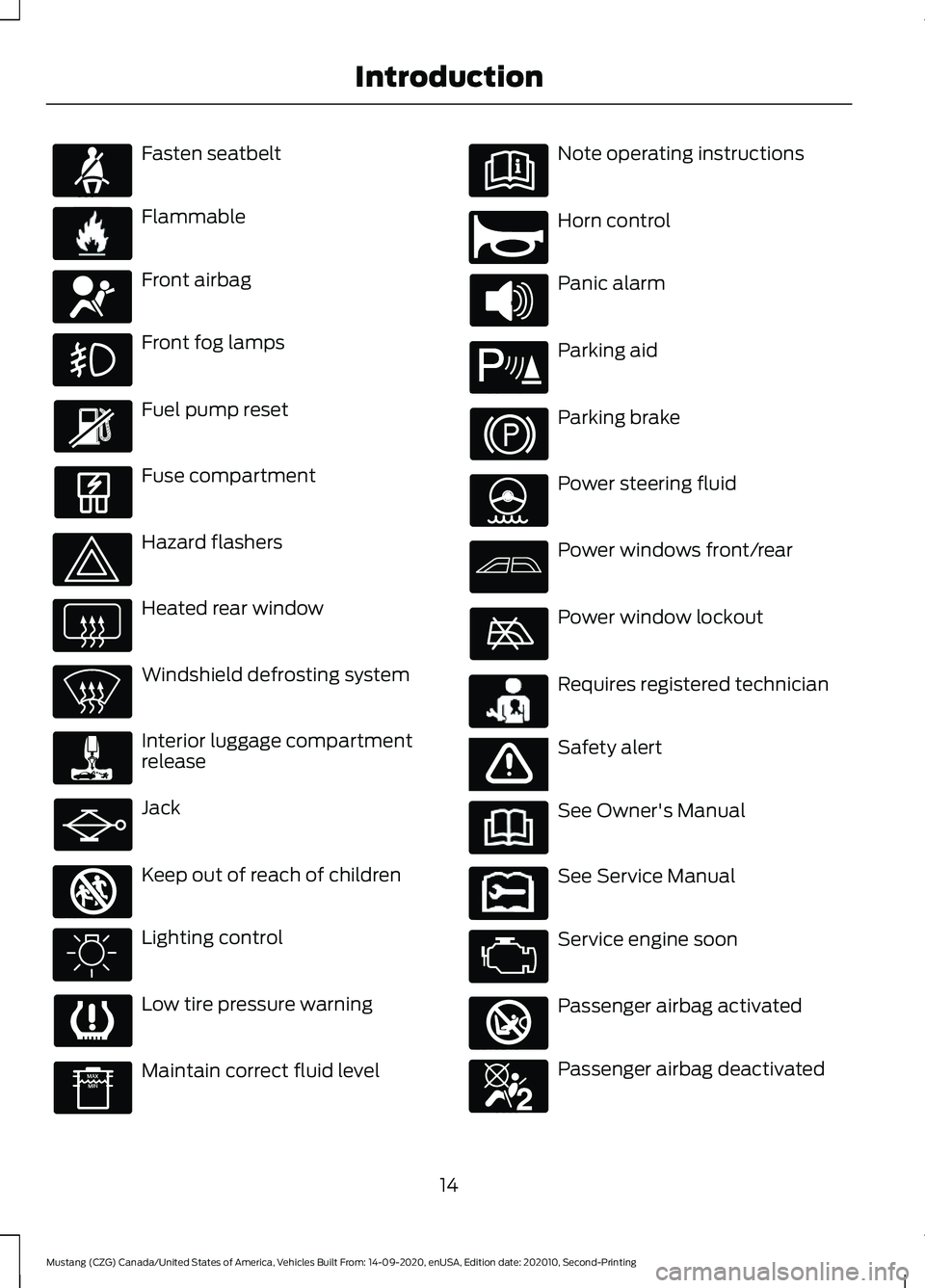

Fasten seatbelt
Flammable
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard flashers
Heated rear window
Windshield defrosting system
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level Note operating instructions
Horn control
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Service engine soon
Passenger airbag activated
Passenger airbag deactivated
14
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing IntroductionE71880 E231160 E67017 E161353 E270945 E139213 E231159 E65963 E231158 E270849 E270850

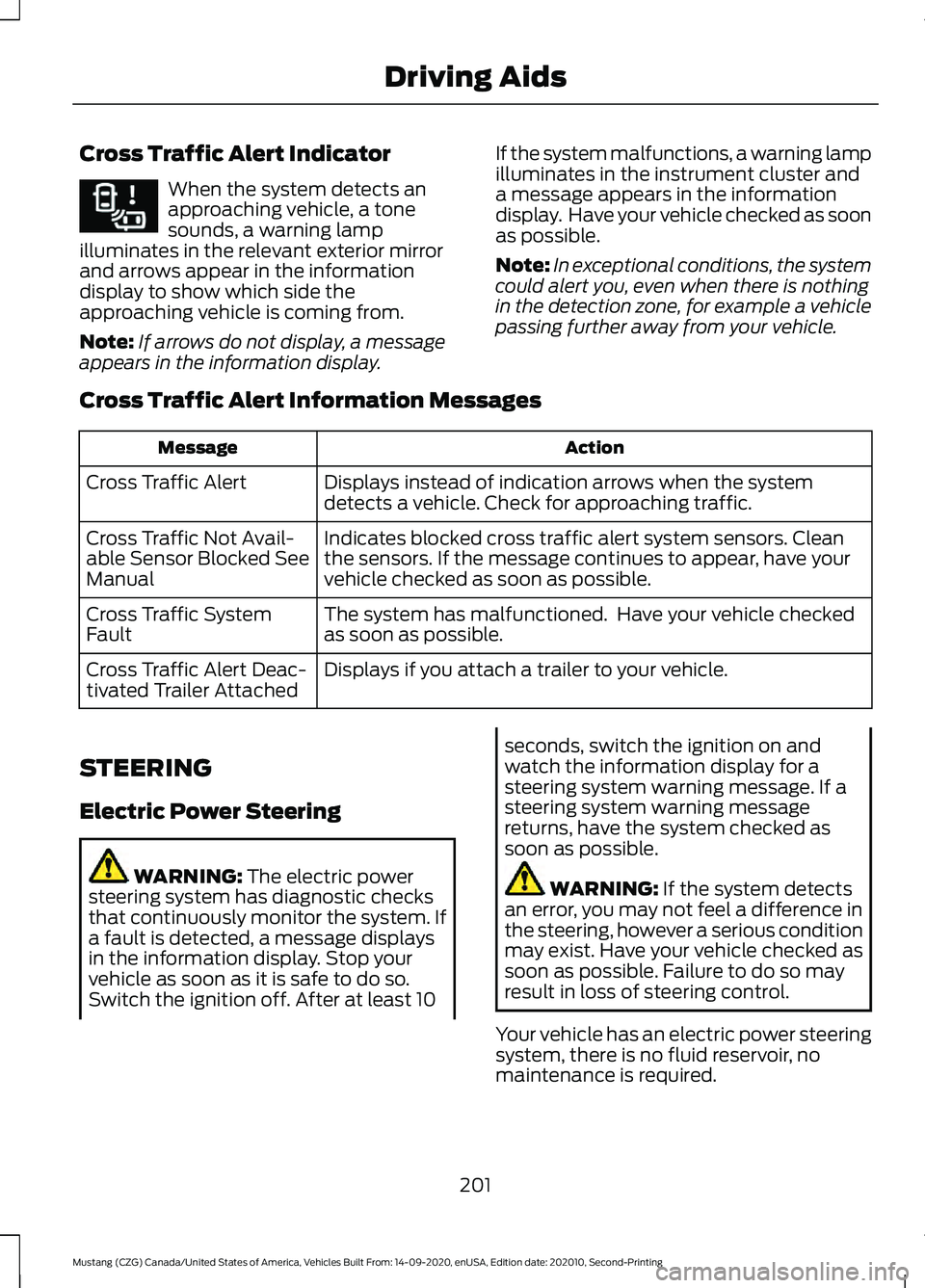

Cross Traffic Alert Indicator
When the system detects an
approaching vehicle, a tone
sounds, a warning lamp
illuminates in the relevant exterior mirror
and arrows appear in the information
display to show which side the
approaching vehicle is coming from.
Note: If arrows do not display, a message
appears in the information display. If the system malfunctions, a warning lamp
illuminates in the instrument cluster and
a message appears in the information
display. Have your vehicle checked as soon
as possible.
Note:
In exceptional conditions, the system
could alert you, even when there is nothing
in the detection zone, for example a vehicle
passing further away from your vehicle.
Cross Traffic Alert Information Messages Action
Message
Displays instead of indication arrows when the system
detects a vehicle. Check for approaching traffic.
Cross Traffic Alert
Indicates blocked cross traffic alert system sensors. Clean
the sensors. If the message continues to appear, have your
vehicle checked as soon as possible.
Cross Traffic Not Avail-
able Sensor Blocked See
Manual
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Cross Traffic System
Fault
Displays if you attach a trailer to your vehicle.
Cross Traffic Alert Deac-
tivated Trailer Attached
STEERING
Electric Power Steering WARNING: The electric power
steering system has diagnostic checks
that continuously monitor the system. If
a fault is detected, a message displays
in the information display. Stop your
vehicle as soon as it is safe to do so.
Switch the ignition off. After at least 10 seconds, switch the ignition on and
watch the information display for a
steering system warning message. If a
steering system warning message
returns, have the system checked as
soon as possible.
WARNING: If the system detects
an error, you may not feel a difference in
the steering, however a serious condition
may exist. Have your vehicle checked as
soon as possible. Failure to do so may
result in loss of steering control.
Your vehicle has an electric power steering
system, there is no fluid reservoir, no
maintenance is required.
201
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Driving AidsE268294

Follow your community's regulations and
standards for recycling and disposing of
automotive fluids.
Severe Climates
If you drive in extremely cold climates:
•
It may be necessary to increase the
coolant concentration above 50%.
• A coolant concentration of 60%
provides improved freeze point
protection.
• Coolant concentrations above 60%
decrease the overheat protection
characteristics of the coolant and may
cause engine damage.
If you drive in extremely hot climates:
• You can decrease the coolant
concentration to 40%.
• A coolant concentration of 40%
provides improved overheat protection.
• Coolant concentrations below 40%
decrease the overheat and corrosion
protection characteristics of the
coolant and may cause engine
damage.
Vehicles driven year-round in non-extreme
climates should use prediluted coolant for
optimum cooling system and engine
protection.
Coolant Change
At specific mileage intervals, as listed in
the scheduled maintenance information,
the coolant should be changed. Add
prediluted coolant approved to the correct
specification. See Capacities and
Specifications (page 335). Fail-Safe Cooling
Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs. The fail-safe
distance depends on ambient
temperature, vehicle load and terrain.
How Fail-Safe Cooling Works If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone:
A warning lamp illuminates and
a message may appear in the
information display.
If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.
When this occurs, your vehicle still
operates, however:
• Engine power is limited.
• The air conditioning system turns off.
Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.
When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.
When Fail-Safe Mode Is Activated WARNING: Fail-safe mode is for
use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
266
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Maintenance

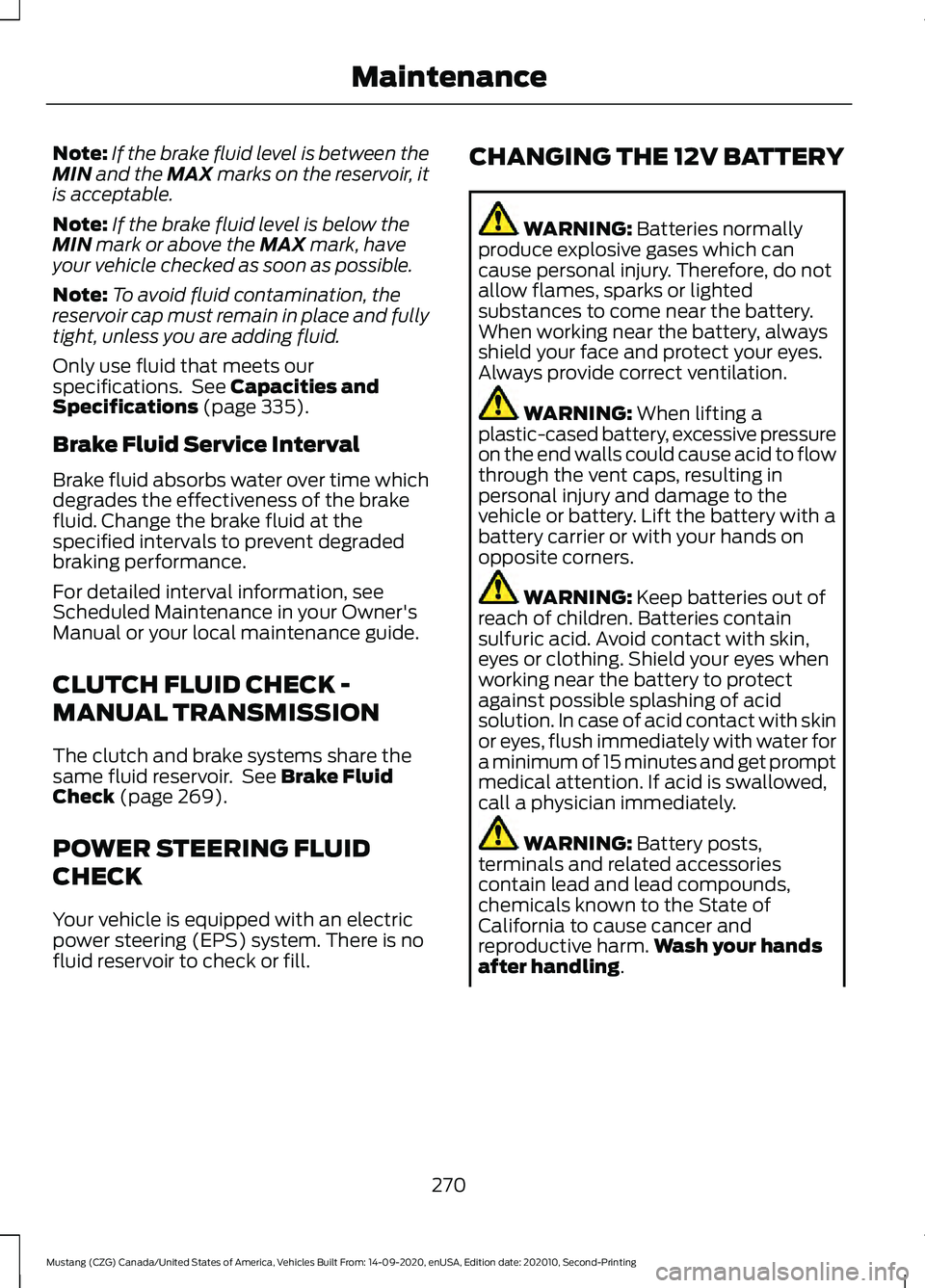

Note:
If the brake fluid level is between the
MIN and the MAX marks on the reservoir, it
is acceptable.
Note: If the brake fluid level is below the
MIN
mark or above the MAX mark, have
your vehicle checked as soon as possible.
Note: To avoid fluid contamination, the
reservoir cap must remain in place and fully
tight, unless you are adding fluid.
Only use fluid that meets our
specifications. See
Capacities and
Specifications (page 335).
Brake Fluid Service Interval
Brake fluid absorbs water over time which
degrades the effectiveness of the brake
fluid. Change the brake fluid at the
specified intervals to prevent degraded
braking performance.
For detailed interval information, see
Scheduled Maintenance in your Owner's
Manual or your local maintenance guide.
CLUTCH FLUID CHECK -
MANUAL TRANSMISSION
The clutch and brake systems share the
same fluid reservoir. See
Brake Fluid
Check (page 269).
POWER STEERING FLUID
CHECK
Your vehicle is equipped with an electric
power steering (EPS) system. There is no
fluid reservoir to check or fill. CHANGING THE 12V BATTERY WARNING:
Batteries normally
produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation. WARNING:
When lifting a
plastic-cased battery, excessive pressure
on the end walls could cause acid to flow
through the vent caps, resulting in
personal injury and damage to the
vehicle or battery. Lift the battery with a
battery carrier or with your hands on
opposite corners. WARNING:
Keep batteries out of
reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately. WARNING:
Battery posts,
terminals and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm. Wash your hands
after handling
.
270
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Maintenance

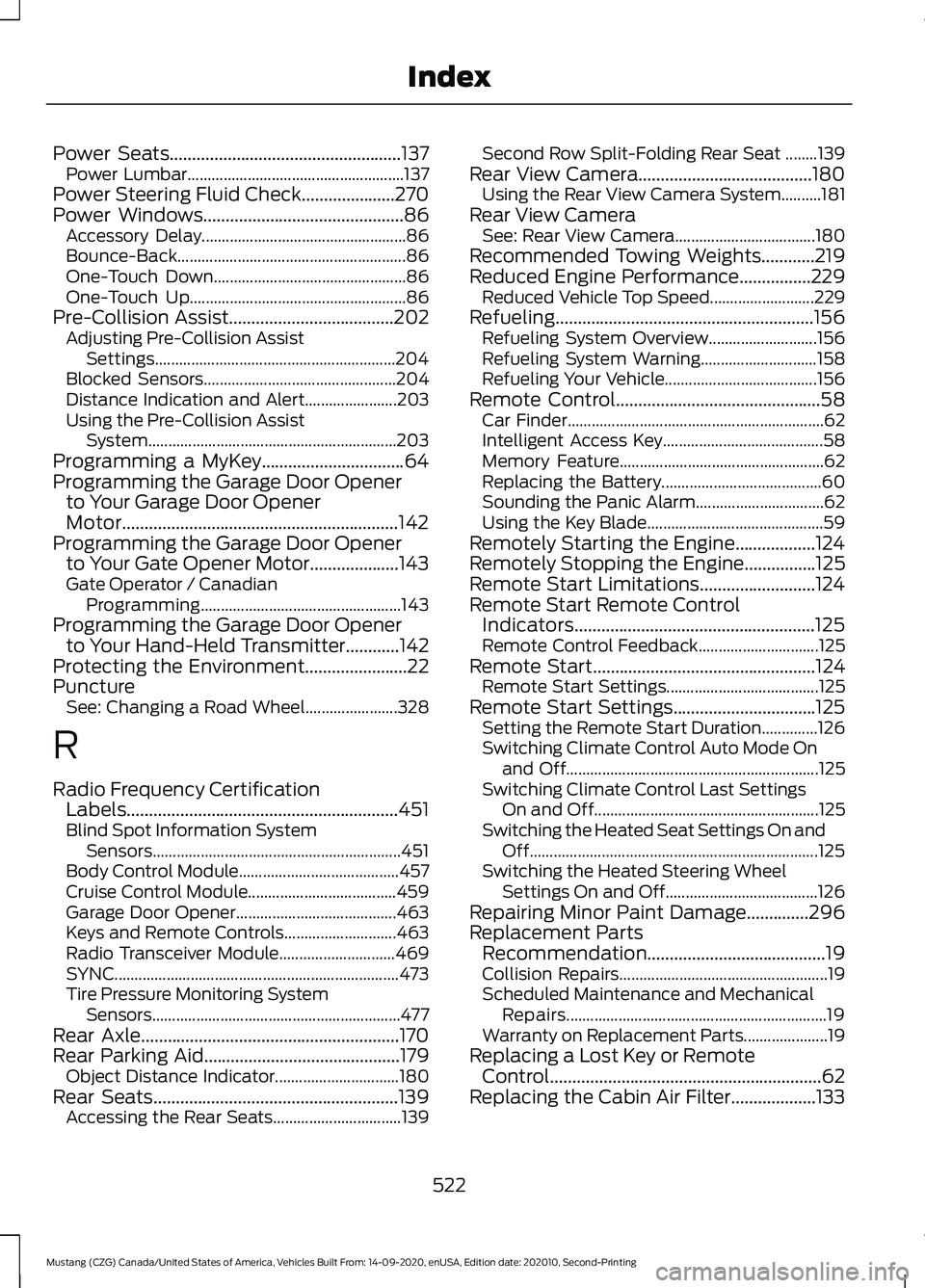

Power Seats....................................................137
Power Lumbar...................................................... 137
Power Steering Fluid Check
.....................270
Power Windows.............................................86
Accessory Delay................................................... 86
Bounce-Back......................................................... 86
One-Touch Down................................................ 86
One-Touch Up...................................................... 86
Pre-Collision Assist
.....................................202
Adjusting Pre-Collision Assist
Settings............................................................ 204
Blocked Sensors................................................ 204
Distance Indication and Alert....................... 203
Using the Pre-Collision Assist System.............................................................. 203
Programming a MyKey
................................64
Programming the Garage Door Opener to Your Garage Door Opener
Motor..............................................................142
Programming the Garage Door Opener to Your Gate Opener Motor
....................143
Gate Operator / Canadian
Programming.................................................. 143
Programming the Garage Door Opener to Your Hand-Held Transmitter............142
Protecting the Environment.......................22
Puncture See: Changing a Road Wheel....................... 328
R
Radio Frequency Certification Labels
.............................................................451
Blind Spot Information System
Sensors.............................................................. 451
Body Control Module........................................ 457
Cruise Control Module..................................... 459
Garage Door Opener........................................ 463
Keys and Remote Controls............................ 463
Radio Transceiver Module............................. 469
SYNC....................................................................... 473
Tire Pressure Monitoring System Sensors.............................................................. 477
Rear Axle..........................................................170
Rear Parking Aid............................................179 Object Distance Indicator............................... 180
Rear Seats.......................................................139 Accessing the Rear Seats................................ 139Second Row Split-Folding Rear Seat ........139
Rear View Camera.......................................180 Using the Rear View Camera System..........181
Rear View Camera See: Rear View Camera................................... 180
Recommended Towing Weights............219
Reduced Engine Performance
................229
Reduced Vehicle Top Speed.......................... 229
Refueling..........................................................156 Refueling System Overview........................... 156
Refueling System Warning............................. 158
Refueling Your Vehicle...................................... 156
Remote Control..............................................58 Car Finder................................................................ 62
Intelligent Access Key........................................ 58
Memory Feature................................................... 62
Replacing the Battery........................................ 60
Sounding the Panic Alarm................................ 62
Using the Key Blade............................................ 59
Remotely Starting the Engine..................124
Remotely Stopping the Engine................125
Remote Start Limitations..........................124
Remote Start Remote Control Indicators......................................................125
Remote Control Feedback.............................. 125
Remote Start
..................................................124
Remote Start Settings...................................... 125
Remote Start Settings................................125 Setting the Remote Start Duration..............126
Switching Climate Control Auto Mode On
and Off............................................................... 125
Switching Climate Control Last Settings On and Off........................................................ 125
Switching the Heated Seat Settings On and Off........................................................................\
125
Switching the Heated Steering Wheel Settings On and Off...................................... 126
Repairing Minor Paint Damage..............296
Replacement Parts Recommendation........................................19
Collision Repairs.................................................... 19
Scheduled Maintenance and Mechanical Repairs................................................................. 19
Warranty on Replacement Parts..................... 19
Replacing a Lost Key or Remote Control.............................................................62
Replacing the Cabin Air Filter...................133
522
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
