Page 7 of 528
Transmission
Manual Transmission
................................164
Automatic Transmission ..........................
165
Technical Specifications - Mach 1 .........
169
Rear Axle
Limited Slip Differential ..............................
171
Brakes
General Information ....................................
172
Hints on Driving With Anti-Lock Brakes ........................................................................\
..
172
Parking Brake .................................................
173
Hill Start Assist .............................................
174
Traction Control
Principle of Operation ................................
175
Using Traction Control ...............................
175
Stability Control
Principle of Operation ................................
176
Using Stability Control ...............................
177
Parking Aids
Principle of Operation ................................
179
Rear Parking Aid ..........................................
180
Rear View Camera .......................................
181
Cruise Control
What Is Cruise Control ...............................
185
Switching Cruise Control On and Off ........................................................................\
.
185
Setting the Cruise Control Speed .........
185
Canceling the Set Speed ..........................
186
Resuming the Set Speed .........................
186
Cruise Control Indicators ..........................
186
Using Adaptive Cruise Control ...............
186
Driving Aids
Driver Alert .....................................................
193Lane Keeping System
................................
194
Blind Spot Information System .............
198
Cross Traffic Alert ......................................
200
Steering ..........................................................
203
Pre-Collision Assist ...................................
204
Drive Control - Mach 1 ..............................
208
Drive Control ...................................................
211
Load Carrying
Load Limit .......................................................
215
Towing
Towing a Trailer - Mach 1 ..........................
220
Towing a Trailer ...........................................
220
Recommended Towing Weights ............
221
Essential Towing Checks ..........................
222
Transporting the Vehicle - Mach 1 ........
224
Towing the Vehicle on Four Wheels .....
228
Convertible Top
Opening the Convertible Top .................
229
Closing the Convertible Top ...................
230
Driving Hints
Reduced Engine Performance ................
231
Cold Weather Precautions .......................
231
Breaking-In .....................................................
231
Driving Economically ..................................
231
Driving Through Shallow Water .............
232
Floor Mats ......................................................
232
Roadside Emergencies
Roadside Assistance .................................
234
Hazard Flashers ...........................................
235
Fuel Shutoff ..................................................
235
Jump Starting the Vehicle .......................
236
Post-Crash Alert System .........................
238
Transporting the Vehicle ..........................
239
4
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Table of Contents
Page 8 of 528
Customer Assistance
Getting the Services You Need
.............240
In California (U.S. Only) .............................
241
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .....................
242
Utilizing the Mediation/Arbitration Program (Canada Only) ......................
243
Getting Assistance Outside the U.S. and Canada .......................................................
243
Ordering Additional Owner's Literature ........................................................................\
245
Reporting Safety Defects (U.S. Only) ........................................................................\
245
Reporting Safety Defects (Canada Only) ........................................................................\
245
Fuses
Fuse Specification Chart ..........................
247
Changing a Fuse .........................................
256
Maintenance
General Information ..................................
258
Opening and Closing the Hood .............
258
Under Hood Overview - 2.3L EcoBoost™ .......................................................................
260
Under Hood Overview - 5.0L ..................
261
Under Hood Overview - 5.0L, Mach 1 ........................................................................\
262
Engine Oil Dipstick .....................................
263
Engine Oil Check .........................................
263
Oil Change Indicator Reset .....................
264
Changing the Engine Air Filter - 5.0L, Mach 1 .........................................................
264
Changing the Engine Air Filter - 2.3L EcoBoost™/5.0L ...................................
265
Engine Coolant Check ..............................
266
Manual Transmission Fluid Check - 6-Speed Manual Transmission – 3160
........................................................................\
270
Manual Transmission Fluid Check - 6-Speed Manual Transmission – MT82
........................................................................\
270 Automatic Transmission Fluid Check
........................................................................\
..
271
Brake Fluid Check .........................................
271
Clutch Fluid Check - Manual Transmission .............................................
272
Power Steering Fluid Check ....................
272
Changing the 12V Battery .........................
272
Adjusting the Headlamps ........................
275
Washer Fluid Check ...................................
276
Fuel Filter .......................................................
276
Checking the Wiper Blades .....................
277
Changing the Wiper Blades .....................
277
Changing a Bulb ...........................................
277
Track Use
Track Use - Mach 1 ......................................
279
Track Use .......................................................
286
Vehicle Care
General Information ..................................
292
General Information - Mach 1 .................
292
Cleaning Products ......................................
293
Cleaning the Exterior - Mach 1 ...............
294
Cleaning the Exterior .................................
294
Waxing ............................................................
296
Cleaning the Engine - Mach 1 .................
296
Cleaning the Engine ..................................
296
Cleaning the Windows and Wiper Blades ........................................................................\
297
Cleaning the Interior ..................................
297
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
298
Cleaning Leather Seats ............................
298
Repairing Minor Paint Damage .............
299
Cleaning the Wheels .................................
299
Vehicle Storage ...........................................
299
Cleaning the Convertible Top .................
301
Body Styling Kits ..........................................
301
5
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Table of Contents
Page 16 of 528
Thanks to a popular mix of appearance,
features and power, the 1969-73 Mach 1's
proved to be everyman's muscle car, and
have earned a respected place in Mustang
performance lore. Beyond those classic
years, the Mach 1 carried over for all five
years of the often overlooked 1974-78's
before a hiatus that ended with the
modern and muscular 2003-04's. Mach
1’
s return to the Mustang lineup for 2021
will add a new chapter on modern-day
muscle for this beloved model, and will
cement its rightful place near the very top
of Mustang performance history.
John M. Clor
Enthusiast Communications Manager /
FORD PERFORMANCE
SYMBOLS GLOSSARY
These are some of the symbols you may
see on your vehicle. Air conditioning system
Air conditioning system lubricant
type
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Brake fluid - non petroleum
based Brake system
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
13
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing IntroductionE162384 E231157 E270480 E139223 E141128 E71340
Page 97 of 528

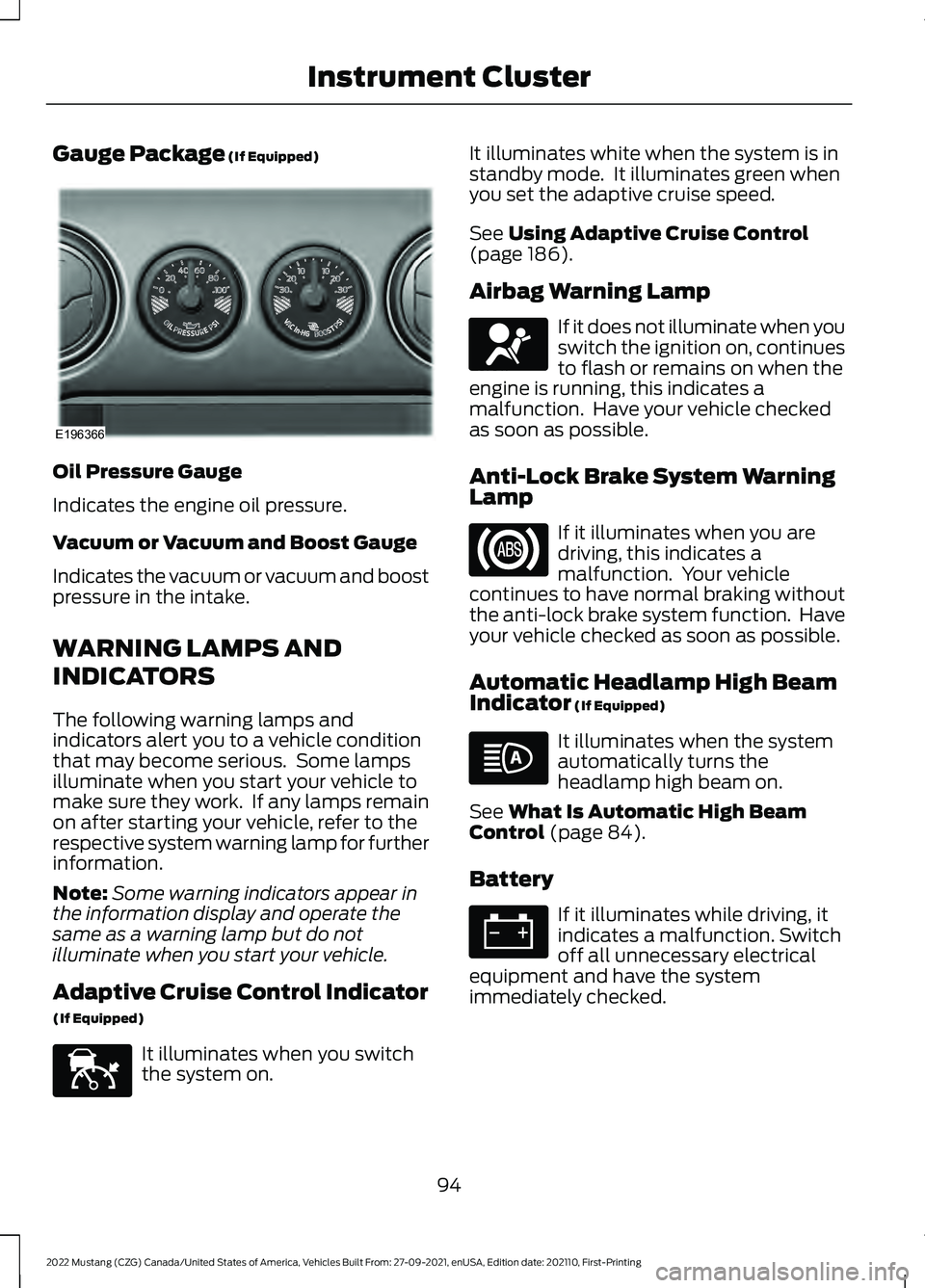

Gauge Package (If Equipped)
Oil Pressure Gauge
Indicates the engine oil pressure.
Vacuum or Vacuum and Boost Gauge
Indicates the vacuum or vacuum and boost
pressure in the intake.
WARNING LAMPS AND
INDICATORS
The following warning lamps and
indicators alert you to a vehicle condition
that may become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.
Note:
Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.
Adaptive Cruise Control Indicator
(If Equipped) It illuminates when you switch
the system on. It illuminates white when the system is in
standby mode. It illuminates green when
you set the adaptive cruise speed.
See
Using Adaptive Cruise Control
(page 186).
Airbag Warning Lamp If it does not illuminate when you
switch the ignition on, continues
to flash or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Anti-Lock Brake System Warning
Lamp If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle
continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.
Automatic Headlamp High Beam
Indicator
(If Equipped) It illuminates when the system
automatically turns the
headlamp high beam on.
See
What Is Automatic High Beam
Control (page 84).
Battery If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical
equipment and have the system
immediately checked.
94
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Instrument ClusterE196366 E144524 E67017
Page 98 of 528

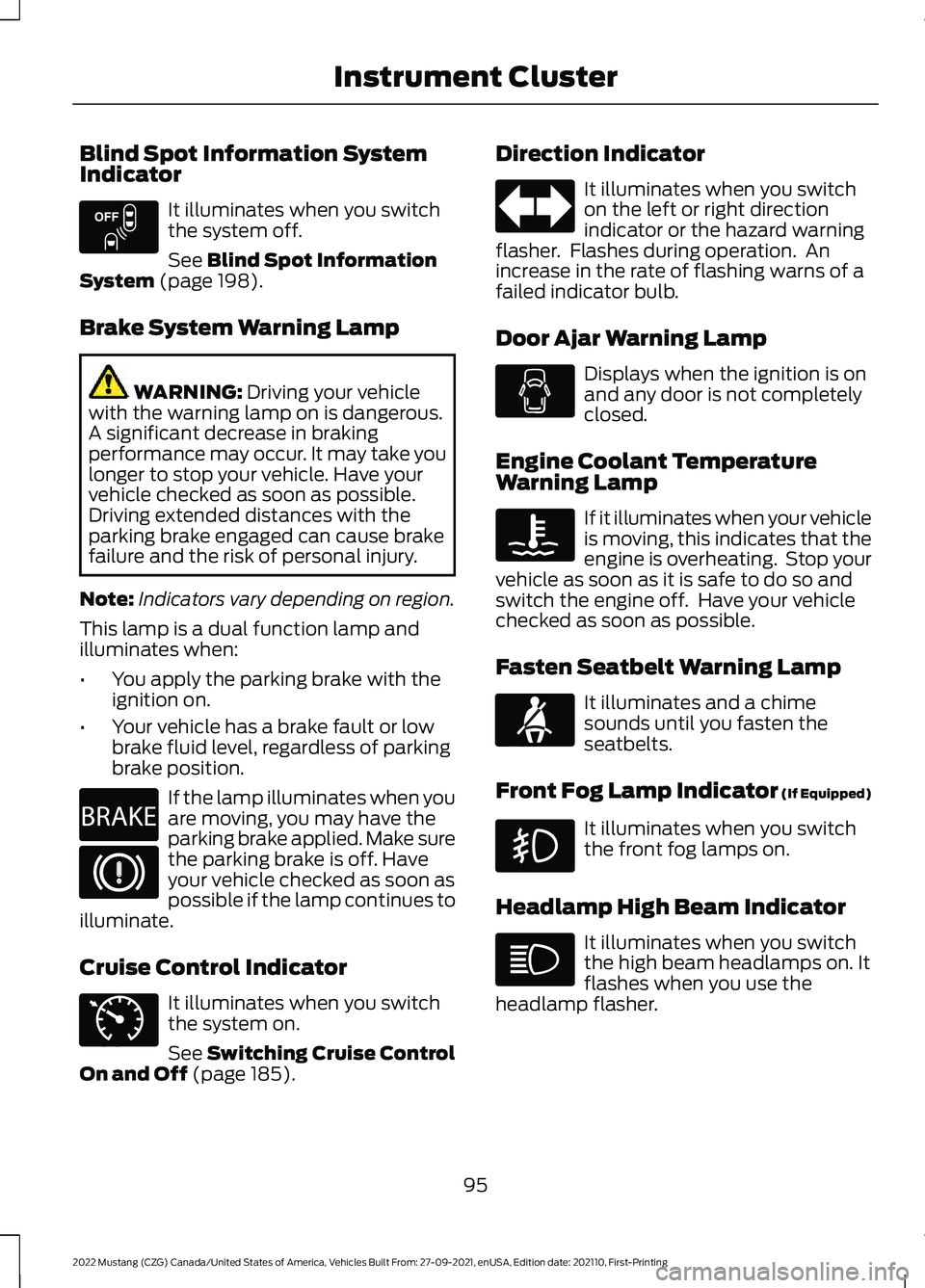

Blind Spot Information System
Indicator
It illuminates when you switch
the system off.
See Blind Spot Information
System (page 198).
Brake System Warning Lamp WARNING:
Driving your vehicle
with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.
Note: Indicators vary depending on region.
This lamp is a dual function lamp and
illuminates when:
• You apply the parking brake with the
ignition on.
• Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position. If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have
your vehicle checked as soon as
possible if the lamp continues to
illuminate.
Cruise Control Indicator It illuminates when you switch
the system on.
See
Switching Cruise Control
On and Off (page 185). Direction Indicator It illuminates when you switch
on the left or right direction
indicator or the hazard warning
flasher. Flashes during operation. An
increase in the rate of flashing warns of a
failed indicator bulb.
Door Ajar Warning Lamp Displays when the ignition is on
and any door is not completely
closed.
Engine Coolant Temperature
Warning Lamp If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating. Stop your
vehicle as soon as it is safe to do so and
switch the engine off. Have your vehicle
checked as soon as possible.
Fasten Seatbelt Warning Lamp It illuminates and a chime
sounds until you fasten the
seatbelts.
Front Fog Lamp Indicator (If Equipped) It illuminates when you switch
the front fog lamps on.
Headlamp High Beam Indicator It illuminates when you switch
the high beam headlamps on. It
flashes when you use the
headlamp flasher.
95
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Instrument ClusterE151262 E270480 E71340 E71880
Page 99 of 528
Hood Ajar
It illuminates when the ignition
is on and you do not have the
hood completely closed.
Lane Keeping System Lamp Illuminates when the system
activates.
Launch Control Illuminates when this feature is
ready, including both slip control
and engine RPM hold.
Illuminates when only engine
RPM hold is active. See Track
Use (page 279).
Low Beam Malfunction Lights when there is a
malfunction with the low beam
headlamp bulb.
Low Fuel Level Warning Lamp If it illuminates when you are
driving, refuel as soon as
possible.
Low Tire Pressure Warning Lamp Illuminates when your tire
pressure is low. If the lamp
remains on with the engine
running or when driving, check your tire
pressure as soon as possible.
It also illuminates momentarily when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
as soon as possible. Low Washer Fluid Level Warning
Lamp Illuminates when the washer
fluid is low.
Oil Pressure Warning Lamp Illuminates when you switch the
ignition on.
If it illuminates when the engine
is running this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. If the oil level is sufficient,
this indicates a system malfunction. Have
your vehicle checked as soon as possible.
See Engine Oil Check (page 263).
Parking Lamps Illuminate when you switch the
parking lamps on.
Powertrain Fault Illuminates when the system
detects a powertrain fault. Have
your vehicle checked as soon as
possible.
Service Engine Soon If it illuminates when the engine
is running this indicates a
malfunction. The On Board
Diagnostics system has detected a
malfunction of the vehicle emission control
system.
If it flashes, engine misfire may be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Drive in a moderate fashion (avoid heavy
acceleration and deceleration) and have
your vehicle immediately serviced.
96
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Instrument ClusterE159324 E144813 E234583 E255688 E181350 E132353

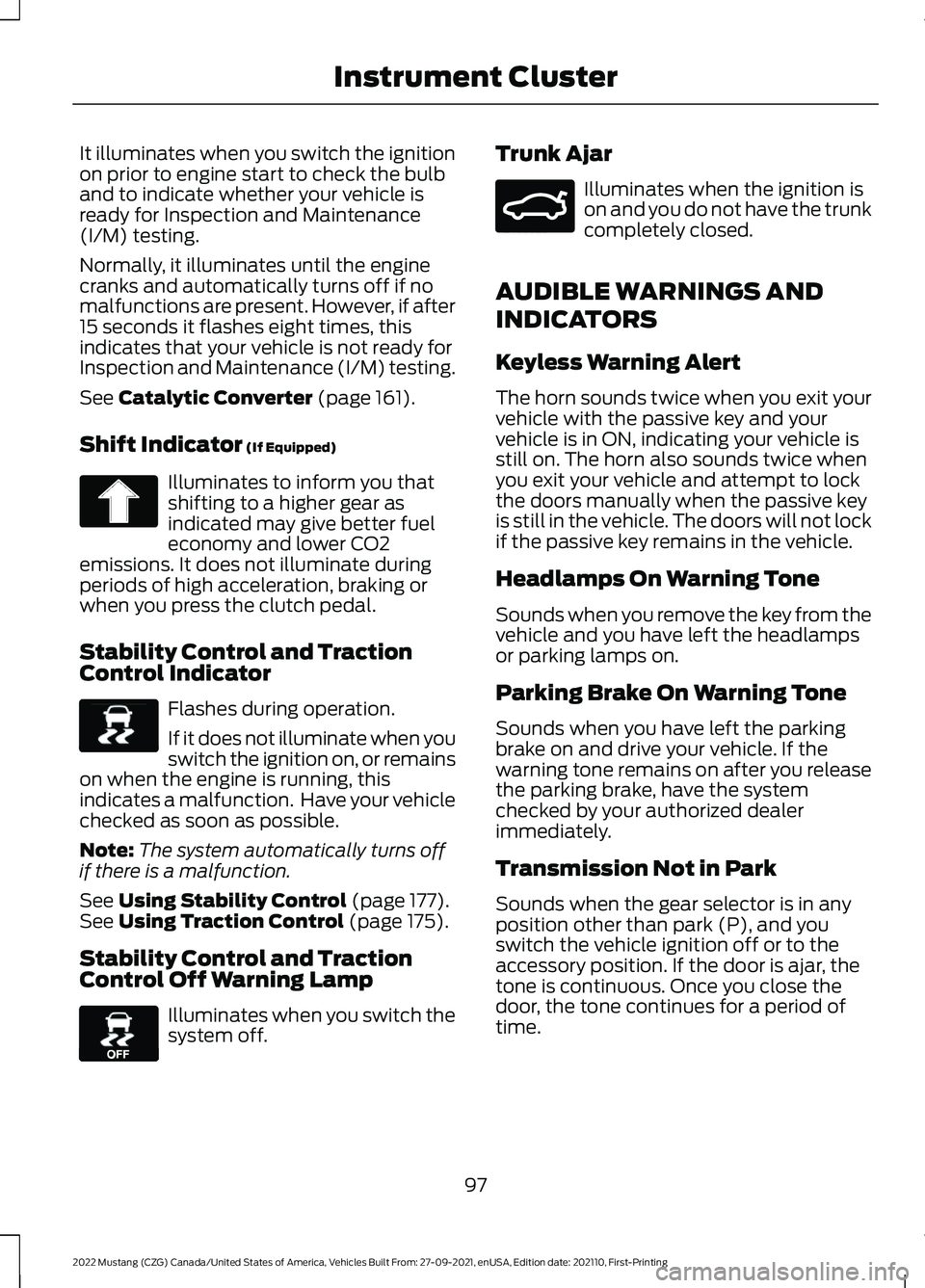

Page 100 of 528
It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.
Normally, it illuminates until the engine
cranks and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See Catalytic Converter (page 161).
Shift Indicator
(If Equipped) Illuminates to inform you that
shifting to a higher gear as
indicated may give better fuel
economy and lower CO2
emissions. It does not illuminate during
periods of high acceleration, braking or
when you press the clutch pedal.
Stability Control and Traction
Control Indicator Flashes during operation.
If it does not illuminate when you
switch the ignition on, or remains
on when the engine is running, this
indicates a malfunction. Have your vehicle
checked as soon as possible.
Note: The system automatically turns off
if there is a malfunction.
See
Using Stability Control (page 177).
See Using Traction Control (page 175).
Stability Control and Traction
Control Off Warning Lamp Illuminates when you switch the
system off. Trunk Ajar Illuminates when the ignition is
on and you do not have the trunk
completely closed.
AUDIBLE WARNINGS AND
INDICATORS
Keyless Warning Alert
The horn sounds twice when you exit your
vehicle with the passive key and your
vehicle is in ON, indicating your vehicle is
still on. The horn also sounds twice when
you exit your vehicle and attempt to lock
the doors manually when the passive key
is still in the vehicle. The doors will not lock
if the passive key remains in the vehicle.
Headlamps On Warning Tone
Sounds when you remove the key from the
vehicle and you have left the headlamps
or parking lamps on.
Parking Brake On Warning Tone
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning tone remains on after you release
the parking brake, have the system
checked by your authorized dealer
immediately.
Transmission Not in Park
Sounds when the gear selector is in any
position other than park (P), and you
switch the vehicle ignition off or to the
accessory position. If the door is ajar, the
tone is continuous. Once you close the
door, the tone continues for a period of
time.
97
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Instrument Cluster E138639 E130458 E159323

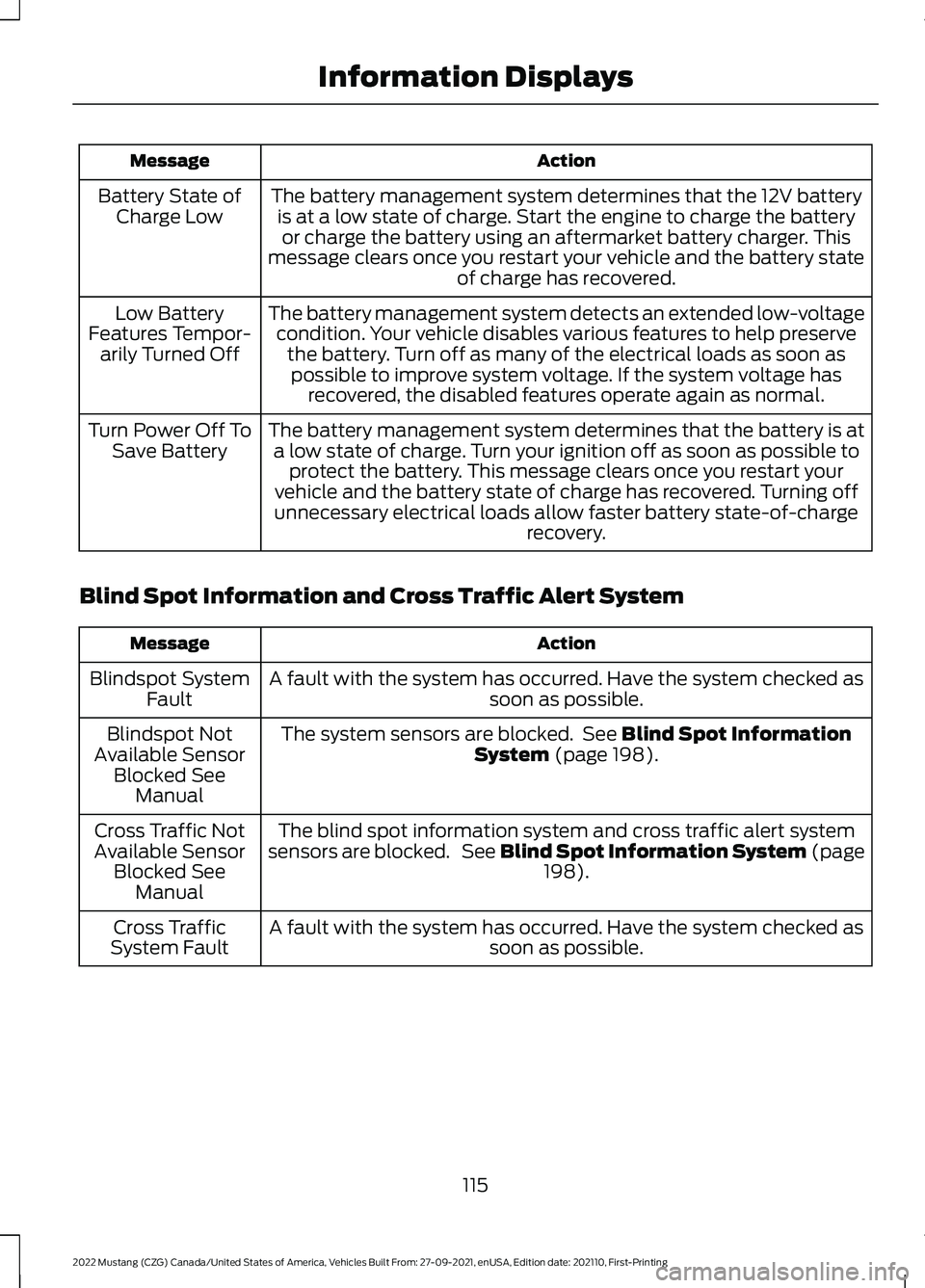

Page 118 of 528
Action
Message
The battery management system determines that the 12V batteryis at a low state of charge. Start the engine to charge the batteryor charge the battery using an aftermarket battery charger. This
message clears once you restart your vehicle and the battery state of charge has recovered.
Battery State of
Charge Low
The battery management system detects an extended low-voltagecondition. Your vehicle disables various features to help preserve the battery. Turn off as many of the electrical loads as soon aspossible to improve system voltage. If the system voltage has recovered, the disabled features operate again as normal.
Low Battery
Features Tempor- arily Turned Off
The battery management system determines that the battery is ata low state of charge. Turn your ignition off as soon as possible to protect the battery. This message clears once you restart your
vehicle and the battery state of charge has recovered. Turning off
unnecessary electrical loads allow faster battery state-of-charge recovery.
Turn Power Off To
Save Battery
Blind Spot Information and Cross Traffic Alert System Action
Message
A fault with the system has occurred. Have the system checked as soon as possible.
Blindspot System
Fault
The system sensors are blocked. See Blind Spot Information
System (page 198).
Blindspot Not
Available Sensor Blocked See Manual
The blind spot information system and cross traffic alert system
sensors are blocked. See
Blind Spot Information System (page
198).
Cross Traffic Not
Available Sensor Blocked See Manual
A fault with the system has occurred. Have the system checked as soon as possible.
Cross Traffic
System Fault
115
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Information Displays
Page 120 of 528
Exhaust Mode
Action
Message
Indicates that the exhaust state selected, through the menu or drivemode selection, is for use on the track and may not comply with local noise regulations. Only on vehicles with active exhaust.
For Track Use See
Manual
Fuel Action
Message
An early reminder of a low fuel condition.
Fuel Level Low
The fuel fill inlet may not be properly closed.
Check Fuel Fill
Inlet
Hill Start Assist Action
Message
Hill start assist is not available. Have the system checked. See Hill Start Assist (page 174).
Hill Start Assist
Not Available
Keys and Passive Key Action
Message
A reminder to press the brake while starting the vehicle.
To START Press
Brake
A reminder to depress the clutch pedal on manual transmission while starting the vehicle.
To START Press
Clutch
The system does not detect a key in your vehicle. See
Keyless
Starting (page 147).
No Key Detected
You pressed the start/stop button to switch off the engine and yourvehicle does not detect your passive key inside your vehicle.
Restart Now or
Key is Needed
Your vehicle is in the accessory ignition state.
Accessory Power
is Active
There is a problem with your vehicle ’s starting system, the system
requires service.
Starting System
Fault
117
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Information Displays

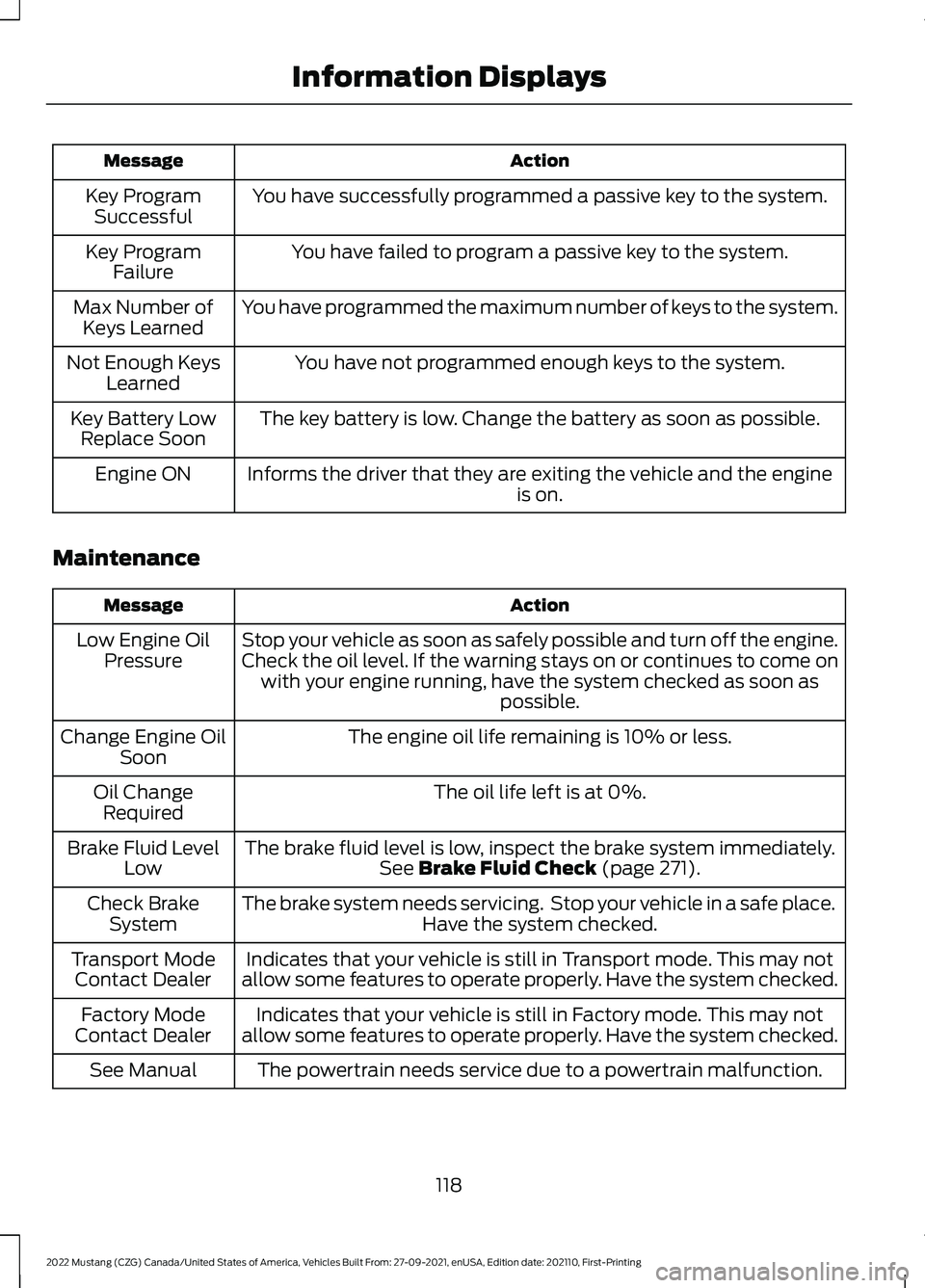

Page 121 of 528
Action
Message
You have successfully programmed a passive key to the system.
Key Program
Successful
You have failed to program a passive key to the system.
Key Program
Failure
You have programmed the maximum number of keys to the system.
Max Number of
Keys Learned
You have not programmed enough keys to the system.
Not Enough Keys
Learned
The key battery is low. Change the battery as soon as possible.
Key Battery Low
Replace Soon
Informs the driver that they are exiting the vehicle and the engine is on.
Engine ON
Maintenance Action
Message
Stop your vehicle as soon as safely possible and turn off the engine.
Check the oil level. If the warning stays on or continues to come onwith your engine running, have the system checked as soon as possible.
Low Engine Oil
Pressure
The engine oil life remaining is 10% or less.
Change Engine Oil
Soon
The oil life left is at 0%.
Oil Change
Required
The brake fluid level is low, inspect the brake system immediately.See Brake Fluid Check (page 271).
Brake Fluid Level
Low
The brake system needs servicing. Stop your vehicle in a safe place. Have the system checked.
Check Brake
System
Indicates that your vehicle is still in Transport mode. This may not
allow some features to operate properly. Have the system checked.
Transport Mode
Contact Dealer
Indicates that your vehicle is still in Factory mode. This may not
allow some features to operate properly. Have the system checked.
Factory Mode
Contact Dealer
The powertrain needs service due to a powertrain malfunction.
See Manual
118
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Information Displays
