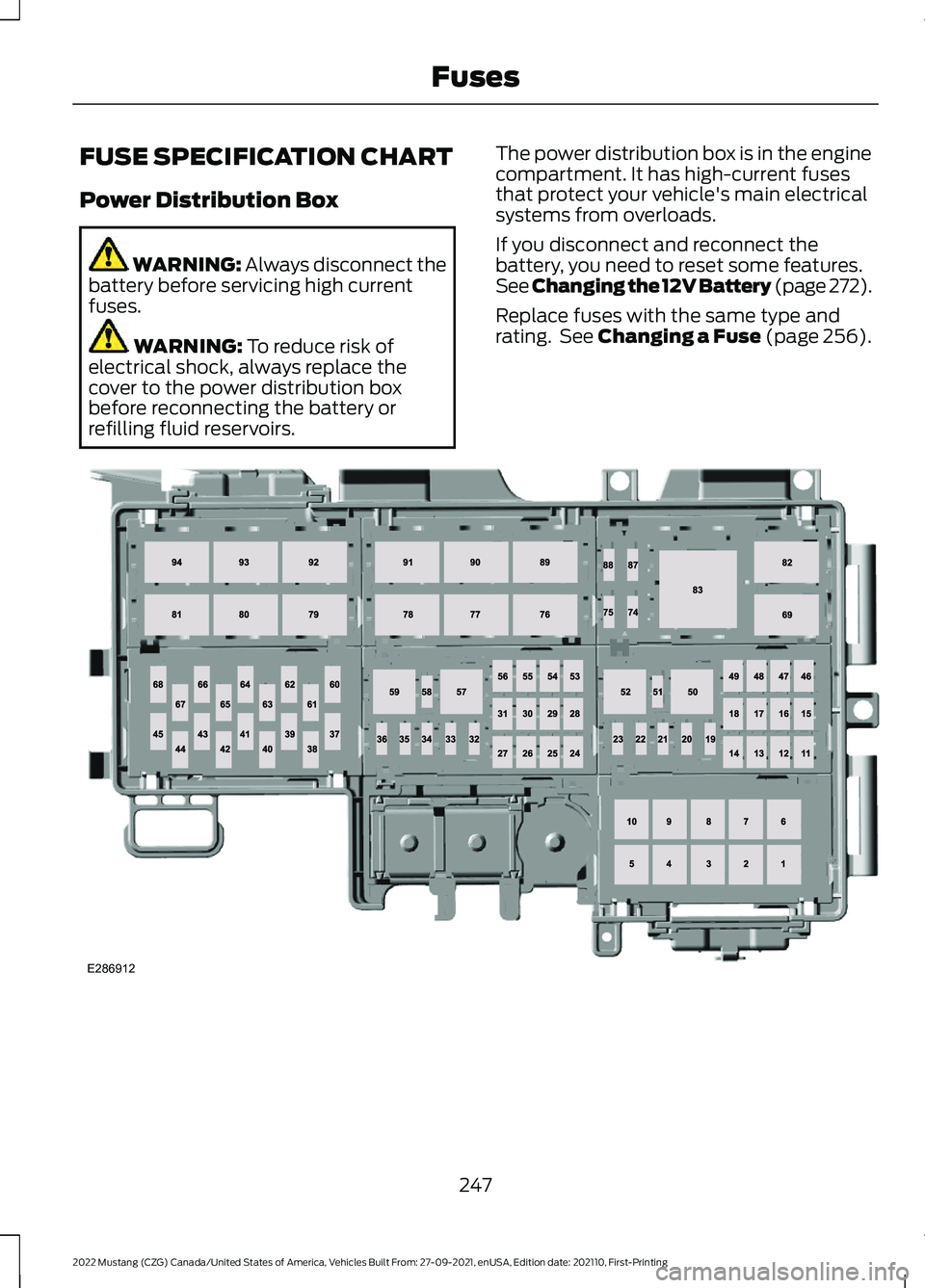

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 272).
Replace fuses with the same type and
rating. See Changing a Fuse (page 256).
247
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing FusesE286912

Protected Component
Fuse Rating
Fuse or Relay
Number
Right-hand rear-window power (base).
30A
28
Not used (GT500).
—
Gateway module (base).
15A
29
Not used (spare) (GT500).
Not used (spare)
5A
30
Remote keyless entry.
10A
31
Audio unit.
20A
32
Not used.
—
33
Run/start bus.
30A
34
Power distribution box run/start relay
(base).
5A
35
Not used (GT500).
—
Front camera (base).
15A
36
Not used (GT500).
—
Heated steering wheel module (base).
20A
37
Not used (GT500).
—
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
256
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing FusesE217331

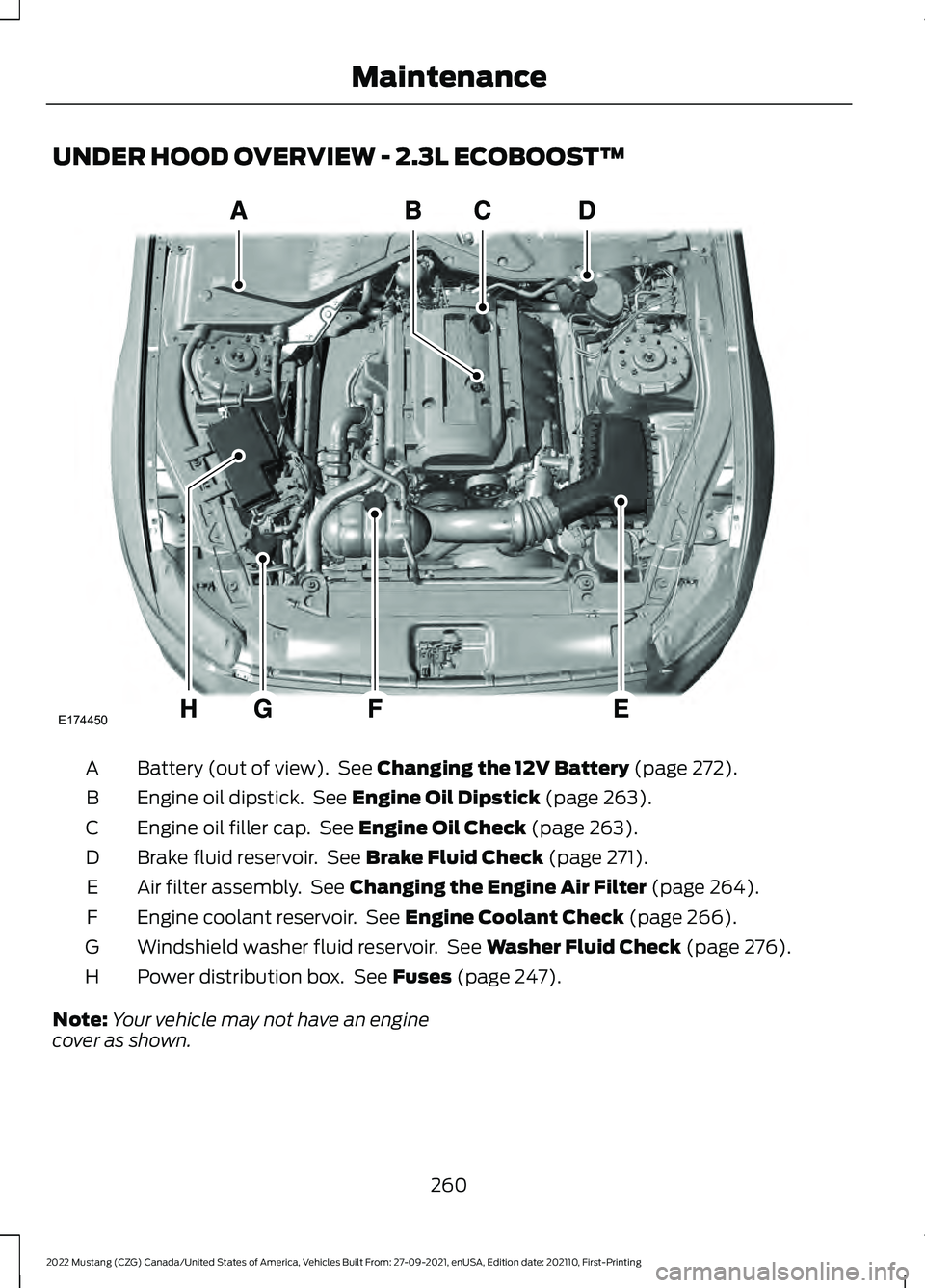

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™
Battery (out of view). See Changing the 12V Battery (page 272).
A
Engine oil dipstick. See
Engine Oil Dipstick (page 263).
B
Engine oil filler cap. See
Engine Oil Check (page 263).
C
Brake fluid reservoir. See
Brake Fluid Check (page 271).
D
Air filter assembly. See
Changing the Engine Air Filter (page 264).
E
Engine coolant reservoir. See
Engine Coolant Check (page 266).
F
Windshield washer fluid reservoir. See
Washer Fluid Check (page 276).
G
Power distribution box. See
Fuses (page 247).
H
Note: Your vehicle may not have an engine
cover as shown.
260
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing MaintenanceE174450

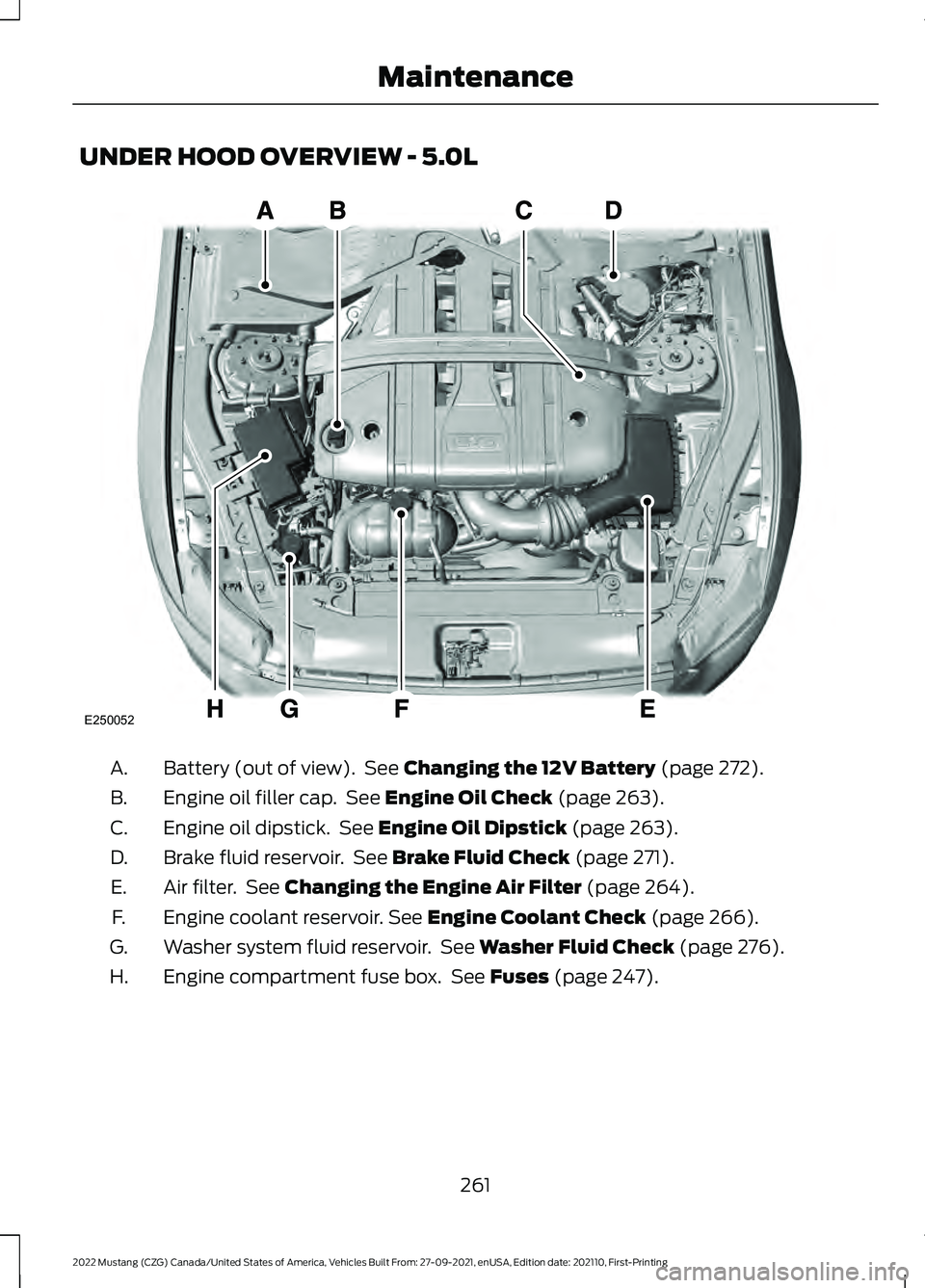

UNDER HOOD OVERVIEW - 5.0L
Battery (out of view). See Changing the 12V Battery (page 272).
A.
Engine oil filler cap. See
Engine Oil Check (page 263).
B.
Engine oil dipstick. See
Engine Oil Dipstick (page 263).
C.
Brake fluid reservoir. See
Brake Fluid Check (page 271).
D.
Air filter. See
Changing the Engine Air Filter (page 264).
E.
Engine coolant reservoir.
See Engine Coolant Check (page 266).
F.
Washer system fluid reservoir. See
Washer Fluid Check (page 276).
G.
Engine compartment fuse box. See
Fuses (page 247).
H.
261
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing MaintenanceE250052

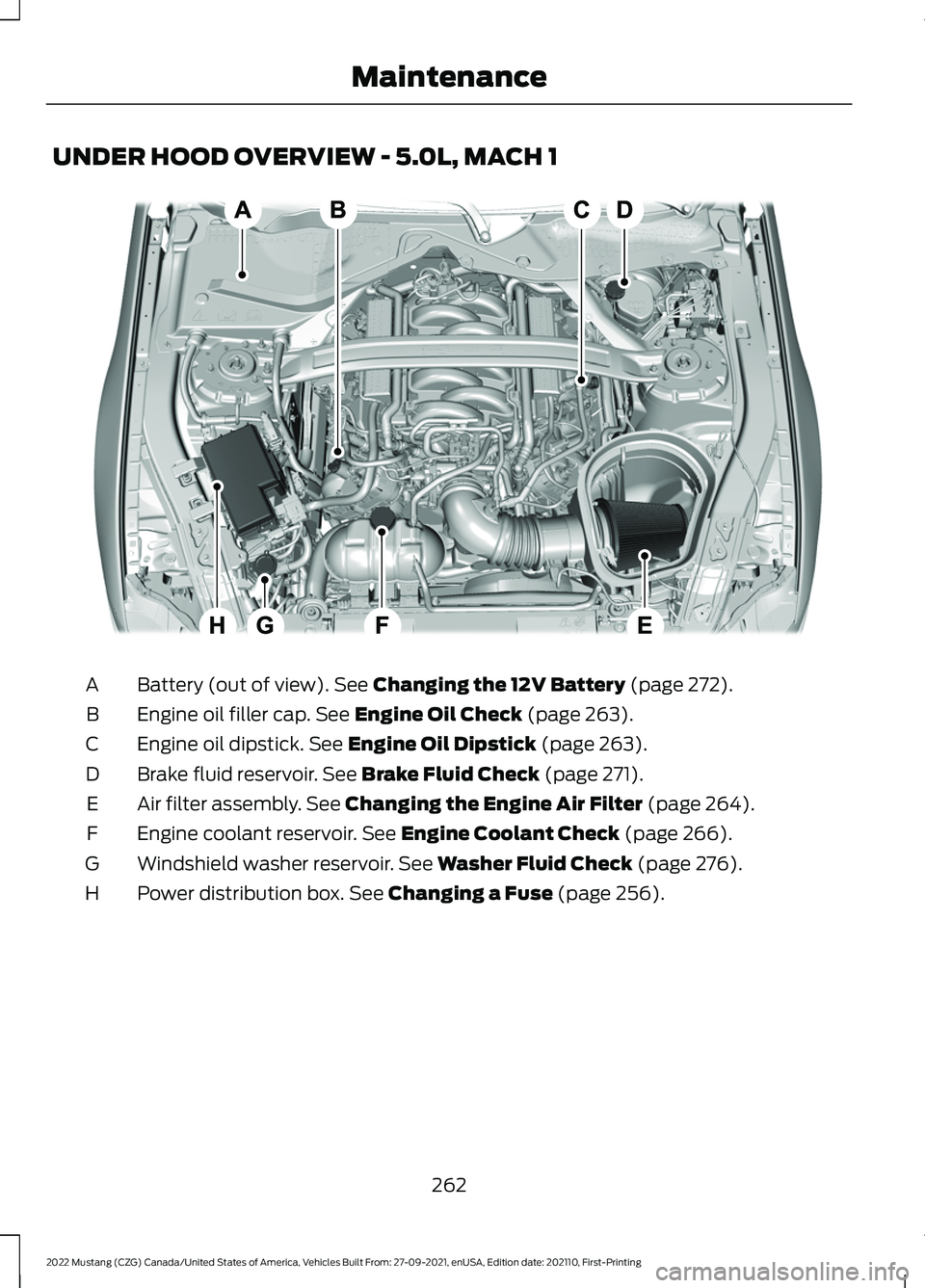

UNDER HOOD OVERVIEW - 5.0L, MACH 1
Battery (out of view). See Changing the 12V Battery (page 272).
A
Engine oil filler cap.
See Engine Oil Check (page 263).
B
Engine oil dipstick.
See Engine Oil Dipstick (page 263).
C
Brake fluid reservoir.
See Brake Fluid Check (page 271).
D
Air filter assembly.
See Changing the Engine Air Filter (page 264).
E
Engine coolant reservoir.
See Engine Coolant Check (page 266).
F
Windshield washer reservoir.
See Washer Fluid Check (page 276).
G
Power distribution box.
See Changing a Fuse (page 256).
H
262
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing MaintenanceE296063
