keyless FORD MUSTANG 2022 Owners Manual

Enabling Remote Start
..............................124
Remotely Starting the Engine .................
124
Extending the Remote Start Duration ........................................................................\
.
124
Remotely Stopping the Engine ...............
125
Remote Start Remote Control Indicators ........................................................................\
.
125
Remote Start Settings ...............................
125
Climate Control
Manual Climate Control ............................
127
Automatic Climate Control ......................
128
Hints on Controlling the Interior Climate - Vehicles With: Manual Temperature
Control .........................................................
130
Hints on Controlling the Interior Climate - Vehicles With: Automatic
Temperature Control ...............................
131
Heated Rear Window .................................
132
Heated Exterior Mirrors ..............................
132
Interior Air Quality
What Is the Cabin Air Filter ......................
133
Locating the Cabin Air Filter ....................
133
Replacing the Cabin Air Filter ..................
133
Seats
Sitting in the Correct Position .................
134
Head Restraints ............................................
134
Manual Seats ................................................
136
Power Seats ...................................................
137
Memory Function .........................................
137
Rear Seats ......................................................
139
Climate Controlled Seats .........................
139
Garage Door Opener
What Is the Garage Door Opener ...........
141
How Does the Garage Door Opener Work ........................................................................\
..
141
Garage Door Opener Precautions ..........
141
Garage Door Opener Limitations ...........
141Programming the Garage Door Opener
to Your Hand-Held Transmitter .........
142
Programming the Garage Door Opener to Your Garage Door Opener Motor
........................................................................\
.
142
Programming the Garage Door Opener to Your Gate Opener Motor .................
143
Clearing the Garage Door Opener .........
143
Reprogramming the Garage Door Opener ........................................................................\
.
144
Garage Door Opener Radio Frequencies ........................................................................\
.
144
Auxiliary Power Points
Auxiliary Power Points ...............................
145
Storage Compartments
Center Console .............................................
146
Glasses Holder .............................................
146
Starting and Stopping the Engine
General Information ...................................
147
Keyless Starting ............................................
147
Steering Wheel Lock ..................................
148
Starting a Gasoline Engine ......................
148
Engine Block Heater ....................................
151
Fuel and Refueling
Safety Precautions ......................................
153
Fuel Quality ....................................................
153
Fuel Filler Funnel Location .......................
154
Running Out of Fuel ...................................
154
Refueling .........................................................
156
Fuel Consumption ......................................
158
Engine Emission Control
Emission Law ................................................
160
Catalytic Converter ......................................
161
3
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Table of Contents

INSTRUMENT PANEL
Air vents.
A
Direction indicators. See Direction Indicators (page 83).
B
Instrument cluster.
See Instrument Cluster (page 90).
C
Wiper lever.
See Wipers and Washers (page 78).
D
Information and entertainment display. See General Information (page 400).
E
Audio unit.
See Audio System (page 373).
F
Drive control switches. See
Drive Control (page 211).
G
Climate controls.
See Climate Control (page 127).
H
Climate controlled seats. See
Climate Controlled Seats (page 139).
I
Hazard flasher switch.
See Hazard Flashers (page 235).
J
Keyless start button. See
Keyless Starting (page 147).
K
Information display controls.
See Information Display Control (page 76).
L
Steering wheel adjustment. See
Adjusting the Steering Wheel (page 75).
M
23
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing At a GlanceE250044

It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.
Normally, it illuminates until the engine
cranks and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See Catalytic Converter (page 161).
Shift Indicator
(If Equipped) Illuminates to inform you that
shifting to a higher gear as
indicated may give better fuel
economy and lower CO2
emissions. It does not illuminate during
periods of high acceleration, braking or
when you press the clutch pedal.
Stability Control and Traction
Control Indicator Flashes during operation.
If it does not illuminate when you
switch the ignition on, or remains
on when the engine is running, this
indicates a malfunction. Have your vehicle
checked as soon as possible.
Note: The system automatically turns off
if there is a malfunction.
See
Using Stability Control (page 177).
See Using Traction Control (page 175).
Stability Control and Traction
Control Off Warning Lamp Illuminates when you switch the
system off. Trunk Ajar Illuminates when the ignition is
on and you do not have the trunk
completely closed.
AUDIBLE WARNINGS AND
INDICATORS
Keyless Warning Alert
The horn sounds twice when you exit your
vehicle with the passive key and your
vehicle is in ON, indicating your vehicle is
still on. The horn also sounds twice when
you exit your vehicle and attempt to lock
the doors manually when the passive key
is still in the vehicle. The doors will not lock
if the passive key remains in the vehicle.
Headlamps On Warning Tone
Sounds when you remove the key from the
vehicle and you have left the headlamps
or parking lamps on.
Parking Brake On Warning Tone
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning tone remains on after you release
the parking brake, have the system
checked by your authorized dealer
immediately.
Transmission Not in Park
Sounds when the gear selector is in any
position other than park (P), and you
switch the vehicle ignition off or to the
accessory position. If the door is ajar, the
tone is continuous. Once you close the
door, the tone continues for a period of
time.
97
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Instrument Cluster E138639 E130458 E159323

Exhaust Mode
Action
Message
Indicates that the exhaust state selected, through the menu or drivemode selection, is for use on the track and may not comply with local noise regulations. Only on vehicles with active exhaust.
For Track Use See
Manual
Fuel Action
Message
An early reminder of a low fuel condition.
Fuel Level Low
The fuel fill inlet may not be properly closed.
Check Fuel Fill
Inlet
Hill Start Assist Action
Message
Hill start assist is not available. Have the system checked. See Hill Start Assist (page 174).
Hill Start Assist
Not Available
Keys and Passive Key Action
Message
A reminder to press the brake while starting the vehicle.
To START Press
Brake
A reminder to depress the clutch pedal on manual transmission while starting the vehicle.
To START Press
Clutch
The system does not detect a key in your vehicle. See
Keyless
Starting (page 147).
No Key Detected
You pressed the start/stop button to switch off the engine and yourvehicle does not detect your passive key inside your vehicle.
Restart Now or
Key is Needed
Your vehicle is in the accessory ignition state.
Accessory Power
is Active
There is a problem with your vehicle ’s starting system, the system
requires service.
Starting System
Fault
117
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Information Displays

GENERAL INFORMATION
WARNING: Extended idling at high
engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage. WARNING:
Do not park, idle or
drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire. WARNING: Do not start the engine
in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic.
Always open the garage door before you
start the engine. WARNING:
Exhaust leaks may
result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.
If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately
5 mi
(8 km) after you reconnect it. This is
because the engine management system
must realign itself with the engine. You
can disregard any unusual driving
characteristics during this period.
The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.
When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine. KEYLESS STARTING
Note:
The keyless starting system may not
function if the key is close to metal objects
or electronic devices such as cellular
phones.
Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the engine.
Ignition Modes The keyless starting system has three
modes:
Off:
Turns the ignition off.
• Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode, or
when the engine is running but the
vehicle is not moving.
On:
All electrical circuits are operational
and the warning lamps and indicators
illuminate.
• Without applying the brake pedal,
press and release the button once.
Start:
Starts the engine.
147
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Starting and Stopping the EngineE248637

Protected Component
Fuse Rating
Fuse or Relay
Number
Right-hand rear-window power (base).
30A
28
Not used (GT500).
—
Gateway module (base).
15A
29
Not used (spare) (GT500).
Not used (spare)
5A
30
Remote keyless entry.
10A
31
Audio unit.
20A
32
Not used.
—
33
Run/start bus.
30A
34
Power distribution box run/start relay
(base).
5A
35
Not used (GT500).
—
Front camera (base).
15A
36
Not used (GT500).
—
Heated steering wheel module (base).
20A
37
Not used (GT500).
—
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
256
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing FusesE217331

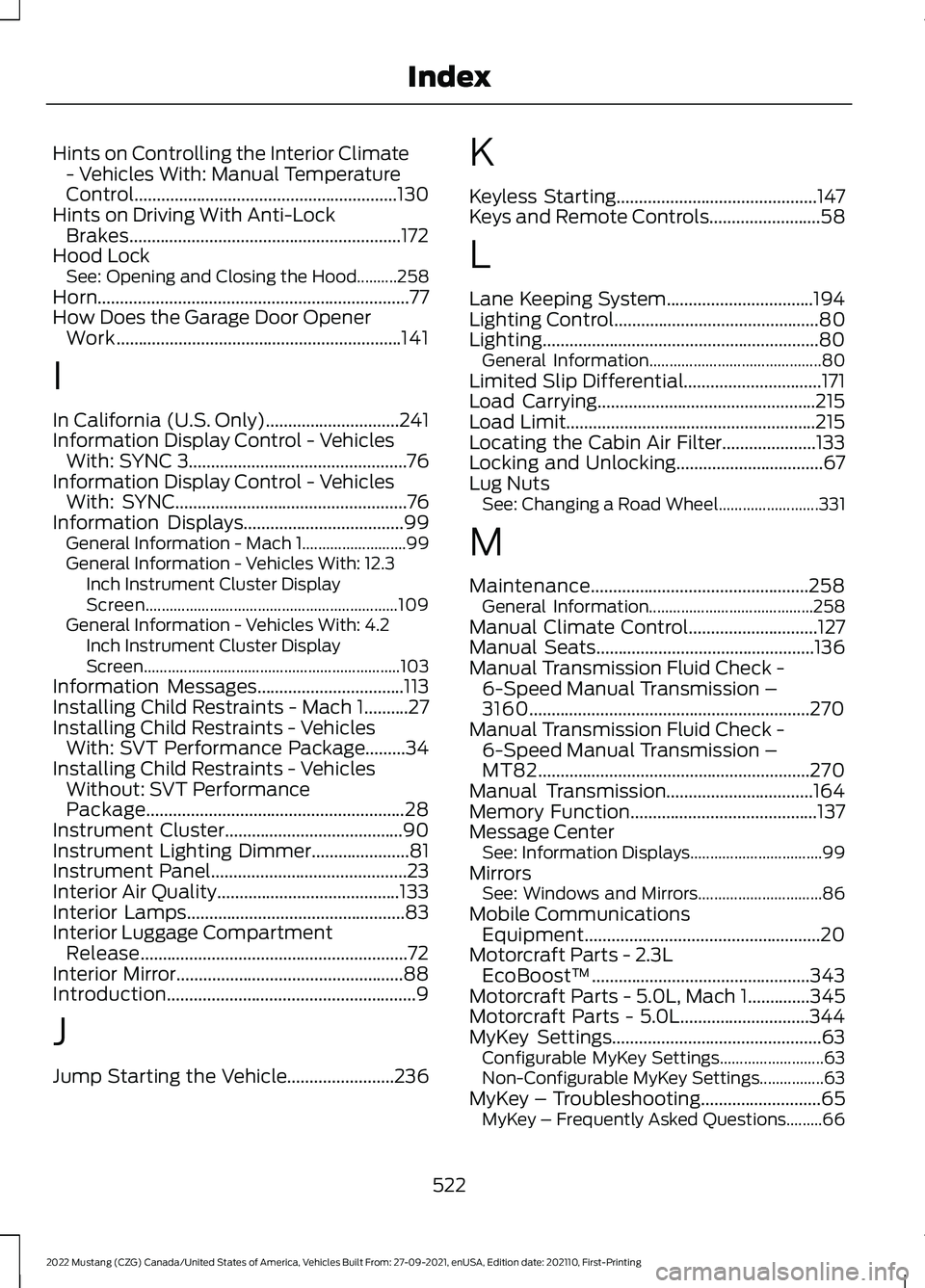

Hints on Controlling the Interior Climate
- Vehicles With: Manual Temperature
Control...........................................................130
Hints on Driving With Anti-Lock Brakes.............................................................172
Hood Lock See: Opening and Closing the Hood..........258
Horn......................................................................77
How Does the Garage Door Opener Work................................................................141
I
In California (U.S. Only)..............................241
Information Display Control - Vehicles With: SYNC 3.................................................76
Information Display Control - Vehicles With: SYNC....................................................76
Information Displays....................................99 General Information - Mach 1.......................... 99
General Information - Vehicles With: 12.3 Inch Instrument Cluster Display
Screen............................................................... 109
General Information - Vehicles With: 4.2 Inch Instrument Cluster Display
Screen................................................................ 103
Information Messages
.................................113
Installing Child Restraints - Mach 1..........27
Installing Child Restraints - Vehicles With: SVT Performance Package.........34
Installing Child Restraints - Vehicles Without: SVT Performance
Package
..........................................................28
Instrument Cluster........................................90
Instrument Lighting Dimmer......................81
Instrument Panel
............................................23
Interior Air Quality.........................................133
Interior Lamps
.................................................83
Interior Luggage Compartment Release............................................................72
Interior Mirror...................................................88
Introduction........................................................9
J
Jump Starting the Vehicle........................236 K
Keyless Starting
.............................................147
Keys and Remote Controls.........................58
L
Lane Keeping System.................................194
Lighting Control
..............................................80
Lighting..............................................................80
General Information........................................... 80
Limited Slip Differential...............................171
Load Carrying.................................................215
Load Limit........................................................215
Locating the Cabin Air Filter.....................133
Locking and Unlocking.................................67
Lug Nuts See: Changing a Road Wheel......................... 331
M
Maintenance.................................................258 General Information......................................... 258
Manual Climate Control
.............................127
Manual Seats.................................................136
Manual Transmission Fluid Check - 6-Speed Manual Transmission –
3160...............................................................270
Manual Transmission Fluid Check - 6-Speed Manual Transmission –
MT82
.............................................................270
Manual Transmission.................................164
Memory Function
..........................................137
Message Center See: Information Displays................................. 99
Mirrors See: Windows and Mirrors............................... 86
Mobile Communications Equipment.....................................................20
Motorcraft Parts - 2.3L EcoBoost™.................................................343
Motorcraft Parts - 5.0L, Mach 1..............345
Motorcraft Parts - 5.0L.............................344
MyKey Settings...............................................63 Configurable MyKey Settings.......................... 63
Non-Configurable MyKey Settings................63
MyKey – Troubleshooting
...........................65
MyKey – Frequently Asked Questions.........66
522
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Index
