Introduction
About This Supplement
................................3
At a Glance
At a Glance .........................................................
7
Child Safety
Installing Child Restraints ............................
9
Steering Wheel
Audio Control ....................................................
11
Voice Control .....................................................
11
Information Display Control ........................
11
Instrument Cluster
Gauges ................................................................
12
Information Displays
General Information ......................................
13
Fuel and Refueling
Fuel Quality ......................................................
18
Transmission
Manual Transmission ...................................
19
Automatic Transmission ............................
20
Technical Specifications .............................
23
Brakes
General Information .....................................
25
Driving Aids
Drive Control ...................................................
26
Towing
Towing a Trailer ..............................................
30
Transporting the Vehicle ............................
30Driving Hints
Breaking-In
......................................................
35
Driving Through Water ................................
35
Roadside Emergencies
Towing Points .................................................
36
Fuses
Fuse Specification Chart ............................
37
Maintenance
Under Hood Overview .................................
38
Engine Oil Check ...........................................
38
Changing the Engine Air Filter ..................
39
Engine Coolant Check ................................
40
Track Use
Track Use ..........................................................
43
Vehicle Care
General Information ....................................
50
Cleaning the Exterior .....................................
51
Cleaning the Engine ......................................
51
Wheels and Tires
Wheels ...............................................................
52
Tires ....................................................................
52
Using Winter Tires .........................................
55
Capacities and Specifications
Engine Specifications ..................................
56
Brake System Specifications ....................
57
Suspension Specifications ........................
58
Motorcraft Parts ............................................
59
Capacities and Specifications .................
60
1
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Table of Contents

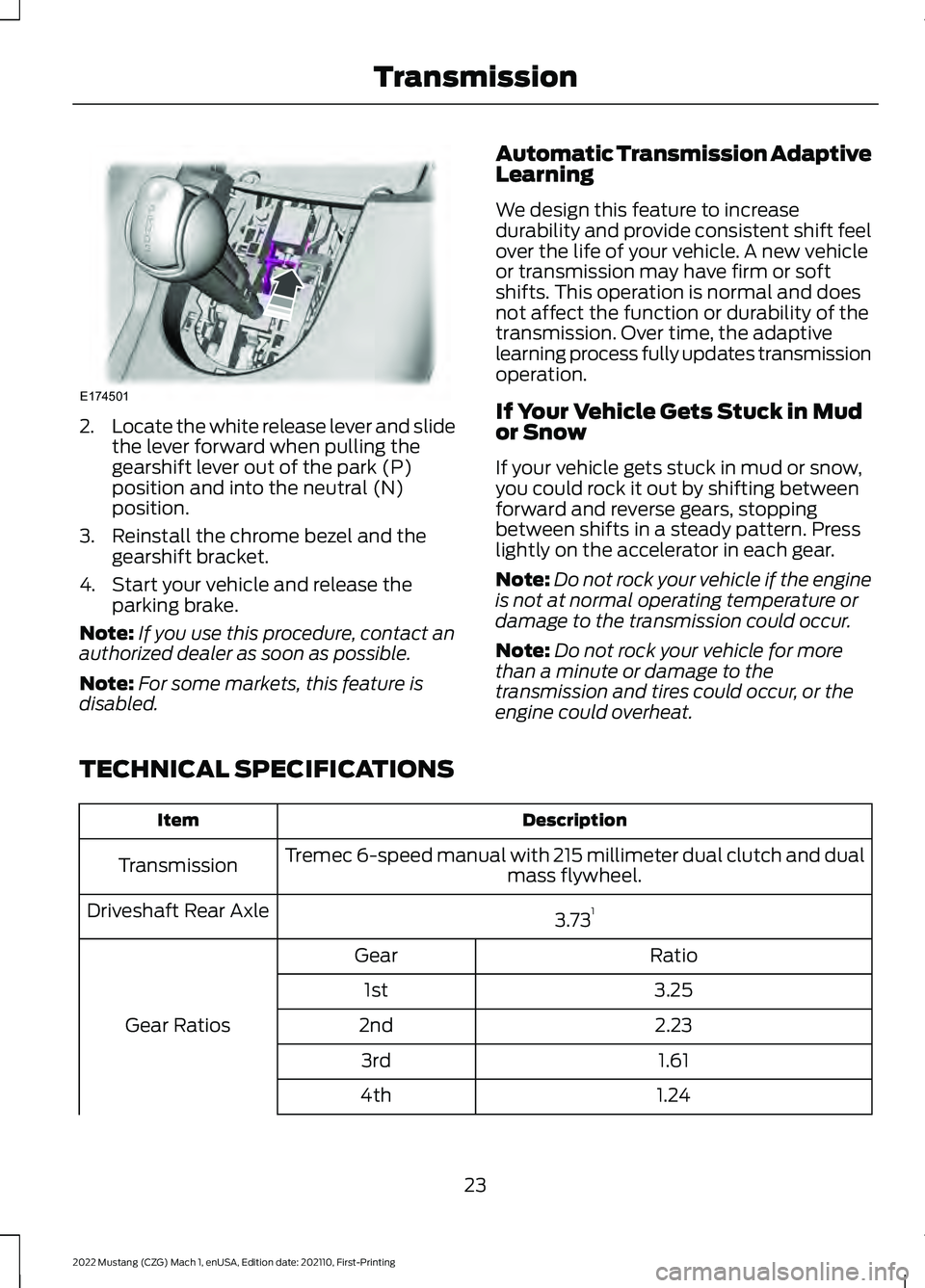

2.
Locate the white release lever and slide
the lever forward when pulling the
gearshift lever out of the park (P)
position and into the neutral (N)
position.
3. Reinstall the chrome bezel and the gearshift bracket.
4. Start your vehicle and release the parking brake.
Note: If you use this procedure, contact an
authorized dealer as soon as possible.
Note: For some markets, this feature is
disabled. Automatic Transmission Adaptive
Learning
We design this feature to increase
durability and provide consistent shift feel
over the life of your vehicle. A new vehicle
or transmission may have firm or soft
shifts. This operation is normal and does
not affect the function or durability of the
transmission. Over time, the adaptive
learning process fully updates transmission
operation.
If Your Vehicle Gets Stuck in Mud
or Snow
If your vehicle gets stuck in mud or snow,
you could rock it out by shifting between
forward and reverse gears, stopping
between shifts in a steady pattern. Press
lightly on the accelerator in each gear.
Note:
Do not rock your vehicle if the engine
is not at normal operating temperature or
damage to the transmission could occur.
Note: Do not rock your vehicle for more
than a minute or damage to the
transmission and tires could occur, or the
engine could overheat.
TECHNICAL SPECIFICATIONS Description
Item
Tremec 6-speed manual with 215 millimeter dual clutch and dual mass flywheel.
Transmission
3.731
Driveshaft Rear Axle
Ratio
Gear
Gear Ratios 3.25
1st
2.23
2nd
1.61
3rd
1.24
4th
23
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing TransmissionE174501

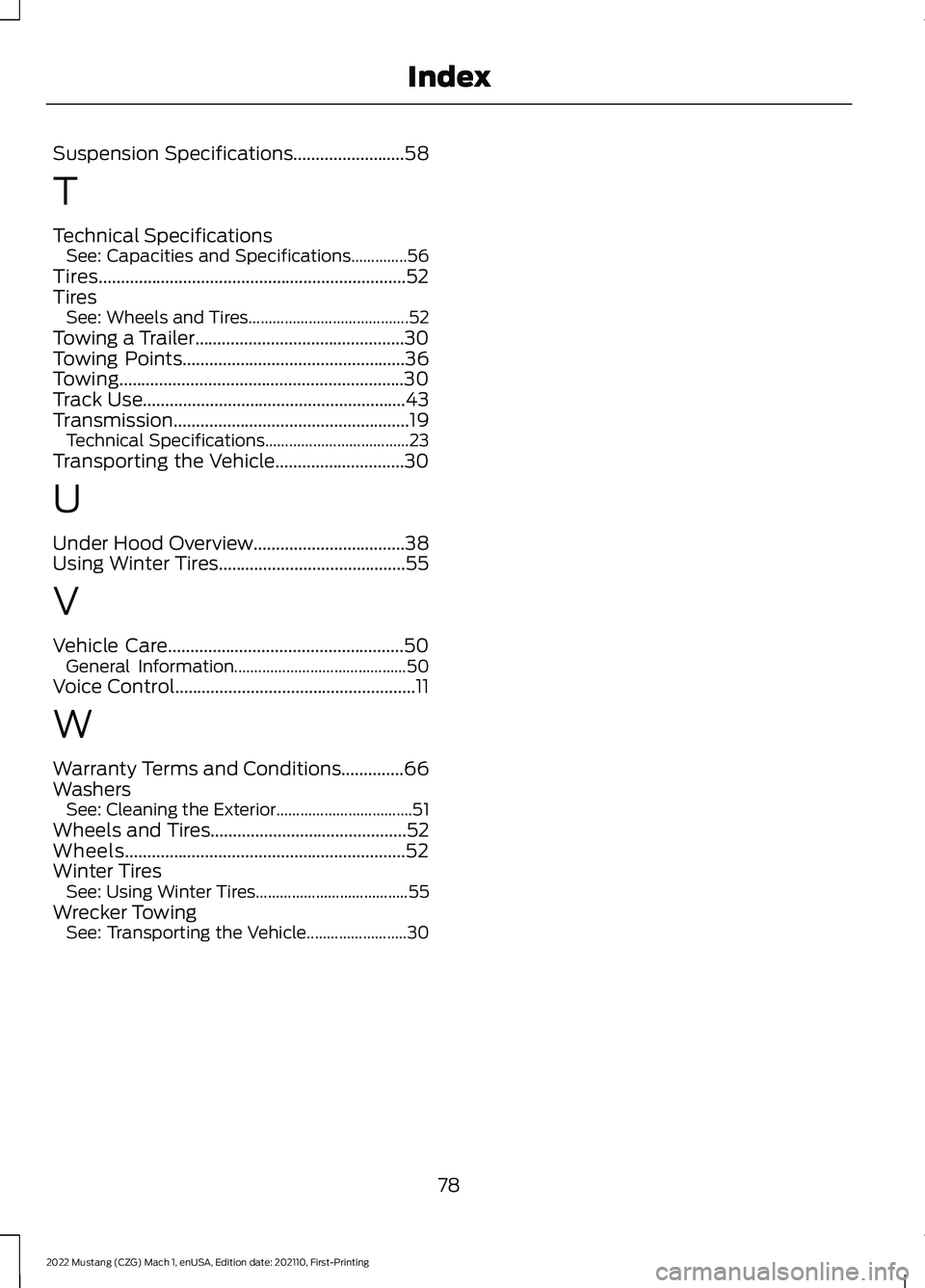

Suspension Specifications.........................58
T
Technical Specifications See: Capacities and Specifications..............56
Tires.....................................................................52
Tires See: Wheels and Tires........................................ 52
Towing a Trailer...............................................30
Towing Points..................................................36
Towing................................................................30
Track Use...........................................................43
Transmission.....................................................19 Technical Specifications.................................... 23
Transporting the Vehicle.............................30
U
Under Hood Overview
..................................38
Using Winter Tires..........................................55
V
Vehicle Care
.....................................................50
General Information........................................... 50
Voice Control
......................................................11
W
Warranty Terms and Conditions..............66
Washers See: Cleaning the Exterior.................................. 51
Wheels and Tires............................................52
Wheels...............................................................52
Winter Tires See: Using Winter Tires...................................... 55
Wrecker Towing See: Transporting the Vehicle......................... 30
78
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Index
