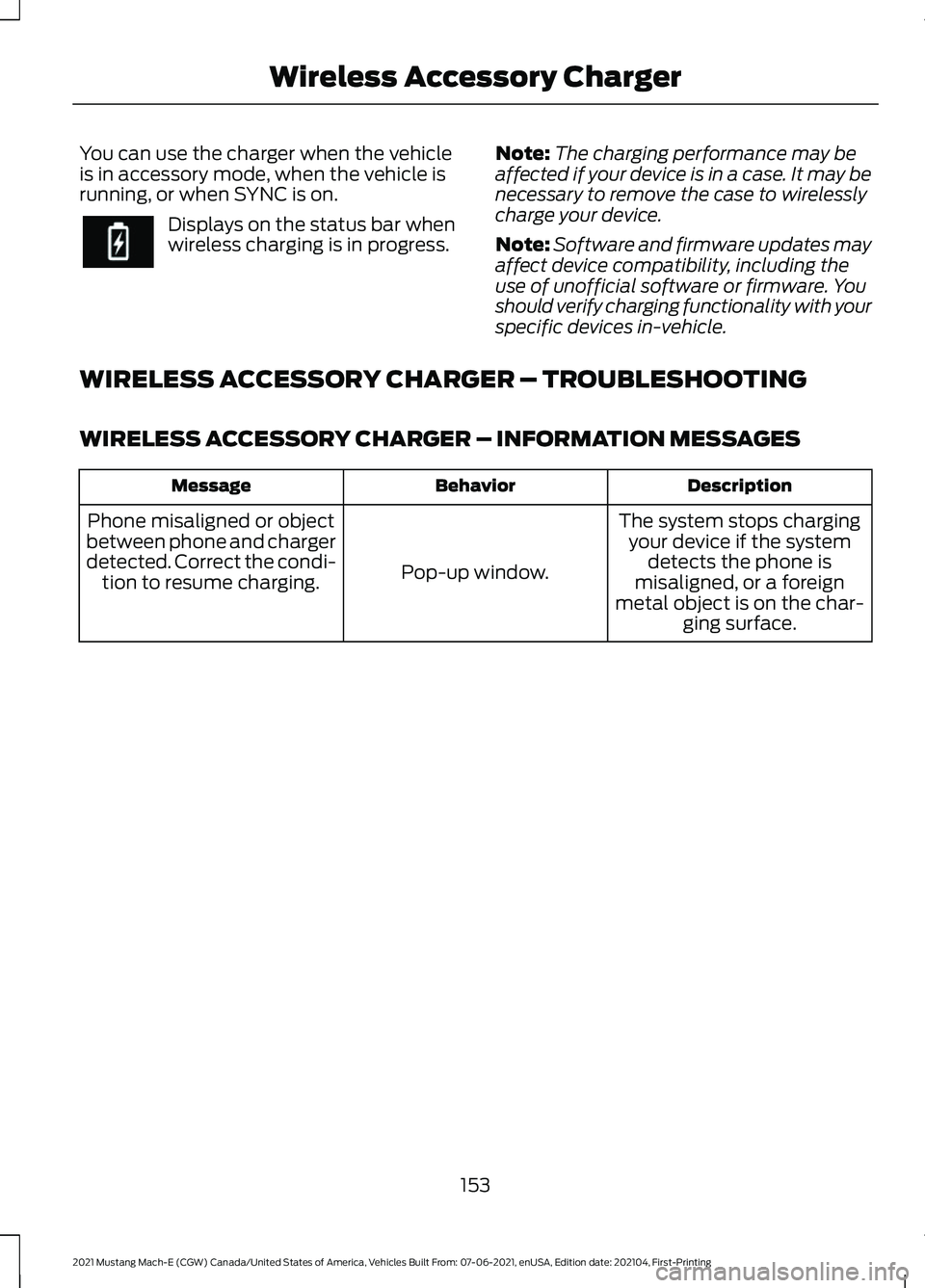

You can use the charger when the vehicle
is in accessory mode, when the vehicle is
running, or when SYNC is on.
Displays on the status bar when
wireless charging is in progress.
Note:
The charging performance may be
affected if your device is in a case. It may be
necessary to remove the case to wirelessly
charge your device.
Note: Software and firmware updates may
affect device compatibility, including the
use of unofficial software or firmware. You
should verify charging functionality with your
specific devices in-vehicle.
WIRELESS ACCESSORY CHARGER – TROUBLESHOOTING
WIRELESS ACCESSORY CHARGER – INFORMATION MESSAGES Description
Behavior
Message
The system stops chargingyour device if the system detects the phone is
misaligned, or a foreign
metal object is on the char- ging surface.
Pop-up window.
Phone misaligned or object
between phone and charger
detected. Correct the condi- tion to resume charging.
153
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Wireless Accessory Charger

STARTING AND POWERING
OFF PRECAUTIONS
•
The system may not function if the
remote control is close to metal
objects or electronic devices, for
example, keys or a cell phone.
• A valid remote control must be inside
your vehicle to switch the power on and
start your vehicle.
• Remote controls left inside your vehicle
when locked are disabled. A message
may appear in the information display
indicating that there is no key detected
when you try to start your vehicle.
Press the unlock button on the remote
control to enable it, and then start your
vehicle.
• Make sure all occupants fasten their
seat belt.
• Make sure the headlamps and
electrical accessories are off.
• Make sure the parking brake is on.
• Make sure the transmission is in park
(P).
STARTING THE VEHICLE
1. Fully press the brake pedal.
Note: Do not touch the accelerator pedal.2. Press the push button start. You can also start your vehicle using Valet
Mode or a Backup Start Passcode. See
Phone as a Key (page 70).
POWERING OFF WARNING:
Do not switch off your
vehicle when it is moving. This results in
a significant decrease in braking and
steering assistance. If the vehicle is
switched off, some electrical circuits, for
example airbags, could also turn off.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.
Note: If you unintentionally switch your
vehicle off, shift into neutral (N) and restart
your vehicle.
When your vehicle is not moving and is
started, or the power is in accessory mode,
press and release the push button start
without pressing the brake pedal. This
shuts off the vehicle and all electrical
accessories.
When your vehicle is moving, press the
push button start three times within two
seconds, or press and hold for at least one
second. Shift into neutral (N) and use the
brakes to bring your vehicle to a safe stop.
When your vehicle comes to a complete
stop, shift into park (P).
RESTARTING THE VEHICLE
AFTER POWERING OFF
Fast Restart
The fast restart feature allows you to
restart your vehicle within 10 seconds of
switching it off, even if it does not detect
a valid remote control.
155
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Starting and Powering OffE328849

ACTION
MODE
RED
BLUE
AMBER
charger. Ensurethe plug is not severely
degraded. If the error persists, contact us.
No actionrequired.
CHARGING;
The mobile
charger is char- ging.
OFF
PULSING
OFF
If you expect themobile chargerto be charging the vehicle,
make sure the
vehicle coupler
STANDBY;
The mobile charger is
powered and
ready to charge. At the current
time the mobile charger is notcharging the vehicle.
OFF
ON
OFF
is properly
inserted into the vehicle. Check
and adjust your charging time
preferences in the on screen
display. If your vehicle is stillnot charging, contact us.
Wait for the
mobile charger to return to
standby. If the
mobile charger
cycles for more
REBOOTING;
The mobile
charger is recov- ering after
encountering an error.
ON
ON
ON
than 2-3
minutes, unplug the vehicle
coupler. Unplug and replug in
the connector. If the issue
persists, contact us.
164
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your Vehicle

CARE INSTRUCTIONS
Do not use cleaners or solvents as this
could damage your mobile charger. Do not
place stress on the charger cables. If unit
overheats, remove the mobile charger from
direct sunlight.
SAFETY FEATURES
The charger includes the following safety
features to protect against the risk of
electric shock:
•
Service Ground Check: The charger
constantly checks for the presence of
a service ground connection. If the
service ground ever fails, the charger
red indicator turns ON and shuts down
power to the vehicle.
• Thermal Event Sensor: Charger module
senses out-of-ordinary thermal events
and decreases the charging current or
shuts the unit down if required.
• Ground fault circuit interrupter (GFCI)
Protection: The charger has a ground
fault circuit interrupter (GFCI) reaction
system to protect against electric
shock. If the charger module detects
an output ground fault, it shuts down
power to the output cable and
illuminates the red indicator.
• Insulation: The charger module,
connector, cable assembly, and charge
coupler are completely insulated.
There are no exposed live parts, to
protect against electric shock.
• Unintentional Disconnection: The
charge coupler is designed to minimize
unintentional disconnection. A pilot
signal wire in the cable and charge
coupler eliminates the possibility of
electric shock when not connected to
a vehicle or if an unintended disconnect
occurs during a charge. Disconnection
during charging is safe. LOCATING THE CHARGE PORT
The charge port is between the front
left-hand side door and front left-hand
wheel well. To open, press the center
right-hand edge of the charge port door
and then release.
Note:
Do not apply excessive force. Forcing
the door open or closed damages the charge
port.
CHARGE PORT INDICATORS
The charge status indicator is next to the
charging port behind the charge port door.
It indicates the charge status of the high
voltage battery in your vehicle.
Divided into five zones, the charge status
indicator displays the state of charge in 20
percent increments.
The charge status indicator displays how
far along the charge is:
• When zone A is pulsing, the charge is
between 0-20 percent.
• When zone A illuminates, and zone B
is pulsing, the charge is between 20-40
percent.
• When zones A and B illuminate and
zone C is pulsing, the charge is between
40-60 percent.
168
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE317346

4. Move the low voltage service
disconnect to the off position. 5.
Locate the manual release mechanism. 6. Between the gap of the hood and
windshield, access the manual release
mechanism and pull the pull ring firmly,
perpendicularly towards the center of
your vehicle. Once pulled, make sure
you do not tangle the pull ring cord as
it resets on the next charge session. 7. Remove the charge coupler from the
charge port. 8. Close the low voltage service
disconnect.
9. Reinstall the inner luggage compartment shields. See Installing
and Removing the Luggage
Compartment Cover
(page 277).
10. Close the hood.
Note: The next time you plug in to charge
your vehicle, the locking mechanism
re-engages and the pull ring resets.
SETTING THE CHARGING
SCHEDULE AND
PREFERENCES You can schedule charging to
take advantage of lower-cost
electricity rates during off-peak
hours if you have signed up for a time of
use pricing plan with your utility provider.
You can also set an upper charge limit for
your battery and a departure time and
cabin temperature so your vehicle is ready
to go when you are.
Scheduled charging can be set up in the
on vehicle display or in the FordPass app.
To view your charge settings: Access the vehicle drawer on the
touchscreen.
1. Press
Settings on the touchscreen.
2. Press Charge.
174
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE354043 E339336 E339335 E228962 E353808

Charge Settings Screen
Charge status.
A
Charge status icon.
B
High voltage battery state of
charge.
C
Estimated vehicle driving range.
D
Charging time information.
E
Charging location preferences.
F
Departure and comfort
preferences.
G
Charge Status
Shows the present state of charging
system. Action
Charge Status
The vehicle is unplugged and will startcharging once plugged in.
Will charge when plugged in
The vehicle is unplugged at a location withcharge times enabled. Charging is sched-uled to start at the time displayed based
on your settings. You must plug in prior to
the start time shown for the vehicle to begin charging at that time.
Will wait for preferred charge time
The vehicle is plugged in at location with
charge times enabled. Charging will start at the time displayed, which is based on your charge time settings.
Waiting for preferred charge time
The vehicle is plugged in and charging has
been stopped through the FordPass mobile app.
Charging stopped
The vehicle is plugged in and charging.
Charging
175
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE335158

Action
Charge Status
The vehicle is plugged into a DC FastCharge station and charging.
Fast charging
The vehicle is plugged in and charging the12V battery.
Charging 12V battery
The vehicle is plugged in and the climatecontrol system is operating according to the departure and comfort settings.
Cabin conditioning
The vehicle is plugged in and there is a fault
within the vehicle charging system. Unplug
and plug back in. If the fault is still present,
contact your authorized EV certified dealer.
Vehicle charge fault
The vehicle is plugged in and a fault has
been detected with the charge station or charging cord. Please check the charging
cord and the charging station or electrical supply.
Charge station fault
A charging coupler has been plugged into
the vehicle but there is no connection with a charging power source.
Charge station not detected
The vehicle is plugged in and charging hasbeen paused at the charge station.
Charge station paused
Charging Time Information
When charging, the start and estimated
end time displays. When fast charging, the
end time is replaced with the estimated
time at 80% charge until the charge
reaches 80%, then the estimated time at
100% charge is displayed.
When your vehicle is at a stored charging
location and not plugged in, the start and
end times display based on known
charging infrastructure.
Note: Charging time information is
estimated. Certain conditions could result
in longer charging times. See Charging
Your Vehicle (page 159). High Voltage Battery State of Charge
Displays the remaining charge percentage
with 100% representing the total amount
of energy you can get from an external
charge.
Estimated Vehicle Driving Range
Displays the estimated distance the vehicle
can travel with the present high voltage
battery charge level. See
What Is the
Vehicle Range Display (page 118).
Charge Status Icons
Displays when your vehicle is plugged in. Not charging due to a fault.
176
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE306677

Not currently charging.
Charging.
Waiting to charge based on
charge time settings.
Charging Locations Press the edit button to set
preferred charge times for a
specific charging location.
Your vehicle prioritizes charging based on
your preferred time settings. You can set
two preferred charging time windows for
weekdays and two for weekends. This
feature allows you to take advantage of
electric utility rate plans that offer lower
pricing during certain times of day. Contact
your utility company to see what plans are
available.
Note: Your vehicle will charge during your
preferred time windows. Charging outside
these windows only occurs when additional
charging time is needed to reach the
maximum charge level set for this location
by your next departure time.
Note: You can also access this feature
using the FordPass app.
Departure and Comfort Press the edit button for
departure and comfort settings. Setting departure times allows you to
control charging schedules and have the
vehicle cabin heated or cooled while
plugged in, so your vehicle is ready to drive
when you are. By setting a departure time,
your vehicle can use your charge time
settings to minimize your electricity costs
but still prioritize finishing charging before
your scheduled departure. The calendar
view allows you to program two departure
times per day for each day of the week.
Note:
Using energy from your charging
source while plugged in, requires less energy
from the high voltage battery for heating or
cooling at the start of your drive. This helps
maximize your driving range.
Note: You can also access this feature
using the FordPass app.
Additional information and settings are
displayed on the charge settings screen
once charging locations and departure and
comfort have been set up.
177
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE335144 E306676 E306678 E353986 E353986

Charging location name.
A
Next departure time and cabin
temperature.
B
On/Off switch for charging
locations.
C
On/Off switch for departure and
comfort.
D
Charging Location Name
Displays when your vehicle is at a stored
charging location.
Next Departure Time and Cabin
Comfort Level
Displays the next departure time and
associated cabin comfort setting. On/Off Switch for Charging Locations
This switch is visible when your vehicle is
at a saved charging location. Use this
switch to turn your settings off and on for
this location only. Switching off for this
location does not delete your settings,
however, you must switch back on to
re-enable them.
On/Off Switch for Departure and
Comfort
This switch is visible when you have at
least one departure time set. Use this
switch to turn all departure times off and
on. Switching off departure and comfort
does not delete your settings, however,
you must switch back on to re-enable
them.
Charging Location Setup
Follow these steps to set time and charge
level preferences for a charging location.
Press the edit button for
charging locations on the charge
settings screen.
1. Select an address from the list of recent charge locations. If the
previously saved charge locations are
not listed, then you must first select
add new location. You can also edit
settings for previously saved locations.
2. Confirm that this is the location you want to save with the help of the map
view. Edit the location name if desired
and set a maximum charge level. Press
next.
Note: Charging will stop when your vehicle
reaches the maximum charge level setting.
178
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE335163 E353986

3. Set preferred charging times for
weekday and/or weekend by pressing
and dragging along the 24 hour time
wheel. You can set up to two blocks of
time (charge windows). Press next
once you have your desired time
settings for weekday and weekend.
Note: Selecting all or none of the 24 hours
results in any time of day given equal priority
for charging.
4. The summary screen displays your settings for this location. Press save or
press the left arrow to go back and
change your settings. Whenever your
vehicle is at a saved charging location,
the charge settings screen displays the
location name, and the charging times
are based on your preferred time
settings for that location plus the next
departure time.
Note: Reaching your max charge level by
your next departure time is always the
priority. When charge times are set, charging
outside your preferred charging time
windows could be necessary in order to
finish by your next departure time. In this
case, the vehicle will typically begin charging
right away after plugging in.
Departure and Comfort Setup
Follow these steps to set departure times
and cabin comfort level. 1.
Press the edit button for departure and
comfort on the charge settings screen.
2. Select a time for each day of the week
you want your settings to apply. Select
the hour and minutes as well as your
desired comfort level. Your selected
days/times now display your departure
and comfort settings. Press Save to
apply your settings. The next departure
display on the charge settings screen
will update appropriately.
Note: Save your departure settings before
selecting additional days/times. The
process must be repeated in order to add
additional unique departure times and
comfort levels.
Note: Cabin conditioning comfort level may
vary depending on if you plug into a normal
household outlet or a higher power outlet
or charging station. The power available for
conditioning is limited to the charging
station power available. At low ambient
temperatures and low charge power, a
small amount of high voltage battery power
in addition to the charging power could be
used to heat the cabin.
Note: The departure and comfort settings
can also be accessed through the separate
vehicle settings departure and comfort
button. Press the edit button from this
screen to begin the settings process outlined
above.
USING FORDPASS AND
CHARGING
The FordPass App allows you to do the
following:
• Monitor and manage your vehicle's
charging, including charge schedules
and preferences.
• Locate a charger and activate a charger
on the FordPass Charging Network.
179
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE353985
