SYMBOLS USED ON YOUR
VEHICLE
These are some of the symbols you may
see on your vehicle.
Safety alert.
See the Owner's Manual.
Air conditioning system.
Anti-lock braking system.
Avoid smoking, flames or sparks.
Battery.
Battery acid.
Brake fluid level.
Brake system
Brake system
Cabin air filter.
Child safety door lock.
Child safety door unlock. Child seat lower anchor.
Child seat tether anchor.
Cruise control.
Do not open when hot.
Electronic power steering
malfunction.
Fan warning.
Fasten seatbelt.
Front airbag.
Front fog lamps.
Fuse compartment.
Hazard warning flashers.
Heated rear window.
Heated windshield.
Interior luggage compartment
release.
Jack.
19
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Symbols GlossaryE65963 E162384 E270480 E139223 E141128 E71880 E67017

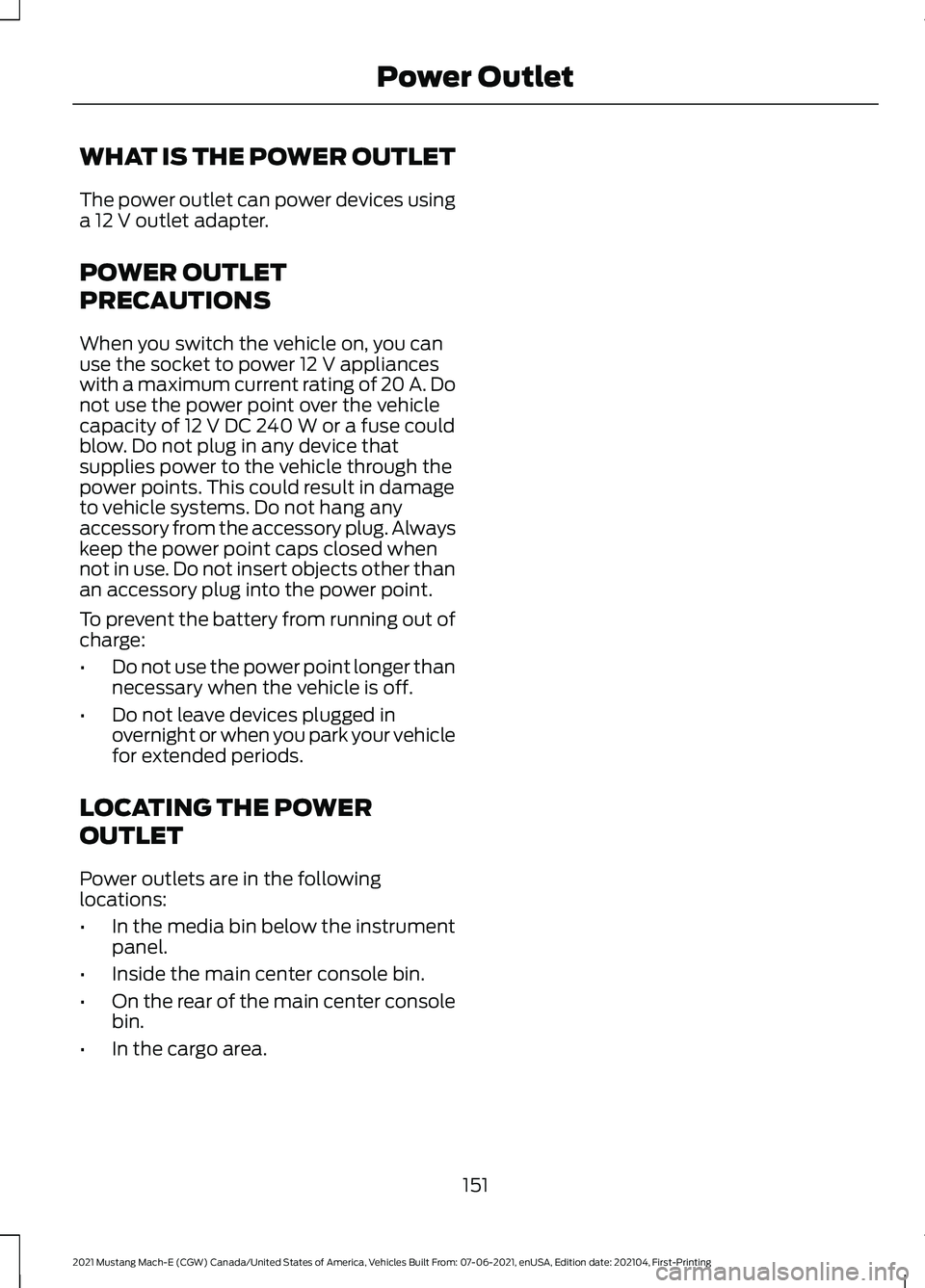

WHAT IS THE POWER OUTLET
The power outlet can power devices using
a 12 V outlet adapter.
POWER OUTLET
PRECAUTIONS
When you switch the vehicle on, you can
use the socket to power
12 V appliances
with a maximum current rating of 20 A. Do
not use the power point over the vehicle
capacity of
12 V DC 240 W or a fuse could
blow. Do not plug in any device that
supplies power to the vehicle through the
power points. This could result in damage
to vehicle systems. Do not hang any
accessory from the accessory plug. Always
keep the power point caps closed when
not in use. Do not insert objects other than
an accessory plug into the power point.
To prevent the battery from running out of
charge:
• Do not use the power point longer than
necessary when the vehicle is off.
• Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.
LOCATING THE POWER
OUTLET
Power outlets are in the following
locations:
• In the media bin below the instrument
panel.
• Inside the main center console bin.
• On the rear of the main center console
bin.
• In the cargo area.
151
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Power Outlet

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
1. Remove the luggage compartment
cover. See Installing and Removing
the Luggage Compartment Cover
(page
277). 2. Pull the latch toward you and remove
the top cover. 3. Pull the connector lever upward.
4. Pull the connector upward to remove
it. 5. Pull both latches toward you and
remove the fuse box.
292
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE329073 E253688 E329079 E253693

6. Turn the fuse box over and open the lid.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
1
Not used (spare).
40 A
2
Windshield wiper heater.
15 A
3
Not used (spare).
40 A
4
Not used.
—
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
293
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses E292669

Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
9
Not used.
—
10
Powertrain control module.
15 A
11
Not used.
—
12
AC electric compressor.
15 A
13
Active grille shutter.
Powertrain control module heater cooling pump.
Powertrain control module heater shut off valve.
Secondary drive unit transmission oil pump (GT).
15 A
14
Not used.
—
15
Battery charge control module.
10 A
16
Not used.
—
17
Powertrain control module.
10 A
18
Brake system control module.
10 A
19
Charge port status indicator.
5 A
20
Front luggage compartment actuator relay coil.
5 A
21
Amplifier.
20 A
22
Rear driver side electronic door.
20 A
23
Not used.
—
24
Left-hand enhanced headlamps.
25 A
25
Right-hand enhanced headlamps.
25 A
26
Keep alive power.
5 A
27
Front luggage compartment actuator relay coil.
5 A
28
DC/DC converter.
5 A
29
Not used.
—
30
Electronic power assist steering.
5 A
31
Body control module.
30 A
32
294
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Location
Advanced driver assistance system.
20 A
33
Headlamp control module.
10 A
34
Heated steering wheel.
15 A
35
Primary hybrid powertrain control module.
10 A
36
Auxiliary power distribution box.
Secondary hybrid powertrain control module.
Horn.
20 A
37
Blower motor.
40 A
38
Not used.
—
39
Not used.
—
40
Amplifier.
20 A
41
Driver power seat.
30 A
42
Anti-lock brake system valves.
40 A
43
Auxiliary power distribution box.
60 A
44
Passenger power seat.
30 A
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Anti-lock brake system pump.
60 A
49
Cooling fan.
60 A
50
Not used.
—
51
USB port.
5 A
52
Not used.
—
53
Not used.
—
54
Heated seats.
30 A
55
Front luggage compartment module.
20 A
56
Data link connector.
10 A
57
295
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
58
Body control module.
40 A
59
Not used.
—
60
Auxiliary power point.
20 A
61
Not used.
—
62
Not used.
—
63
Power liftgate.
30 A
64
Vehicle dynamics module.
30 A
65
Not used.
—
66
Not used.
—
67
Battery electronic control module.
5 A
68
Rear passenger side electronic door.
20 A
69
Not used.
—
70
Auxiliary power point.
20 A
71
Rear window wiper.
20 A
72
Not used.
—
73
Windshield wiper motor.
30 A
74
Not used.
—
75
Heated rear window.
30 A
76
Not used.
—
77
Front driver side electronic door.
20 A
78
Front passenger side electronic door.
20 A
79
Not used.
—
80
Rear window washer pump.
10 A
81
Not used.
—
82
Not used.
—
83
296

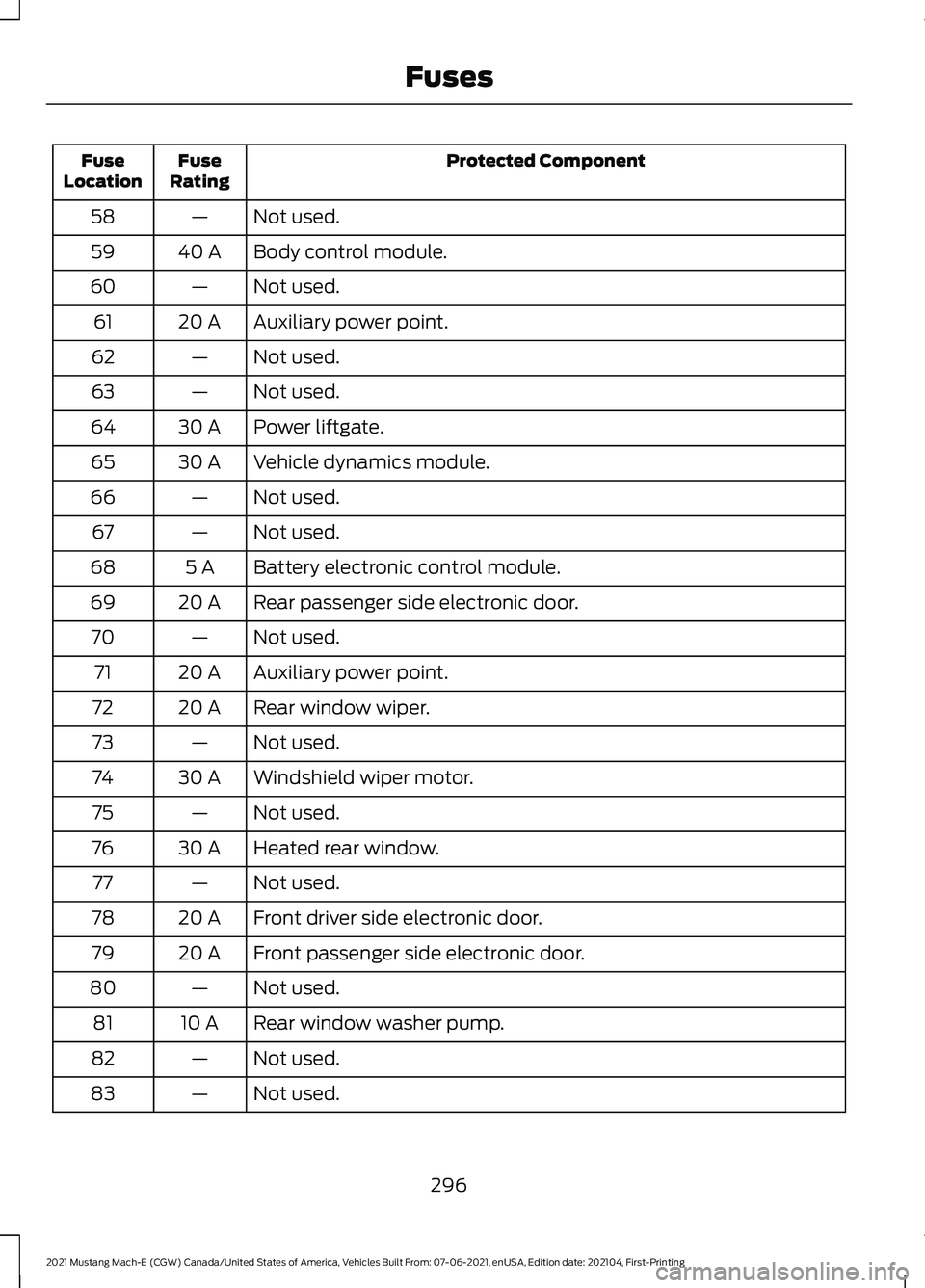

2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Location
Not used (spare).
40 A
84
Rain sensor.
5 A
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
BATTERY FUSE BOX
LOCATING THE BATTERY FUSE
BOX ACCESSING THE BATTERY FUSE
BOX
1. Press the top right-hand side of the
cover, then pull the raised section on
the bottom left-hand side toward you.
297
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE348774 E348774

2. Pull both wires out of the opening to
reveal the inline fuses. 3. Remove the caps that cover the inline
fuses. IDENTIFYING THE FUSES IN THE
BATTERY FUSE BOX
298
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing FusesE348775 E348776 1
