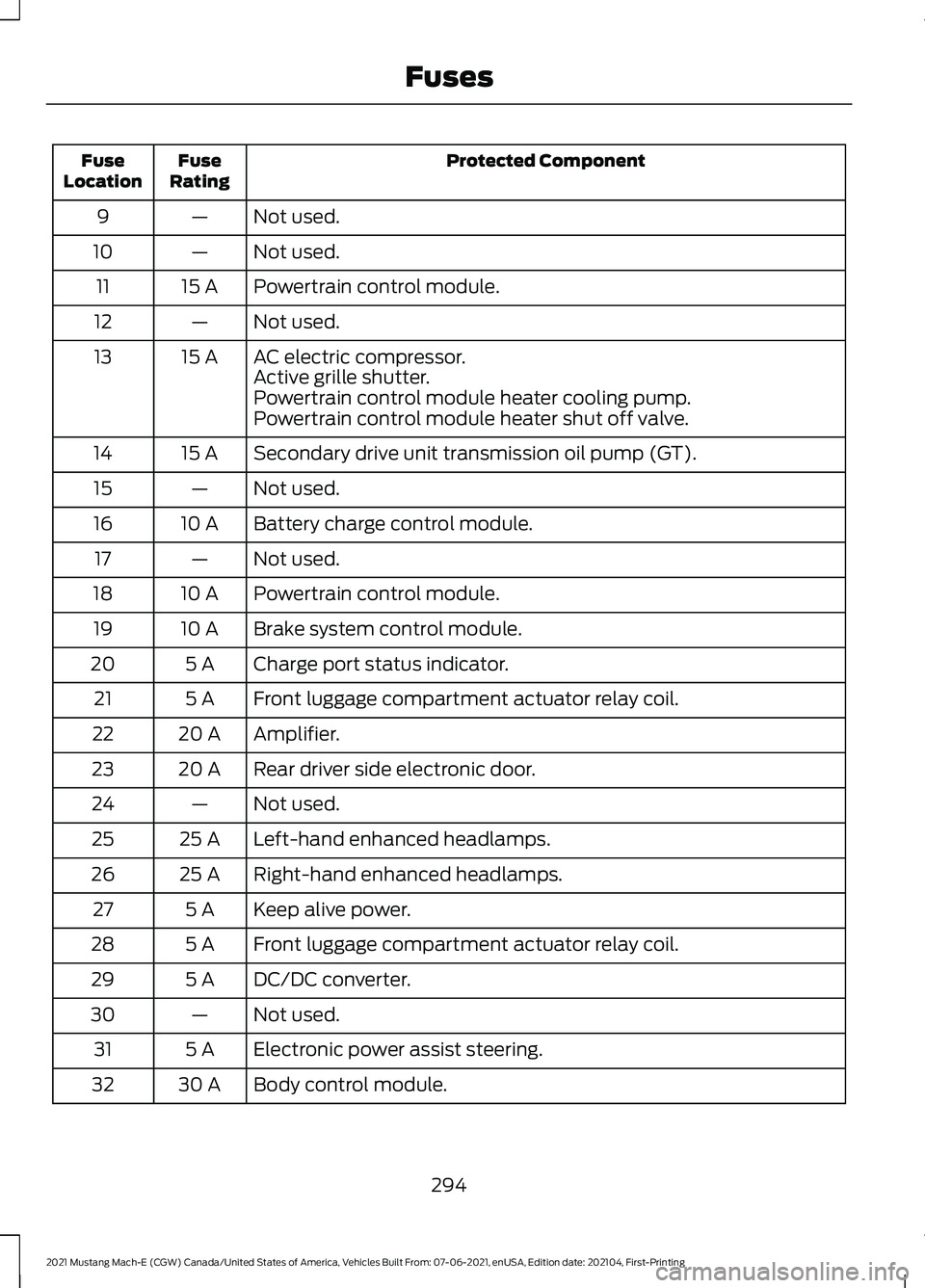

Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
9
Not used.
—
10
Powertrain control module.
15 A
11
Not used.
—
12
AC electric compressor.
15 A
13
Active grille shutter.
Powertrain control module heater cooling pump.
Powertrain control module heater shut off valve.
Secondary drive unit transmission oil pump (GT).
15 A
14
Not used.
—
15
Battery charge control module.
10 A
16
Not used.
—
17
Powertrain control module.
10 A
18
Brake system control module.
10 A
19
Charge port status indicator.
5 A
20
Front luggage compartment actuator relay coil.
5 A
21
Amplifier.
20 A
22
Rear driver side electronic door.
20 A
23
Not used.
—
24
Left-hand enhanced headlamps.
25 A
25
Right-hand enhanced headlamps.
25 A
26
Keep alive power.
5 A
27
Front luggage compartment actuator relay coil.
5 A
28
DC/DC converter.
5 A
29
Not used.
—
30
Electronic power assist steering.
5 A
31
Body control module.
30 A
32
294
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Fuses
