service indicator FORD MUSTANG MACH-E 2021 Owners Manual

Contacting Us
Contacting Us
..................................................15
Introduction
About This Publication .................................
17
Using This Publication .................................
18
Symbols Glossary
Symbols Used on Your Vehicle .................
19
Data Privacy
Data Privacy .....................................................
21
Service Data ....................................................
22
Event Data ........................................................
22
Settings Data ..................................................
23
Connected Vehicle Data .............................
23
Mobile Device Data .......................................
24
Emergency Call System Data ...................
24
Visual Search
Steering Wheel ...............................................
25
Instrument Panel - Excluding: GT ...........
26
Instrument Panel - GT .................................
27
Center Console - GT .....................................
28
Vehicle Interior - Excluding: GT ................
29
Vehicle Interior - GT .....................................
30
Front Exterior - Excluding: GT ....................
31
Front Exterior - GT .........................................
32
Rear Exterior - Excluding: GT ....................
33
Rear Exterior - GT ..........................................
34
Child Safety
Child Safety Precautions ............................
35
Child Restraint Anchor Points ..................
36
Child Restraints ..............................................
37
Installing Child Restraints ..........................
38
Booster Seats .................................................
43
Child Safety Locks ........................................
45Seatbelts
Seatbelt Precautions
...................................
46
Fastening and Unfastening the Seatbelts ........................................................................\
...
47
Sensitive Locking Mode ..............................
48
Automatic Locking Mode ...........................
48
Adjusting the Seatbelts During Pregnancy ....................................................
49
Adjusting the Seatbelt Height .................
49
Seatbelt Reminder .......................................
49
Checking the Seatbelts ................................
51
Seatbelt Extensions .....................................
52
Personal Safety System ™
What Is the Personal Safety System ........................................................................\
...
53
How Does the Personal Safety System Work ...............................................................
53
Personal Safety System Components ........................................................................\
...
53
Airbags
How Do the Front Airbags Work ..............
54
How Do the Side Airbags Work ...............
54
How Do the Knee Airbags Work ..............
55
How Does the Safety Canopy ™ Work
........................................................................\
..
55
Airbag Precautions .......................................
56
Properly Adjusting the Driver and Front Passenger Seats ........................................
57
Children and Airbags ....................................
57
Front Passenger Sensing System ...........
58
Crash Sensors and Airbag Indicator ........
61
Disposing of Airbags ....................................
62
Pedestrian Alert System
What Is the Pedestrian Alert System ........................................................................\
..
63
911 Assist
What Is 911 Assist ..........................................
64
1
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Table of Contents

•
When the front passenger sensing
system enables the front passenger
frontal airbag, the passenger airbag
status indicator illuminates the on
lamp.
If a person of adult size is sitting in the front
passenger seat, but the passenger airbag
status indicator off lamp is illuminated, it
is possible that the person is not sitting
properly in the seat. If this happens:
• Switch your vehicle off and ask the
person to place the seat backrest in an
upright position.
• Have the person sit upright in the seat,
centered on the seat cushion, with the
person's legs comfortably extended.
• Restart your vehicle and have the
person remain in this position for about
two minutes. This allows the system
to detect that person and enable the
passenger frontal airbag.
• If the indicator off lamp remains
illuminated even after this, you should
advise the person to ride in the rear
seat.
After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit upright,
leaning against the seat backrest, and
centered on the seat cushion, with their
feet comfortably extended on the floor.
Sitting improperly can increase the chance
of injury in a crash event. For example, if
an occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash greatly
increases.
If you think that the state of the passenger
airbag status indicator lamp is incorrect,
check for the following:
• Objects lodged underneath the seat.
• Objects between the seat cushion and
the center console. •
Objects hanging off the seat backrest.
• Objects stowed in the seat backrest
map pocket.
• Objects placed on the occupant's lap.
• Cargo interference with the seat
• Other passengers pushing or pulling on
the seat.
• Rear passenger feet and knees resting
or pushing on the seat.
The listed conditions could cause the
weight of a properly seated occupant to
be incorrectly interpreted by the front
passenger sensing system. The person in
the front passenger seat could appear
heavier or lighter due to the conditions
listed. Make sure the front passenger
sensing system is operating
properly. See Crash Sensors
and Airbag Indicator (page 61).
If the airbag readiness light is on, do the
following:
• Pull your vehicle over.
• Switch your vehicle off.
• Check for any objects lodged
underneath the front passenger seat
or cargo interfering with the seat.
• Remove the obstruction if found.
• Restart your vehicle.
• Wait at least two minutes and verify
that the airbag readiness light in the
instrument cluster is no longer
illuminated.
• If the airbag readiness light in the
instrument cluster remains illuminated,
there may be a problem due to the
front passenger sensing system.
Do not attempt to repair or service the
system. Take your vehicle in for service
immediately.
59
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing AirbagsE67017

CRASH SENSORS AND
AIRBAG INDICATOR
WARNING: Modifying or adding
equipment to the front end of your
vehicle (including hood, bumper system,
frame, front end body structure, tow
hooks and hood pins) may affect the
performance of the airbag system,
increasing the risk of injury. Do not
modify or add equipment to the front
end of your vehicle.
Your vehicle has a collection of crash and
occupant sensors. These sensors provide
information to the restraints control
module which activates the following:
• Front and rear seatbelt pretensioners.
• Driver airbag.
• Passenger airbag.
• Knee airbag(s).
• Front and rear seat mounted side
airbags.
• Adaptive steering column.
• Side curtain airbags.
Based on the type of crash, the restraints
control module deploys the appropriate
safety devices.
The restraints control module also
monitors the readiness of the above safety
devices plus the crash and occupant
sensors. The readiness of the safety
system is indicated by a warning indicator
light in the instrument cluster or by a
backup tone if the warning light is not
working. Routine maintenance of the
airbag is not required.
A difficulty with the system is indicated by
one or more of the following: The readiness light will not
illuminate immediately after you
switch the power on. •
The readiness light either flashes or
stays on.
• You hear a series of five tones. The
tone pattern repeats periodically until
the problem, the light or both are
repaired.
If any of these things happen, even
intermittently, have the supplemental
restraint system serviced immediately.
Unless serviced, the system may not
function properly in the event of a crash.
The fact that the seatbelt pretensioners
or front airbags did not activate for both
front seat occupants in a crash does not
mean that something is wrong with the
system. Rather, it means the restraints
control module determined the accident
conditions (crash severity, seatbelt usage)
were not appropriate to activate these
safety devices.
• The front airbags activate only in
frontal and near-frontal crashes. Front
airbags may activate in rollovers, side
impacts or rear impacts if the crash
causes sufficient frontal deceleration.
• The seatbelt pretensioners activate in
frontal, near-frontal and side crashes,
and in rollovers.
• The knee airbag deploys based on
crash severity and occupant conditions.
• The side airbags inflate in certain side
impact crashes or rollover events. Side
airbags may activate in other types of
crashes if the vehicle experiences
sufficient sideways motion or
deformation.
• The Safety Canopy inflates in certain
side impact crashes or rollover events.
The Safety Canopy may activate in
other types of crashes if the vehicle
experiences sufficient sideways motion
or deformation, or a certain likelihood
of rollover.
61
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing AirbagsE67017

Low Washer Fluid Level
It illuminates when the washer
fluid is low.
Powertrain Malfunction It illuminates when the
powertrain requires service. Have
the system checked as soon as
possible.
Stop Safely It illuminates if an electrical
component requires service or a
failure that causes your vehicle
to shutdown or enter into a limited
operating mode.
Vehicle Plugged In It illuminates when your vehicle
is plugged in.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features
that are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control See Adaptive Cruise Control
(page 222).
Automatic Headlamp High Beam See
Automatic High Beam
Control Indicators (page 109). Auto Hold Active See
Auto Hold (page 198).
Auto Hold Unavailable See
Auto Hold (page 198).
Blind Spot Information System See
Blind Spot Information
System (page 251).
Cruise Control See
Adaptive Cruise Control
(page 222).
Headlamp High Beam See
Using the High Beam
Headlamps (page 105).
Parking Lamps See
Headlamp Indicators
(page 105).
Ready to Drive See
Starting and Powering
Off (page 155).
Stability Control and Traction
Control See
Traction Control (page
199). See Stability Control
(page 201).
121
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument ClusterE132353 E288355 E228962 E144524 E323448 E323449 E323542 E71340 E224090 E138639 E225466

CARE INSTRUCTIONS
Do not use cleaners or solvents as this
could damage your mobile charger. Do not
place stress on the charger cables. If unit
overheats, remove the mobile charger from
direct sunlight.
SAFETY FEATURES
The charger includes the following safety
features to protect against the risk of
electric shock:
•
Service Ground Check: The charger
constantly checks for the presence of
a service ground connection. If the
service ground ever fails, the charger
red indicator turns ON and shuts down
power to the vehicle.
• Thermal Event Sensor: Charger module
senses out-of-ordinary thermal events
and decreases the charging current or
shuts the unit down if required.
• Ground fault circuit interrupter (GFCI)
Protection: The charger has a ground
fault circuit interrupter (GFCI) reaction
system to protect against electric
shock. If the charger module detects
an output ground fault, it shuts down
power to the output cable and
illuminates the red indicator.
• Insulation: The charger module,
connector, cable assembly, and charge
coupler are completely insulated.
There are no exposed live parts, to
protect against electric shock.
• Unintentional Disconnection: The
charge coupler is designed to minimize
unintentional disconnection. A pilot
signal wire in the cable and charge
coupler eliminates the possibility of
electric shock when not connected to
a vehicle or if an unintended disconnect
occurs during a charge. Disconnection
during charging is safe. LOCATING THE CHARGE PORT
The charge port is between the front
left-hand side door and front left-hand
wheel well. To open, press the center
right-hand edge of the charge port door
and then release.
Note:
Do not apply excessive force. Forcing
the door open or closed damages the charge
port.
CHARGE PORT INDICATORS
The charge status indicator is next to the
charging port behind the charge port door.
It indicates the charge status of the high
voltage battery in your vehicle.
Divided into five zones, the charge status
indicator displays the state of charge in 20
percent increments.
The charge status indicator displays how
far along the charge is:
• When zone A is pulsing, the charge is
between 0-20 percent.
• When zone A illuminates, and zone B
is pulsing, the charge is between 20-40
percent.
• When zones A and B illuminate and
zone C is pulsing, the charge is between
40-60 percent.
168
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE317346

•
When zones A, B, and C illuminate, and
zone D is pulsing, the charge is between
60-80 percent.
• When zones A, B, C, and D illuminate,
and zone E is pulsing, the charge is
between 80-100 percent.
• When all zones illuminate, the charge
is 100 percent. Note:
When charging stops, the charge
status indicator shows all the completed
zones solidly illuminated up in a blue color
for 30 seconds before turning off. For
example, if charging stops at 70 percent,
then A, B, and C light up solidly to indicate
a battery charge level of at least 60 percent
but less than 80 percent. Charging stops
when complete or when paused due to
charge settings or charge station actions.
Note: If the charge status indicator does
not light up or pulse after plugging in, please
verify that the charge port light setting is On.
If you do not wish to have the charge status
indicator light up at all while charging, then
you can turn it Off. Locate the charge port
light under the vehicle settings on your
in-vehicle touchscreen.
There are three charge port indicator light
colors, which indicate a specific action:
White is used as a courtesy light to help
with plugging in and to acknowledge
actions such as plugging in and unplugging. Blue is used when the vehicle is plugged in
and either charging or waiting to charge.
Amber is used to indicate charge faults.
Note:
Charging faults are identified by the
color amber on the charge status indicator.
Faults can occur within the vehicle charging
system or outside the vehicle, such as with
the mobile charger, charge station or
electrical supply.
Note: If the system detects a fault in the
vehicle charging system at any point in a
charge cycle, the entire charge status
indicator illuminates solidly in an amber
color for 30 seconds and then turns off. If
this happens, unplug the charge coupler and
then plug it back into the charge port
receptacle. If the problem persists, have
your vehicle serviced as soon as possible.
Note: If the system detects a fault outside
the vehicle, such as with the charge station
or mobile charger, the entire charge status
indicator flashes amber continuously for 30
seconds and then turns off. If this happens
check the mobile charger, charge station or
electrical supply.
AC CHARGING
CONNECTING THE CHARGER Charging Using the Mobile Charger
CAUTION: TO REDUCE THE RISK OF
FIRE- The plug must be properly
grounded. Use a dedicated circuit. If you
do not use a dedicated circuit, the circuit
breaker could trip or open. If you do not
have a dedicated circuit, contact a licensed
professional electrician for proper
installation.
169
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE
D
CA
BE317499 E306677 E306676

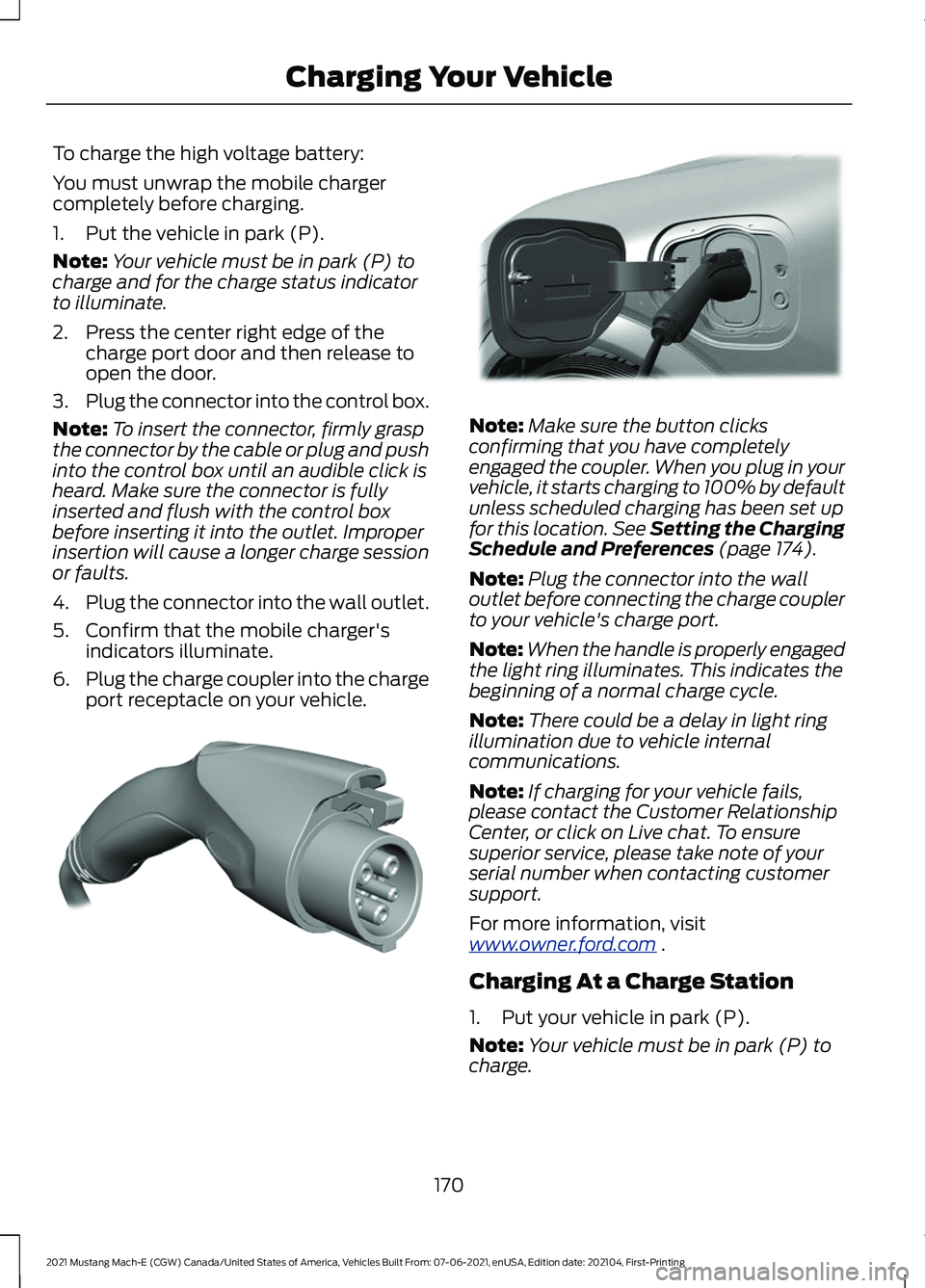

To charge the high voltage battery:
You must unwrap the mobile charger
completely before charging.
1. Put the vehicle in park (P).
Note:
Your vehicle must be in park (P) to
charge and for the charge status indicator
to illuminate.
2. Press the center right edge of the charge port door and then release to
open the door.
3. Plug the connector into the control box.
Note: To insert the connector, firmly grasp
the connector by the cable or plug and push
into the control box until an audible click is
heard. Make sure the connector is fully
inserted and flush with the control box
before inserting it into the outlet. Improper
insertion will cause a longer charge session
or faults.
4. Plug the connector into the wall outlet.
5. Confirm that the mobile charger's indicators illuminate.
6. Plug the charge coupler into the charge
port receptacle on your vehicle. Note:
Make sure the button clicks
confirming that you have completely
engaged the coupler. When you plug in your
vehicle, it starts charging to 100% by default
unless scheduled charging has been set up
for this location. See Setting the Charging
Schedule and Preferences (page 174).
Note: Plug the connector into the wall
outlet before connecting the charge coupler
to your vehicle's charge port.
Note: When the handle is properly engaged
the light ring illuminates. This indicates the
beginning of a normal charge cycle.
Note: There could be a delay in light ring
illumination due to vehicle internal
communications.
Note: If charging for your vehicle fails,
please contact the Customer Relationship
Center, or click on Live chat. To ensure
superior service, please take note of your
serial number when contacting customer
support.
For more information, visit
www . o wner .f or d . c om .
Charging At a Charge Station
1. Put your vehicle in park (P).
Note: Your vehicle must be in park (P) to
charge.
170
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE335725 E329078

PARKING AID INDICATORS
The system provides object distance
indication through the information and
entertainment display.
•
As the distance to the object
decreases, the indicator waves and the
lines move toward the vehicle icon.
• If there is no object detected, the
distance indicator lines are grey.
Visual indication remains on when your
vehicle is in reverse (R). In any other gear,
when you stop your vehicle, visual
indication turns off after four seconds.
If the parking aids are not available, the
side distance indicator lines do not display.
PARKING AIDS –
TROUBLESHOOTING
PARKING AIDS – INFORMATION
MESSAGES
If a fault is present in the parking aids, a
warning message appears in the
instrument cluster or the information and
entertainment display. Action
Message
The system detects a condition that
requires service. Have your vehicle checked as soon as possible.
Check Front Park Aid
The system detects a condition that
requires service. Have your vehicle checked as soon as possible.
Check Rear Park Aid
Displays the park aid status.
Front Park Aid On Off
Displays the park aid status.
Rear Park Aid On Off
211
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Parking AidsE333288

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster indicate blind spot assist activation.
In addition, the blind spot information
system alert indicator flashes on the
exterior mirror on the same side as the
detection. For more information See Blind
Spot Information System (page 251).
Blind Spot Assist Information Messages Action
Message
Displays if you attach a trailer to your vehicle.
Blind Spot Assist Not
Available Trailer
Attached
Displays if the blind spot information system sensors are
blocked.
Blind Spot Assist Not
Available Side Sensor
Blocked
The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.
Blind Spot Assist Not
Available Side Sensor
Fault
LANE KEEPING SYSTEM – TROUBLESHOOTING
LANE KEEPING SYSTEM – INFORMATION MESSAGES Action
Message
The system has malfunctioned. Have yourvehicle checked as soon as possible.
Lane Keeping Sys. Malfunction Service
Required
The system has detected a condition thathas caused the system to be temporarily unavailable.
Front Camera Temporarily Not Available
The system has detected a condition that
requires you to clean the windshield in order for it to operate properly.
Front Camera Low Visibility Clean Screen
The system has malfunctioned. Have yourvehicle checked as soon as possible.
Front Camera Malfunction Service Required
The system requests that you keep yourhands on the steering wheel.
Keep Hands on Steering Wheel
248
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Lane Keeping System

ROADSIDE ASSISTANCE
Vehicles Sold in the United States:
Getting Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company
offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.
The service is available:
•
24 hours a day, seven days a week.
• For the coverage period supplied with
your vehicle.
Roadside Assistance covers:
• 12 V battery jump start.
• Lock-out assistance (key replacement
cost is the customer's responsibility).
• In the event your vehicle's high-voltage
battery does not have enough power
to move, as a Mach-E roadside
customer, you can choose where you
would like your vehicle towed (within
a 35 mi (56 km) radius):
• Nearest public charger.
• EV Certified Ford or Lincoln Dealer.
• Your home residence.
Vehicles Sold in the United States:
Using Roadside Assistance
Complete the roadside assistance
identification card and place it in your
wallet for quick reference. This card is in
the Owner's Manual kit.
United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673. If you need to arrange roadside assistance
for yourself, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
35 mi (56 km)
. To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.
Vehicles Sold in Canada: Getting
Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company of
Canada, Limited offers a complimentary
roadside assistance program. This
program is eligible within Canada or the
continental United States.
The service is available 24 hours a day,
seven days a week.
This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage.
If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at
www .f or d . c a .
SWITCHING THE HAZARD
FLASHERS ON AND OFF
The hazard flashers operate with the
power on or off. The battery loses charge
and may have insufficient power to restart
your vehicle. The hazard flasher button is on
the center console. Press the
button to turn on the hazard
flashers if your vehicle is creating a safety
hazard for other road users.
When you switch the hazard flashers on,
all front and rear direction indicators flash.
284
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Crash and Breakdown Information
