headlamp FORD MUSTANG MACH E 2023 Owners Manual

Easy Entry and Exit
How Does Easy Entry and Exit Work...........................................................................91
Switching Easy Entry and Exit On andOff....................................................................91
Liftgate - Vehicles With:Hands-Free Liftgate/PowerLiftgate
Liftgate Precautions.....................................92
Opening the Liftgate....................................92
Setting the Liftgate Opening Height..........................................................................94
Closing the Liftgate......................................94
Stopping the Liftgate Movement...........96
Liftgate Obstacle Detection.....................96
Liftgate – Troubleshooting.......................96
Liftgate - Vehicles With:Manual Liftgate
Opening the Liftgate...................................99
Closing the Liftgate......................................99
Security
Passive Anti-Theft System.......................101
Anti-Theft Alarm System..........................101
Anti-Theft Alarm System Settings.......102
Security – Troubleshooting.....................103
Steering Wheel
Adjusting the Steering Wheel.................105
Horn..................................................................105
Switching the Heated Steering WheelOn and Off.................................................105
Wipers and Washers
Wipers.............................................................106
Autowipers....................................................106
Switching the Rear Window Wiper Onand Off........................................................107
Reverse Wipe.................................................107
Checking the Wiper Blades.....................108
Replacing the Front Wiper Blades........108
Replacing the Rear Wiper Blades.........108
Washers..........................................................109
Wipers and Washers – Troubleshooting..........................................................................110
Exterior Lighting
Exterior Lighting Control.............................111
Headlamps.......................................................111
Headlamps – Troubleshooting................112
Autolamps.......................................................112
Exterior Lamps...............................................113
Automatic High Beam Control................114
Automatic High Beam Control –Troubleshooting........................................116
Interior Lighting
Switching All of the Interior Lamps Onand Off..........................................................117
Switching the Front Interior Lamps Onand Off..........................................................117
Switching the Rear Interior Lamps Onand Off..........................................................117
Interior Lamp Function...............................117
Adjusting the Instrument Panel LightingBrightness...................................................118
Ambient Lighting..........................................118
Interior Lighting – Troubleshooting.......118
Windows
Opening and Closing the Windows.......119
Global Opening and Closing....................119
Window Bounce-Back..............................120
Locking the Rear Window Controls......120
Interior Mirror
Interior Mirror Precautions........................122
Auto-Dimming Interior Mirror..................122
3
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTable of Contents

Installing and Removing the LuggageCompartment Cover.............................297
Adjusting the Luggage CompartmentLoad Floor.................................................299
Luggage Compartment Anchor Points........................................................................299
Luggage Compartment –Troubleshooting.....................................299
Towing a Trailer
Towing a Trailer Precautions.................300
Driving Hints
Cold Weather Precautions.......................301
Driving on Snow and Ice...........................301
Breaking-In.....................................................301
Performance Vehicle Precautions........301
Driving in Special Conditions..................301
Electric Vehicle............................................302
Driving Through Shallow Water............303
Floor Mats.....................................................304
Crash and BreakdownInformation
Roadside Assistance................................306
Switching the Hazard Flashers On andOff................................................................307
Jump Starting the Vehicle.......................307
Post-Crash Alert System.........................309
Post-Collision Braking...............................310
Automatic Crash Shutoff.........................310
Transporting the Vehicle............................311
Towing Your Vehicle
Towing Your Vehicle Precautions...........312
Recreationally Towing Your Vehicle.........................................................................312
Emergency Towing......................................312
Towing Your Vehicle – Troubleshooting.........................................................................313
Fuses
Fuse Precautions.........................................314
Under Hood Fuse Box................................314
Battery Fuse Box.........................................320
Body Control Module Fuse Box..............321
Identifying Fuse Types..............................324
Fuses – Troubleshooting.........................324
Maintenance
Maintenance Precautions.......................325
Opening and Closing the Hood.............325
Under Hood Overview...............................325
Checking the Coolant...............................326
12V Battery....................................................328
12V Battery – Troubleshooting..............328
Adjusting the Headlamps........................329
Exterior Bulbs...............................................330
Interior Bulbs................................................330
Vehicle Care
General Information...................................331
Cleaning Products.......................................331
Cleaning the Exterior..................................331
Cleaning the Interior..................................333
Repairing Minor Paint Damage..............335
Waxing Your Vehicle..................................335
Body Styling Kits
Body Styling Kit Precautions..................336
Storing Your Vehicle
Preparing Your Vehicle for Storage.......337
Removing Your Vehicle From Storage........................................................................338
Wheel and Tire Information
Locating the Tire label..............................339
Department of Transportation UniformTire Quality Grades................................339
Information on the Tire Sidewall.........340
10
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTable of Contents

SYMBOLS USED ON YOUR
VEHICLE
These are some of the symbols you maysee on your vehicle.
Airbag
Air conditioning system
Air conditioning system lubricanttype
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Blower motor
Brake fluid - non petroleumbased
Brake system
Brake system
Cabin air filter
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Electric Parking brake
Explosive gas
Fan warning
Fasten seatbelt
Flammable
Front fog lamps
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
19
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMSymbols GlossaryE67017 E162384 E231157 E67020 E139220 E67021 E139227 E139209 E67024 E270480 E139223 E139211 E141128 E332905 E139219 E139212 E139221 E139228 E71880 E231160 E139214 E75790 E67019 E270968

WARNING: Do not connectwireless plug-in devices to the data linkconnector. Unauthorized third partiescould gain access to vehicle data andimpair the performance of safety relatedsystems. Only allow repair facilities thatfollow our service and repair instructionsto connect their equipment to the datalink connector.
We respect your privacy and arecommitted to protecting it. Theinformation contained in this publicationwas correct at the time of release, but astechnology rapidly changes, werecommend that you visit the local Fordwebsite for the latest information.
Your vehicle has electronic control unitsthat have data recording functionality andthe ability to permanently or temporarilystore data. This data could includeinformation on the condition and status ofyour vehicle, vehicle maintenancerequirements, events and malfunctions.The types of data that can be recorded aredescribed in this section. Some of the datarecorded is stored in event logs or errorlogs.
Note:Error logs are reset following a serviceor repair.
Note:We may provide information inresponse to requests from law enforcement,other government authorities and thirdparties acting with lawful authority orthrough a legal process. Such informationcould be used by them in legal proceedings.
Data recorded includes, for example:
•Operating states of systemcomponents, for example batterycharge level and tire pressure.
•Vehicle and component status, forexample wheel speed, deceleration,lateral acceleration and seatbeltstatus.
•Events or errors in essential systems,for example headlamps and brakes.
•System responses to driving situations,for example airbag deployment andstability control.
•Environmental conditions, for exampletemperature.
Some of this data, when used incombination with other information, forexample an accident report, damage to avehicle or eyewitness statements, couldbe associated with a specific person.
Services That We Provide
If you use our services, we collect and usedata, for example account information,vehicle location and driving characteristics,that could identify you. We transmit thisdata through a dedicated, protectedconnection. We only collect and use datato enable your use of our services to whichyou have subscribed, with your consent orwhere permitted by law. For additionalinformation, see the terms and conditionsof the services to which you havesubscribed.
For additional information about ourprivacy policy, refer to the local Fordwebsite.
Services That Third PartiesProvide
We recommend that you review the termsand conditions and data privacyinformation for any services equipped withyour vehicle or to which you subscribe. Wetake no responsibility for services that thirdparties provide.
Where equipped, SiriusXM with 360L coulduse the modem. To disable, turn off theSiriusXM with 360L or Vehicle Connectivitysetting. See Enabling and Disabling theModem (page 372).
22
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMData Privacy

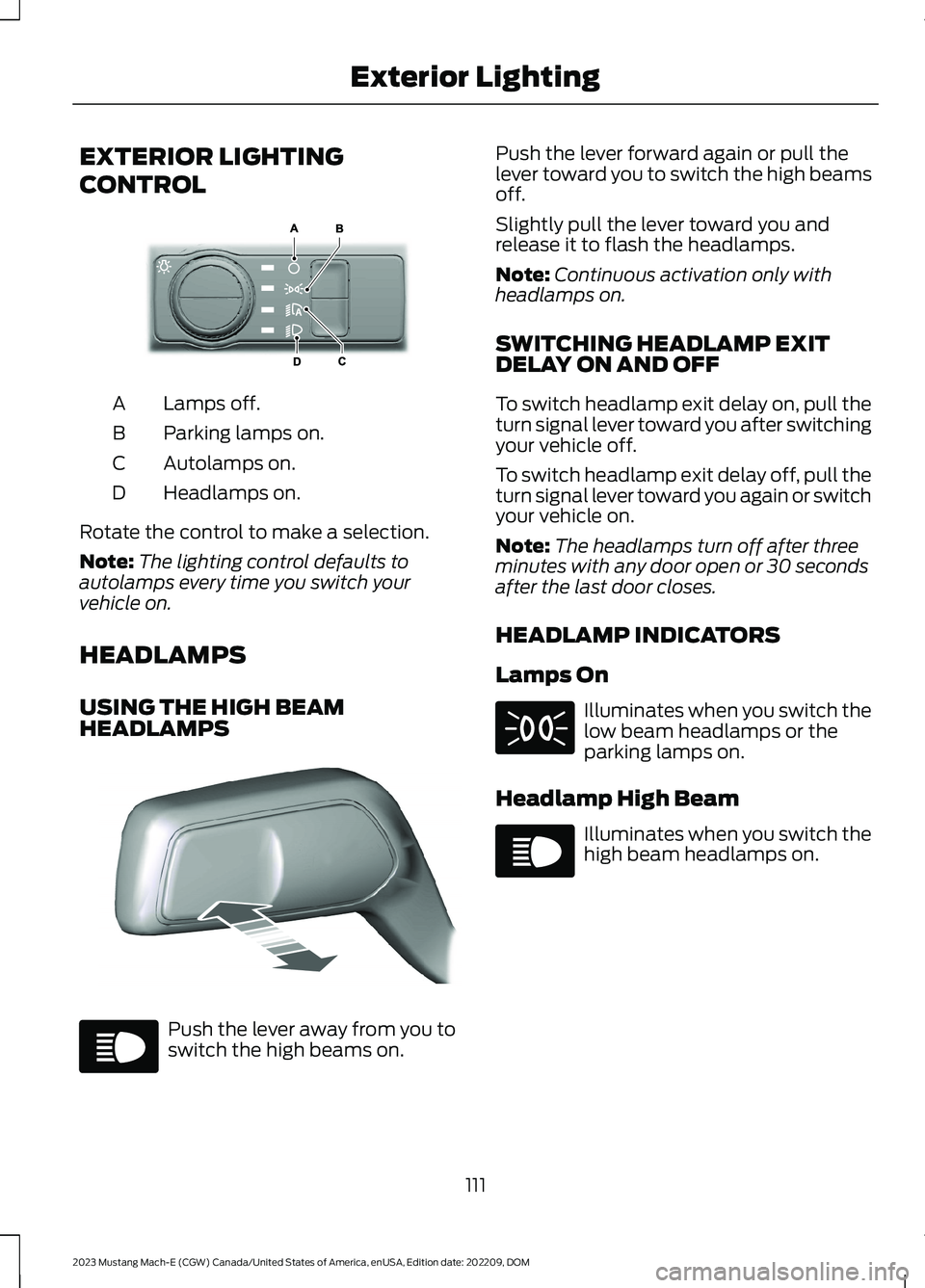

EXTERIOR LIGHTING
CONTROL
Lamps off.A
Parking lamps on.B
Autolamps on.C
Headlamps on.D
Rotate the control to make a selection.
Note:The lighting control defaults toautolamps every time you switch yourvehicle on.
HEADLAMPS
USING THE HIGH BEAMHEADLAMPS
Push the lever away from you toswitch the high beams on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
Slightly pull the lever toward you andrelease it to flash the headlamps.
Note:Continuous activation only withheadlamps on.
SWITCHING HEADLAMP EXITDELAY ON AND OFF
To switch headlamp exit delay on, pull theturn signal lever toward you after switchingyour vehicle off.
To switch headlamp exit delay off, pull theturn signal lever toward you again or switchyour vehicle on.
Note:The headlamps turn off after threeminutes with any door open or 30 secondsafter the last door closes.
HEADLAMP INDICATORS
Lamps On
Illuminates when you switch thelow beam headlamps or theparking lamps on.
Headlamp High Beam
Illuminates when you switch thehigh beam headlamps on.
111
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE327629 E328253 E67019 E71341 E67019

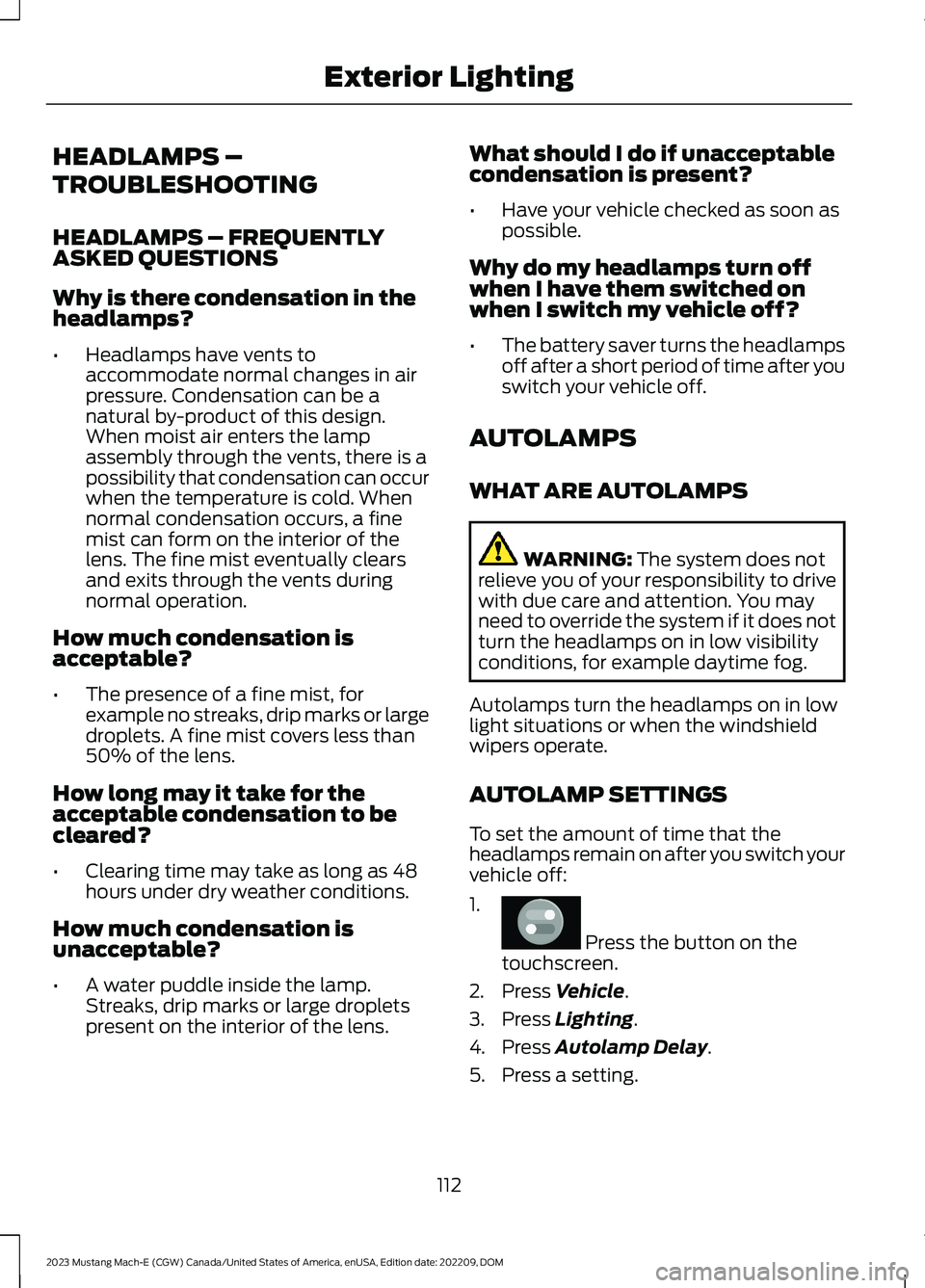

HEADLAMPS –
TROUBLESHOOTING
HEADLAMPS – FREQUENTLYASKED QUESTIONS
Why is there condensation in theheadlamps?
•Headlamps have vents toaccommodate normal changes in airpressure. Condensation can be anatural by-product of this design.When moist air enters the lampassembly through the vents, there is apossibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a finemist can form on the interior of thelens. The fine mist eventually clearsand exits through the vents duringnormal operation.
How much condensation isacceptable?
•The presence of a fine mist, forexample no streaks, drip marks or largedroplets. A fine mist covers less than50% of the lens.
How long may it take for theacceptable condensation to becleared?
•Clearing time may take as long as 48hours under dry weather conditions.
How much condensation isunacceptable?
•A water puddle inside the lamp.Streaks, drip marks or large dropletspresent on the interior of the lens.
What should I do if unacceptablecondensation is present?
•Have your vehicle checked as soon aspossible.
Why do my headlamps turn offwhen I have them switched onwhen I switch my vehicle off?
•The battery saver turns the headlampsoff after a short period of time after youswitch your vehicle off.
AUTOLAMPS
WHAT ARE AUTOLAMPS
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the headlamps on in low visibilityconditions, for example daytime fog.
Autolamps turn the headlamps on in lowlight situations or when the windshieldwipers operate.
AUTOLAMP SETTINGS
To set the amount of time that theheadlamps remain on after you switch yourvehicle off:
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Lighting.
4.Press Autolamp Delay.
5.Press a setting.
112
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE386797

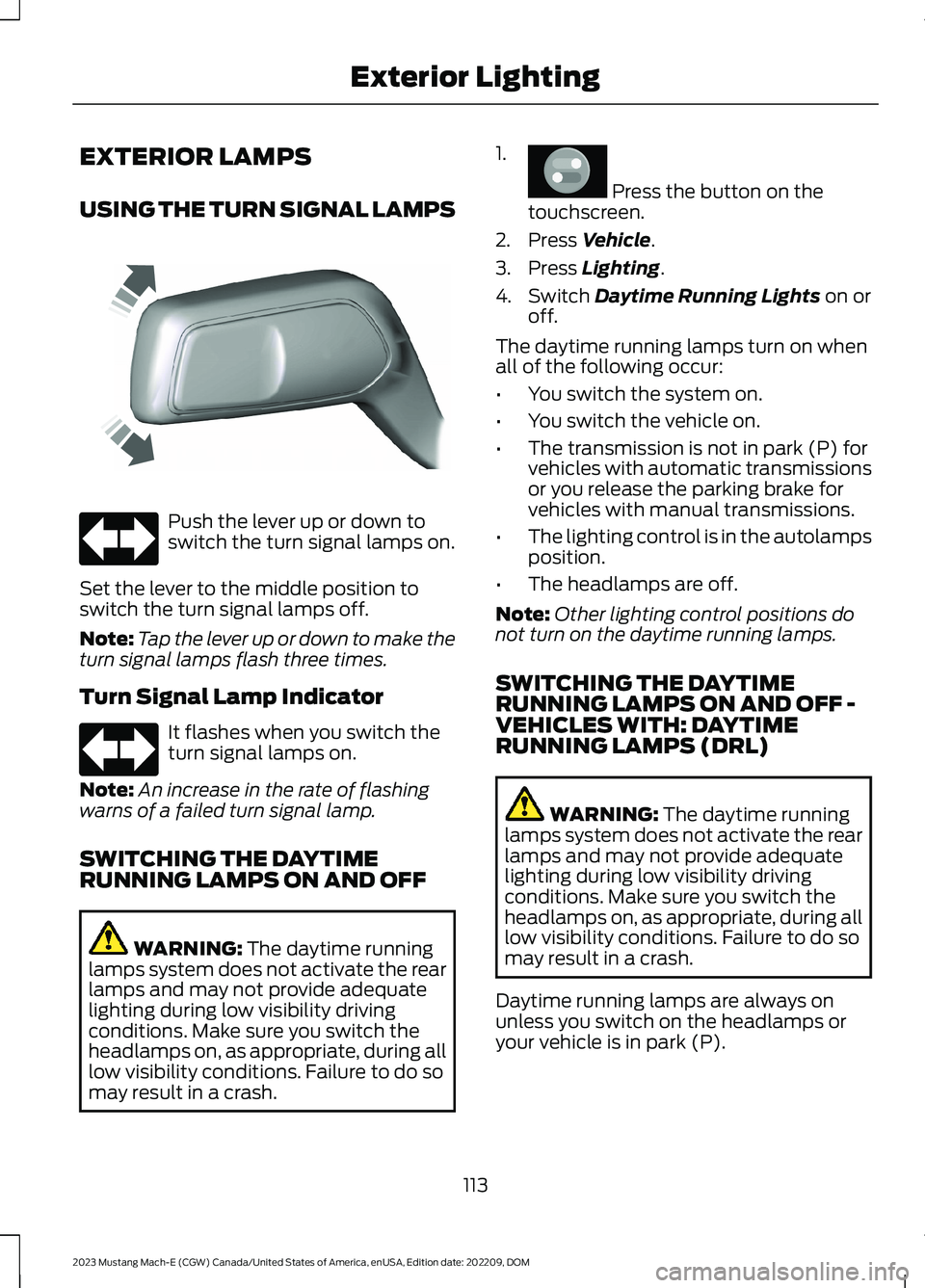

EXTERIOR LAMPS
USING THE TURN SIGNAL LAMPS
Push the lever up or down toswitch the turn signal lamps on.
Set the lever to the middle position toswitch the turn signal lamps off.
Note:Tap the lever up or down to make theturn signal lamps flash three times.
Turn Signal Lamp Indicator
It flashes when you switch theturn signal lamps on.
Note:An increase in the rate of flashingwarns of a failed turn signal lamp.
SWITCHING THE DAYTIMERUNNING LAMPS ON AND OFF
WARNING: The daytime runninglamps system does not activate the rearlamps and may not provide adequatelighting during low visibility drivingconditions. Make sure you switch theheadlamps on, as appropriate, during alllow visibility conditions. Failure to do somay result in a crash.
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Lighting.
4.Switch Daytime Running Lights on oroff.
The daytime running lamps turn on whenall of the following occur:
•You switch the system on.
•You switch the vehicle on.
•The transmission is not in park (P) forvehicles with automatic transmissionsor you release the parking brake forvehicles with manual transmissions.
•The lighting control is in the autolampsposition.
•The headlamps are off.
Note:Other lighting control positions donot turn on the daytime running lamps.
SWITCHING THE DAYTIMERUNNING LAMPS ON AND OFF -VEHICLES WITH: DAYTIMERUNNING LAMPS (DRL)
WARNING: The daytime runninglamps system does not activate the rearlamps and may not provide adequatelighting during low visibility drivingconditions. Make sure you switch theheadlamps on, as appropriate, during alllow visibility conditions. Failure to do somay result in a crash.
Daytime running lamps are always onunless you switch on the headlamps oryour vehicle is in park (P).
113
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE242676 E67018 E67018 E386797

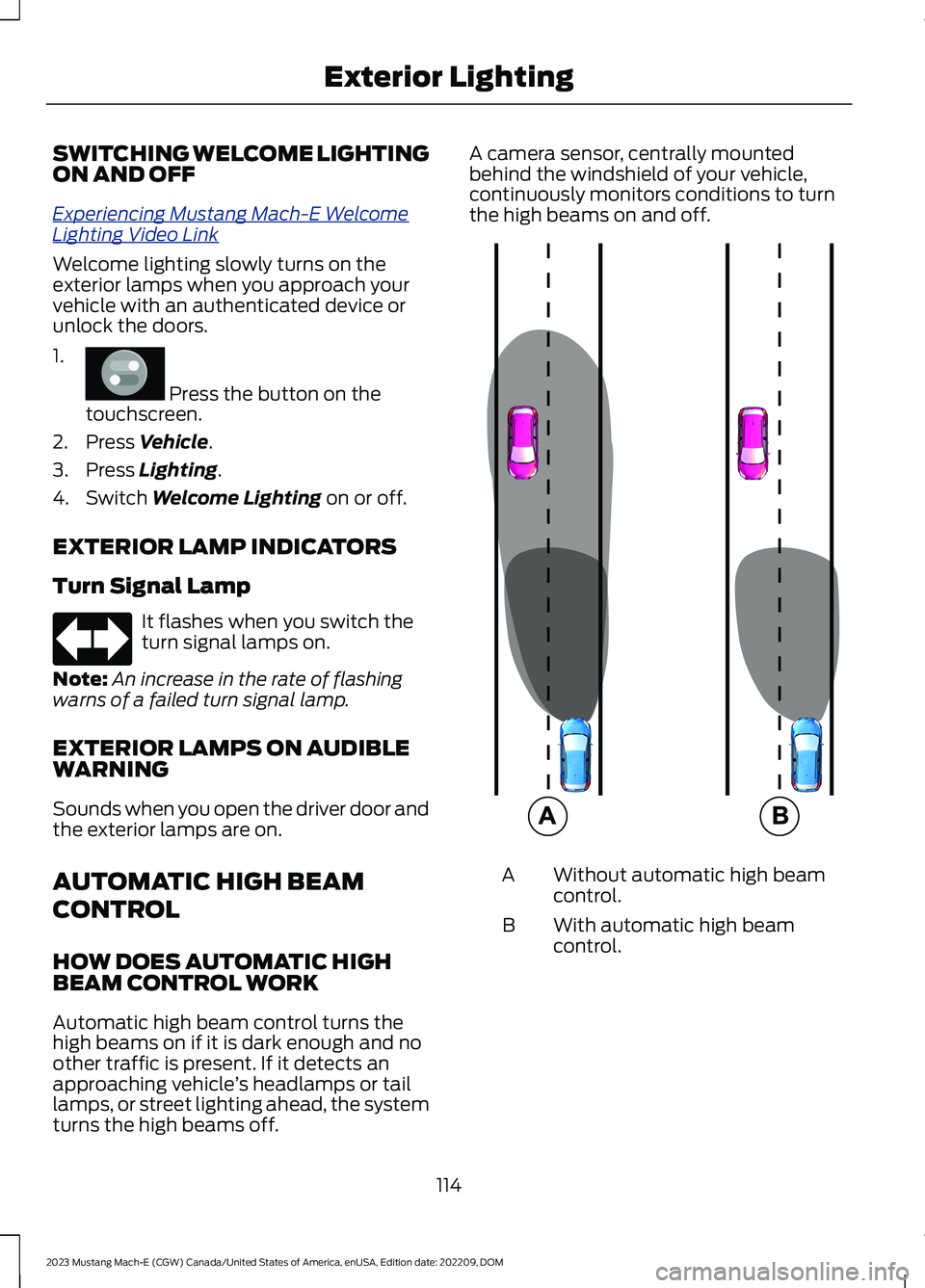

SWITCHING WELCOME LIGHTINGON AND OFF
Experiencing Mustang Mach-E WelcomeLighting Video Link
Welcome lighting slowly turns on theexterior lamps when you approach yourvehicle with an authenticated device orunlock the doors.
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Lighting.
4.Switch Welcome Lighting on or off.
EXTERIOR LAMP INDICATORS
Turn Signal Lamp
It flashes when you switch theturn signal lamps on.
Note:An increase in the rate of flashingwarns of a failed turn signal lamp.
EXTERIOR LAMPS ON AUDIBLEWARNING
Sounds when you open the driver door andthe exterior lamps are on.
AUTOMATIC HIGH BEAM
CONTROL
HOW DOES AUTOMATIC HIGHBEAM CONTROL WORK
Automatic high beam control turns thehigh beams on if it is dark enough and noother traffic is present. If it detects anapproaching vehicle’s headlamps or taillamps, or street lighting ahead, the systemturns the high beams off.
A camera sensor, centrally mountedbehind the windshield of your vehicle,continuously monitors conditions to turnthe high beams on and off.
Without automatic high beamcontrol.A
With automatic high beamcontrol.B
114
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE386797 E67018 E327596

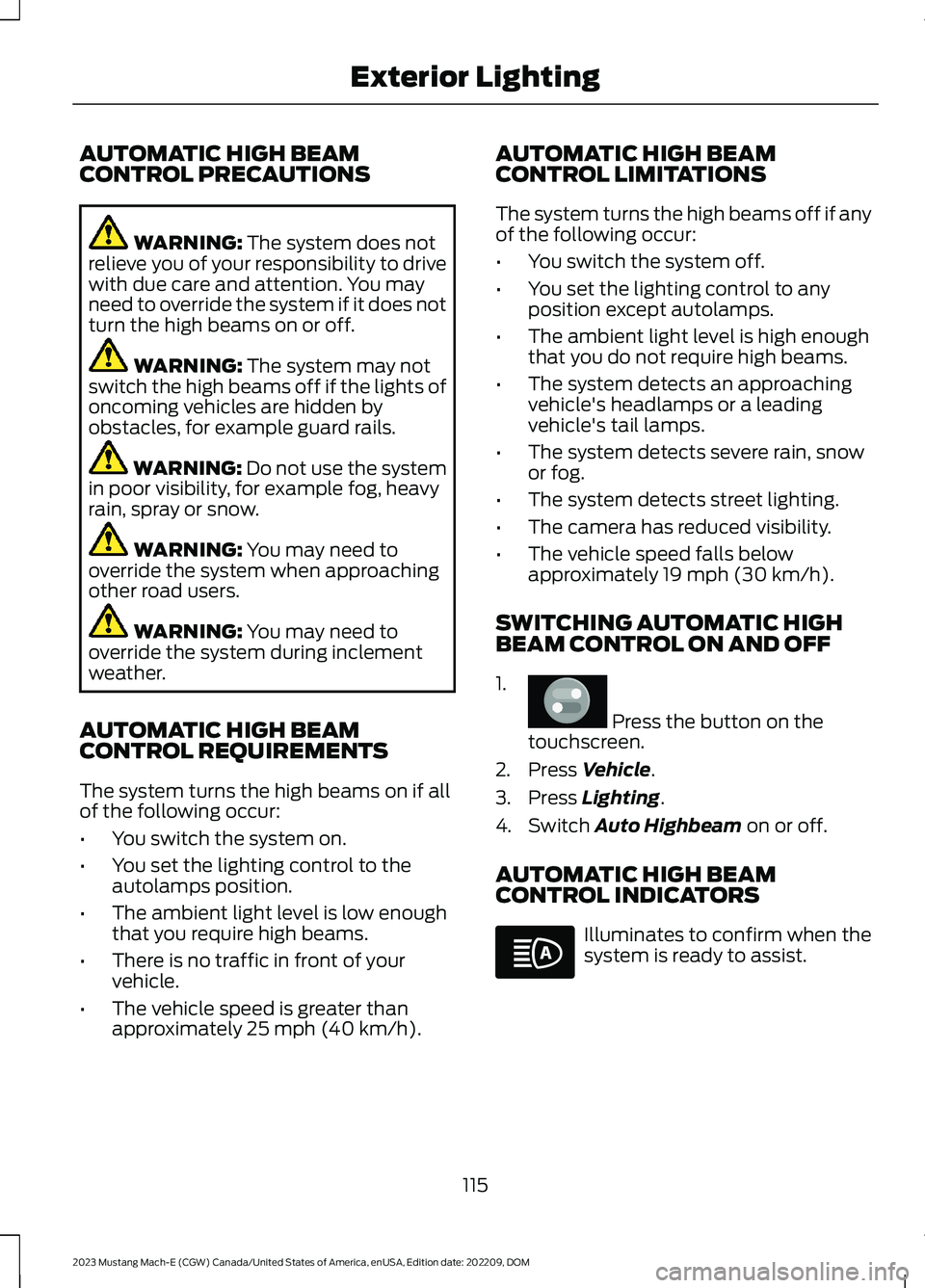

AUTOMATIC HIGH BEAMCONTROL PRECAUTIONS
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the high beams on or off.
WARNING: The system may notswitch the high beams off if the lights ofoncoming vehicles are hidden byobstacles, for example guard rails.
WARNING: Do not use the systemin poor visibility, for example fog, heavyrain, spray or snow.
WARNING: You may need tooverride the system when approachingother road users.
WARNING: You may need tooverride the system during inclementweather.
AUTOMATIC HIGH BEAMCONTROL REQUIREMENTS
The system turns the high beams on if allof the following occur:
•You switch the system on.
•You set the lighting control to theautolamps position.
•The ambient light level is low enoughthat you require high beams.
•There is no traffic in front of yourvehicle.
•The vehicle speed is greater thanapproximately 25 mph (40 km/h).
AUTOMATIC HIGH BEAMCONTROL LIMITATIONS
The system turns the high beams off if anyof the following occur:
•You switch the system off.
•You set the lighting control to anyposition except autolamps.
•The ambient light level is high enoughthat you do not require high beams.
•The system detects an approachingvehicle's headlamps or a leadingvehicle's tail lamps.
•The system detects severe rain, snowor fog.
•The system detects street lighting.
•The camera has reduced visibility.
•The vehicle speed falls belowapproximately 19 mph (30 km/h).
SWITCHING AUTOMATIC HIGHBEAM CONTROL ON AND OFF
1.
Press the button on thetouchscreen.
2.Press Vehicle.
3.Press Lighting.
4.Switch Auto Highbeam on or off.
AUTOMATIC HIGH BEAMCONTROL INDICATORS
Illuminates to confirm when thesystem is ready to assist.
115
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMExterior LightingE386797 E146105

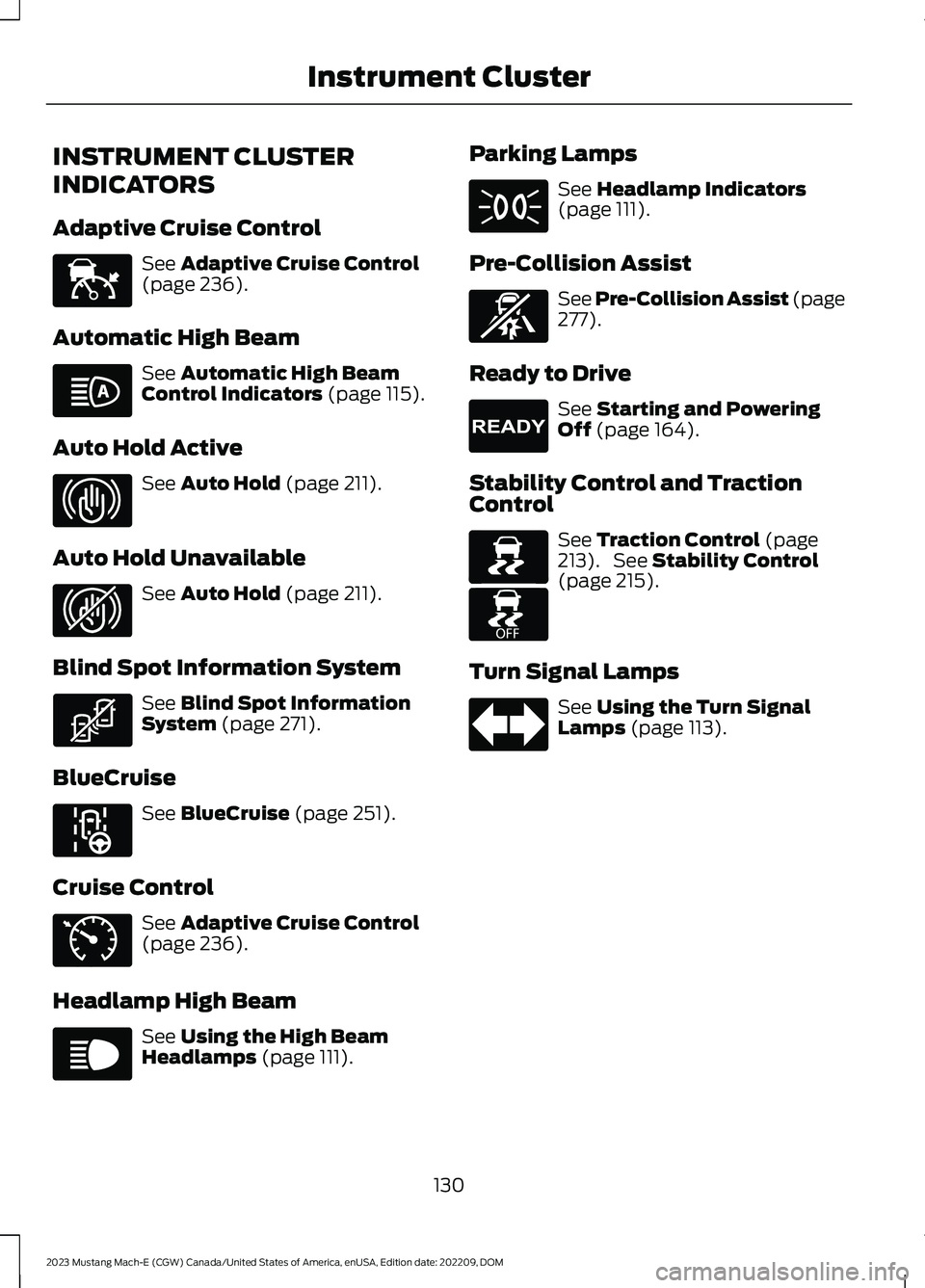

INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control
See Adaptive Cruise Control(page 236).
Automatic High Beam
See Automatic High BeamControl Indicators (page 115).
Auto Hold Active
See Auto Hold (page 211).
Auto Hold Unavailable
See Auto Hold (page 211).
Blind Spot Information System
See Blind Spot InformationSystem (page 271).
BlueCruise
See BlueCruise (page 251).
Cruise Control
See Adaptive Cruise Control(page 236).
Headlamp High Beam
See Using the High BeamHeadlamps (page 111).
Parking Lamps
See Headlamp Indicators(page 111).
Pre-Collision Assist
See Pre-Collision Assist (page277).
Ready to Drive
See Starting and PoweringOff (page 164).
Stability Control and TractionControl
See Traction Control (page213). See Stability Control(page 215).
Turn Signal Lamps
See Using the Turn SignalLamps (page 113).
130
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMInstrument ClusterE144524 E146105 E323448 E323449 E323542 E297977 E71340 E67019 E71341 E329467 E224090 E138639 E225466 E67018
