OBD port FORD POLICE INTERCEPTOR 2021 Owners Manual

Illumination of the service engine soon
indicator, charging system warning light or
the temperature warning light, fluid leaks,
strange odors, smoke or loss of engine
power could indicate that the emission
control system is not working properly.
An improperly operating or damaged
exhaust system may allow exhaust to
enter the vehicle. Have a damaged or
improperly operating exhaust system
inspected and repaired immediately.
Do not make any unauthorized changes to
your vehicle or engine. By law, vehicle
owners and anyone who manufactures,
repairs, services, sells, leases, trades
vehicles, or supervises a fleet of vehicles
are not permitted to intentionally remove
an emission control device or prevent it
from working. Information about your
vehicle
’s emission system is on the Vehicle
Emission Control Information Decal
located on or near the engine. This decal
also lists engine displacement.
Please consult your warranty information
for complete details.
On-Board Diagnostics (OBD-II)
Your vehicle has a computer known as the
on-board diagnostics system (OBD-II) that
monitors the engine ’s emission control
system. The system protects the
environment by making sure that your
vehicle continues to meet government
emission standards. The OBD-II system
also assists a service technician in properly
servicing your vehicle. When the service engine soon
indicator illuminates, the OBD-II
system has detected a
malfunction. Temporary malfunctions may
cause the service engine soon indicator to
illuminate. Examples are: 1. Your vehicle has run out of fuel
—the
engine may misfire or run poorly.
2. Poor fuel quality or water in the fuel —the engine may misfire or run
poorly.
3. The fuel fill inlet may not have closed properly. See Refueling (page 130).
4. Driving through deep water —the
electrical system may be wet.
You can correct these temporary
malfunctions by filling the fuel tank with
good quality fuel, properly closing the fuel
fill inlet or letting the electrical system dry
out. After three driving cycles without these
or any other temporary malfunctions
present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed city and
highway driving. No additional vehicle
service is required.
If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness and
lead to more costly repairs.
Readiness for Inspection and
Maintenance (I/M) Testing
Some state and provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration. If the service engine soon
indicator is on or the bulb does
not work, your vehicle may need
service. See On-Board Diagnostics.
139
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Engine Emission Control

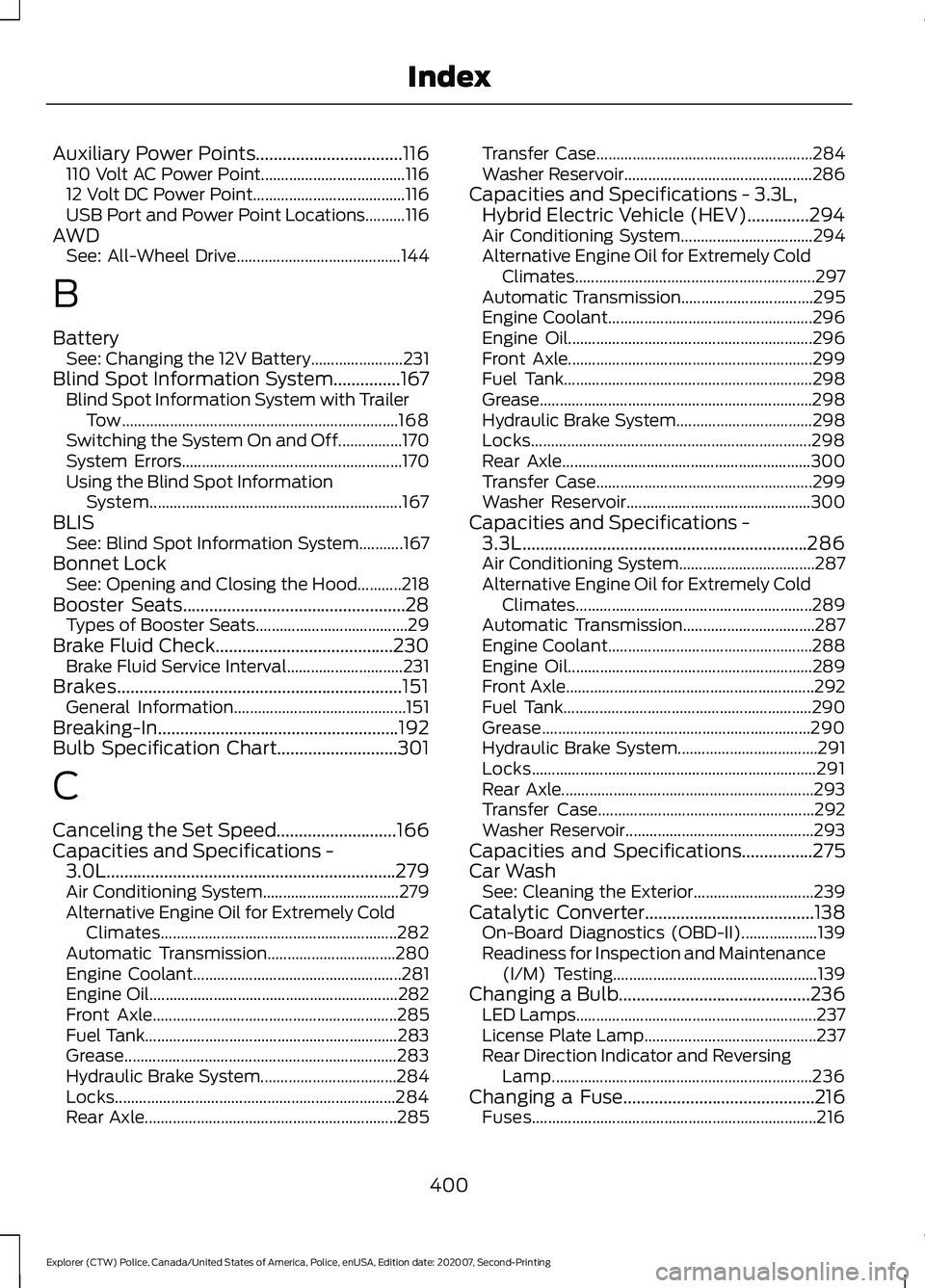

Auxiliary Power Points.................................116
110 Volt AC Power Point.................................... 116
12 Volt DC Power Point...................................... 116
USB Port and Power Point Locations..........116
AWD See: All-Wheel Drive......................................... 144
B
Battery See: Changing the 12V Battery....................... 231
Blind Spot Information System...............167 Blind Spot Information System with Trailer
Tow..................................................................... 168
Switching the System On and Off................170
System Errors....................................................... 170
Using the Blind Spot Information System............................................................... 167
BLIS See: Blind Spot Information System...........167
Bonnet Lock See: Opening and Closing the Hood...........218
Booster Seats..................................................28 Types of Booster Seats...................................... 29
Brake Fluid Check
........................................230
Brake Fluid Service Interval............................. 231
Brakes................................................................151 General Information........................................... 151
Breaking-In......................................................192
Bulb Specification Chart...........................301
C
Canceling the Set Speed...........................166
Capacities and Specifications - 3.0L.................................................................279
Air Conditioning System.................................. 279
Alternative Engine Oil for Extremely Cold Climates........................................................... 282
Automatic Transmission................................ 280
Engine Coolant.................................................... 281
Engine Oil.............................................................. 282
Front Axle............................................................. 285
Fuel Tank............................................................... 283
Grease.................................................................... 283
Hydraulic Brake System.................................. 284
Locks...................................................................... 284
Rear Axle............................................................... 285Transfer Case......................................................
284
Washer Reservoir............................................... 286
Capacities and Specifications - 3.3L, Hybrid Electric Vehicle (HEV)..............294
Air Conditioning System................................. 294
Alternative Engine Oil for Extremely Cold Climates............................................................ 297
Automatic Transmission................................. 295
Engine Coolant................................................... 296
Engine Oil............................................................. 296
Front Axle............................................................. 299
Fuel Tank.............................................................. 298
Grease.................................................................... 298
Hydraulic Brake System.................................. 298
Locks...................................................................... 298
Rear Axle.............................................................. 300
Transfer Case...................................................... 299
Washer Reservoir.............................................. 300
Capacities and Specifications - 3.3L................................................................286
Air Conditioning System.................................. 287
Alternative Engine Oil for Extremely Cold Climates........................................................... 289
Automatic Transmission................................. 287
Engine Coolant................................................... 288
Engine Oil............................................................. 289
Front Axle.............................................................. 292
Fuel Tank.............................................................. 290
Grease................................................................... 290
Hydraulic Brake System................................... 291
Locks....................................................................... 291
Rear Axle............................................................... 293
Transfer Case...................................................... 292
Washer Reservoir............................................... 293
Capacities and Specifications................275
Car Wash See: Cleaning the Exterior.............................. 239
Catalytic Converter
......................................138
On-Board Diagnostics (OBD-II)................... 139
Readiness for Inspection and Maintenance (I/M) Testing................................................... 139
Changing a Bulb
...........................................236
LED Lamps............................................................ 237
License Plate Lamp........................................... 237
Rear Direction Indicator and Reversing Lamp................................................................. 236
Changing a Fuse
...........................................216
Fuses....................................................................... 216
400
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Index
