oil viscosity FORD POLICE INTERCEPTOR SEDAN 2015 1.G Owners Manual

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Sedan
A/C compressor oil
(Without auxiliary
A/C)2.0L/3.5L GTDI and
3.5L/3.7L TiVCT
5.24 fl oz (155 ml)
Motorcraft PAG
Refrigerant Compressor
OilYN-12-D /
WSH-M1C231-B Utility
A/C compressor oil
(Without auxiliary
A/C)3.7L TiVCT:
5.24 fl oz (155 ml)
3.5L GTDI
5.58 fl oz (165 ml)
Utility
A/C compressor oil
(With auxiliary A/C)3.7L TiVCT:
7.9 fl oz (235 ml)
3.5L GTDI
7.27 fl oz (215 ml)
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.
300Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

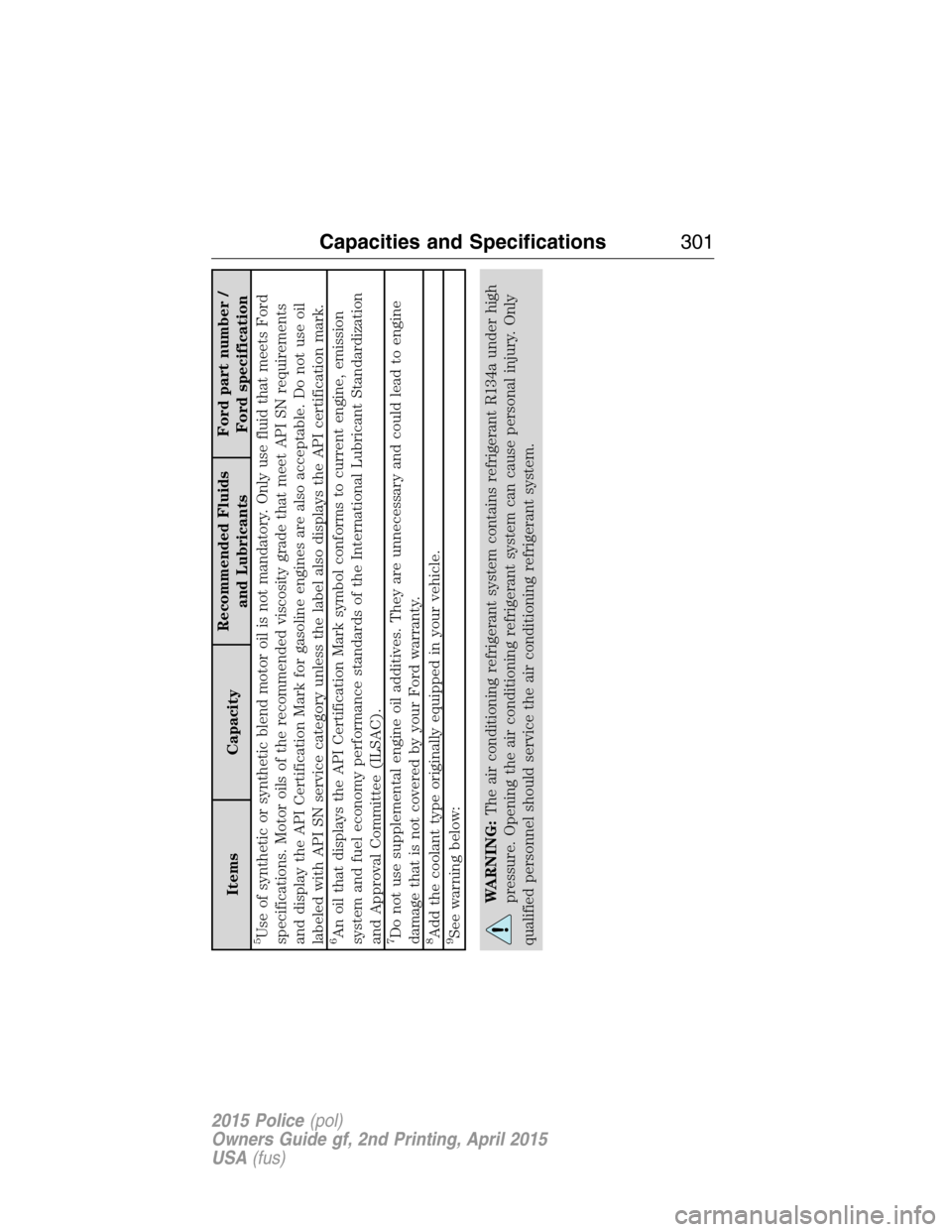

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
5Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford
specifications. Motor oils of the recommended viscosity grade that meet API SN requirements
and display the API Certification Mark for gasoline engines are also acceptable. Do not use oil
labeled with API SN service category unless the label also displays the API certification mark.6An oil that displays the API Certification Mark symbol conforms to current engine, emission
system and fuel economy performance standards of the International Lubricant Standardization
and Approval Committee (ILSAC).7Do not use supplemental engine oil additives. They are unnecessary and could lead to engine
damage that is not covered by your Ford warranty.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Only
qualified personnel should service the air conditioning refrigerant system.
Capacities and Specifications301
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)
