key FORD POLICE INTERCEPTOR UTILITY 2014 1.G Owners Manual

Introduction 8
Child Safety 17
Child seat positioning...................................19
Booster seats.........................................21
Installing child seats....................................24
Child safety locks......................................34
Safety Belts 35
Fastening the safety belts................................37
Safety belt height adjustment.............................40
Safetybeltwarninglightandindicatorchime..................41
Safety belt-minder.....................................41
Child restraint and safety belt maintenance...................44
Personal Safety System 45
Supplementary Restraints System 46
Driver and passenger airbags.............................48
Front passenger sensing system...........................50
Side airbags..........................................53
Safety canopy curtain airbags.............................54
Crash sensors and airbag indicator.........................56
Airbag disposal........................................64
Keys and Remote Control 65
General information on radio frequencies.....................65
Remote control.......................................65
Locks 69
Locking and unlocking..................................69
Trunk release.........................................72
Interior luggage compartment release.......................74
Table of Contents1
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

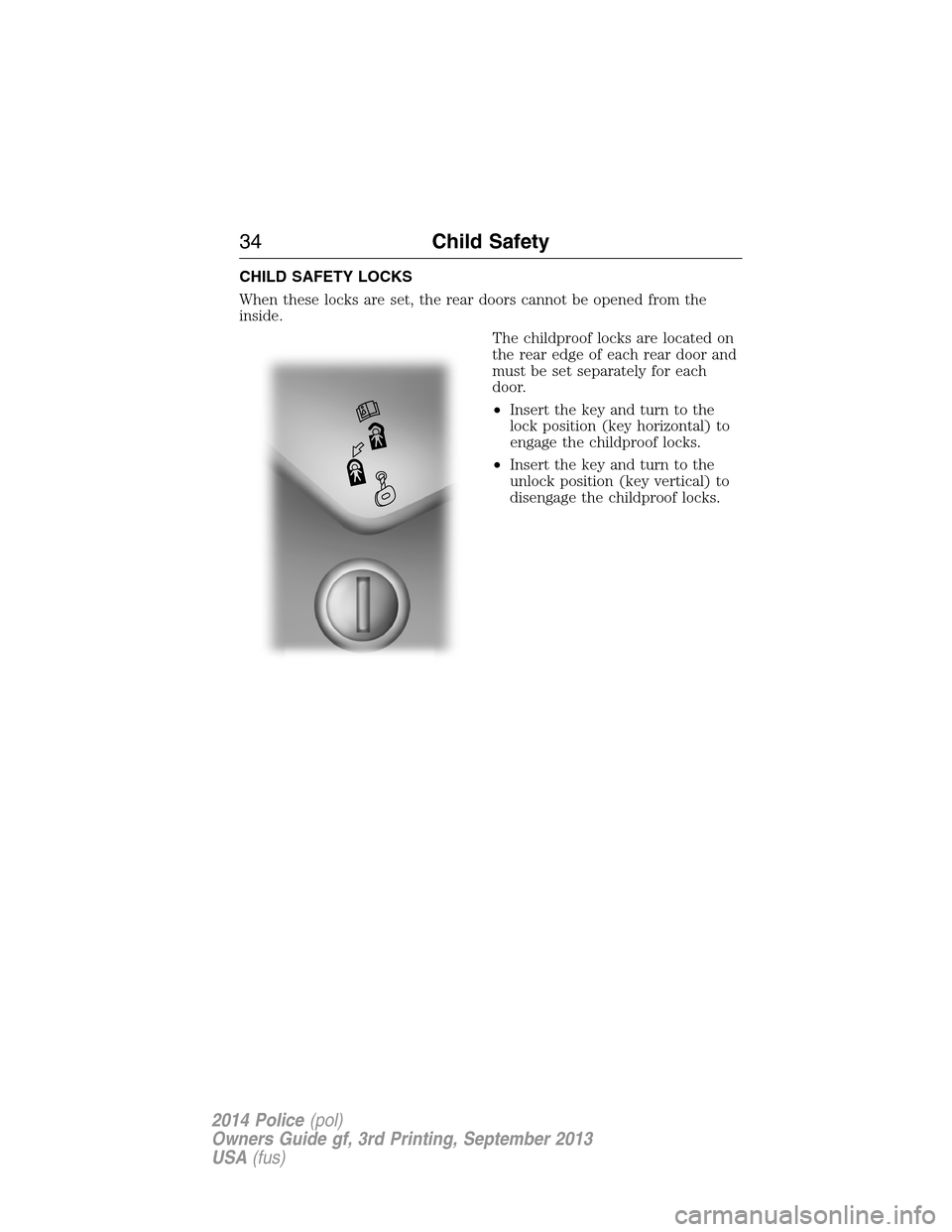

CHILD SAFETY LOCKS
When these locks are set, the rear doors cannot be opened from the
inside.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
34Child Safety
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
REMOTE CONTROL (IF EQUIPPED)
If there are problems with the
remote entry system, make sure to
take all remote entry transmitters
with you to the authorized dealer in
order to aid in troubleshooting the
problem.
Keys and Remote Control65
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

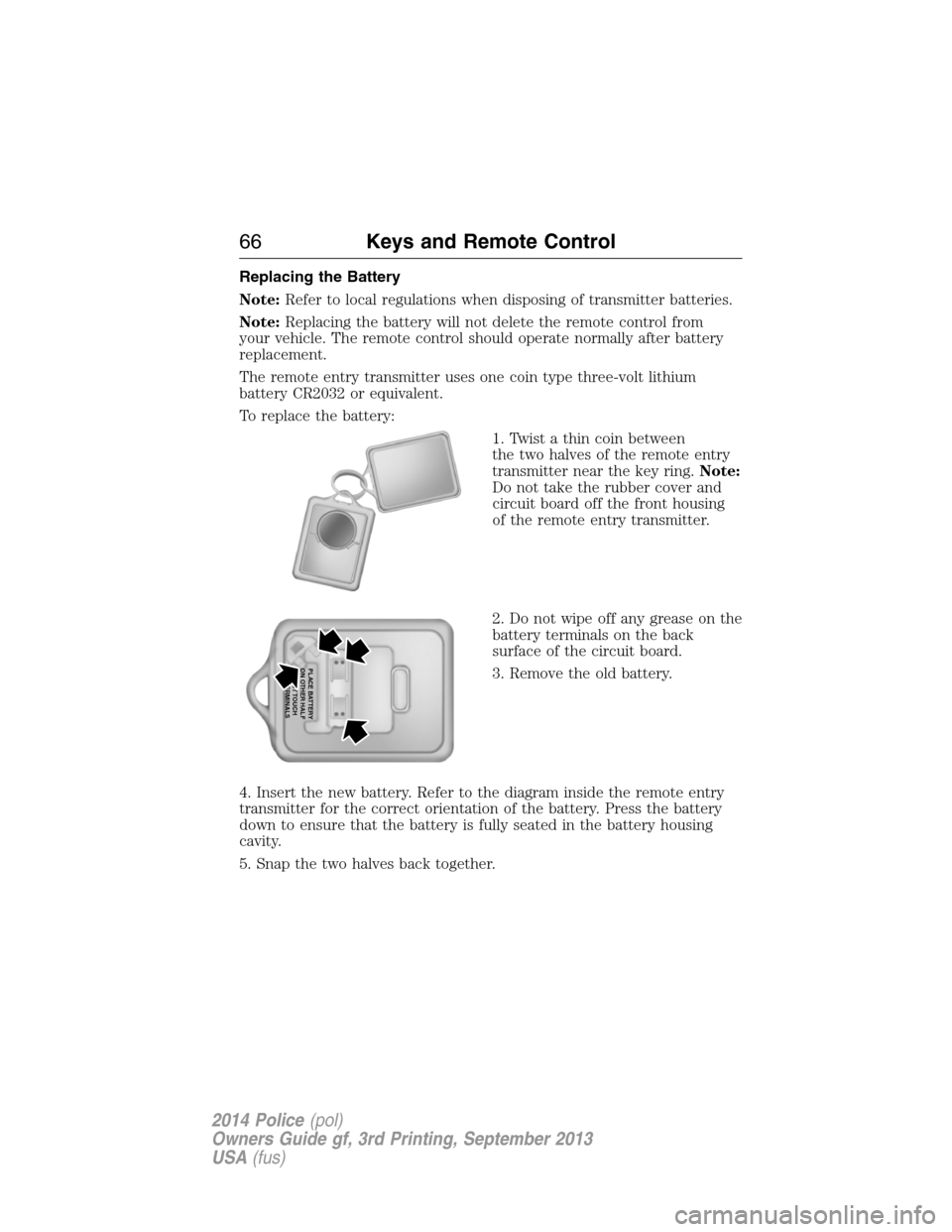

Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Replacing the battery will not delete the remote control from
your vehicle. The remote control should operate normally after battery
replacement.
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between
the two halves of the remote entry
transmitter near the key ring.Note:
Do not take the rubber cover and
circuit board off the front housing
of the remote entry transmitter.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
PLACE BATTERY
ON OTHER HALF
DO NOT TOUCH
THE TERMINALS
66Keys and Remote Control
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

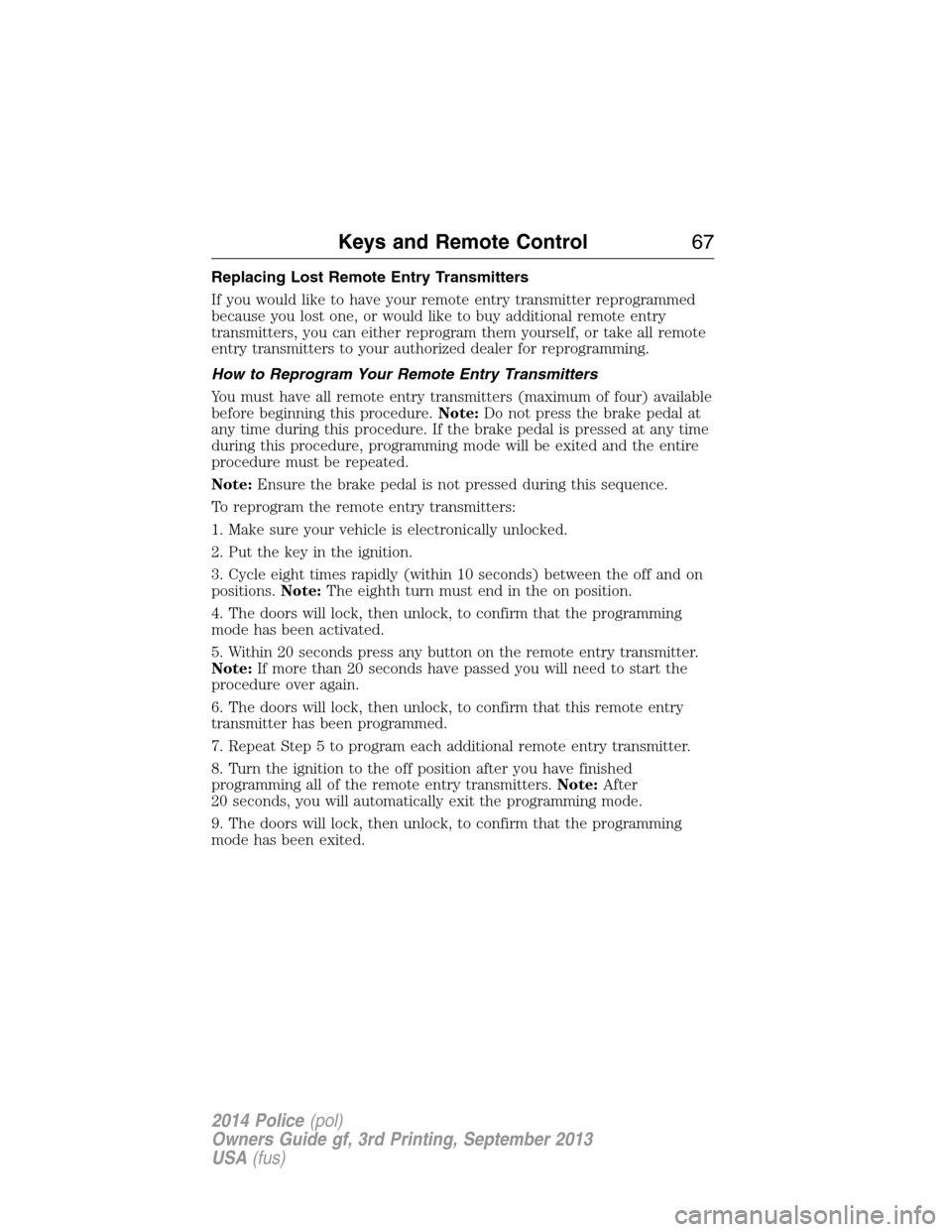

Replacing Lost Remote Entry Transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or take all remote
entry transmitters to your authorized dealer for reprogramming.
How to Reprogram Your Remote Entry Transmitters
You must have all remote entry transmitters (maximum of four) available
before beginning this procedure.Note:Do not press the brake pedal at
any time during this procedure. If the brake pedal is pressed at any time
during this procedure, programming mode will be exited and the entire
procedure must be repeated.
Note:Ensure the brake pedal is not pressed during this sequence.
To reprogram the remote entry transmitters:
1. Make sure your vehicle is electronically unlocked.
2. Put the key in the ignition.
3. Cycle eight times rapidly (within 10 seconds) between the off and on
positions.Note:The eighth turn must end in the on position.
4. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
5. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
6. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
7. Repeat Step 5 to program each additional remote entry transmitter.
8. Turn the ignition to the off position after you have finished
programming all of the remote entry transmitters.Note:After
20 seconds, you will automatically exit the programming mode.
9. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Keys and Remote Control67
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

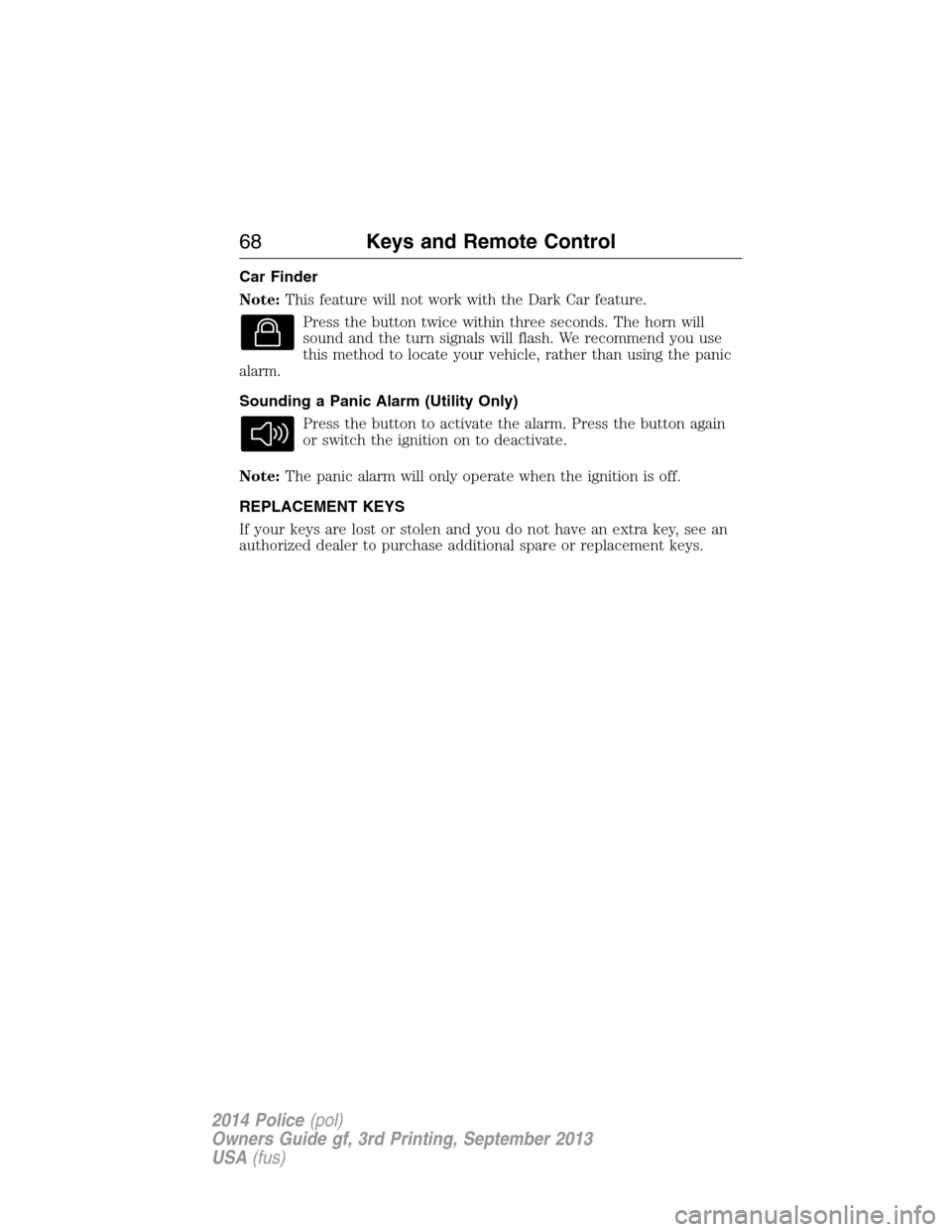

Car Finder
Note:This feature will not work with the Dark Car feature.
Press the button twice within three seconds. The horn will
sound and the turn signals will flash. We recommend you use
this method to locate your vehicle, rather than using the panic
alarm.
Sounding a Panic Alarm (Utility Only)
Press the button to activate the alarm. Press the button again
or switch the ignition on to deactivate.
Note:The panic alarm will only operate when the ignition is off.
REPLACEMENT KEYS
If your keys are lost or stolen and you do not have an extra key, see an
authorized dealer to purchase additional spare or replacement keys.
68Keys and Remote Control
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

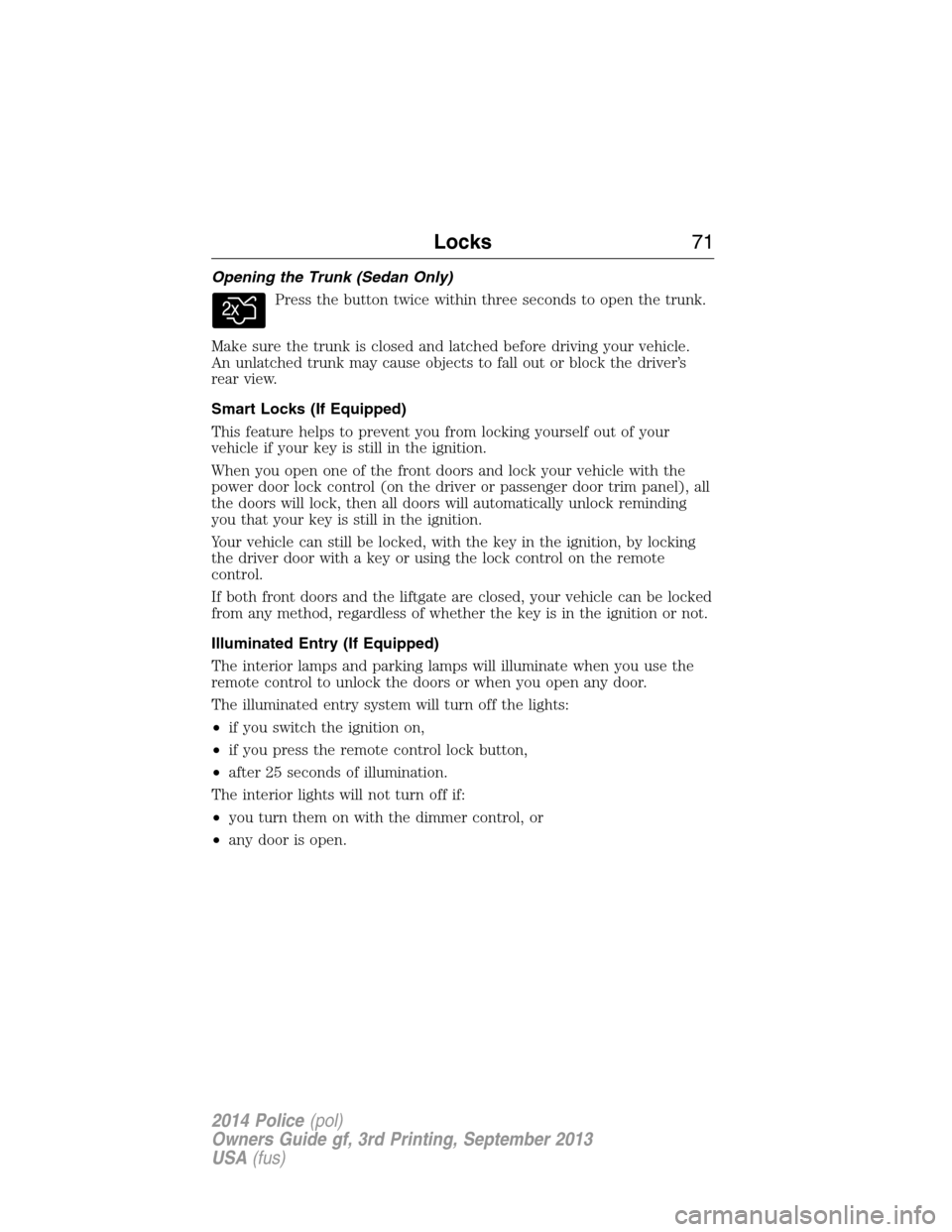

Opening the Trunk (Sedan Only)
Press the button twice within three seconds to open the trunk.
Make sure the trunk is closed and latched before driving your vehicle.
An unlatched trunk may cause objects to fall out or block the driver’s
rear view.
Smart Locks (If Equipped)
This feature helps to prevent you from locking yourself out of your
vehicle if your key is still in the ignition.
When you open one of the front doors and lock your vehicle with the
power door lock control (on the driver or passenger door trim panel), all
the doors will lock, then all doors will automatically unlock reminding
you that your key is still in the ignition.
Your vehicle can still be locked, with the key in the ignition, by locking
the driver door with a key or using the lock control on the remote
control.
If both front doors and the liftgate are closed, your vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Illuminated Entry (If Equipped)
The interior lamps and parking lamps will illuminate when you use the
remote control to unlock the doors or when you open any door.
The illuminated entry system will turn off the lights:
•if you switch the ignition on,
•if you press the remote control lock button,
•after 25 seconds of illumination.
The interior lights will not turn off if:
•you turn them on with the dimmer control, or
•any door is open.
Locks71
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

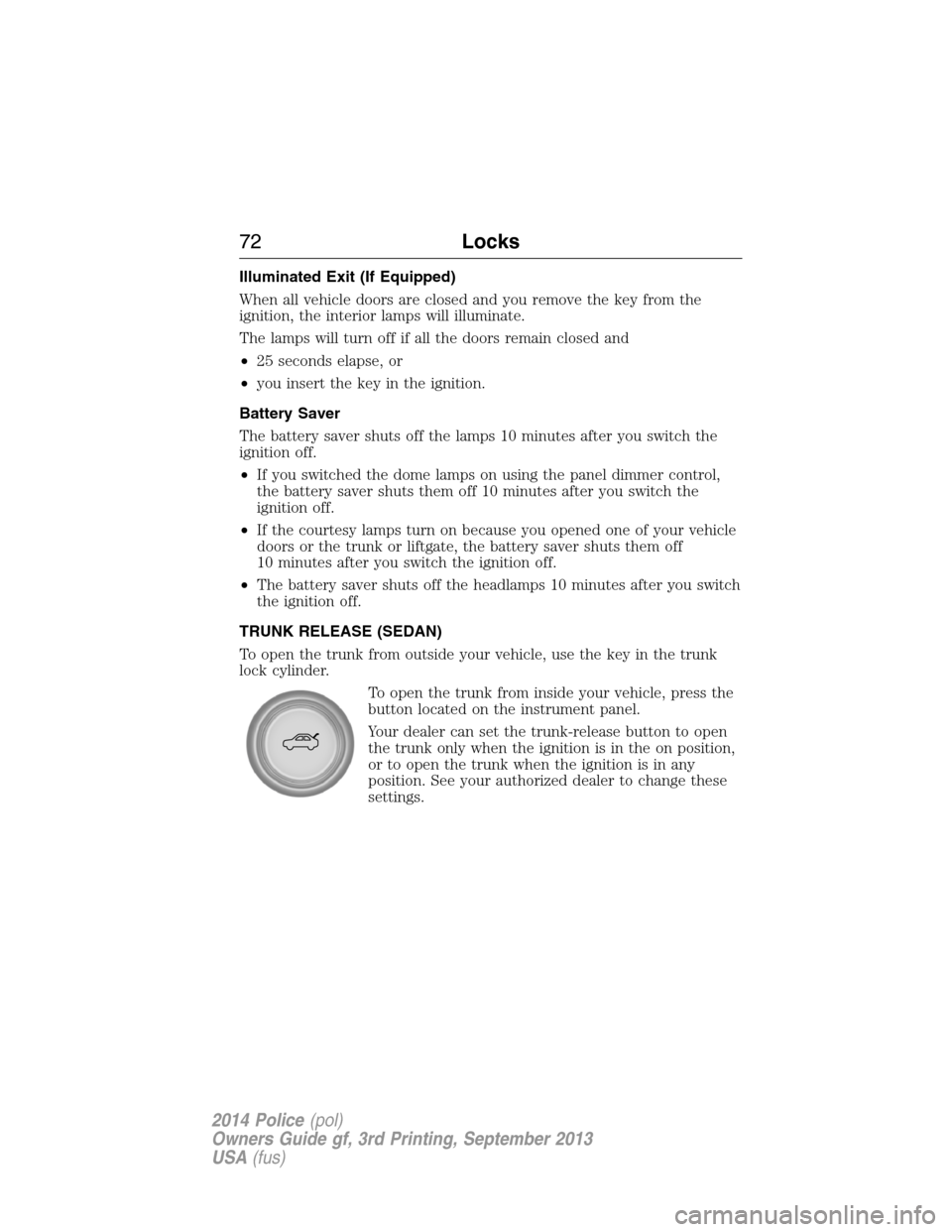

Illuminated Exit (If Equipped)
When all vehicle doors are closed and you remove the key from the
ignition, the interior lamps will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•you insert the key in the ignition.
Battery Saver
The battery saver shuts off the lamps 10 minutes after you switch the
ignition off.
•If you switched the dome lamps on using the panel dimmer control,
the battery saver shuts them off 10 minutes after you switch the
ignition off.
•If the courtesy lamps turn on because you opened one of your vehicle
doors or the trunk or liftgate, the battery saver shuts them off
10 minutes after you switch the ignition off.
•The battery saver shuts off the headlamps 10 minutes after you switch
the ignition off.
TRUNK RELEASE (SEDAN)
To open the trunk from outside your vehicle, use the key in the trunk
lock cylinder.
To open the trunk from inside your vehicle, press the
button located on the instrument panel.
Your dealer can set the trunk-release button to open
the trunk only when the ignition is in the on position,
or to open the trunk when the ignition is in any
position. See your authorized dealer to change these
settings.
72Locks
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

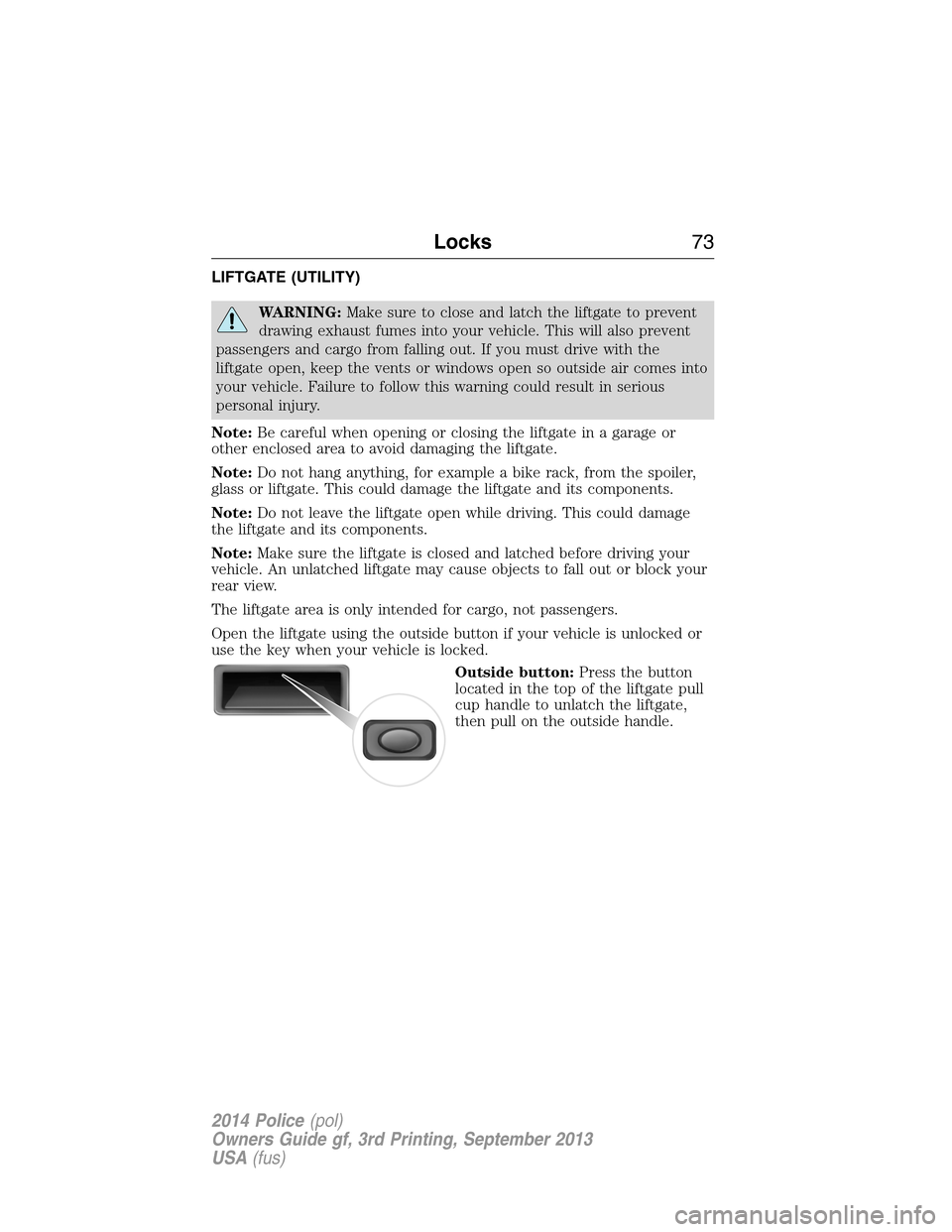

LIFTGATE (UTILITY)
WARNING:Make sure to close and latch the liftgate to prevent
drawing exhaust fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents or windows open so outside air comes into
your vehicle. Failure to follow this warning could result in serious
personal injury.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Note:Do not hang anything, for example a bike rack, from the spoiler,
glass or liftgate. This could damage the liftgate and its components.
Note:Do not leave the liftgate open while driving. This could damage
the liftgate and its components.
Note:Make sure the liftgate is closed and latched before driving your
vehicle. An unlatched liftgate may cause objects to fall out or block your
rear view.
The liftgate area is only intended for cargo, not passengers.
Open the liftgate using the outside button if your vehicle is unlocked or
use the key when your vehicle is locked.
Outside button:Press the button
located in the top of the liftgate pull
cup handle to unlatch the liftgate,
then pull on the outside handle.
Locks73
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

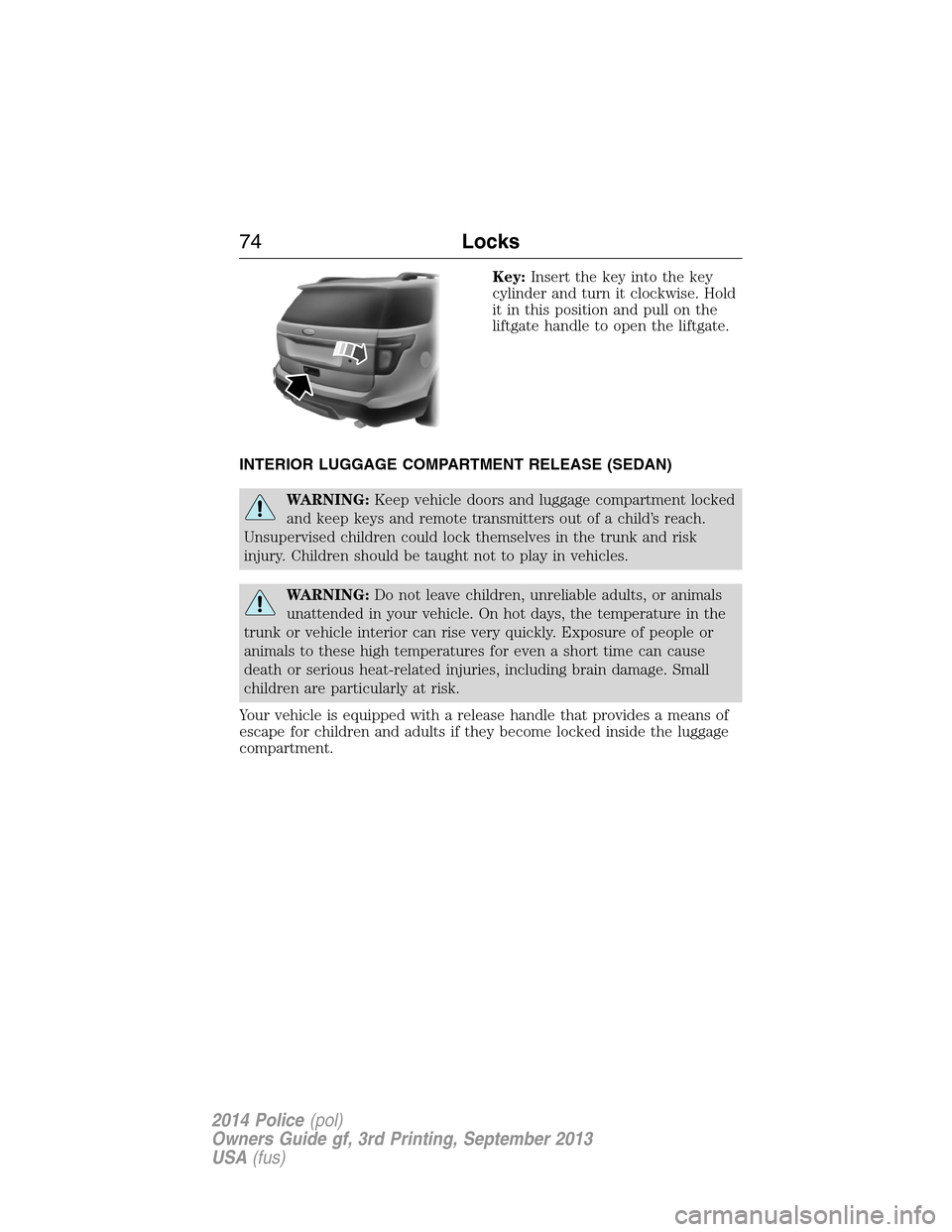

Key:Insert the key into the key
cylinder and turn it clockwise. Hold
it in this position and pull on the
liftgate handle to open the liftgate.
INTERIOR LUGGAGE COMPARTMENT RELEASE (SEDAN)
WARNING:Keep vehicle doors and luggage compartment locked
and keep keys and remote transmitters out of a child’s reach.
Unsupervised children could lock themselves in the trunk and risk
injury. Children should be taught not to play in vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in your vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Your vehicle is equipped with a release handle that provides a means of
escape for children and adults if they become locked inside the luggage
compartment.
74Locks
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)
