2. Add prediluted coolant approved to
the correct specification. See
Capacities and Specifications (page
239).
3. Add enough prediluted coolant to reach the correct level.
4. Replace the coolant reservoir cap, turn
it clockwise until you feel a strong
resistance.
5. Check the coolant level in the coolant reservoir the next few times you drive
your vehicle. If necessary, add enough
prediluted engine coolant to bring the
coolant level to the correct level.
If you have to add more than
1.1 qt (1 L) of
engine coolant per month, have your
vehicle checked as soon as possible.
Operating an engine with a low level of
coolant can result in engine overheating
and possible engine damage.
Note: During normal vehicle operation, the
coolant may change color from orange to
pink or light red. As long as the coolant is
clear and uncontaminated, this color change
does not indicate the coolant has degraded
nor does it require the coolant to be drained,
the system to be flushed, or the coolant to
be replaced.
Note: In case of emergency, you can add a
large amount of water without coolant in
order to reach a vehicle service location.
Water alone, without coolant, can cause
engine damage from corrosion, overheating
or freezing. When you reach a service
location, you must have the cooling system
drained and refilled with prediluted coolant
approved to the correct specification. See
Capacities and Specifications (page 239).
Do not use the following as a coolant
substitute:
• Alcohol.
• Methanol. •
Brine.
• Any coolant mixed with alcohol or
methanol antifreeze.
Alcohol and other liquids can cause engine
damage from overheating or freezing.
Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the coolant.
Recycled Coolant
We do not recommend the use of recycled
coolant as an approved recycling process
is not yet available.
Dispose of used engine coolant in an
appropriate manner. Follow your
community's regulations and standards
for recycling and disposing of automotive
fluids.
Severe Climates
If you drive in extremely cold climates:
• It may be necessary to increase the
coolant concentration above 50%.
• A coolant concentration of 60%
provides improved freeze point
protection. Coolant concentrations
above 60% decrease the overheat
protection characteristics of the
coolant and may cause engine
damage.
If you drive in extremely hot climates:
• You can decrease the coolant
concentration to 40%.
• Coolant concentrations below 40%
decrease the freeze and corrosion
protection characteristics of the
coolant and may cause engine
damage.
Vehicles driven year-round in non-extreme
climates should use prediluted coolant for
optimum cooling system and engine
protection.
188
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Maintenance

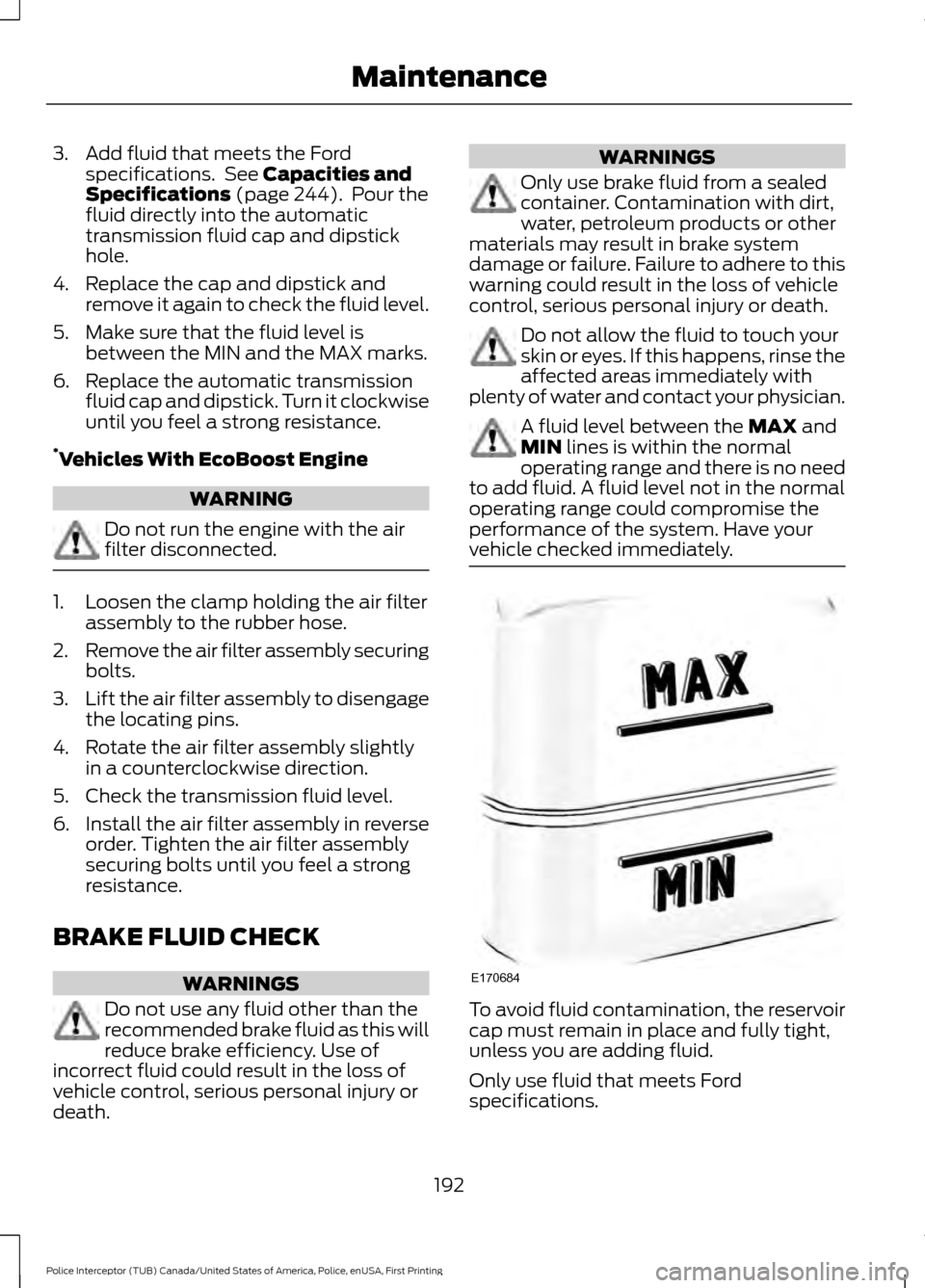

3. Add fluid that meets the Ford
specifications. See Capacities and
Specifications (page 244). Pour the
fluid directly into the automatic
transmission fluid cap and dipstick
hole.
4. Replace the cap and dipstick and remove it again to check the fluid level.
5. Make sure that the fluid level is between the MIN and the MAX marks.
6. Replace the automatic transmission fluid cap and dipstick. Turn it clockwise
until you feel a strong resistance.
* Vehicles With EcoBoost Engine WARNING
Do not run the engine with the air
filter disconnected.
1. Loosen the clamp holding the air filter
assembly to the rubber hose.
2. Remove the air filter assembly securing
bolts.
3. Lift the air filter assembly to disengage
the locating pins.
4. Rotate the air filter assembly slightly in a counterclockwise direction.
5. Check the transmission fluid level.
6. Install the air filter assembly in reverse
order. Tighten the air filter assembly
securing bolts until you feel a strong
resistance.
BRAKE FLUID CHECK WARNINGS
Do not use any fluid other than the
recommended brake fluid as this will
reduce brake efficiency. Use of
incorrect fluid could result in the loss of
vehicle control, serious personal injury or
death. WARNINGS
Only use brake fluid from a sealed
container. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage or failure. Failure to adhere to this
warning could result in the loss of vehicle
control, serious personal injury or death. Do not allow the fluid to touch your
skin or eyes. If this happens, rinse the
affected areas immediately with
plenty of water and contact your physician. A fluid level between the
MAX and
MIN lines is within the normal
operating range and there is no need
to add fluid. A fluid level not in the normal
operating range could compromise the
performance of the system. Have your
vehicle checked immediately. To avoid fluid contamination, the reservoir
cap must remain in place and fully tight,
unless you are adding fluid.
Only use fluid that meets Ford
specifications.
192
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing MaintenanceE170684

General
•
Store all vehicles in a dry, ventilated
place.
• Protect from sunlight, if possible.
• If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.
Body
• Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.
• Periodically wash your vehicle if it is
stored in exposed locations.
• Touch-up exposed or primed metal to
prevent rust.
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.
• Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast idle
with the climate controls set to defrost
until the engine reaches normal
operating temperature. •
With your foot on the brake, shift
through all the gears while the engine
is running.
• We recommend that you change the
engine oil before you use your vehicle
again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle.
Cooling system
• Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery,
we recommend that you disconnect
the battery cables to maintain battery
charge for quick starting.
Note: It is necessary to reset memory
features if battery cables are disconnected.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
210
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Vehicle Care

Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure. Windshield washer fluid level. Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.
304
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Scheduled Maintenance

Car Wash
See: Cleaning the Exterior.............................. 205
Center Console...............................................99
Center Console..................................................... 99
Console Mounting Plates.................................. 99
Universal Top Tray............................................... 99
Changing a Bulb............................................197 Front Direction Indicator.................................. 198
Front Fog Lamp.................................................. 199
Headlamp............................................................. 198
Headlamp High Beam...................................... 198
LED Lamps.......................................................... 200
License Plate Lamp.......................................... 200
Rear Direction Indicator and Reversing Lamp.................................................................. 199
Changing a Fuse............................................179 Fuses........................................................................\
179
Changing a Road Wheel............................233 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 233
Tire Change Procedure.................................... 234
Changing the 12V Battery..........................193
Changing the Engine Air Filter................203
Changing the Wiper Blades
......................195
Front Wiper Blades............................................ 195
Rear Window Wiper Blade.............................. 195
Checking the Wiper Blades......................195
Child Restraint and Seatbelt Maintenance.................................................34
Child Restraint Positioning.........................25
Child Safety.......................................................16 General Information............................................. 16
Child Safety Locks..........................................27 Left-Hand Side..................................................... 28
Right-Hand Side................................................... 28
Cleaning Leather Seats.............................208
Cleaning Products
.......................................204
Cleaning the Alloy Wheels.......................209
Cleaning the Engine
...................................206
Cleaning the Exterior..................................205
Exterior Chrome Parts..................................... 205
Exterior Plastic Parts........................................ 205
Stripes or Graphics........................................... 205
Underbody........................................................... 206
Under Hood......................................................... 206
Cleaning the Instrument Panel and Instrument Cluster Lens........................208
Cleaning the Interior...................................207 Cleaning the Windows and Wiper
Blades...........................................................207
Climate Control
..............................................90
Coolant Check See: Engine Coolant Check............................ 186
Crash Sensors and Airbag Indicator........43 Airbags and Police Equipment....................... 44
Cross Traffic Alert
..........................................137
False Alerts........................................................... 140
Switching the System Off and On...............140
System Errors....................................................... 140
System Lights, Messages and Audible Alerts.................................................................. 139
System Limitations............................................ 140
Using the System................................................ 137
Cruise Control
..................................................58
Principle of Operation....................................... 133
Cruise control See: Using Cruise Control................................ 133
Customer Assistance
..................................164
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
............................64
Decommissioning Requirements...........321
Police Engine Idle feature................................ 321
Decommissioning the Vehicle
.................321
Digital Radio..................................................256
HD Radio Reception and Station
Troubleshooting............................................. 257
Direction Indicators
.......................................65
Doors and Locks.............................................52
Driver and Passenger Airbags...................38 Children and Airbags.......................................... 38
Proper Driver and Front Passenger Seating Adjustment........................................................ 38
Driving Aids
.....................................................135
Driving Hints...................................................155
Driving Through Water................................156
DRL See: Daytime Running Lamps......................... 64
E
Economical Driving......................................155
350
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

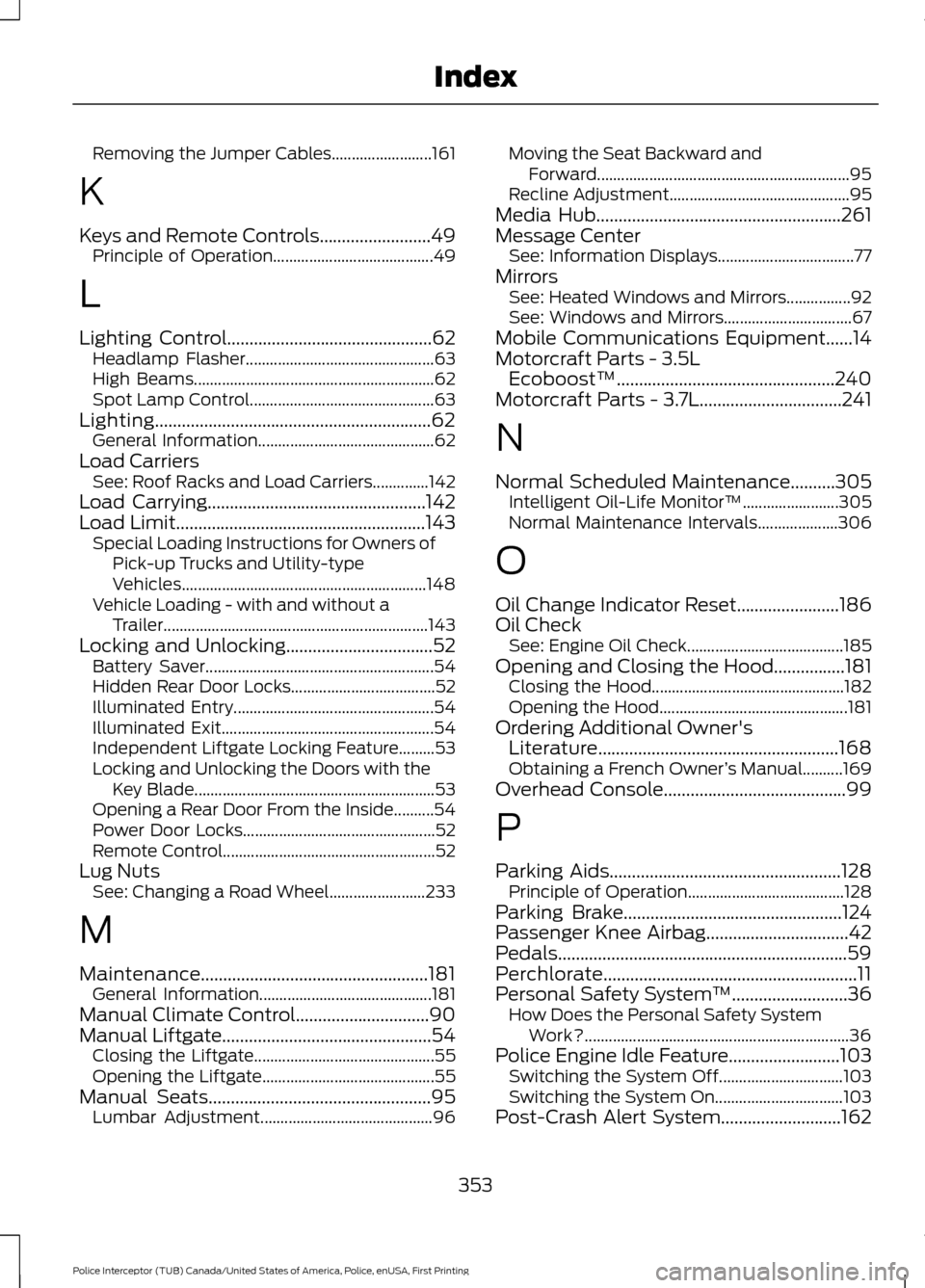

Removing the Jumper Cables.........................
161
K
Keys and Remote Controls.........................49 Principle of Operation........................................ 49
L
Lighting Control..............................................62
Headlamp Flasher............................................... 63
High Beams............................................................ 62
Spot Lamp Control.............................................. 63
Lighting..............................................................62 General Information............................................ 62
Load Carriers See: Roof Racks and Load Carriers..............142
Load Carrying.................................................142
Load Limit
........................................................143
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 148
Vehicle Loading - with and without a Trailer.................................................................. 143
Locking and Unlocking.................................52 Battery Saver......................................................... 54
Hidden Rear Door Locks.................................... 52
Illuminated Entry.................................................. 54
Illuminated Exit..................................................... 54
Independent Liftgate Locking Feature.........53
Locking and Unlocking the Doors with the Key Blade............................................................ 53
Opening a Rear Door From the Inside..........54
Power Door Locks................................................ 52
Remote Control..................................................... 52
Lug Nuts See: Changing a Road Wheel........................ 233
M
Maintenance...................................................181 General Information........................................... 181
Manual Climate Control..............................90
Manual Liftgate
...............................................54
Closing the Liftgate............................................. 55
Opening the Liftgate........................................... 55
Manual Seats
..................................................95
Lumbar Adjustment........................................... 96Moving the Seat Backward and
Forward............................................................... 95
Recline Adjustment............................................. 95
Media Hub
.......................................................261
Message Center See: Information Displays.................................. 77
Mirrors See: Heated Windows and Mirrors................92
See: Windows and Mirrors................................ 67
Mobile Communications Equipment......14
Motorcraft Parts - 3.5L Ecoboost™.................................................240
Motorcraft Parts - 3.7L................................241
N
Normal Scheduled Maintenance
..........305
Intelligent Oil-Life Monitor™........................ 305
Normal Maintenance Intervals.................... 306
O
Oil Change Indicator Reset.......................186
Oil Check See: Engine Oil Check....................................... 185
Opening and Closing the Hood................181 Closing the Hood................................................ 182
Opening the Hood............................................... 181
Ordering Additional Owner's Literature
......................................................168
Obtaining a French Owner ’s Manual..........169
Overhead Console
.........................................99
P
Parking Aids
....................................................128
Principle of Operation....................................... 128
Parking Brake
.................................................124
Passenger Knee Airbag................................42
Pedals.................................................................59
Perchlorate.........................................................11
Personal Safety System ™
..........................36
How Does the Personal Safety System
Work?.................................................................. 36
Police Engine Idle Feature.........................103 Switching the System Off............................... 103
Switching the System On................................ 103
Post-Crash Alert System...........................162
353
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index
