Extensive idling or low-speed driving for long distances, as in heavy commercial use
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Change PTU and rear axle fluid (AWD only). See axle and
PTU maintenance items under Exceptions.
Replace spark plugs.
Every 60000 miles (96000
km) Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.*
Every 5000 miles (8000
km) or six months
Perform multi-point inspection.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Change PTU and rear axle fluid (AWD only). See axle and
PTU maintenance items under
Exceptions.
* Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See
Engine
Oil Check (page 185). Exclusive use of E85 (flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change
Engine Idle Hour Meter
Your vehicle may been fitted with an idle
meter to indicate how much time the
vehicle has been sitting in park (P) or
neutral (N). The meter is incorporated with
the vehicle odometer. Depressing the
odometer-reset button once displays the trip odometer (miles [kilometers]
following by a "T" for trip odometer);
depressing the odometer-reset button a
second time displays the idle meter (hours
following by an "H" for hours). The idle
meter only accumulates time when the
vehicle is in park (P) or neutral (N).
309
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Scheduled Maintenance

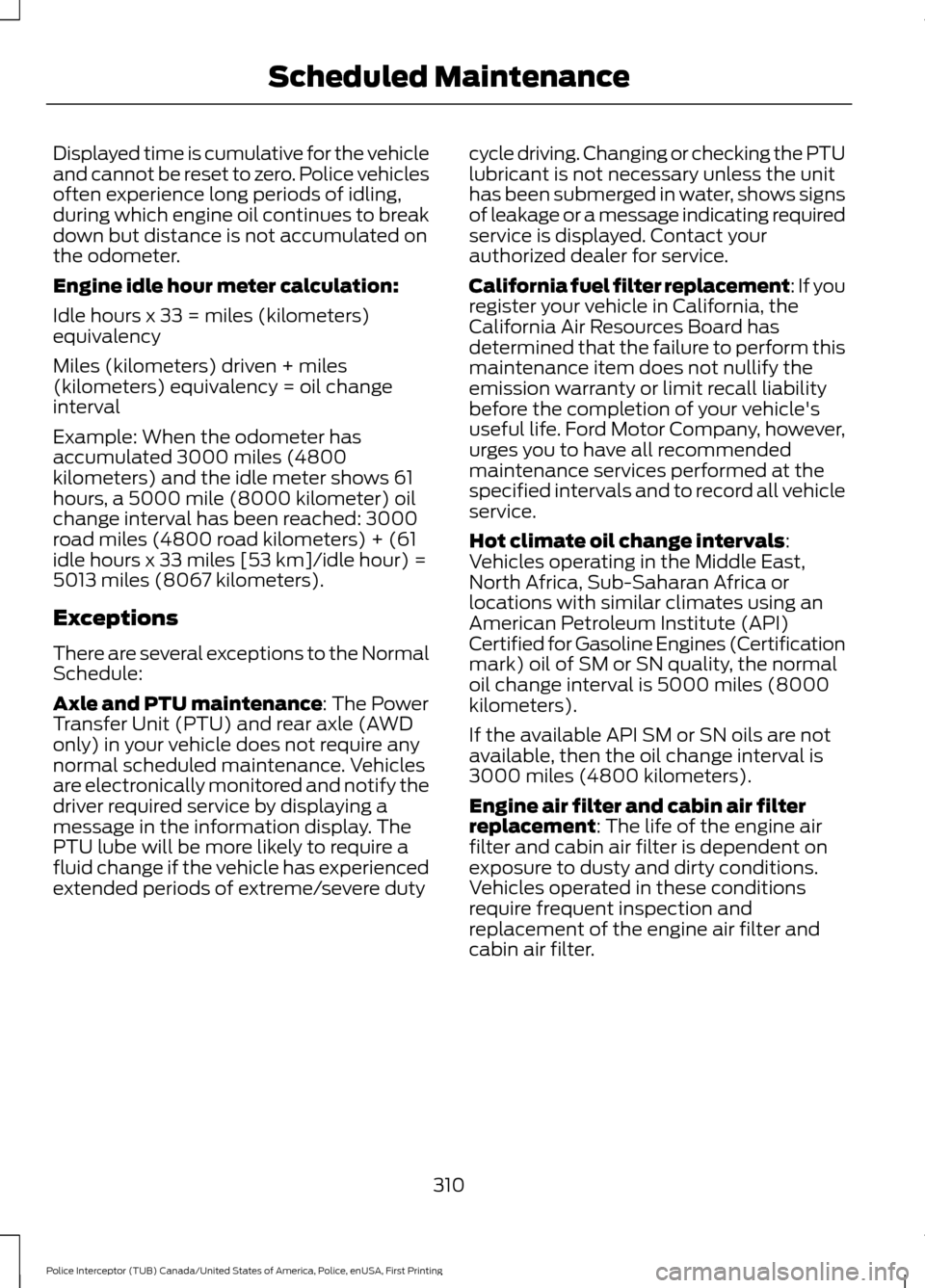

Displayed time is cumulative for the vehicle
and cannot be reset to zero. Police vehicles
often experience long periods of idling,
during which engine oil continues to break
down but distance is not accumulated on
the odometer.
Engine idle hour meter calculation:
Idle hours x 33 = miles (kilometers)
equivalency
Miles (kilometers) driven + miles
(kilometers) equivalency = oil change
interval
Example: When the odometer has
accumulated 3000 miles (4800
kilometers) and the idle meter shows 61
hours, a 5000 mile (8000 kilometer) oil
change interval has been reached: 3000
road miles (4800 road kilometers) + (61
idle hours x 33 miles [53 km]/idle hour) =
5013 miles (8067 kilometers).
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and PTU maintenance: The Power
Transfer Unit (PTU) and rear axle (AWD
only) in your vehicle does not require any
normal scheduled maintenance. Vehicles
are electronically monitored and notify the
driver required service by displaying a
message in the information display. The
PTU lube will be more likely to require a
fluid change if the vehicle has experienced
extended periods of extreme/severe duty cycle driving. Changing or checking the PTU
lubricant is not necessary unless the unit
has been submerged in water, shows signs
of leakage or a message indicating required
service is displayed. Contact your
authorized dealer for service.
California fuel filter replacement: If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot climate oil change intervals
:
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5000 miles (8000
kilometers).
If the available API SM or SN oils are not
available, then the oil change interval is
3000 miles (4800 kilometers).
Engine air filter and cabin air filter
replacement
: The life of the engine air
filter and cabin air filter is dependent on
exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter and
cabin air filter.
310
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Scheduled Maintenance

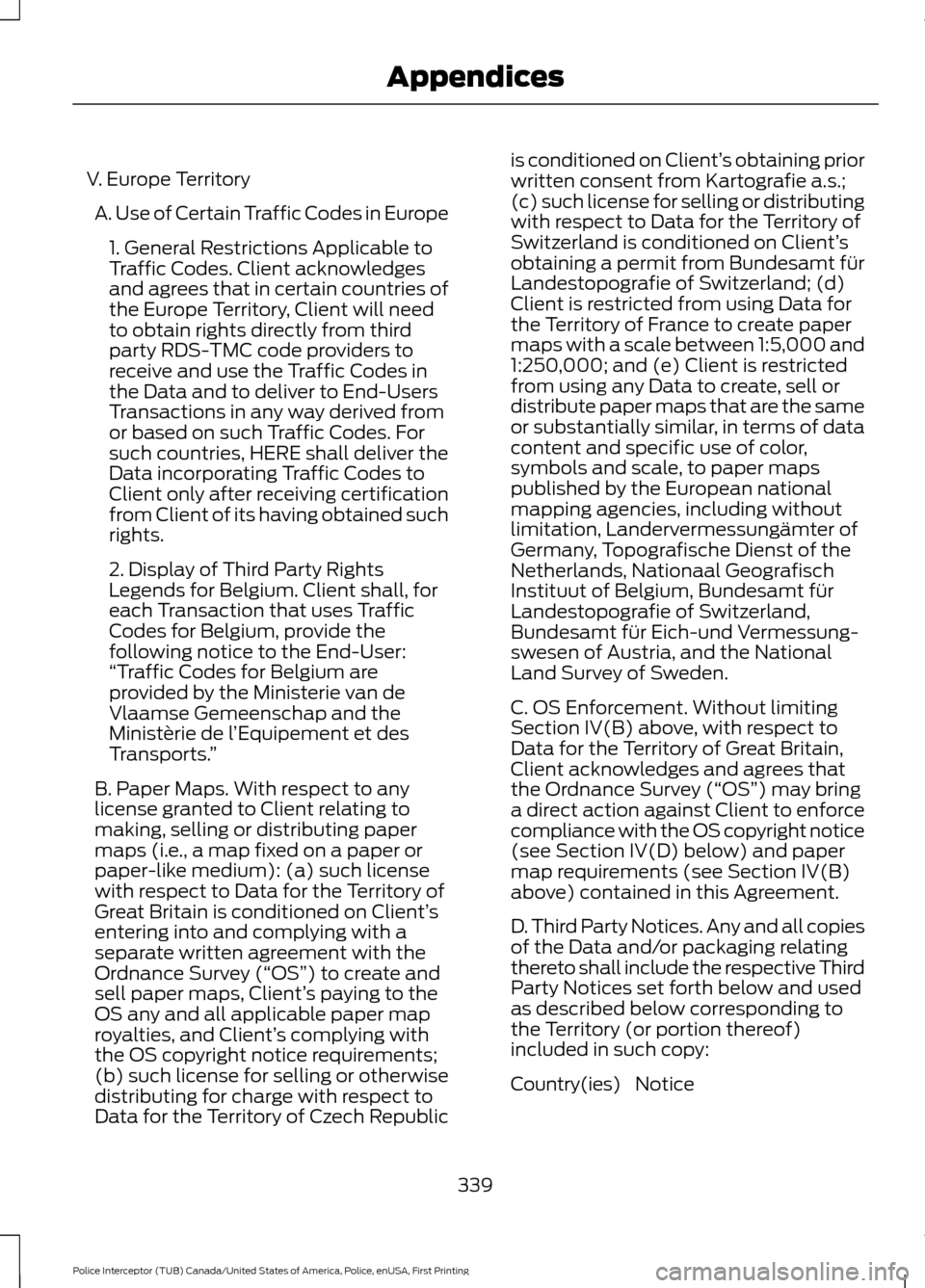

V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic is conditioned on Client’
s obtaining prior
written consent from Kartografie a.s.;
(c) such license for selling or distributing
with respect to Data for the Territory of
Switzerland is conditioned on Client’ s
obtaining a permit from Bundesamt für
Landestopografie of Switzerland; (d)
Client is restricted from using Data for
the Territory of France to create paper
maps with a scale between 1:5,000 and
1:250,000; and (e) Client is restricted
from using any Data to create, sell or
distribute paper maps that are the same
or substantially similar, in terms of data
content and specific use of color,
symbols and scale, to paper maps
published by the European national
mapping agencies, including without
limitation, Landervermessungämter of
Germany, Topografische Dienst of the
Netherlands, Nationaal Geografisch
Instituut of Belgium, Bundesamt für
Landestopografie of Switzerland,
Bundesamt für Eich-und Vermessung-
swesen of Austria, and the National
Land Survey of Sweden.
C. OS Enforcement. Without limiting
Section IV(B) above, with respect to
Data for the Territory of Great Britain,
Client acknowledges and agrees that
the Ordnance Survey (“OS ”) may bring
a direct action against Client to enforce
compliance with the OS copyright notice
(see Section IV(D) below) and paper
map requirements (see Section IV(B)
above) contained in this Agreement.
D. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country(ies)
339
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Appendices

Emission Control System............................111
On-Board Diagnostics (OBD-II)..................... 112
Readiness for Inspection and Maintenance (I/M) Testing..................................................... 112
End User License Agreement..................322 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 322
Engine Block Heater....................................102
Using the Engine Block Heater...................... 102
Engine Coolant Check................................186 Adding Coolant.................................................... 187
Coolant Change.................................................. 189
Engine Coolant Temperature Management.................................................. 190
Fail-Safe Cooling................................................ 189
Recycled Coolant............................................... 188
Severe Climates.................................................. 188
Engine Oil Check...........................................185 Adding Engine Oil............................................... 185
Engine Oil Dipstick
.......................................185
Engine Specifications - 3.5L Ecoboost™.................................................239
Drivebelt Routing............................................... 239
Engine Specifications - 3.7L....................239 Drivebelt Routing............................................... 240
Environment
......................................................15
Essential Towing Checks............................151 Before Towing a Trailer..................................... 152
Hitches..................................................................... 151
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 153
Safety Chains........................................................ 151
Trailer Brakes........................................................ 152
Trailer Lamps........................................................ 152
When Towing a Trailer...................................... 152
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options.................................14
Exterior Mirrors................................................68 Blind Spot Information System...................... 69
Fold-Away Exterior Mirrors............................... 68
Heated Exterior Mirrors ..................................... 68
Integrated Blind Spot Mirror............................ 68
Power Exterior Mirrors........................................ 68F
Fastening the Seatbelts..............................30
Seatbelt Locking Modes..................................... 31
Using Seatbelts During Pregnancy...............30
Floor Mats
.......................................................156
Foot Pedals See: Adjusting the Pedals................................. 59
Ford Credit
..........................................................11
US Only...................................................................... 11
Ford Protect
..................................................300
Ford Protect (CANADA ONLY)...................... 301
Ford Protect (U.S. Only)................................. 300
Front Passenger Sensing System............39
Fuel and Refueling
.......................................104
Fuel Consumption........................................110
Calculating Fuel Economy............................... 110
Filling the Fuel Tank............................................ 110
Fuel Filler Funnel Location
.......................106
Fuel Quality - E85........................................105 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 105
Switching Between E85 and Gasoline............................................................ 106
Fuel Quality - Gasoline...............................105 Choosing the Right Fuel.................................. 105
Fuel Shutoff....................................................159
Fuses
...................................................................171
Fuse Specification Chart.............................171
Passenger Compartment Fuse Panel.........176
Power Distribution Box...................................... 171
G
Gauges.................................................................71 Engine Coolant Temperature Gauge.............72
Fuel Gauge.............................................................. 72
Information Display.............................................. 71
Speedometer......................................................... 72
General Information on Radio Frequencies...................................................49
General Maintenance Information.......302 Multi-Point Inspection..................................... 304
Owner Checks and Services.......................... 303
Protecting Your Investment........................... 302
Why Maintain Your Vehicle?......................... 302
Why Maintain Your Vehicle at Your Dealership?..................................................... 302
351
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Getting Assistance Outside the U.S. and
Canada..........................................................167
Getting the Services You Need...............164 Away From Home.............................................. 164
H
Handbrake See: Parking Brake.............................................. 124
Hazard Warning Flashers..........................159
Headlamp Adjusting See: Adjusting the Headlamps..................... 196
Headlamp Removal See: Removing a Headlamp........................... 197
Head Restraints
..............................................93
Adjusting the Head Restraint.......................... 94
Tilting Head Restraints ..................................... 94
Heated Windows and Mirrors....................92 Heated Exterior Mirror........................................ 92
Heated Rear Window.......................................... 92
Heating See: Climate Control.......................................... 90
Hints on Controlling the Interior Climate.............................................................91
Cooling the Interior Quickly............................... 91
General Hints.......................................................... 91
Heating the Interior Quickly............................... 91
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions................................. 92
Recommended Settings for Cooling ............91
Recommended Settings for Heating.............91
Side Window Defogging in Cold Weather.............................................................. 92
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................... 91
Hints on Driving With Anti-Lock Brakes.............................................................123
Hood Lock See: Opening and Closing the Hood............181
I
Ignition Switch
..............................................100
In California (U.S. Only).............................165
Information Display Control......................58 Information Displays
......................................77
General Information............................................. 77
Information Messages.................................80 AdvanceTrac ™....................................................... 81
Alarm........................................................................\
. 81
AWD........................................................................\
... 81
Battery and Charging System......................... 82
Blind Spot Information and Cross Traffic Alert System...................................................... 82
Brake System......................................................... 83
Doors and Locks................................................... 83
Engine....................................................................... 84
Fuel........................................................................\
.... 84
Keys and Intelligent Access............................. 84
Lane Keeping System......................................... 85
Maintenance.......................................................... 86
Park Aid................................................................... 86
Park Brake............................................................... 87
Police Engine Idle feature.................................. 87
Power Steering...................................................... 87
Seats........................................................................\
. 87
Starting System.................................................... 88
Tire Pressure Monitoring System................... 88
Traction Control................................................... 88
Transmission......................................................... 89
Installing Child Restraints.............................17 Child Seats............................................................... 17
Using Lap and Shoulder Belts.......................... 18
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 20
Using Tether Straps............................................. 22
Instrument Cluster..........................................71
Instrument Lighting Dimmer.....................64
Interior Lamps.................................................65 Dome Lamp........................................................... 65
Dome Task Lamp................................................. 66
Front Map Lamps................................................. 65
Rear Interior Lamp............................................... 66
Interior Mirror
...................................................69
Auto-Dimming Mirror......................................... 69
Introduction.........................................................7
J
Jump Starting the Vehicle
.........................160
Connecting the Jumper Cables.................... 160
Jump Starting........................................................ 161
Preparing Your Vehicle..................................... 160
352
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Removing the Jumper Cables.........................
161
K
Keys and Remote Controls.........................49 Principle of Operation........................................ 49
L
Lighting Control..............................................62
Headlamp Flasher............................................... 63
High Beams............................................................ 62
Spot Lamp Control.............................................. 63
Lighting..............................................................62 General Information............................................ 62
Load Carriers See: Roof Racks and Load Carriers..............142
Load Carrying.................................................142
Load Limit
........................................................143
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 148
Vehicle Loading - with and without a Trailer.................................................................. 143
Locking and Unlocking.................................52 Battery Saver......................................................... 54
Hidden Rear Door Locks.................................... 52
Illuminated Entry.................................................. 54
Illuminated Exit..................................................... 54
Independent Liftgate Locking Feature.........53
Locking and Unlocking the Doors with the Key Blade............................................................ 53
Opening a Rear Door From the Inside..........54
Power Door Locks................................................ 52
Remote Control..................................................... 52
Lug Nuts See: Changing a Road Wheel........................ 233
M
Maintenance...................................................181 General Information........................................... 181
Manual Climate Control..............................90
Manual Liftgate
...............................................54
Closing the Liftgate............................................. 55
Opening the Liftgate........................................... 55
Manual Seats
..................................................95
Lumbar Adjustment........................................... 96Moving the Seat Backward and
Forward............................................................... 95
Recline Adjustment............................................. 95
Media Hub
.......................................................261
Message Center See: Information Displays.................................. 77
Mirrors See: Heated Windows and Mirrors................92
See: Windows and Mirrors................................ 67
Mobile Communications Equipment......14
Motorcraft Parts - 3.5L Ecoboost™.................................................240
Motorcraft Parts - 3.7L................................241
N
Normal Scheduled Maintenance
..........305
Intelligent Oil-Life Monitor™........................ 305
Normal Maintenance Intervals.................... 306
O
Oil Change Indicator Reset.......................186
Oil Check See: Engine Oil Check....................................... 185
Opening and Closing the Hood................181 Closing the Hood................................................ 182
Opening the Hood............................................... 181
Ordering Additional Owner's Literature
......................................................168
Obtaining a French Owner ’s Manual..........169
Overhead Console
.........................................99
P
Parking Aids
....................................................128
Principle of Operation....................................... 128
Parking Brake
.................................................124
Passenger Knee Airbag................................42
Pedals.................................................................59
Perchlorate.........................................................11
Personal Safety System ™
..........................36
How Does the Personal Safety System
Work?.................................................................. 36
Police Engine Idle Feature.........................103 Switching the System Off............................... 103
Switching the System On................................ 103
Post-Crash Alert System...........................162
353
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Transmission
See: Transmission............................................... 114
Transporting the Vehicle............................162
Type Approvals............................................346
RF Certification Logos for Tire Pressure
Monitoring Sensor(s).................................. 346
U
Under Hood Overview - 3.5L Ecoboost™..................................................183
Under Hood Overview - 3.7L....................184
USB Port..........................................................261
Using All-Wheel Drive..................................116 Driving In Special Conditions With
All-Wheel Drive (AWD)................................ 118
How Utility Vehicles Differ from Other Vehicles.............................................................. 118
Operating AWD Vehicles With Mismatched Tires..................................................................... 118
Operating AWD Vehicles With Spare Tires...................................................................... 117
Using Cruise Control....................................133 Switching Cruise Control Off.......................... 134
Switching Cruise Control On.......................... 133
Using Snow Chains.....................................228
Using Stability Control................................127
Using SYNC™ With Your Media Player............................................................283
Accessing Your USB Song Library...............287
Bluetooth Devices and System Settings............................................................ 289
Connecting Your Digital Media Player to the USB Port.......................................................... 283
Media Menu Features...................................... 286
Media Voice Commands................................ 284
USB 2..................................................................... 289
Voice Commands for Audio Sources.........290
Using SYNC™ With Your Phone............266 Accessing Features through the Phone
Menu................................................................... 271
Accessing Your Phone Settings.................... 274
Bluetooth Devices.............................................. 275
Making Calls........................................................ 269
Pairing a Phone for the First Time..............266
Pairing Subsequent Phones.......................... 267
Phone Options during an Active Call.........270
Phone Voice Commands................................ 268Receiving Calls....................................................
270
System Settings................................................. 276
Text Messaging.................................................... 272
Using Traction Control................................125
Switching the System Off................................ 125
System Indicator Lights and Messages.......................................................... 125
Using a Switch..................................................... 125
Using the Information Display Controls............................................................. 125
Using Voice Recognition...........................264 Initiating a Voice Session................................ 264
System Interaction and Feedback..............265
Utilizing the Mediation/Arbitration Program (Canada Only)..........................167
V
Vehicle Care
..................................................204
General Information......................................... 204
Vehicle Certification Label.......................243
Vehicle Identification Number................242
Vehicle Storage............................................209 Battery.................................................................... 210
Body........................................................................\
. 210
Brakes..................................................................... 210
Cooling system.................................................... 210
Engine..................................................................... 210
Fuel system........................................................... 210
General................................................................... 210
Miscellaneous....................................................... 211
Removing Vehicle From Storage.................... 211
Tires........................................................................\
. 210
Ventilation See: Climate Control.......................................... 90
VIN See: Vehicle Identification Number............242
W
Warning Lamps and Indicators.................72 Anti-Lock Braking System................................. 73
Battery...................................................................... 73
Blind Spot Monitor............................................... 73
Brake System......................................................... 73
Cruise Control........................................................ 73
Direction Indicator................................................ 73
Door Ajar.................................................................. 73
356
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index
