Page 174 of 360

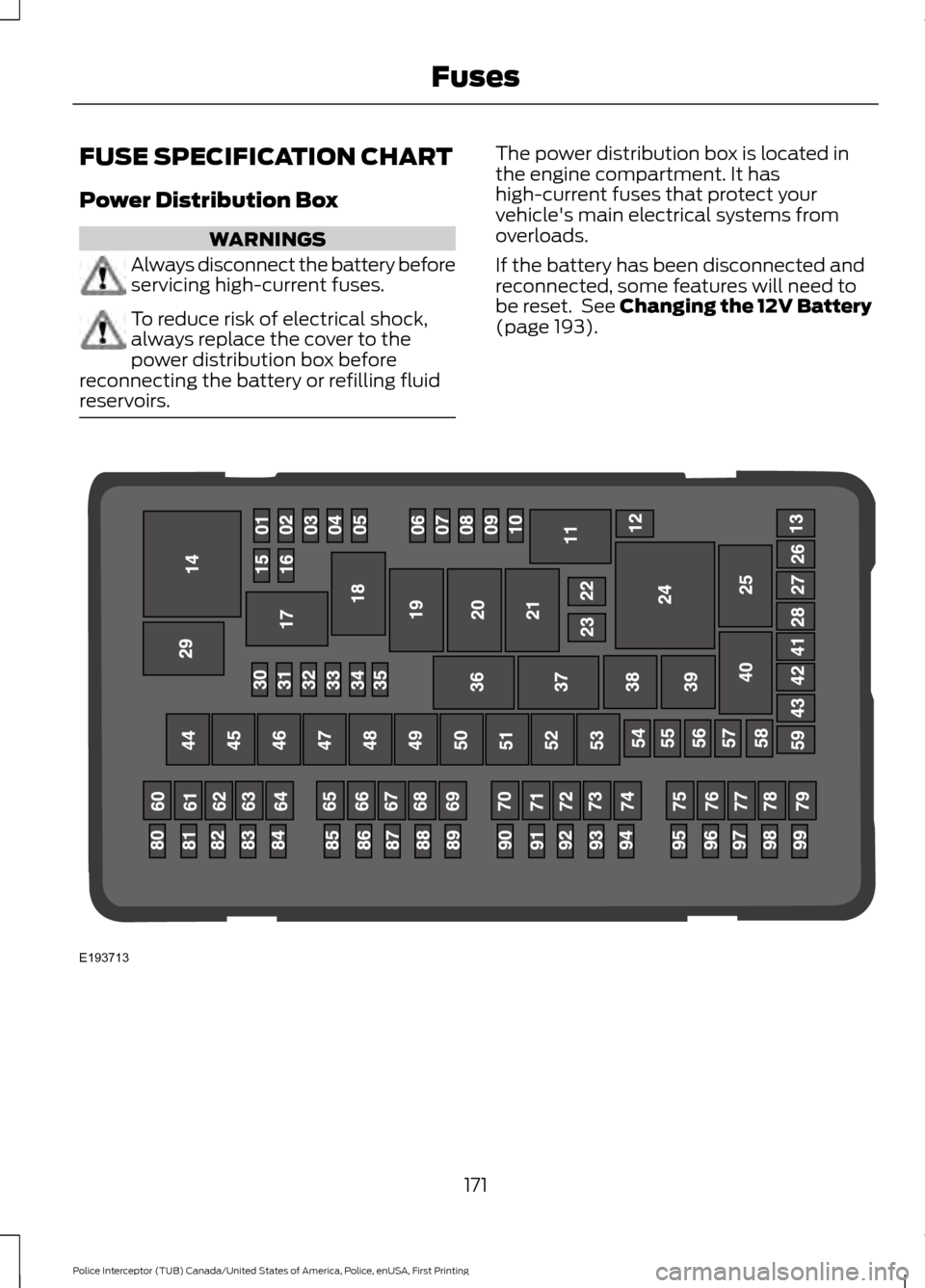

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 193).
171
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing FusesE193713
Page 186 of 360

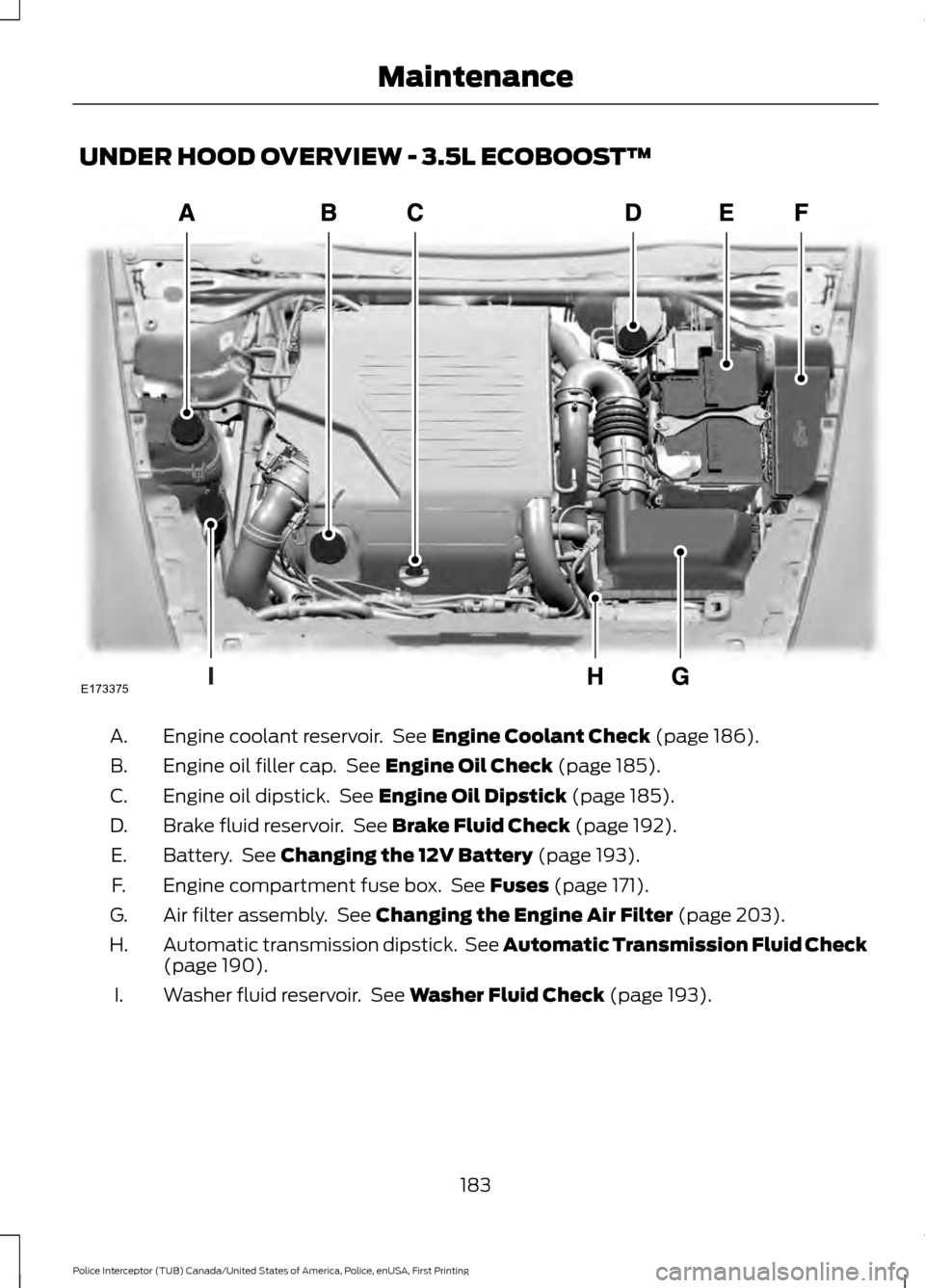

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 186).
A.
Engine oil filler cap. See
Engine Oil Check (page 185).
B.
Engine oil dipstick. See
Engine Oil Dipstick (page 185).
C.
Brake fluid reservoir. See
Brake Fluid Check (page 192).
D.
Battery. See
Changing the 12V Battery (page 193).
E.
Engine compartment fuse box. See
Fuses (page 171).
F.
Air filter assembly. See
Changing the Engine Air Filter (page 203).
G.
Automatic transmission dipstick. See Automatic Transmission Fluid Check
(page
190).
H.
Washer fluid reservoir. See
Washer Fluid Check (page 193).
I.
183
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing MaintenanceE173375
Page 187 of 360

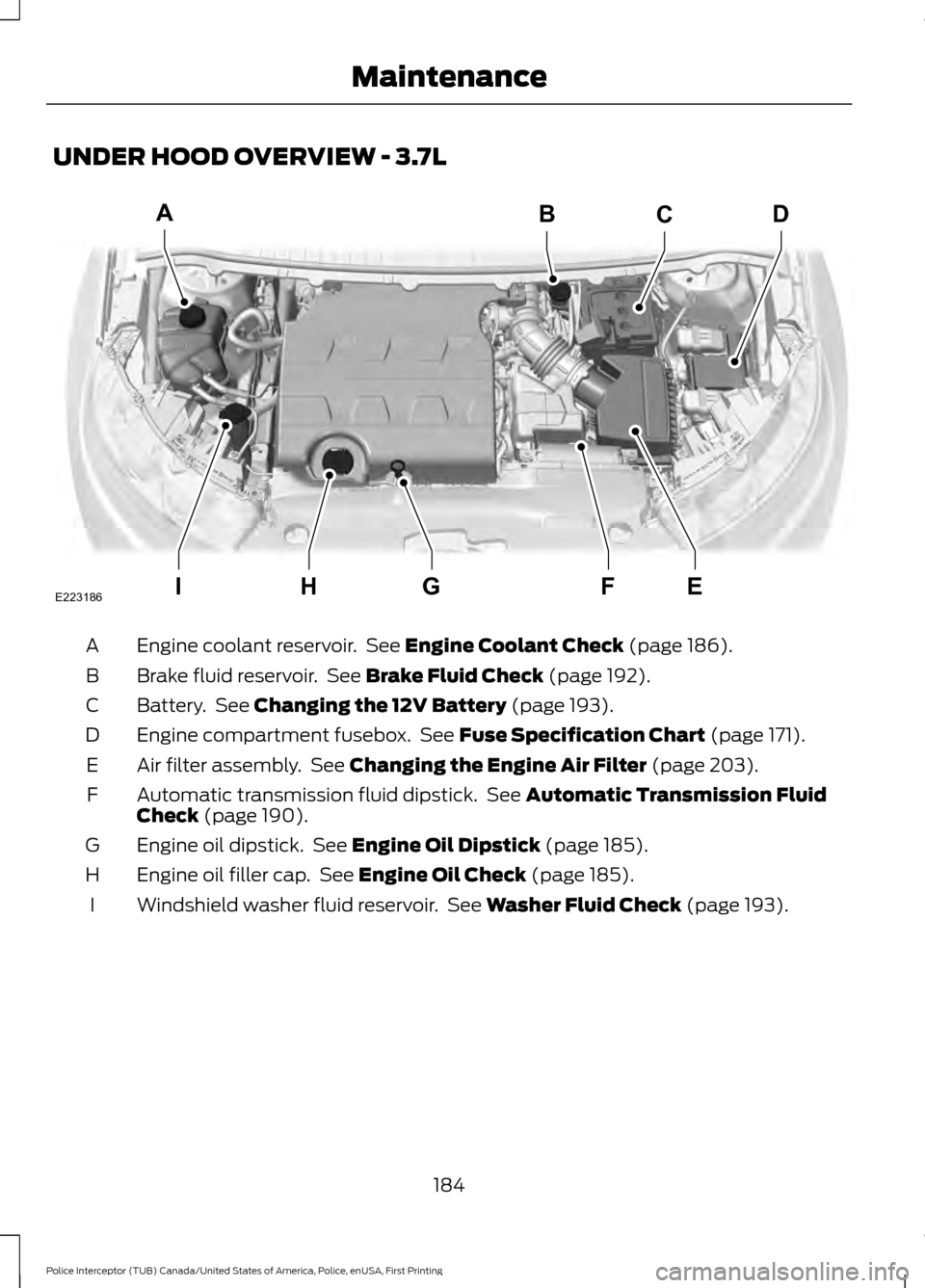

UNDER HOOD OVERVIEW - 3.7L
Engine coolant reservoir. See Engine Coolant Check (page 186).
A
Brake fluid reservoir. See
Brake Fluid Check (page 192).
B
Battery. See
Changing the 12V Battery (page 193).
C
Engine compartment fusebox. See
Fuse Specification Chart (page 171).
D
Air filter assembly. See
Changing the Engine Air Filter (page 203).
E
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 190).
F
Engine oil dipstick. See
Engine Oil Dipstick (page 185).
G
Engine oil filler cap. See
Engine Oil Check (page 185).
H
Windshield washer fluid reservoir. See
Washer Fluid Check (page 193).
I
184
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing MaintenanceIEFGH
ABCD
E223186
