FORD PROBE 1996 2.G Owners Manual

254 [SV36000(ALL)05/95]
thirty-two pica chart:0032190-D
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

255 [SV36200(ALL)05/95]
To remove and replace a fuse, use the fuse
puller provided.
*
[SV37100(ALL)05/95]
quarter page art:0030248-B

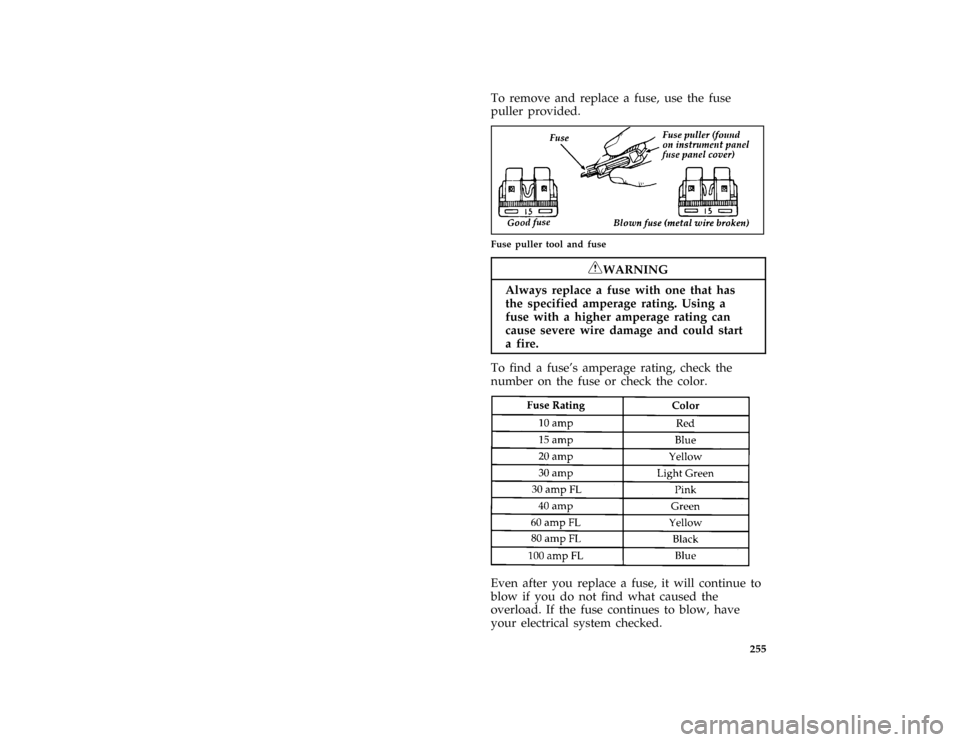

Fuse puller tool and fuse
*
[SV37300(ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[SV37425(ALL)05/95]
To find a fuse's amperage rating, check the
number on the fuse or check the color.
[SV37475(ALL)05/95]
twelve pica chart:0032119-A*
[SV37500(ALL)05/93]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

256
*
[SV38800(ALL)03/95]
Lights and Bulb Replacement
*
[SV38900(ALL)01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV39000(ALL)01/95]
q
headlamps
[SV39050(ALL)05/95]
q
high-mount brakelamp
*
[SV39100(ALL)01/95]
q
tail lamps
*
[SV39200(ALL)01/95]
q
brakelamps
*
[SV39300(ALL)01/95]
q
hazard flasher
*
[SV39400(ALL)01/95]
q
turn signals
*
[SV39500(ALL)01/95]
q
side markers
*
[SV39600(ALL)01/95]
q
license plate lamp
[SV39700(ALL)01/89]
q
fog lamps (GT model)
%*
[SV39800(ALL)01/95]
The alignment of your headlamps should be
checked if:
*
[SV39900(ALL)01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV40000(ALL)01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV40100(ALL)01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
*
[SV40200(ALL)03/95]
Headlamp Bulb
[SV40300(ALL)03/94]
Your vehicle has retractable halogen headlamps.
If you need to replace a headlamp, have it done
by a Ford service technician.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

257 [SV42000(ALL)01/95]
High-Mount Brakelamp Bulb
[SV42050(ALL)02/89]
To replace the bulb:
[SV42200(ALL)02/92]
1. Remove the two side trim liftgate panels.
[SV42300(ALL)02/92]
2. Remove the liftgate trim clip and the liftgate
trim.
[SV42400(ALL)02/92]
3. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
[SV42500(ALL)02/92]
4. Install the bulb by pushing straight into the
lamp socket and turning it clockwise until it
locks in place.
[SV42600(ALL)02/92]
5. Replace the liftgate trim and trim clip.
[SV42700(ALL)02/92]
6. Replace the two side trim liftgate panels.
[SV42800(ALL)04/93]
one third page art:0032061-B

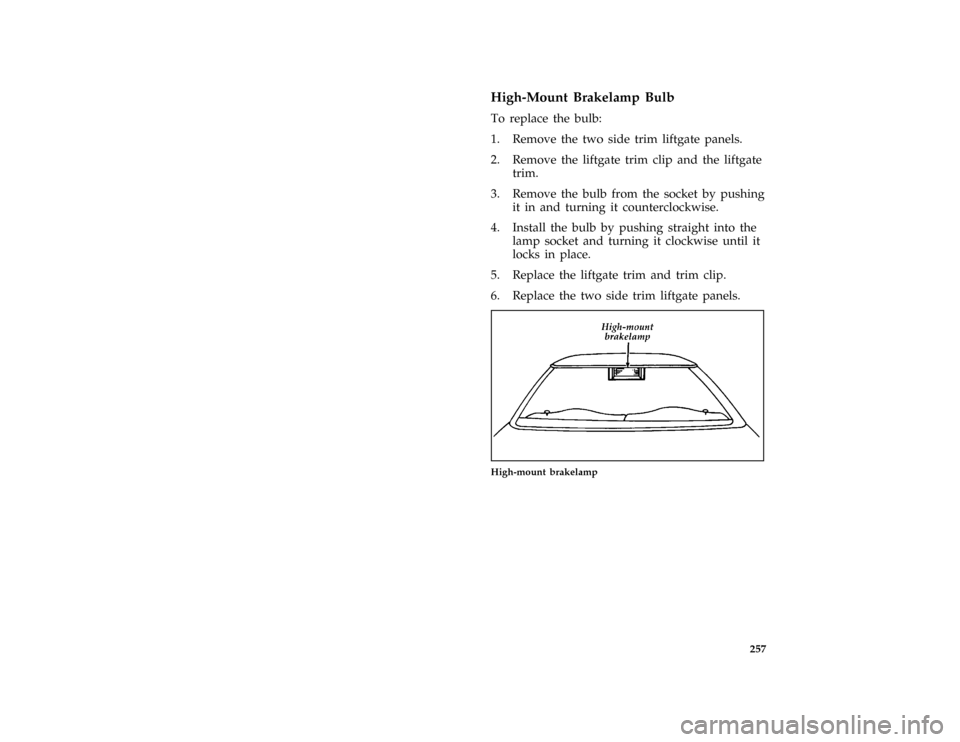

High-mount brakelamp
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

258 [SV42900(ALL)01/95]Rear Lamp Bulbs
[SV43000(ALL)04/93]
To replace a bulb:
[SV43100(ALL)04/93]
1. Remove the attaching screw and the rear
lens cover.
[SV43200(ALL)04/93]
one third page art:0032120-A
Removing the attaching screw and lens
[SV43300(ALL)04/93]
2. Partially remove the rear lens by pulling the
lock tabs out of the slots.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

259 [SV43400(ALL)03/94]
half page art:0032121-C

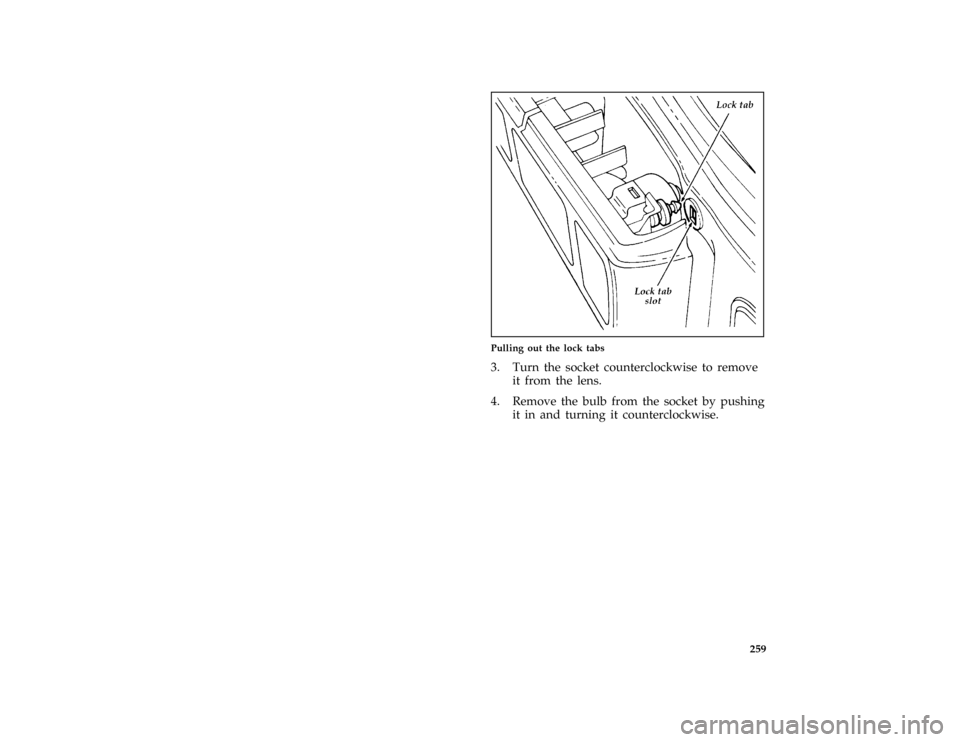

Pulling out the lock tabs
[SV43500(ALL)04/93]
3. Turn the socket counterclockwise to remove
it from the lens.
[SV43600(ALL)04/93]
4. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

260 [SV43700(ALL)04/93]

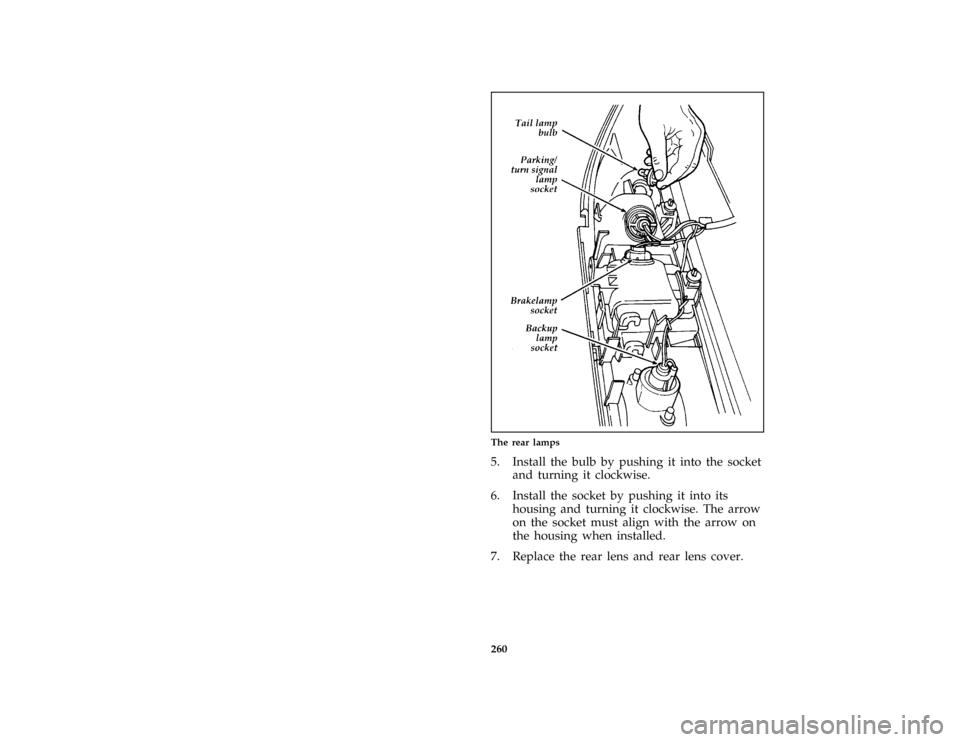

two third page art:0032122-AThe rear lamps
[SV43800(ALL)04/93]
5. Install the bulb by pushing it into the socket
and turning it clockwise.
[SV43900(ALL)04/93]
6. Install the socket by pushing it into its
housing and turning it clockwise. The arrow
on the socket must align with the arrow on
the housing when installed.
[SV44000(ALL)04/93]
7. Replace the rear lens and rear lens cover.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

261
*
[SV47200(ALL)03/95]

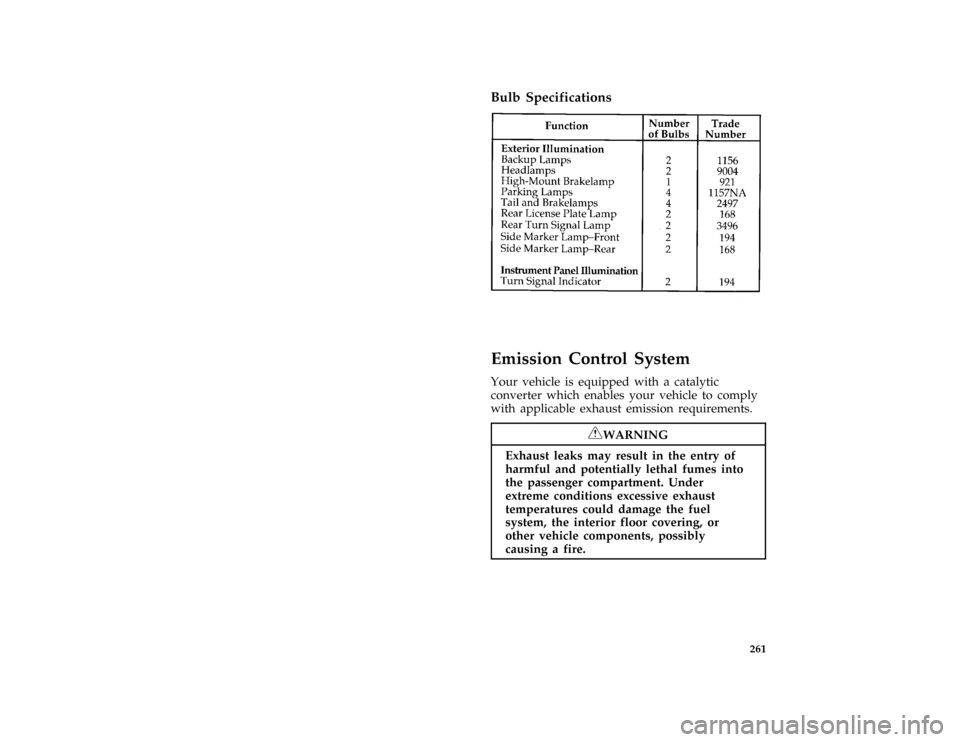

Bulb Specifications
[SV47300(ALL)05/93]
sixteen pica chart:0030275-G*
[SV47600(ALL)03/95]
Emission Control System
*
[SV47700(ALL)05/95]
Your vehicle is equipped with a catalytic
converter which enables your vehicle to comply
with applicable exhaust emission requirements.
*
[SV47750(ALL)05/95]
RWARNING
Exhaust leaks may result in the entry of
harmful and potentially lethal fumes into
the passenger compartment. Under
extreme conditions excessive exhaust
temperatures could damage the fuel
system, the interior floor covering, or
other vehicle components, possibly
causing a fire.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

262
*
[SV47800(ALL)05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV47900(ALL)01/95]
q
Use only unleaded fuel.
*
[SV48000(ALL)01/95]
q
Avoid running out of fuel.
*
[SV48100(ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV48150(ALL)01/95]
q
Do not push start your vehicle.
*
[SV48200(ALL)03/95]
q
Have the services listed in yourMaintenance
Schedule and Recordbooklet performed
according to the specified schedule.
*
[SV48300(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV48400(ALL)05/95]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
*
[SV48500(ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
%*
[SV48550(ALL)05/95]
In general, maintenance, replacement, or service
of the emission control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those with which your vehicle or engine was
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

263
originally equipped. If other than Ford or
Motorcraft or Ford authorized remanufactured
parts are used for maintenance, replacement, or
for the service of components affecting emission
control, the owner should be assured that such
parts are warranted by their manufacturer to be
equivalent to genuine Ford Motor Company
parts in performance and durability. Please
consult your warranty information booklet for
complete warranty information.
*
[SV48600(ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
*
[SV48700(ALL)02/92]
Never use a metal exhaust collector when you
service your vehicle. If the metal collector
contacts any of your vehicle's plastic trim or
bumper parts they could melt or deform.
*
[SV48800(ALL)01/95]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[SV48810(ALL)05/95]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
