FORD RANGER 1996 2.G Owners Manual

Features
121
[FV48000(ALL)10/94]
To inflate the lumbar support pad, push the ª+º end of the rear
rocker switch. To deflate the lumbar support pad, push the ªsº
end of the switch.
[FV48300(ALL)08/94]
10-1/2 pica
art:0021169-C
Power lumbar and side bolsters switch Ð sport bucket seat
%*
[FV48310(ALL)04/95]
Cleaning the Seats
%*
[FV48315(ALL)04/95]
Fabric
*
[FV48320(ALL)05/95]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[FV48325(ALL)09/95]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

122
%*
[FV50000(ALL)01/95]
Mirrors
%*
[FV54500(ALL)08/91]
Dual Electric Remote Control Mirrors (If equipped)
*
[FV54600(ALL)08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(ALL)01/95]1.
Find the control switch in the driver's door panel.
[FV55000(ALL)10/94]2.
Select the right or left mirror by moving the selector switch
to the right or left.
*
[FV55200(ALL)01/89]3.
Move the control knob in the direction you want to move
the mirror.
*
[FV55400(ALL)06/94]4.
Return the selector switch to the middle position to keep the
mirror in place.
[FV55500(ALL)04/95]
7-1/2 pica art:0090159-A
Power mirror control
*
[FV55900(ALL)12/91]
Do not clean the plastic housing of any electric mirror with
gasoline or other petroleum-based cleaning products.
*
[FV55950(ALL)05/95]
RWARNING
The side view mirror on the right makes objects appear
smaller and farther away than they actually are.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
123
[FV59400(ALL)08/94]
Console (If equipped)
*
[FV59500(ALL)12/91]
Your vehicle may have a full console. The full console has the
features shown in the illustration below.
[FV59700(ALL)07/95]
17-1/2 pica
art:0090211-A
The features on the console Ð bucket seats
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

124
[FV59800(ALL)04/94]
17-1/2 pica
art:0020896-C
Storage armrest Ð 60/40 split bench
[FV66700(R )08/95]
Floor Mounted Cupholders (If equipped)
[FV66900(R )08/94]
If your vehicle has a bench seat, you may have floor mounted
cupholders. On manual transmission vehicles, the cupholders are
located on the floor on either side of the gearshift lever. On
automatic transmission vehicles a removable consolette is
located on the floor. The consolette may be removed when the
center bench seat position is occupied.
[FV67000(R )09/92]
The inside of the cupholders can be adjusted to various heights
to accommodate different size cups. They can also be removed
to allow access and cleaning of the rubber padding at the
bottom of the cupholder.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
125
[FV67200(R )10/94]
10-1/2 pica
art:0020897-D
Floor mounted cupholders Ð manual transmission
[FV67300(R )04/94]
17-1/2 pica
art:0020962-B
Floor mounted cupholders Ð automatic transmission
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

126
[FV67400(R )06/94]
To remove the automatic transmission consolette:
[FV67500(R )09/92]1.
Pull the adjustable portion of each cupholder from the
consolette.
[FV67600(R )09/92]2.
Remove the rubber pad at the bottom of each cupholder.
[FV67700(R )09/92]3.
Using a quarter, turn the slotted head at the bottom of each
cupholder 90Ê (one quarter turn).
[FV67800(R )09/92]4.
Lift the consolette from the floor and secure it in a safe
place.
%*
[FV69900(ALL)03/95]

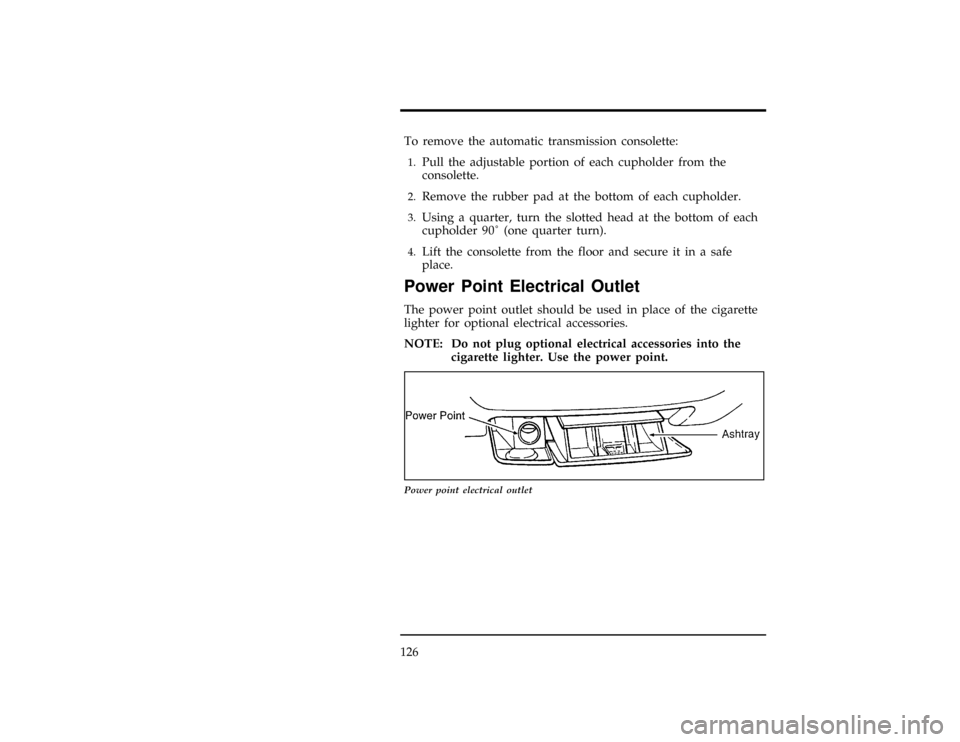

Power Point Electrical Outlet
[FV70000(ALL)08/94]
The power point outlet should be used in place of the cigarette
lighter for optional electrical accessories.
[FV70100(ALL)09/95]
NOTE: Do not plug optional electrical accessories into the
cigarette lighter. Use the power point.
[FV70200(ALL)10/94]
7-1/2 pica art:0020260-E
Power point electrical outlet
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

127
Electronic Sound Systems
[AS29210(ALL)05/95]
33-1/2 pica
art:0060681-A

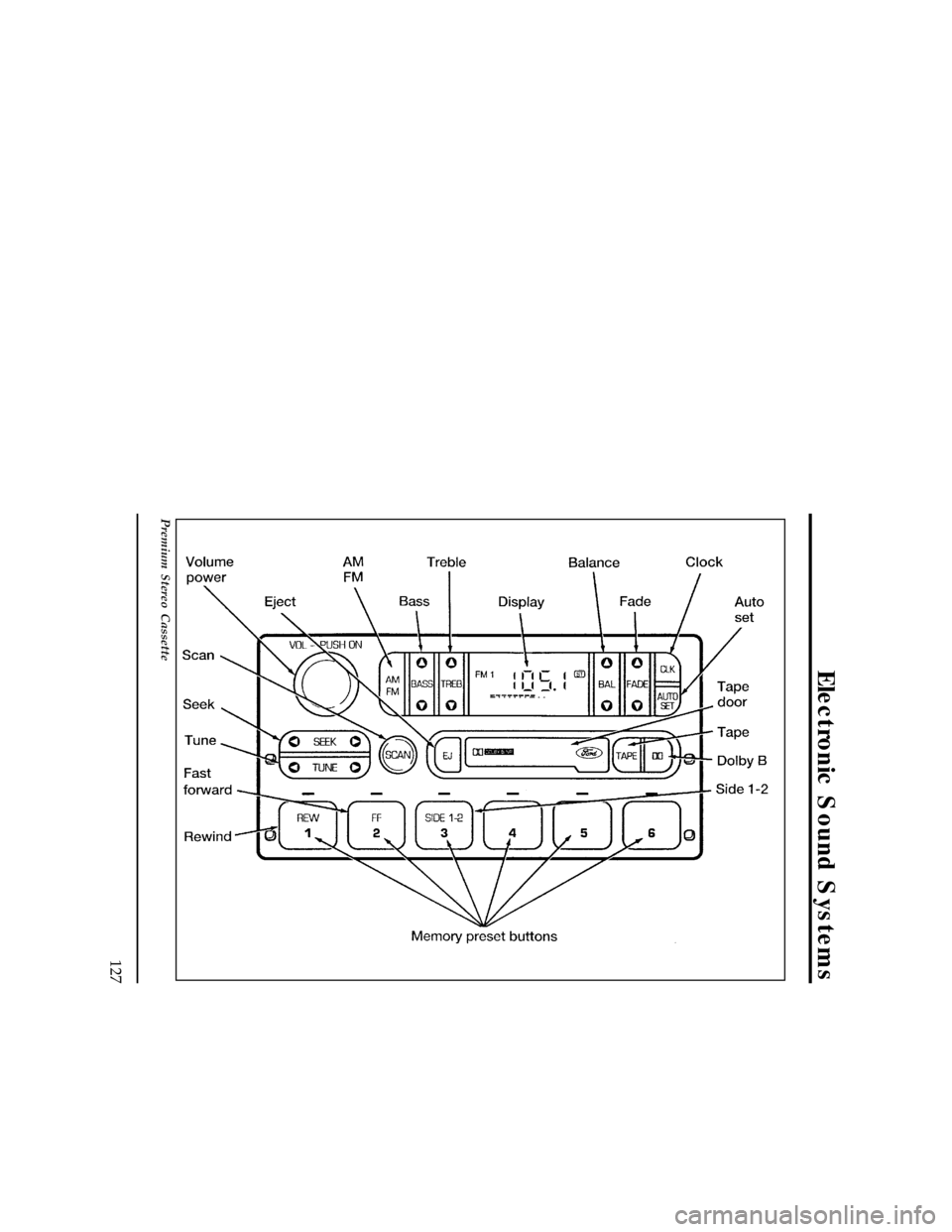

Premium Stereo Cassette
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

128
[AS29215(ALL)09/94]
33-1/2 pica
art:0060682-A

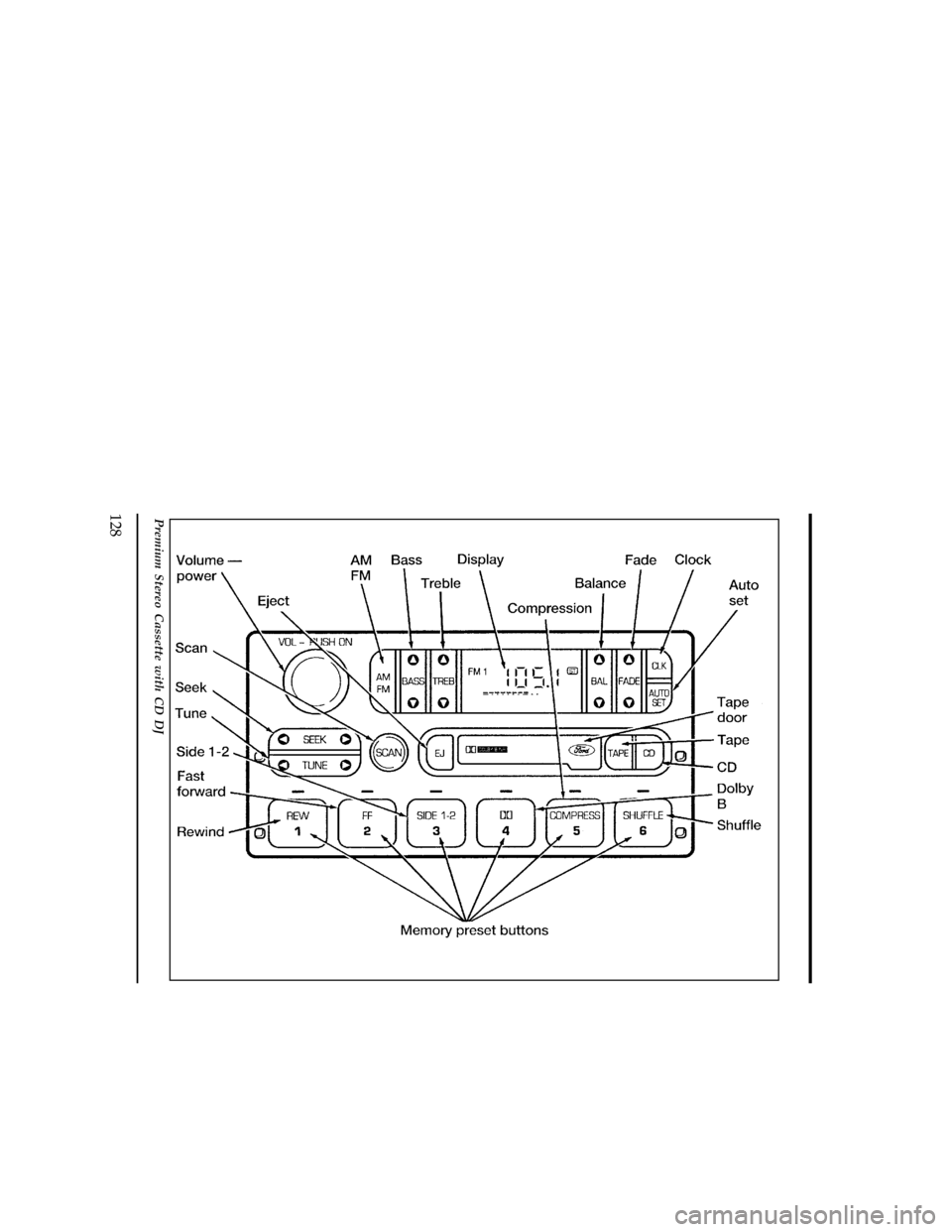

Premium Stereo Cassette with CD DJ
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

Electronic Sound Systems
129
%*
[AS29217(ALL)08/94]
Premium Stereo Cassette and Stereo
Cassette with CD DJ
*
[AS29220(ALL)08/95]
Using the Controls on Your New Radio
*
[AS29225(ALL)10/95]
How to turn the radio on and off
*
[AS29230(ALL)01/95]
Press the ªVOL/PUSHº knob to turn the radio on. Press again
to turn it off.
*
[AS29235(ALL)10/95]
How to adjust the volume
[AS29240(ALL)06/95]
Turn the ªVOL/PUSHº knob clockwise to increase the volume
and counterclockwise to decrease the volume. Bars illuminate in
the display to show relative volume level.
*
[AS29245(ALL)10/95]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off, the volume will remain
in the position it was set at when radio power was
switched off.
*
[AS29250(ALL)10/95]
Selecting the AM or FM frequency band
*
[AS29255(ALL)02/95]
Push the ªAM/FMº button to select the desired frequency band
or to stop/store cassette tape (when in cassette mode). Pushing
the button more than once will alternate between AM, FM1 and
FM2. These functions are used with the station memory buttons
described underHow to tune radio stations.
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

130
%*
[AS29260(ALL)10/95]
How to tune radio stations
[AS29265(ALL)10/94]
There are four ways for you to tune in a particular station. You
can use the ªTUNEº, ªSEEKº, ªSCANº or the memory buttons.
*
[AS29270(ALL)09/95]
n
Using the ªTUNEº function
[AS29275(ALL)03/95]
You can change the frequency up or down one increment at
a time by pressing and releasing either the left (
b) or right
(
a) side of the ªTUNEº button. To change frequencies
quickly, press and hold down either the right or left side of
the button.
*
[AS29280(ALL)10/95]
Manual tuning adjusts your radio to any allowable broadcast
frequency, whether or not a station is present on that
frequency. (SeeAll About Radio Frequenciesin this section.)
*
[AS29285(ALL)10/95]
n
Using the ªSEEKº function
[AS29290(ALL)09/94]
This feature on your radio allows you to automatically select
listenable stations up or down the frequency band. Press the
right (
a) side of the ªSEEKº button to select the next
listenable station up the frequency band. Press the left (
b)
side of the button to select the next listenable station down
the frequency band. By pressing and holding the button,
listenable stations can be passed over to reach the desired
station.
*
[AS29295(ALL)01/95]
n
Using the ªSCANº function
*
[AS29305(ALL)04/95]
Pressing the ªSCANº button will begin the scan mode up
the frequency band, stopping on each listenable station for
approximately five seconds.
*
[AS29310(ALL)02/95]
To stop the scan mode on the presently sampled station,
press the ªSCANº button again.
